How to Fix Tile Layout Mistakes Before Installing Tiles: Practical ways to correct uneven tile grids, bad edge cuts, and off‑center layouts before you commit to mortar

Direct Answer

The best way to fix tile layout mistakes before installing tiles is to correct the grid during the dry layout stage. Adjust reference lines, rebalance edge cuts, and re‑center the layout so no edge tile is too small or visually uneven. Most problems can be fixed in minutes before mortar is mixed—but become expensive once installation starts.

Quick Takeaways

1. Never start tiling until dry layout lines create balanced edge cuts on all sides.
2. Edge tiles smaller than half a tile usually signal a layout problem.
3. Walls are rarely square, so layouts should follow the room center—not the wall.
4. Restarting the grid is often faster than trying to force a flawed layout.
5. Dry fitting tiles reveals spacing and visual alignment issues early.

Introduction

After working on residential tile projects for more than a decade, I can tell you that most installation problems don't come from bad tile work—they come from bad planning. The moment installers rush through the layout stage, mistakes show up later as awkward cuts, crooked grout lines, or floors that simply look "off."

If you're trying to fix tile layout mistakes before installing, the good news is that nearly all layout problems can be corrected during dry fitting. That stage exists for exactly this reason. Unfortunately, DIY installers often skip it or only check one direction of the room.

In professional projects, we often visualize layouts first using planning tools or digital mockups before even snapping chalk lines. If you're unsure about spacing or alignment, it's worth previewing the room using tools designed to visualize floor tile layouts before installation begins. Seeing the layout from above usually exposes problems immediately.

In this guide, I'll walk through the most common tile layout errors, how to spot them during dry fitting, and the fastest ways to correct them before tile adhesive ever touches the floor.

save pin

Common Tile Layout Mistakes DIY Installers Make

Key Insight: Most tile layout problems happen because installers prioritize starting against a wall instead of centering the layout within the room.

Walls in real homes are rarely straight or perfectly square. When tile installation begins along one wall, the error compounds across the entire room. By the time you reach the opposite wall, the cuts are often tiny slivers or visibly uneven.

Common mistakes I see during site inspections:

1. Starting the grid from a wall instead of the room center
2. Edge cuts smaller than 1/3 of a tile
3. Ignoring grout joint width during dry layout
4. Following crooked walls instead of reference lines
5. Not checking both directions of the grid

A practical rule many professional installers follow:

1. Edge tiles should ideally be larger than half a tile
2. Opposite edges should have similar cut sizes
3. Main sight lines (doorways and hall entries) should show full or balanced tiles

These visual rules matter more than mathematical symmetry.

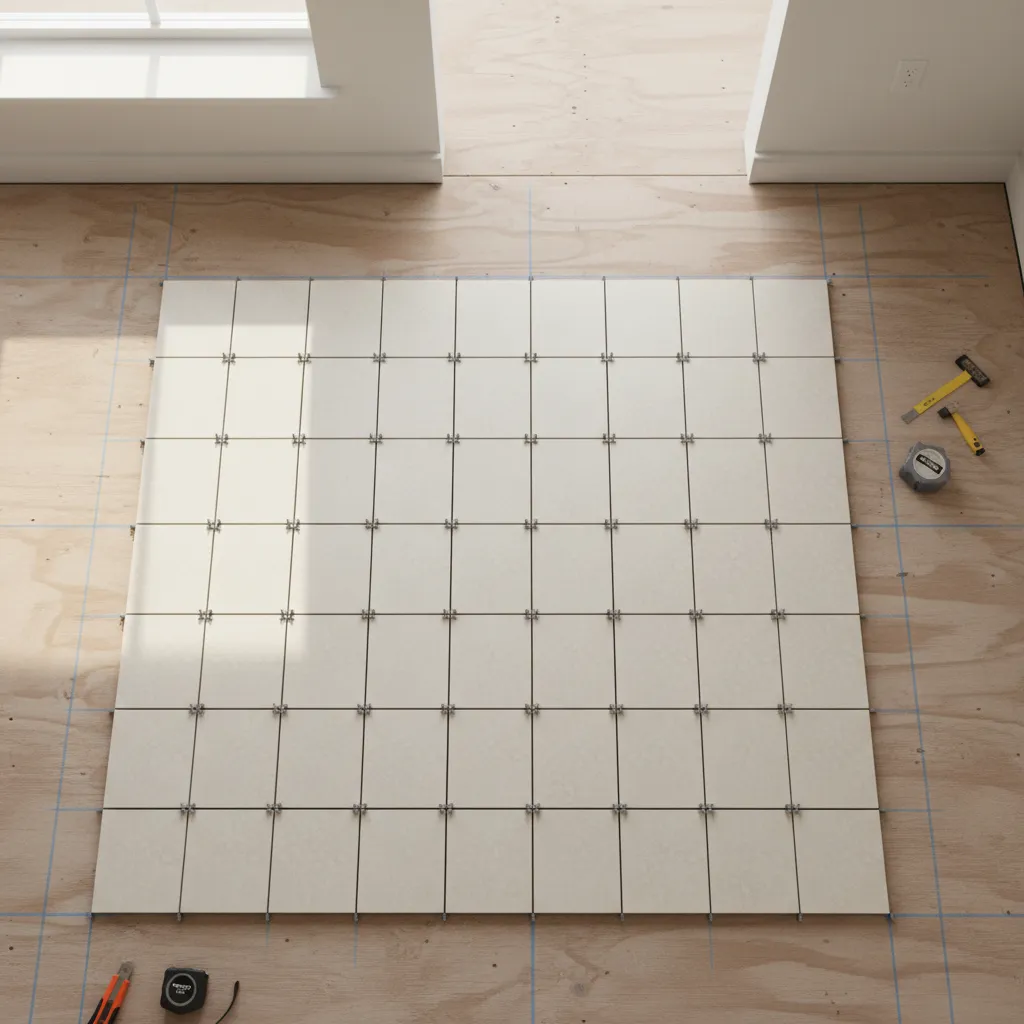

How to Detect Layout Problems During Dry Fitting

Key Insight: Dry fitting tiles across both room directions immediately exposes layout mistakes before any adhesive is applied.

Dry layout means placing tiles across the floor without mortar to simulate the final pattern. It's one of the most powerful troubleshooting steps—and surprisingly underused by beginners.

Steps professionals use during dry layout:

1. Snap two perpendicular chalk lines through the room center.
2. Place tiles along both lines including grout spacers.
3. Extend the tiles outward toward each wall.
4. Measure edge tile sizes on all sides.

Red flags to watch for:

1. One wall ends with a 1" strip of tile
2. Opposite edges have drastically different cut sizes
3. Tiles look crooked relative to the doorway

When layouts feel confusing, many installers preview the room digitally to test grid positions. Tools that create accurate floor plan layouts for renovation projectscan reveal spacing issues before you move a single tile.

save pin

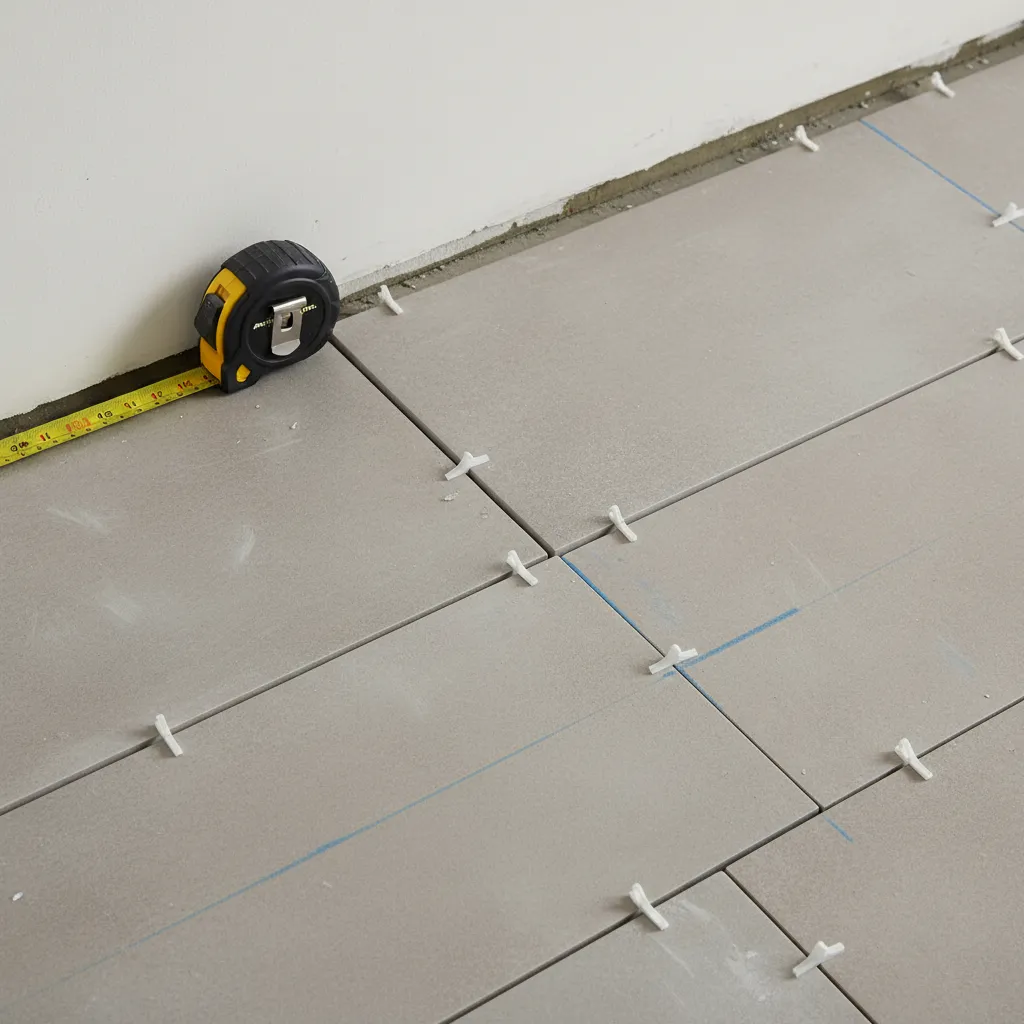

Fixing Uneven Edge Tile Cuts

Key Insight: Uneven edge cuts usually mean the layout grid needs shifting—not trimming.

A common beginner instinct is to simply cut tiles smaller to make them fit. That works technically, but visually it creates a floor that feels misaligned.

The correct fix is shifting the entire layout grid.

Example adjustment process:

1. Measure the smallest edge cut
2. Divide the tile width adjustment across both sides
3. Shift the center reference line slightly
4. Re‑dry‑fit tiles to check new edge sizes

For example:

1. Tile size: 24 inches
2. One edge cut: 2 inches
3. Solution: shift layout by 11 inches

This redistributes cuts so both sides may end up around 13 inches—visually balanced and much easier to install.

save pin

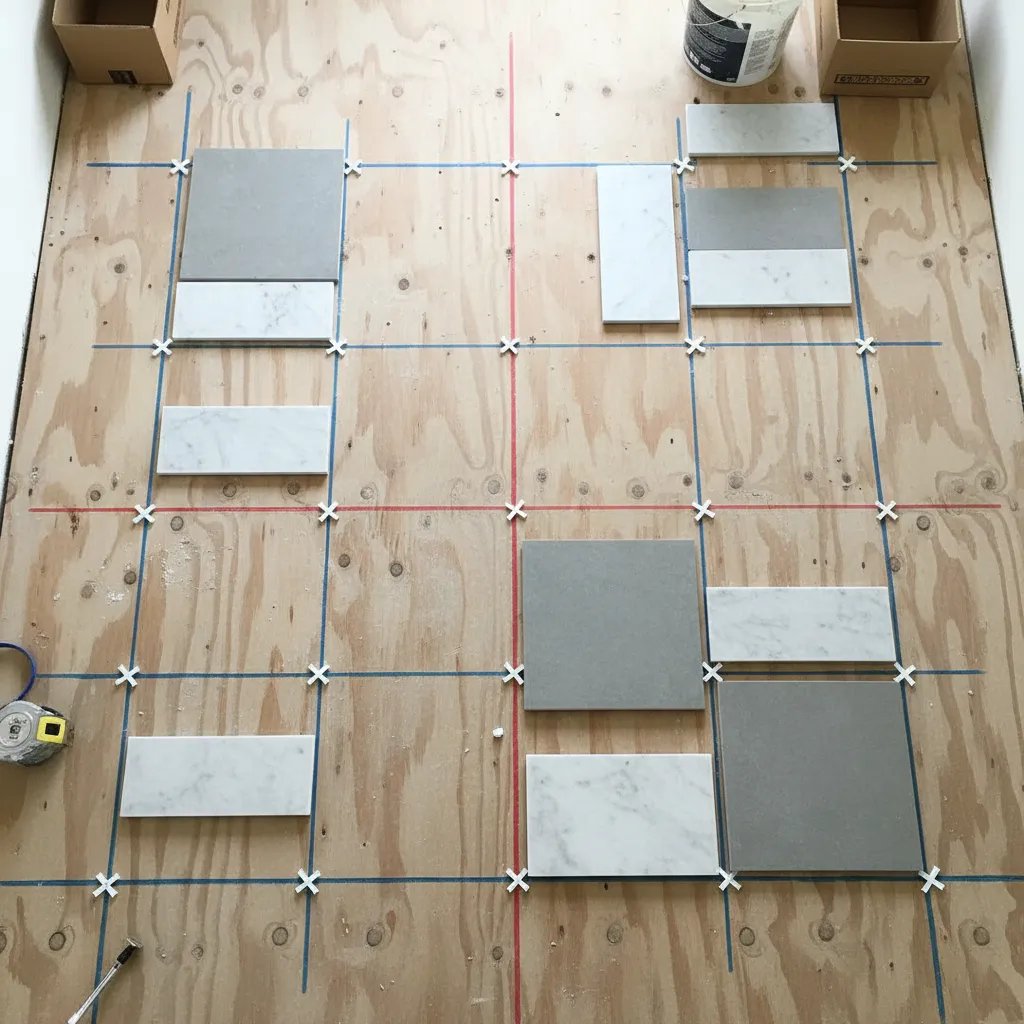

Correcting Misaligned Reference Lines

Key Insight: Crooked grout lines almost always trace back to poorly squared reference lines.

The entire tile layout depends on the first two chalk lines. If they aren't perfectly perpendicular, the grid slowly rotates across the room.

Professional installers usually square lines using the 3‑4‑5 rule.

Steps:

1. Mark 3 feet along the first reference line
2. Mark 4 feet along the perpendicular direction
3. Adjust until the diagonal measures exactly 5 feet

This guarantees a 90‑degree corner.

If your layout still feels visually off, previewing tile directions in a simulated room can help you spot alignment problems earlier. Many designers test these layouts using tools that experiment with room layout adjustments before construction begins.

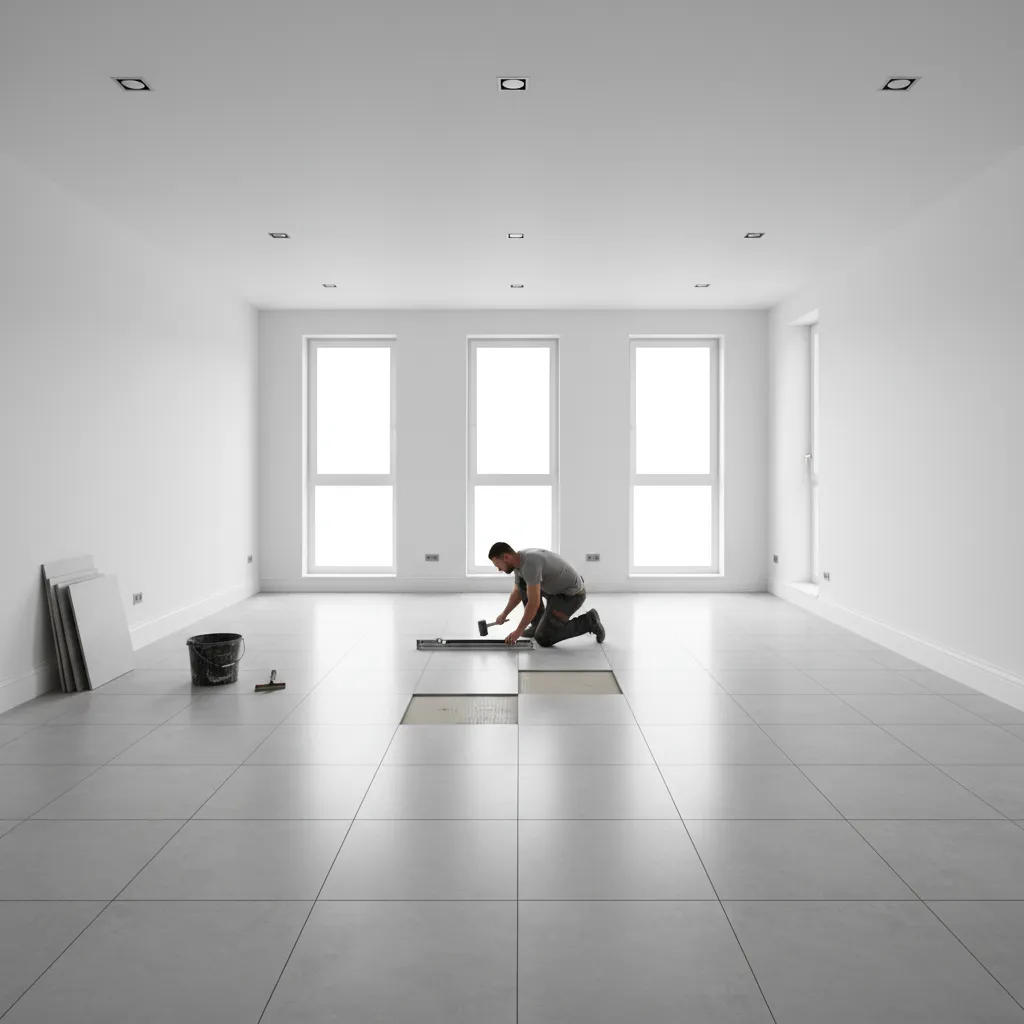

Adjusting Layout When Walls Are Not Square

Key Insight: Tile layouts should prioritize visual balance, not wall alignment.

Most homes—especially older ones—have walls that are slightly angled. If tiles follow the wall exactly, the floor pattern will appear crooked relative to the room.

Instead, installers usually align the tile grid with:

1. Main entry sightline
2. Longest wall axis
3. Center of the room

Common adjustment techniques:

1. Split the room visually down the center
2. Align tile rows with doorway views
3. Hide irregular cuts under baseboards or cabinets

This approach prioritizes what people actually see.

save pin

When to Restart the Tile Layout Grid

Key Insight: Restarting the layout is often faster than trying to correct multiple small mistakes.

If you notice several of these issues during dry fitting, it's usually better to start the grid again:

1. Two or more edges have tiny tile cuts
2. Grout lines don't align through the room
3. The layout looks off from the doorway
4. Tiles meet awkwardly at transitions

Restarting sounds painful, but in reality it may only take 20–30 minutes. Once mortar is mixed, the cost of fixing mistakes increases dramatically.

Answer Box

The fastest way to fix tile layout mistakes before installing tiles is to shift the center reference lines during dry fitting. This redistributes edge cuts and restores visual balance across the room. Correcting the grid early prevents costly reinstallation later.

Final Summary

1. Most tile layout mistakes happen before installation begins.
2. Dry fitting reveals alignment and spacing problems early.
3. Balanced edge cuts matter more than perfect symmetry.
4. Reference lines must be perfectly square.
5. Restarting the layout is sometimes the fastest solution.

FAQ

How do you fix tile layout mistakes before installing?

Shift the reference lines during dry layout so edge tiles are balanced on both sides of the room. This corrects the grid before mortar is applied.

What is the minimum edge tile size recommended?

Most installers try to avoid cuts smaller than half a tile. Smaller pieces are harder to install and visually uneven.

Why does my tile layout look uneven?

This usually happens when the layout starts from a wall instead of the room center, or when reference lines are not square.

Should tile layout follow the wall?

No. Walls are often not perfectly straight. Layout should follow the room center or main sightline.

Can you fix tile layout after starting installation?

Minor alignment adjustments may be possible, but major layout mistakes usually require removing tiles and resetting them.

What causes uneven tile layout lines?

Uneven lines often come from crooked chalk lines, inconsistent spacers, or tiles drifting during installation.

Is dry layout really necessary?

Yes. Dry layout is the easiest way to detect spacing problems and fix tile layout mistakes before installing tiles permanently.

How do professionals center tile layouts?

They measure the room, snap perpendicular chalk lines through the center, then dry‑fit tiles outward to balance the edges.
