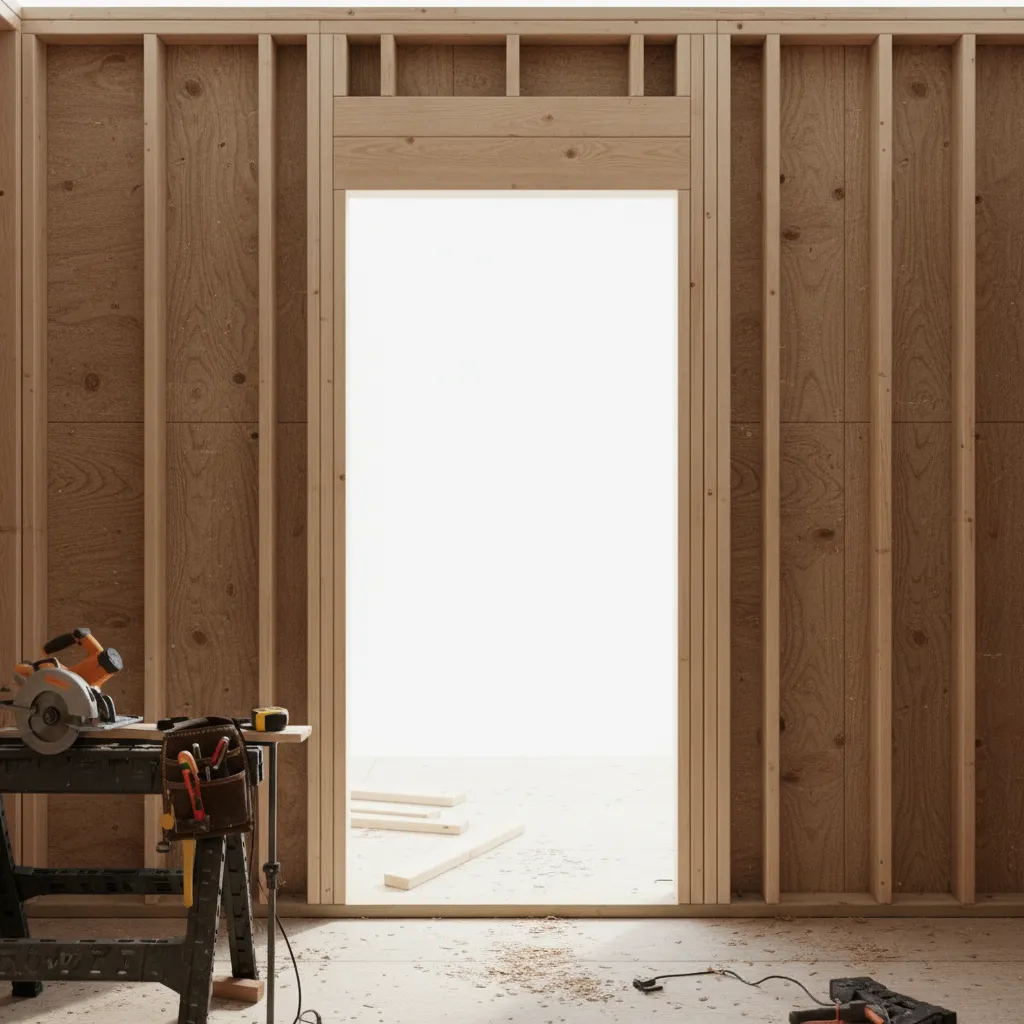

How to Frame a Rough Opening for a 36-Inch Exterior Door Step by Step: A practical framing walkthrough to build the correct rough opening before installing a prehung exterior door.

Direct Answer

To frame a rough opening for a 36-inch exterior door, build an opening that is typically 38 inches wide and about 82.5 inches tall. Install king studs, jack studs, and a properly sized header to support the load above the door. Ensure the frame is level, plumb, and square before installing the prehung door unit.

Quick Takeaways

1. A 36-inch exterior door usually requires a 38-inch wide rough opening.
2. Proper framing includes king studs, jack studs, and a structural header.
3. Level, plumb, and square framing prevents door alignment problems later.
4. Most installation issues come from inaccurate framing, not the door itself.
5. Always verify wall thickness and header load requirements before framing.

Introduction

Framing a rough opening for a 36-inch exterior door sounds simple until you actually start building it. After working on residential interior projects and renovation remodels for more than a decade, I can tell you that many door installation problems start long before the door arrives on site.

Homeowners often assume the door unit is the problem when it sticks, leaks air, or won't close properly. In reality, the rough opening was framed slightly out of square or too tight. Even a quarter-inch error can cause headaches during installation.

One trick I often recommend to DIY renovators is visualizing the door placement before framing. Using a quick digital layout like this visual planning tool for mapping door positions in a floor layouthelps catch spacing issues around entryways, hall transitions, and furniture clearance.

In this guide, I'll walk through the exact framing process professionals use—tools, measurements, stud placement, header installation, and the checks that prevent costly mistakes.

save pin

Tools and Materials Needed for Door Framing

Key Insight: Accurate framing depends less on expensive tools and more on using the right measuring and alignment tools consistently.

I've framed dozens of door openings during remodel projects, and most problems happen because installers rely on eyeballing alignment. Exterior doors require tighter tolerances because weather seals and thresholds must sit correctly.

Essential tools:

1. Tape measure (25 ft)
2. 4 ft level
3. Speed square
4. Framing hammer or nail gun
5. Circular saw or miter saw
6. Framing nails or structural screws
7. Shims
8. Chalk line

Materials required:

1. 2x4 or 2x6 lumber (depending on wall thickness)
2. Header boards (usually doubled 2x6 or 2x8)
3. Plywood spacer for header
4. Construction adhesive (optional but helpful)

According to guidance from the International Residential Code (IRC), load-bearing exterior walls must include structural headers sized for the load above the opening.

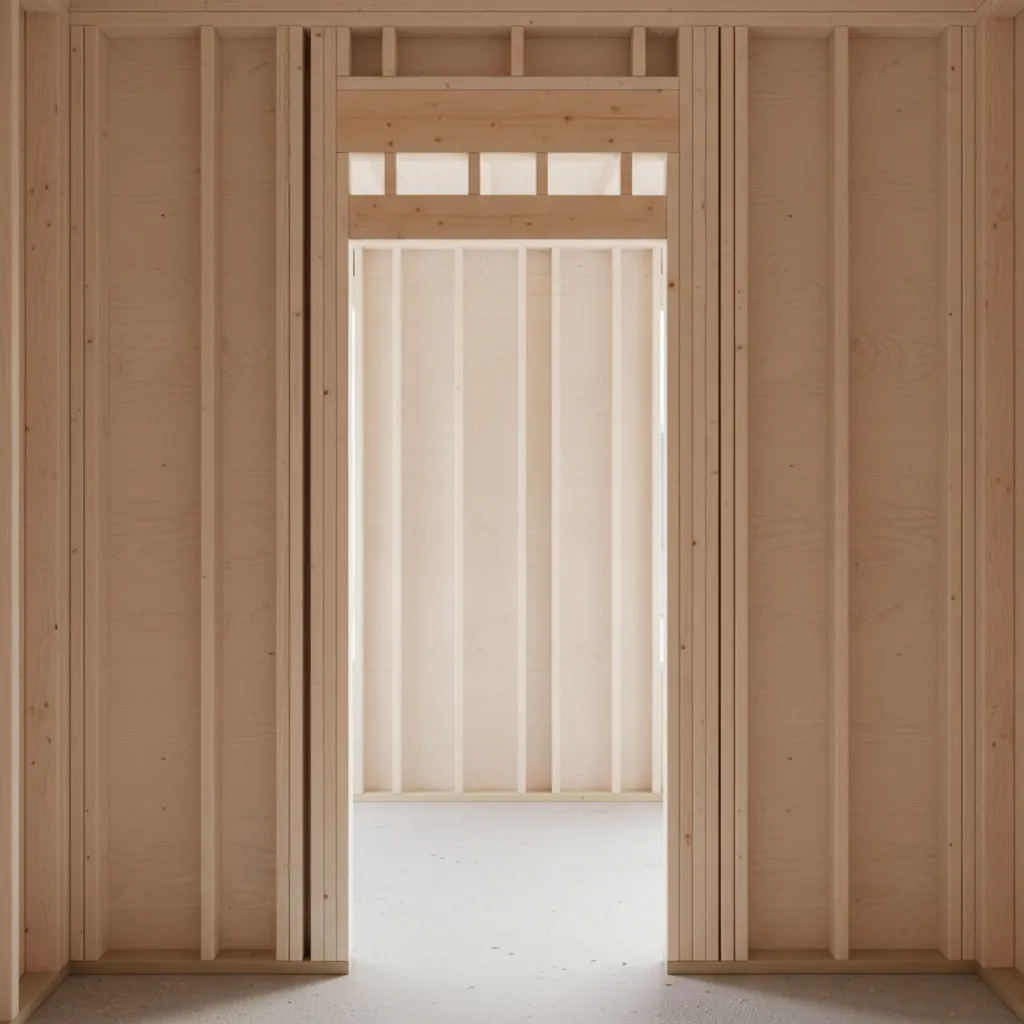

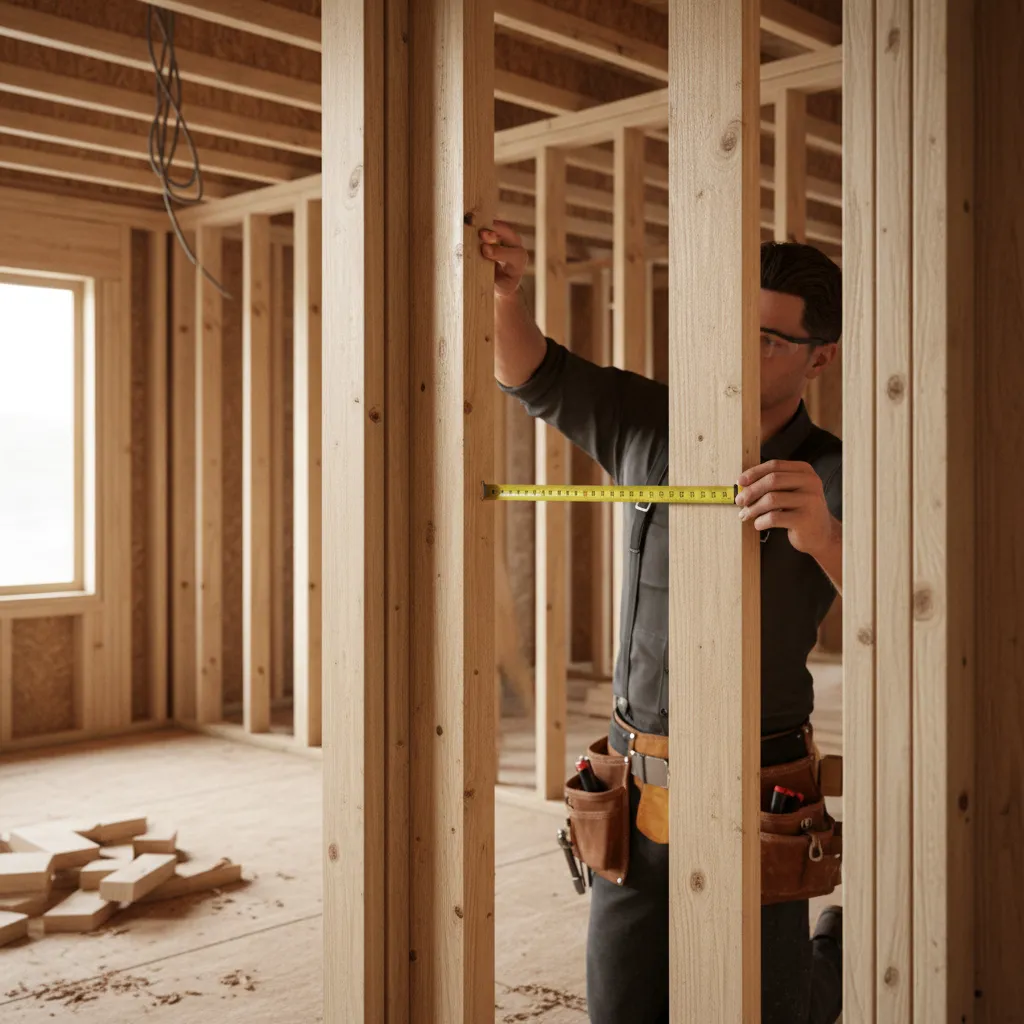

Measuring the Correct Rough Opening Dimensions

Key Insight: A standard 36-inch exterior door needs extra clearance around the frame to allow for shimming and adjustment.

Most prehung 36-inch doors measure about 37.5 inches wide once the frame is included. That means the rough opening must be slightly larger.

Typical rough opening dimensions:

1. Door slab width: 36 inches
2. Rough opening width: 38 inches
3. Door height: 80 inches
4. Rough opening height: about 82.5 inches

Why the extra space?

1. Allows shimming for alignment
2. Accommodates slight lumber variations
3. Prevents the door frame from binding

In renovation projects, I always recommend measuring the actual door unit before framing. Manufacturers sometimes vary by half an inch.

save pin

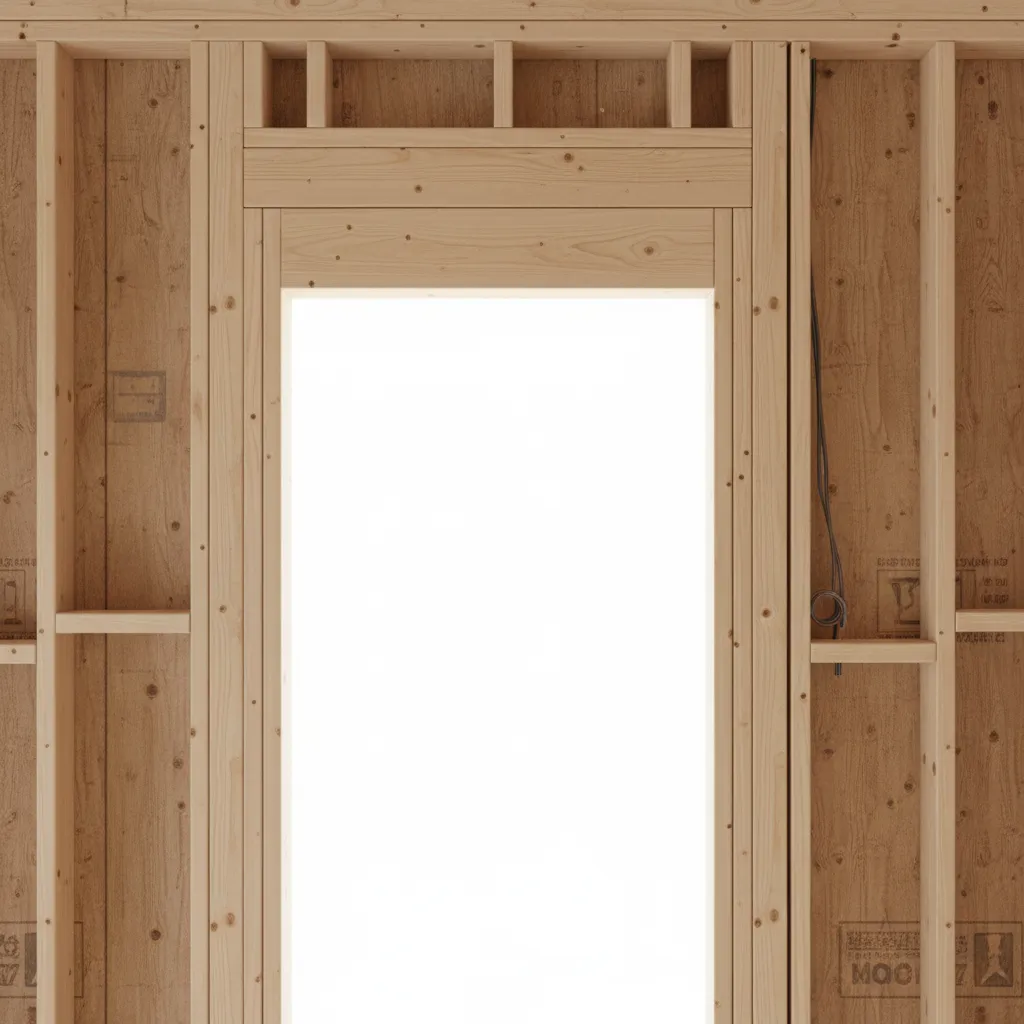

Installing King Studs and Jack Studs

Key Insight: The strength of a door opening comes from the relationship between king studs and jack studs.

This is where many DIY projects go wrong. Some installers try to support the header with only one stud, which compromises structural support.

Correct stud configuration:

1. King studs: Full-height studs running from floor plate to top plate.
2. Jack studs: Shorter studs that support the header.

Installation steps:

1. Install two king studs on each side of the opening.
2. Attach jack studs inside the king studs.
3. Cut jack studs to header height.
4. Nail or screw them together securely.

Professional framing crews often assemble this pair on the floor first, then lift the structure into position.

If you're planning entryway flow or adjusting door placement during renovation, experimenting with layouts using a room layout planning tool to test door swing clearancecan prevent tight hallway or furniture conflicts.

save pin

Setting the Header for a 36-Inch Door

Key Insight: The header distributes structural load above the opening, preventing wall sag over time.

In load-bearing walls, the header is critical. Even when the wall isn't heavily loaded, skipping proper header framing can lead to drywall cracks or door misalignment later.

Typical header build:

1. Two pieces of 2x6 or 2x8 lumber
2. 1/2 inch plywood spacer between them
3. Total thickness matching wall framing

Steps to install the header:

1. Assemble the header boards with nails or screws.
2. Place the header on top of the jack studs.
3. Secure through king studs into the header.
4. Add cripple studs above the header if needed.

Many framing guides overlook one subtle issue: warped lumber. Always sight down your boards before installing them. Even slightly bowed studs can twist the entire opening.

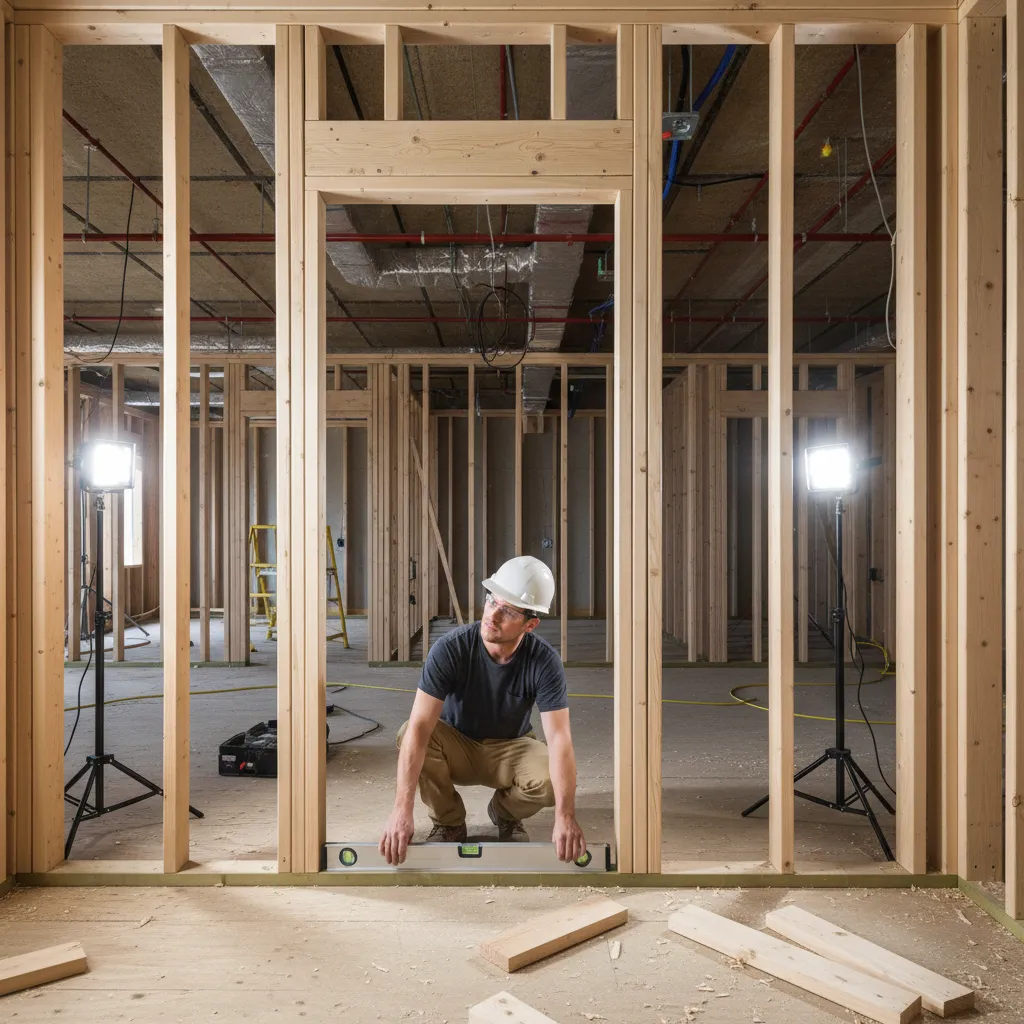

Checking Level, Plumb, and Square

Key Insight: A door opening that is even slightly out of square will cause long-term door performance issues.

Before installing the door, professionals always verify three conditions:

1. Level: horizontal alignment
2. Plumb: vertical alignment
3. Square: equal diagonal measurements

Quick verification method:

1. Place a level along both king studs.
2. Measure diagonals corner to corner.
3. Adjust framing until both measurements match.

According to the National Association of Home Builders, door alignment problems are among the most common framing defects found during residential inspections.

save pin

Answer Box

The correct rough opening for a 36-inch exterior door is typically 38 inches wide and about 82.5 inches tall. Proper framing requires king studs, jack studs, and a structural header, followed by careful checks for level, plumb, and square before door installation.

Preparing the Opening for a Prehung Exterior Door

Key Insight: Even perfectly framed openings still need surface preparation before installing a prehung exterior door.

Before setting the door unit, I always double-check three things that are often skipped in DIY installs.

Preparation checklist:

1. Install flashing tape at the sill
2. Verify subfloor is level
3. Ensure sheathing edges are flush
4. Remove protruding nails
5. Test-fit the door frame

For renovation projects or new builds, it also helps to preview the finished entrance appearance using a realistic home exterior rendering workflow so you can confirm door proportions and surrounding finishes before installation.

Final Summary

1. A 36-inch exterior door typically needs a 38-inch rough opening.
2. King studs and jack studs provide structural support.
3. Headers prevent load stress above door openings.
4. Level, plumb, and square checks prevent installation issues.
5. Proper prep ensures smooth prehung door installation.

FAQ

What size rough opening do I need for a 36-inch exterior door?

Most builders frame a rough opening about 38 inches wide and 82.5 inches tall for a standard 36-inch exterior door.

How much space should be around a door rough opening?

Typically about 1 inch wider and 2 to 2.5 inches taller than the door slab to allow shimming and adjustment.

Can I frame a door opening without jack studs?

No. Jack studs are necessary to support the header and distribute the structural load.

What lumber size is used for door framing?

Most residential walls use 2x4 or 2x6 lumber depending on wall thickness and insulation requirements.

Why is my exterior door sticking after installation?

A rough opening that is out of square or not plumb often causes door binding.

Do all 36-inch doors have the same rough opening?

Not always. Manufacturers may vary slightly, so always check the door specifications.

Is framing a 36 inch door opening difficult for beginners?

It is manageable with basic carpentry tools, but accuracy is critical when measuring and aligning studs.

Can a rough opening for an exterior door be adjusted later?

Yes, but correcting framing after drywall or siding is installed is much more difficult.
