How to Get Existing Building Floor Plans Faster and Cheaper: Practical ways homeowners and designers reduce the time and cost of retrieving or recreating building plans

Direct Answer

The fastest and cheapest way to get existing building floor plans is usually a combination of three sources: local building departments, online property databases, and partial on‑site measurements. In many projects I’ve handled, using available records first and only measuring missing areas can cut both time and cost by more than half compared with full redraws.

Quick Takeaways

1. Municipal building departments often store original plans and can provide them within days.
2. Online property databases sometimes contain scanned plans that eliminate the need for site measurement.
3. Partial measurements dramatically reduce the cost of recreating missing plans.
4. Digital scanning services are fastest but only cost‑effective for complex or large buildings.
5. Combining multiple sources is usually cheaper than relying on a single method.

Introduction

In design projects, getting existing building floor plans is rarely as simple as people expect. Clients often assume the plans are sitting in a drawer somewhere, ready to download. In reality, retrieving or recreating them can take anywhere from a few hours to several weeks depending on the building’s age, local records, and documentation quality.

After working on residential renovations for more than a decade, I’ve noticed the same mistake repeated over and over: people jump straight into expensive measurement or scanning before checking what already exists. In many cases, the fastest solution is simply locating archived documents or partial drawings and then filling in the gaps.

If you're trying to understand the full process of locating archived building plans, this guide on how to recreate missing layouts using a digital floor plan creatorexplains how professionals rebuild layouts when original drawings are incomplete.

Below are the strategies I use in real projects to obtain building floor plans faster and at significantly lower cost.

save pin

Factors That Affect the Cost of Getting Floor Plans

Key Insight: The cost of obtaining building floor plans is driven primarily by documentation availability and measurement complexity.

Before choosing a method, you need to understand what actually determines the price. In my experience, most homeowners underestimate how much building age and renovation history affect plan availability.

Three factors usually determine cost:

1. Building age – Older homes often have incomplete or missing records.
2. Previous renovations – Modifications may invalidate archived plans.
3. Building size and layout complexity – Irregular structures require more measurement time.

For example, a standard suburban home built after 2000 often has digital permit records that include basic plans. A house built in the 1950s usually requires partial reconstruction.

According to guidance from the American Institute of Architects, documentation quality is one of the biggest variables influencing architectural survey cost.

Fastest Ways to Retrieve Plans From Local Authorities

Key Insight: Local building departments are still the fastest legitimate source of original floor plans for many properties.

Many municipalities store building permit records that include floor plans submitted during construction. Surprisingly, these archives are often underused because people assume they’re difficult to access.

Typical retrieval process:

1. Contact the city building department or planning office.
2. Provide property address or parcel number.
3. Request archived building permit drawings.
4. Pay small reproduction or scanning fees.

Turnaround times vary. Some cities provide digital files within 24–48 hours, while others require in‑person archive access.

In several renovation projects I’ve handled in California, retrieving permit drawings from the city archive cost under $50 and saved multiple days of measuring.

save pin

When to Use Online Property Databases

Key Insight: Online property databases can occasionally provide usable layout information faster than government records.

These platforms aggregate real estate listings, appraisal records, and past sales documents. While they rarely include full construction drawings, they sometimes contain simplified floor plans from previous listings.

Situations where online records help most:

1. Homes sold within the past 10–15 years
2. Large apartment complexes
3. Newer suburban developments
4. Properties marketed with digital floor plans

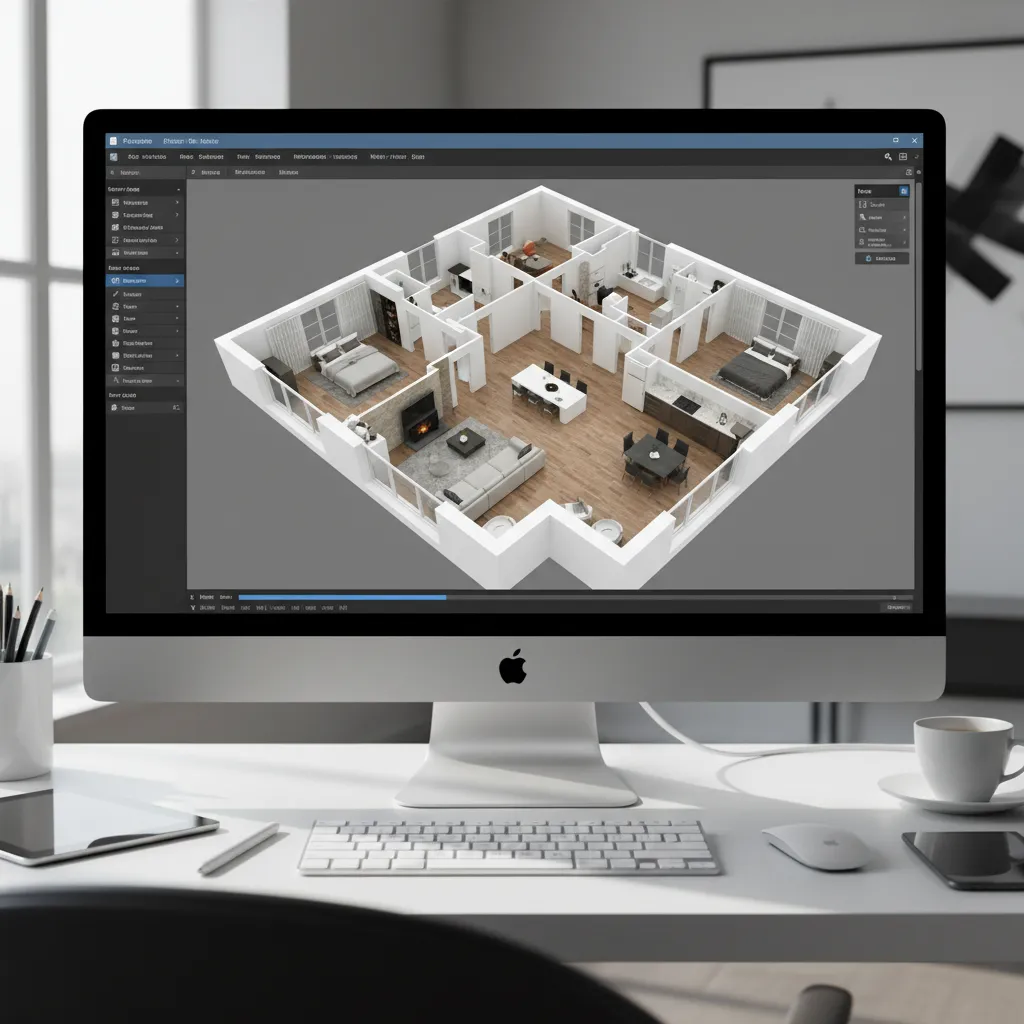

When partial layouts are available, designers can use them as a base reference and refine measurements digitally using tools like a professional 3D layout planning workflow for existing homes.

This hybrid approach often cuts the time required to recreate floor plans by several hours.

Reducing Costs With Partial Measurements

Key Insight: Measuring only missing sections of a building is often the most cost‑effective way to recreate floor plans.

This is one of the biggest cost-saving tricks professionals use. Instead of surveying the entire house, we start with any available drawing and only verify or measure areas that appear inconsistent.

Typical partial-measurement workflow:

1. Import existing sketch or archived plan
2. Identify missing walls or inaccurate dimensions
3. Measure only those sections on site
4. Update the digital floor plan

This technique works particularly well for rectangular homes where most wall locations remain unchanged.

In practice, I’ve seen measurement time drop from four hours to less than ninety minutes using this method.

save pin

Using Digital Scanning Services Efficiently

Key Insight: 3D scanning services are the fastest option but only make financial sense for complex or large buildings.

Laser scanning and LiDAR surveys create extremely accurate digital models of buildings. The downside is cost. Professional scans can range from a few hundred to several thousand dollars depending on size.

Scanning makes the most sense for:

1. Large commercial spaces
2. Irregular architecture
3. Historic buildings with complex geometry
4. Projects requiring highly accurate as‑built drawings

For typical houses under 2,500 square feet, traditional measurement combined with digital reconstruction is usually cheaper.

Choosing the Most Cost Effective Option

Key Insight: The cheapest strategy is almost always a layered approach: archives first, databases second, measurement last.

Here’s the decision framework I typically recommend to clients:

1. Step 1: Check city permit archives
2. Step 2: Search property listing records
3. Step 3: Rebuild the layout digitally
4. Step 4: Measure missing dimensions
5. Step 5: Use scanning only if accuracy demands it

If you're planning to digitize existing layouts after retrieving basic drawings, this guide on turning rough building measurements into accurate digital floor planswalks through the workflow designers commonly use.

Combining these steps typically reduces both turnaround time and project cost while still producing accurate plans suitable for renovation or design work.

save pin

Answer Box

The fastest way to obtain existing building floor plans is to check municipal archives first, use online property records second, and measure only missing sections. This hybrid strategy minimizes cost while maintaining reliable layout accuracy.

Final Summary

1. City building departments are often the fastest source of original plans.
2. Online property databases sometimes provide usable layout references.
3. Partial measurements dramatically reduce surveying time.
4. 3D scanning is best reserved for complex buildings.
5. Combining multiple sources is usually the cheapest approach.

FAQ

What is the cheapest way to get house floor plans?

The cheapest way is usually requesting archived plans from the local building department. Many cities provide copies for small administrative fees.

How long does it take to obtain building floor plans?

It can take anywhere from a few hours to several weeks depending on archive availability and whether the plans must be recreated.

Can I find building blueprints online?

Sometimes. Real estate listings and property databases occasionally include simplified floor plans from previous sales.

How much does it cost to recreate floor plans for a house?

Costs vary widely. Basic measurement and digital redraws can range from a few hundred dollars to over a thousand depending on complexity.

Are floor plans required for renovations?

Yes. Many renovation permits require existing floor plans to verify structural changes and code compliance.

Do architects always measure the entire house?

No. Professionals often measure only missing sections when partial plans already exist.

What is the fastest way to obtain building blueprints?

The fastest method is retrieving archived permit drawings from the local building department if records are available.

Are affordable floor plan scanning services available?

Yes, but they are usually more economical for large or complex buildings rather than typical homes.
