How to Improve Accuracy When Drawing 2D Floor Plans in Feet and Inches: Practical drafting habits and measurement techniques designers use to create precise floor plans using imperial units.

Direct Answer

To improve accuracy when drawing 2D floor plans in feet and inches, use a consistent architectural scale, measure spaces in a logical sequence, verify proportions before adding dimensions, and rely on grid references to maintain alignment. These habits dramatically reduce cumulative measurement errors that often appear in beginner floor plan drawings.

Quick Takeaways

1. Small measurement errors compound quickly across a floor plan.
2. Working with a clear architectural scale prevents distorted room proportions.
3. Grid systems help maintain alignment and spacing consistency.
4. Checking proportions before labeling dimensions avoids redraws.
5. Regular practice with real room measurements builds drafting accuracy.

Introduction

Learning to draw accurate floor plans in feet and inches sounds simple—until you actually try it. After working on residential projects for more than a decade, I've noticed that most beginners don't struggle with creativity; they struggle with measurement discipline.

When measurements drift even slightly, the entire layout starts to feel wrong. A hallway becomes too narrow. Furniture stops fitting. Doors collide with cabinets. These problems usually come from tiny mistakes made early in the drafting process.

The good news is that improving measurement accuracy is mostly about workflow. Once you adopt the same habits architects use—consistent scaling, measurement sequencing, and proportion checks—your drawings become dramatically more reliable.

If you're still developing the fundamentals, it helps to first see how professionals structure layouts using tools that simplify spatial alignment. A good starting point is exploring examples of practical residential layout visualization workflowsbefore practicing manual drafting.

In this guide, I'll walk through the techniques I recommend to students and junior designers who want their floor plans to actually match real-world dimensions.

save pin

Why Measurement Accuracy Matters in Floor Plan Drafting

Key Insight: Inaccurate measurements rarely stay isolated—they multiply across the entire drawing.

One of the most overlooked realities in architectural drafting is cumulative error. If the first room is off by two inches, the second room might be off by four, and the final wall may no longer align with the building footprint.

In residential design projects, contractors typically allow only small tolerance differences when translating drawings into construction. Even small drafting errors can lead to misordered materials or installation conflicts.

Common problems caused by inaccurate floor plans include:

1. Furniture layouts that do not fit the intended room
2. Door swing conflicts with walls or cabinetry
3. Incorrect hallway clearances
4. Misaligned plumbing or electrical placements

In my experience reviewing junior designers' drawings, most accuracy problems happen before dimensions are even written. They happen during layout sketching.

That is why improving drafting accuracy starts with the structure of the drawing process itself.

Choosing the Right Architectural Scale for Practice

Key Insight: Using the wrong scale is one of the fastest ways to distort a floor plan.

Architectural drawings rely on scale so large spaces can fit on manageable paper sizes. For beginners practicing floor plans in feet and inches, the most practical scales are:

1. 1/4 inch = 1 foot (best for small homes and apartments)
2. 1/8 inch = 1 foot (used for larger homes)
3. 1/2 inch = 1 foot (useful for learning room layouts)

When I teach interns how to improve architectural drafting accuracy, I always start them with 1/4 inch scale. It balances readability and precision.

Here's a quick example conversion:

1. 12 ft wall → 3 inches at 1/4" scale
2. 10 ft wall → 2.5 inches
3. 8 ft wall → 2 inches

This predictable relationship makes it easier to detect mistakes visually.

If the proportions of your drawing "feel" wrong, the scale is often the reason.

Techniques for Measuring Walls and Rooms Correctly

Key Insight: Measuring spaces in the wrong order causes most layout distortions.

Many beginners measure each room independently. Professionals don't. We measure the outer structure first and work inward.

The most reliable workflow looks like this:

1. Measure the full exterior footprint
2. Add exterior wall thickness
3. Divide the interior into primary rooms
4. Add secondary spaces such as closets and hallways
5. Finally place doors, windows, and fixtures

This method prevents the "missing inches" problem where rooms collectively exceed the available building width.

Another helpful technique is recording measurements in two forms:

1. Total wall length
2. Segmented measurements between features

For example:

1. Total wall: 18' 0"
2. Window spacing: 5' – 4' – 5' – 4'

Breaking dimensions into segments gives you natural checkpoints for accuracy.

save pin

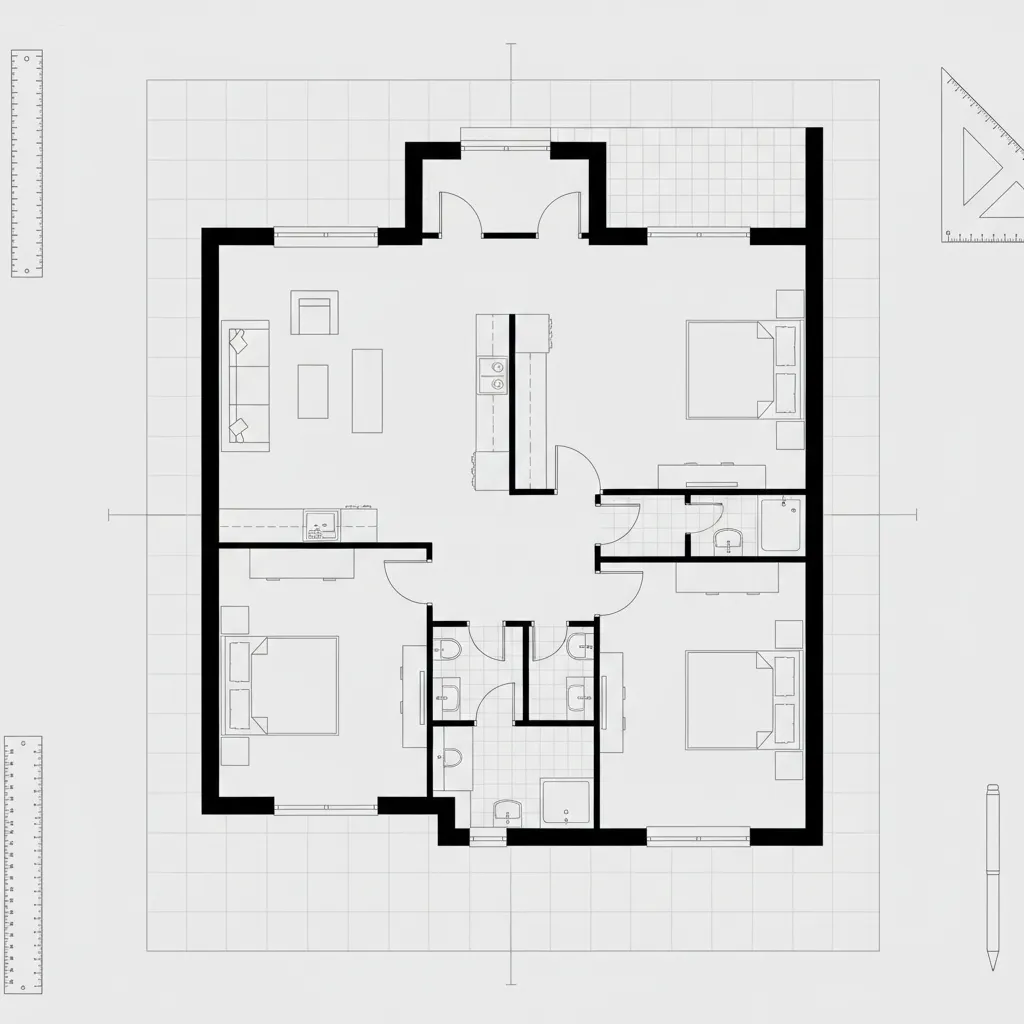

Using Grid Systems to Improve Layout Precision

Key Insight: A simple grid reference can eliminate most alignment mistakes in early drafting.

One of the techniques I still use today—even with advanced software—is sketching over a light grid.

Grids act like invisible guides that keep walls parallel and rooms aligned.

A typical practice grid might use:

1. 1 foot increments
2. 2 foot increments
3. 4 foot structural modules

Benefits of grid-based drafting include:

1. Walls stay parallel across long distances
2. Room widths stay consistent
3. Doors and windows align visually
4. Furniture layouts become easier

Many modern layout tools also rely on this principle. If you're curious how professionals test layout alignment digitally, studying AI-assisted floor plan layout generation examplescan help you understand how grids and spacing logic guide accurate room placement.

The key lesson is simple: alignment should never rely purely on visual guessing.

save pin

Answer Box

The fastest way to improve floor plan measurement accuracy is combining three habits: consistent scale, structured measurement order, and grid alignment. These practices prevent cumulative errors that distort room proportions and structural alignment.

Checking Proportions Before Finalizing Dimensions

Key Insight: Experienced designers visually validate proportions before writing any numbers.

This step sounds small, but it prevents a huge amount of rework.

Before labeling dimensions, pause and check three things:

1. Do adjacent rooms feel proportionally believable?
2. Are hallways realistically navigable?
3. Do furniture placements fit logically?

One quick trick I teach beginners is the "sofa test."

If a living room cannot comfortably fit an 84–90 inch sofa and circulation space, the room width is probably incorrect.

Interior designers often rely on these intuitive checks because they catch errors that pure measurement math might miss.

Practice Exercises to Improve Measurement Accuracy

Key Insight: Accuracy improves fastest when you practice measuring real spaces rather than imaginary layouts.

Here are three exercises that dramatically improve drafting accuracy:

Exercise 1: Single Room Measurement

1. Measure one room in your home
2. Record walls, windows, and doors
3. Redraw it using 1/4" architectural scale

Exercise 2: Furniture Fit Check

1. Add a bed, sofa, and table to the plan
2. Verify circulation space
3. Adjust room proportions if needed

Exercise 3: Whole Apartment Layout

1. Measure multiple connected rooms
2. Draw the entire layout
3. Check if total wall dimensions match the exterior footprint

Once you're comfortable measuring and drafting manually, you can compare your drawings against digital layouts generated with a simple browser-based floor plan creation workflow. Seeing the differences helps you quickly identify measurement habits that need improvement.

Final Summary

1. Accurate floor plans start with consistent architectural scale.
2. Measure the building structure before dividing rooms.
3. Grid systems dramatically reduce alignment mistakes.
4. Visual proportion checks catch hidden measurement errors.
5. Real-space measurement exercises build lasting drafting accuracy.

FAQ

1. How do you draw accurate floor plans in feet and inches?

Use an architectural scale such as 1/4 inch = 1 foot, measure the full structure first, and verify proportions before adding final dimensions.

2. What scale is best for beginners practicing floor plans?

1/4 inch = 1 foot is the most beginner-friendly scale because it balances detail and readability.

3. Why do my floor plans end up with incorrect room sizes?

Most inaccuracies come from measuring rooms independently instead of measuring the full building structure first.

4. How can I improve architectural drafting accuracy?

Practice measuring real rooms, use grid guides, and always verify room proportions before writing dimensions.

5. What tools help with accurate floor plan drafting?

Architectural scales, graph paper, measuring tapes, and digital layout tools can all help maintain measurement consistency.

6. How do architects prevent measurement mistakes?

They measure the building footprint first, divide spaces systematically, and cross-check total wall lengths.

7. Is grid paper useful for floor plan practice?

Yes. Grid paper keeps walls aligned and helps maintain consistent spacing between rooms.

8. How often should beginners practice floor plan measurements?

Even measuring one room per week significantly improves spatial accuracy and drafting confidence.
