How to Improve Accuracy When Generating Floor Plans from 360 Photos: Practical capture techniques, calibration tricks, and workflow improvements professionals use to create more precise floor plans from 360 images

Direct Answer

Improving floor plan accuracy from 360 photos depends mainly on three things: correct camera placement, consistent capture overlap, and calibration using at least one real measurement. When these elements are controlled, automated floor plan detection becomes dramatically more reliable and requires far less manual correction.

In most professional scanning workflows, the difference between a messy auto-generated plan and a clean, usable layout often comes down to capture discipline rather than software capability.

Quick Takeaways

1. Keep the camera near the center of each room to reduce wall distortion.
2. Maintain consistent spacing between 360 captures for reliable geometry detection.
3. Include at least one real-world measurement for scale calibration.
4. Avoid clutter and harsh lighting that can confuse automated edge detection.
5. Minor post-processing corrections can dramatically improve final plan precision.

Introduction

Generating floor plans from 360 photos has become one of the fastest ways to document interiors. I have used this workflow across residential remodels, rental listings, and early-stage design projects. When done correctly, the process can convert a series of 360 captures into a surprisingly accurate floor plan in minutes.

But here's the problem many professionals run into: the first automated result often looks slightly off. Walls appear skewed, room proportions feel wrong, or doorways end up misplaced. Most people blame the software. In reality, the accuracy of floor plans from 360 photos depends heavily on how the images were captured in the first place.

If you're still learning the basic workflow, it helps to understand how automatic tools convert panoramic scans into usable floor plan layouts. Once that process is clear, optimizing accuracy becomes much easier.

After years of working with scanning workflows and digital layout tools, I have noticed the same pattern: small capture mistakes compound into major layout errors. In this guide, I'll walk through the practical adjustments that consistently improve results.

save pin

Factors That Affect Floor Plan Accuracy from 360 Images

Key Insight: The majority of floor plan errors originate during capture, not during processing.

Automated floor plan systems rely on visual geometry detection. They identify walls, openings, and corners based on patterns found across multiple panoramic images. When those patterns are incomplete or distorted, the algorithm fills in the gaps—and that's when inaccuracies appear.

From project experience, these are the most influential factors.

1. Camera height consistency – Ideally between 1.2 m and 1.5 m.
2. Camera position in the room – Off-center placement increases wall distortion.
3. Overlap between captures – Insufficient overlap weakens spatial alignment.
4. Occlusion from furniture – Large objects can hide wall edges.
5. Lighting conditions – Poor lighting reduces edge detection accuracy.

A 2023 report from the National Institute of Building Sciences highlighted that visual scanning accuracy improves significantly when capture points maintain consistent spatial relationships across rooms.

Best Camera Placement Strategies for Indoor Scanning

Key Insight: Placing the 360 camera near the center of each room produces the most reliable geometry.

Many beginners place the camera near doorways for convenience. Unfortunately, this is one of the biggest contributors to warped floor plans.

When the camera sits too close to a wall, the panoramic projection exaggerates distances. The system interprets those distortions as actual geometry.

Instead, follow a center-biased placement strategy.

Recommended placement workflow

1. Stand roughly at the room's center.
2. Keep the camera away from walls by at least 3–5 feet.
3. Ensure clear visibility of door openings.
4. Avoid placing the camera directly beside large furniture.

For larger spaces, add additional capture points rather than pushing the camera toward walls.

save pin

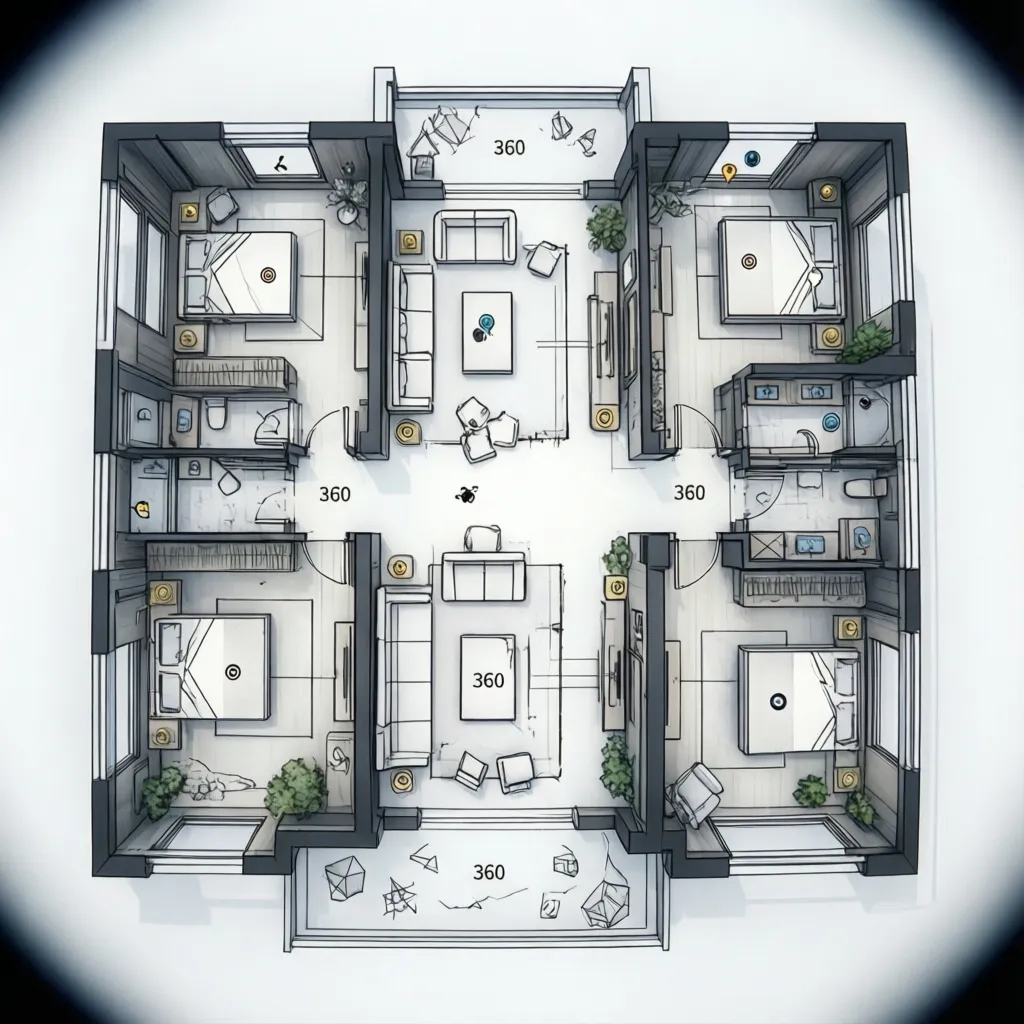

Optimal Capture Distance and Overlap Between Shots

Key Insight: Reliable floor plan generation requires consistent spacing between scans—usually 8 to 12 feet indoors.

The system aligns multiple 360 images by identifying shared geometry. If the distance between scans becomes too large, those shared visual anchors disappear.

Through trial across many residential layouts, this spacing consistently works well:

1. Small rooms: 1 capture in the center
2. Medium rooms: 2 captures spaced evenly
3. Open-plan areas: every 8–10 feet
4. Long hallways: every 6–8 feet

Maintaining overlap ensures that doorways, walls, and corners appear in multiple scans, allowing software to triangulate positions more accurately.

If you want to visualize how scanning data converts into spatial layouts, exploring a complete workflow for building accurate layouts in a 3D floor planner helps clarify how overlapping geometry improves precision.

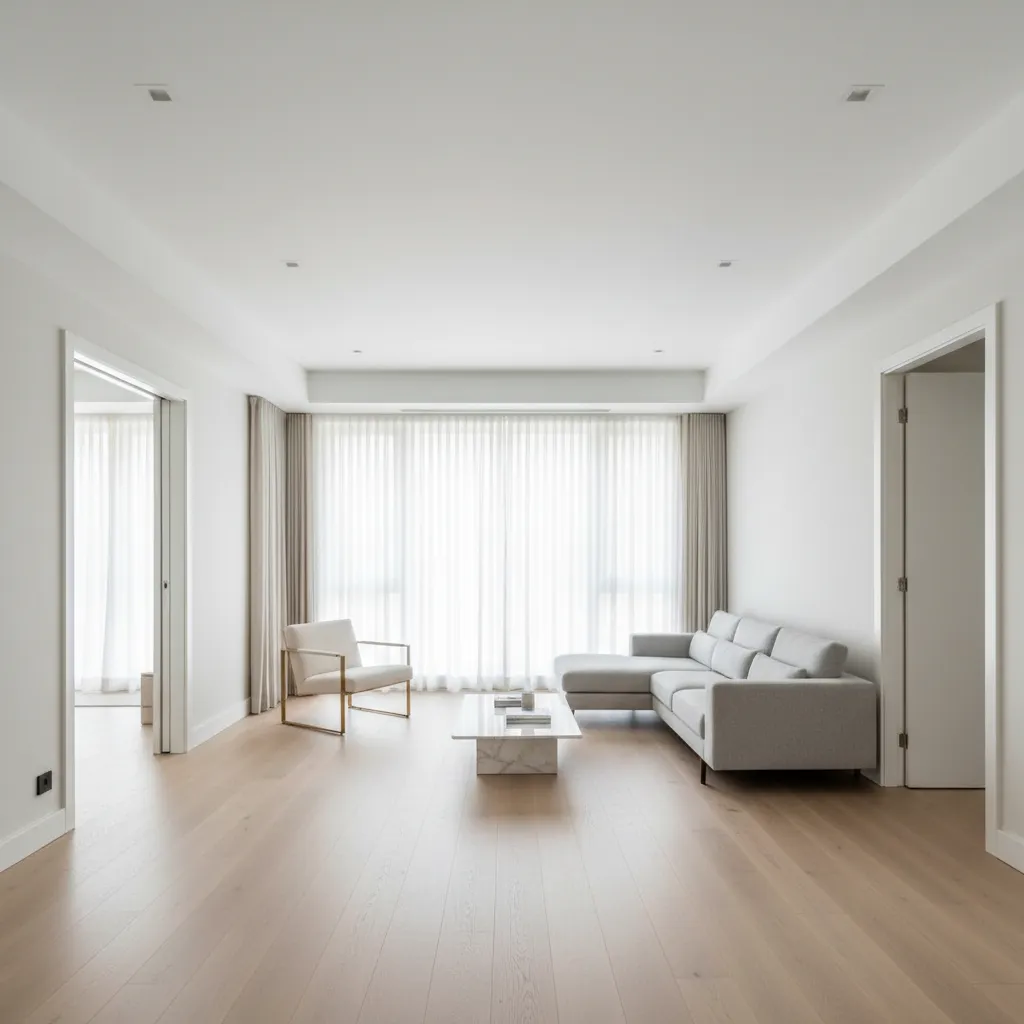

Lighting and Environmental Conditions That Improve Detection

Key Insight: Even lighting and reduced visual clutter significantly improve automated wall detection.

Algorithms identify structural edges using contrast and geometry. Poor lighting or excessive clutter hides those edges.

Common environmental mistakes include:

1. Backlit windows causing silhouette walls
2. Dark corners hiding wall boundaries
3. Mirrors reflecting duplicate geometry
4. Furniture blocking baseboards and corners

Preparation checklist before scanning

1. Turn on all interior lights
2. Open curtains to balance daylight
3. Move chairs or small furniture blocking corners
4. Close interior doors if possible

These small adjustments make automated detection dramatically cleaner.

save pin

Using Reference Measurements for Calibration

Key Insight: Adding one verified measurement dramatically improves overall scale accuracy.

Automated systems estimate scale from image geometry. But estimation always carries slight error.

Professionals typically calibrate using one reliable measurement such as:

1. Total wall length
2. Door width
3. Hallway width

Once that value is entered, the entire floor plan scales proportionally.

In my projects, adding just one reference measurement usually reduces dimensional error to within a few inches across an entire apartment.

Post-Processing Techniques to Refine Floor Plans

Key Insight: Minor manual adjustments after generation can resolve most remaining layout issues.

Even with perfect capture, automated floor plans occasionally misinterpret wall edges. Post-processing ensures the plan becomes production-ready.

Typical refinement steps include:

1. Correct wall alignment
2. Adjust room boundaries
3. Snap corners to true angles
4. Insert doors and windows
5. Verify overall dimensions

Many professionals finalize layouts using tools designed for quick editing. For example, workflows built around a browser-based system for editing and refining floor plan layoutsallow rapid correction without rebuilding the model.

save pin

Answer Box

The most reliable way to improve floor plan accuracy from 360 photos is to control the capture process: center the camera in each room, maintain consistent spacing between scans, and add one real-world measurement for calibration. When these three steps are followed, automated detection produces significantly cleaner layouts.

Final Summary

1. Camera placement is the biggest factor affecting automated floor plan accuracy.
2. Consistent spacing between scans improves geometric alignment.
3. Even lighting and reduced clutter help algorithms detect walls.
4. A single real-world measurement can calibrate the entire layout.
5. Post-processing adjustments finalize professional-quality plans.

FAQ

1. How accurate are floor plans generated from 360 photos?

When captured correctly and calibrated with one measurement, accuracy typically falls within a few inches for residential layouts.

2. What camera height works best for 360 floor plan scanning?

A height between 1.2 m and 1.5 m usually produces the most consistent wall geometry detection.

3. How many 360 photos are needed for a floor plan?

Most homes require one scan per room plus additional scans in large or open-plan spaces.

4. Can clutter affect floor plan generation?

Yes. Furniture blocking corners or walls can prevent automated systems from detecting accurate boundaries.

5. How do I improve floor plan accuracy from 360 photos?

Center the camera in each room, maintain overlapping scans, ensure good lighting, and add at least one reference measurement.

6. Do mirrors interfere with automated floor plans?

Yes. Mirrors can create duplicate geometry reflections that confuse detection algorithms.

7. What spacing works best between scans?

Indoor capture points typically work best when spaced around 8–12 feet apart.

8. Can automated tools create professional floor plans?

Yes. With proper capture workflow and minor editing, automated systems can produce professional-quality layouts.
