How to Improve Bathroom Fan Ventilation Efficiency After Installation: Practical ways to increase airflow, reduce moisture, and get better performance from an installed bathroom exhaust fan

Direct Answer

To improve bathroom fan ventilation efficiency after installation, focus on optimizing duct layout, reducing airflow restrictions, upgrading exterior vent caps, and maintaining the fan regularly. Even small adjustments such as shortening duct runs or cleaning the grille can significantly improve airflow and moisture removal.

In many homes I’ve worked on, the fan itself wasn’t the problem—the ducting and airflow path were.

Quick Takeaways

1. Short, straight ducts dramatically improve bathroom fan airflow.
2. Every extra bend in ducting reduces exhaust performance.
3. Exterior vent caps can quietly restrict airflow if poorly designed.
4. Routine cleaning often restores 20–30% of lost airflow.
5. Older fans may be underpowered for modern bathrooms.

Introduction

Homeowners often assume that once a bathroom fan is installed, the job is done. But after working on dozens of residential renovations, I’ve learned that installation is only half the story. Bathroom fan ventilation efficiency depends heavily on what happens behind the walls—duct layout, airflow resistance, and even the exterior vent design.

I’ve seen brand‑new exhaust fans struggle to remove humidity simply because the duct was too long or packed with sharp turns. In other cases, a clogged grille or poor exterior vent cap quietly reduced performance for years.

If you're planning broader layout improvements while optimizing airflow, it helps to visualize the space first using a digital bathroom layout planning workflow for remodeling projects. Once the layout makes sense, improving ventilation becomes much easier.

In this guide, I’ll walk through the practical upgrades and adjustments I recommend to clients when their bathroom fan isn't performing the way it should.

save pin

Why Bathroom Ventilation Efficiency Matters

Key Insight: Poor ventilation is one of the leading causes of hidden bathroom damage, including mold growth and premature material deterioration.

Bathrooms produce large amounts of humidity in a short time. Without effective ventilation, that moisture settles into drywall, cabinetry, insulation, and framing.

According to guidance from the U.S. Environmental Protection Agency, excess indoor moisture significantly increases the likelihood of mold growth. In bathrooms, this process can begin within 24–48 hours.

From a design perspective, ventilation efficiency affects several areas:

1. Paint durability
2. Cabinet longevity
3. Mirror fogging
4. Indoor air quality
5. Mold prevention

One hidden issue I frequently see is condensation forming inside poorly designed duct systems. When warm humid air cools inside the duct, water accumulates and eventually flows back toward the fan housing.

This isn't a fan problem—it's a duct design problem.

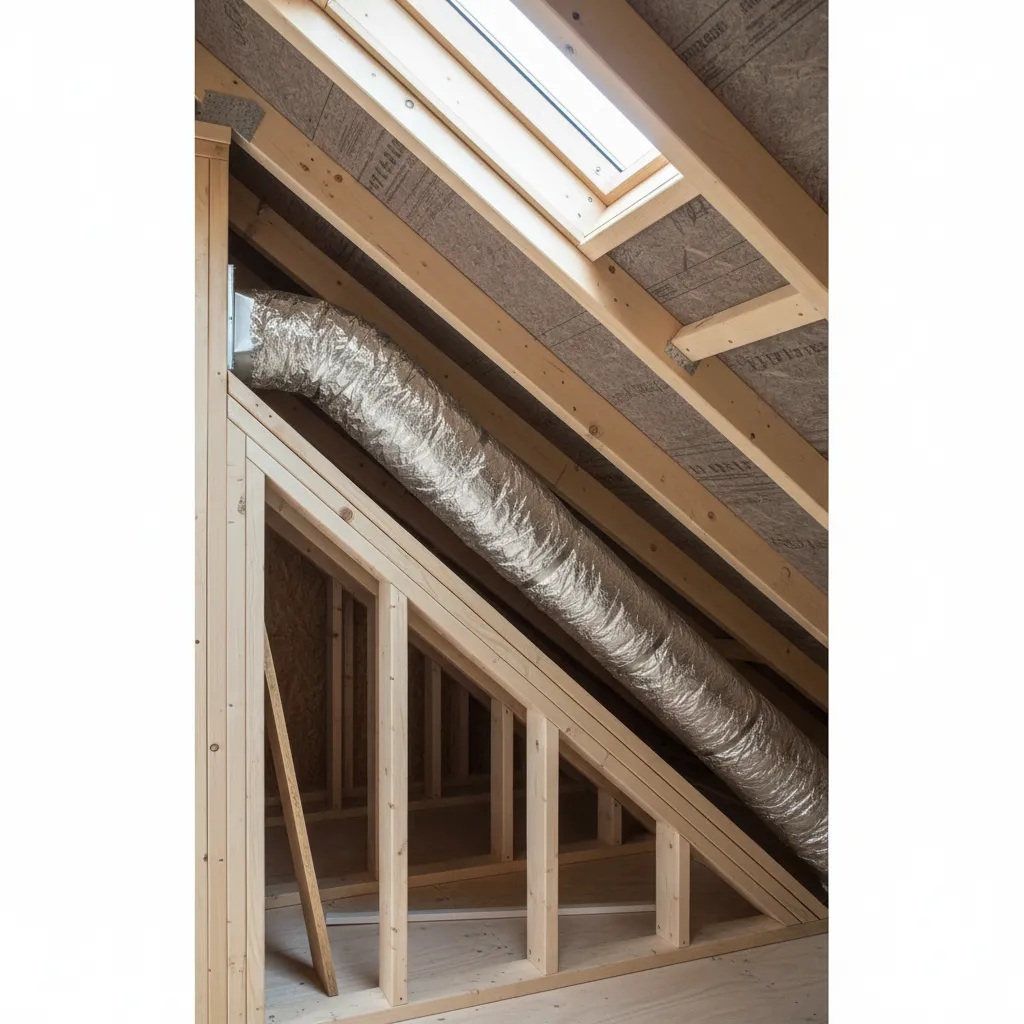

Choosing the Right Duct Size and Length

Key Insight: The longer and narrower the duct, the harder your fan must work to move air.

Many bathroom ventilation issues come from duct runs that are simply too long. Fans are rated for specific airflow levels, typically measured in CFM (cubic feet per minute), but those ratings assume minimal resistance.

In real homes, airflow drops quickly when ducts are undersized or excessively long.

Typical best‑practice guidelines:

1. Use 4‑inch duct for small fans
2. Upgrade to 6‑inch duct for higher airflow models
3. Keep duct runs under 25 feet when possible
4. Reduce unnecessary routing through attics

When planning larger renovations, I often map duct paths alongside layout changes using tools similar to a visual home layout planning approach for renovation airflow routes. Seeing how walls and ceilings interact with duct paths helps avoid awkward bends.

A straighter duct path almost always improves bathroom fan efficiency more than installing a stronger fan.

save pin

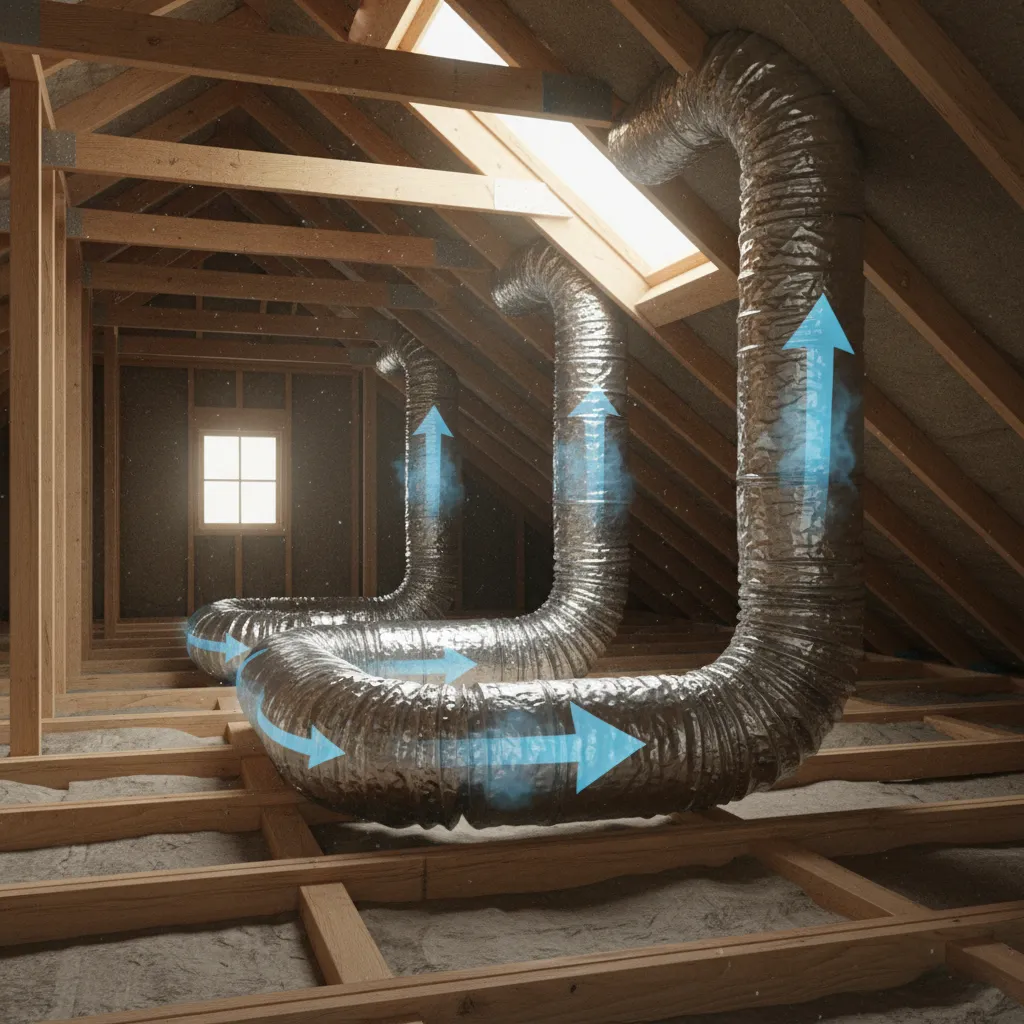

Reducing Bends and Airflow Restrictions

Key Insight: Every bend in a duct system can reduce airflow by 10–15 percent.

This is one of the most overlooked problems in bathroom ventilation systems.

Contractors sometimes route ducts around framing obstacles, creating multiple sharp turns. Each bend increases friction and slows airflow.

Common airflow restrictions include:

1. 90‑degree duct elbows
2. Flexible duct that sags
3. Crushed duct sections
4. Poorly sealed connections

Better alternatives:

1. Use gradual 45‑degree bends
2. Support flexible ducts every 4 feet
3. Switch to rigid metal ducting where possible
4. Seal joints with HVAC foil tape

Rigid ducts, while slightly more expensive, maintain smoother airflow and resist sagging over time.

save pin

Upgrading Vent Caps and Exterior Exhaust Points

Key Insight: Exterior vent caps are a surprisingly common source of ventilation inefficiency.

I’ve inspected homes where the fan and duct were perfectly installed, yet the system still performed poorly. The problem turned out to be the exterior vent cap.

Many basic vent caps create back pressure due to small openings or stiff flaps.

Better exterior vent solutions include:

1. Low‑resistance hood vent caps
2. Backdraft dampers with light tension
3. Bird‑guard screens with wide spacing
4. Roof vents designed for bathroom exhaust

Signs your exterior vent may be restricting airflow:

1. Fan sounds loud but airflow feels weak
2. Exterior flap barely opens
3. Moisture lingers in the bathroom
4. Condensation appears in ductwork

Answer Box

The fastest way to improve bathroom fan ventilation efficiency is to shorten duct runs, reduce sharp bends, and upgrade restrictive exterior vent caps. In many homes, airflow problems come from duct layout rather than the fan itself.

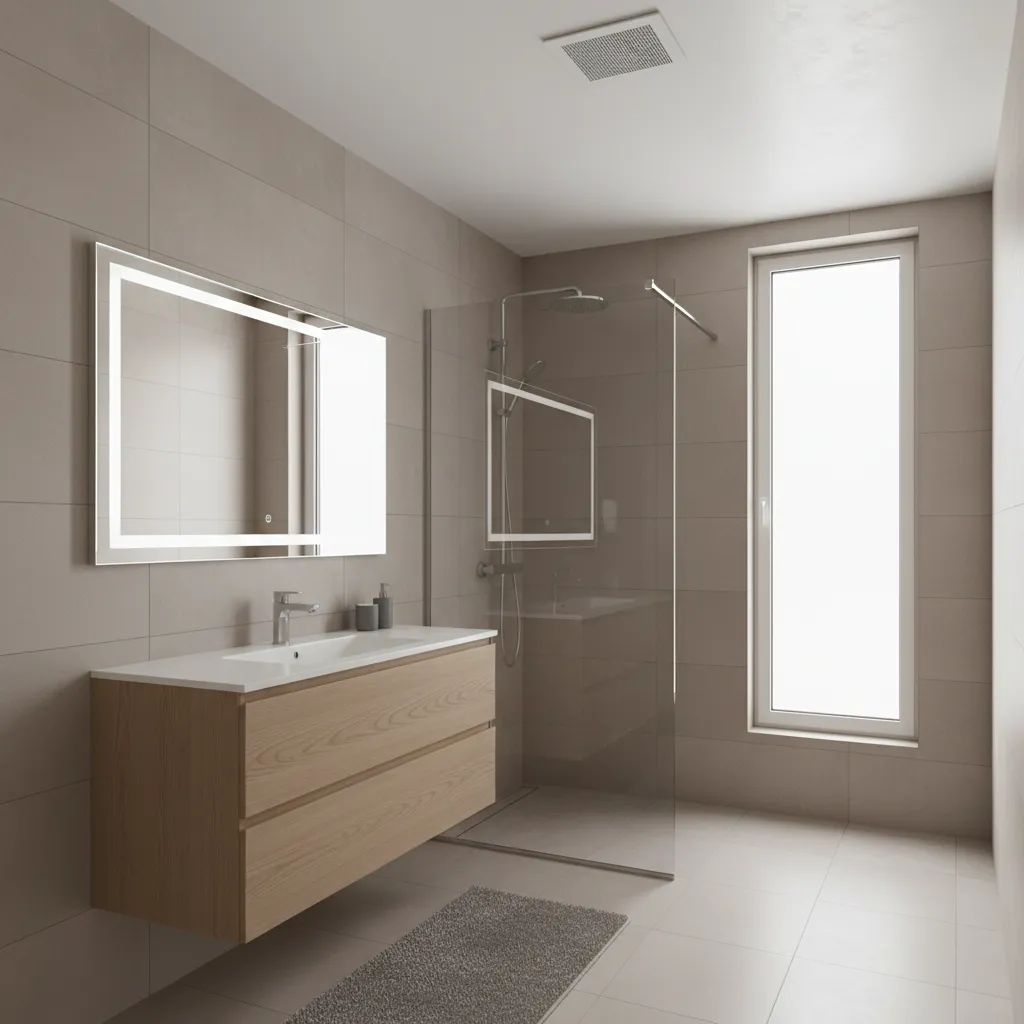

When to Replace or Upgrade the Bathroom Fan

Key Insight: Some ventilation problems come from underpowered fans rather than poor ducting.

Older fans often deliver far less airflow than modern models.

A simple rule used by many designers:

1. Bathrooms under 50 sq ft need about 50 CFM
2. Add 50 CFM for large tubs or showers
3. Add airflow for high ceilings

Modern fans also offer better efficiency and quieter operation.

In remodels where clients want to visualize how ventilation interacts with lighting and fixtures, we often preview the finished space using a photorealistic interior rendering workflow for bathroom renovations. It helps confirm fan placement relative to shower zones and moisture sources.

save pin

Maintenance Tips to Keep Ventilation Working Efficiently

Key Insight: Routine cleaning is the easiest way to restore lost bathroom fan performance.

Dust buildup inside fan grilles and housings is surprisingly common. In some homes I've opened fans that were nearly clogged with lint.

Basic maintenance checklist:

1. Clean fan grille every 6 months
2. Vacuum dust from fan blades
3. Inspect duct connections annually
4. Check exterior vent for debris
5. Confirm damper opens freely

These small maintenance steps often restore airflow without replacing any equipment.

Final Summary

1. Bathroom ventilation efficiency depends heavily on duct design.
2. Straighter, shorter ducts improve airflow dramatically.
3. Exterior vent caps can quietly restrict exhaust performance.
4. Routine fan cleaning prevents major airflow loss.
5. Older fans may require replacement to meet modern airflow needs.

FAQ

How can I improve bathroom fan airflow without replacing the fan?

Shorten the duct run, reduce bends, and clean the fan grille and housing. These steps often significantly improve bathroom fan airflow.

What duct size is best for bathroom exhaust fans?

Most small fans use 4‑inch ducts, but high‑performance fans work better with 6‑inch ducts to increase bathroom exhaust fan efficiency.

Why does my bathroom still feel humid after the fan runs?

This usually indicates restricted airflow, long duct runs, or a blocked exterior vent cap.

How long should a bathroom fan run after a shower?

Most experts recommend running the fan for 20–30 minutes after showering to remove excess humidity.

Can flexible duct reduce ventilation efficiency?

Yes. Flexible ducts can sag and create airflow resistance, especially if unsupported.

Do bathroom fan vent caps affect airflow?

Yes. Poorly designed caps can create back pressure and limit ventilation performance.

What is the ideal CFM for a bathroom fan?

A common rule is 1 CFM per square foot of bathroom space, with adjustments for large tubs or high ceilings.

How often should a bathroom exhaust fan be cleaned?

At least every six months to maintain optimal ventilation performance.

References

1. U.S. Environmental Protection Agency Indoor Air Quality Guidance
2. ASHRAE Residential Ventilation Standards
3. Home Ventilating Institute Fan Sizing Guidelines
