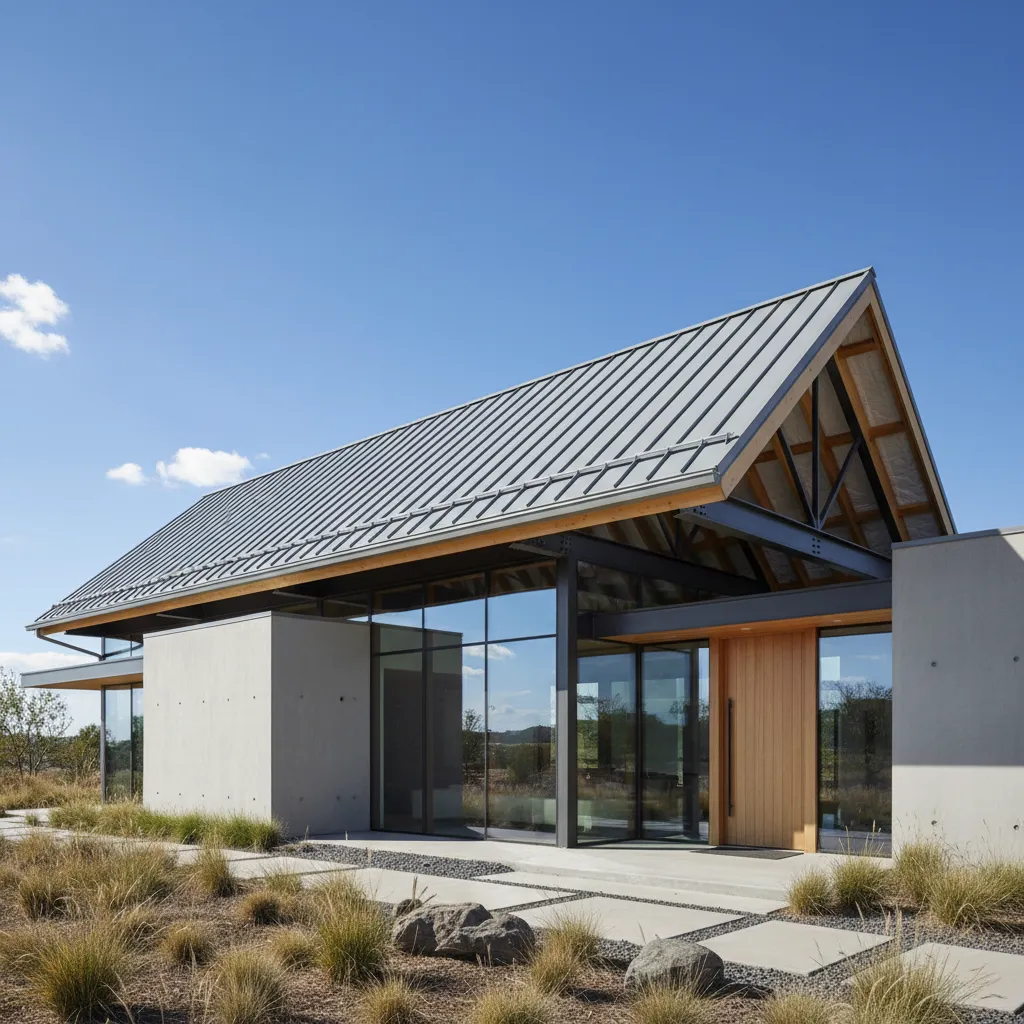

How to Improve Energy Efficiency of an Insulated Metal Roof: Practical design and insulation strategies that reduce heat loss and cooling costs in real metal roof projects

Direct Answer

The most effective way to improve energy efficiency of an insulated metal roof is to combine proper R‑value insulation with airtight sealing, reflective barriers, and seasonal heat‑control strategies. Insulation alone rarely solves thermal loss if air leakage, radiant heat gain, or poor installation details remain.

In real projects, the biggest efficiency improvements usually come from tightening the air layer and managing solar heat before it reaches the insulation.

Quick Takeaways

1. Air leaks around roof framing often waste more energy than insufficient insulation thickness.
2. Climate‑specific R‑values matter more than simply adding more insulation.
3. Reflective barriers significantly reduce summer heat gain in metal roofing systems.
4. Monitoring energy usage after installation helps verify real performance gains.
5. Combining insulation with air sealing delivers the biggest efficiency improvement.

Introduction

Many homeowners assume that once insulation is installed, an insulated metal roof automatically becomes energy efficient. After working on residential and light commercial roof retrofits for more than a decade, I can tell you that's rarely the full story.

Metal roofs behave differently than shingle systems. Steel panels conduct heat rapidly, and if the insulation system underneath isn't designed carefully, you can still lose heat in winter or trap excessive heat in summer.

In several retrofit projects I've worked on across California and Nevada, homeowners had already installed fiberglass insulation under their metal roofing but still saw high energy bills. The problem wasn't the insulation itself. It was air leakage, poor R‑value targeting, or missing radiant control layers.

If you're still planning the roof layout stage, exploring practical planning tools like visualizing structural layouts before roof insulation upgradescan help identify ventilation paths and structural cavities that influence insulation performance.

In this guide I'll walk through the most effective ways to improve metal roof insulation efficiency, including hidden issues most online guides overlook.

save pin

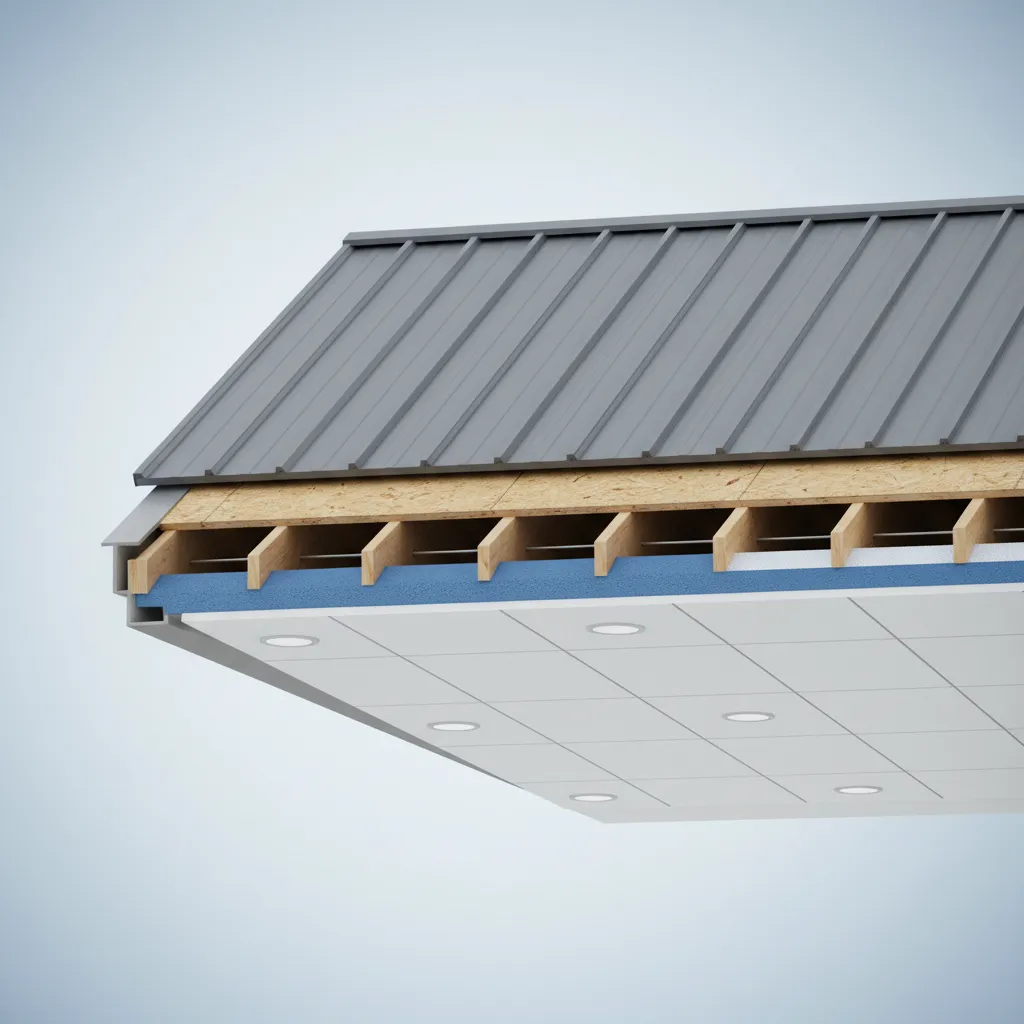

How Metal Roof Insulation Affects Energy Efficiency

Key Insight: Insulation improves efficiency only when it controls both heat transfer and air movement beneath the metal roof.

Metal roofing transfers heat quickly because metal has high thermal conductivity. Without insulation, outside temperatures move straight through the roof assembly.

But insulation alone doesn't guarantee efficiency. In practice, three heat transfer mechanisms must be controlled:

1. Conduction through roof materials
2. Air leakage through framing gaps
3. Radiant heat from sun‑heated metal panels

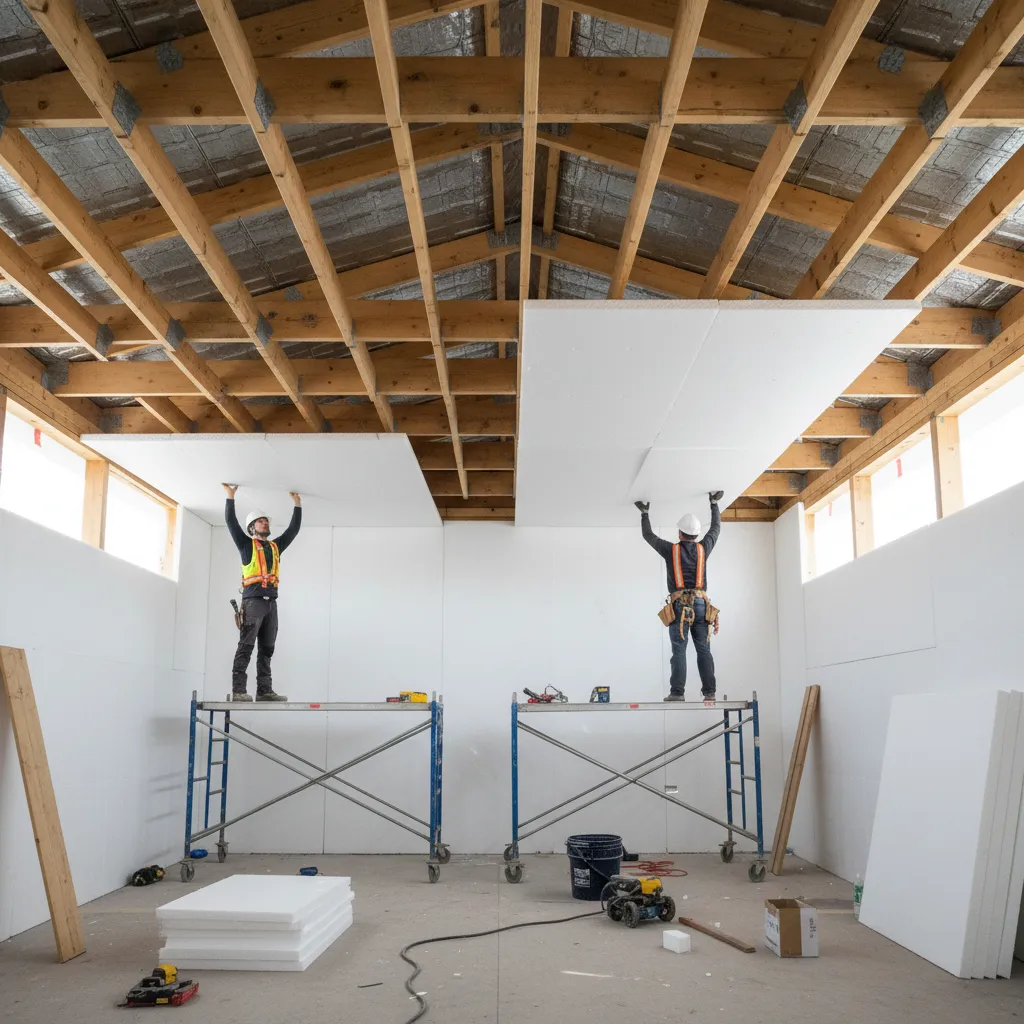

In one residential retrofit project in Palm Springs, adding rigid board insulation increased theoretical R‑value dramatically. However, the home only reduced cooling demand by about 6 percent. After sealing air gaps along the roof deck and ridge framing, cooling demand dropped an additional 17 percent.

The takeaway is simple: insulation thickness matters, but air movement often determines real‑world performance.

Best R Value Targets for Different Climate Zones

Key Insight: The best R‑value for metal roof insulation depends heavily on climate zone, not just building type.

The U.S. Department of Energy recommends different insulation targets depending on climate region. Installing too little insulation wastes energy, but over‑insulating without addressing air leaks produces diminishing returns.

1. Warm climates (Zones 1–3): R‑30 to R‑38
2. Mixed climates (Zones 4–5): R‑38 to R‑49
3. Cold climates (Zones 6–8): R‑49 to R‑60

In my experience, the most common mistake homeowners make is stacking insulation layers without considering compression. Fiberglass batts lose performance when squeezed into shallow cavities.

Rigid foam or spray foam often maintains R‑value better in tight roof assemblies.

save pin

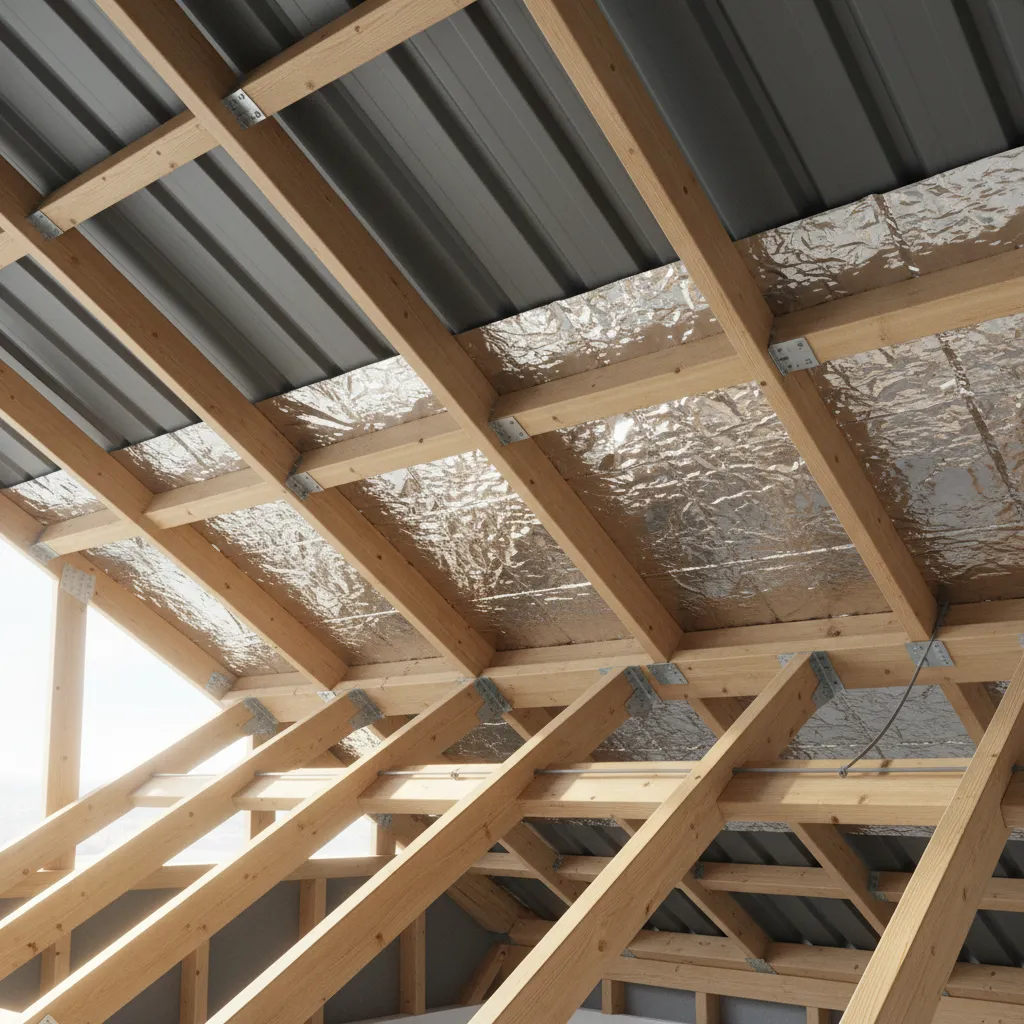

Combining Reflective Barriers with Insulation

Key Insight: Reflective barriers dramatically improve summer performance by reducing radiant heat before it reaches insulation.

Metal roofing can reach surface temperatures above 150°F during peak sun exposure. Traditional insulation slows heat transfer but still absorbs radiant energy.

A reflective barrier changes that dynamic by reflecting infrared radiation away from the roof structure.

Effective reflective systems typically include:

1. Radiant foil barrier under roof panels
2. Ventilated air gap between metal and barrier
3. Sealed insulation layer below the barrier

According to Oak Ridge National Laboratory research on radiant barriers, reflective layers can reduce cooling loads by up to 10 percent in hot climates when installed with proper ventilation.

Air Sealing Techniques for Interior Roof Systems

Key Insight: Air sealing is often the single most effective upgrade for reducing heat loss through metal roofs.

Even small air leaks allow conditioned air to escape and outside air to enter the building envelope. Over time, this undermines the entire insulation system.

Key air sealing locations include:

1. Roof ridge intersections
2. Penetrations for wiring or plumbing
3. Gaps around rafters and trusses
4. Ceiling drywall seams

One overlooked issue I see repeatedly is attic bypass leakage where interior walls meet the roof cavity.

Before starting upgrades, many designers map roof framing and insulation zones using tools that help generate accurate roof cavity layouts for insulation planning. That visualization often reveals hidden airflow paths.

save pin

Reducing Heat Gain in Summer and Heat Loss in Winter

Key Insight: Seasonal efficiency requires different strategies for summer solar control and winter heat retention.

Improving metal roof insulation efficiency means managing two opposite energy challenges.

Summer strategies

1. Cool roof coatings or reflective panels
2. Ventilated roof cavities
3. Radiant barriers

Winter strategies

1. High density insulation layers
2. Continuous air barrier
3. Moisture control to prevent insulation degradation

ASHRAE building science guidance consistently emphasizes that thermal continuity is critical. Even small gaps between insulation sections can create thermal bridges.

Answer Box

The most reliable way to improve metal roof insulation efficiency is combining proper R‑value insulation, airtight sealing, and radiant heat control. Addressing air leakage and solar heat gain often produces larger energy savings than adding more insulation alone.

Monitoring Energy Savings After Insulation

Key Insight: Measuring performance after installation is the only way to confirm insulation improvements actually reduced energy use.

Many homeowners upgrade insulation but never track results. In professional projects we usually monitor performance using three simple metrics:

1. Monthly heating and cooling energy consumption
2. Indoor temperature stability
3. Attic or roof cavity temperature differences

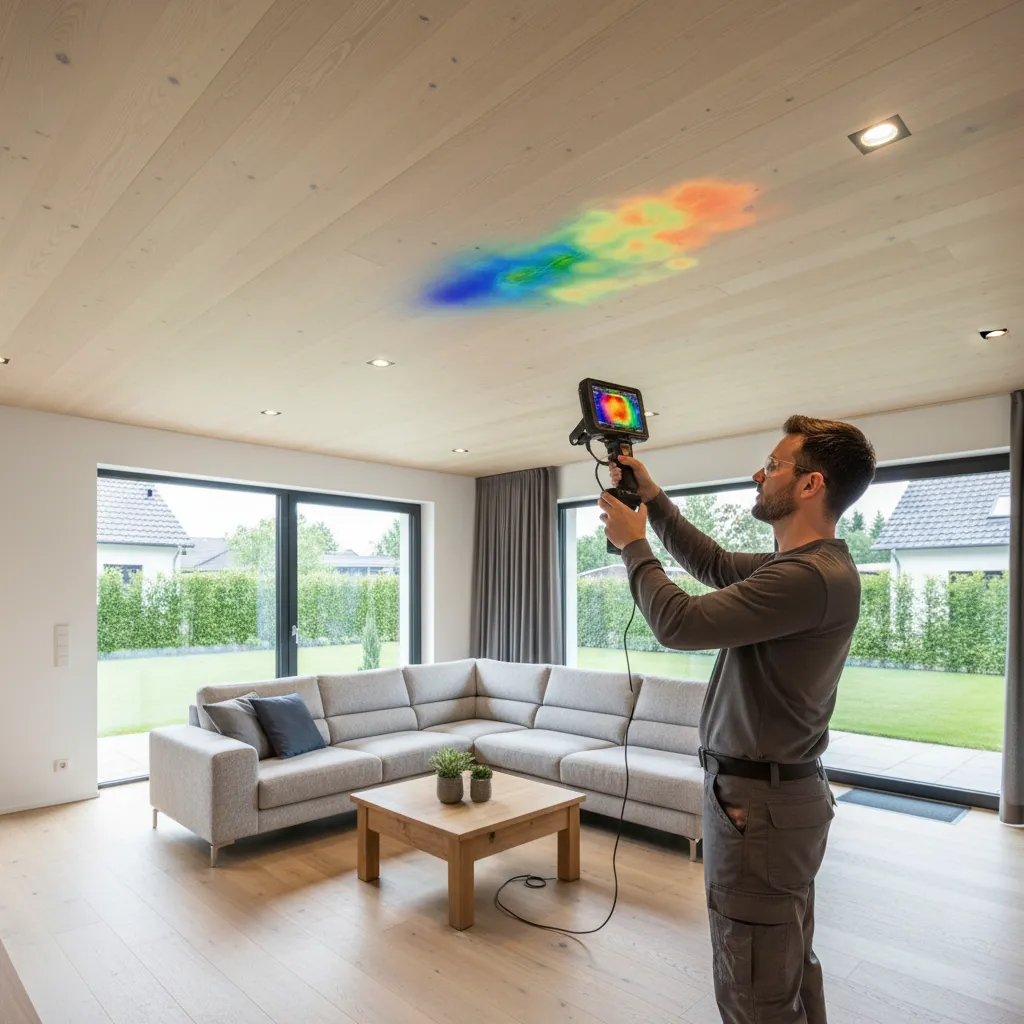

Infrared thermal cameras can also reveal hidden insulation gaps or thermal bridges.

If you're evaluating larger renovations, reviewing complete spatial visualizations such as seeing full home layouts before energy upgradescan help ensure roof insulation integrates properly with the rest of the building envelope.

save pin

Final Summary

1. Air sealing often improves roof efficiency more than adding insulation.
2. Climate‑specific R‑value targets prevent under or over insulating.
3. Radiant barriers significantly reduce summer heat gain.
4. Thermal continuity is critical to avoid energy loss.
5. Monitoring energy data confirms insulation performance.

FAQ

Does thicker insulation always improve metal roof efficiency?

Not necessarily. If air leaks or radiant heat are uncontrolled, thicker insulation delivers limited improvement.

What is the best R value for metal roof insulation?

The best R value for metal roof insulation depends on climate zone. Most homes benefit from R‑38 to R‑49.

Can reflective barriers improve insulated metal roofs?

Yes. Reflective barriers reduce radiant heat transfer, improving cooling efficiency in hot climates.

How do I reduce heat loss through a metal roof?

Seal air gaps, maintain continuous insulation layers, and prevent thermal bridging across framing members.

Is spray foam better than fiberglass for metal roofs?

Spray foam provides superior air sealing and maintains R‑value in tight cavities, but costs more.

Do metal roofs cause overheating in summer?

They can if radiant heat isn't controlled. Reflective coatings and ventilation significantly reduce heat gain.

How can I test insulation performance?

Energy monitoring, thermal imaging, and attic temperature measurements reveal insulation performance issues.

What helps optimize insulated metal roofing performance?

Combining air sealing, proper R‑value insulation, and radiant barriers helps optimize insulated metal roofing systems.
