How to Improve Hand Rendering Speed for Architectural Floor Plans: Practical techniques architects use to render clear floor plans faster without sacrificing readability or design quality.

Direct Answer

Improving hand rendering speed for architectural floor plans comes down to three things: planning the drawing sequence, using a clear line‑weight hierarchy, and simplifying shading and furniture details. Architects who render quickly don’t draw faster lines—they reduce unnecessary steps and repeat a consistent workflow.

When the structure, line weights, and textures follow a predictable system, floor plans can be rendered significantly faster while still looking professional and easy to read.

Quick Takeaways

1. Fast floor plan rendering depends more on workflow structure than drawing speed.
2. Clear line weight hierarchy instantly improves readability with fewer strokes.
3. Simplified furniture symbols save enormous time in large plans.
4. Controlled shading patterns communicate depth without over‑rendering.
5. Practicing timed sketches dramatically improves architectural drawing speed.

Introduction

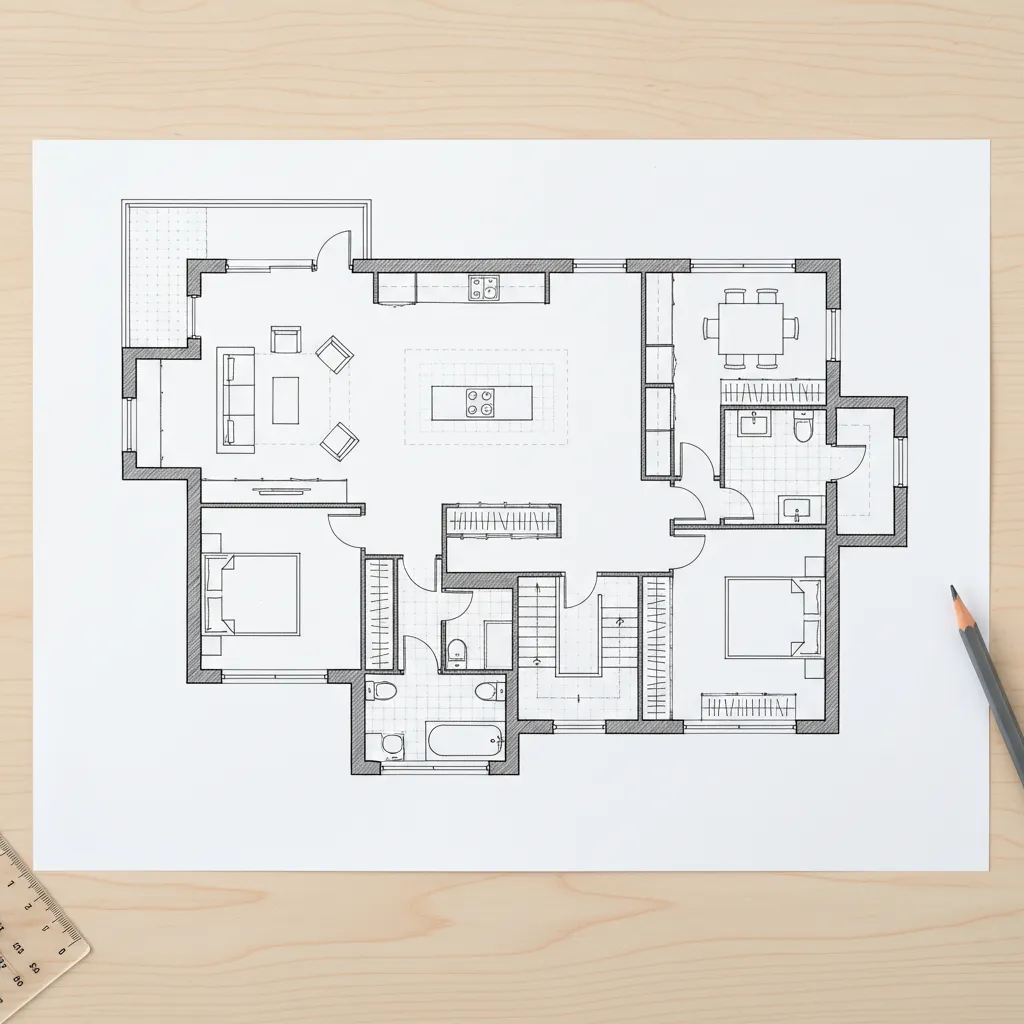

One of the most common frustrations I see among architecture students and junior designers is how long it takes to complete a clean floor plan by hand. Improving hand rendering speed for architectural floor plans isn’t really about drawing faster—it’s about eliminating friction in your workflow.

After working on residential design projects for more than a decade, I’ve noticed that experienced designers approach rendering very differently from beginners. They decide line weights before drawing, group similar elements together, and avoid detailing things that won’t actually improve readability.

In studio reviews, I often see beautiful plans that took six hours to render when the same clarity could have been achieved in two. The difference usually comes down to structure. If you understand the sequence—walls first, structure second, furniture third, shading last—you remove hundreds of micro‑decisions while drawing.

If you're still learning the foundations, it helps to review a full step‑by‑step workflow such as a complete walkthrough of planning and visualizing floor plan layouts before rendering. Having a clear layout reference dramatically reduces hesitation when you start hand rendering.

The techniques below are the same ones I teach interns and students who want to render floor plans faster while keeping drawings clean enough for presentations.

save pin

Why Floor Plan Rendering Can Be Time Consuming

Key Insight: Most slow rendering happens because beginners try to detail everything equally instead of prioritizing structural clarity.

When I review student drawings, the biggest slowdown usually isn’t drawing ability—it’s decision overload. Every wall, piece of furniture, and texture receives the same level of attention.

Professional architectural drawings work differently. They follow a hierarchy where only a few elements carry visual weight.

Common time‑wasting habits include:

1. Over‑texturing floors or materials
2. Drawing complex furniture shapes too early
3. Inconsistent line weights requiring corrections
4. Adding shadows before the plan structure is complete
5. Redrawing elements instead of tracing consistent symbols

Industry practice usually follows a simple rendering priority:

1. Primary structure: walls, openings, columns
2. Secondary structure: stairs, fixed cabinetry
3. Furniture layout
4. Textures and shading
5. Annotations and graphic polish

Once this hierarchy becomes habit, rendering speed increases naturally.

Planning the Rendering Workflow Before Drawing

Key Insight: The fastest floor plan renderings start with a planned drawing sequence, not spontaneous sketching.

Before I start rendering any plan by hand, I spend about two minutes deciding the drawing order. That tiny investment often saves twenty minutes of corrections.

A simple workflow I recommend:

1. Light construction outline using a hard pencil
2. Trace primary walls with heavy line weight
3. Add doors, windows, and structural features
4. Insert simplified furniture blocks
5. Apply shading and textures selectively
6. Finalize with hierarchy adjustments

This approach groups similar actions together, which reduces hand switching and visual recalibration.

Another trick many designers overlook is testing layout arrangements digitally before committing to a hand drawing. Tools used for experimenting with room layout arrangements before sketching the final plancan eliminate redesign time once rendering begins.

save pin

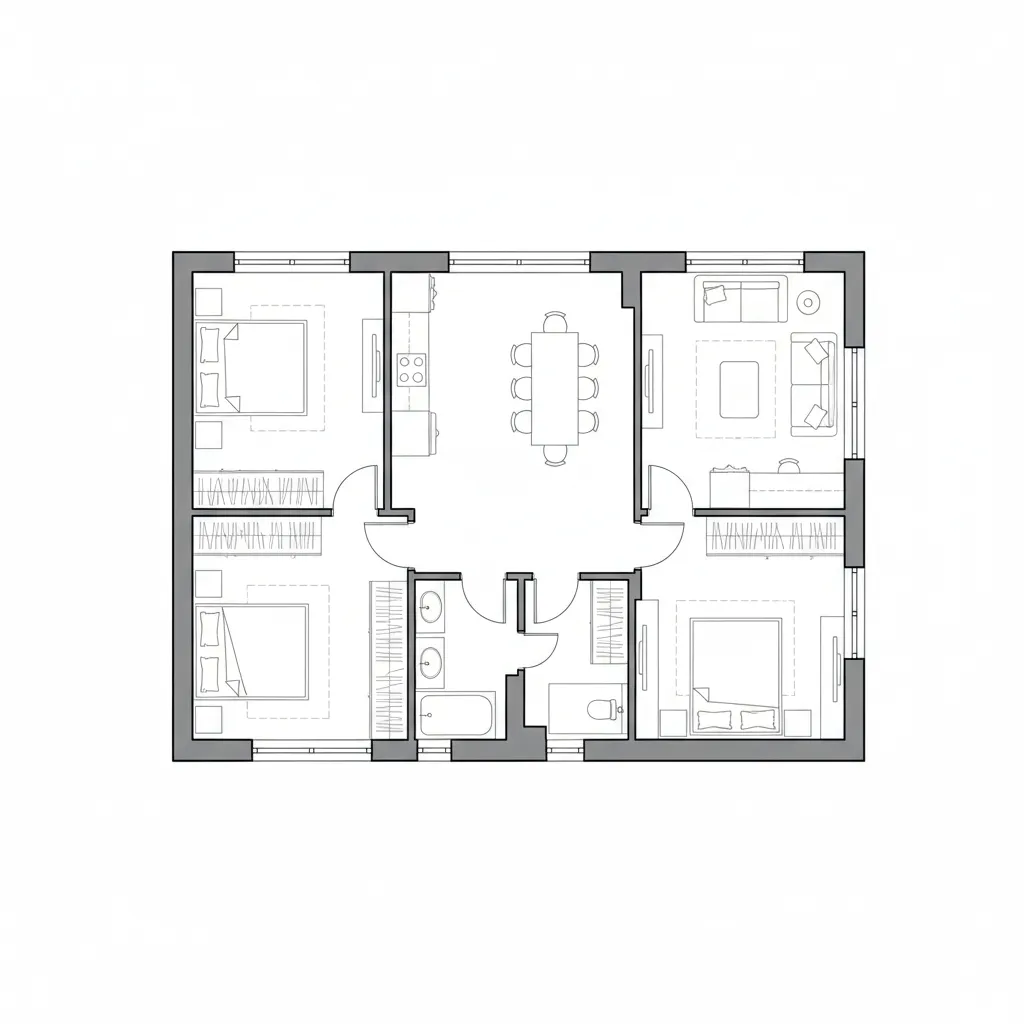

Using Line Weight Hierarchy for Faster Clarity

Key Insight: A strong line‑weight system reduces the need for excessive shading or detailing.

One of the fastest ways to improve architectural drawing speed is mastering line weight hierarchy. Instead of adding detail, you let line thickness communicate structure.

A simple hierarchy I use in most floor plan sketches:

1. Heavy lines: exterior and structural walls
2. Medium lines: interior partitions
3. Light lines: furniture and fixtures
4. Very light lines: secondary details

When this hierarchy is consistent, viewers instantly understand spatial relationships—even with minimal shading.

According to architectural drafting standards used in many studios, line weight variation is one of the primary tools used to communicate hierarchy in plan drawings. That’s why professional drawings often appear clearer even with fewer graphic elements.

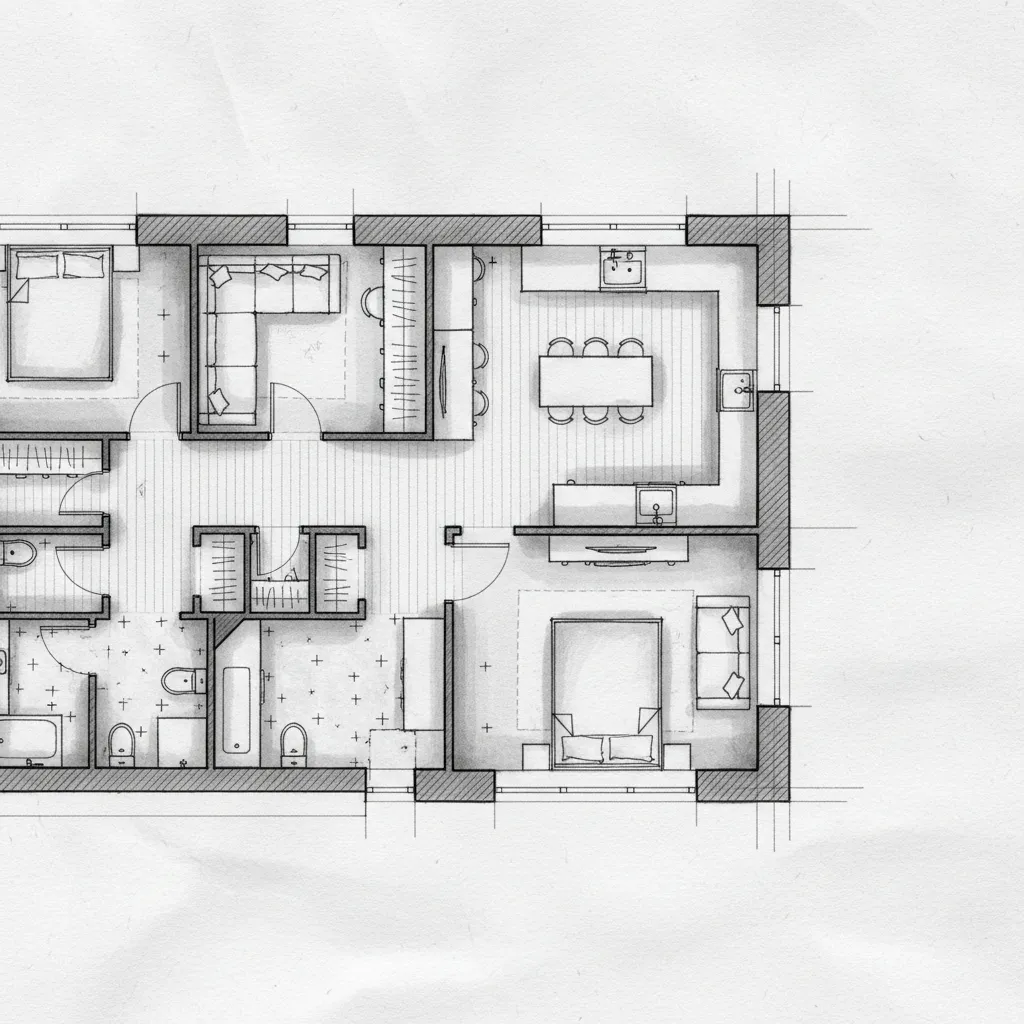

Efficient Shading Techniques for Large Plans

Key Insight: Controlled, repeatable shading patterns are faster and cleaner than improvised textures.

Shading is where many drawings slow down dramatically. Designers start experimenting with gradients or decorative patterns that add time but little clarity.

Instead, use simple repeatable methods:

1. Parallel hatch lines for floors
2. Light gray marker for walls
3. Diagonal shading for circulation zones
4. Soft shadow along structural edges

These patterns communicate depth while staying fast to execute.

I often suggest students reference digital visualizations—such as high‑quality interior layout visualizations used to preview lighting and spatial depth—to understand where shadows actually matter in a plan.

save pin

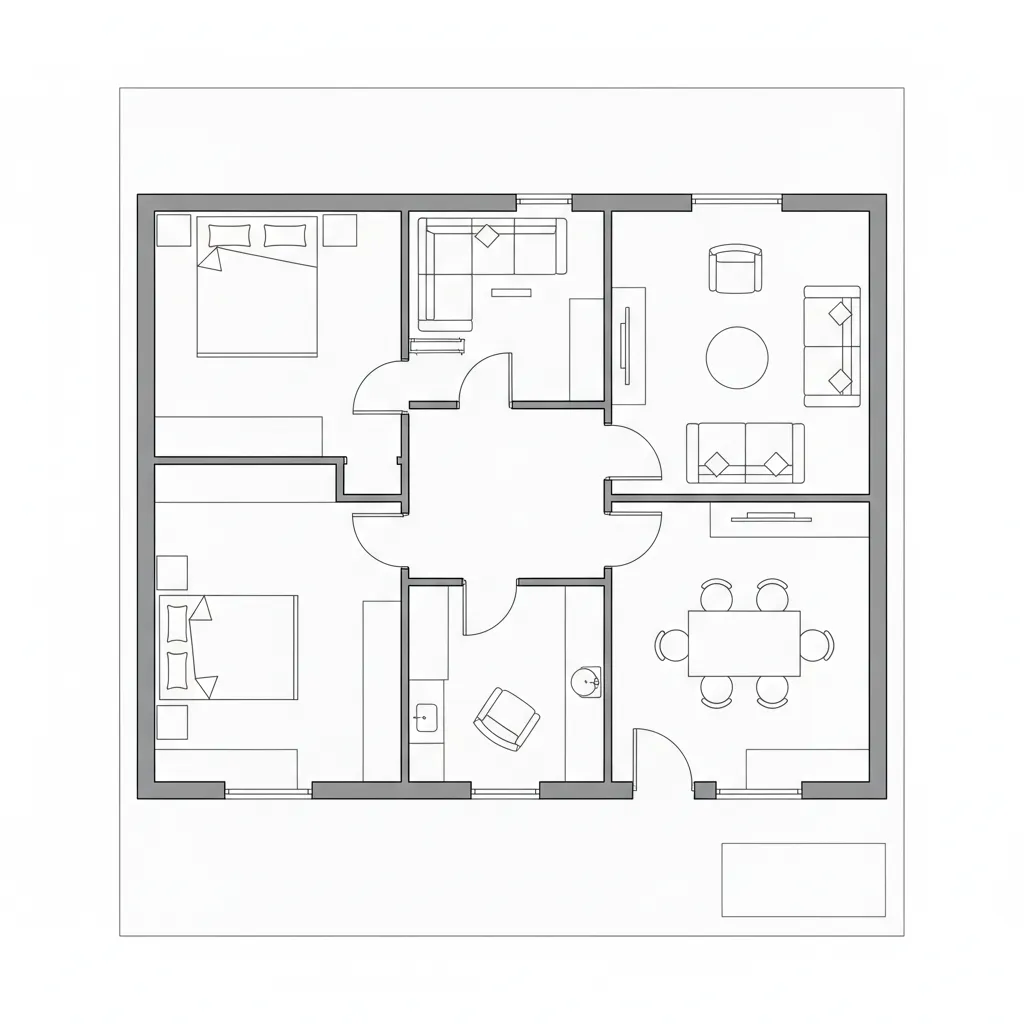

Simplifying Furniture and Texture Details

Key Insight: Furniture symbols should communicate function, not realism.

A hidden mistake I see frequently is over‑drawing furniture. Highly detailed sofas, beds, and chairs might look impressive, but they slow rendering dramatically.

Professional floor plans typically use simplified symbols.

Examples:

1. Sofas represented as rectangles with two cushions
2. Beds drawn with a mattress outline and pillow shapes
3. Dining tables simplified into circles or rectangles
4. Chairs indicated with minimal geometry

The goal isn’t realism—it’s readability.

save pin

Practice Methods to Build Rendering Speed

Key Insight: Timed repetition improves rendering speed far more than occasional long drawing sessions.

In architecture studios, the fastest improvement usually comes from short, structured exercises.

Here are a few drills I recommend:

1. 10‑minute floor plan redraw exercises
2. Furniture symbol repetition sheets
3. Line‑weight hierarchy practice pages
4. Timed shading pattern drills

After about two weeks of these exercises, most students reduce rendering time by 30–40% without sacrificing clarity.

Answer Box

The fastest way to render architectural floor plans by hand is to follow a structured workflow: draw structure first, apply consistent line weights, simplify furniture symbols, and use repeatable shading patterns. Speed improves not by drawing faster, but by removing unnecessary detail and decision points.

Final Summary

1. Rendering speed improves through structured workflow, not faster drawing.
2. Line weight hierarchy dramatically increases clarity.
3. Simplified furniture symbols save significant time.
4. Repeatable shading patterns prevent over‑rendering.
5. Short timed practice sessions build long‑term speed.

FAQ

How can I render floor plans faster by hand?

Plan the drawing sequence, use clear line weight hierarchy, simplify furniture symbols, and apply minimal shading. These steps dramatically improve hand rendering speed for architectural floor plans.

What tools help speed up architectural hand rendering?

Use a small set of pens with different line weights, a mechanical pencil for layout, and one or two gray markers for shading.

Should floor plans include detailed furniture drawings?

Usually no. Simplified symbols communicate layout faster and are easier to read in architectural plans.

What is the biggest mistake that slows floor plan rendering?

Over‑detailing textures and furniture before finishing the structural lines of the plan.

How long should it take to render a floor plan by hand?

A clean presentation‑quality plan usually takes 1–3 hours depending on complexity.

Do professionals still hand render architectural floor plans?

Yes. Hand rendering is still used in concept sketches, presentations, and early design exploration.

How do architecture students improve drawing speed?

Timed sketch drills and repeated plan redraw exercises are the most effective training method.

Does shading improve architectural floor plan readability?

Yes, but only when used selectively. Excessive shading can actually reduce clarity.
