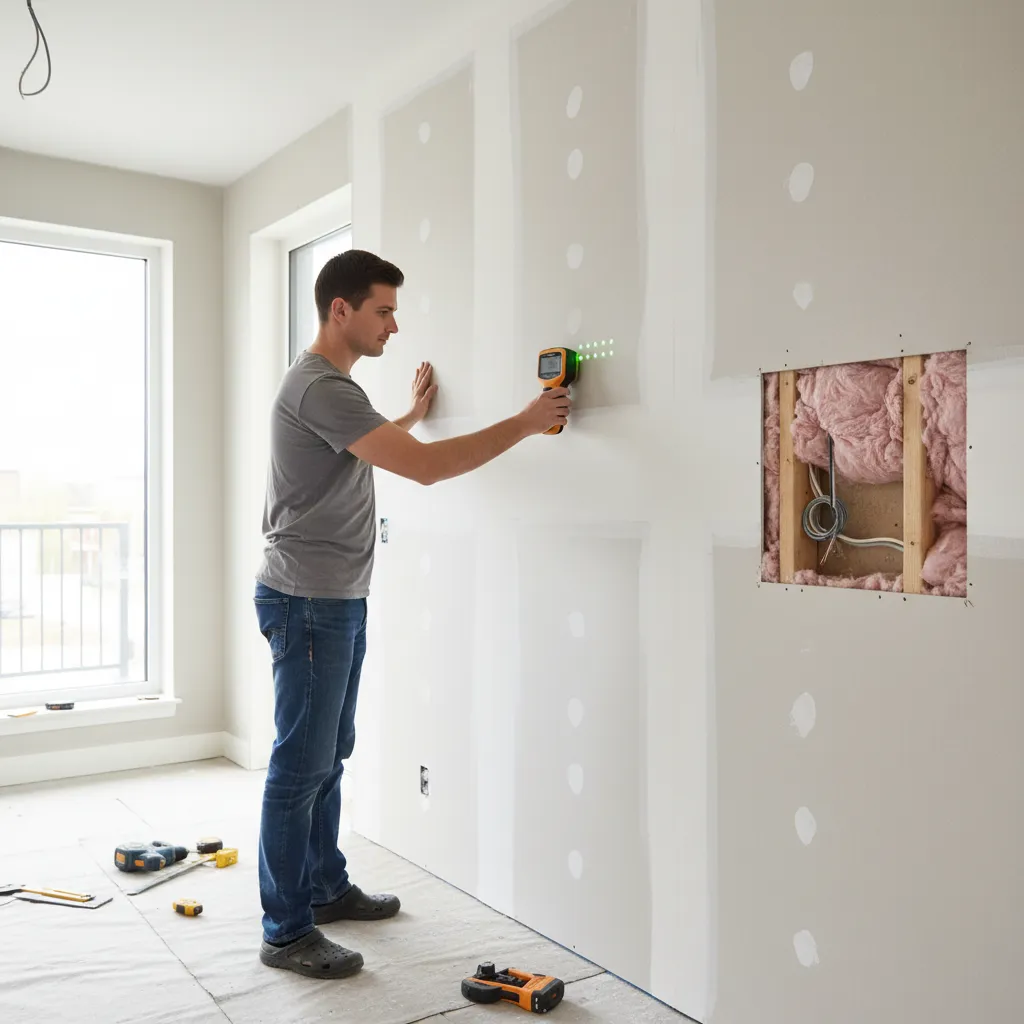

How to Improve Stud Finder Accuracy on Thick Exterior Walls: Practical techniques professionals use to detect studs accurately through insulation, sheathing, and dense exterior wall assemblies

Direct Answer

To improve stud finder accuracy on thick exterior walls, use deep scan mode, calibrate on the same wall surface, move the device slowly, and confirm results with multiple passes. Exterior walls often contain insulation, sheathing, and vapor barriers that weaken signals, so combining careful calibration with cross‑checking methods dramatically improves detection reliability.

Quick Takeaways

1. Exterior walls reduce stud finder accuracy because insulation and sheathing interfere with sensors.
2. Calibrating directly on the target wall improves detection more than factory reset calibration.
3. Slow scanning speed dramatically increases stud detection reliability.
4. Deep scan mode works best on walls thicker than standard drywall.
5. Confirm stud locations using multiple passes or a secondary detection method.

Introduction

Many homeowners assume stud finders stop working when they hit an exterior wall. In reality, the tool is rarely the problem—the wall assembly is. Thick exterior walls typically include drywall, insulation, sheathing, vapor barriers, and sometimes structural boards. Each layer weakens or scatters the signal that electronic stud finders rely on.

After working on renovation projects for more than a decade, I’ve seen this frustration repeatedly. People scan quickly, trust the first beep, and end up drilling into empty insulation. Exterior wall stud detection simply requires a slightly different technique.

Before installing shelving, cabinets, or wall-mounted TVs, I always recommend visualizing the structure of the room first. If you want a clearer understanding of wall framing layouts, this interactive layout planning approach for mapping room structurehelps many homeowners predict stud positions before scanning.

Below are the practical techniques I rely on during real projects to improve stud finder accuracy on thick exterior walls.

save pin

Challenges of Stud Detection in Exterior Wall Structures

Key Insight: Exterior walls are harder to scan because multiple construction layers dilute the density difference a stud finder depends on.

Interior walls are simple: drywall attached directly to studs. Exterior walls are more complex. In most modern homes, the sensor must read through several materials before detecting a stud.

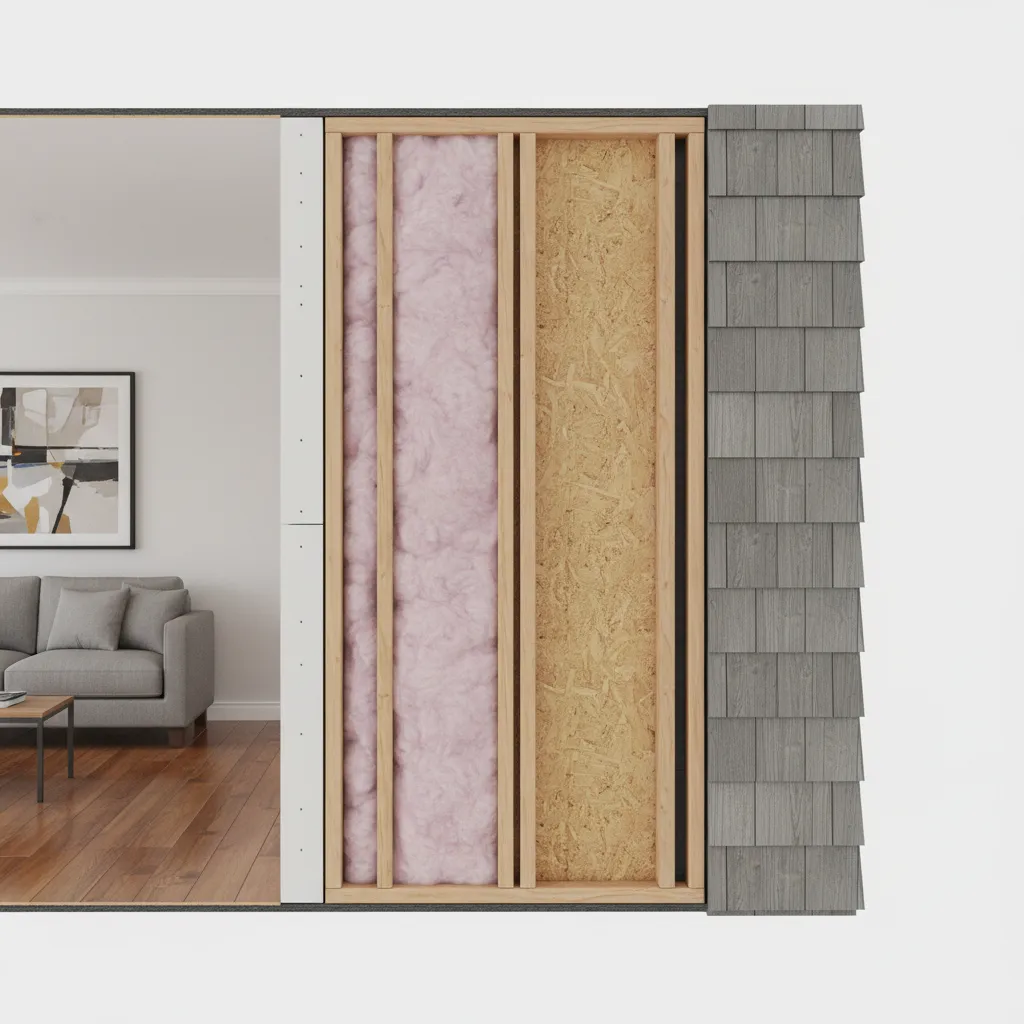

Typical exterior wall layers include:

1. Drywall
2. Vapor barrier or plastic sheeting
3. Fiberglass or mineral insulation
4. Wood studs
5. OSB or plywood sheathing
6. Exterior siding

Each additional layer reduces sensor clarity. Dense insulation can also mimic stud density, causing false positives.

In remodeling work, I’ve noticed two situations where scanners struggle most:

1. Walls with spray foam insulation
2. Walls with double drywall layers
3. Older homes with plaster over wood lath

Understanding the wall assembly helps you adjust scanning expectations and choose the correct detection settings.

Choosing the Right Stud Finder Settings

Key Insight: The correct scanning mode matters more than the device brand when working on thick walls.

Most modern stud finders include multiple detection modes, but many users never switch them.

Common scanning modes include:

1. Standard scan – for drywall up to 3/4 inch thick
2. Deep scan – for thick drywall or layered walls
3. Metal scan – detects metal studs or pipes
4. AC detection – identifies live wiring

For exterior walls, deep scan is usually the best starting point. However, switching back to standard mode for confirmation often produces cleaner edges.

This dual-pass technique—deep scan first, standard scan second—is something many guides never mention, yet it dramatically reduces false readings.

save pin

Proper Calibration Techniques for Thick Walls

Key Insight: Calibrating directly on the scanning wall surface dramatically improves stud finder accuracy.

Most detection errors happen during calibration, not scanning.

Correct calibration steps:

1. Place the stud finder flat against the wall.
2. Choose a location where you are confident no stud exists.
3. Hold the calibration button until the device finishes reading.
4. Start scanning slowly from that point.

A common mistake is calibrating on a different wall. Exterior walls often contain different materials, which can confuse the baseline reading.

Another mistake I see frequently is recalibrating directly over a stud. This causes the device to interpret the stud as empty space.

Scanning Techniques That Improve Detection Accuracy

Key Insight: Slower scanning produces significantly more accurate stud detection results.

Most stud finders require time to interpret density changes. When users sweep across the wall too quickly, the sensor cannot process the signal clearly.

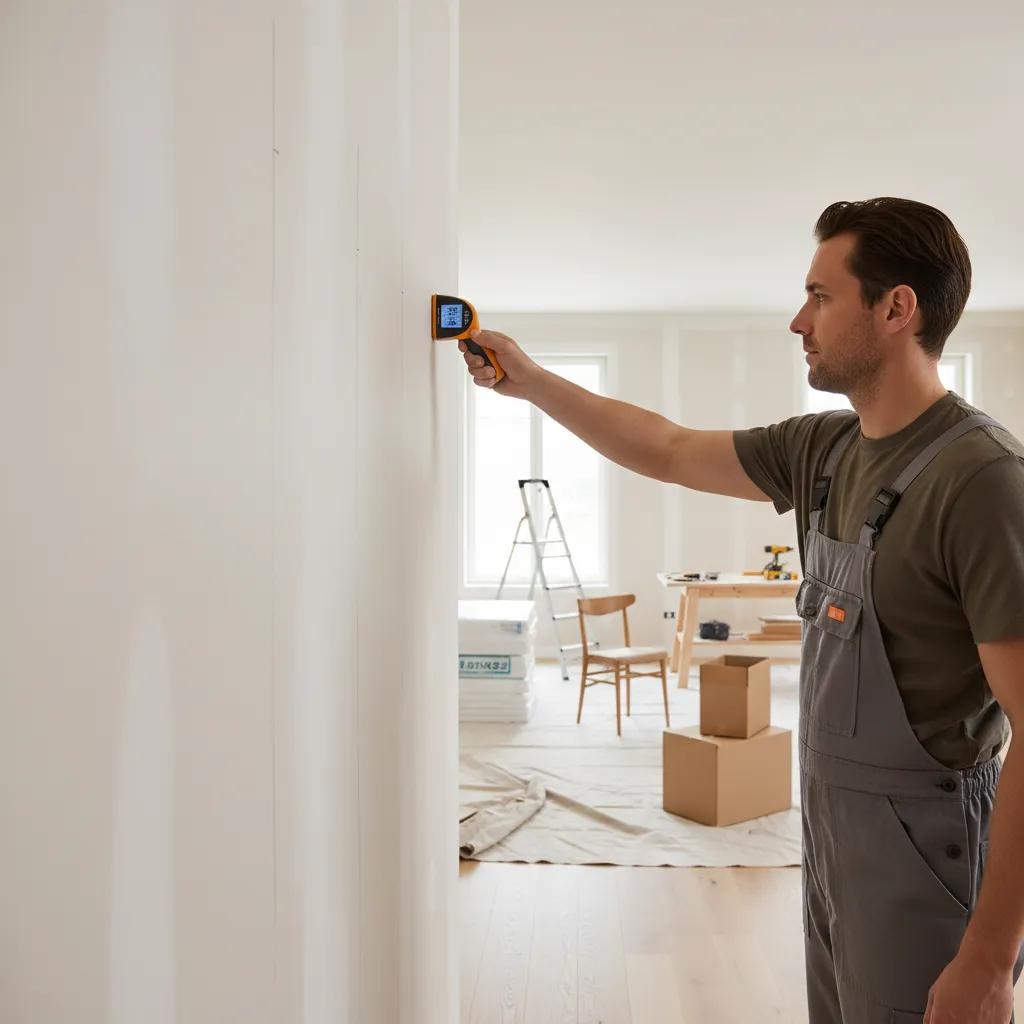

Best scanning technique:

1. Move the stud finder at roughly 1 inch per second
2. Scan horizontally across the wall
3. Mark both edges of the stud
4. Repeat the scan from the opposite direction

Once both edges are detected, the center of the stud becomes obvious.

When planning mounting locations or heavy installations, I often visualize the framing layout first using a room layout visualizer that helps map wall structure. Predicting likely stud spacing (usually 16 or 24 inches) makes scanning much faster.

save pin

How to Handle Insulation and Multiple Wall Layers

Key Insight: Dense insulation is one of the biggest sources of stud finder false readings.

Fiberglass insulation is usually manageable, but foam insulation can produce misleading signals because its density is closer to wood.

Signs insulation is affecting your readings:

1. Inconsistent stud positions
2. Wide detection zones
3. Multiple stud alerts close together

When insulation interference occurs, try these adjustments:

1. Switch to deep scan mode
2. Scan vertically instead of horizontally
3. Repeat scans several times
4. Confirm with a magnetic stud finder

Magnetic stud finders detect screws or nails rather than density differences, which makes them useful in heavily insulated walls.

Answer Box

The most reliable way to improve stud finder accuracy on thick exterior walls is to combine proper calibration, slow scanning, and deep scan mode. When insulation or multiple layers interfere with readings, confirming results with multiple passes or secondary detection methods prevents costly mistakes.

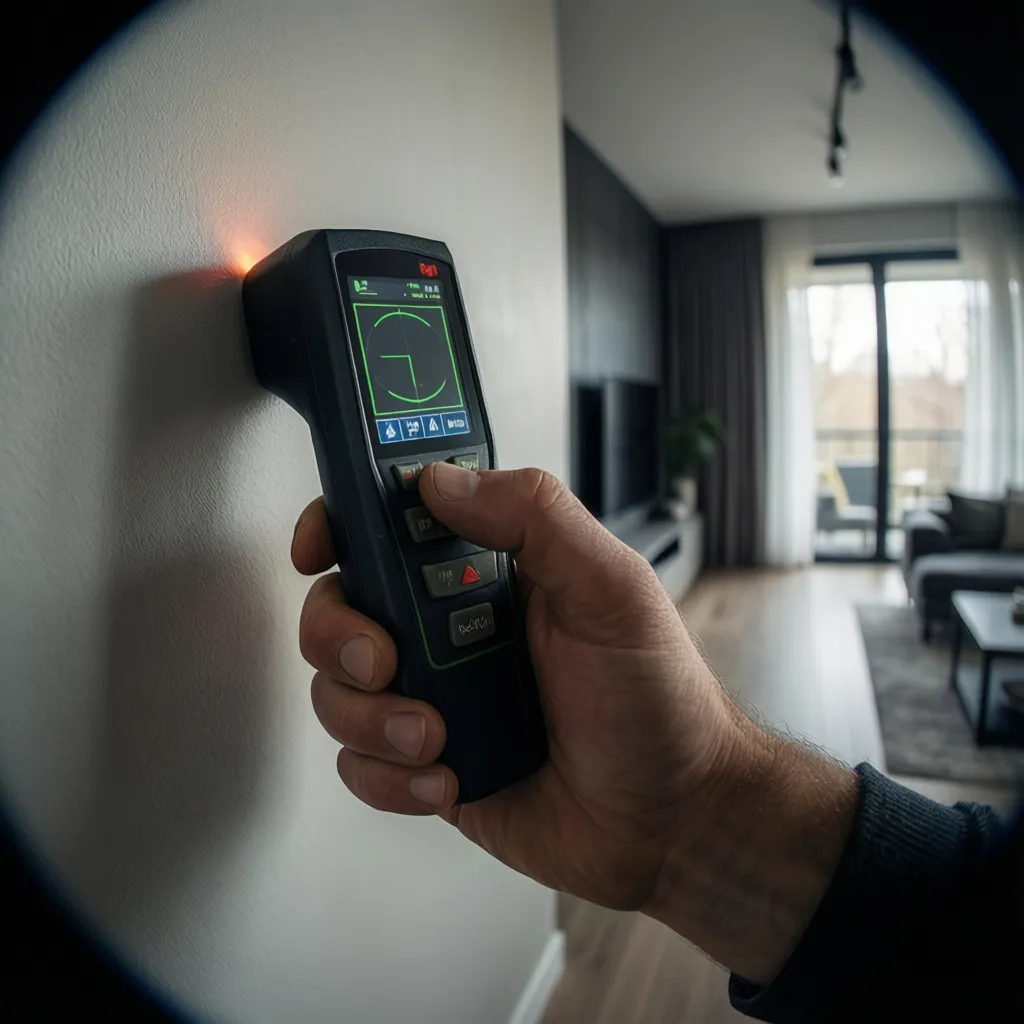

When to Use Deep Scan Mode

Key Insight: Deep scan mode is essential when wall thickness exceeds standard drywall construction.

Use deep scan mode in these situations:

1. Double drywall layers
2. Exterior walls with sheathing
3. Plaster walls
4. Walls thicker than 1 inch

However, deep scan mode is more sensitive and can create wider detection zones. That’s why many professionals run a second pass in standard mode to confirm the exact stud center.

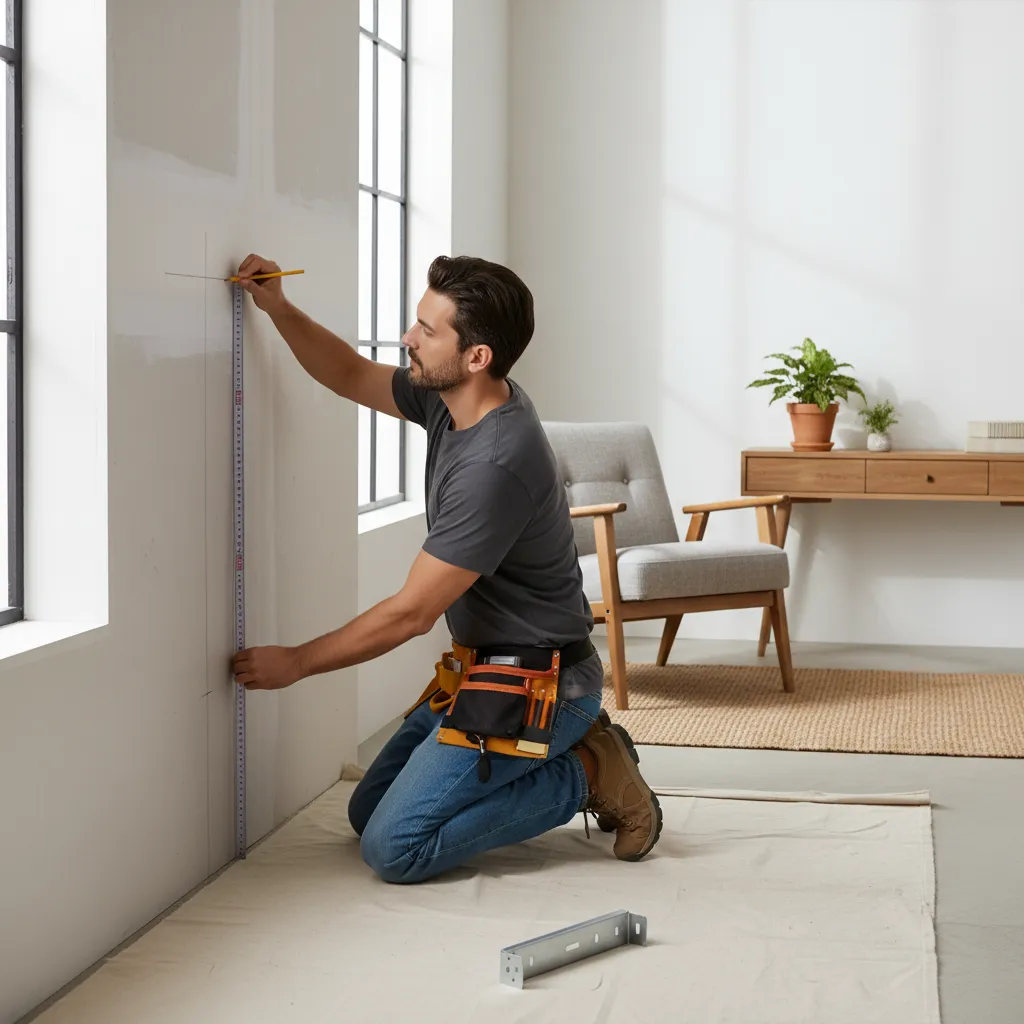

Combining Stud Finders with Other Detection Methods

Key Insight: The most accurate stud detection comes from combining multiple confirmation methods.

Professional installers rarely rely on a single tool.

Reliable confirmation methods include:

1. Magnetic stud finders
2. Checking outlet box positions
3. Measuring standard stud spacing
4. Looking for drywall screw patterns

Planning mounting locations beforehand also helps reduce guesswork. Many installers map wall sections using a simple floor plan layout creator for planning installation pointsso they can visualize structure and spacing before drilling.

save pin

Final Summary

1. Exterior walls reduce stud finder accuracy due to insulation and layered construction.
2. Calibrating on the same wall dramatically improves detection reliability.
3. Slow scanning speed is one of the most effective accuracy improvements.
4. Deep scan mode works best for thick drywall or layered exterior walls.
5. Combining multiple detection methods prevents false stud readings.

FAQ

1. Why does my stud finder not work on exterior walls?

Exterior walls contain insulation, sheathing, and vapor barriers that interfere with density sensors, making studs harder to detect.

2. What is the best way to improve stud finder accuracy exterior wall?

Calibrate on the same wall, use deep scan mode, move slowly, and confirm results with multiple scanning passes.

3. Does insulation affect stud finder readings?

Yes. Dense insulation like spray foam can produce false readings because its density is closer to wood.

4. How slow should I move a stud finder?

About one inch per second is ideal for accurate sensor readings.

5. Should I use deep scan mode all the time?

No. Use it for thick or exterior walls, then confirm results with standard scan mode.

6. Can studs be detected through thick drywall and sheathing?

Yes, but using deep scan stud finder tips for thick walls improves reliability.

7. Do magnetic stud finders work better on exterior walls?

Sometimes. They detect screws and nails rather than density, which helps in insulated walls.

8. What is the most common mistake when using a stud finder?

Scanning too quickly and calibrating incorrectly are the two biggest causes of inaccurate readings.
