How to Install 4x8 Decorative Wall Panels Without Visible Seams: Practical installation fixes to prevent gaps, alignment errors, and uneven seams in large decorative wall panels.

Direct Answer

The best way to install 4x8 decorative wall panels without visible seams is to start with a perfectly level reference line, dry‑fit every panel before fastening, and leave a small expansion gap that is later hidden with trim or joint filler. Most seam problems occur because the first panel is slightly off level or the wall surface is uneven.

When panels are aligned from a straight starting point and fastened with the correct spacing, seams become almost invisible—even with large 4x8 sheets.

Quick Takeaways

1. Most visible seams come from misaligned first panels rather than poor panel quality.
2. Dry‑fitting panels before adhesive or nails prevents alignment mistakes.
3. Uneven walls require shimming to keep panel edges flush.
4. Small expansion gaps reduce buckling and seam separation later.
5. Cutting errors around outlets often push panels out of alignment.

Introduction

Installing 4x8 decorative wall panels looks simple until you notice the seams. After working on dozens of residential interior projects, I can tell you that visible joints are the number‑one complaint homeowners have after installing large wall panels.

The panels themselves are rarely the problem. In most cases, the issue starts with wall preparation, alignment, or cutting mistakes around obstacles like outlets and corners. Because 4x8 panels cover a large surface area, even a tiny misalignment at the beginning becomes very obvious by the time you reach the opposite side of the wall.

Before starting any panel layout, I often recommend mapping the wall digitally so you know where seams will fall. Tools like this interactive room layout planner for visualizing wall panel placementhelp prevent awkward seams landing directly beside windows, cabinets, or outlets.

In this guide, I’ll walk through the most common installation problems I’ve seen in real projects—and how to fix them before they ruin the final result.

save pin

Common Problems When Installing 4x8 Wall Panels

Key Insight: Most decorative wall panel installation problems come from wall irregularities rather than the panels themselves.

Large panels behave differently from small tiles or boards. A drywall surface that looks flat can still have small bows or dips that create visible seams once the panels are attached.

The most frequent issues I see during installations include:

1. Uneven drywall causing panel edges to lift
2. Panels installed without a level starting line
3. Improper adhesive spacing leading to bubbles
4. Outlets or switches cut slightly off‑center
5. Panels expanding after installation due to humidity

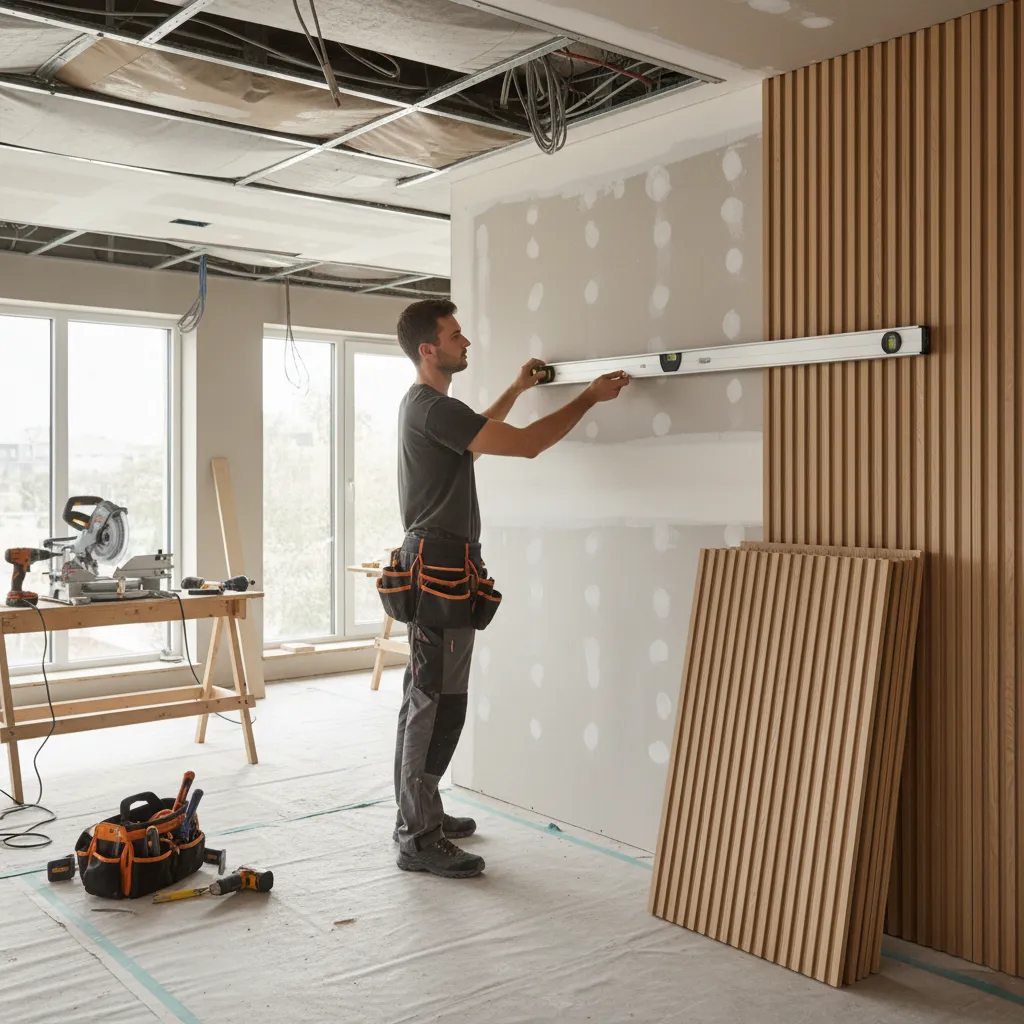

Professional installers usually check wall flatness with a long level or straightedge before installing any panels. If the wall varies more than about 1/8 inch across a panel width, shimming becomes necessary.

Industry installation guides from manufacturers like DPI and Wilsonart also recommend acclimating panels in the room for at least 24 hours to prevent expansion after installation.

How to Align Panels to Avoid Visible Seams

Key Insight: The first panel determines the alignment of every panel that follows.

One mistake DIY installers often make is starting in a corner without verifying whether the corner is perfectly vertical. In many homes—especially older ones—it isn't.

A better installation method looks like this:

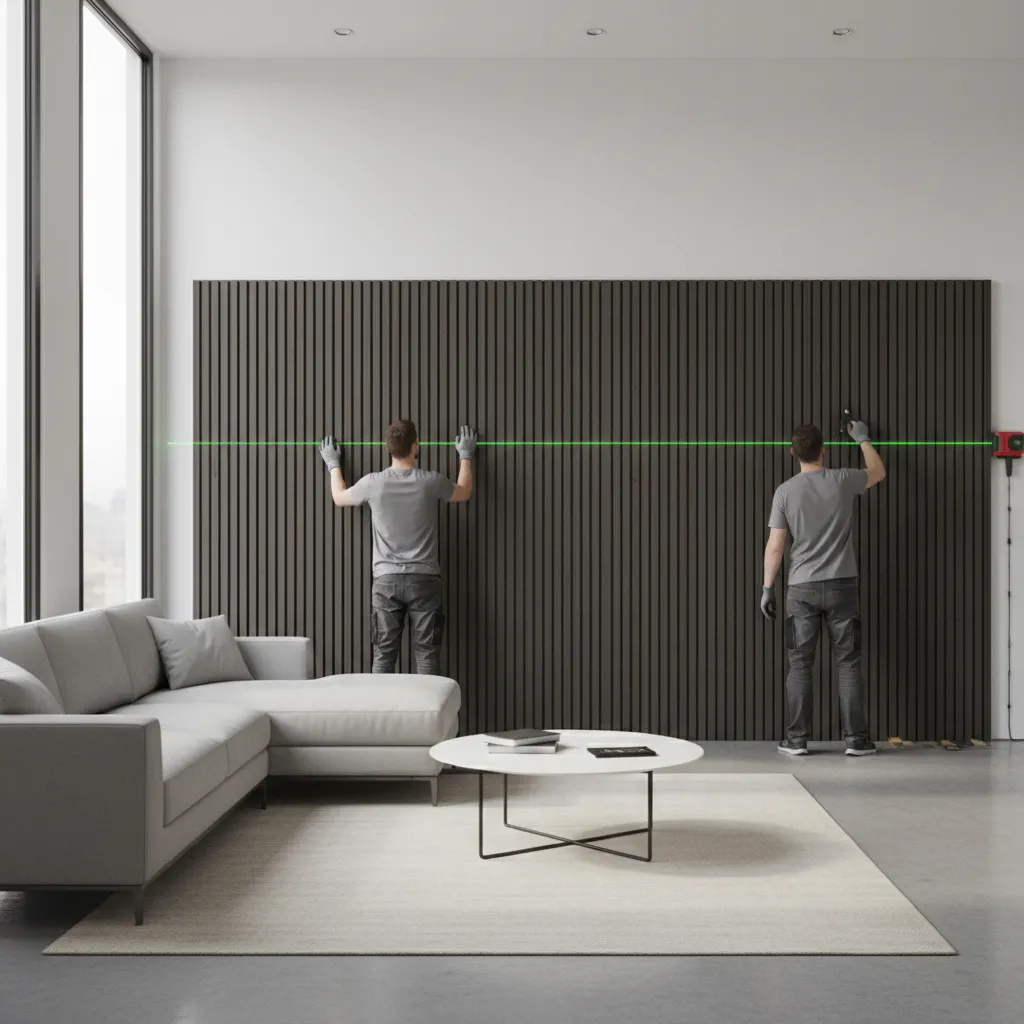

1. Mark a perfectly level vertical reference line using a laser level.
2. Dry‑fit the first two panels before applying adhesive.
3. Confirm seams land on flat portions of the wall.
4. Secure the first panel fully before installing the next.

In several remodel projects I've worked on, adjusting the starting line by even half an inch dramatically improved seam alignment across an entire wall.

save pin

Fixing Gaps Between Decorative Wall Panels

Key Insight: Small panel gaps are easier to hide during installation than to repair afterward.

Even when panels are aligned correctly, small gaps sometimes appear between sheets. This usually happens when walls are slightly bowed or when panels were not pushed tightly together before fastening.

Here are reliable solutions used in professional installs:

1. Joint filler: Paintable seam filler can hide small gaps under 1/16 inch.
2. Decorative battens: Thin trim strips intentionally cover seams.
3. Color‑matched caulk: Works well with PVC or FRP panels.
4. Panel shimming: Thin spacers behind the panel fix wall dips.

Designers sometimes intentionally incorporate vertical battens between panels. What looks like a design feature actually hides structural seams—a trick used frequently in commercial interiors.

If you're planning panel layouts in advance, tools such as this free floor plan creator for mapping wall sections help visualize where seams will fall before cutting any material.

Adhesive vs Nail Installation Issues

Key Insight: Adhesive provides smoother seams, while nails offer easier adjustments during installation.

Choosing the wrong fastening method often creates alignment problems. Adhesive grabs quickly, leaving little room for repositioning, while nails allow slight movement before final placement.

Here is how the two methods compare:

1. Construction adhesiveCleaner finish with fewer visible fasteners
2. Better for perfectly flat drywall
3. Difficult to adjust once pressed in place
4. Finish nails or bradsEasier to realign panels
5. Useful for uneven walls
6. Requires filling nail holes afterward

In many professional installs, the best method is actually both: adhesive for bonding and a few brad nails to hold alignment while the adhesive cures.

Answer Box

To prevent visible seams in 4x8 decorative wall panels, begin with a perfectly level reference line, dry‑fit each panel, and correct uneven walls before installation. Most seam issues occur because the first panel is slightly misaligned.

save pin

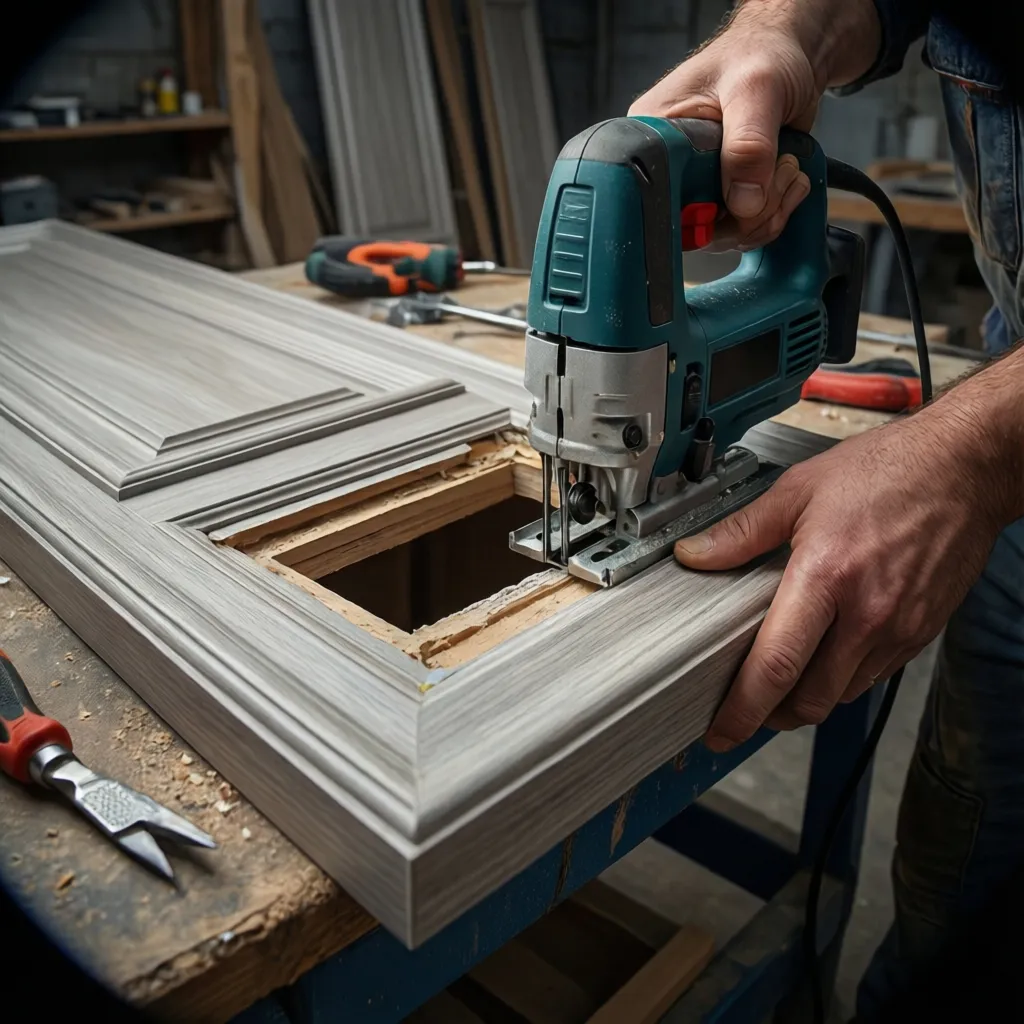

Cutting Panels Correctly Around Outlets and Corners

Key Insight: Inaccurate outlet cuts are one of the biggest causes of panel misalignment.

Because 4x8 panels are large, even a slightly misplaced cut forces the entire panel to shift. That shift usually creates a seam gap on the opposite side.

Professional installers typically follow this method:

1. Measure outlet position from two reference edges.
2. Transfer measurements carefully onto the panel.
3. Drill corner holes before cutting the opening.
4. Use a jigsaw or oscillating tool for clean edges.

Another overlooked detail is corner clearance. Panels should not be forced tightly into corners; leaving a small expansion gap prevents buckling later.

Repairing Misaligned Wall Panels

Key Insight: Minor panel misalignment can often be corrected without removing the entire wall section.

If seams are already visible, the repair strategy depends on how severe the misalignment is.

Common repair options include:

1. Removing and resetting a single panel
2. Adding decorative trim strips between panels
3. Filling seams and repainting the wall surface
4. Re‑cutting edge panels for tighter joints

During one recent renovation project, we corrected a full wall of slightly misaligned panels simply by adding slim vertical battens between sheets. The result looked intentional and architectural rather than like a repair.

If you're experimenting with panel styles or wall layouts before committing, visualizing designs through an AI interior design visualization for wall finishes can help identify seam placements early in the design process.

Final Summary

1. Level the first panel carefully to prevent seam alignment problems.
2. Dry‑fit panels before fastening to catch spacing errors.
3. Uneven walls often require shimming behind panels.
4. Accurate outlet cuts prevent panel shifting.
5. Decorative battens can hide unavoidable seams.

FAQ

How do you hide seams in wall panels?

Use joint filler, color‑matched caulk, or decorative battens. Many designers intentionally cover seams with trim strips to create a structured wall design.

Why are my decorative wall panels separating?

Expansion from humidity or insufficient adhesive can cause panels to separate. Allow panels to acclimate to the room for 24 hours before installation.

Can you install 4x8 wall panels without nails?

Yes. Many installations rely entirely on construction adhesive, though a few brad nails help hold alignment while the adhesive cures.

How do you fix misaligned wall panels?

Small misalignments can be corrected by removing one panel, trimming edges, or covering seams with decorative battens.

What is the best adhesive for decorative wall panels?

Heavy‑duty construction adhesive designed for paneling or FRP works best because it remains flexible and prevents separation.

How do you cut 4x8 wall panels correctly?

Measure from two edges, drill corner holes, and cut with a jigsaw. Accurate measurement prevents panel shifting during installation.

Do decorative wall panels expand?

Yes. Many materials such as PVC and MDF expand slightly with temperature and humidity changes, so leaving a small gap at edges helps.

What causes decorative wall panel installation problems?

The most common causes are uneven walls, misaligned starting panels, and inaccurate outlet cuts.
