How to Lubricate an Old Ceiling Fan Safely: A practical step by step method to oil older ceiling fan motors and restore quiet smooth airflow

Direct Answer

To lubricate an old ceiling fan safely, first turn off power at the breaker, locate the motor’s oil port, and add a few drops of non‑detergent electric motor oil. Rotate the blades manually to distribute the oil before restoring power and testing the fan. Proper lubrication reduces noise, improves airflow efficiency, and extends the fan’s motor life.

Quick Takeaways

1. Only older ceiling fans with oil ports require lubrication.
2. Use non‑detergent electric motor oil, never cooking oil or WD‑40.
3. Add small amounts of oil slowly to avoid motor damage.
4. Manual blade rotation helps distribute oil inside the motor.
5. Annual lubrication prevents overheating and bearing wear.

Introduction

Many homeowners ask me the same question during renovation projects: how do you properly maintain an older ceiling fan? In houses built before the early 2000s, ceiling fans were often designed with oil ports that require occasional lubrication. Knowing how to lubricate an old ceiling fan safely can make the difference between a smooth, silent fan and one that rattles or overheats.

I have worked on dozens of residential redesigns where homeowners assumed their noisy fan was “dying.” In reality, the motor simply hadn’t been oiled in years. Once lubricated, those same fans ran quietly again for another decade.

Maintenance like this often gets overlooked during interior upgrades. When I’m helping clients visualize a refreshed room layout using tools that help homeowners experiment with furniture placement before renovating a living space, I also remind them to evaluate existing fixtures like lighting and ceiling fans. A little mechanical care can preserve a fixture that still fits the design perfectly.

In this guide, I’ll walk through how to oil a ceiling fan motor properly, where the oil port is usually located, and the mistakes that quietly destroy fan motors.

save pin

How to Know If Your Ceiling Fan Requires Oil

Key Insight: Only older ceiling fan models with an oil port need lubrication; most modern sealed motors do not.

One of the biggest misconceptions I see during home upgrades is that every ceiling fan needs oil. That’s simply not true. Since the early 2000s, most manufacturers switched to permanently sealed bearings.

So how do you tell?

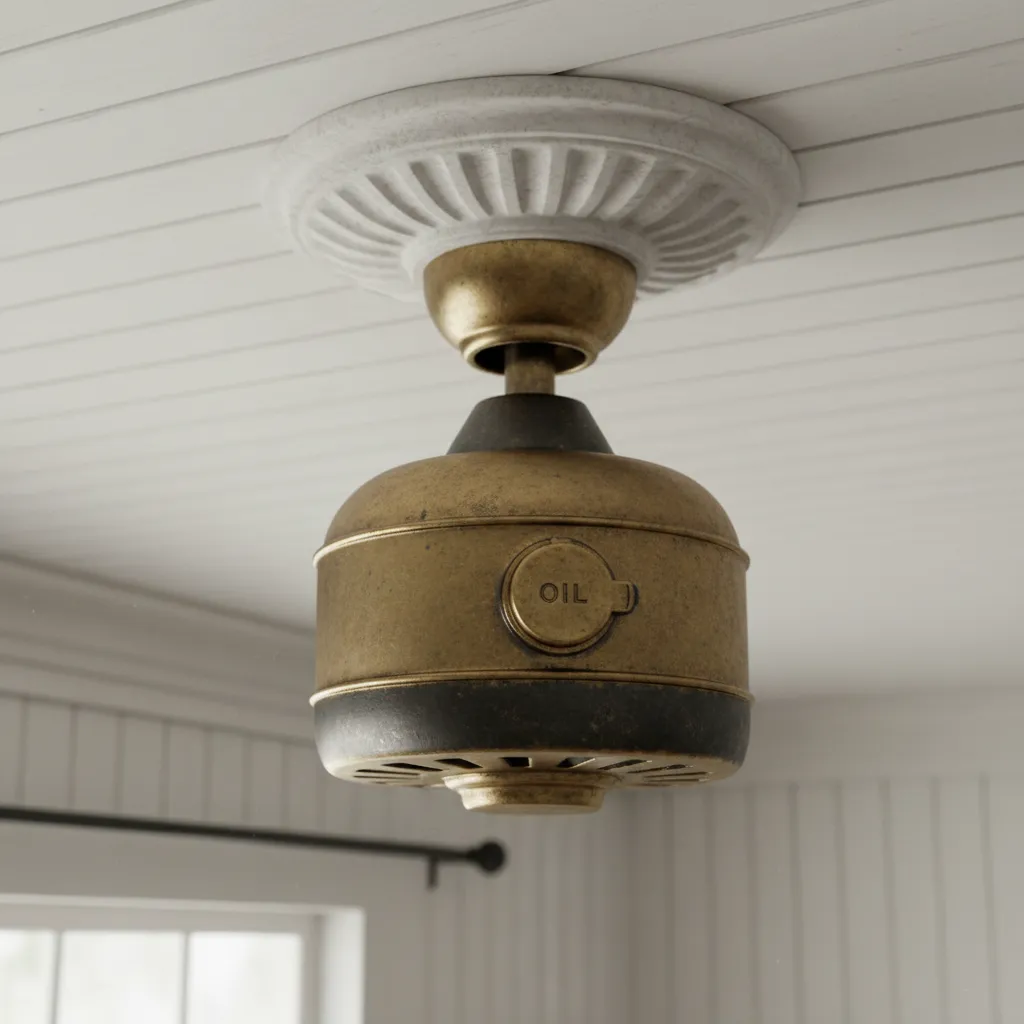

1. Check the motor housing. Older fans usually have a small labeled oil hole.
2. Look for an oil cap. Often rubber or metal.
3. Consult the model number. Manufacturer manuals often confirm lubrication requirements.
4. Listen for symptoms. Grinding, humming, or slow startup often indicates dry bearings.

In several 1980s homes I renovated in Los Angeles, nearly every fan still had a functioning oil port. After lubrication, airflow improved noticeably and motor noise dropped.

Manufacturers like Hunter and Casablanca documented this maintenance requirement in older manuals, recommending yearly oiling for optimal performance.

Tools and Oil Types Recommended for Ceiling Fans

Key Insight: Using the wrong lubricant is one of the fastest ways to damage a ceiling fan motor.

Not all oils behave the same under heat and rotation. Ceiling fan motors require oil designed for electric motor bearings.

Here’s what professionals typically use:

1. Non‑detergent electric motor oil (SAE 10 or SAE 20)
2. Precision oil bottle with narrow nozzle
3. Ladder with stable footing
4. Microfiber cloth for cleaning dust

Avoid these common mistakes:

1. WD‑40 or penetrating sprays
2. Cooking oils
3. Heavy automotive lubricants

These products either evaporate too quickly or leave residue that gums up bearings. Over time, that buildup creates more friction than the original problem.

When I’m planning full room visualizations for clients who want to preview a complete interior design before renovation, we often decide whether to restore existing fixtures or replace them. A properly maintained fan frequently wins that decision.

save pin

Step by Step Guide to Lubricating an Old Ceiling Fan

Key Insight: Proper lubrication takes less than 10 minutes but must follow a strict safety order.

Follow this process carefully:

1. Turn off power at the breaker. Never rely only on the wall switch.
2. Clean the fan housing. Dust around the oil port can contaminate the motor.
3. Locate the oil port. Usually on top of the motor casing.
4. Add 3–5 drops of motor oil. Insert the nozzle slowly.
5. Rotate blades by hand. This distributes oil through the bearings.
6. Wait 5–10 minutes. Allow oil to settle inside the motor.
7. Restore power and test.

Most manufacturers recommend repeating this once per year. In hot climates or frequently used fans, every six months can be beneficial.

A surprising observation from many of my renovation projects: fans that haven’t been oiled for 15–20 years often recover immediately once lubrication is restored.

save pin

Answer Box

Old ceiling fans require only a small amount of non‑detergent motor oil through the motor’s oil port. Turn off power, add a few drops, rotate blades manually, and test the fan after several minutes. Regular lubrication prevents bearing wear and extends motor life.

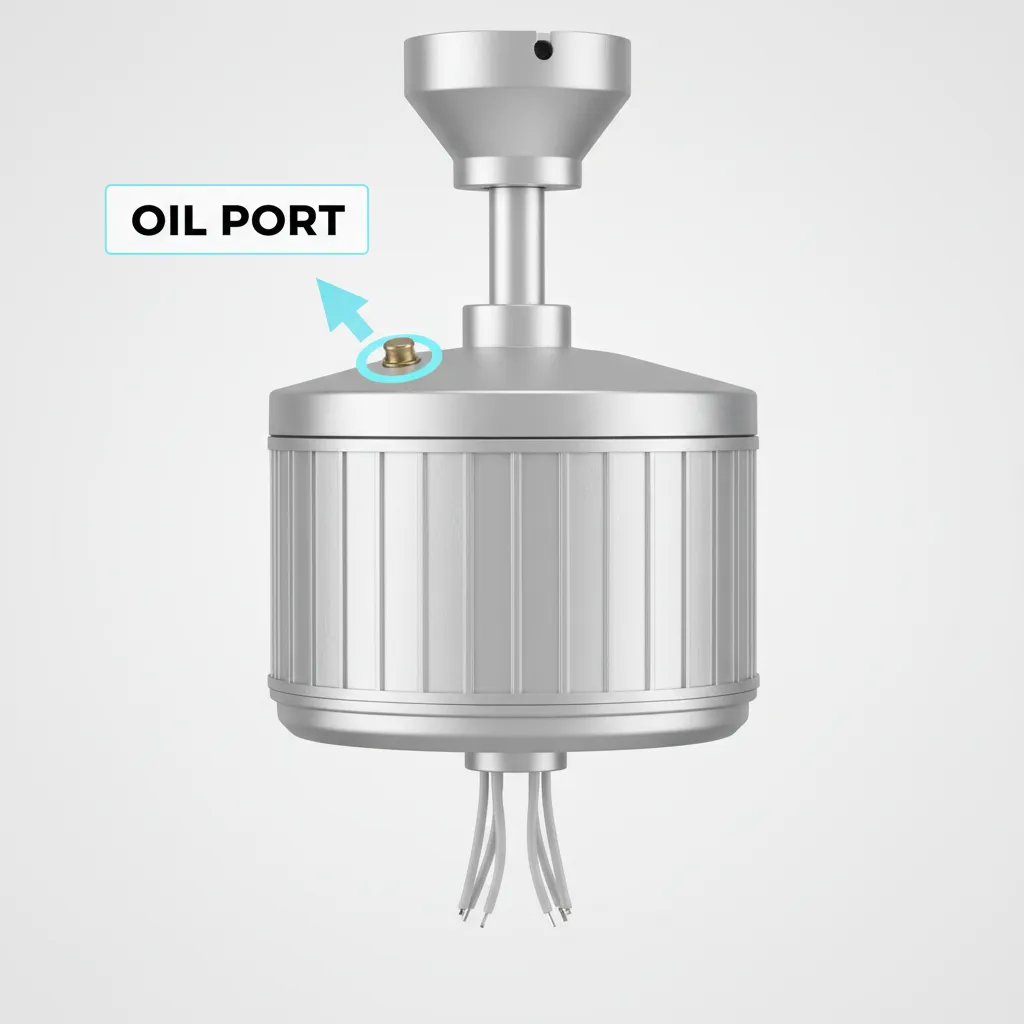

Where the Oil Port Is Usually Located

Key Insight: The oil port is almost always hidden on the top of the motor housing, not underneath the fan.

This detail surprises many homeowners. Because the port faces upward, it’s often missed during quick inspections.

Typical locations include:

1. Top of the motor housing near the downrod
2. Small labeled hole reading “OIL”
3. Rubber plug or metal cap
4. Recessed opening requiring a narrow oil nozzle

If you can’t find it, remove the decorative canopy near the ceiling. Some manufacturers hide the oil port under that cover.

During several historic home remodels I worked on, homeowners thought their fans had no oil port simply because it was concealed above the motor casing.

save pin

How Much Oil to Add Without Damaging the Motor

Key Insight: Too much oil can be just as harmful as too little.

Many DIY guides suggest “filling” the oil port. That’s actually risky. Electric motor bearings need only a thin lubrication layer.

Recommended amounts:

1. Initial lubrication: 4–5 drops
2. Routine maintenance: 2–3 drops
3. Severely dry motors: up to 1 teaspoon gradually

Adding excessive oil can cause:

1. Oil leaking into windings
2. Dust accumulation inside the motor
3. Reduced cooling efficiency

In one restoration project involving a 1990s living room fan, a homeowner had poured nearly half a bottle of oil into the motor. The excess attracted dust and eventually jammed the bearings.

Post Lubrication Testing and Safety Checks

Key Insight: Proper testing confirms that lubrication solved the issue and didn’t create new problems.

After lubrication, run a quick inspection routine:

1. Turn the fan to the lowest speed first
2. Listen for grinding or humming
3. Check for oil leaks around the motor
4. Increase speed gradually
5. Observe blade wobble

If wobbling occurs, it’s usually unrelated to lubrication. Blade balancing or mounting alignment is typically the cause.

When homeowners redesign their interiors and want to map out a new room layout before moving furniture, they often realize an existing fan still fits the space aesthetically. A quick maintenance step like lubrication can keep that fixture running for years.

Final Summary

1. Older ceiling fans often require annual lubrication.
2. Always use non‑detergent electric motor oil.
3. Add only a few drops to avoid motor contamination.
4. The oil port is typically on top of the motor housing.
5. Testing after lubrication confirms proper operation.

FAQ

How do I know where to put oil in a ceiling fan?

Look for a small hole labeled “oil” on top of the motor housing. This is the ceiling fan oil port location.

What is the best oil for a ceiling fan motor?

Non‑detergent electric motor oil such as SAE 10 or SAE 20 works best for lubricating ceiling fan bearings.

How often should I lubricate a ceiling fan?

Most older models should be lubricated once per year, or every six months in warm climates.

Can I use WD‑40 to oil a ceiling fan?

No. WD‑40 is a solvent, not a long‑term lubricant, and it evaporates quickly.

What happens if a ceiling fan is not lubricated?

Dry bearings create friction, causing noise, overheating, and reduced motor lifespan.

How much oil should I add to a ceiling fan motor?

Usually 3–5 drops are sufficient for routine maintenance.

Do modern ceiling fans require lubrication?

Most modern fans use sealed bearings and do not require oil.

Can lubrication stop a noisy ceiling fan?

Yes, if the noise comes from dry bearings. If the noise continues, the issue may be blade imbalance or loose mounting.
