How to Make a Floor Plan for a Small Apartment: Before You Buy Anything

A small apartment punishes bad planning more than any other space. In a large home, a sofa in the wrong place just looks off. In a 500-square-foot apartment, it blocks the only path to the kitchen.

Most people skip the free floor planner and go straight to shopping. They find a rug they like, a sectional that photographs well, a bookshelf that seems about right. Then everything arrives and the room doesn't work — not because the furniture is wrong, but because nobody checked whether it would fit the life being lived in the space.

This is how to do it differently.

Why Small Apartments Are Harder to Plan Than They Look

The challenge with small apartments isn't square footage. It's that every decision has consequences.

In an open-plan studio or compact one-bedroom, the same space has to handle sleeping, working, eating, and living. Those functions don't just share the floor — they compete for it. A dining table that seats four takes up space that could be a reading corner. A king bed that fits the room leaves no clearance to get dressed comfortably in the morning.

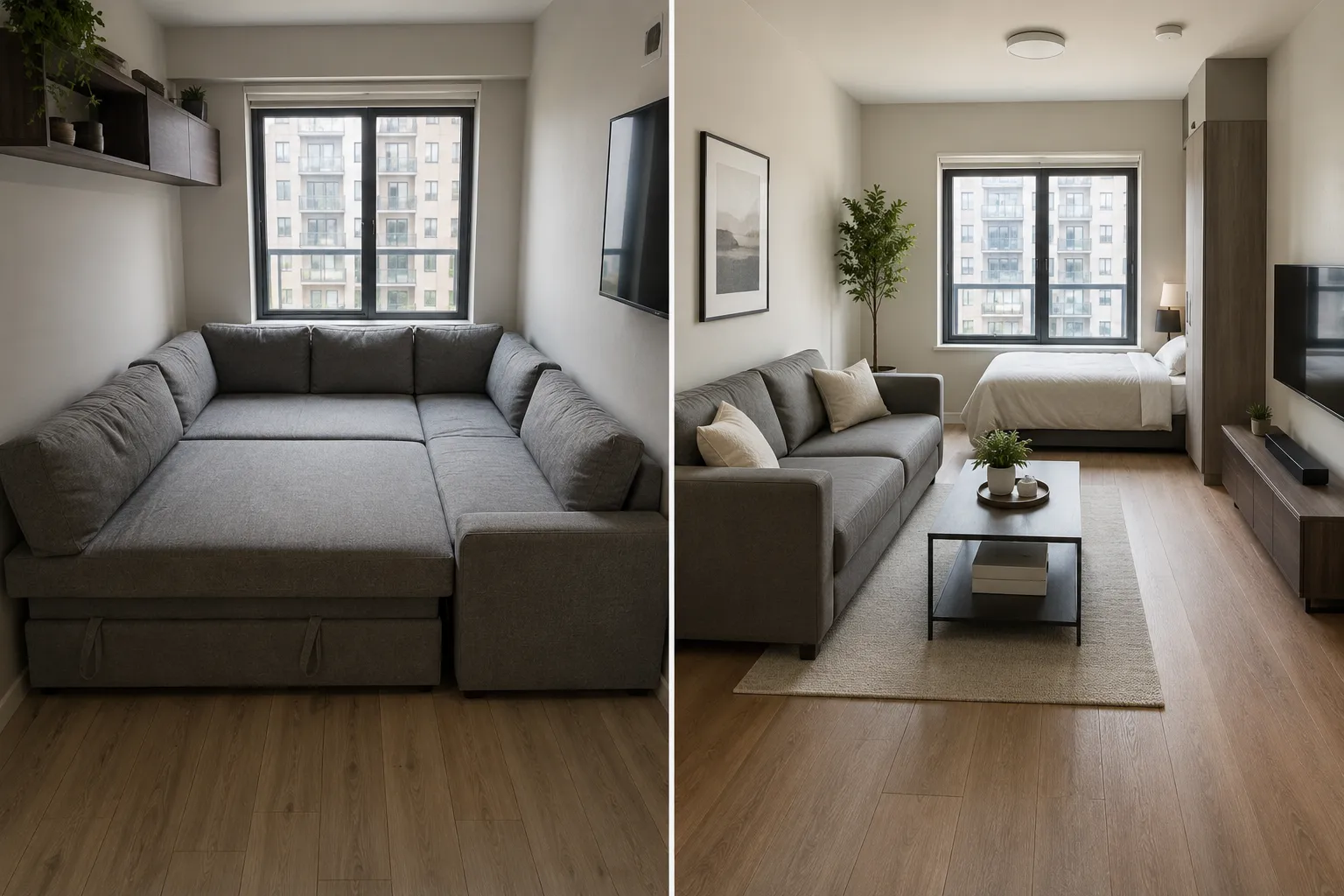

There's also a scale problem. Most furniture is designed for homes averaging twice the size of the average apartment. A standard three-seat sofa looks proportionate in a showroom. In a room that's 12 feet wide, it leaves four feet for everything else.

A floor plan makes these conflicts visible before they become expensive. It's not a design exercise — it's a decision filter.

Before You Draw Anything: The Measurements That Actually Matter

A floor plan is only as good as the numbers going in. These are the ones worth getting right.

Wall lengths — measure at floor level, at both ends of each wall. Rooms are rarely perfectly square. A difference of even a few inches matters when you're placing a sofa flush against a wall.

save pin

Door swings — note where each door is and which direction it opens. A standard interior door sweeps a 30-to-36-inch arc into the room. Furniture placed in that arc gets hit every time the door opens.

Window positions — measure from the corner to each window edge, and note the sill height. A sill under 24 inches limits what can sit in front of it. Natural light is the one thing you can't add, so plan around it.

Ceiling height — standard is 8 feet. Older buildings often have 9 or 10, which opens up vertical storage options and changes how tall furniture reads in the space.

Outlets and switches — mark their positions before you plan furniture placement. A sofa over an outlet isn't just inconvenient.

The entry path — measure doorframe width, hallway turns, and elevator dimensions if relevant. A sofa that fits the room doesn't help if it can't get through the building.

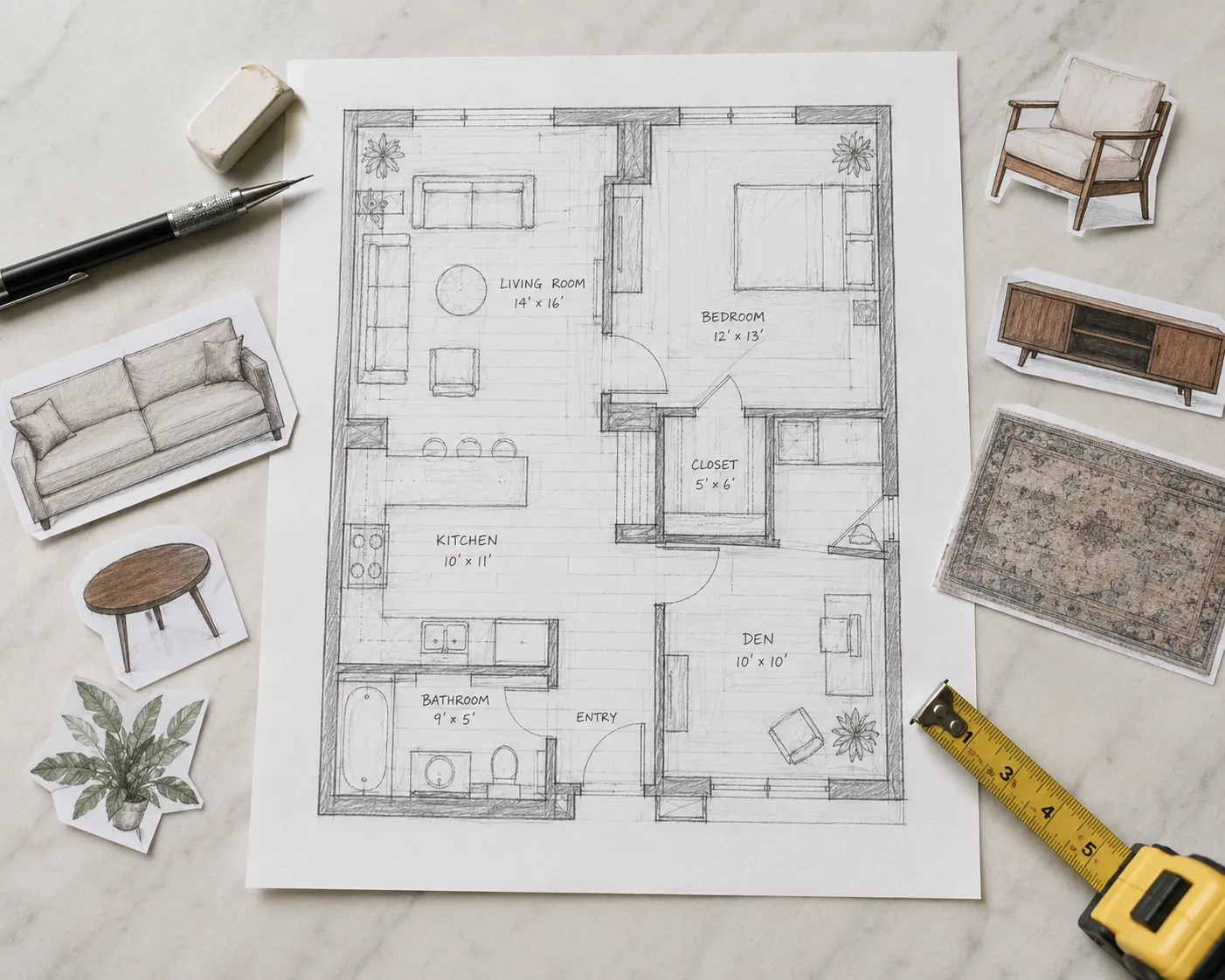

Sketch these on paper first. A rough drawing with accurate numbers beats a polished digital plan built on guesses.

save pin

Step by Step: From Blank Page to Working Layout

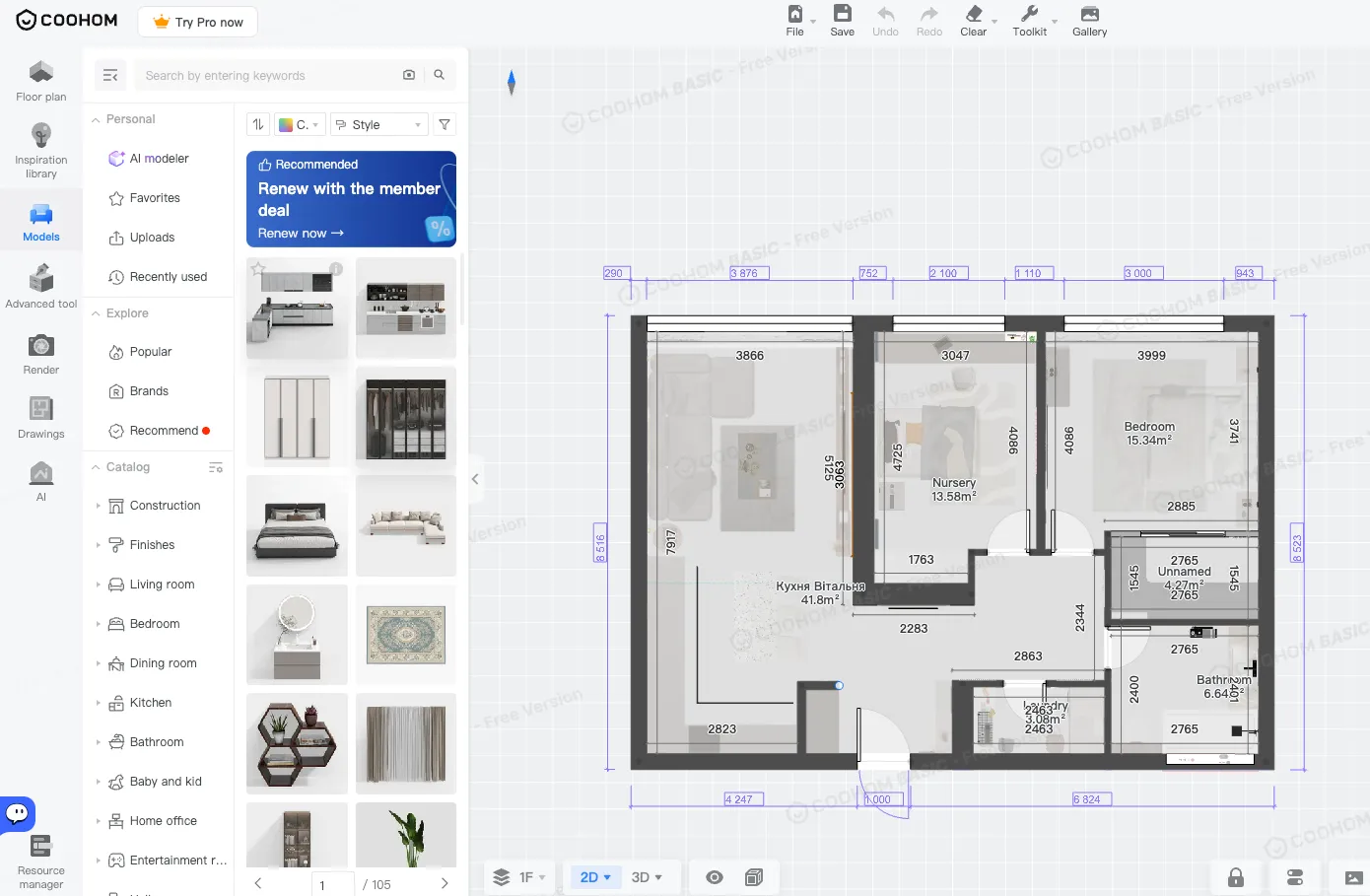

Step 1: Draw the shell

Start with the perimeter walls, entered to scale. Add doors, windows, and built-in features — closets, radiators, HVAC vents — in their exact positions. Set door swings correctly. It's the detail most people skip and the one that causes the most friction later.

save pin

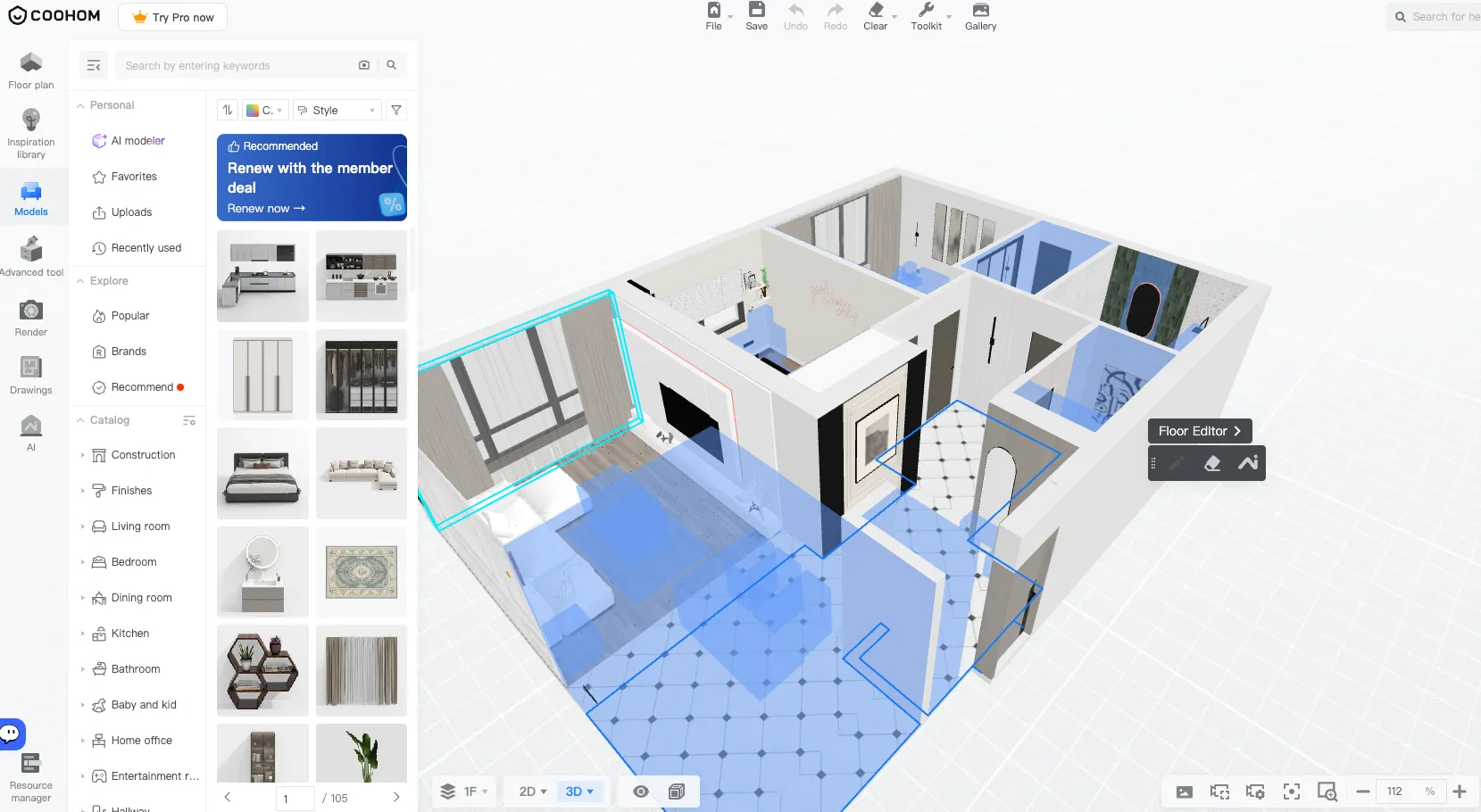

Step 2: Mark what can't move

Before a single piece of furniture goes in, shade the door swing arcs. Draw a 36-inch-wide path from the front door to the kitchen, bathroom, and bedroom. Mark the outlets.

These are hard constraints. Every layout has to work around them. Seeing them on the plan before you start placing furniture changes which options are actually possible.

save pin

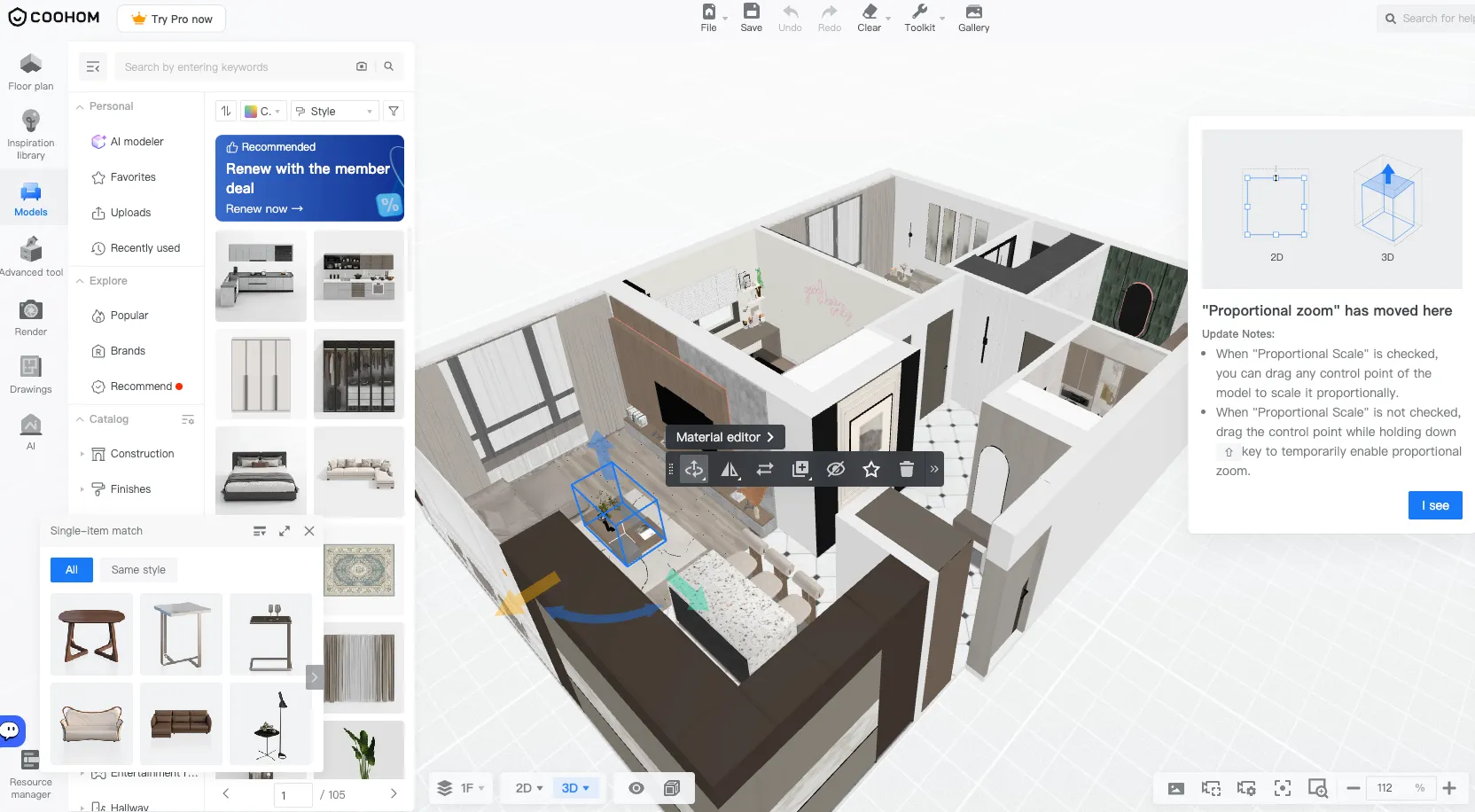

Step 3: Anchor the room with the largest piece

One piece determines the logic of a small room. In a living space, it's usually the sofa. In a bedroom, it's the bed. In a studio, it might be the sleeping zone itself.

Place the anchor piece first, then build outward. The common mistake is placing accent furniture — a coffee table, a lamp, a side chair — and then trying to fit the sofa around them. It doesn't work. The large piece sets the geometry; everything else responds to it.

For a sofa: position it based on viewing distance first (roughly 1.5 to 2.5 times the screen diagonal), then find where the television goes. Not the reverse.

For a bed: 24 inches of clearance on the sides you access is comfortable. 18 inches is workable. Less than that and getting dressed in the morning becomes a daily negotiation with the wall.

save pin

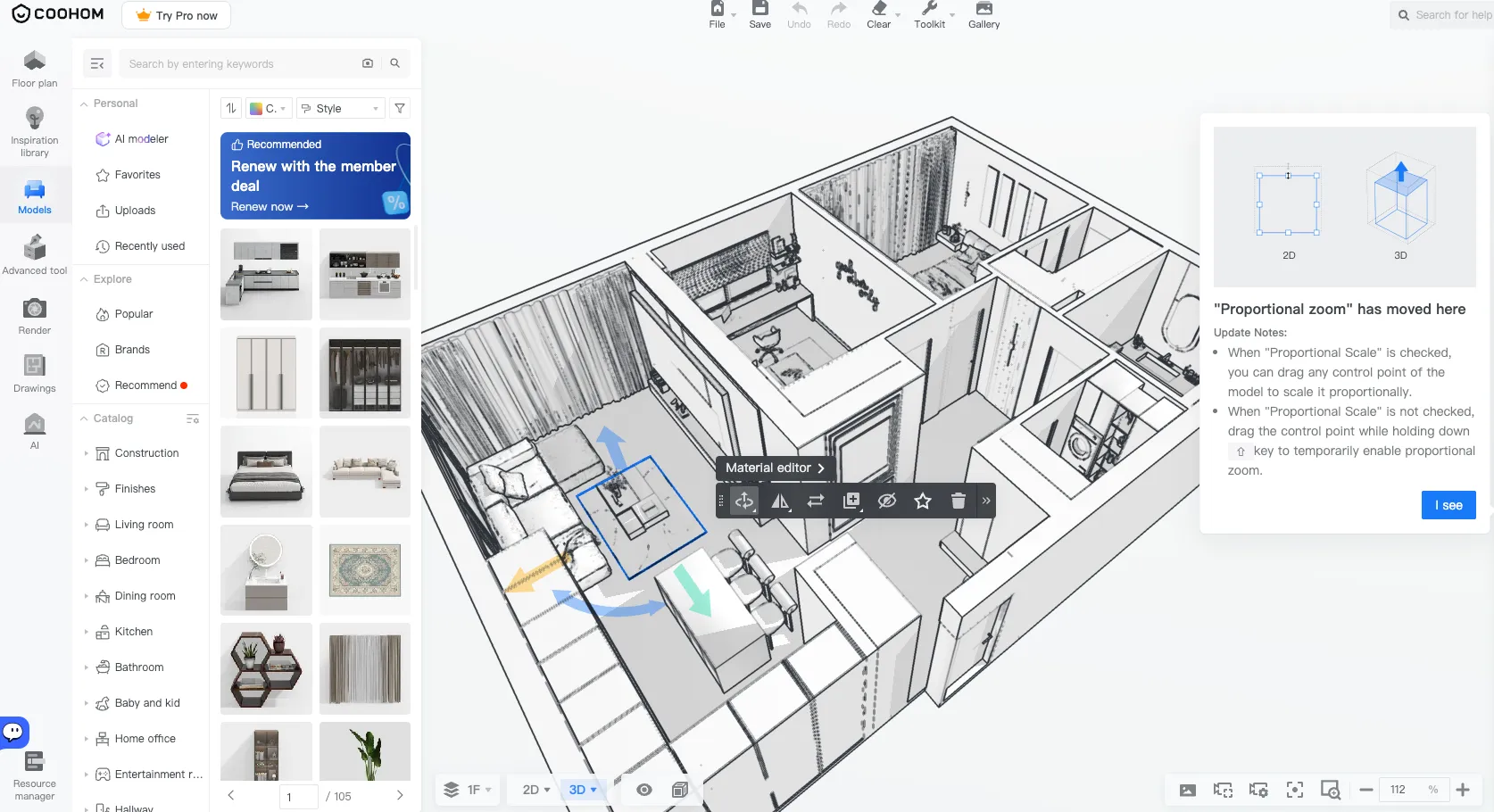

Step 4: Define zones before adding secondary furniture

In an open-plan apartment, zones exist because of what's on the floor and how furniture faces — not because of walls. A rug anchors a living zone. A change in furniture orientation signals a dining or work area.

Draw rug boundaries in your floor plan before adding secondary pieces. This keeps zones distinct and makes traffic paths legible. A plan that looks clean on screen but has no clear zones will feel cluttered once you're living in it.

save pin

Step 5: Walk the layout before committing

Test the plan mentally:

1. Can you move from the front door to the kitchen without turning sideways?
2. Can you fully open the refrigerator, every cabinet, every wardrobe door?
3. Can you get out of bed on both sides?
4. Is there a clear path to every window?

If any of these have friction in the plan, they'll have friction every day in the apartment. Fix it in the drawing.

The Mistakes That Are Easy to Avoid With a Floor Plan

Buying furniture sized for bigger rooms. Product photography is shot wide. A sofa that looks proportionate in a staged 900-square-foot living room will overwhelm a 300-square-foot studio. Check dimensions against the floor plan, not against how it looks in the photo.

Pushing everything against the walls. It feels intuitive in a small space — get the furniture out of the middle to open things up. It usually has the opposite effect. Floating furniture slightly away from walls creates breathing room and makes the room read as larger, not smaller.

Planning around furniture you already have. Sometimes existing pieces work in a new space. More often, one oversized item from a previous home limits every other decision. A floor plan shows this before you've moved anything.

Ignoring vertical space. A layout that works at floor level can still feel compressed if tall furniture is blocking light or lowering the visual ceiling. In small apartments, keeping most pieces below eye level — around 60 inches — and going taller in one or two deliberate spots reads as considered, not crowded.

Forgetting to account for people. A room that fits the furniture still needs to fit the people using it. Allow for chairs that pull out, doors that open fully, and at least one comfortable path through every zone.

Tools Worth Using

For small apartment planning, you need a tool that handles measurement accuracy and visual output — because getting the layout right and confirming it looks right are two different checks.

For layout accuracy, Floorplanner.com and Sweet Home 3D are reliable free options. For a current comparison of what's available, see what Reddit users recommend — the thread covers free tier limits, usability, and which tools hold up in practice.

For visual confirmation: a 2D plan tells you the sofa fits. It doesn't tell you whether the room will feel right. Coohom's free floor planner handles both — accurate floor plan drawing with photorealistic 3D rendering available on the free tier. For a small apartment where a wrong furniture decision means living with it for years, seeing the room before committing is worth the extra step.

FAQ

How precise do measurements need to be?

Within an inch for anything structural or built-in. Within two to three inches for furniture placement decisions. The goal is catching problems before they happen, not architectural accuracy.

Can I make a floor plan without software?

Graph paper at a scale of one square per foot works fine. The limitation is iteration speed — moving furniture around digitally takes seconds; on paper it means erasing. For anything beyond a single-room check, a digital tool saves time.

What's the right scale for a hand-drawn floor plan?

¼ inch to 1 foot is the standard for residential spaces. Cut out furniture shapes at the same scale to move around the plan without redrawing.

How do I handle an irregular room shape?

Break it into rectangles. Measure each section independently, then combine on the plan. For angled walls, measure the longest and shortest dimensions and photograph the corner with a tape measure in frame for reference.

Does furniture arrangement actually affect how large a room feels?

Significantly. Clear sight lines toward windows, consistent furniture heights, and deliberate zone definition all make a room read larger than its square footage. The layout decisions matter as much as the furniture itself.
