Direct Answer

To make a floor plan in Adobe Illustrator, start by setting a real world scale, draw the outer walls using rectangles or the pen tool, build interior walls with consistent stroke weights, and organize doors, windows, and furniture on separate layers. Illustrator works especially well for clean vector floor plans because everything stays scalable and easy to edit.

The key is setting up the correct scale first and using consistent stroke styles so walls, openings, and fixtures remain visually clear.

Quick Takeaways

1. Always define a drawing scale before placing any walls.
2. Use separate layers for walls, openings, and furniture to keep edits simple.
3. Consistent stroke weights make a floor plan readable.
4. Symbols speed up repeated elements like doors and windows.
5. Illustrator excels at presentation floor plans rather than technical construction drawings.

Introduction

Many designers assume Adobe Illustrator is only for graphics, but after more than a decade working on residential interior projects, I still use it regularly to create clear presentation floor plans. When a client needs a quick layout, mood board diagram, or marketing plan, Illustrator is often faster than heavy architectural software.

The challenge most beginners face when learning how to make a floor plan in Adobe Illustrator is scale and structure. Walls end up inconsistent, doors don't align, and furniture looks randomly placed. The trick is building a simple system that keeps everything organized and proportional.

I'll walk through the exact workflow I use when preparing concept floor plans for clients and property marketing teams.

save pin

Why Use Adobe Illustrator for Floor Plans

Key Insight: Illustrator works best for clean visual floor plans used in presentations, marketing layouts, and early design concepts.

Programs like AutoCAD or Revit are better for construction documentation. But Illustrator shines when you need a graphic floor plan that looks polished and easy to understand.

In many real estate and interior design studios, designers export a CAD base drawing and refine the visual layout in Illustrator. The reason is simple: Illustrator gives far more control over line weight, color, typography, and visual clarity.

Situations where Illustrator works extremely well include:

1. Interior layout concepts
2. Real estate marketing floor plans
3. Furniture arrangement diagrams
4. Space planning presentations
5. Design portfolio graphics

In several apartment staging projects I've worked on in Los Angeles, the marketing team specifically requested Illustrator floor plans because they print cleaner in brochures and listing websites.

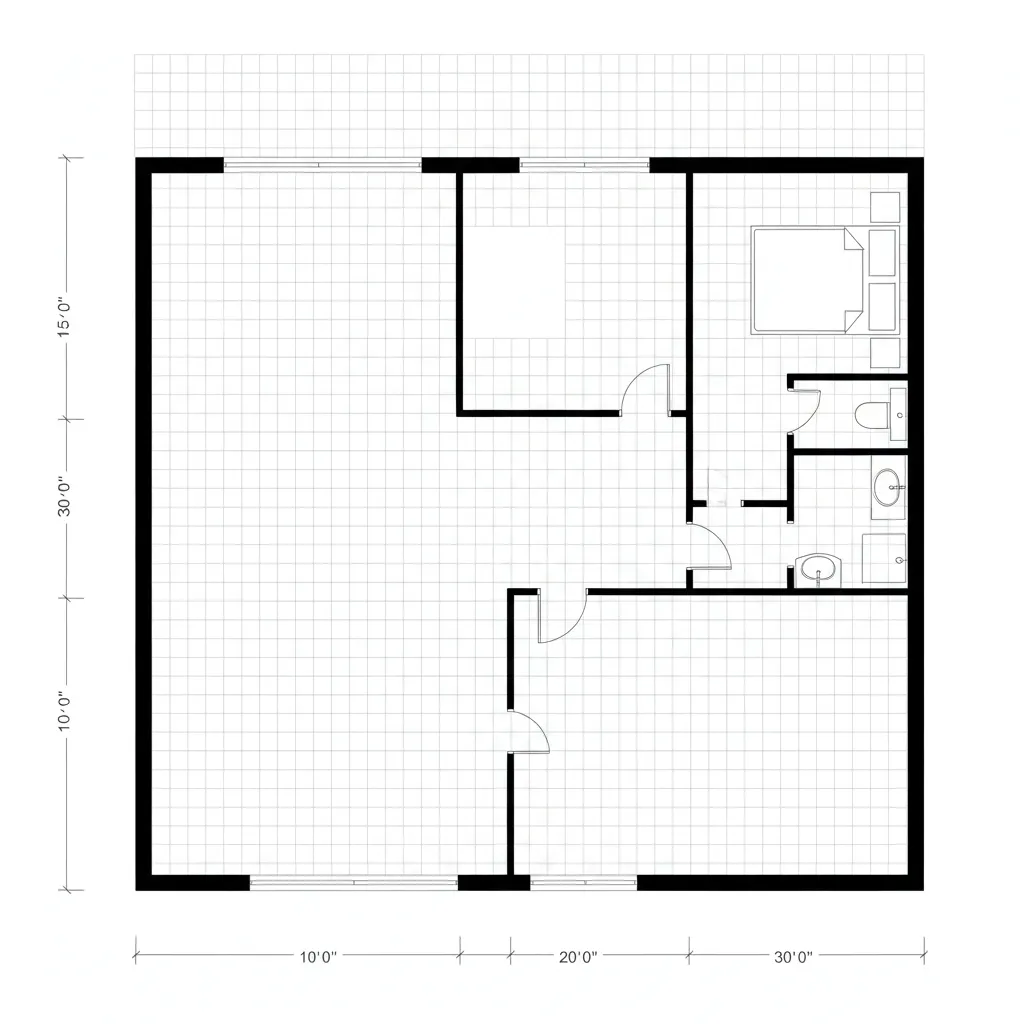

How Do You Set the Correct Scale in Illustrator

Key Insight: Setting a scale at the beginning prevents 90% of alignment and proportion problems later.

Illustrator does not behave like CAD software with automatic architectural scaling, so you need to define your own system.

The method I recommend:

1. Open a new document.
2. Set units to inches, feet, or meters in Preferences.
3. Choose a working scale such as 1 inch equals 1 foot.
4. Create a reference square representing a known dimension like 10 ft.
5. Lock that reference layer.

This reference object becomes your measurement guide while drawing walls and rooms.

Design studios often use scales like:

1. 1:50 for interior layouts
2. 1:100 for apartments
3. 1:200 for larger buildings

The key is consistency. Once your scale is defined, every element should follow it.

save pin

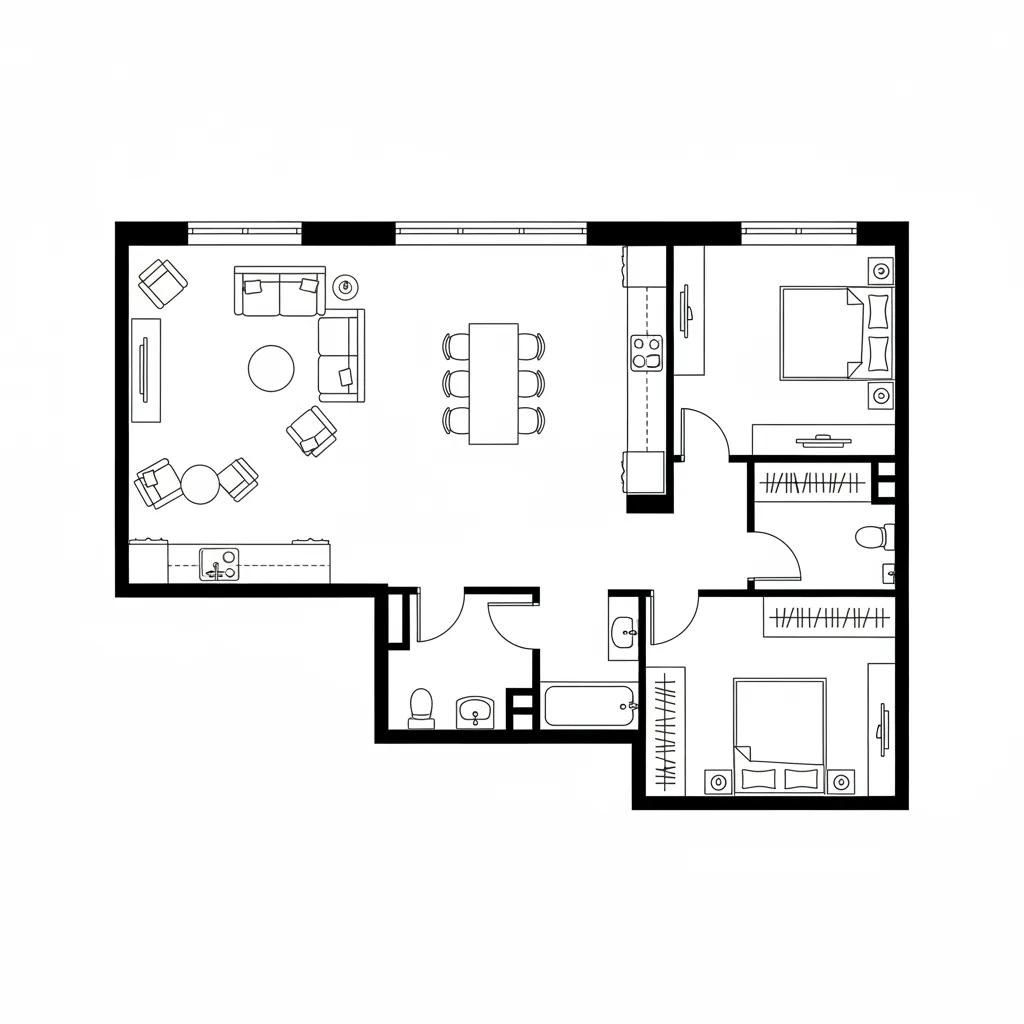

How to Draw Walls for a Clean Floor Plan

Key Insight: Consistent wall thickness is what makes a floor plan look professional.

A common mistake beginners make is drawing walls as random rectangles. Instead, use stroke weights or consistent shapes.

The workflow I use looks like this:

1. Draw the outer boundary using the Rectangle Tool.
2. Duplicate the shape inward to create wall thickness.
3. Use Pathfinder Divide to create segments.
4. Apply a consistent stroke weight for interior walls.

Typical visual standards used in presentation floor plans:

1. Exterior walls thicker
2. Interior walls thinner
3. Doors and windows lighter strokes

This visual hierarchy is widely used in architectural diagrams because it helps readers instantly understand the structure.

How to Add Doors Windows and Openings

Key Insight: Using symbols for doors and windows saves enormous time when editing a layout.

Rather than redrawing each door manually, create reusable components.

Typical door drawing process:

1. Create a door opening in the wall.
2. Draw a quarter circle arc for the swing.
3. Group the door panel and arc.
4. Save it as a symbol.

Once stored as a symbol, you can reuse it across the entire plan.

Professional floor plans usually include:

1. Door swing arcs
2. Sliding door indicators
3. Window gaps in walls
4. Glass line details

These small visual cues dramatically improve readability.

save pin

What Furniture Should You Include in a Floor Plan

Key Insight: Furniture should illustrate scale and flow, not decorate the drawing.

One hidden mistake I see constantly is overloading a floor plan with too many furniture icons. That actually makes the layout harder to read.

Focus on essential elements:

1. Sofa
2. Dining table
3. Bed
4. Kitchen counters
5. Bathroom fixtures

The goal is to show spatial relationships.

For example, in a small apartment plan I worked on recently, we simplified furniture icons to basic shapes. The result looked cleaner and clients understood the circulation path immediately.

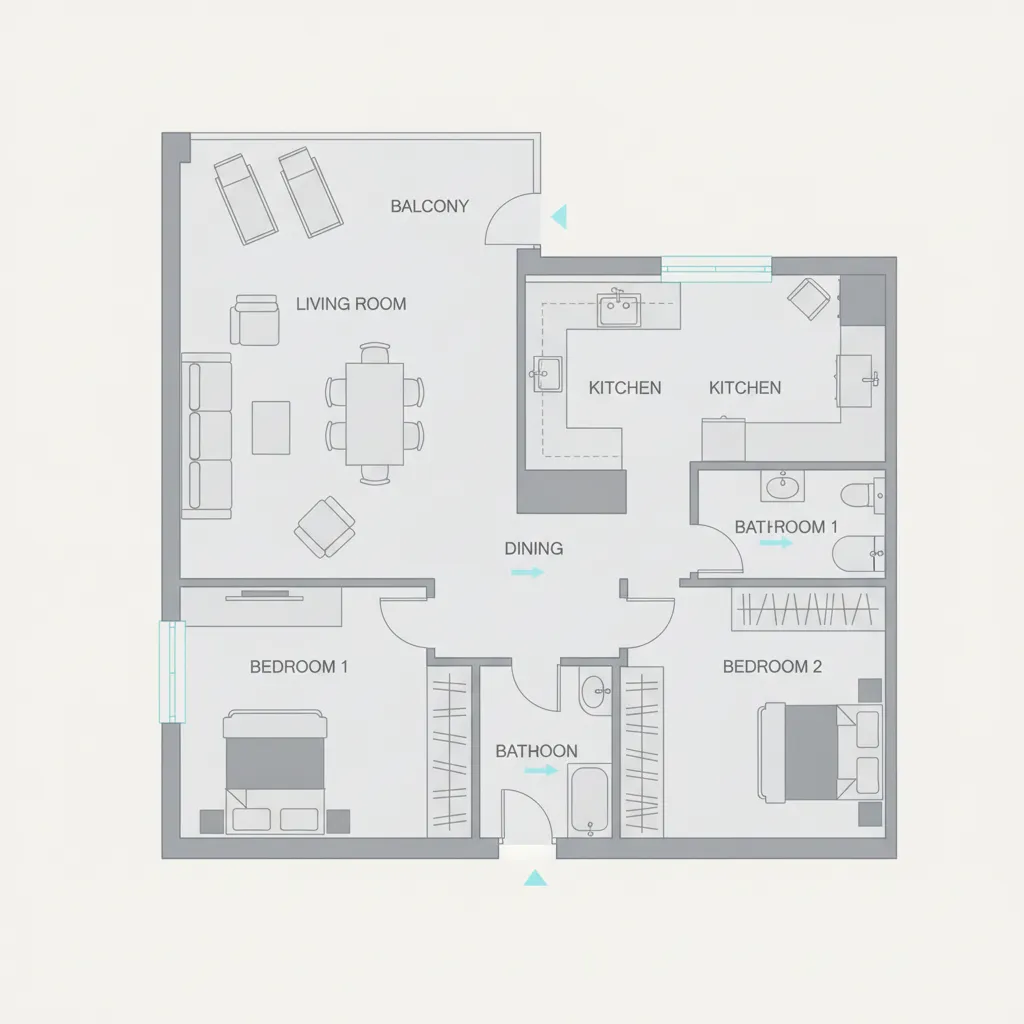

How Do Designers Make Floor Plans Look Professional

Key Insight: Professional floor plans rely more on graphic clarity than complex detail.

After reviewing hundreds of marketing floor plans, the best ones follow a few consistent visual rules.

Design elements that improve clarity:

1. Clear wall hierarchy
2. Limited color palette
3. Soft furniture tones
4. Readable room labels
5. Balanced white space

One technique I use frequently is light gray furniture with dark structural lines. This keeps the architectural structure dominant while furniture remains supportive.

Answer Box

The most effective way to create a floor plan in Adobe Illustrator is to establish scale first, draw consistent wall structures, organize layers carefully, and use reusable symbols for openings and furniture. Illustrator excels when the goal is a clean, visually clear layout rather than construction documentation.

save pin

Final Summary

1. Define scale before drawing anything.
2. Use consistent wall thickness for visual clarity.
3. Create reusable door and window symbols.
4. Keep furniture minimal to highlight spatial flow.
5. Illustrator is ideal for presentation floor plans.

FAQ

Can you create architectural floor plans in Adobe Illustrator?

Yes, but Illustrator is better suited for presentation and conceptual layouts rather than detailed construction documents.

What scale should I use for a floor plan in Illustrator?

Common scales include 1:50 or 1:100. The important part when learning how to make a floor plan in Adobe Illustrator is maintaining a consistent scale throughout.

Is Illustrator better than AutoCAD for floor plans?

For construction drawings, AutoCAD is better. For visual diagrams, marketing plans, and presentations, Illustrator is often faster and cleaner.

How do you draw doors in an Illustrator floor plan?

Create a door panel rectangle and add a quarter circle arc to show the swing direction, then save it as a reusable symbol.

What stroke weight should walls use?

Exterior walls are usually thicker than interior walls. Many designers use 2–3 pt strokes for exterior and 1–1.5 pt for interior.

Can beginners learn how to make a floor plan in Adobe Illustrator easily?

Yes. Once you understand scale, layers, and consistent line weights, the process becomes straightforward.

Where can I find furniture icons for floor plans?

Many designers create their own symbol libraries or download vector furniture sets from design asset libraries.

Do professional designers actually use Illustrator for layouts?

Yes. Many interior designers and marketing teams use Illustrator to refine and present floor plans visually.
