How to Make CAD Run Faster on Old Windows 7 Computers: Practical ways to improve CAD performance on low‑spec Windows 7 PCs without upgrading your entire system.

Direct Answer

To make CAD run faster on an old Windows 7 computer, reduce graphics load, simplify models, disable unnecessary Windows services, and adjust CAD display settings to prioritize performance over visual quality. In many cases, these changes can improve responsiveness by 30–60% without upgrading hardware.

The biggest gains usually come from lowering viewport graphics settings, minimizing model complexity, and ensuring Windows 7 dedicates as much RAM and GPU capacity as possible to CAD tasks.

Quick Takeaways

1. Lower viewport visual settings to reduce GPU workload.
2. Simplify complex assemblies and remove unnecessary geometry.
3. Disable background Windows services that consume RAM.
4. Use lightweight CAD tools when hardware is extremely limited.
5. Test performance using smaller project files before scaling up.

Introduction

Running CAD software on an old Windows 7 computer can feel frustratingly slow. Laggy viewports, delayed commands, and long file loading times are common problems I’ve seen repeatedly when working with legacy machines in small studios and training labs.

Even today, many designers still rely on Windows 7 because their hardware simply can’t handle modern operating systems. The good news is that CAD performance problems on these machines usually aren’t caused by a single limitation—they come from several small bottlenecks stacking together.

Over the years, I’ve helped teams squeeze surprisingly usable performance out of very modest hardware. In one university lab project, we managed to run CAD workflows smoothly on decade‑old PCs simply by adjusting display settings and restructuring how models were built.

If you're starting from scratch with project layouts, using a lightweight planning workflow such as a simple browser-based floor plan creator for early layout draftscan dramatically reduce the heavy geometry that slows older machines.

In this guide, I’ll walk through the exact adjustments that consistently improve CAD performance on Windows 7 systems—covering graphics settings, model optimization, operating system tweaks, and realistic alternatives when hardware is simply too old.

save pin

Why CAD Software Runs Slowly on Older Windows 7 PCs

Key Insight: Most CAD slowdowns on Windows 7 machines come from GPU limitations and excessive geometry, not just weak CPUs.

Many users assume their processor is the problem. In reality, viewport rendering and geometry calculations are often limited by graphics memory, driver compatibility, and RAM availability.

Older Windows 7 computers typically suffer from three structural constraints:

1. Limited RAM (often 4 GB or less)
2. Integrated graphics instead of dedicated GPUs
3. Slow mechanical hard drives

CAD applications constantly redraw geometry when you rotate, zoom, or edit models. On modern systems this is trivial, but on legacy hardware the graphics pipeline becomes the primary bottleneck.

A common hidden issue I encounter is outdated graphics drivers. NVIDIA and AMD released their last major Windows 7 driver updates years ago, and many systems are still running versions that significantly limit viewport acceleration.

Industry testing from Autodesk user groups has repeatedly shown that viewport performance can drop dramatically when GPU acceleration is unavailable or misconfigured.

Minimum Hardware Requirements for Smooth CAD Work

Key Insight: CAD software can run on very modest hardware, but falling below a practical baseline quickly causes exponential performance loss.

Official software requirements are often misleading. In real-world design workflows, the minimum specs needed for smooth work are higher than the installation requirements.

Based on practical experience with older machines, these specs tend to be the lowest workable configuration:

1. CPU: Dual-core 2.5 GHz or faster
2. RAM: 8 GB recommended (4 GB absolute minimum)
3. GPU: Dedicated graphics with at least 1 GB VRAM
4. Storage: SSD strongly recommended

The biggest performance jump usually comes from replacing a mechanical hard drive with an SSD. File loading times and caching speeds can improve dramatically.

If upgrading hardware isn’t possible, workflow adjustments become critical—especially how models are structured and visualized.

save pin

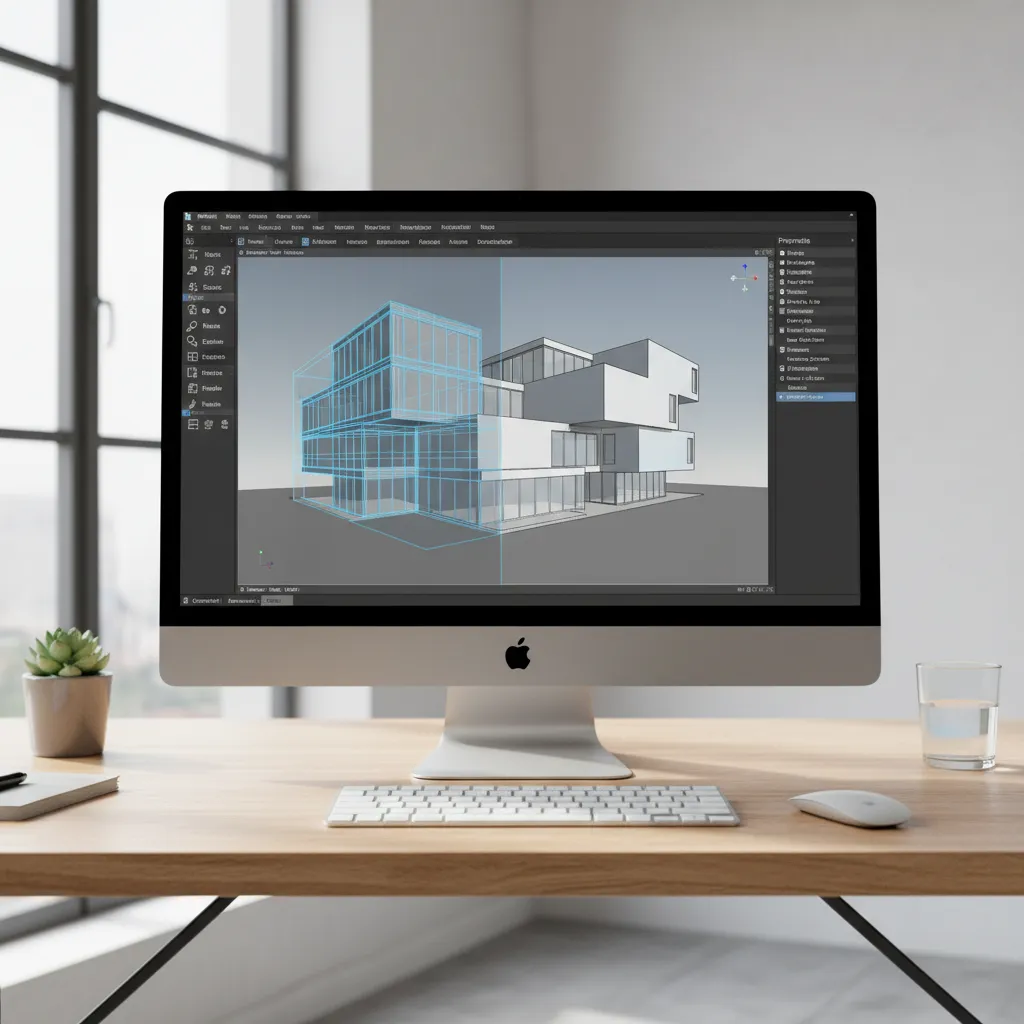

Adjusting CAD Graphics and Display Settings

Key Insight: Lowering visual fidelity in the viewport often produces the fastest performance gains.

Many CAD programs default to high‑quality shading and anti‑aliasing, which older GPUs struggle to render smoothly.

Recommended settings for low‑spec Windows 7 systems include:

1. Disable real-time shadows
2. Turn off anti‑aliasing
3. Use wireframe or basic shaded mode
4. Reduce texture resolution
5. Disable ambient occlusion

These changes reduce the number of calculations the GPU must perform every frame.

In design workflows where final visuals matter, I usually recommend separating modeling and visualization tasks. Designers can build models in low‑graphics mode, then generate final visuals using tools such as high‑quality 3D rendering for completed home designs instead of pushing older hardware during the modeling phase.

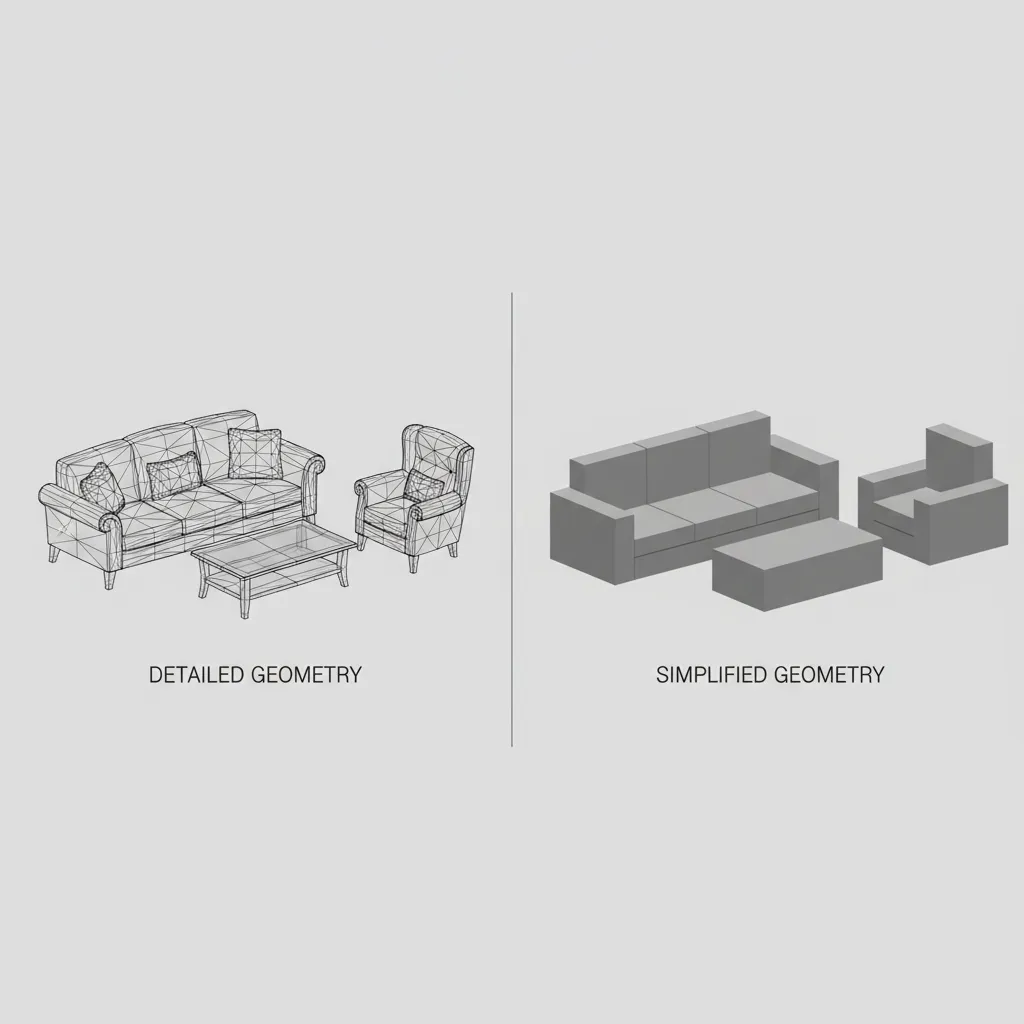

Reducing Model Complexity for Better Performance

Key Insight: Complex geometry—not file size—is often the real cause of slow CAD performance.

A surprisingly common mistake is importing detailed furniture models, manufacturer parts, or decorative elements directly into working CAD files.

Even a single imported component can contain thousands of polygons.

Effective strategies include:

1. Use simplified placeholder models
2. Hide or suppress unused layers
3. Break large assemblies into smaller files
4. Replace curved surfaces with simplified versions
5. Remove unnecessary imported geometry

In architectural workflows, I often separate conceptual layout planning from detailed modeling. Early planning stages can be done with lighter layout tools like interactive 3D floor planning tools for quick space layouts, which prevents CAD models from becoming overloaded with unnecessary geometry too early in the design process.

save pin

Optimizing Windows 7 for CAD Workloads

Key Insight: Windows background services frequently consume enough RAM to slow CAD performance on low‑memory machines.

On older systems with limited RAM, even small background processes can noticeably affect CAD responsiveness.

Recommended Windows optimizations:

1. Disable startup programs you don’t need
2. Turn off Windows Aero visual effects
3. Set Power Options to High Performance
4. Close browser tabs while modeling
5. Increase virtual memory (paging file)

Turning off Aero alone can free up valuable GPU resources that CAD applications need for viewport rendering.

Lightweight CAD Alternatives for Very Old Hardware

Key Insight: Some CAD tools are dramatically lighter than others and run surprisingly well on legacy systems.

If your computer has extremely limited hardware, switching software may be more effective than endless optimization.

Lightweight CAD options typically share several characteristics:

1. Simplified rendering engines
2. Lower GPU requirements
3. Basic 2D or hybrid modeling workflows
4. Minimal background services

In practice, lightweight CAD tools can run smoothly on systems where heavier professional suites struggle.

Answer Box

The fastest way to improve CAD performance on old Windows 7 computers is to reduce viewport graphics settings, simplify geometry, and limit background system processes. In many cases, workflow adjustments improve performance more than hardware upgrades.

Performance Testing Tips for CAD Projects

Key Insight: Measuring performance on small test models helps identify bottlenecks before committing to large projects.

When working on slow systems, I recommend testing performance early using simple models before building full assemblies.

A simple testing approach:

1. Create a small test model.
2. Measure viewport rotation speed.
3. Gradually add geometry.
4. Monitor RAM usage in Task Manager.
5. Identify the point where lag begins.

This approach helps determine whether the system limit is GPU rendering, RAM capacity, or geometry complexity.

save pin

Final Summary

1. Lower graphics settings to reduce GPU load.
2. Simplify geometry and remove unnecessary components.
3. Disable Windows background processes to free RAM.
4. Separate layout planning from heavy 3D modeling.
5. Consider lightweight CAD software for very old hardware.

FAQ

1. How can I speed up CAD on Windows 7?

Lower graphics settings, simplify models, and disable unnecessary Windows background processes to improve CAD performance.

2. What is the best way to optimize CAD performance on an old computer?

Focus on reducing model complexity, lowering viewport quality, and ensuring your GPU drivers are updated.

3. Does RAM affect CAD speed?

Yes. CAD applications use RAM heavily for geometry calculations. Systems with less than 4 GB often struggle with larger models.

4. Can FreeCAD run faster on Windows 7?

Yes. Adjusting graphics preferences and simplifying assemblies can help run FreeCAD faster on Windows 7.

5. Is a graphics card necessary for CAD?

Dedicated GPUs significantly improve viewport performance, especially when rotating or zooming complex models.

6. Why does my CAD lag when rotating models?

This usually indicates GPU rendering limitations or excessive polygon counts in the model.

7. What CAD software works best on slow computers?

Lightweight CAD tools designed for simpler workflows often run much better on older hardware.

8. Does Windows 7 slow down CAD programs?

Not directly, but older drivers and limited hardware compatibility can reduce graphics performance.
