How to Make Fence Layouts Clearer in Complex Site and Floor Plans: Practical drafting techniques designers use to make fence layouts readable even in crowded architectural drawings

Direct Answer

Fence layouts become clearer in complex site and floor plans when designers control line weights, use consistent layers, simplify labeling, and create a visual hierarchy that separates fences from walls, paths, and landscape elements. The goal is not to add more detail but to organize information so the fence reads instantly at multiple zoom levels.

Clear fence drawings rely on disciplined drafting choices rather than complicated symbols. When layers, annotations, and contrast are managed properly, even dense site plans remain readable for clients, contractors, and permitting reviewers.

Quick Takeaways

1. Thin lines for fences and thicker lines for building edges prevent visual confusion.
2. Separate fence layers make visibility control easier in crowded plans.
3. Short labels with arrows communicate more clearly than long text blocks.
4. Consistent symbols help contractors read fence details instantly.
5. Too much detail is the most common reason fence layouts become unreadable.

Introduction

In many projects I review, the fence layout is technically correct but visually messy. When a site plan gets dense with walkways, planting zones, drainage lines, and structures, the fence often disappears into the background. This is one of the most common issues in architectural documentation.

Learning how to make fence layouts clearer in complex site and floor plans is less about software and more about drawing discipline. After working on residential renovations, multifamily developments, and landscape-integrated homes for more than a decade, I've noticed the same pattern: the problem usually isn't the fence itself—it's how the information competes with everything else on the drawing.

If you're starting from scratch, it helps to review a complete example of how designers build accurate layout drawings from a floor planning workflowbefore layering outdoor elements like fencing.

In this guide I'll walk through the exact techniques professionals use to make fence layouts readable, scalable, and presentation‑ready.

save pin

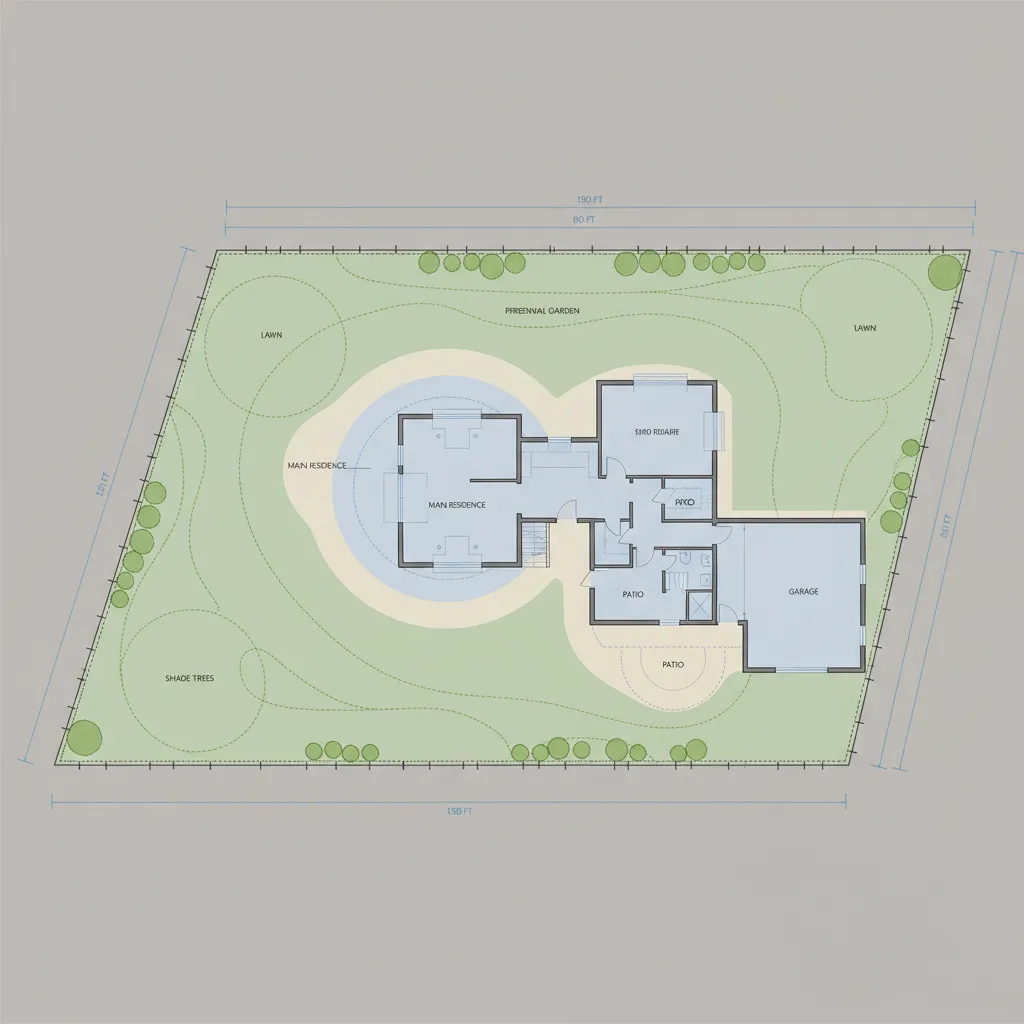

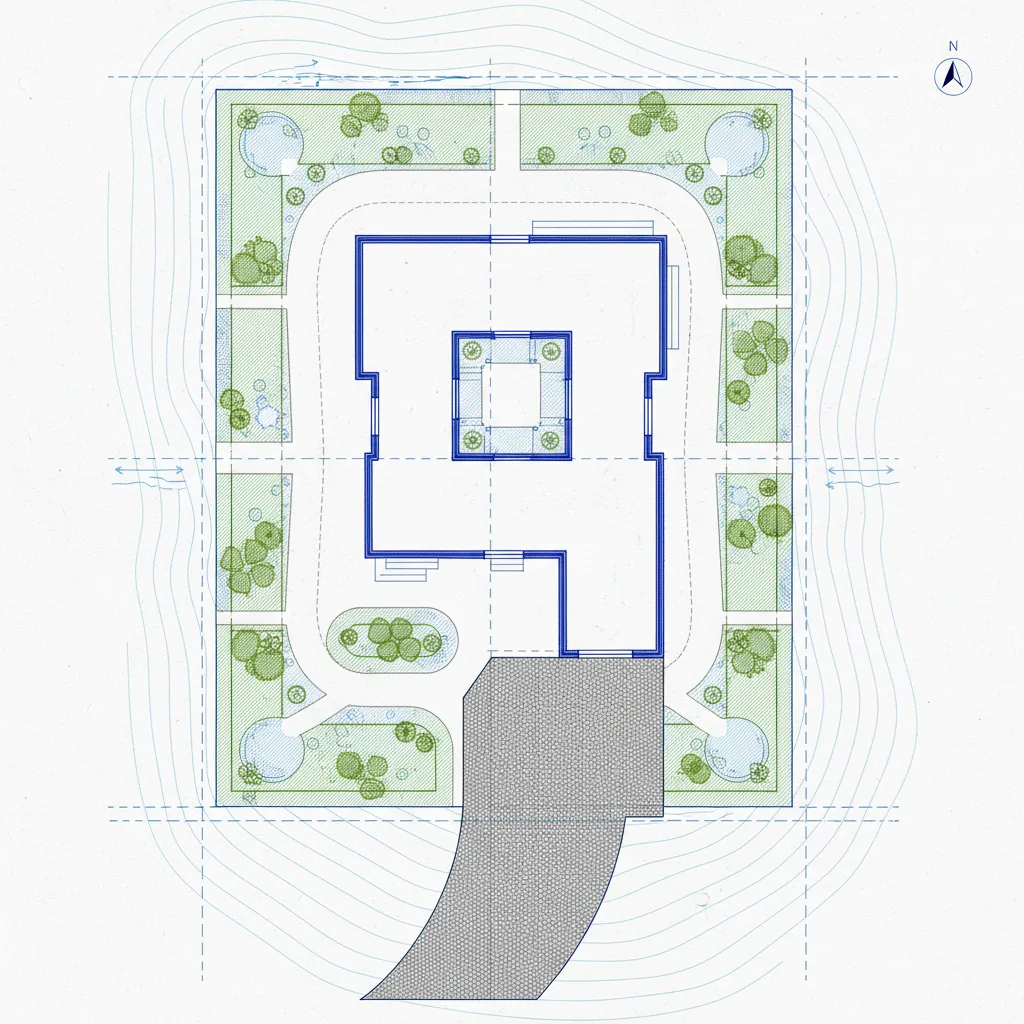

Why Fence Lines Become Hard to Read in Detailed Plans

Key Insight: Fence lines become unreadable when they visually compete with walls, pathways, and landscape boundaries that share similar line styles.

In dense site drawings, multiple systems overlap: building structure, hardscape, utilities, grading, planting zones, and property boundaries. When fences are drawn using the same line weight or pattern as these elements, the viewer cannot distinguish them quickly.

In design reviews I often see three common drafting mistakes:

1. Fence lines drawn with the same thickness as exterior walls
2. Overlapping hatch patterns hiding fence boundaries
3. Too many annotation arrows crossing the fence line

The American Institute of Architects drafting conventions emphasize visual hierarchy in construction drawings. Structural elements should dominate visually, while secondary elements like fences remain readable but lighter.

Another overlooked issue is scale. A fence drawn clearly at 1:50 may become nearly invisible at 1:200. Good fence graphics must survive both.

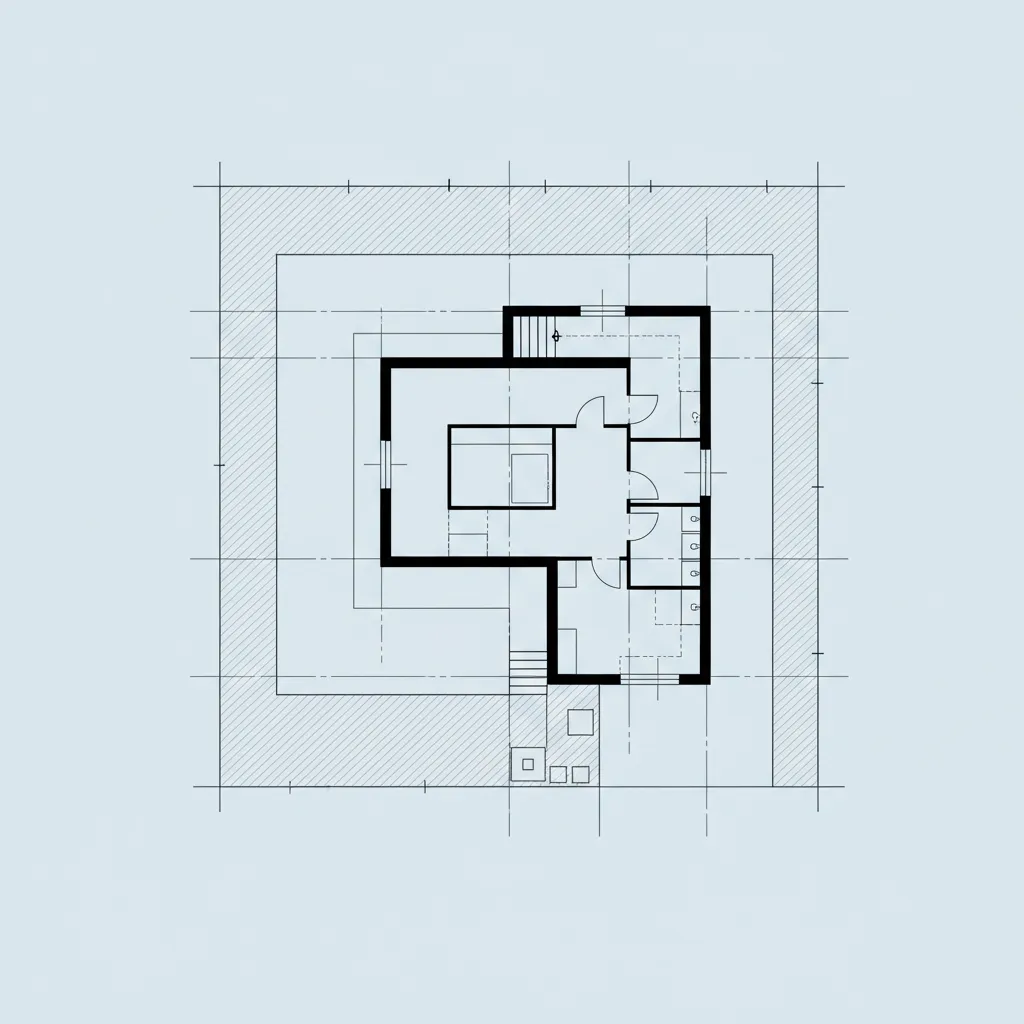

Using Layering and Line Weights for Better Clarity

Key Insight: Assigning fences their own layer and a unique line weight instantly improves readability across complex drawings.

Professional plans rarely place fences on the same layer as site boundaries or landscaping. Separating layers allows you to control visibility depending on the drawing type—presentation, permit set, or construction detail.

Typical layer structure many studios follow:

1. Layer 1: Building walls and structure
2. Layer 2: Hardscape and paths
3. Layer 3: Landscape zones
4. Layer 4: Fences and gates
5. Layer 5: annotations and dimensions

Recommended line weight hierarchy:

1. Exterior building walls: 0.35–0.50 mm
2. Interior partitions: 0.25 mm
3. Fences and gates: 0.18–0.25 mm
4. Property boundaries: dashed 0.18 mm

This hierarchy ensures fences remain visible without overpowering the architecture.

save pin

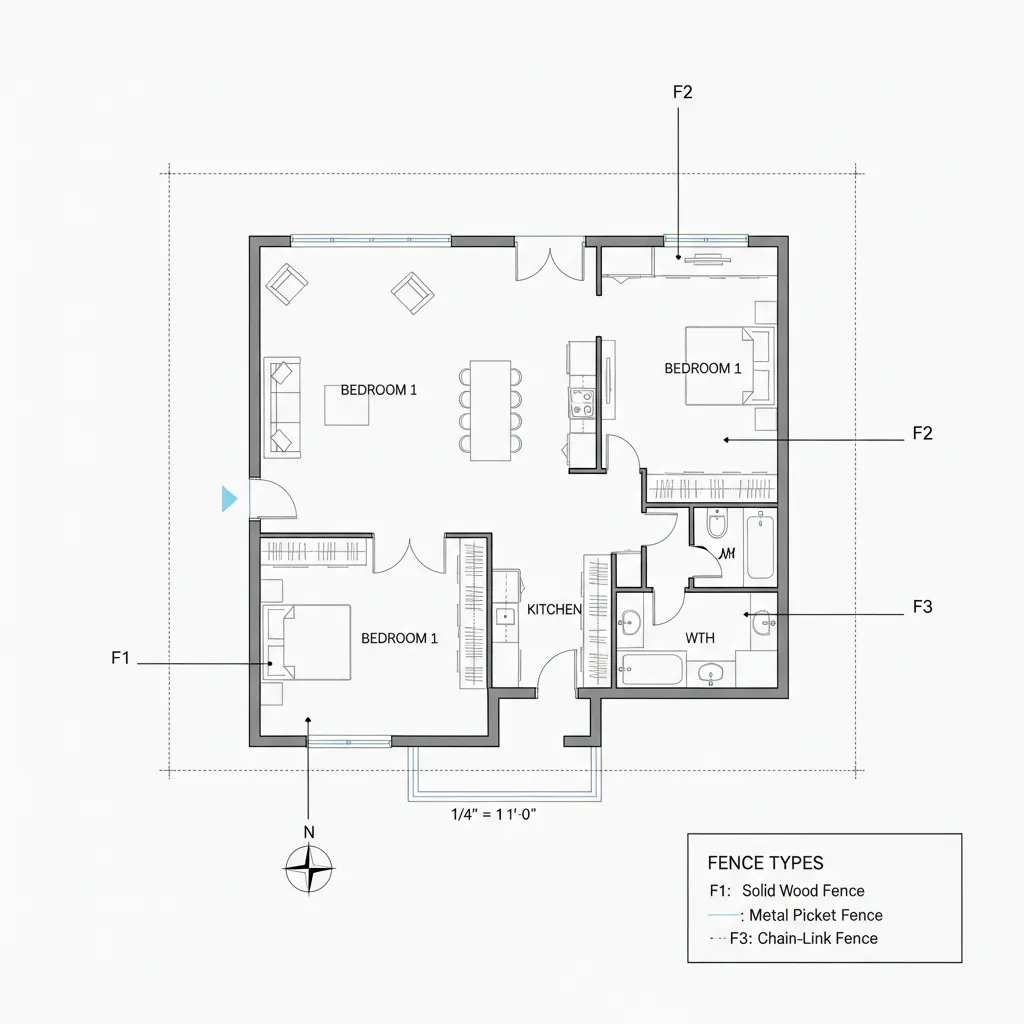

Labeling and Annotation Techniques for Fence Elements

Key Insight: Short, consistent labels with directional leaders communicate fence information faster than long text descriptions.

Fence annotations often become cluttered because designers try to explain too much inside the plan view. Instead, use compact labeling and move technical details to a legend.

Effective fence labeling usually includes:

1. Fence type code (F1, F2, F3)
2. Height reference (e.g., 6' privacy)
3. Material abbreviation (WD, AL, ST)

Example annotation format:

1. F1 – 6' Wood Privacy Fence
2. F2 – 4' Decorative Metal Fence
3. F3 – 5' Chain Link Fence

All construction details then appear in the legend rather than repeating across the drawing.

For projects where fence placement affects circulation, I often generate a visual layout first using a simple workflow that turns rough layout ideas into clean floor plans. That early clarity makes labeling far easier later.

save pin

Managing Fence Visibility in Dense Site Layouts

Key Insight: Strategic simplification—not additional detail—is the most effective way to improve fence visibility.

When a site plan becomes crowded, many designers try to add symbols, textures, or hatch patterns to fences. This usually makes things worse.

Instead, simplify the drawing with these steps:

1. Reduce landscape hatch density around fence edges
2. Break long fence lines into segments with gate markers
3. Remove redundant dimensions
4. Use light dashed lines for hidden fence segments

A technique I learned from a landscape architect years ago is leaving small "breathing spaces" around fences—areas where textures stop slightly short of the fence line. That subtle negative space dramatically improves readability.

Visual Hierarchy for Outdoor Structures on Plans

Key Insight: Fence graphics should sit between architecture and landscaping in the drawing hierarchy.

Outdoor plans include many elements competing for attention: pergolas, retaining walls, decks, planting beds, pools, and fencing. Without hierarchy, the drawing becomes visual noise.

A clear hierarchy typically looks like this:

1. Primary: building footprint and structural walls
2. Secondary: decks, patios, and retaining walls
3. Tertiary: fences, railings, and gates
4. Background: landscaping and terrain

This layered hierarchy helps viewers read the plan in logical order. Contractors see structure first, then boundaries, then decorative elements.

Visualization also helps confirm clarity. Many studios preview site layouts using a quick method designers use to visualize floor plans in realistic 3D scenes. If the fence reads clearly in both plan and 3D view, the drawing hierarchy is working.

Answer Box

The clearest fence layouts use three principles: lighter line weights than walls, dedicated layers for visibility control, and simplified annotations connected to a legend. These small drafting decisions dramatically improve readability in complex plans.

Optimizing Fence Representation for Client Presentations

Key Insight: Client-facing drawings should simplify fence graphics even more than construction drawings.

Contractors may understand technical drafting conventions, but most clients do not. When presenting layouts, clarity matters more than strict documentation detail.

Presentation improvements often include:

1. Slightly thicker fence lines than technical drawings
2. Gate icons for easy orientation
3. Color overlays for fence zones
4. Minimal annotation text

In residential design meetings, I often overlay fences using subtle color blocks instead of dense linework. Clients instantly understand where boundaries sit relative to patios, gardens, and driveways.

This approach dramatically reduces confusion during early design approvals.

Final Summary

1. Fence clarity depends more on hierarchy than drawing detail.
2. Dedicated layers make fence visibility easier to control.
3. Consistent labeling prevents annotation clutter.
4. Simplifying surrounding graphics improves fence readability.
5. Presentation drawings should prioritize visual understanding.

FAQ

How do you show fences clearly on floor plans?

Use a lighter line weight than walls, place fences on their own layer, and label them with short type codes linked to a legend.

What line weight should fences use in architectural drawings?

Most drawings use 0.18–0.25 mm line weights for fences, which keeps them visible without competing with structural walls.

How can I improve fence visibility in site plans?

Reduce surrounding hatch density, simplify annotations, and create negative space around fence lines so they stand out.

Should fences use dashed or solid lines?

Visible fences are usually solid lines. Hidden or below-grade sections can be dashed.

What is the best way to label fences in plans?

Use short codes like F1 or F2 with arrows pointing to the fence. Detailed descriptions belong in the legend.

Do fences need separate layers in CAD drawings?

Yes. A dedicated fence layer improves editing, visibility control, and printing clarity.

How do you optimize fence layout drawings for presentations?

Simplify annotations, slightly thicken fence lines, and add visual cues such as gate icons or color highlights.

Why do fences disappear in complex plans?

Fences often share line weights with other elements, causing them to blend into surrounding graphics.
