How to Maximize Parking Capacity in Basement Garages: Practical design strategies that help developers fit more vehicles into basement garages without sacrificing usability or safety

Direct Answer

To maximize basement parking capacity, designers must optimize structural grids, circulation paths, and parking angles while carefully balancing usability and safety. The most effective layouts reduce wasted turning space, align columns with parking modules, and selectively introduce compact or mechanical parking systems.

In practice, capacity gains usually come from smarter geometry rather than shrinking stall sizes.

Quick Takeaways

1. Column placement determines more parking efficiency than most developers expect.
2. Circulation design can waste up to 20% of a garage footprint if poorly planned.
3. Angled parking often increases capacity in constrained basement layouts.
4. Mechanical systems help in tight footprints but introduce long term operational costs.
5. Safety clearances and accessibility rules must always guide final layout decisions.

Introduction

When clients ask how to maximize basement parking capacity, they usually assume the answer is smaller parking stalls or tighter driving aisles. After working on residential towers, office complexes, and mixed use developments across the last decade, I can say that assumption is almost always wrong.

The real gains come from planning geometry early in the design process. Structural column grids, ramp positions, and turning radii quietly determine whether a basement holds 70 cars or 95 cars. Once those elements are locked in, optimization becomes much harder.

Before testing any layout, I typically start with a digital planning model so we can evaluate multiple circulation patterns quickly. Many developers now prototype layouts using tools like this interactive 3D environment for testing basement parking layoutsto see how columns, ramps, and parking modules interact.

In this guide, I'll walk through the same optimization principles we apply in real projects to increase parking counts while keeping garages safe, navigable, and code compliant.

save pin

Understanding Space Efficiency in Basement Parking

Key Insight: Parking efficiency is primarily determined by the ratio between parking modules and circulation space.

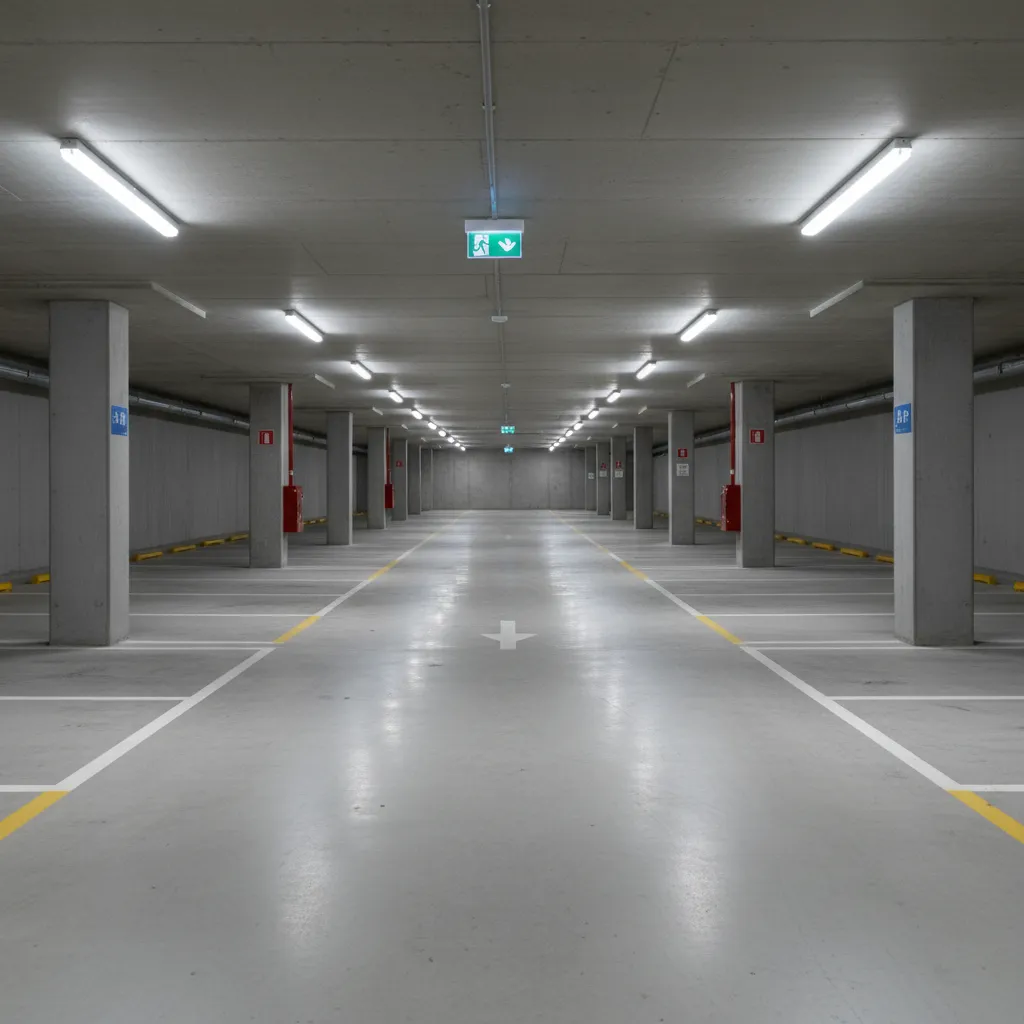

Most basement garages lose capacity because too much floor area becomes maneuvering space. In efficient layouts, a repeating parking module integrates stalls, aisles, and structural elements into a tight pattern.

In my projects, the most efficient double loaded module typically includes:

1. Two rows of parking stalls
2. A central drive aisle
3. Columns aligned with stall boundaries

Typical dimensional framework used in many North American garages:

1. Parking stall width: 8.5–9 ft
2. Parking stall depth: 18 ft
3. Two way drive aisle: 24 ft

When these dimensions align with the building grid, the layout becomes highly repeatable and efficient. Misaligned columns can eliminate multiple spaces across a floor.

The Urban Land Institute has also highlighted that well optimized structured parking often achieves efficiency ratios above 320 sq ft per car, while inefficient layouts may exceed 400 sq ft per car.

Optimizing Column Grid and Structural Spans

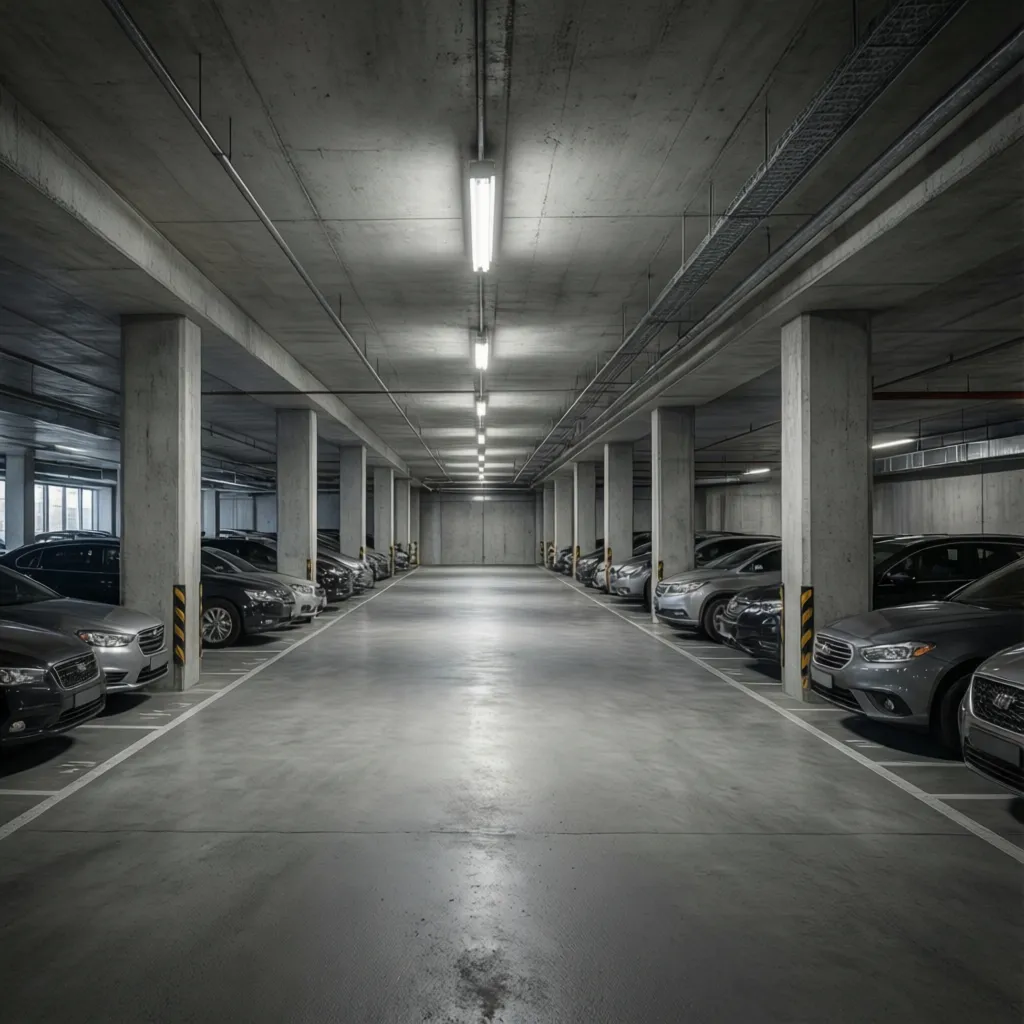

Key Insight: Column placement is the single most overlooked factor affecting basement parking capacity.

Architects often inherit structural grids that were designed for the floors above rather than for parking below. When columns land in the middle of parking stalls, entire spaces are lost.

Effective column planning follows a simple rule: columns should align with parking stall boundaries whenever possible.

Common column spacing strategies:

1. 27–30 ft span supporting three parking stalls
2. 54–60 ft span supporting double loaded parking modules
3. Long spans near ramps and turning zones

In several office developments I worked on, simply shifting the structural grid by a few feet added 8–12 additional spaces per basement level.

This is why many planners run early grid studies using tools like this digital floor plan workflow used to test multiple garage grid scenariosbefore the structural system is finalized.

save pin

Smart Circulation Paths to Reduce Wasted Space

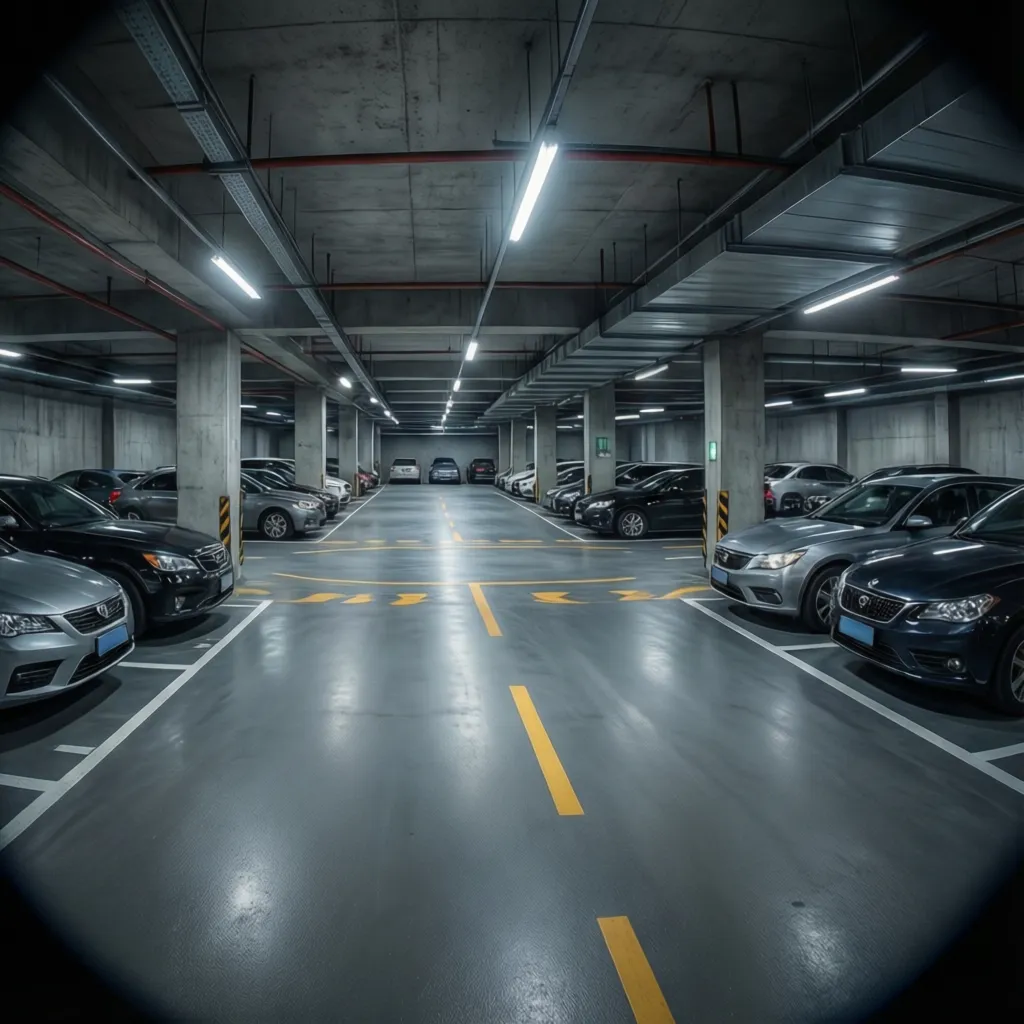

Key Insight: Poor circulation design quietly consumes large portions of a basement floor plate.

Turning zones, dead end aisles, and oversized ramps often eliminate entire rows of parking. In tight sites, circulation efficiency becomes just as important as stall layout.

Common circulation mistakes I see:

1. Overly wide turning areas
2. Multiple disconnected aisles
3. Ramps placed in central zones
4. Dead end parking aisles

Better approaches include:

1. Loop circulation patterns
2. Peripheral ramp placement
3. Continuous drive aisles
4. Minimizing dead ends

Well designed circulation can reduce wasted space by 10–15% in many garages.

save pin

Compact Parking and Mechanical Parking Options

Key Insight: Compact stalls and mechanical systems can increase capacity but introduce usability trade offs.

When floor area is limited, developers sometimes introduce compact parking or mechanical stacking systems. These solutions can work well in dense urban projects but should be used selectively.

Capacity boosting strategies include:

1. Compact car spaces in secondary zones
2. Mechanical stackers for resident parking
3. Automated parking systems in tight urban sites

However, hidden costs often appear:

1. Higher maintenance costs
2. Operational delays
3. Lower user satisfaction

For residential developments, I usually recommend limiting mechanical parking to 10–20% of the total supply unless space constraints are extreme.

Using Angled Parking to Increase Capacity

Key Insight: Angled parking can increase efficiency in irregular or narrow basement footprints.

While 90 degree parking is the most common approach, angled parking sometimes unlocks extra spaces in awkward floor plates.

Typical angled configurations include:

1. 45 degree parking with one way circulation
2. 60 degree parking for moderate turning comfort
3. Hybrid layouts mixing angled and perpendicular stalls

Advantages:

1. Smoother vehicle entry
2. Reduced turning radius
3. Better fit along sloped walls

Drawbacks:

1. Requires one way traffic
2. May increase aisle length

Testing angled layouts early using an AI assisted layout planning environment for complex parking garagescan reveal surprising capacity gains in irregular basement shapes.

save pin

Balancing Capacity with Accessibility and Safety

Key Insight: The most efficient garage is not the one with the most stalls but the one drivers can actually use comfortably.

Over optimized layouts often create problems:

1. Difficult turning movements
2. Poor visibility
3. Driver frustration
4. Safety risks

Essential design considerations include:

1. Accessible parking requirements
2. Pedestrian pathways
3. Clear signage and sight lines
4. Fire safety and ventilation zones

The International Parking & Mobility Institute consistently emphasizes that usability strongly influences garage performance. Drivers avoid difficult spaces, meaning theoretical capacity may never be fully utilized.

Answer Box

The most effective way to maximize basement parking capacity is aligning structural grids with parking modules, optimizing circulation loops, and selectively using angled or compact parking. Geometry and circulation efficiency typically deliver larger gains than reducing stall sizes.

Final Summary

1. Column alignment with parking modules significantly improves parking counts.
2. Efficient circulation layouts prevent large amounts of wasted space.
3. Angled parking can unlock capacity in irregular basement shapes.
4. Mechanical parking increases density but introduces operational trade offs.
5. Usability and safety must guide all parking optimization decisions.

FAQ

How can I maximize basement parking capacity in a small building?

Optimize the structural grid, minimize dead end aisles, and test angled parking layouts. Early layout planning significantly increases the number of parking spaces possible.

What is the most efficient basement parking layout?

A double loaded 90 degree parking module with a central drive aisle is typically the most space efficient layout in rectangular basements.

How many square feet are needed per parking space in a garage?

Efficient garages typically average 300–350 square feet per vehicle including circulation areas.

Does angled parking increase capacity?

In irregular or narrow basement footprints, angled parking can increase capacity by improving turning efficiency and reducing maneuvering space.

Are compact parking spaces a good solution?

They can increase counts slightly but should be limited. Too many compact spaces reduce user satisfaction and usability.

What is the best column spacing for parking garages?

Spans around 27–30 ft or multiples of parking stall modules tend to produce efficient layouts.

Can mechanical parking systems increase basement capacity?

Yes. Mechanical stackers can significantly increase capacity but introduce maintenance and operational complexity.

What is the biggest mistake in basement parking design efficiency?

Poorly positioned columns and ramps are the most common issues that reduce parking capacity.
