How to Measure Irregular or Complex Floor Plan Areas: Practical methods designers use to calculate floor area accurately when layouts include angles, curves, and unusual shapes

Direct Answer

The most reliable way to measure irregular or complex floor plan areas is to divide the layout into simple geometric shapes such as rectangles, triangles, and polygons, calculate each area separately, and then combine them. This approach works even when rooms contain angled walls, curves, or segmented layouts. Designers typically verify the results with digital planning tools to reduce measurement errors.

Quick Takeaways

1. Divide complex floor plans into simple geometric shapes before calculating area.
2. Triangles and polygons help measure angled or non‑rectangular walls accurately.
3. Curved walls can be approximated using segmented straight sections.
4. Combining smaller calculated zones prevents large measurement errors.
5. Digital floor planning tools help confirm manual calculations.

Introduction

Learning how to measure irregular floor plan area is something most people only worry about when they encounter their first complicated layout. Rectangular rooms are easy. But once angled walls, curved hallways, or offset extensions appear, the math quickly becomes confusing.

In my early years working on residential remodels in Los Angeles, I saw this mistake constantly: people tried to force irregular rooms into a single measurement formula. That approach almost always produces inaccurate results. The professional method is simpler—break the space down into smaller geometric pieces and calculate each part logically.

If you want a practical demonstration of how designers convert messy layouts into measurable segments, this walkthrough on visualizing complex room layouts with a 3D floor planning workflowshows how professionals map each area before calculating square footage.

In this guide, I’ll walk through the same methods architects and interior designers use to measure complex layouts, including angled walls, irregular rooms, and curved sections.

save pin

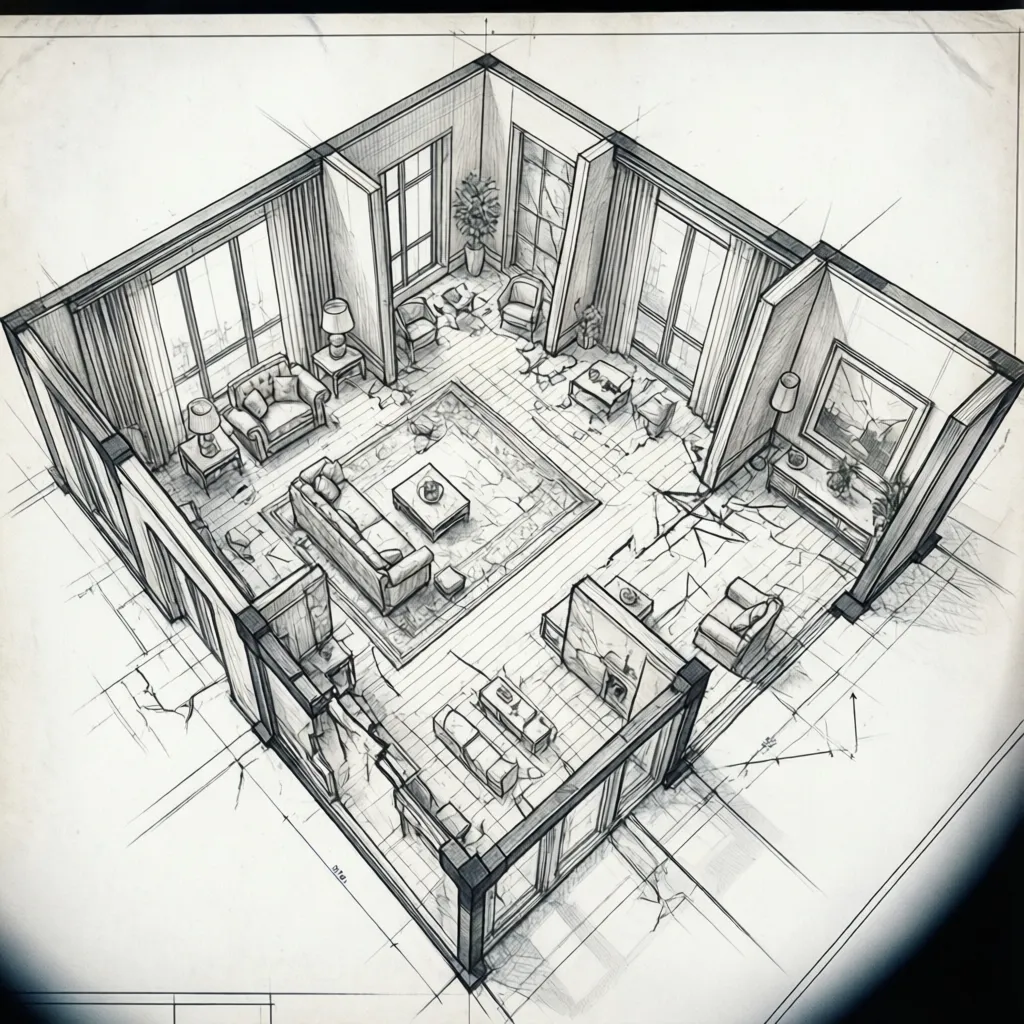

Why Complex Floor Plans Are Harder to Measure

Key Insight: Complex floor plans are difficult to measure because traditional area formulas only apply to regular geometric shapes.

Most people learn area calculations using rectangles or squares. But real buildings rarely follow those rules. Renovations, extensions, bay windows, angled hallways, and curved staircases all introduce irregular geometry.

In practice, these features create three main measurement challenges:

1. Non‑parallel walls that break rectangular measurements
2. Multi‑angle corners that require triangular calculations
3. Curved boundaries that cannot be measured with standard formulas

Architectural plans frequently show these complexities. According to the National Institute of Building Sciences, residential renovations increasingly introduce irregular geometry because homeowners add extensions rather than rebuild entire structures.

That’s why professionals rarely calculate an entire irregular room at once. Instead, we simplify the geometry first.

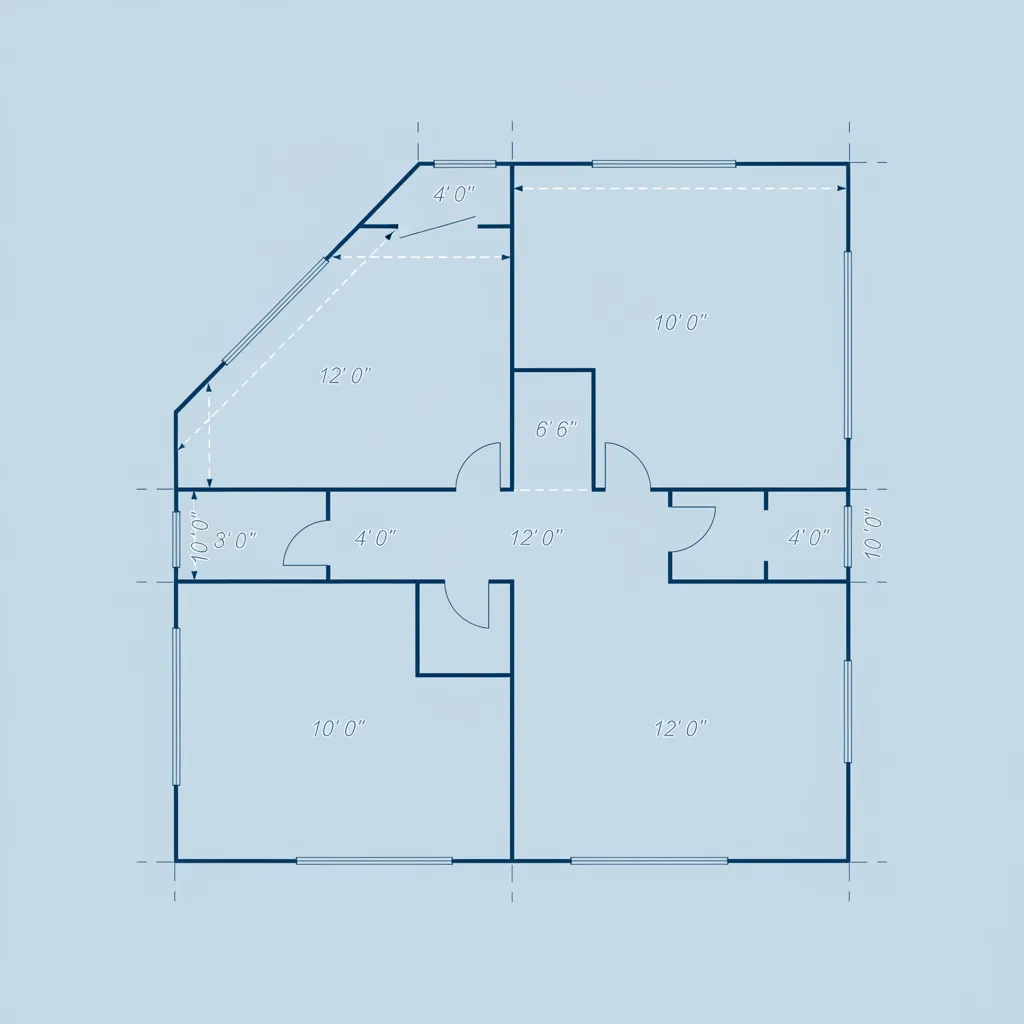

Breaking Irregular Shapes Into Simple Geometric Areas

Key Insight: The most dependable method for calculating irregular floor plan area is decomposing the layout into rectangles, triangles, and trapezoids.

This technique is standard practice in both architecture and construction estimating. Once you isolate basic shapes, the math becomes straightforward.

Here is the process designers follow:

1. Overlay imaginary straight lines across the floor plan.
2. Divide the irregular room into measurable shapes.
3. Label each section with clear dimensions.
4. Calculate the area of each shape individually.
5. Add the results together.

Example breakdown:

1. Main rectangle: 12 ft × 10 ft = 120 sq ft
2. Triangular extension: 6 ft × 4 ft ÷ 2 = 12 sq ft
3. Trapezoid section: 28 sq ft

Total floor area: 160 sq ft.

One hidden mistake I see often is forgetting to subtract built‑in voids—like stair openings or double‑height spaces—when adding these segments.

save pin

Using Triangles and Polygons for Area Calculation

Key Insight: Triangles and irregular polygons allow accurate measurement when walls meet at angles.

Whenever a room includes a 30°, 45°, or other non‑90° corner, the rectangular method fails. The correct approach is converting the angled portion into triangular or polygonal shapes.

Common formulas used in architectural measurement:

1. Triangle: Area = base × height ÷ 2
2. Trapezoid: Area = (a + b) ÷ 2 × height
3. Polygon: Divide into triangles and sum results

In real design practice, I rarely calculate complex polygons directly. Instead, I draw diagonal lines that split the polygon into triangles. This technique is faster and reduces math mistakes.

Many professionals also verify these shapes using a digital planning interface. For instance, tools like this step‑by‑step workspace for drawing and measuring custom floor plan layouts allow designers to trace angled walls and automatically calculate segment areas.

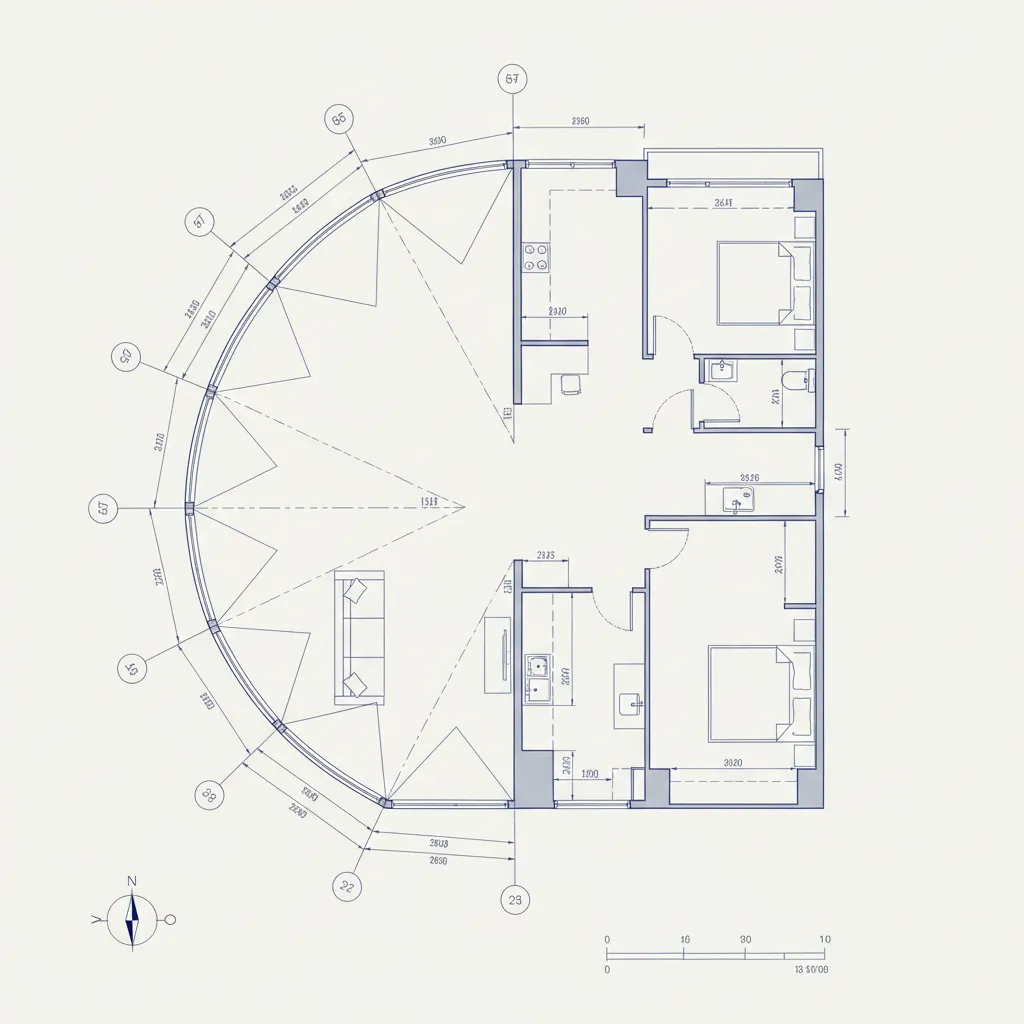

Measuring Curved or Angled Walls on Plans

Key Insight: Curved walls are usually measured by approximating the curve with multiple straight segments.

Curved architecture—like bay windows or rounded entryways—creates one of the most confusing scenarios for measuring floor area.

Architects typically handle curves in one of two ways:

1. Segment approximation: divide the curve into several short straight lines.
2. Sector geometry: treat the curve as part of a circular sector.

Segment approximation is far more common because it works with standard measurements and construction drawings.

Example workflow:

1. Mark multiple points along the curved wall.
2. Connect them with short straight segments.
3. Create small triangles or trapezoids between those points.
4. Calculate each area.

When measured carefully, the difference between segmented and true curved area is usually less than 1–2%, which is acceptable for most residential planning.

save pin

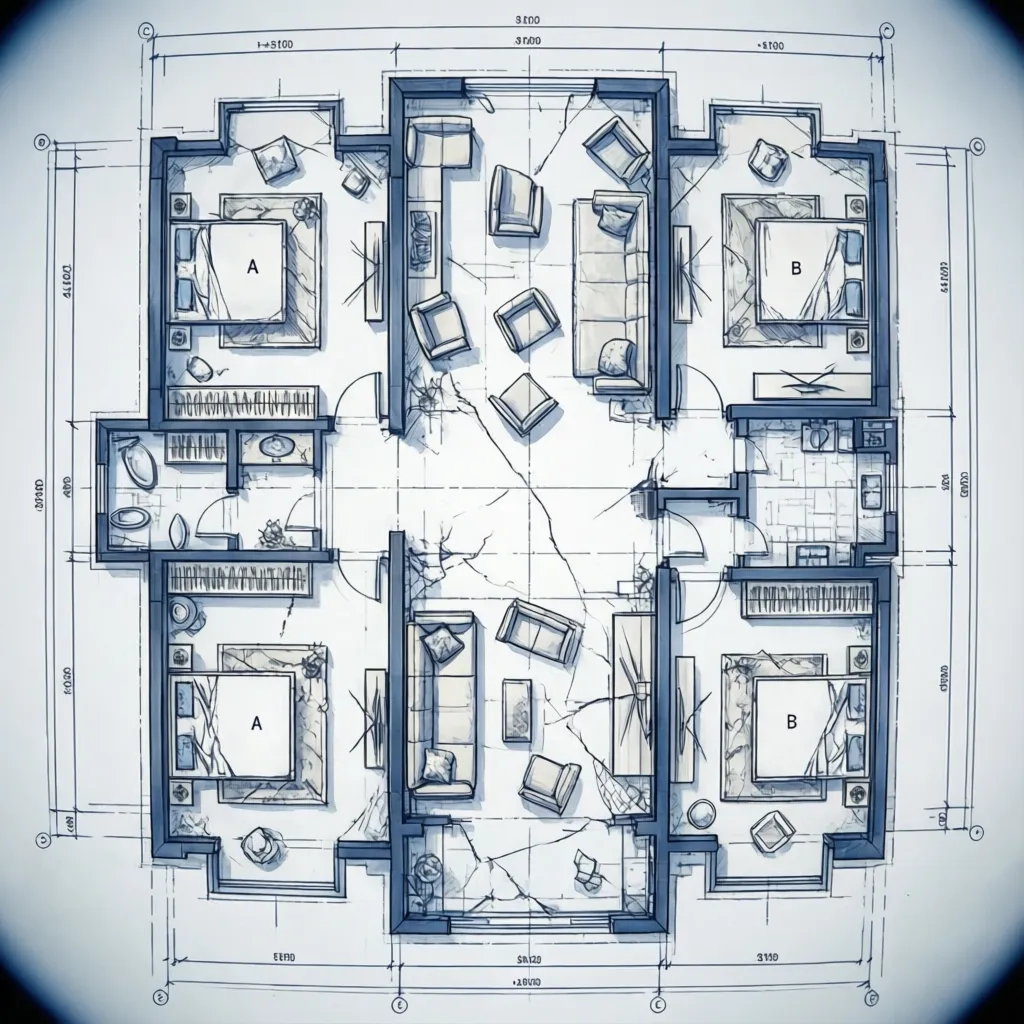

Combining Multiple Segments Into Total Floor Area

Key Insight: Accurate totals depend on organizing segment calculations clearly before adding them together.

When a floor plan contains many segments, mistakes usually happen during the final addition step—not during the geometry.

Professionals typically use a simple calculation sheet:

1. Segment A — Rectangle — 120 sq ft
2. Segment B — Triangle — 12 sq ft
3. Segment C — Trapezoid — 28 sq ft
4. Segment D — Small rectangle — 20 sq ft

Total: 180 sq ft.

The key is labeling every section directly on the plan. Without labels, segments often get counted twice or missed entirely.

Many designers also confirm their totals visually using an interactive layout environment that automatically calculates room areas. Even when you trust your math, a visual verification step prevents costly estimating mistakes.

Answer Box

The most reliable method for calculating irregular floor plan area is dividing the layout into rectangles, triangles, or polygons, calculating each segment individually, and adding them together. Curved walls can be approximated with segmented lines, while angled walls are best measured using triangular geometry.

Accuracy Tips for Complex Layout Measurements

Key Insight: Small measurement mistakes compound quickly in irregular layouts.

After working on dozens of renovation drawings, I’ve noticed that most errors come from poor measurement habits rather than complicated math.

Follow these practical accuracy rules:

1. Measure walls twice before calculating area.
2. Always sketch segmentation lines on the plan.
3. Label each geometric section clearly.
4. Subtract voids like stair openings or columns.
5. Use digital tools to double‑check totals.

Another overlooked issue is scale conversion. When measuring from printed drawings, forgetting to apply the correct drawing scale (such as 1:50 or 1:100) can produce massive calculation errors.

save pin

Final Summary

1. Divide complex floor plans into simple shapes before calculating area.
2. Triangles and trapezoids solve angled wall measurements.
3. Curved walls can be approximated with segmented straight lines.
4. Label and calculate each segment separately.
5. Verify totals using digital floor planning tools.

FAQ

How do you calculate irregular floor plan area?

Divide the layout into rectangles, triangles, or trapezoids. Calculate each section separately and add them together to determine the total irregular floor plan area.

What is the easiest way to measure complex building layouts from plans?

Break the floor plan into simple geometric shapes and calculate each one individually. This prevents errors caused by irregular walls or angled corners.

Can curved walls be included in floor area calculations?

Yes. Curved walls are typically approximated using multiple short straight segments or treated as circular sectors.

What formula is used for triangular floor areas?

Use the triangle formula: area equals base multiplied by height divided by two.

How accurate are polygon floor area calculations?

When divided into triangles or smaller shapes, polygon calculations can be highly accurate and are widely used in architectural measurements.

What tools help measure irregular floor plan area?

Digital floor planners and CAD tools allow you to trace walls and automatically calculate areas for complex shapes.

Why do irregular rooms cause measurement errors?

Most mistakes happen when people apply rectangular formulas to angled or curved layouts instead of dividing the room into smaller shapes.

Do architects manually calculate floor plan area?

Yes. Even when software is used, architects often verify calculations manually to ensure the floor plan area calculation for complex shapes is correct.
