How to Optimize 3D Air Conditioning Models for Faster Rendering: Practical techniques designers use to reduce file size, cut render times, and keep HVAC models visually accurate

Direct Answer

To optimize 3D air conditioning models for faster rendering, reduce unnecessary polygon density, simplify textures, implement level‑of‑detail (LOD) versions, and compress geometry and materials. These steps significantly decrease file size while maintaining visual realism in architectural scenes.

In most interior visualization projects, optimized HVAC assets render 30–60% faster than high‑poly manufacturer models without noticeable visual loss at normal camera distances.

Quick Takeaways

1. Most manufacturer HVAC models contain far more polygons than visualization scenes actually require.
2. Texture optimization often reduces file size more than geometry optimization.
3. Using LOD models dramatically improves performance in large buildings.
4. Hidden geometry inside vents and housings wastes rendering resources.
5. Lightweight HVAC assets keep large architectural scenes stable and responsive.

Introduction

When designers download a manufacturer model and drop it directly into a visualization scene, rendering performance often tanks. I see this constantly with HVAC assets. A single high‑poly air conditioning unit can contain hundreds of thousands of polygons—far more than a typical architectural scene actually needs.

After working on residential interiors and commercial visualization projects for more than a decade, I've learned that optimizing 3D air conditioning models is less about aggressive simplification and more about smart prioritization. The viewer rarely focuses on HVAC equipment, yet these assets can quietly consume a huge portion of the scene's geometry budget.

If you're planning larger visualization workflows or realistic interiors, it also helps to understand how optimized assets behave inside full scenes. I often recommend reviewing examples of complete interior visualization workflows with high‑quality architectural renderingto see how technical assets like HVAC systems fit into the bigger rendering pipeline.

In this guide I'll walk through the practical methods professionals use to optimize HVAC assets: reducing polygons, managing textures, applying LOD strategies, and avoiding the hidden mistakes that quietly slow down renders.

save pin

Why Optimization Matters for HVAC 3D Models

Key Insight: HVAC models are often among the most inefficient assets in architectural scenes because they are downloaded as engineering models rather than visualization assets.

Manufacturers design 3D models for technical documentation, not for rendering speed. That means internal screws, vents, bolts, and mechanical components are modeled in extreme detail—even though none of those elements are visible in most architectural renders.

In several apartment visualization projects I worked on in Los Angeles, we found that replacing raw manufacturer HVAC models with optimized versions reduced scene polygon counts by nearly 40%. The visual difference was effectively zero in final renders.

1. Engineering models prioritize manufacturing accuracy
2. Visualization models prioritize silhouette and visible detail
3. Interior scenes rarely show HVAC equipment up close
4. Hidden geometry adds heavy rendering cost

This distinction is why experienced visualization artists almost never render raw manufacturer models directly.

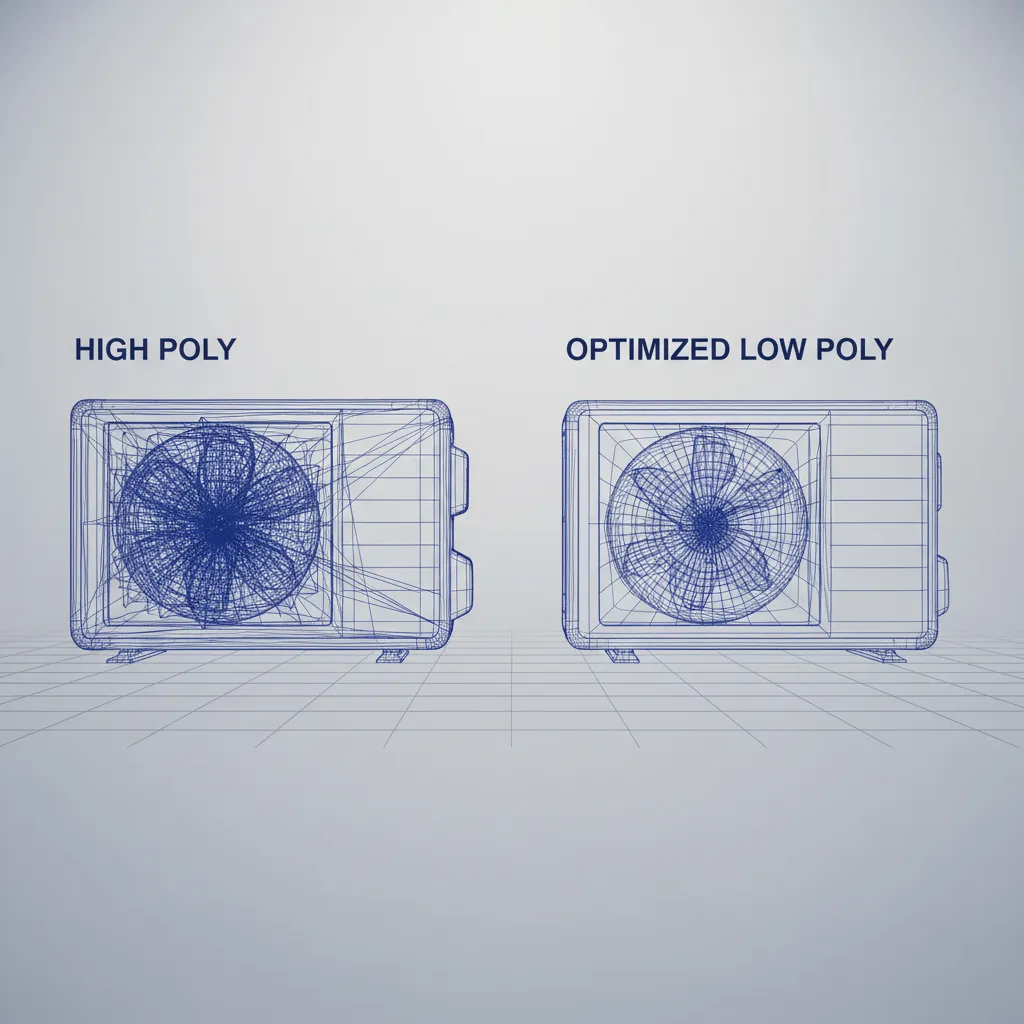

Reducing Polygon Count Without Losing Detail

Key Insight: Most air conditioner models can lose 60–80% of their polygons before any visible detail is affected.

The trick is understanding where visual information actually matters. In HVAC units, the silhouette, grille pattern, and major vents define the object. Internal components usually contribute nothing to the final image.

Common polygon reduction techniques include:

1. Deleting hidden internal geometry
2. Replacing complex screws or bolts with normal maps
3. Simplifying curved surfaces with adaptive decimation
4. Merging repeating grille structures
5. Using subdivision only where edges are visible

In tools like Blender, the Decimate modifier alone can often reduce polygon counts dramatically while maintaining shape integrity.

For designers planning full interior environments, it's also useful to study optimized layouts and asset placement strategies in real residential room planning workflows used in professional interior design, where lightweight assets keep projects responsive even with complex furniture scenes.

save pin

Efficient Texture Mapping for AC Units

Key Insight: Texture resolution is one of the biggest hidden contributors to HVAC model file size.

A single 4K texture for a small wall‑mounted air conditioner is usually unnecessary. In most interior renders, HVAC units occupy a small portion of the frame.

Practical texture optimization strategies:

1. Use 1K or 2K textures for most HVAC assets
2. Pack roughness, metallic, and AO maps into a single texture
3. Use tiling textures for vents and grills
4. Avoid unique UV islands for small repeating parts

Another overlooked technique is removing baked shadows from manufacturer textures. These often conflict with physically based lighting systems used in modern rendering engines.

Using LOD Levels for Large Building Projects

Key Insight: Level‑of‑detail (LOD) systems dramatically improve rendering performance in projects containing many HVAC units.

LOD models automatically swap between high‑detail and simplified versions based on camera distance. This technique is widely used in game engines but is increasingly common in architectural visualization.

A practical HVAC LOD setup typically includes:

1. LOD 0: High detail model for close‑up shots
2. LOD 1: Reduced geometry for mid‑range views
3. LOD 2: Simplified silhouette model for distant views
4. LOD 3: Simple box proxy for extreme distance

In large office buildings with dozens of ceiling HVAC vents, LOD systems can cut GPU load dramatically.

save pin

File Size Reduction Techniques

Key Insight: File size optimization often improves workflow speed even more than rendering speed.

Large HVAC assets slow down everything—scene loading, viewport navigation, and version control. Many designers only notice the issue when projects begin crashing or autosaves become painfully slow.

Effective file size reduction techniques include:

1. Removing unused materials
2. Combining mesh objects where possible
3. Compressing textures
4. Deleting hidden faces
5. Exporting models using optimized formats

When preparing assets for full scenes, it's useful to evaluate how these optimized models behave within complete environments such as AI‑assisted interior design projects that combine multiple assets and layout systems.

Performance Tips for Rendering HVAC Systems

Key Insight: Scene organization often matters more than the model itself when rendering HVAC equipment.

Even well‑optimized assets can slow scenes if they are duplicated inefficiently or assigned heavy materials.

Rendering performance best practices:

1. Use instancing for repeating ceiling vents
2. Avoid transparent materials unless necessary
3. Disable unnecessary displacement maps
4. Group HVAC systems into scene collections
5. Use proxy objects during layout stages

These techniques are common in professional visualization pipelines where projects may contain hundreds of technical objects.

save pin

Answer Box

The fastest way to optimize 3D air conditioning models is to remove hidden geometry, reduce polygon density, compress textures, and implement LOD versions. These steps dramatically lower file size while preserving visual realism in architectural rendering.

Final Summary

1. Most HVAC models contain unnecessary engineering‑level geometry.
2. Polygon reduction rarely affects visual quality at typical render distances.
3. Texture optimization significantly reduces model size.
4. LOD systems are essential for large architectural scenes.
5. Efficient scene organization prevents performance bottlenecks.

FAQ

1. How do I optimize a 3D air conditioning model for rendering?

Reduce polygon count, remove hidden parts, lower texture resolution, and create LOD versions to improve rendering performance.

2. What is the ideal polygon count for HVAC models?

For interior visualization, most air conditioning units should stay between 5,000 and 30,000 polygons depending on camera distance.

3. Can reducing polygons affect visual quality?

Not usually. If silhouette edges and grille patterns remain intact, viewers rarely notice polygon reductions.

4. What textures are necessary for HVAC models?

Typically albedo, roughness, and normal maps are sufficient. Many HVAC models do not require high‑resolution displacement maps.

5. Why are manufacturer HVAC models so heavy?

They are designed for engineering documentation, which includes internal mechanical parts unnecessary for visualization.

6. What software is best for optimizing HVAC assets?

Blender, 3ds Max, and Maya all include decimation, UV optimization, and texture compression tools.

7. How do I reduce file size of an HVAC 3D model?

Delete hidden geometry, merge meshes, compress textures, and export using efficient formats like FBX.

8. What is the best workflow to optimize 3D air conditioning models?

Start with geometry cleanup, then optimize textures, create LOD versions, and finally test performance in your rendering scene.
