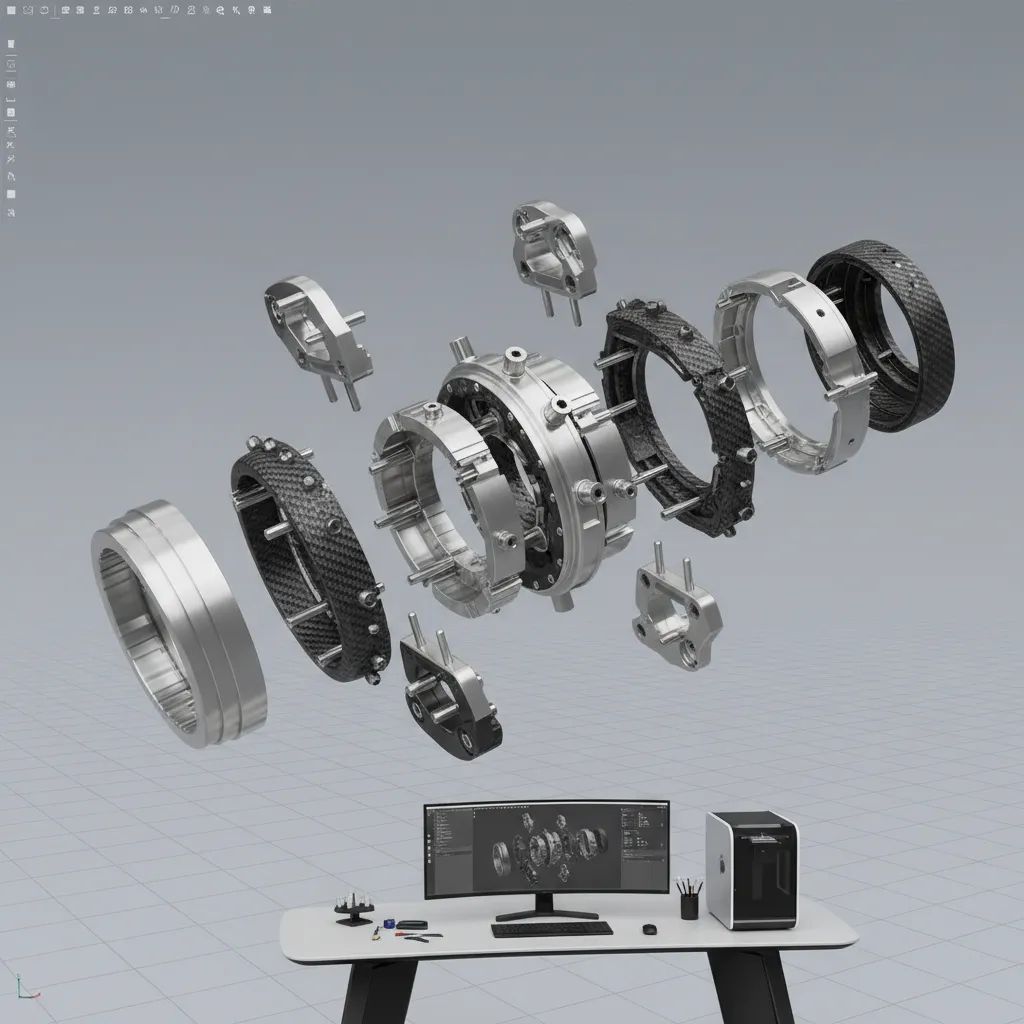

How to Optimize 3D Model Cuts for Stronger 3D Printed Parts: Practical design strategies that improve strength, alignment, and print efficiency after splitting large 3D models

Direct Answer

Optimizing 3D model cuts means placing split lines where stress is minimal, aligning parts with the print direction, and adding connectors that maintain structural continuity. When done correctly, splitting a model can actually make 3D printed parts stronger, reduce supports, and simplify assembly.

The key is treating the cut as part of the engineering design rather than just a convenience for fitting the model onto the print bed.

Quick Takeaways

1. Cut models along low stress areas to prevent structural weaknesses.
2. Orient parts before splitting to maximize layer strength.
3. Use alignment pins or mechanical joints for reliable assembly.
4. Strategic cuts can dramatically reduce support material.
5. Test tolerances with small prototypes before full printing.

Introduction

Learning how to optimize 3D model cuts for printing is one of those skills that separates beginner hobbyists from experienced makers. I have worked on dozens of product prototypes and architectural miniatures where a single poor cut completely ruined part strength.

Most people split models simply because they are too big for the printer. But experienced designers think about something different first: stress paths. If you place a cut across the wrong area, the weakest direction of FDM printing layers will line up exactly where the part experiences force.

In other words, the cut itself becomes the failure point.

In my workflow, splitting is not the last step. It happens right after I decide the printing orientation and assembly method. If you are still learning the basics, it helps to first understand the step by step process of preparing complex models for segmented builds, because cutting strategy always connects to the full model preparation pipeline.

In this guide, I'll walk through the practical rules I use to place cuts, design connectors, reduce supports, and ensure the final assembly is stronger than a single oversized print.

save pin

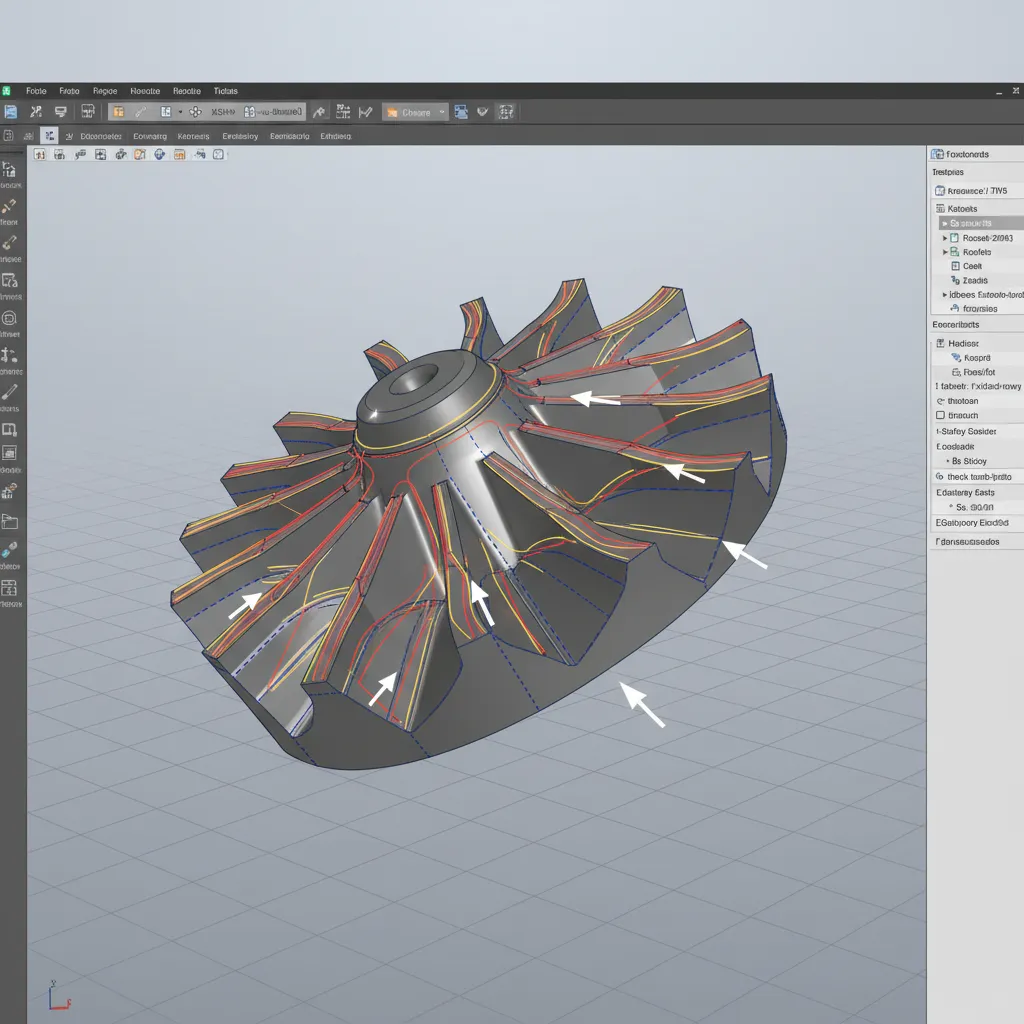

Why Cut Placement Affects Print Strength

Key Insight: The strongest cut locations avoid major stress paths and keep load forces running parallel to printed layers.

FDM prints are anisotropic, meaning strength varies depending on direction. Parts are strongest along filament paths and weakest between layer bonds.

If you split a model at the wrong location, you create two problems at once:

1. A structural seam
2. A layer orientation weakness

That combination often leads to cracked parts during use.

When I evaluate where to split a model, I look for:

1. Flat surfaces already present in the geometry
2. Areas that experience minimal mechanical stress
3. Natural seams such as panel edges or design transitions

For example, when printing mechanical housings, I usually place cuts along existing enclosure seams. The structure already expects a joint there.

According to guidelines published by Prusa Research and other FDM printer manufacturers, orienting load forces parallel to extrusion paths significantly improves durability compared to vertical layer stress.

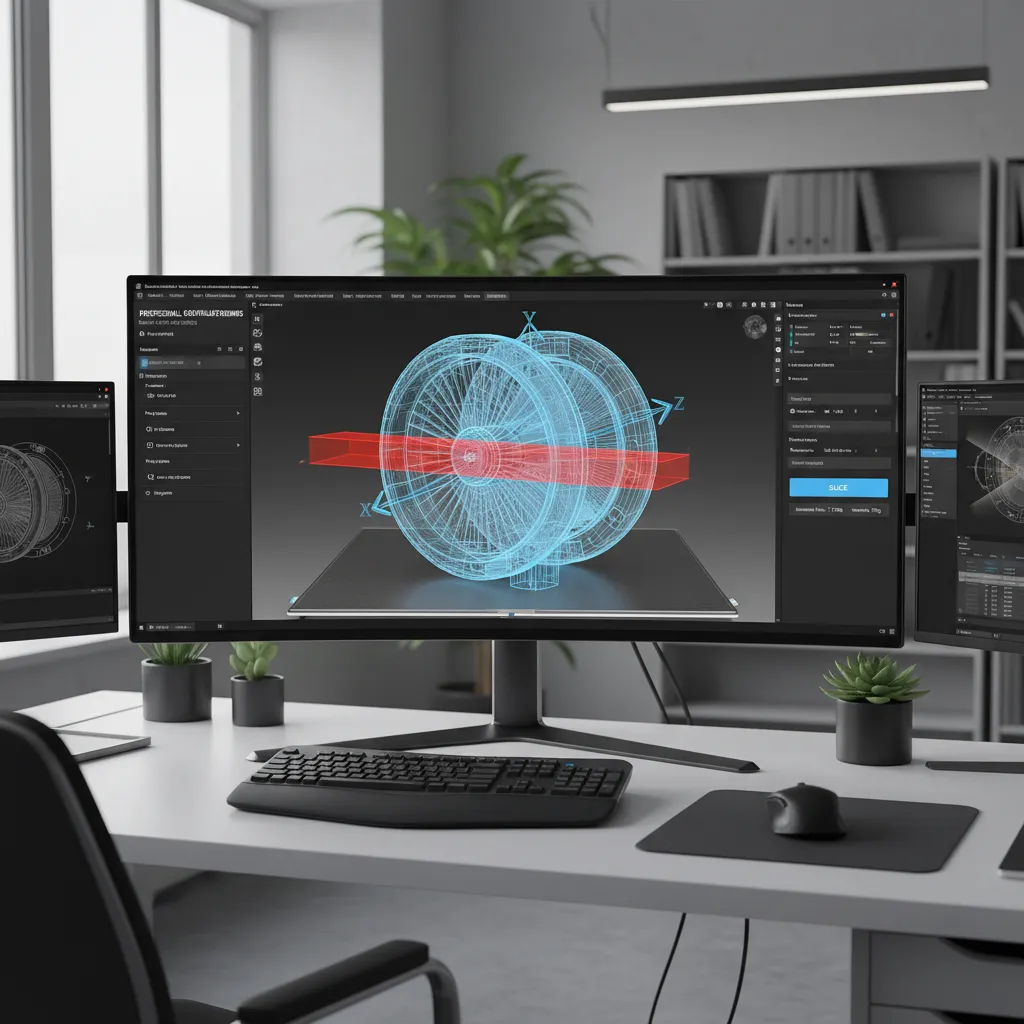

Choosing the Best Orientation Before Splitting a Model

Key Insight: Always determine print orientation first, then design cuts around that orientation.

This is a mistake I see constantly: people cut the model first and then try to orient the pieces for printing.

Professional workflows do the opposite.

The orientation determines:

1. Layer strength direction
2. Support requirements
3. Surface quality

Once the orientation is chosen, you can identify logical splitting points.

My typical decision process:

1. Step 1: Identify the strongest direction needed for the final part.
2. Step 2: Rotate the model so that strength direction aligns with extrusion paths.
3. Step 3: Identify areas that exceed the build volume.
4. Step 4: Place cuts where geometry is simplest.

This approach is similar to how designers plan spatial layouts in architecture. When planning complex layouts or structural segments, visualization tools like interactive layout visualization for complex structural planninghelp reveal natural segmentation lines.

save pin

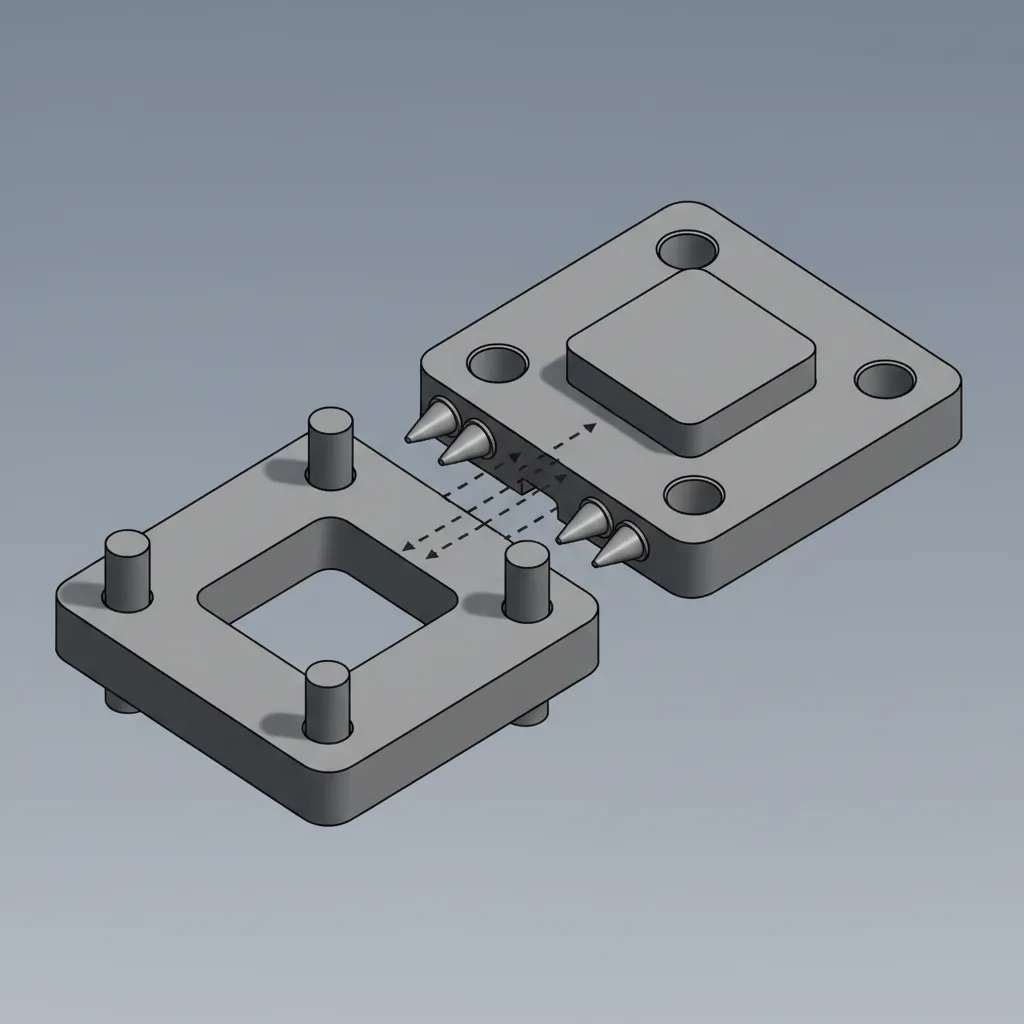

Designing Alignment Pins and Connectors

Key Insight: Proper alignment features transform weak glued joints into precise mechanical assemblies.

When parts are simply glued edge to edge, alignment errors are almost guaranteed.

Instead, I design connectors directly into the split.

Common connector options include:

1. Cylindrical alignment pins
2. Dovetail joints
3. Rectangular pegs
4. Snap-fit connectors

My default choice for most projects is simple alignment pins.

Recommended dimensions:

1. Pin diameter: 4–6 mm for medium parts
2. Clearance tolerance: 0.15–0.25 mm
3. Pin depth: 1.5× diameter

These small features dramatically improve assembly accuracy and reduce glue stress.

Industrial additive manufacturing guidelines from Autodesk and Stratasys recommend mechanical alignment features whenever parts are segmented for production.

save pin

Reducing Support Material With Smart Cuts

Key Insight: Strategic model splitting can reduce support material by more than half.

Support structures waste time, material, and post-processing effort.

Instead of printing one difficult object full of supports, experienced designers divide the geometry into support-friendly pieces.

Typical situations where splitting helps:

1. Deep internal cavities
2. Complex overhangs
3. Enclosed structures
4. Large bridges

A classic example is helmets or figurines. Printing them whole often creates massive interior supports. Splitting the model vertically eliminates almost all of them.

If you're experimenting with layout strategies that simplify geometry planning, tools that help visualize interior structure layouts before building complex assemblies can reveal cleaner segmentation options.

Answer Box

The best way to optimize 3D model cuts is to orient parts first, place cuts along low stress areas, and integrate alignment connectors. Smart segmentation improves strength, reduces supports, and simplifies assembly.

Planning Hidden Seams and Assembly Lines

Key Insight: The best split lines are often invisible in the finished model.

One overlooked aspect of model cutting is visual quality.

After printing and gluing, seams can remain visible unless you plan ahead.

Professional designers hide seams in:

1. Sharp edges
2. Material transitions
3. Shadow lines
4. Existing panel lines

For example, when printing prop replicas, I align cuts with sculpted details like armor plates or fabric folds. The seam disappears naturally.

This technique is widely used in film prop manufacturing and collectible figure production.

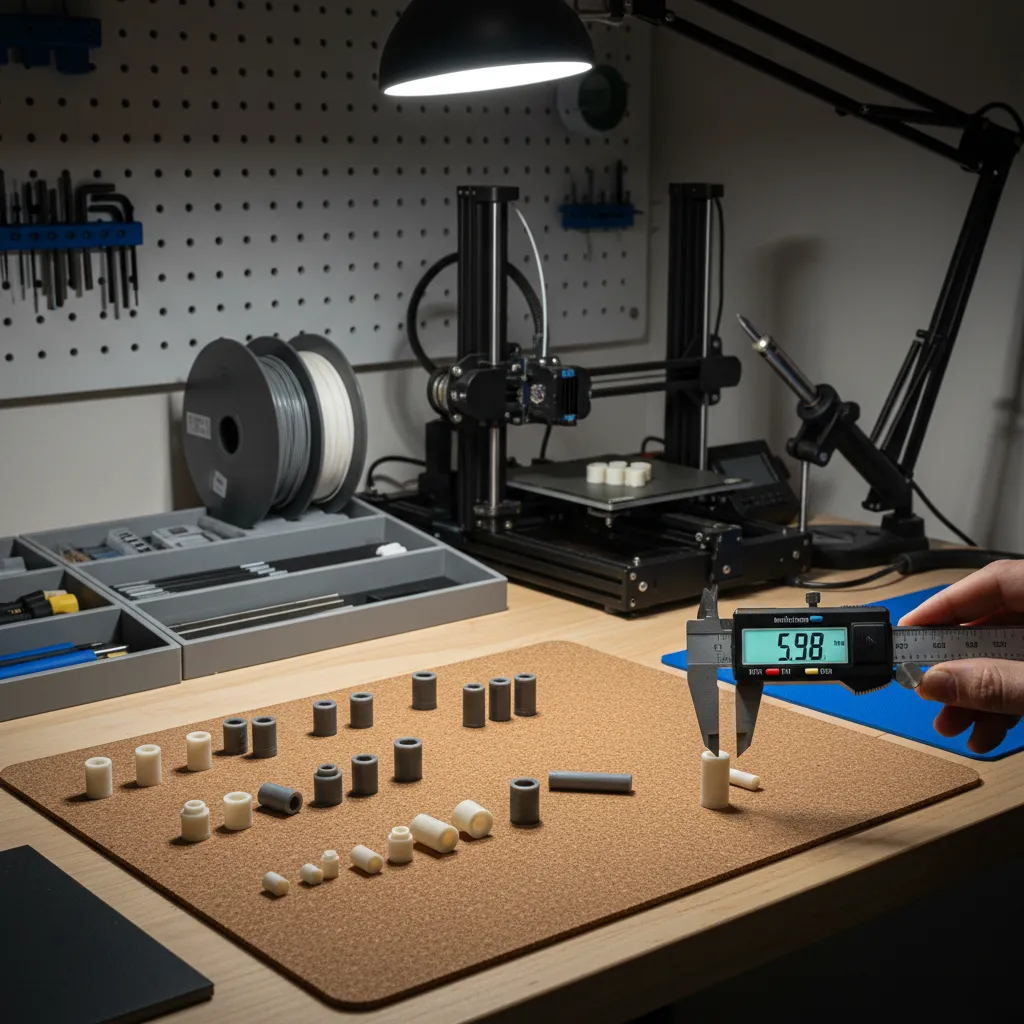

Testing Fit and Tolerance Between Parts

Key Insight: Never print the entire segmented model without first testing joint tolerances.

Even well-designed connectors can fail if tolerances are incorrect.

Material shrinkage, slicer settings, and printer calibration all influence fit.

My typical testing workflow:

1. Print a small section of the connector area
2. Check insertion force and alignment
3. Adjust tolerance if needed
4. Print final full parts

Typical tolerance ranges:

1. PLA: 0.15–0.2 mm clearance
2. PETG: 0.2–0.25 mm
3. ABS: 0.25 mm or more

This quick test can save hours of failed prints and rework.

save pin

Final Summary

1. Smart cut placement prevents structural weak points.
2. Choose print orientation before deciding where to split.
3. Alignment pins dramatically improve assembly accuracy.
4. Strategic segmentation reduces supports and post-processing.
5. Prototype connectors to validate tolerances.

FAQ

Where should I split a 3D model for strength?

Split along low stress areas and avoid cutting across load-bearing sections. Align the cut so forces run parallel to printed layers whenever possible.

Does splitting a model make 3D prints weaker?

Not necessarily. When optimized correctly, segmented parts with alignment connectors can be just as strong or stronger than single prints.

How do you add alignment pins after splitting models?

Create cylindrical pegs on one side of the cut and matching holes on the other. Maintain 0.15–0.25 mm clearance depending on material.

What is the best way to divide a large STL for 3D printing?

Orient the model first, then split along flat surfaces or natural seams. This method helps optimize 3D model cuts for printing.

How can splitting models reduce supports?

Dividing the model allows each section to sit flat on the build plate, eliminating overhangs that normally require support structures.

What tolerance should I leave between parts?

For most FDM printers, leave 0.15–0.25 mm clearance between mating parts depending on the material and printer calibration.

What connectors work best for multi-part prints?

Alignment pins, dovetail joints, and snap-fit connectors are common choices depending on whether the assembly needs to be permanent.

Is glue strong enough for 3D printed assemblies?

Yes. Super glue and epoxy can create strong bonds, especially when connectors distribute the load across the joint.
