How to Optimize 3ds Max Floor Plan Models for Clean Geometry: Professional techniques to reduce messy topology, speed up modeling, and prepare architectural floor plans for high‑quality visualization.

Direct Answer

To optimize a 3ds Max floor plan model for clean geometry, remove unnecessary vertices, maintain consistent scale, organize objects with layers, and use Editable Poly tools to simplify topology. Clean architectural meshes improve rendering speed, reduce modeling errors, and make future edits significantly easier.

Quick Takeaways

1. Clean geometry reduces render time and prevents shading errors.
2. Deleting extra vertices and edges keeps floor plan topology manageable.
3. Layer organization improves large architectural scene workflows.
4. Consistent scale avoids lighting and rendering inconsistencies.
5. Editable Poly tools are essential for controlled mesh optimization.

Introduction

After working on architectural visualization projects for more than a decade, one pattern shows up again and again: messy floor plan geometry slows everything down. When a 3ds Max scene contains unnecessary vertices, overlapping edges, or inconsistent units, even simple edits can become frustrating.

Optimizing a 3ds Max floor plan model is less about reducing polygons for performance and more about maintaining clean, predictable topology. Architects and visualization artists often inherit CAD imports or rushed models that look fine at first glance but become unstable when extruded, rendered, or modified.

In my studio workflow, we treat geometry cleanup as a critical early step. A well‑organized base model saves hours later in lighting, rendering, and design iteration. If you're building layouts digitally before modeling, tools that help you create accurate digital floor plans before modelingcan also prevent geometry problems from the start.

Below are the exact methods professionals use to keep architectural floor plans efficient, editable, and production‑ready in 3ds Max.

save pin

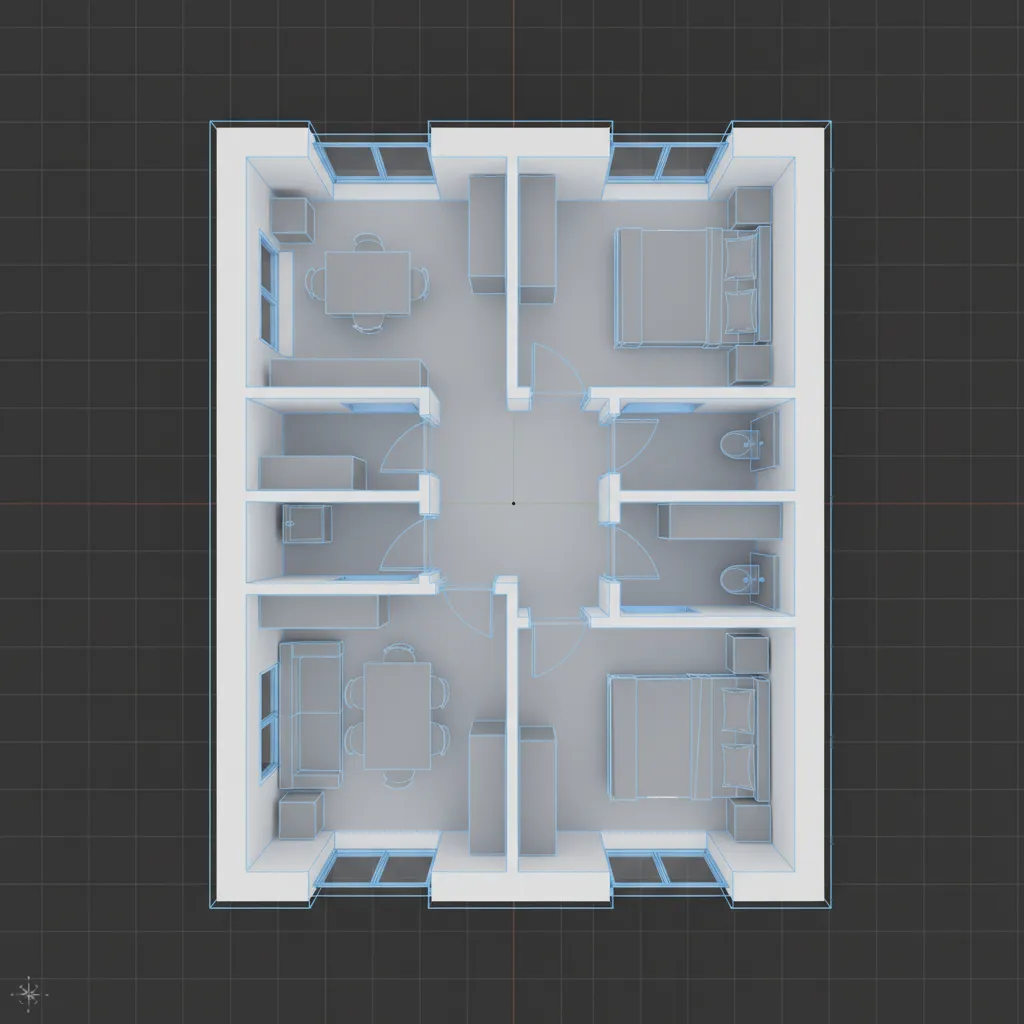

Why Clean Geometry Matters in Architectural Models

Key Insight: Clean topology prevents modeling errors, improves rendering reliability, and keeps architectural scenes scalable.

Many beginners assume messy geometry only affects performance. In reality, it affects almost every stage of the architectural visualization pipeline.

Common problems caused by poor geometry include:

1. Extrusions producing broken wall surfaces
2. Lighting artifacts caused by overlapping polygons
3. Unpredictable smoothing or shading
4. Difficulty modifying layouts later

In professional workflows, floor plans are often reused across multiple phases: concept visualization, interior design previews, and marketing renders. If the base mesh is chaotic, every future step becomes slower.

Major visualization studios often follow a simple principle: the cleaner the base floor plan, the faster the entire project moves.

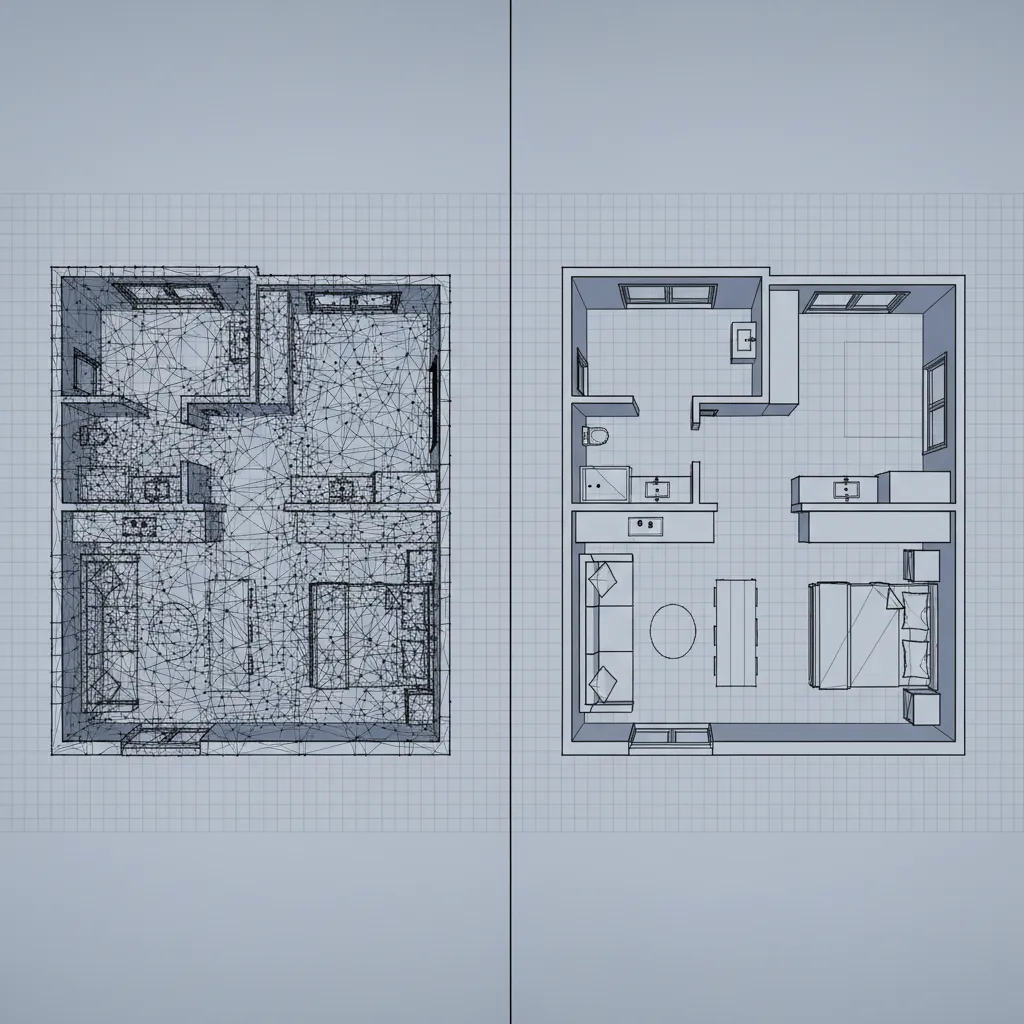

Reducing Unnecessary Vertices and Edges

Key Insight: Removing redundant vertices and edges is the fastest way to optimize a 3ds Max floor plan model.

Imported CAD drawings frequently contain thousands of unnecessary spline points. When converted to meshes, these create dense and inefficient topology.

My typical cleanup workflow looks like this:

1. Use Vertex Weld to merge overlapping vertices.
2. Run Remove Isolated Vertices.
3. Delete edges that do not define structural boundaries.
4. Convert complex splines into simplified shapes.

One mistake I see frequently is over‑modeling curved walls with excessive segments. In most architectural visualizations, moderate segmentation produces identical visual results with significantly lighter geometry.

For large residential projects, this single step can reduce polygon counts by more than half.

save pin

Organizing Floor Plan Objects with Layers

Key Insight: Layer organization turns complex architectural scenes into manageable systems.

Even perfectly optimized geometry becomes difficult to control if objects are scattered throughout a scene.

A simple layer structure used in many studios includes:

1. Walls
2. Structural elements
3. Doors and windows
4. Furniture placeholders
5. Reference drawings

This structure makes it easy to isolate modeling tasks and prevents accidental edits.

For example, when preparing a scene for rendering, designers often hide construction layers and focus only on visible architecture. If you're building layout structures before detailed modeling, using a structured 3D floor planning workflow for layout development can also help maintain logical organization before importing into 3ds Max.

Using Editable Poly Tools for Optimization

Key Insight: Editable Poly tools provide the most precise control over architectural mesh cleanup.

While modifiers are powerful, most geometry optimization in architectural models happens directly inside Editable Poly.

Essential tools include:

1. Target Weld – merges nearby vertices cleanly.
2. Remove Edge – deletes edges while preserving surrounding faces.
3. Swift Loop – adds controlled structural edges.
4. Collapse – simplifies complex vertex clusters.

In practice, these tools allow you to maintain quad‑dominant topology, which is far easier to edit later.

Architectural models don't need perfect quad meshes everywhere, but keeping walls and structural surfaces clean prevents shading artifacts during rendering.

save pin

Keeping Scene Scale and Units Consistent

Key Insight: Incorrect scale settings are one of the most overlooked causes of architectural visualization issues.

I've seen beautifully modeled floor plans produce incorrect lighting simply because the scene units were inconsistent.

Best practice settings include:

1. Set System Units to meters or centimeters before modeling
2. Match imported CAD units correctly
3. Use real‑world dimensions for walls and openings

Accurate scale ensures that:

1. Global illumination behaves realistically
2. Furniture models fit properly
3. Lighting intensity works as expected

Professional rendering pipelines rely heavily on consistent scale for physically based rendering systems.

Preparing Floor Plans for Rendering or Visualization

Key Insight: Final optimization should prepare the floor plan for lighting, materials, and camera work.

Before moving into visualization, I always run a final scene check.

Checklist before rendering:

1. Reset XForm on imported geometry
2. Check for overlapping faces
3. Ensure normals face the correct direction
4. Group structural elements logically

At this stage, the floor plan becomes the foundation for the entire visualization scene. If you're transitioning toward presentation renders, exploring workflows that help generate realistic architectural renderings from floor plans can significantly speed up client previews.

Answer Box

The best way to optimize a 3ds Max floor plan model is to simplify topology, organize objects with layers, maintain accurate units, and clean vertices using Editable Poly tools. These practices produce stable models that render faster and remain easy to edit during architectural visualization workflows.

Final Summary

1. Clean geometry keeps architectural floor plans editable and stable.
2. Removing unnecessary vertices dramatically simplifies complex scenes.
3. Layer organization improves workflow efficiency in large models.
4. Editable Poly tools provide precise control for topology cleanup.
5. Consistent scale ensures accurate lighting and rendering.

FAQ

1. What is clean geometry in 3ds Max?

Clean geometry refers to organized meshes without unnecessary vertices, overlapping faces, or broken topology. It ensures stable modeling and predictable rendering.

2. How do I reduce polygons in a 3ds Max floor plan model?

Use Remove Edge, Vertex Weld, and Collapse tools to eliminate redundant geometry while keeping structural edges intact.

3. Why do CAD imports create messy topology?

CAD drawings often include excessive spline points and overlapping lines that convert into dense meshes during import.

4. What units should I use for architectural modeling in 3ds Max?

Meters or centimeters are commonly used because they align well with real‑world architectural dimensions.

5. Is quad topology important for architectural models?

Not everywhere, but clean quads on walls and major surfaces help prevent shading issues.

6. How can I optimize a 3ds Max scene for architectural visualization?

Simplify geometry, remove hidden faces, organize layers, and maintain consistent units throughout the project.

7. Does optimizing geometry improve rendering speed?

Yes. Cleaner meshes reduce scene complexity and help rendering engines calculate lighting more efficiently.

8. What is the biggest mistake in floor plan modeling?

Leaving imported CAD geometry uncleaned. It often introduces thousands of unnecessary vertices.
