How to Optimize a Cafe or Restaurant Floor Plan for Customer Flow: Practical layout strategies that improve guest movement, service speed, and seating efficiency in cafes and restaurants.

Direct Answer

To optimize a cafe or restaurant floor plan for customer flow, design clear entry paths, avoid crossing service routes, place service stations strategically, and balance seating density with circulation space. Efficient layouts guide guests naturally from entrance to seating while allowing staff to move quickly without disrupting customers.

Quick Takeaways

1. Clear entrance paths reduce confusion and improve the first impression.
2. Server routes should avoid crossing major customer walkways.
3. Too many seats often slow service and reduce overall revenue.
4. Testing layouts with 3D visualization reveals hidden bottlenecks.
5. Small cafes benefit most from simplified circulation loops.

Introduction

When restaurant owners ask me to review their layout, the problem is rarely the furniture style or decor. The real issue is almost always customer movement. A poorly planned layout creates subtle friction: people crowding the entrance, servers squeezing past chairs, or guests feeling cramped even when tables are technically spaced correctly.

Optimizing a cafe or restaurant floor plan for customer flow is less about aesthetics and more about how people naturally move through space. After working on hospitality projects for more than a decade, I’ve learned that good layouts feel invisible. Guests instinctively know where to go, and staff can work quickly without constant interruptions.

Today, many operators experiment with layouts digitally before moving furniture. Tools like this interactive room layout planning workflow used by hospitality designersmake it easier to visualize movement paths before committing to renovations.

In this guide, I’ll walk through practical strategies I’ve used in real restaurant projects to improve circulation, increase operational efficiency, and create a smoother experience for both guests and staff.

save pin

Understanding Customer Flow in Cafe and Restaurant Spaces

Key Insight: Customer flow works best when movement follows an intuitive sequence: entrance → orientation → seating → service → exit.

In most successful restaurant layouts, guests rarely stop to ask where to go. The space itself guides them. When that sequence breaks—like when guests walk directly into the ordering line or block server routes—the entire operation slows down.

From my experience, poor flow usually comes from three design mistakes:

1. Entrance opens directly into seating with no buffer zone
2. Takeout and dine‑in customers share the same path
3. Server routes intersect guest circulation

According to hospitality design guidelines referenced by the American Institute of Architects hospitality sector, circulation paths in restaurants typically require 36–48 inches for comfortable guest movement and 60 inches in high‑traffic zones.

When layouts respect these movement patterns, guests feel relaxed and staff operate more efficiently.

Designing Entrance, Waiting, and Seating Zones

Key Insight: The entrance should act as a transition space that organizes traffic before guests reach seating areas.

Many small cafes skip this step entirely. The door opens directly into tables, which immediately creates congestion during busy hours.

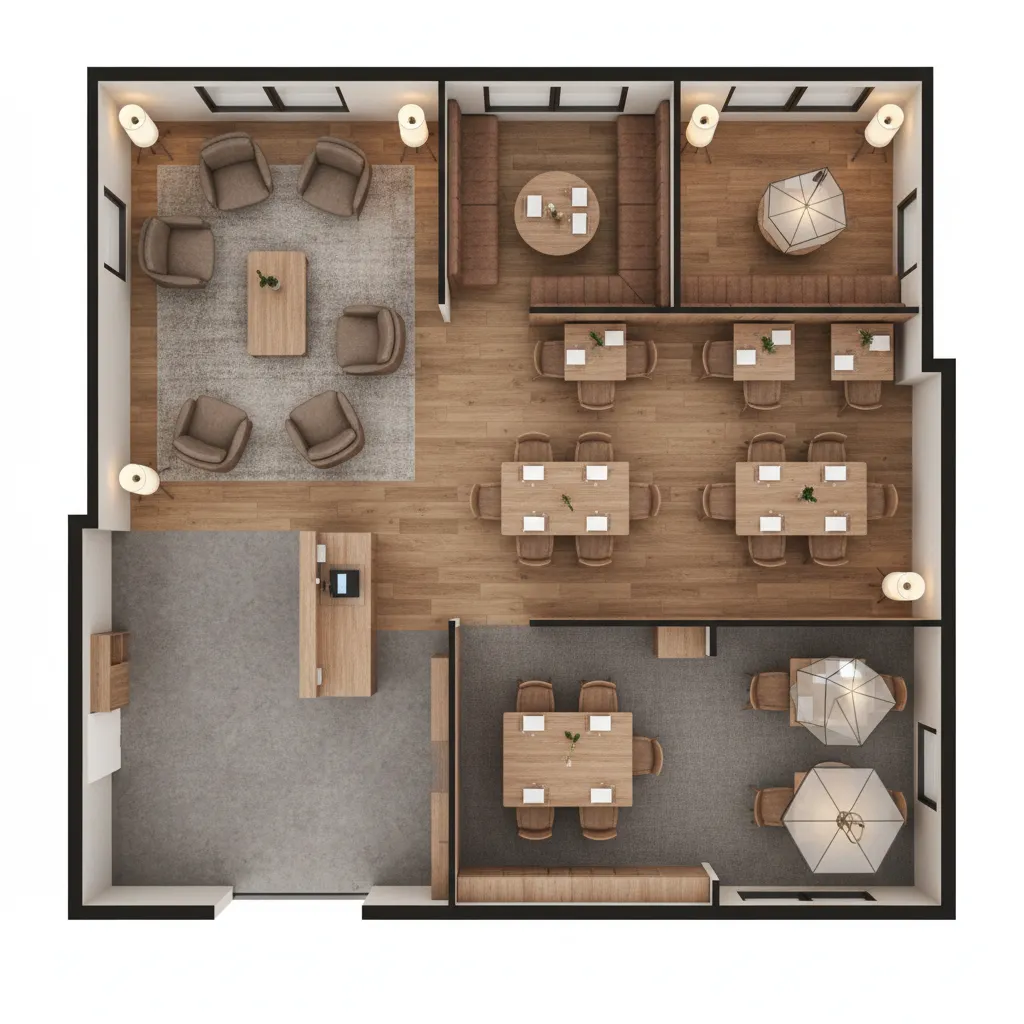

In projects I’ve worked on, a simple three‑zone structure dramatically improves flow:

1. Arrival zone: door clearance, menu board, or host stand
2. Orientation zone: waiting area or ordering line
3. Seating zone: tables organized by party size

Designers often underestimate how important this buffer area is. Even 20–30 square feet can prevent a constant traffic jam at the entrance.

save pin

Optimizing Server Routes and Service Stations

Key Insight: Staff movement should form efficient loops rather than back‑and‑forth paths across the dining room.

Server efficiency has a direct impact on customer satisfaction. If staff must cross the dining room repeatedly to access drinks, POS terminals, or utensils, service slows down and congestion increases.

Effective restaurant workflow layouts usually include:

1. Distributed service stations rather than one central point
2. Clear 36–42 inch server aisles behind seating rows
3. Short paths between kitchen, service station, and tables

When restaurants test these movement routes using a 3D floor planning workflow for restaurant layout experiments, bottlenecks often become obvious immediately.

One project I worked on reduced average table service time by nearly two minutes simply by relocating a drink station closer to the main seating section.

save pin

Balancing Seating Capacity with Comfort

Key Insight: Maximizing seats rarely maximizes revenue—crowded layouts often reduce table turnover and guest satisfaction.

Owners often try to squeeze in as many tables as possible. But cramped seating slows staff movement and makes guests uncomfortable.

A more effective approach balances density and circulation.

1. 2‑top tables: 24–30 inches wide
2. Minimum aisle width: 36 inches
3. High traffic aisles: 48–60 inches
4. Chair clearance behind occupied seats: 18 inches

In practice, removing two poorly positioned tables often improves overall revenue because service becomes faster and the space feels more welcoming.

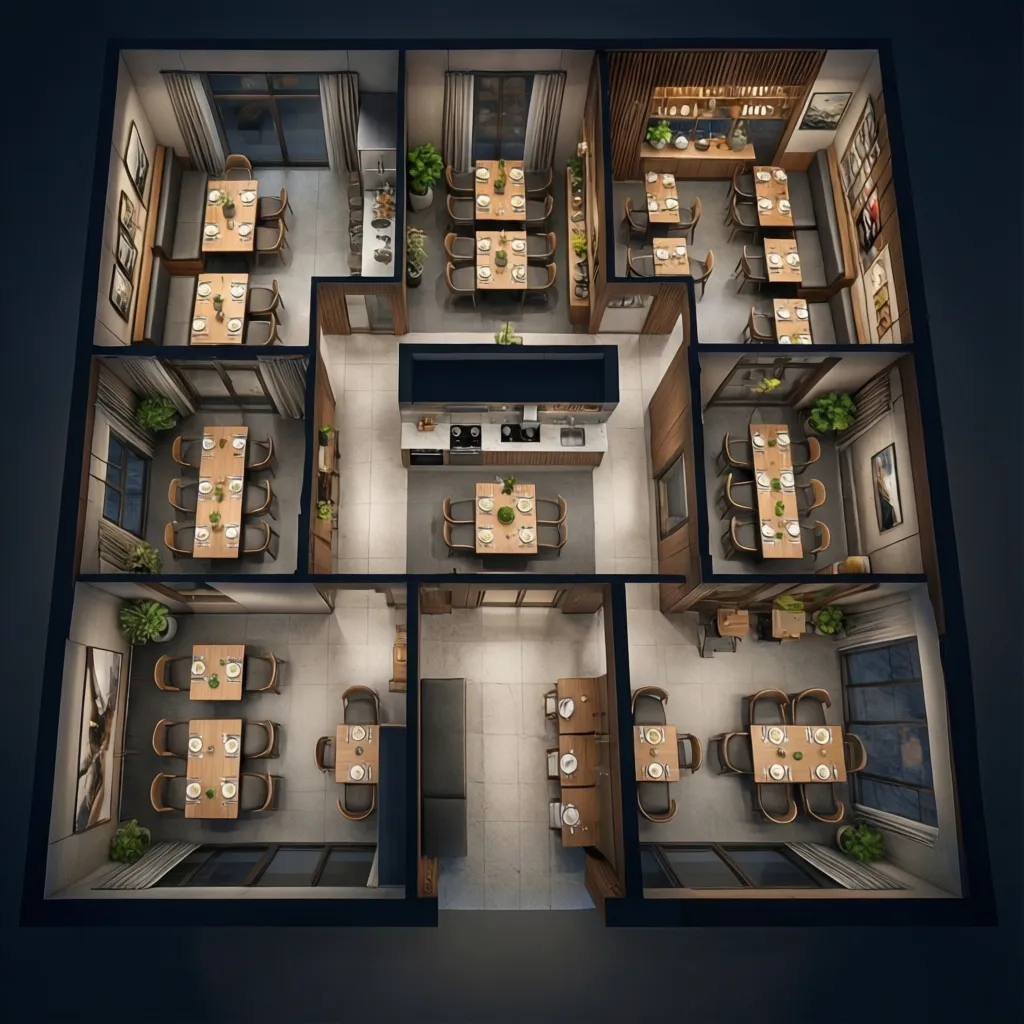

Using 3D Visualization to Test Layout Efficiency

Key Insight: Testing layouts in 3D reveals circulation problems that are almost impossible to detect in 2D plans.

Traditional floor plans show measurements but don’t show how crowded a space will feel when people are actually moving around.

In recent years, many designers—including my own studio—use simulation‑style visualization to evaluate layouts before construction.

This type of AI‑assisted interior visualization for hospitality spaces helps operators preview seating density, walking paths, and visual sightlines.

It’s especially helpful for identifying hidden issues like:

1. chairs blocking main walkways
2. service counters creating traffic pinch points
3. crowding near pickup or cashier areas

save pin

Practical Layout Optimization Tips for Small Cafes

Key Insight: Small cafes benefit most from simplified layouts with predictable movement loops.

Compact spaces exaggerate every layout mistake. When working with small cafes under 1,000 square feet, I usually recommend a few simple strategies.

1. Place ordering and pickup on the same counter line
2. Use wall seating or banquettes to free central circulation
3. Position the busiest tables closest to service stations
4. Keep the main circulation path visible from the entrance

The goal is to reduce unpredictable movement patterns so guests and staff share the space smoothly.

Answer Box

The most efficient cafe or restaurant layouts guide guests naturally from entrance to seating while keeping staff circulation separate. Clear pathways, balanced seating density, and tested movement routes significantly improve service speed and customer comfort.

Final Summary

1. Customer flow determines how comfortable and efficient a restaurant feels.
2. Entrance zones prevent congestion during peak hours.
3. Server circulation should form short operational loops.
4. Removing tables can sometimes increase revenue.
5. 3D layout testing helps detect real‑world bottlenecks.

FAQ

What is the ideal aisle width in a restaurant layout?

Most restaurants use 36 inches for standard aisles and 48–60 inches in high‑traffic circulation areas.

How do you improve restaurant traffic flow design?

Separate customer walkways from server routes, create a buffer near entrances, and avoid placing service stations in main circulation paths.

How many tables should a small cafe have?

It depends on space size, but maintaining comfortable circulation is more important than maximizing seating density.

Why do some restaurants feel crowded even when seats are available?

Poor circulation planning often causes narrow aisles and traffic conflicts between guests and staff.

Can layout changes improve restaurant efficiency?

Yes. Even small adjustments to service stations or seating rows can significantly improve restaurant layout optimization for customer flow.

What layout works best for small cafes?

Linear ordering counters combined with wall seating usually create the most efficient flow in compact spaces.

Is 3D planning useful for restaurant design?

Yes. 3D visualization helps test seating density, traffic flow, and staff movement before implementing physical changes.

What is restaurant workflow layout design?

Restaurant workflow layout design focuses on optimizing staff movement between kitchen, service stations, and dining areas.

References

1. American Institute of Architects – Hospitality Design Guidelines
2. National Restaurant Association – Restaurant Operations Reports
3. Restaurant Development + Design Magazine
