How to Optimize ACP Materials for Realistic 3D Rendering: Practical techniques designers use to make aluminum composite panel facades look realistic while keeping renders fast and clean

Direct Answer

To optimize ACP materials for realistic 3D rendering, focus on physically accurate metal textures, controlled reflection and roughness values, simplified panel geometry, and balanced lighting. Aluminum composite panels look most convincing when reflections are subtle, seams are consistent, and render settings prioritize clean highlights instead of mirror-like surfaces.

Quick Takeaways

1. ACP realism depends more on reflection balance than on texture resolution.
2. Overly glossy panels make buildings look like chrome instead of aluminum.
3. Panel seams and modular repetition greatly influence facade realism.
4. Simple geometry renders faster and often looks more believable.
5. Lighting angle determines whether ACP surfaces look flat or architectural.

Introduction

In many architectural visualizations, ACP materials are one of the hardest surfaces to render convincingly. Aluminum composite panels are everywhere in modern facades, but in 3D scenes they often look either too flat or unrealistically shiny. After working on commercial building visualizations for more than a decade, I’ve noticed the same mistake repeated across many projects: designers focus heavily on texture resolution but ignore how metal actually reacts to light.

Realistic ACP material rendering is less about high-poly models and more about material calibration. Reflection falloff, panel spacing, and lighting direction often matter far more than the map resolution. If the reflection and roughness balance is wrong, even a 4K texture will still look artificial.

In several recent facade visualization projects, we paired optimized materials with efficient rendering pipelines similar to the workflow shown in this step-by-step guide for creating photorealistic architectural renders for modern buildings. The results were faster renders and far more believable aluminum surfaces.

This guide walks through the practical techniques I use to make ACP facades look realistic without increasing render times unnecessarily.

save pin

Understanding ACP Material Properties in 3D Rendering

Key Insight: ACP surfaces look realistic only when their metal behavior is simulated correctly, not when textures are overly detailed.

Aluminum composite panels consist of two aluminum sheets bonded to a composite core. In rendering terms, that means the visible layer behaves like coated metal rather than polished aluminum.

The biggest visual characteristics are:

1. Soft reflections rather than mirror reflections
2. Slight directional brushing in some finishes
3. Consistent panel seams
4. Subtle color variation between panels

Many designers incorrectly use chrome-like metal settings, which produces unrealistic reflections. In reality, most ACP facade panels use PVDF coatings that diffuse reflections slightly.

According to architectural facade guidelines published by the Aluminum Composite Material Association, exterior ACP coatings are engineered to minimize glare while maintaining color consistency across large surfaces.

That physical property should guide your material setup.

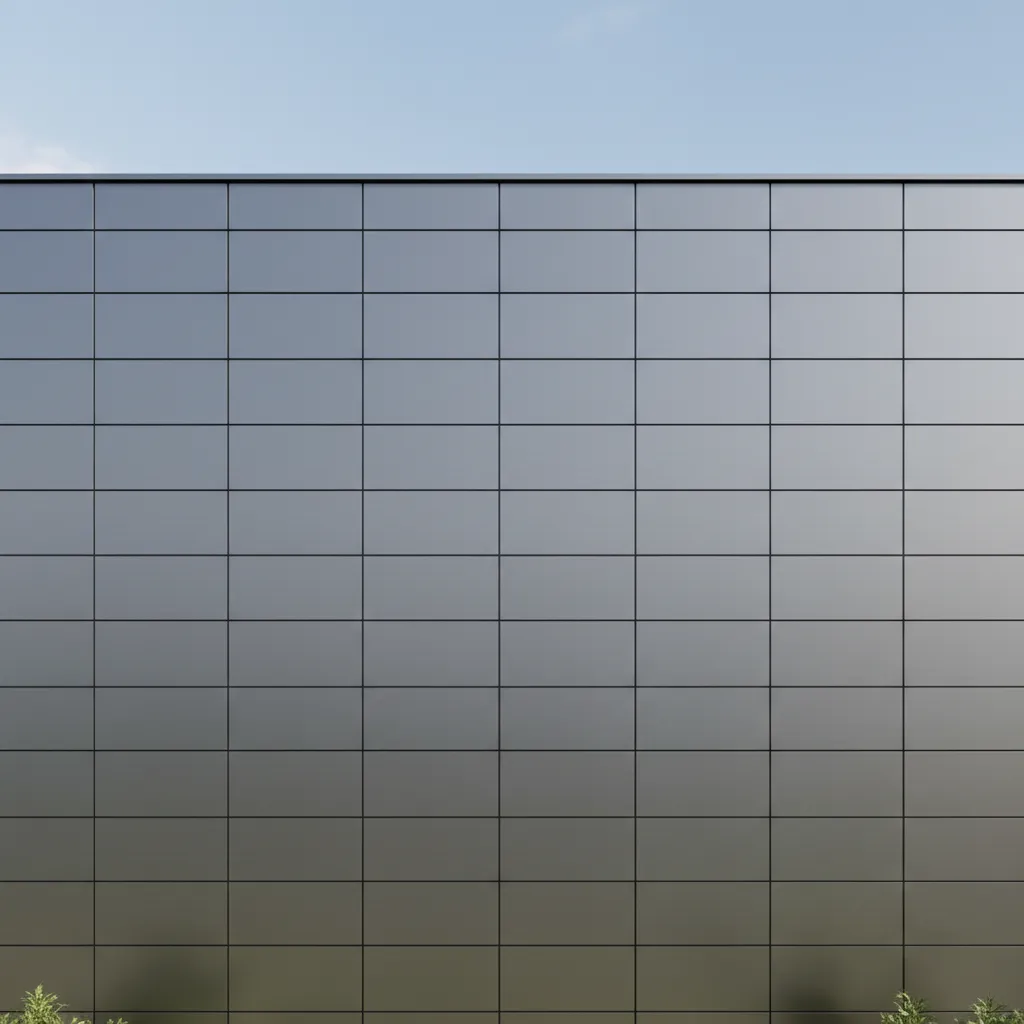

Creating Realistic Aluminum Composite Panel Textures

Key Insight: A believable ACP facade depends more on subtle variation and seam alignment than ultra-high texture resolution.

Instead of relying on a single repeating texture, build layered maps that simulate real fabrication patterns.

Recommended texture setup:

1. Base color map with slight panel-to-panel variation
2. Low intensity normal map for subtle metal grain
3. Roughness map with minor randomness
4. Seam or joint line geometry

In real buildings, ACP panels are typically installed in modular grids such as:

1. 1200 mm × 2400 mm panels
2. 1250 mm × 2500 mm panels
3. Custom panels for curved facades

Replicating this modular pattern dramatically improves architectural realism.

save pin

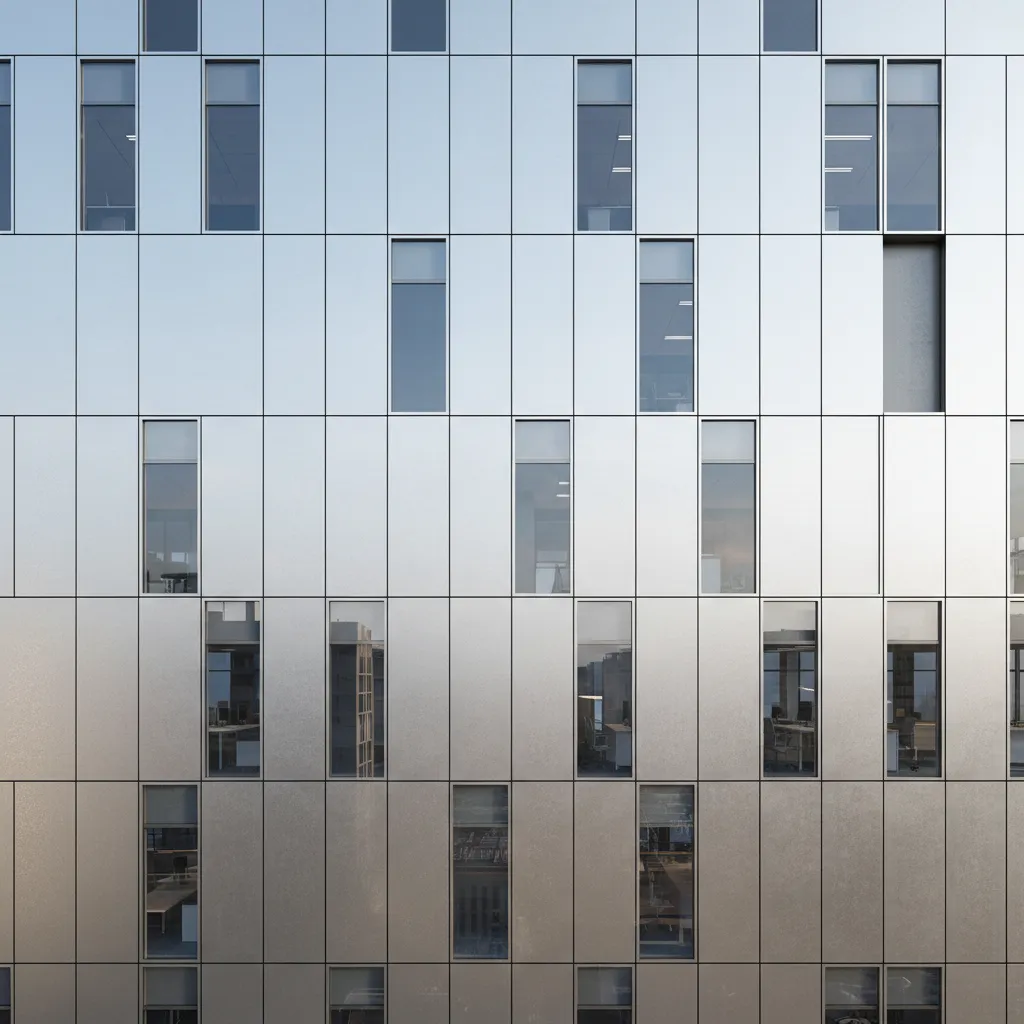

Reflection and Roughness Settings for ACP Surfaces

Key Insight: Correct reflection roughness is the single most important parameter for realistic ACP material rendering.

A common mistake is setting metal roughness too low, which makes the facade behave like polished steel.

Typical realistic settings used in architectural visualization:

1. Reflection intensity: 0.5–0.7
2. Roughness: 0.25–0.45
3. Metalness: moderate, not full chrome
4. Fresnel reflection: enabled

These values produce the soft reflections seen in real ACP installations.

One trick many experienced visualization artists use is adding a slight roughness variation map. It breaks up uniform reflections across large facade surfaces, preventing the "plastic wall" look.

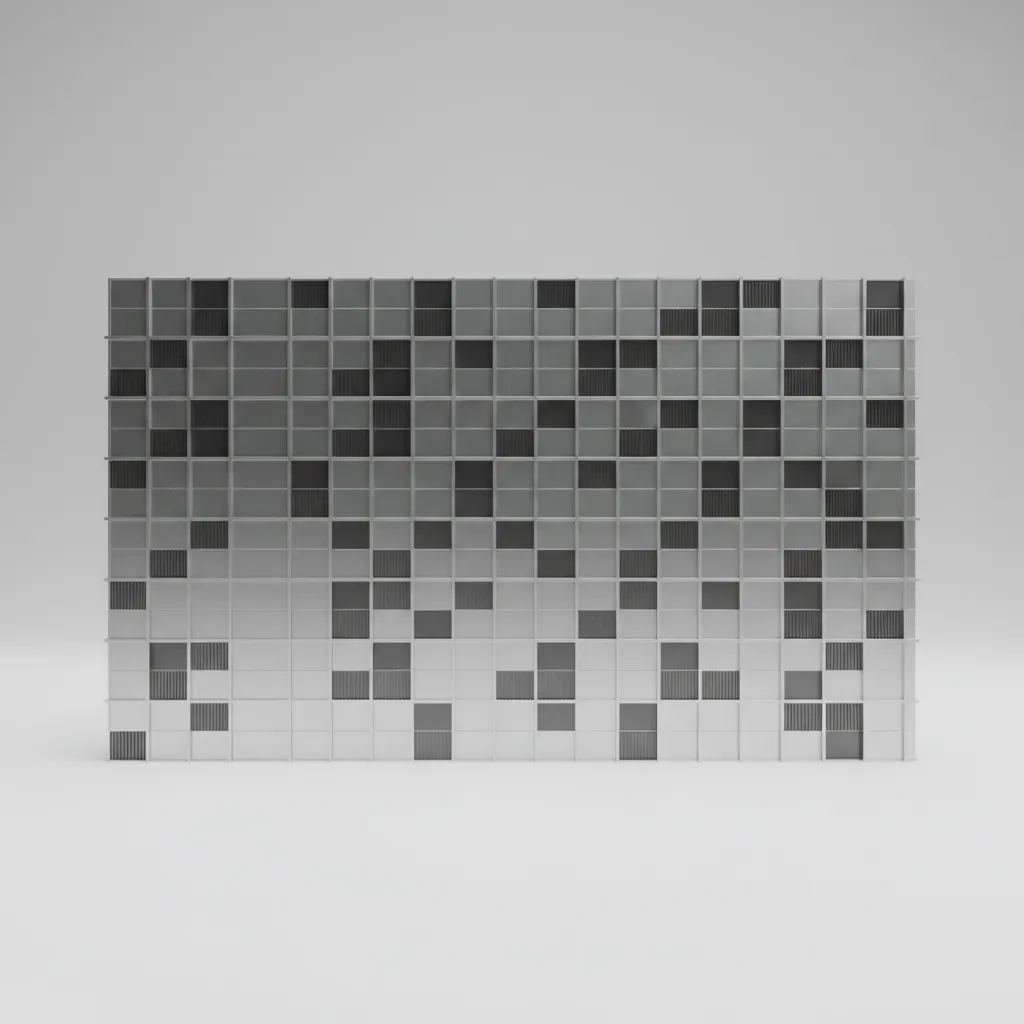

Optimizing Panel Geometry for Faster Rendering

Key Insight: Excessively detailed ACP panel modeling often slows rendering without improving visual realism.

Instead of modeling every bracket or structural detail, focus only on elements that affect the final image.

Efficient ACP geometry strategy:

1. Use simple panel planes instead of thick solids
2. Model seams as shallow gaps or normal maps
3. Instance repeating panels
4. Avoid unnecessary edge bevels on large surfaces

When working on high-rise visualization projects, this approach can reduce scene polygon counts by more than 60%.

For large exterior scenes, combining optimized facade models with workflows similar to this process for building precise architectural layouts before renderinghelps maintain performance across complex projects.

save pin

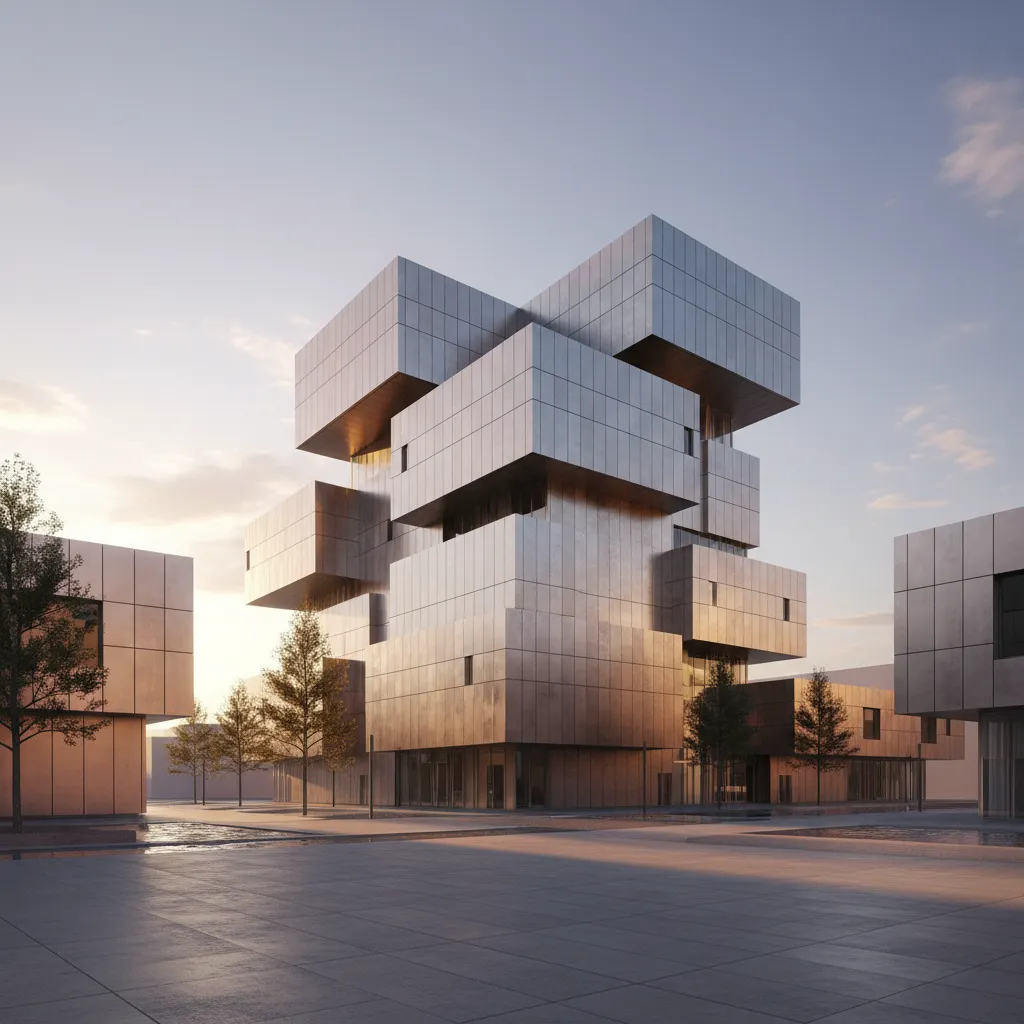

Lighting Techniques for ACP Building Visualization

Key Insight: Lighting angle matters more than render engine settings when visualizing aluminum facades.

ACP materials rely on grazing light to reveal panel seams and surface reflections.

Effective lighting setups include:

1. Low-angle sunlight for strong reflection gradients
2. HDRI sky with architectural contrast
3. Fill lighting to soften harsh shadows
4. Reflection planes to enhance facade highlights

A mistake I often see is midday overhead lighting. It flattens ACP panels and hides the modular structure entirely.

Morning or late afternoon lighting typically produces the most architectural depth.

Answer Box

The most realistic ACP renders come from balanced roughness values, modular panel layouts, and lighting that emphasizes reflections. Overly glossy materials and excessive geometry are the most common reasons facade renders look artificial.

Exporting High Quality ACP Facade Renders

Key Insight: Final render quality often depends more on output settings and color management than on modeling detail.

To produce professional architectural images:

1. Render at minimum 3000px width
2. Use global illumination
3. Enable reflection depth for metal surfaces
4. Apply subtle color grading in post

High resolution output is especially important for marketing visuals where facade materials are a major selling point.

Many studios combine rendering with visualization pipelines similar to this workflow for producing high resolution architectural visualization imagesto create presentation-ready facade renders.

save pin

Final Summary

1. Realistic ACP rendering depends heavily on reflection roughness control.
2. Panel seams and modular repetition improve facade authenticity.
3. Simplified geometry speeds up rendering dramatically.
4. Lighting angle determines whether ACP surfaces appear flat or dimensional.
5. High resolution exports preserve metal reflections and facade detail.

FAQ

1. What is the best roughness value for ACP materials?

Most ACP facades look realistic with roughness values between 0.25 and 0.45 depending on coating type.

2. Why do ACP panels look too shiny in my render?

This usually happens when metalness or reflection values are too high. ACP coatings diffuse reflections slightly.

3. Do ACP panels need high resolution textures?

Not necessarily. Realistic ACP material rendering depends more on reflection control and panel seams than texture resolution.

4. Should ACP panels be modeled individually?

Yes for major facades. Modular panel grids help create believable architectural patterns.

5. What lighting works best for ACP facade renders?

Low angle sunlight or sunset lighting typically produces the best reflection gradients.

6. How can I make ACP buildings look less flat in renders?

Introduce subtle roughness variation, panel seams, and directional lighting.

7. What causes unrealistic ACP facade rendering?

Overly glossy materials, missing seams, and uniform reflections are the most common issues.

8. How do professionals achieve realistic ACP material rendering?

They combine accurate metal materials, modular facade layouts, and lighting designed to highlight reflections.
