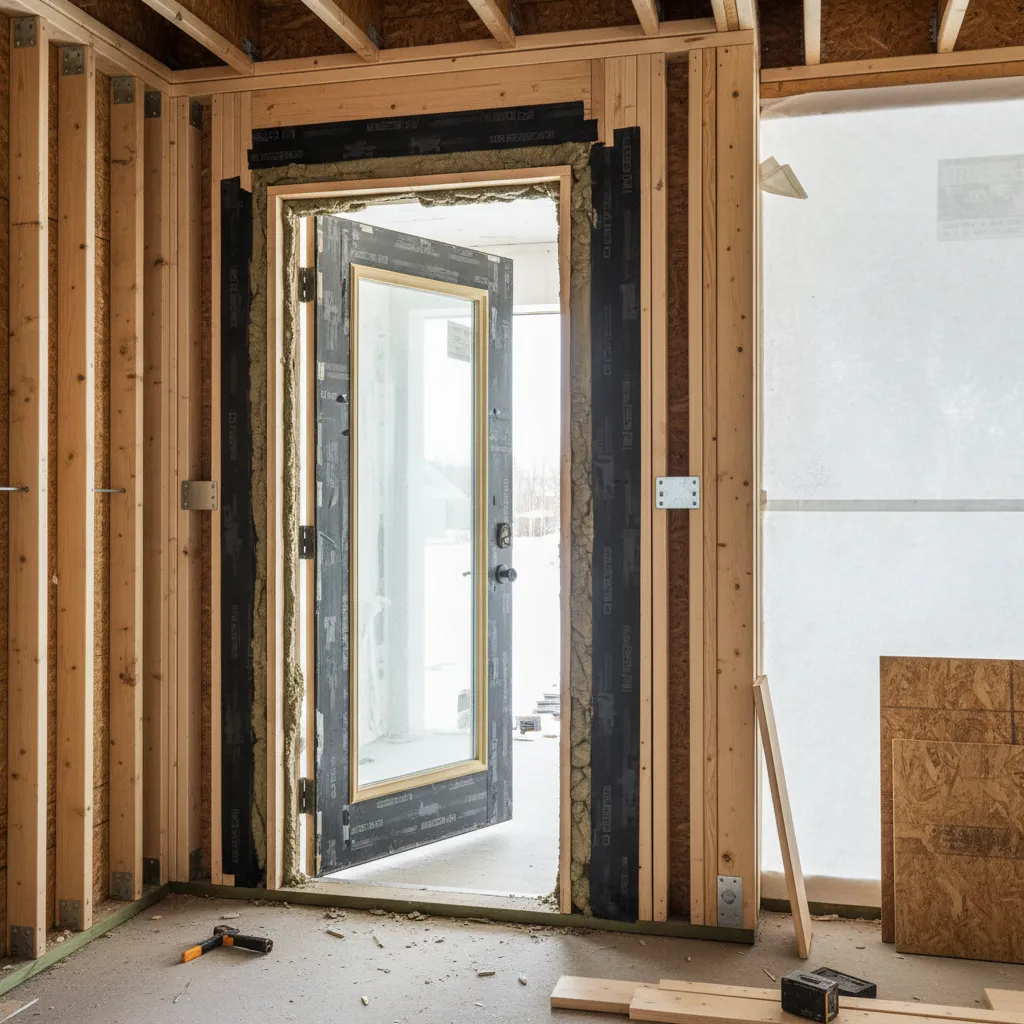

How to Optimize an Exterior Door Rough Opening for Insulation and Weatherproofing: Practical techniques to stop drafts, prevent water intrusion, and improve energy efficiency around exterior door framing.

Direct Answer

To optimize an exterior door rough opening for insulation and weatherproofing, seal framing gaps with low‑expansion foam, install flashing tape and a weather barrier correctly, and use moisture‑resistant insulation around the door frame. The goal is to stop air movement, direct water outward, and maintain continuous insulation around the opening.

Quick Takeaways

1. Air leaks around rough openings are one of the most common causes of door drafts.
2. Low‑expansion spray foam protects door frames from warping while sealing gaps.
3. Flashing tape should always be layered from bottom to top to shed water.
4. Fiberglass alone is not enough; combine insulation with an air seal.
5. Proper sealing can noticeably reduce heating and cooling loss near entryways.

Introduction

In many of the renovation projects I've worked on over the past decade, the biggest energy leaks around an exterior door rarely come from the door itself. They come from the rough opening. Homeowners install a quality door but leave small framing gaps, poorly layered flashing, or compressed insulation around the frame.

That tiny perimeter space between the framing and the door unit might only be half an inch wide, but if it's not sealed correctly it becomes a constant path for drafts, moisture, and temperature loss. When you properly insulate an exterior door rough opening, the improvement in comfort is often immediate—especially in homes exposed to wind or seasonal weather swings.

During layout planning I often review door placement early using a tool that helps visualize door positioning inside a full room layout before construction begins. That step alone can prevent framing and insulation problems later.

In this guide, I'll break down the methods professionals use to seal rough openings properly, the materials that actually work in real homes, and the small installation details that prevent years of drafts and water damage.

save pin

Why Rough Opening Sealing Matters for Exterior Doors

Key Insight: Most exterior door drafts originate from the framing cavity around the door—not the door panel.

The rough opening creates a transition between structural framing and the door frame. If that space is poorly sealed, outside air travels through the wall cavity and enters the home around the door trim.

In energy audits I've reviewed, exterior door openings are frequently among the top five leakage points in residential homes. The U.S. Department of Energy consistently notes that air sealing around windows and doors can significantly reduce heating and cooling loss.

Common leakage points include:

1. Gaps between jack studs and door jamb
2. Unsealed sheathing behind trim
3. Improperly installed house wrap
4. Compressed or missing insulation
5. No foam or sealant at framing edges

One hidden mistake I see often: installers stuffing fiberglass insulation tightly into the gap and assuming the job is done. Fiberglass slows heat transfer, but it does not stop air movement. Without an air seal, drafts still pass through.

Best Insulation Materials for Door Rough Openings

Key Insight: The best insulation for a door rough opening combines air sealing and thermal insulation.

Over the years, the most reliable approach I've seen is a two‑layer strategy: air sealing first, insulation second. Each material serves a different purpose.

Here are the most common options:

1. Low‑Expansion Spray Foam
2. Best for sealing small framing gaps without pushing the door frame out of alignment.
3. Fiberglass Insulation
4. Used lightly in larger gaps but must be paired with air sealing.
5. Mineral Wool
6. Resistant to moisture and more stable than fiberglass.
7. Backer Rod + Sealant
8. Ideal for larger perimeter gaps before trim installation.

From practical experience, low‑expansion foam specifically labeled for doors and windows produces the most consistent results. Standard foam expands too aggressively and can slightly bow the frame.

save pin

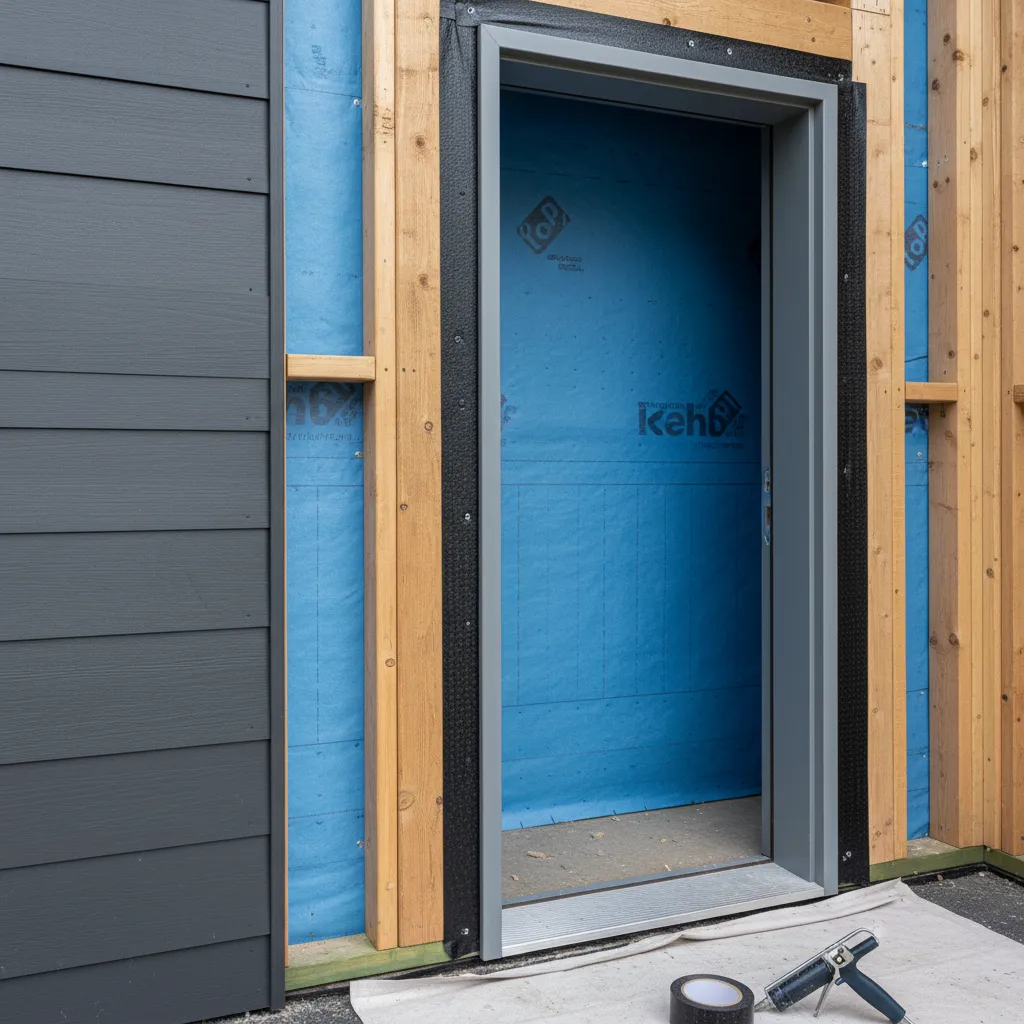

Using Flashing Tape and Weather Barriers

Key Insight: Flashing must direct water outward in a shingle‑style sequence or it will trap moisture inside the wall.

Water management is just as important as insulation. Exterior doors sit in one of the most exposed parts of a wall system, and poorly layered flashing can lead to long‑term rot.

The correct flashing sequence looks like this:

1. Sill flashing installed first
2. Door unit placed and secured
3. Side flashing applied over door flange
4. Top flashing installed last
5. House wrap layered over the head flashing

This bottom‑to‑top layering allows gravity to direct water away from the opening.

When reviewing framing plans with builders, I often recommend modeling door placements early using tools that allow you to experiment with structural layout and wall openings in a scaled 3D floor plan. Seeing the wall assembly clearly helps installers anticipate flashing and waterproofing details before construction begins.

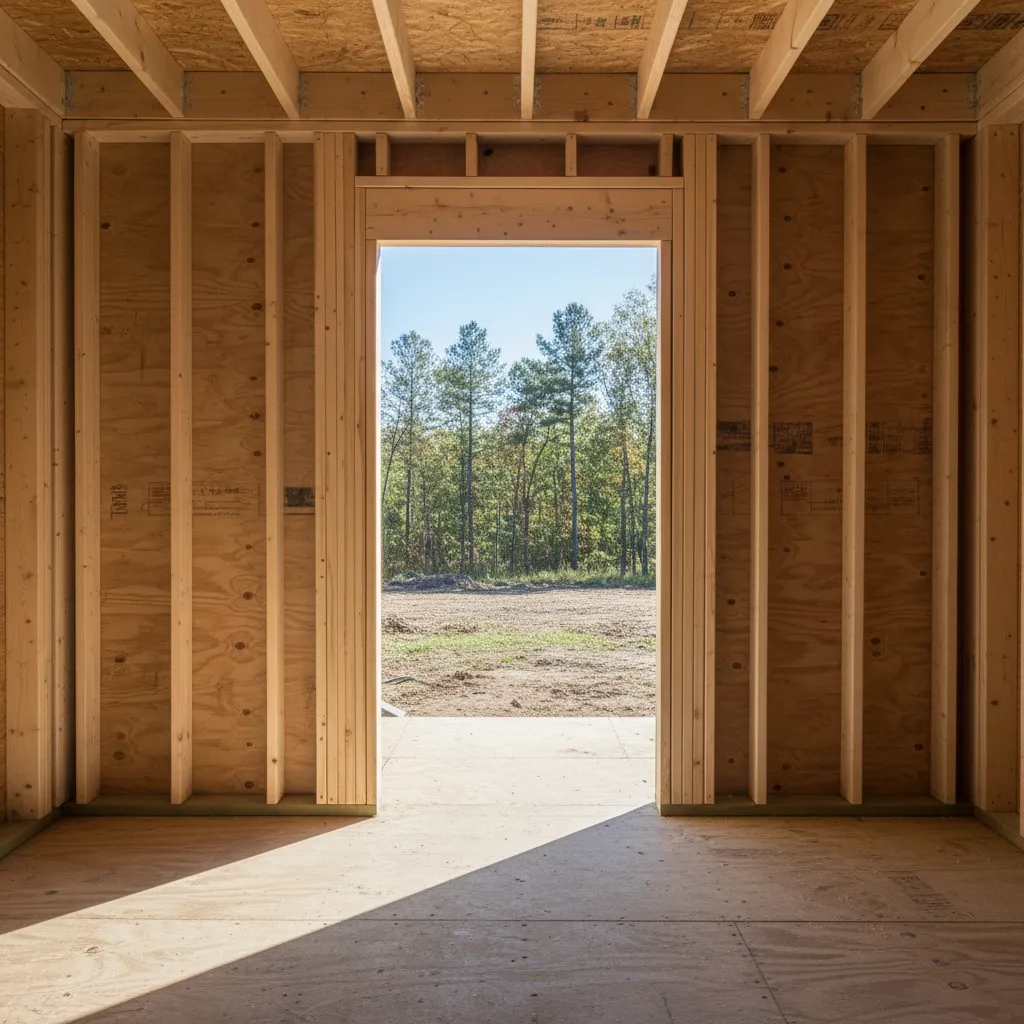

Air Sealing Around a 36-Inch Door Frame

Key Insight: Even a perfectly framed 36‑inch door will leak air if the perimeter gap is not sealed correctly.

A standard 36‑inch exterior door typically requires a rough opening about 38 inches wide and roughly 82.5 inches tall, leaving space for shimming and adjustment.

The air‑sealing process should follow these steps:

1. Install the door and check plumb and level.
2. Insert shims at hinge and latch points.

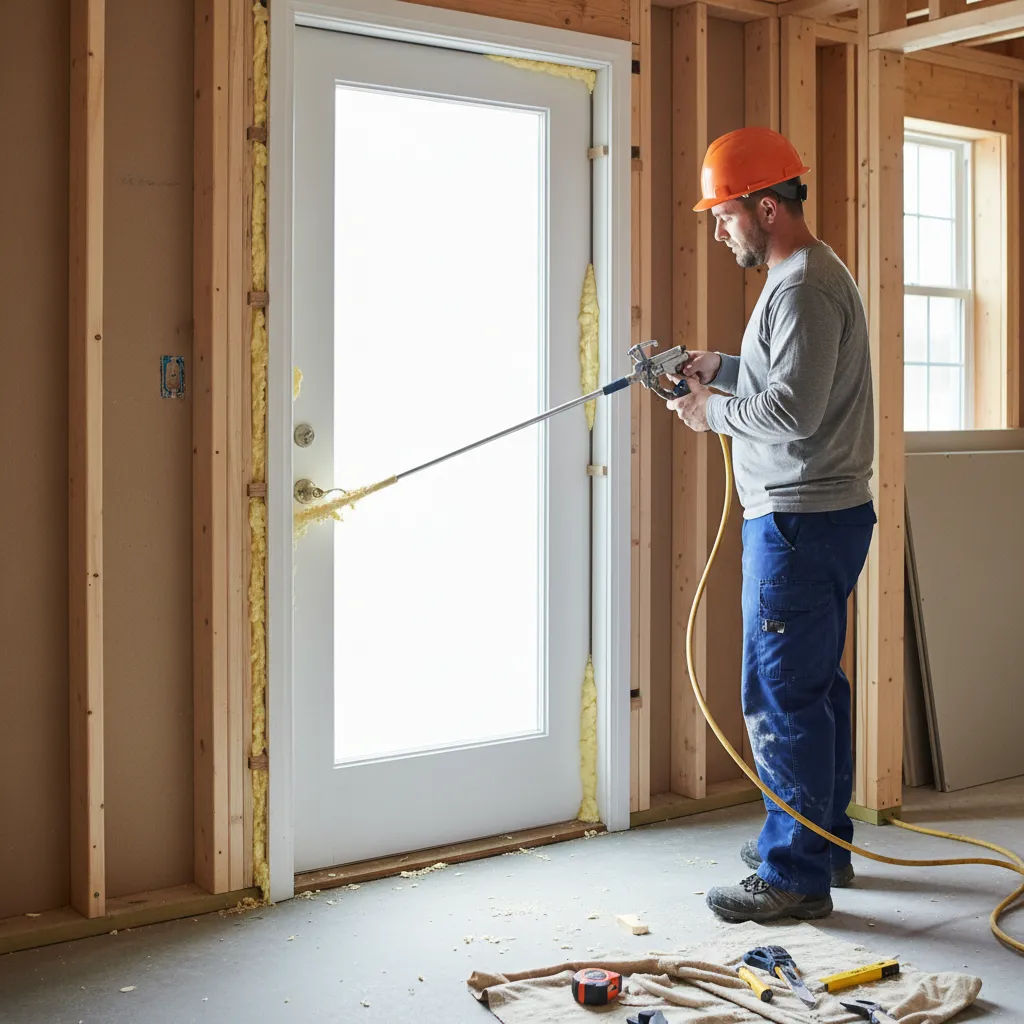

3. Apply low‑expansion foam between frame and studs.
4. Allow foam to cure before trimming excess.
5. Seal interior trim edges with caulk.

One overlooked detail: leave small drainage paths at the sill. Completely sealing the bottom cavity can trap moisture instead of allowing it to escape.

save pin

Preventing Water Intrusion Around Exterior Doors

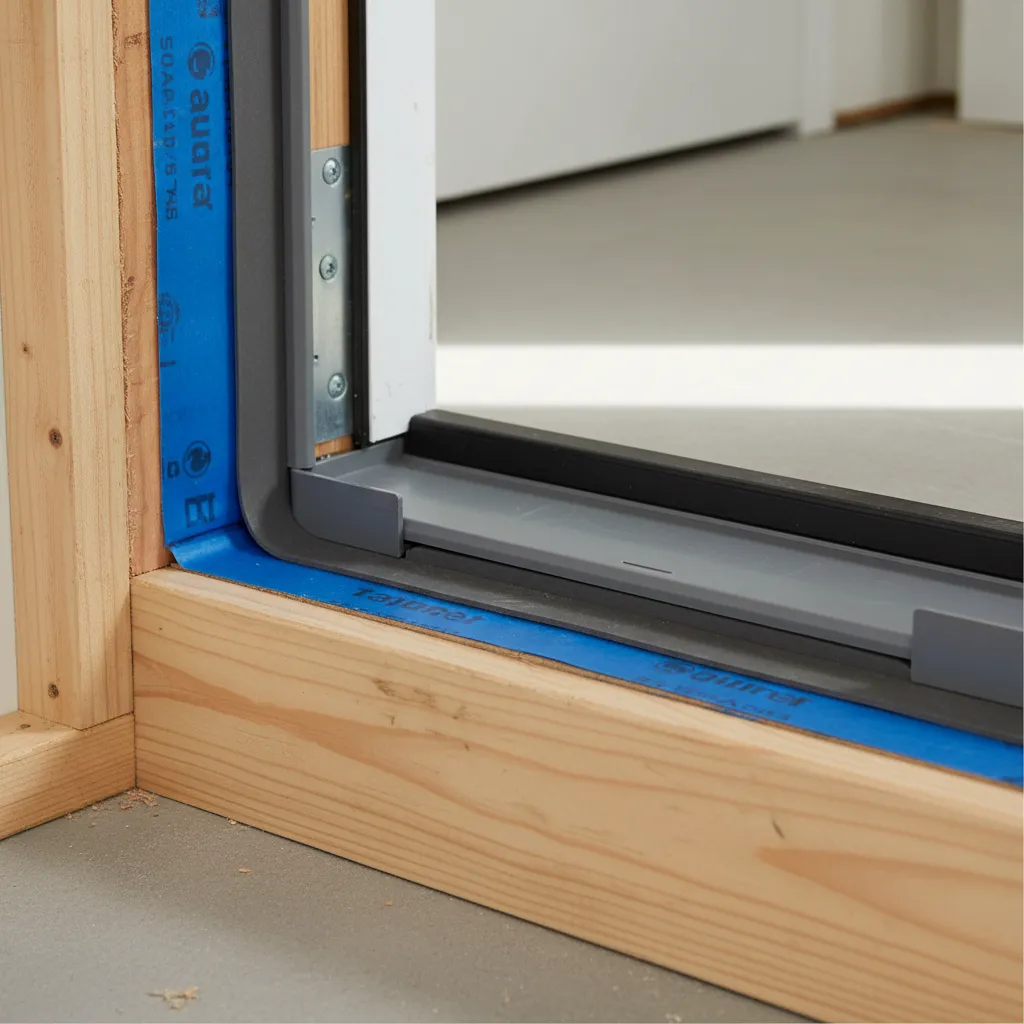

Key Insight: The sill area is the most common water failure point in exterior door installations.

In coastal or rainy climates, I've inspected many door installations where water damage started at the threshold and slowly spread into the subfloor.

Effective protection usually includes:

1. Pre‑formed sill pans
2. Flexible flashing membranes
3. Proper door overhangs or exterior awnings
4. Continuous house wrap integration
5. Exterior sealant around trim

Professional builders increasingly use pre‑manufactured sill pans because they create a controlled drainage path beneath the door frame.

Answer Box

The most effective way to weatherproof an exterior door rough opening is to combine flashing, low‑expansion foam sealing, and moisture‑resistant insulation. When air sealing and water management work together, the door opening becomes part of the home's continuous building envelope.

Energy Efficiency Improvements After Installation

Key Insight: Properly sealed door openings can noticeably reduce localized heat loss and cold drafts.

Homeowners often underestimate how much comfort improves when rough openings are sealed correctly. Cold air infiltration near entryways drops dramatically, especially in homes with open floor plans.

Energy efficiency improvements typically include:

1. Reduced drafts near entryways
2. More consistent indoor temperatures
3. Lower heating and cooling load
4. Improved humidity control

When homeowners plan renovations or new layouts, I recommend exploring tools that help create accurate floor plans before adjusting walls, doors, or openings. Planning structural openings early often leads to cleaner installation and better insulation results.

save pin

Final Summary

1. Exterior door drafts usually come from rough opening gaps.
2. Low‑expansion foam is the safest air seal for door frames.
3. Flashing must be layered bottom‑to‑top to shed water.
4. Sill protection prevents most long‑term door leaks.
5. Air sealing and insulation must work together.

FAQ

1. What insulation is best for an exterior door rough opening?

Low‑expansion spray foam designed for doors and windows is usually the most effective. It seals air leaks while insulating the gap.

2. Should I use fiberglass to insulate an exterior door rough opening?

Fiberglass can help with thermal insulation but must be paired with air sealing. On its own it will not stop drafts.

3. How do you seal a rough opening for an exterior door?

Install flashing, shim the door frame, apply low‑expansion foam around the perimeter, and seal trim edges with caulk.

4. Why is my exterior door still drafty after installation?

The rough opening may not be properly sealed, or insulation may be missing around the frame.

5. Do exterior doors need flashing tape?

Yes. Flashing tape helps direct water away from the opening and protects the wall structure.

6. How big should the gap be around a door rough opening?

Most installations leave about 1/2 to 3/4 inch around the frame for shimming and insulation.

7. Can sealing a rough opening improve energy efficiency?

Yes. Properly sealing the exterior door rough opening can significantly reduce air leakage and improve indoor comfort.

8. What causes water leaks around exterior doors?

Improper flashing, missing sill pans, and poor sealing around the rough opening are common causes.
