How to Optimize Architectural STL Models for 3D Printing and Rendering: Practical techniques to clean meshes reduce polygon weight and keep architectural detail without slowing printing or real time rendering

Direct Answer

To optimize architectural STL models, reduce unnecessary polygon density, repair mesh errors, remove hidden geometry, and preserve edge definition where architectural detail matters. The goal is to keep clean topology that prints reliably and renders efficiently while maintaining visible architectural features.

Quick Takeaways

1. Most architectural STL models contain 30–60% unnecessary polygons.
2. Edge loops matter more than raw polygon density for architectural detail.
3. Hidden faces inside walls and trims waste rendering and slicing resources.
4. Clean manifold meshes prevent common 3D printing failures.
5. Optimization should always target the final use case: printing or real time rendering.

Introduction

After working on architectural visualization and fabrication projects for more than a decade, I’ve noticed that many designers export heavy STL files without realizing how inefficient they are. When you optimize architectural STL models properly, the same building element can become dramatically lighter while keeping the visual detail that actually matters.

This problem shows up constantly with facade trims, ornaments, and ledges. Designers often convert high‑resolution meshes straight from modeling software and end up with millions of triangles for objects that will be printed at a few inches wide or rendered from several meters away.

In real production pipelines—whether for 3D printing, visualization, or real‑time engines—the difference between a messy STL and a clean one is huge. Print time drops. Rendering becomes smoother. Game engines stop choking on unnecessary geometry.

If you want a reference example to test optimization techniques, you can explore a practical workflow for building accurate architectural layouts in 3D spaceand export small facade elements to experiment with mesh cleanup.

In this guide, I’ll walk through the exact workflow I use when cleaning architectural assets—especially facade details like ledges, trims, and moldings—so they perform well across both 3D printing and rendering pipelines.

save pin

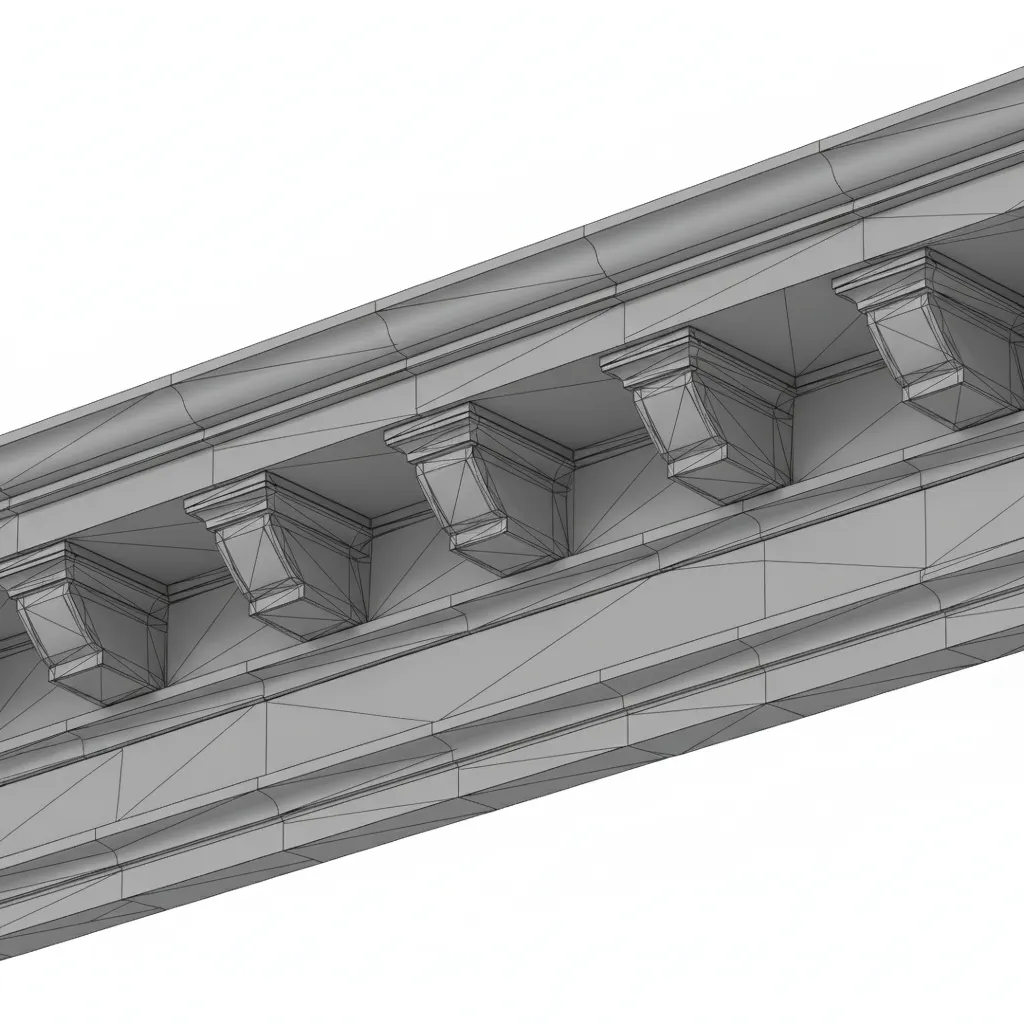

Why Optimization Matters for Architectural STL Models

Key Insight: Architectural models often become inefficient because designers export modeling geometry instead of production geometry.

Most modeling software prioritizes visual smoothness rather than structural efficiency. When converted to STL, curved profiles and decorative edges explode into thousands of tiny triangles.

In practice, this causes three major issues:

1. Slow slicing in 3D printing software
2. Large file sizes that slow collaboration
3. Poor performance in rendering or real‑time engines

On one commercial visualization project I worked on in Los Angeles, a decorative cornice exported at nearly 4 million triangles. After optimization, the same object dropped to under 180,000 triangles with no visible difference in render output.

The real mistake most designers make is assuming polygon count equals quality. In architecture, edge accuracy matters far more than triangle density.

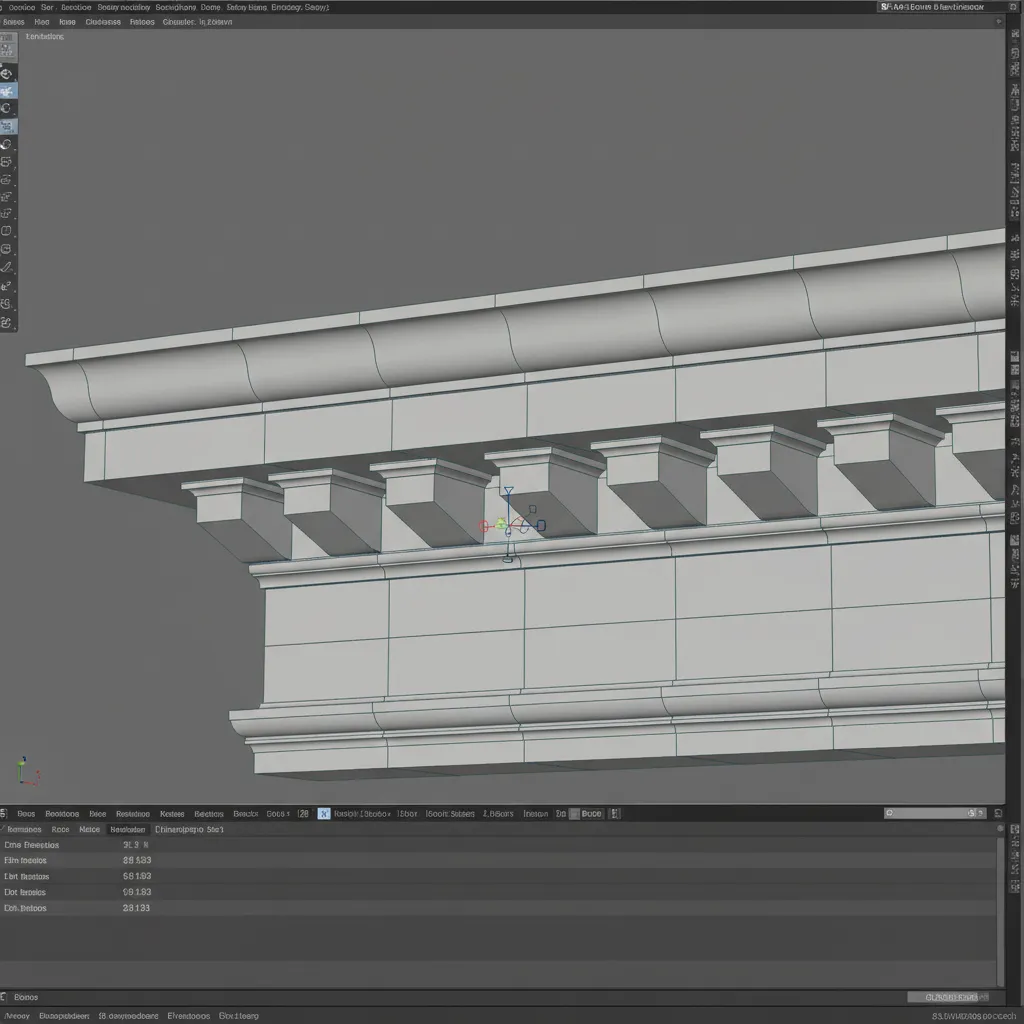

Reducing Polygon Count Without Losing Architectural Detail

Key Insight: Smart decimation preserves silhouette edges while removing invisible surface density.

Architectural elements usually contain repeating profiles—curves, bevels, and trims. These shapes generate dense geometry that can often be reduced dramatically.

My typical workflow looks like this:

1. Identify silhouette edges that define the object shape
2. Apply controlled mesh decimation (10–40%)
3. Re‑sharpen edges using crease preservation
4. Remove internal or hidden surfaces
5. Recalculate normals

Another overlooked trick is removing geometry that will never be visible. Wall‑embedded trims, structural anchors, and backside surfaces often double the polygon count without contributing anything to the final result.

For facade modeling workflows, tools used in step by step architectural floor plan creation environmentscan help maintain accurate proportions before exporting elements for STL cleanup.

save pin

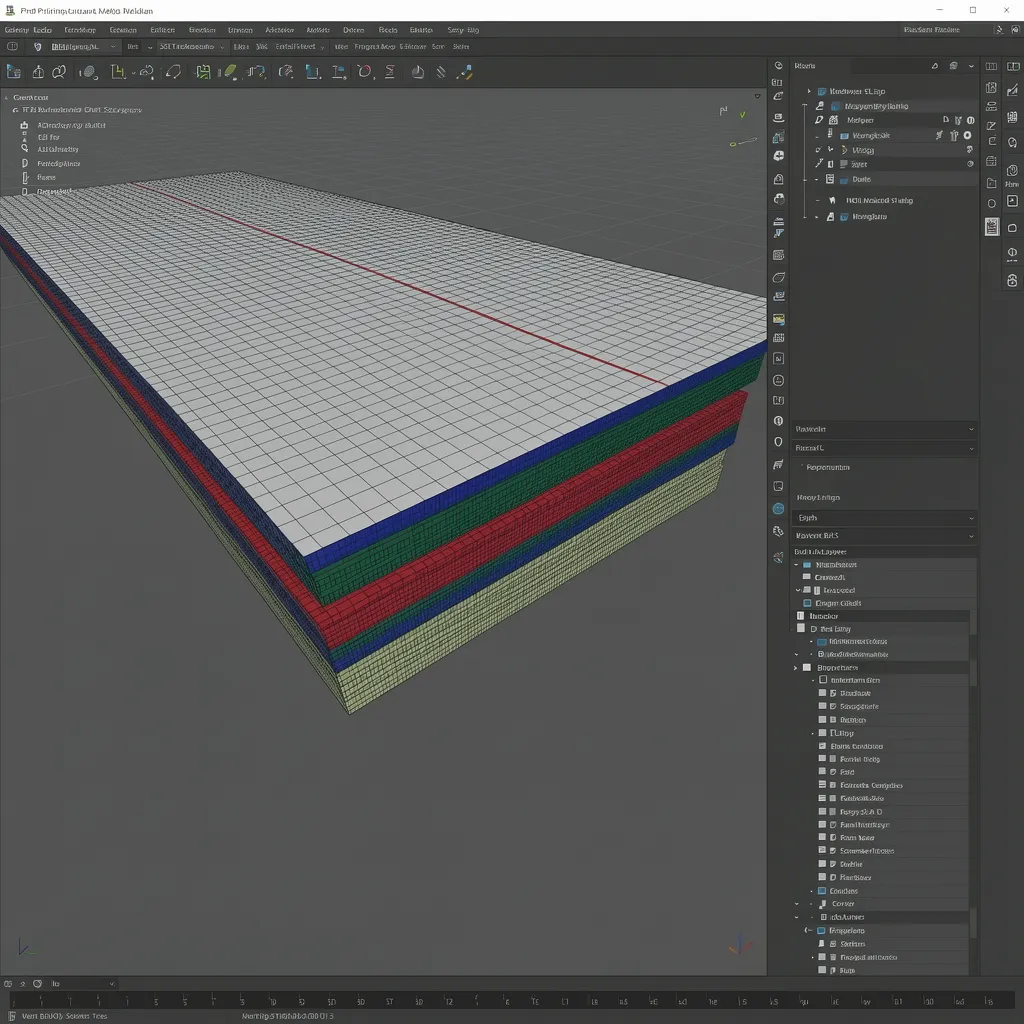

Preparing Building Ledge Models for 3D Printing

Key Insight: STL models for printing must be manifold and structurally thick enough to survive slicing.

Architectural ledges and trims are some of the most common STL assets used in scale models. However, they also introduce typical mesh problems.

Common printing issues include:

1. Non‑manifold edges
2. Zero‑thickness surfaces
3. Overlapping geometry
4. Internal faces

A reliable preparation checklist:

1. Run automatic mesh repair
2. Ensure watertight manifold geometry
3. Verify minimum wall thickness
4. Reduce micro‑triangles in curved profiles
5. Test slice preview before exporting

According to guidelines from major 3D printing services like Shapeways and Materialise, watertight meshes are the most common requirement for printable STL files.

save pin

Optimizing STL Files for Real Time Rendering Engines

Key Insight: Rendering engines care about draw calls and vertex counts more than raw mesh resolution.

When STL models are used in Unreal Engine, Unity, or web‑based viewers, inefficient meshes become performance bottlenecks.

Key optimization steps include:

1. Convert STL to quad‑based mesh when possible
2. Merge repeating architectural elements
3. Create LOD versions
4. Remove unseen backfaces
5. Use normal maps instead of geometry for micro‑detail

One trick many architectural visualization studios use is baking decorative detail into textures. Instead of modeling every groove in a cornice, a normal map simulates the detail while keeping geometry lightweight.

If your goal is producing presentation‑ready environments, you can also review complete workflows for generating photorealistic interior and architectural renders that combine optimized geometry with high quality lighting.

Answer Box

The most effective way to optimize architectural STL models is to remove hidden geometry, reduce polygon density in curved profiles, and maintain crisp edges that define architectural forms. Clean topology dramatically improves both printing reliability and rendering performance.

Best Software Tools for STL Optimization

Key Insight: The best optimization tools combine automatic mesh repair with manual topology control.

Different tools work better depending on the final use case.

1. MeshLab – powerful mesh decimation and cleanup
2. Blender – excellent manual retopology tools
3. Netfabb – industry standard for 3D printing repair
4. ZBrush – strong polygon reduction algorithms
5. Fusion 360 – precise CAD cleanup for mechanical parts

In professional workflows, it’s common to run models through two stages: automated cleanup followed by manual edge correction.

This hybrid approach keeps architectural lines sharp while eliminating unnecessary mesh density.

Balancing Detail and Performance in Architectural Assets

Key Insight: The right level of detail depends entirely on viewing distance and output medium.

One of the biggest mistakes I see in architectural modeling is designing everything at maximum resolution.

Instead, think about detail in three levels:

1. Hero elements near the camera
2. Mid‑range architectural structure
3. Background or repeating elements

Facade ornaments visible from close range deserve more polygons. Repeating ledges running across an entire building rarely do.

This principle is widely used in architectural visualization pipelines and game environment production.

The real goal when you optimize architectural STL models is simple: spend polygons where people actually see them.

save pin

Final Summary

1. Clean topology improves both printing success and rendering speed.
2. Architectural edges matter more than high triangle density.
3. Hidden geometry removal is one of the fastest optimization wins.
4. Different workflows are needed for printing versus real time engines.
5. Good optimization keeps visual detail while reducing file weight dramatically.

FAQ

What does it mean to optimize architectural STL models?

It means reducing unnecessary polygons, repairing mesh errors, and maintaining key edges so the model prints or renders efficiently.

How much can polygon count usually be reduced?

In many architectural assets, polygon counts can drop 40–80% without visible quality loss.

Can STL files be used directly in game engines?

Technically yes, but converting them to optimized mesh formats with proper topology is usually recommended.

What causes heavy STL files?

Curved profiles, bevels, and dense tessellation often create unnecessary triangle counts.

How do you clean architectural mesh for rendering?

Remove hidden faces, reduce dense surfaces, merge repeated elements, and generate LOD versions.

Is STL optimization important for 3D printing architecture models?

Yes. STL optimization for 3D printing architecture ensures models slice correctly and reduces print failures.

Which software is best for STL repair?

Netfabb, MeshLab, and Blender are widely used for repairing and optimizing STL meshes.

How do you improve performance of STL building models?

Reduce polygon density, remove internal geometry, and maintain clean manifold meshes.
