How to Optimize AutoCAD Performance for Complex 3D Floor Plans: Practical techniques architects use to reduce lag, handle heavy models, and keep large AutoCAD 3D floor plans running smoothly

Direct Answer

To optimize AutoCAD performance for complex 3D floor plans, reduce geometry complexity, manage layers strategically, use blocks for repeated elements, adjust graphics settings, and maintain clean file organization. These changes dramatically reduce lag and improve navigation speed when working with large architectural models.

Quick Takeaways

1. Large 3D models slow AutoCAD mainly due to excessive geometry, not file size alone.
2. Using blocks instead of repeated objects can cut model load by thousands of entities.
3. Proper layer filtering improves both performance and editing accuracy.
4. Graphics configuration often matters as much as hardware upgrades.
5. Well-structured project files prevent long-term performance degradation.

Introduction

After working on dozens of residential and commercial projects, I've noticed the same complaint from architects and designers: AutoCAD becomes painfully slow once a 3D floor plan grows beyond a certain complexity. Doors lag, orbiting stutters, and simple edits take seconds instead of milliseconds.

The truth is that most performance issues in complex architectural models aren't caused by weak hardware. They're caused by modeling habits that quietly multiply geometry, layers, and object calculations.

If you're building detailed interiors or multi‑floor buildings, the problem becomes even worse when furniture, lighting, and materials are added to the model. Many designers eventually move parts of the workflow into visualization tools or use simplified planning environments like this interactive workflow for building detailed 3D floor layoutsto avoid heavy geometry during early planning.

But if you're staying inside AutoCAD for the full process, there are several reliable ways to keep even complex architectural models running smoothly. The following techniques come directly from production workflows used in real projects.

save pin

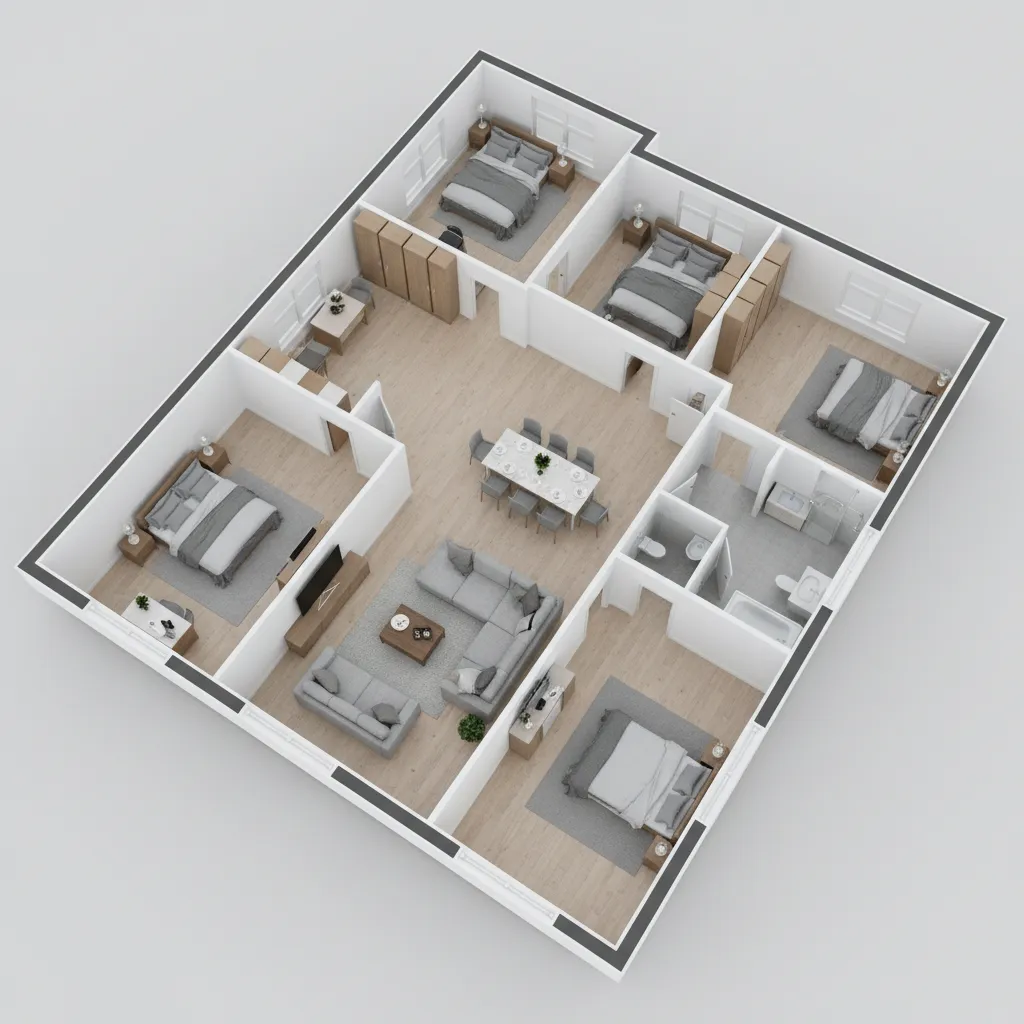

Why Large 3D Floor Plans Slow Down AutoCAD

Key Insight: AutoCAD slows down when the model contains excessive geometry calculations, not simply because the building is large.

Many designers assume performance problems come from file size alone. In practice, the real culprit is geometric complexity. Every curved surface, detailed furniture model, and imported object increases the number of vertices AutoCAD must process in real time.

Common performance killers in architectural models include:

1. High‑polygon furniture imports
2. Overly detailed curved elements
3. Exploded block components
4. Excessive hatching or surface patterns
5. Imported meshes from other software

In one residential project I reviewed, a single imported sofa contained more than 120,000 polygons. Replacing it with a simplified block improved orbit performance instantly.

This is why professional CAD teams almost always maintain separate versions of models:

1. Working model with simplified geometry
2. Rendering model with detailed assets

This separation alone can cut viewport lag dramatically.

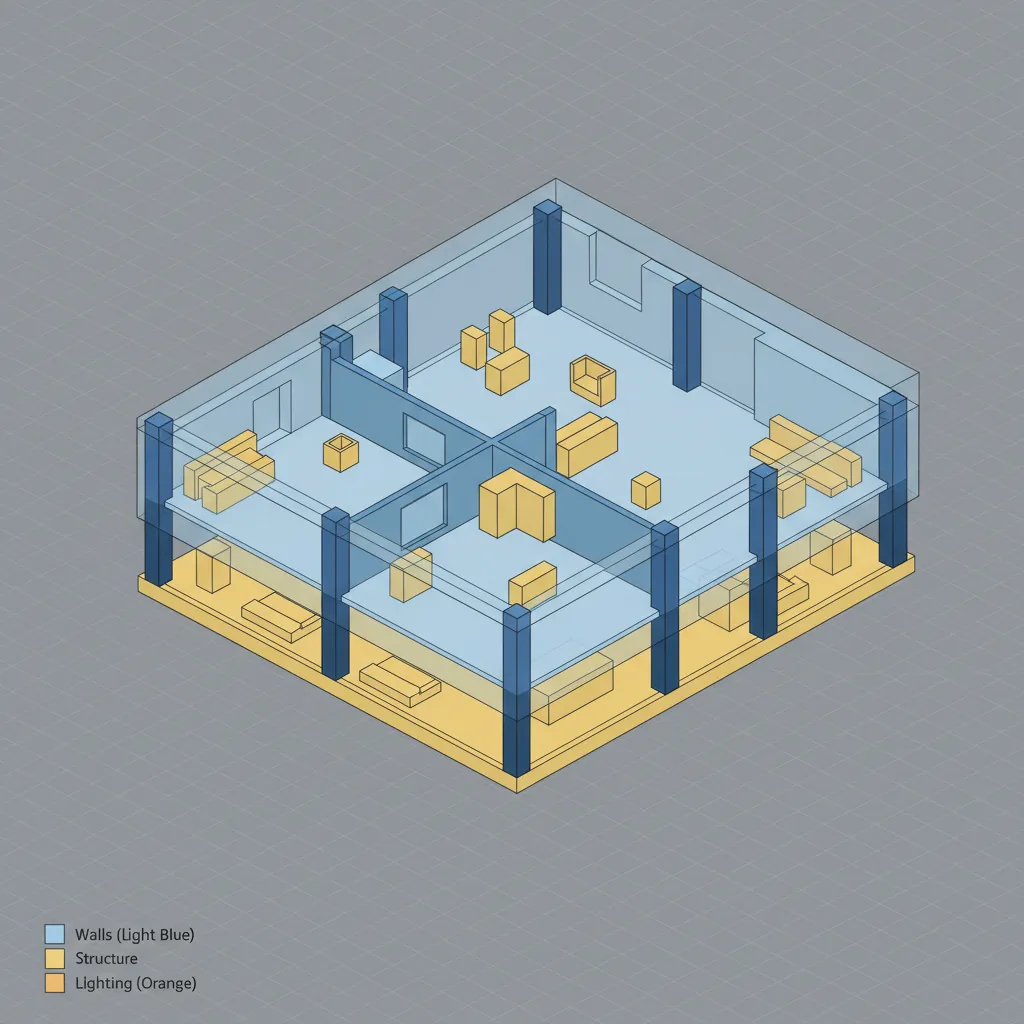

Best Layer Management Strategies for 3D Models

Key Insight: Organized layer systems reduce the number of visible objects AutoCAD must process at once.

Layer management isn't just about organization. It directly affects performance because AutoCAD only renders visible layers.

A practical layer structure for large architectural models looks like this:

1. ARCH_Walls
2. ARCH_Floors
3. ARCH_Doors
4. ARCH_Windows
5. FURN_Furniture
6. LIGHT_Lighting
7. MECH_MEP elements

During editing, professionals often freeze non‑essential layers such as furniture or lighting. That instantly removes thousands of objects from the viewport.

Another underused technique is Layer States. They allow you to save visibility presets like:

1. Structural editing mode
2. Interior layout mode
3. Lighting design mode

This dramatically speeds up workflow when moving between design phases.

save pin

Reducing Polygon and Object Complexity

Key Insight: Simplifying objects often improves AutoCAD performance more than upgrading hardware.

One of the biggest hidden mistakes I see in architectural models is importing highly detailed objects from external libraries. Many of these models were designed for rendering software, not CAD environments.

Effective strategies include:

1. Replace curved furniture with simplified extrusions
2. Avoid mesh imports whenever possible
3. Reduce segmentation in curved geometry
4. Use proxy objects only when necessary

For example, a circular column modeled with 64 segments can often be reduced to 16 without any visible difference in architectural drawings.

Many teams now test early layouts in lighter planning environments such as interactive room layout planning for furniture placement before rebuilding final geometry in CAD.

This prevents unnecessary modeling work and keeps AutoCAD files far lighter.

Using Blocks and Components Efficiently

Key Insight: Blocks reduce memory usage because AutoCAD references a single definition rather than duplicating geometry.

If a building contains 120 identical chairs modeled as individual objects, AutoCAD stores 120 separate geometries. If those chairs are blocks, it stores only one definition.

Best block usage practices:

1. Convert repeated furniture into blocks
2. Create parametric dynamic blocks for common elements
3. Avoid exploding blocks unless necessary
4. Maintain a central block library

In office layouts, using blocks for workstations can reduce entity counts by tens of thousands.

This technique alone often produces the largest performance gain in large architectural models.

save pin

Graphics Settings That Improve 3D Performance

Key Insight: Correct graphics configuration can double navigation performance in large models.

AutoCAD includes several settings specifically designed to optimize real‑time rendering.

Key adjustments to review:

1. Enable Hardware Acceleration
2. Turn off Smooth Line Display when editing
3. Reduce visual style complexity
4. Disable unnecessary shadows
5. Use 2D Wireframe during modeling

Many designers unknowingly work in "Realistic" visual style while modeling. That forces AutoCAD to calculate materials, lighting, and reflections continuously.

Switching to Wireframe during editing can dramatically improve responsiveness.

Answer Box

The fastest way to improve AutoCAD performance for complex 3D floor plans is to reduce geometry complexity, convert repeated elements into blocks, and hide unnecessary layers during editing. These three changes alone often eliminate most lag in architectural models.

File Organization Tips for Large Architectural Projects

Key Insight: Large architectural projects perform better when models are separated into logical files rather than stored in a single massive drawing.

Professional teams rarely keep entire buildings inside one AutoCAD file. Instead, they use modular project structures.

A common workflow includes:

1. Base architectural structure file
2. Interior layout file
3. Furniture and equipment file
4. Lighting and MEP file

These are then combined using Xrefs (External References). This method keeps individual files lighter and easier to edit.

For early-stage space planning, many designers prototype layouts with tools that quickly generate spatial concepts, such as AI assisted floor planning for complex building layouts, before rebuilding final geometry in AutoCAD.

This approach prevents unnecessary modeling work and keeps CAD files manageable throughout the design process.

Final Summary

1. Geometry complexity is the main reason large AutoCAD models become slow.
2. Blocks dramatically reduce entity counts in large floor plans.
3. Layer visibility management improves editing speed.
4. Graphics settings often affect performance more than hardware.
5. Separating large projects into Xref files prevents performance bottlenecks.

FAQ

Why is my AutoCAD 3D model so slow?

Most slowdowns come from high‑polygon objects, exploded blocks, or too many visible layers. Simplifying geometry and hiding unnecessary layers usually fixes the issue.

How can I speed up AutoCAD for large floor plans?

Use blocks for repeated elements, reduce curved geometry segments, freeze unused layers, and switch to Wireframe view during editing.

Does file size affect AutoCAD performance?

Not as much as geometry complexity. A smaller file with dense mesh objects can run slower than a larger file with simple geometry.

What visual style is best for AutoCAD performance?

2D Wireframe or Conceptual visual styles are best during modeling. Realistic styles should be used mainly for presentations.

How many layers are too many in AutoCAD?

There's no strict limit, but poorly organized layers increase editing complexity. Group layers logically and freeze unnecessary ones.

Can hardware upgrades fix AutoCAD lag?

They help, but optimizing the model structure usually provides bigger performance improvements.

Should I use meshes in AutoCAD architectural models?

Generally no. Meshes significantly increase processing load and are better suited for rendering software.

What is the best way to optimize AutoCAD files for complex buildings?

Reduce polygon density, use blocks, manage layers carefully, and split large projects into Xref files.
