How to Optimize Banquet Hall Layout for Maximum Guest Capacity: Practical layout strategies event planners use to increase seating capacity without sacrificing comfort, safety, or guest flow.

Direct Answer

To optimize a banquet hall layout for maximum guest capacity, planners focus on efficient table spacing, strategic service-area placement, and clear traffic paths. The goal is not simply fitting more tables, but balancing density with movement, safety, and guest comfort.

Well‑planned layouts often increase usable seating by 10–25% compared with poorly organized floor plans.

Quick Takeaways

1. Practical capacity is usually 15–25% lower than theoretical maximum capacity.
2. Round tables with 60-inch diameters typically provide the best space efficiency.
3. Service zones like buffets and bars often consume 20% of total floor space.
4. Clear traffic lanes improve guest flow and prevent bottlenecks.
5. Digital floor planning tools help planners test multiple layouts quickly.

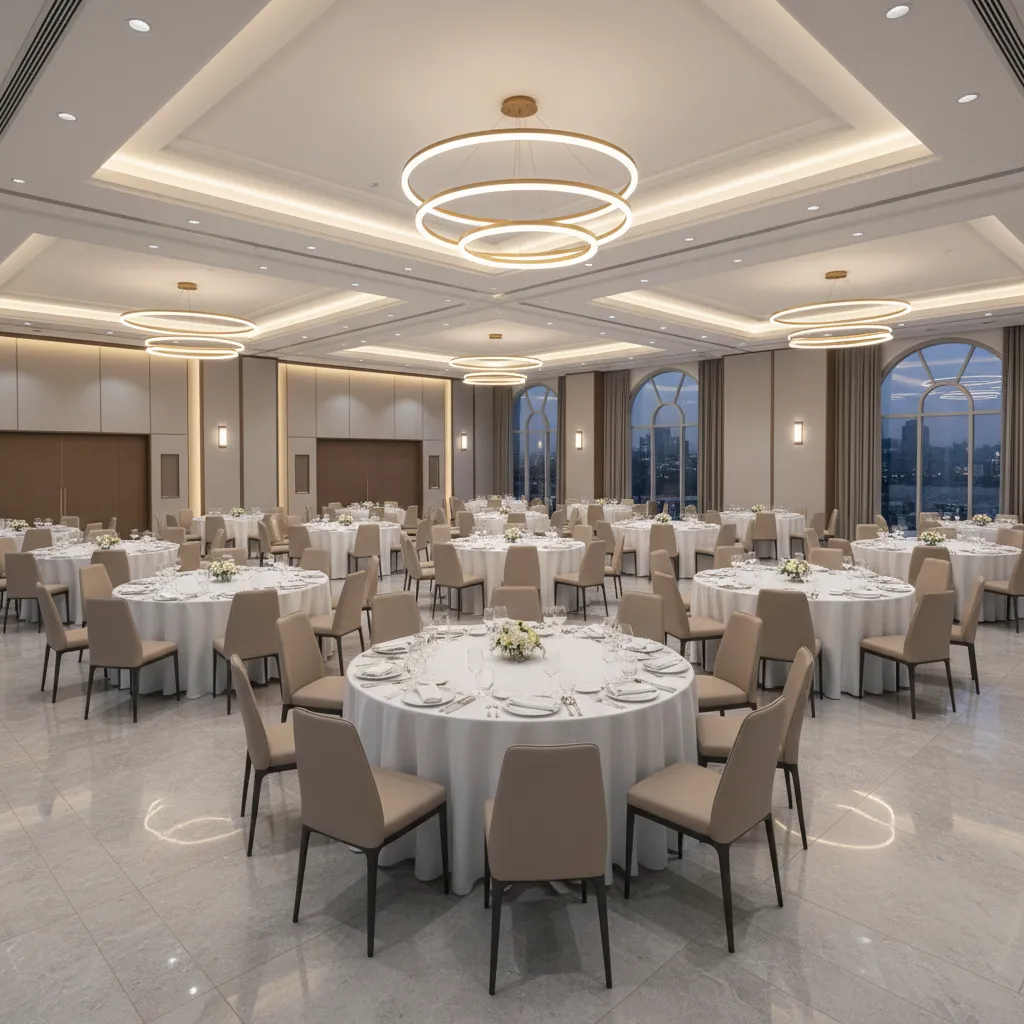

Introduction

In over a decade working on event venues, I’ve learned that maximizing guest count in a banquet hall is rarely about squeezing in more chairs. The real challenge is optimizing the banquet hall layout so the room feels organized, safe, and comfortable—even at high capacity.

Many venue owners assume capacity is fixed once the hall size is determined. In reality, layout design can dramatically change how many guests a space can accommodate. I’ve seen the same ballroom hold 220 guests during one wedding and 280 during another simply because the layout strategy was different.

One of the most effective ways planners experiment with layouts today is by testing different arrangements digitally before the event. Tools that allow you to visualize seating arrangements and table spacing in 3Dmake it much easier to identify wasted space.

In this guide, I’ll walk through the strategies professional planners use to increase banquet hall capacity while maintaining proper circulation, safety standards, and a comfortable guest experience.

save pin

Understanding Practical Capacity vs Maximum Capacity

Key Insight: The most common mistake in venue planning is confusing fire-code maximum capacity with practical event capacity.

Fire regulations often define the theoretical maximum occupancy of a room. But in real events, that number rarely reflects a functional layout.

For example, a 5,000 sq ft hall might legally hold 400 people standing. But when you add tables, aisles, service stations, and a dance floor, the realistic capacity may drop to around 250–300 guests.

From my experience designing wedding and conference layouts, planners typically divide space roughly like this:

1. 60–70% seating area
2. 10–15% dance floor or stage
3. 10–15% service zones
4. 5–10% circulation space

The real optimization challenge is redistributing these zones without compromising guest comfort.

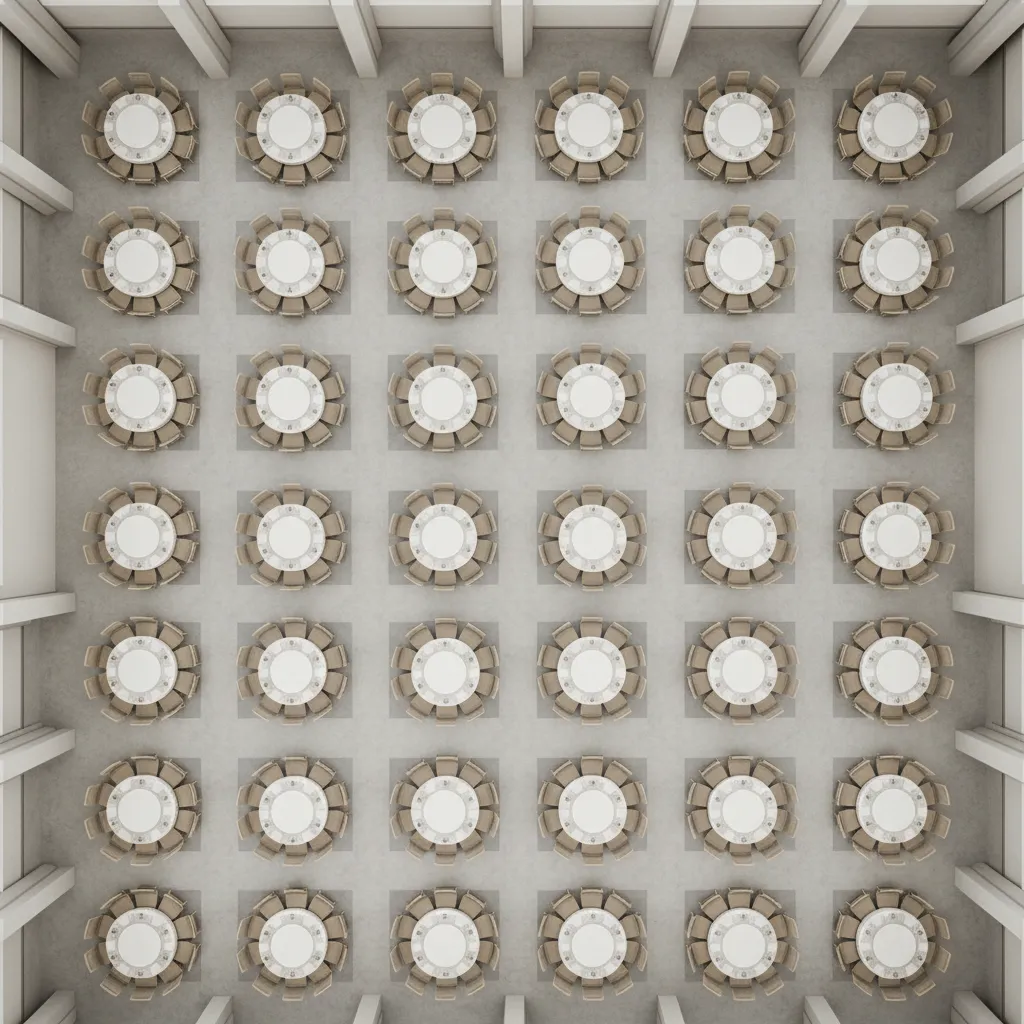

Strategic Table Spacing for Better Flow

Key Insight: Proper table spacing can increase seating capacity while actually improving guest movement.

Many venues lose space because tables are placed inconsistently. In professional layouts, spacing follows predictable measurements.

Typical spacing standards used in event planning:

1. 60-inch round table: seats 8–10 guests
2. Minimum 60 inches between table centers
3. 18–24 inches chair clearance
4. Main aisles: at least 6 feet wide

One counterintuitive trick: reducing oversized aisle gaps often frees enough space for several additional tables.

In large ballrooms I’ve redesigned, correcting inconsistent spacing alone increased seating by nearly 12%.

save pin

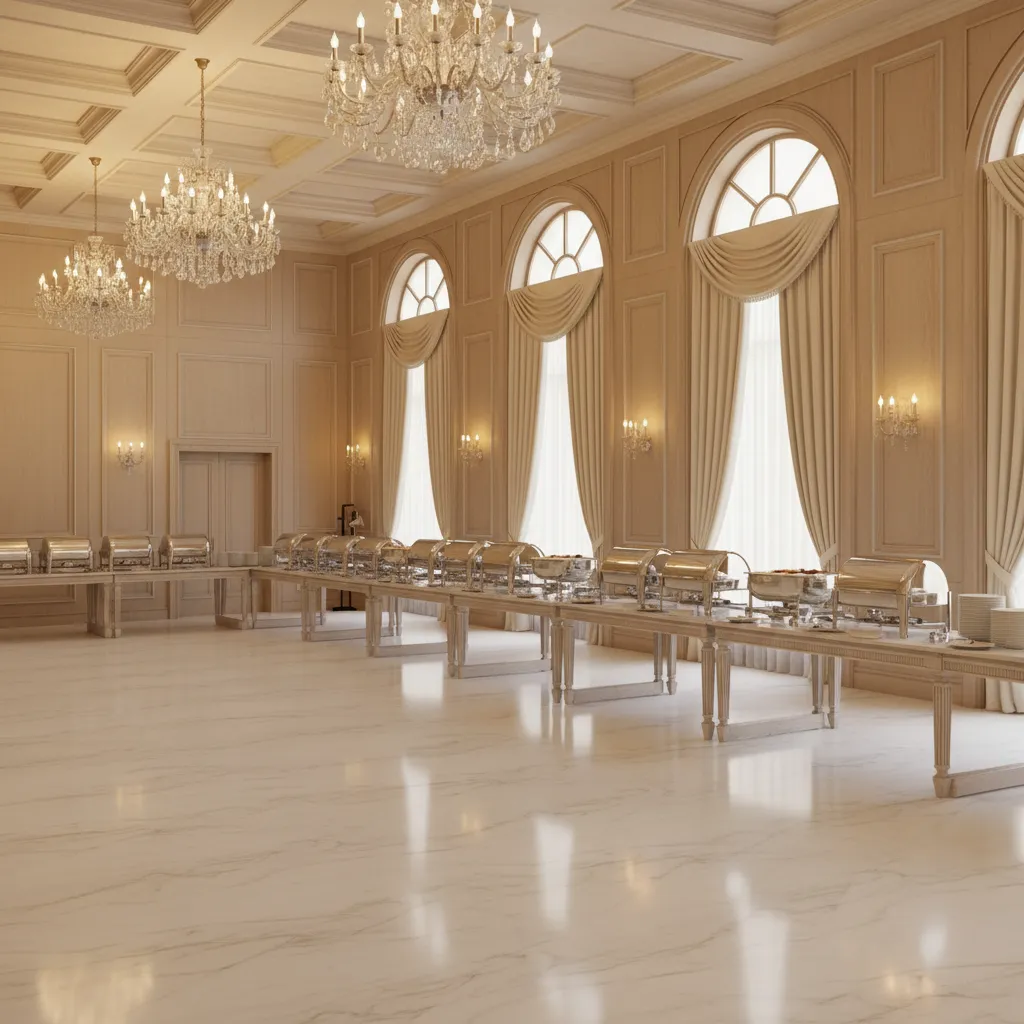

Optimizing Buffet, Bar, and Service Areas

Key Insight: Poorly placed service areas create traffic congestion that wastes more space than the stations themselves.

Buffets and bars are major space consumers. When they sit in the middle of the room, they disrupt circulation and force planners to leave larger empty buffers.

More efficient configurations include:

1. Perimeter buffet lines along walls
2. Dual-sided buffet islands for faster flow
3. Corner bar placement to prevent congestion
4. Separate beverage and food lines

Industry guidelines from event venue design studies suggest allocating roughly 8–10 square feet per guest for buffet service zones.

Testing these placements in advance using tools that help planners experiment with different event room layoutscan reveal surprising space savings.

save pin

Integrating Dance Floors Without Wasting Space

Key Insight: Oversized dance floors are one of the biggest hidden capacity killers in banquet halls.

Couples often request large dance floors, but most events only have 30–40% of guests dancing at once.

A practical sizing rule many planners use:

1. 30 guests dancing → 12 ft × 12 ft floor
2. 75 guests dancing → 18 ft × 18 ft floor
3. 150 guests dancing → 24 ft × 24 ft floor

Positioning the dance floor near the center of the room also allows surrounding tables to share viewing angles, reducing the need for extra circulation space.

Traffic Flow Design for Large Events

Key Insight: A well-designed circulation path prevents crowding and allows tighter seating layouts.

When traffic routes are unclear, planners compensate by leaving excess empty space between tables. This reduces overall capacity.

Instead, experienced planners design deliberate movement patterns:

1. Main aisle from entrance to stage
2. Secondary aisles to service areas
3. Dedicated buffet approach and exit paths
4. Clear emergency exit routes

Large venues often use a "loop circulation" layout so guests move around the perimeter instead of cutting through seating areas.

Answer Box

The most effective banquet hall layout optimizations combine consistent table spacing, perimeter service zones, and clear traffic paths. When these elements are planned together, venues can often increase seating capacity by 15–25% without reducing comfort.

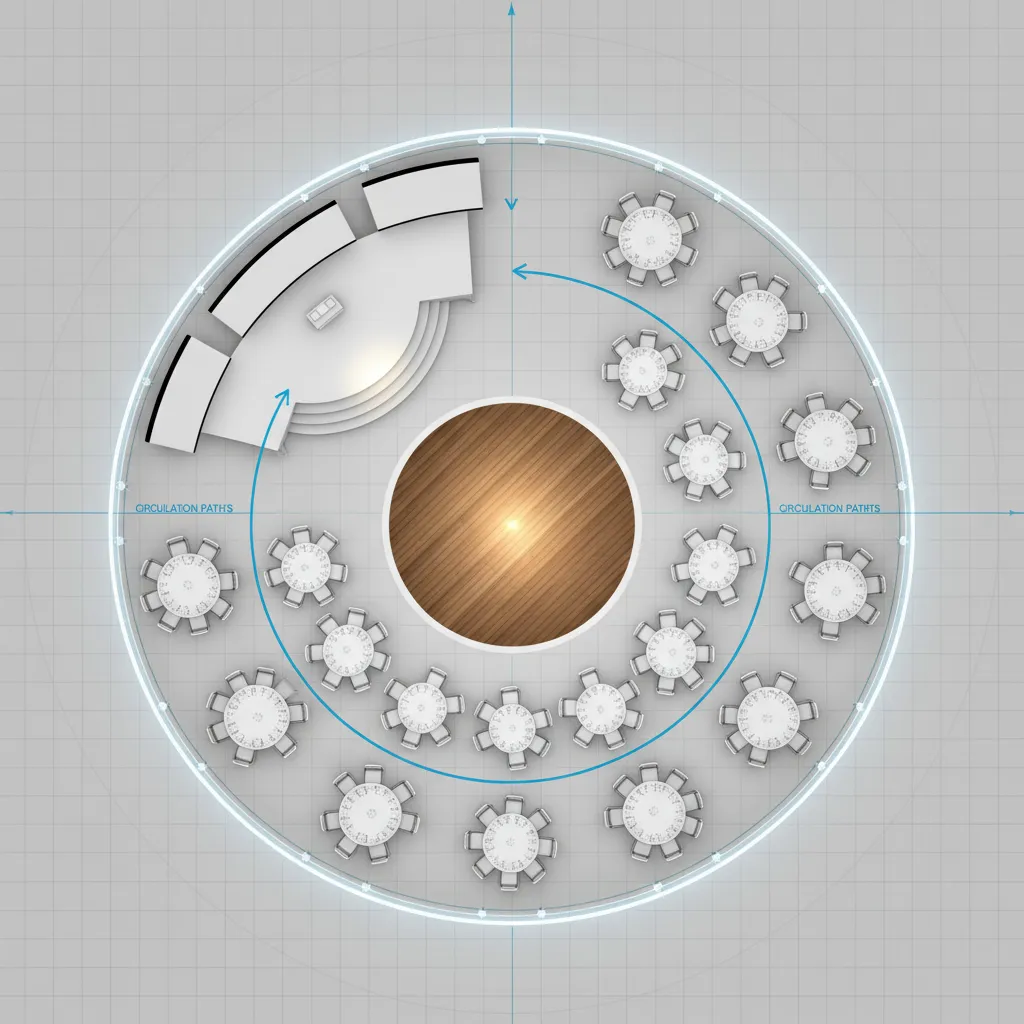

Layout Optimization Tools Used by Event Planners

Key Insight: Digital layout testing has become the fastest way to discover hidden capacity in event venues.

Instead of guessing table arrangements, planners increasingly simulate layouts using professional floor planning software.

Typical workflow used by venue designers:

1. Create accurate room dimensions
2. Place tables and seating styles
3. Add service zones and stage areas
4. Test circulation paths
5. Compare multiple capacity scenarios

Many planners now rely on platforms that allow them to build detailed event floor plans before finalizing seating. This approach often reveals layout improvements that would be difficult to visualize on paper.

save pin

Final Summary

1. Banquet hall capacity depends more on layout strategy than raw square footage.
2. Consistent table spacing can significantly increase usable seating.
3. Service areas should be placed along room edges to reduce congestion.
4. Right-sized dance floors prevent unnecessary space loss.
5. Digital floor planning tools help planners discover hidden capacity.

FAQ

How do you optimize a banquet hall layout for capacity?

Focus on efficient table spacing, perimeter service areas, and clear circulation paths. These adjustments allow more tables without making the room feel crowded.

What is the average space required per guest in a banquet hall?

Most seated banquet events require 10–12 square feet per guest, depending on table size, stage area, and service stations.

What table size is most efficient for banquet seating?

A 60-inch round table seating 8–10 guests is typically the most space‑efficient option for weddings and formal banquets.

How much space should be between banquet tables?

Professional planners usually leave 60 inches between table centers to allow chair movement and service access.

Can layout design increase banquet hall capacity?

Yes. Smart banquet hall layout optimization can increase seating capacity by 10–25% compared with inefficient floor plans.

How large should a dance floor be for a wedding?

Plan for roughly 4–5 square feet per dancing guest. Most weddings only have about one‑third of guests dancing simultaneously.

Where should buffet tables be placed in a banquet hall?

Placing buffets along walls or in dual‑sided islands improves flow and reduces congestion around seating areas.

What tools do event planners use for layout planning?

Many planners use digital floor planners and 3D visualization tools to test multiple seating arrangements before the event.

References

1. Event Safety Alliance – Event Capacity and Crowd Management Guidelines
2. International Association of Venue Managers (IAVM)
3. Professional Convention Management Association Event Design Resources
