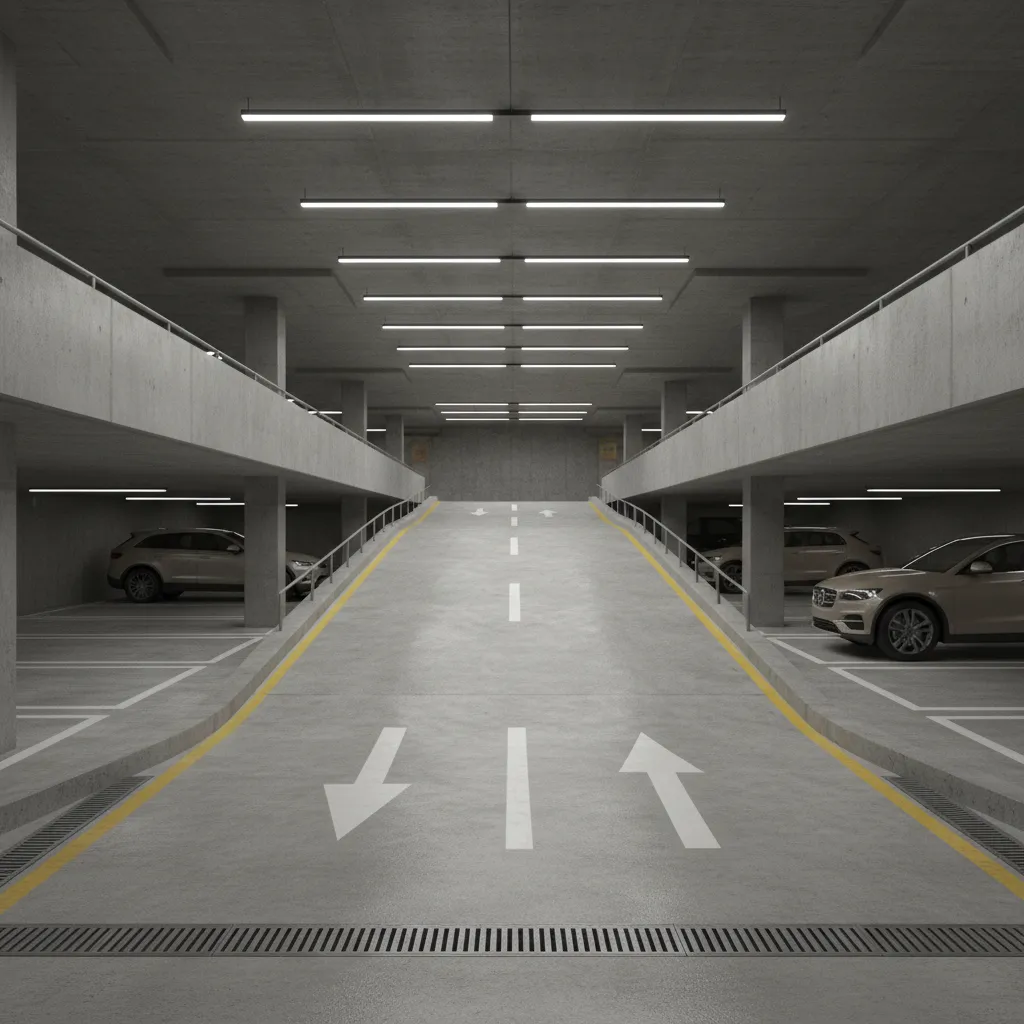

How to Optimize Basement Parking Ramp Design for Small Urban Plots: Space‑saving ramp strategies architects use to fit functional basement parking into tight city sites

Direct Answer

Optimizing basement parking ramp design on small urban plots requires compact ramp geometry, efficient circulation planning, and slope management that minimizes wasted floor area. Designers typically use split‑level ramps, tight turning radii, and integrated circulation paths to fit ramps into constrained footprints while maintaining safe vehicle movement.

When done correctly, a ramp can occupy less than 15–20% of the total basement area without compromising usability.

Quick Takeaways

1. Split‑level ramp systems often save 20–30% more space than traditional straight ramps.
2. Turning radii should be optimized early in planning to prevent layout conflicts later.
3. Ramp slopes above 15% reduce usability and increase safety risks in daily operation.
4. Integrating ramps with circulation lanes prevents dead space near entrances.
5. Early 3D layout testing avoids expensive structural redesign during construction.

Introduction

Basement parking ramp design becomes dramatically harder when you are working with small urban plots. In dense cities, I’ve seen sites where the entire footprint is barely wider than the ramp needed to reach the parking level.

After more than a decade working on residential and mixed‑use projects, one pattern is clear: the ramp is rarely the real problem. The problem is how the ramp interacts with circulation, columns, and parking modules.

Many projects lose valuable parking capacity simply because the ramp was inserted too late in the design process. Once the structure grid and parking rows are fixed, the ramp becomes an awkward leftover element.

This is why professional teams often test layouts early using tools that allow designers to experiment with realistic parking layouts before construction drawings begin. Seeing circulation paths in three dimensions immediately reveals where ramps waste space.

In this guide, I’ll walk through the strategies architects use to optimize ramps for tight urban sites, including several design trade‑offs that rarely get explained in typical planning guides.

save pin

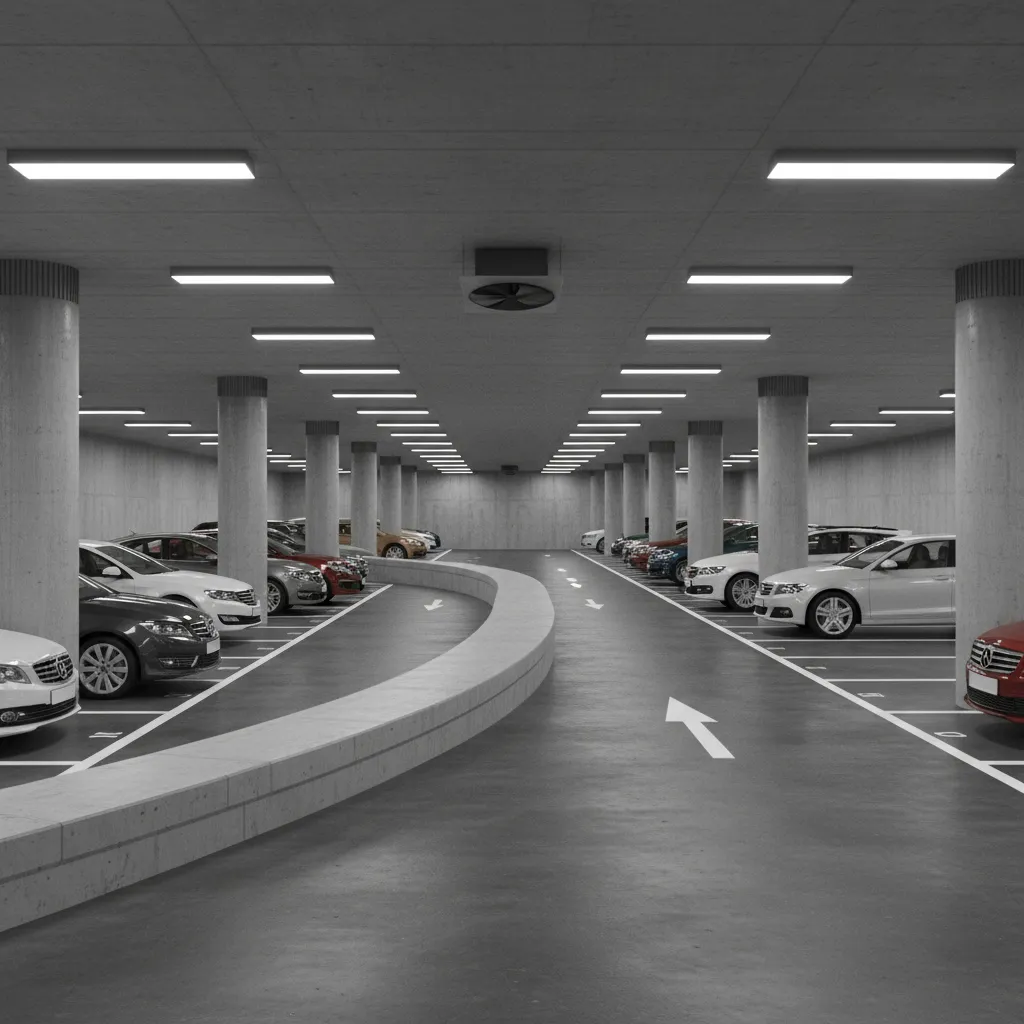

Challenges of Basement Ramp Design in Tight Urban Sites

Key Insight: The biggest limitation in small plots is not ramp length—it’s the conflict between ramp geometry and parking circulation.

On compact sites, ramps compete with three critical spatial systems:

1. Parking module width
2. Structural column grid
3. Vehicle turning circulation

If the ramp interrupts any of these systems, the layout efficiency drops sharply.

Common problems I repeatedly see in early designs include:

1. Ramp entrances blocking two or more parking spaces
2. Columns interfering with turning paths
3. Long straight ramps that consume excessive area

Urban design guidelines in many cities recommend allocating roughly 30–35 m² per parking stall including circulation. A poorly positioned ramp can increase that number to 40 m² or more.

This is why experienced architects treat ramp placement as a circulation anchor rather than an accessory element.

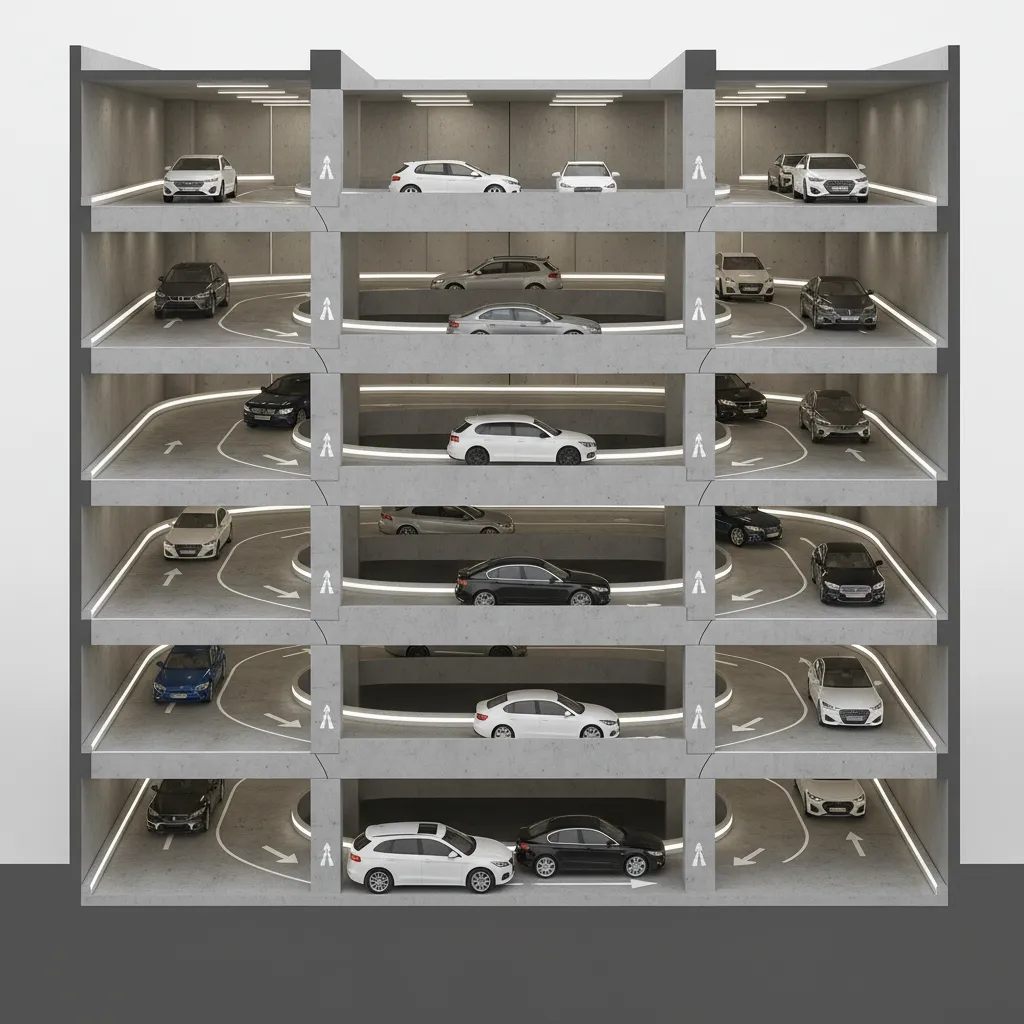

Using Split-Level Ramps to Save Space

Key Insight: Split‑level ramp systems dramatically reduce footprint because each ramp segment serves two half‑levels instead of one full level.

A traditional straight ramp requires the full vertical travel between floors. Split‑level designs divide the descent into shorter segments connected by intermediate parking levels.

Typical advantages include:

1. Shorter ramp runs
2. More flexible entry placement
3. Better integration with parking rows

In a recent apartment project I worked on in Los Angeles, switching from a full‑height ramp to a split‑level configuration reduced ramp area by nearly 25%.

Designers usually evaluate three common split‑level configurations:

1. Scissor ramp system
2. Offset half‑level ramp
3. Double helix ramp

Each has different structural and cost implications, but all can improve space efficiency when used correctly.

save pin

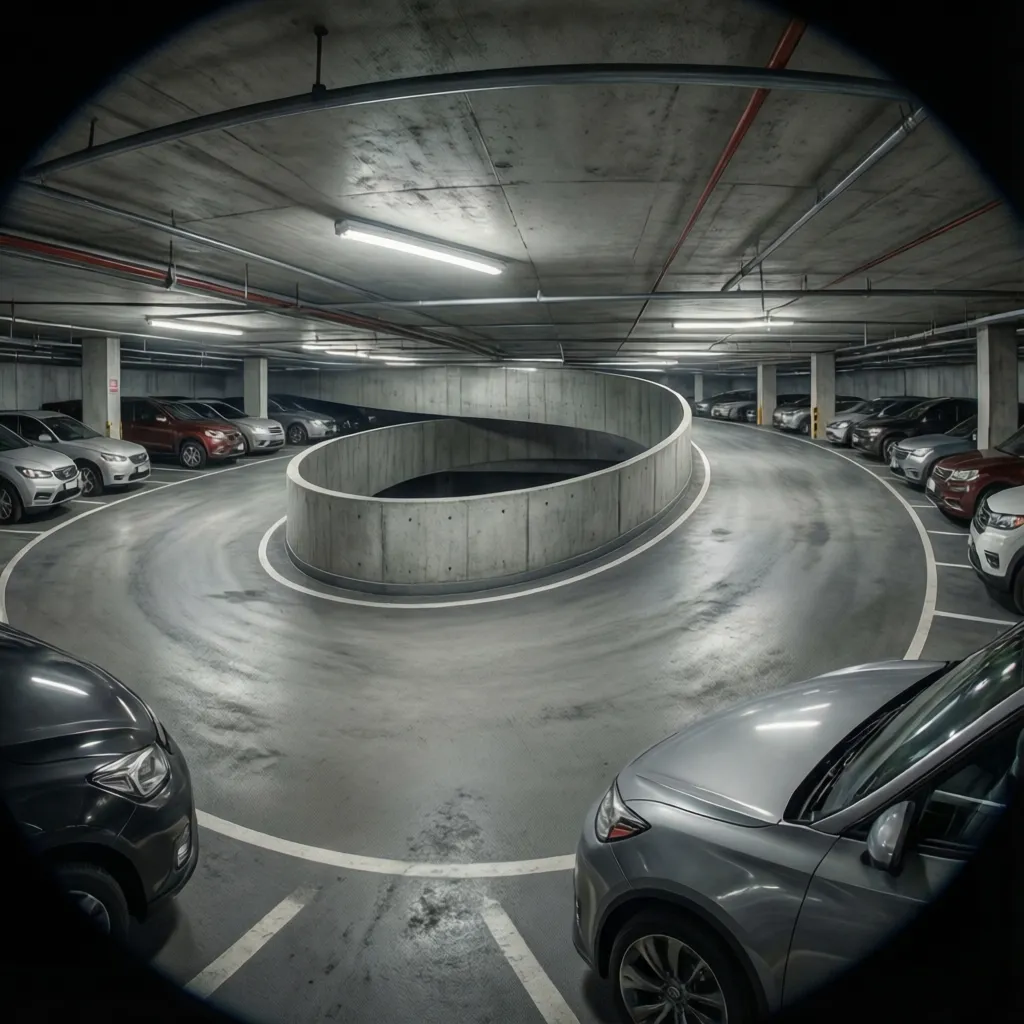

Compact Turning Radius Design Techniques

Key Insight: Tight turning radius design is the most underestimated factor affecting ramp footprint.

Many parking layouts fail because designers use conservative turning standards that are unnecessarily large for the target vehicle mix.

For most residential buildings, the design vehicle is a passenger sedan or compact SUV. This allows for smaller turning radii than commercial parking garages.

Common techniques for reducing ramp footprint include:

1. Using 5.0–5.5 m inner turning radius for residential garages
2. Employing curved ramps instead of straight switchbacks
3. Offsetting structural columns from turning paths

According to parking design research from the Urban Land Institute, compact turning geometry can reduce ramp and maneuvering space by up to 15% in small garages.

When planning circulation paths, designers often simulate vehicle movement using digital layouts where they can test how cars navigate tight parking layouts in realistic room-scale environments.

save pin

Integrating Ramp and Parking Circulation Efficiently

Key Insight: The most efficient ramps double as circulation lanes rather than isolated access structures.

In many inefficient garages, the ramp leads to a separate circulation aisle. That means two areas performing similar functions.

A more efficient approach merges these paths.

Design strategies include:

1. Aligning ramp exit directly with the main driving aisle
2. Placing ramps at garage corners instead of central zones
3. Using one‑way circulation loops around the ramp

This integration often improves not only space efficiency but also driver visibility and safety.

Several urban residential projects I’ve worked on gained two additional parking spaces simply by repositioning the ramp to align with the primary aisle.

Balancing Ramp Slope with Usable Parking Area

Key Insight: Increasing ramp slope can save space—but overly steep ramps create long‑term operational problems.

The temptation on small sites is to increase slope to shorten the ramp length. However, steep ramps introduce multiple issues:

1. Reduced vehicle safety during rain
2. Ground clearance problems
3. Difficult maneuvering at ramp transitions

Most building codes limit ramp slopes to around:

1. 12–15% for comfortable operation
2. Up to 18% for short segments

The real trick is designing smooth transition zones between flat parking floors and steep ramp segments. Poor transitions cause vehicles to scrape bumpers.

Answer Box

The most space‑efficient basement parking ramps combine compact turning radii, integrated circulation aisles, and split‑level ramp systems. These strategies reduce ramp footprint while maintaining safe vehicle movement.

Designers who test layouts early in the planning stage typically achieve significantly higher parking efficiency.

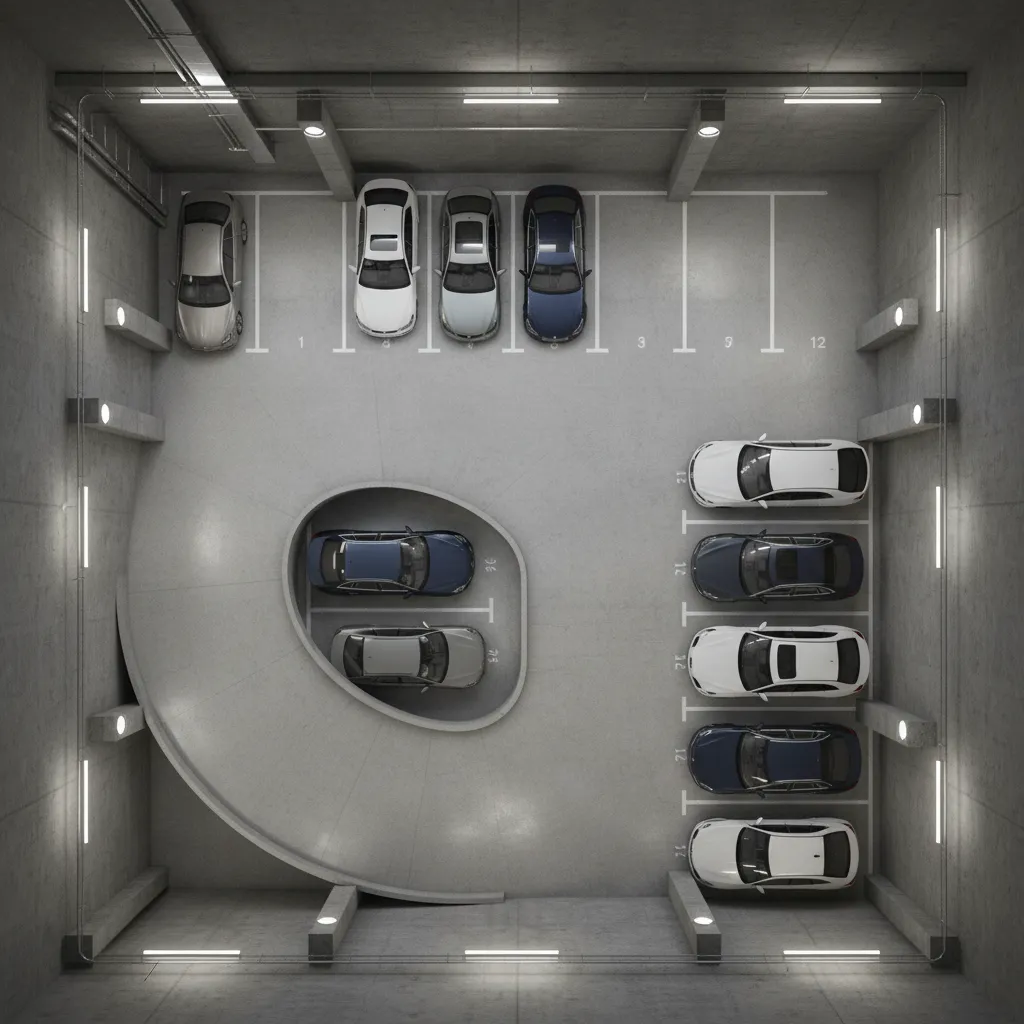

Design Examples for Small Basement Parking Layouts

Key Insight: Small‑site parking success usually comes from combining several space‑saving strategies rather than relying on a single ramp design.

Here are three common layout patterns used in dense cities:

1. Corner ramp layout – ramp placed along the site boundary to preserve parking rows.
2. Central scissor ramp – two opposing ramps sharing a compact core.
3. Curved perimeter ramp – ramp following the building edge.

Each approach depends on structural grid alignment, vehicle flow, and building entry location.

When architects review alternatives, they often compare several options using tools that allow teams to

save pin

generate multiple parking floor plan layouts for constrained urban sites before committing to a final configuration.

Final Summary

1. Efficient basement ramp design begins with circulation planning, not slope calculations.
2. Split‑level ramp systems significantly reduce ramp footprint.
3. Tighter turning radii improve space efficiency in residential garages.
4. Integrating ramps with driving aisles prevents wasted floor area.
5. Moderate slopes maintain usability while preserving parking capacity.

FAQ

1. What is the ideal slope for basement parking ramps?

Most residential basement parking ramp designs use slopes between 12% and 15% for safe and comfortable vehicle movement.

2. How much space does a parking ramp typically require?

A typical ramp occupies 15–20% of the total garage area, though optimized layouts can reduce this in small sites.

3. Are curved ramps better for small plots?

Often yes. Curved ramps reduce turning conflicts and use perimeter space more efficiently than straight ramps.

4. What is the minimum turning radius for residential parking ramps?

Most residential designs use an inner radius of about 5–5.5 meters depending on vehicle size.

5. Can split‑level ramps improve basement parking ramp design efficiency?

Yes. Split‑level systems shorten ramp length and allow parking on intermediate levels.

6. Why do some parking ramps waste so much space?

They are often added late in the design process after parking layouts and column grids are already fixed.

7. What is the best ramp position in a basement garage?

Corner locations are usually most efficient because they minimize interference with parking rows.

8. How can architects test ramp layouts before construction?

Designers typically simulate vehicle circulation and ramp geometry using digital floor planning tools.
