How to Optimize Bathroom Floor Structure for Heavy Fixtures and Stone Tiles: A practical structural guide for safely supporting soaking tubs, luxury fixtures, and natural stone bathroom floors.

Direct Answer

Optimizing bathroom floor structure for heavy fixtures and stone tiles requires reinforcing joists, reducing joist spacing, and installing a thicker, high‑grade subfloor system. Heavy bathtubs, natural stone tiles, and luxury fixtures can exceed typical residential floor loads, so proper structural design ensures long‑term stability, prevents tile cracking, and protects plumbing infrastructure.

Quick Takeaways

1. Heavy soaking tubs can add over 800–1,200 lbs when filled with water.
2. Natural stone tile requires a stiffer floor structure than ceramic tile.
3. Reducing joist spacing dramatically improves floor load capacity.
4. A double-layer subfloor system helps prevent stone tile cracking.
5. Strategic reinforcement under bathtubs avoids long‑term floor deflection.

Introduction

After working on bathroom renovations for more than a decade, one issue shows up again and again: homeowners upgrade to luxury tubs or natural stone floors without upgrading the structure beneath them. On paper, a bathroom floor might look perfectly fine. But once you add a filled soaking tub, a double vanity, and thick stone tile, the load can exceed what the original framing was designed to carry.

This is where optimizing bathroom floor structure becomes critical. I have seen beautiful bathroom remodels develop cracked grout lines within a year simply because the floor flexed too much under heavy fixtures.

Before any renovation starts, I usually recommend mapping the floor layout and load zones. Tools that help visualize the framing and layout—like this workflow for visualizing bathroom floor layouts in 3D during planning—make it much easier to identify where reinforcement is needed before construction begins.

In this guide, I'll walk through how experienced designers and contractors strengthen bathroom floor structures when installing heavy bathtubs, stone tiles, and luxury fixtures.

save pin

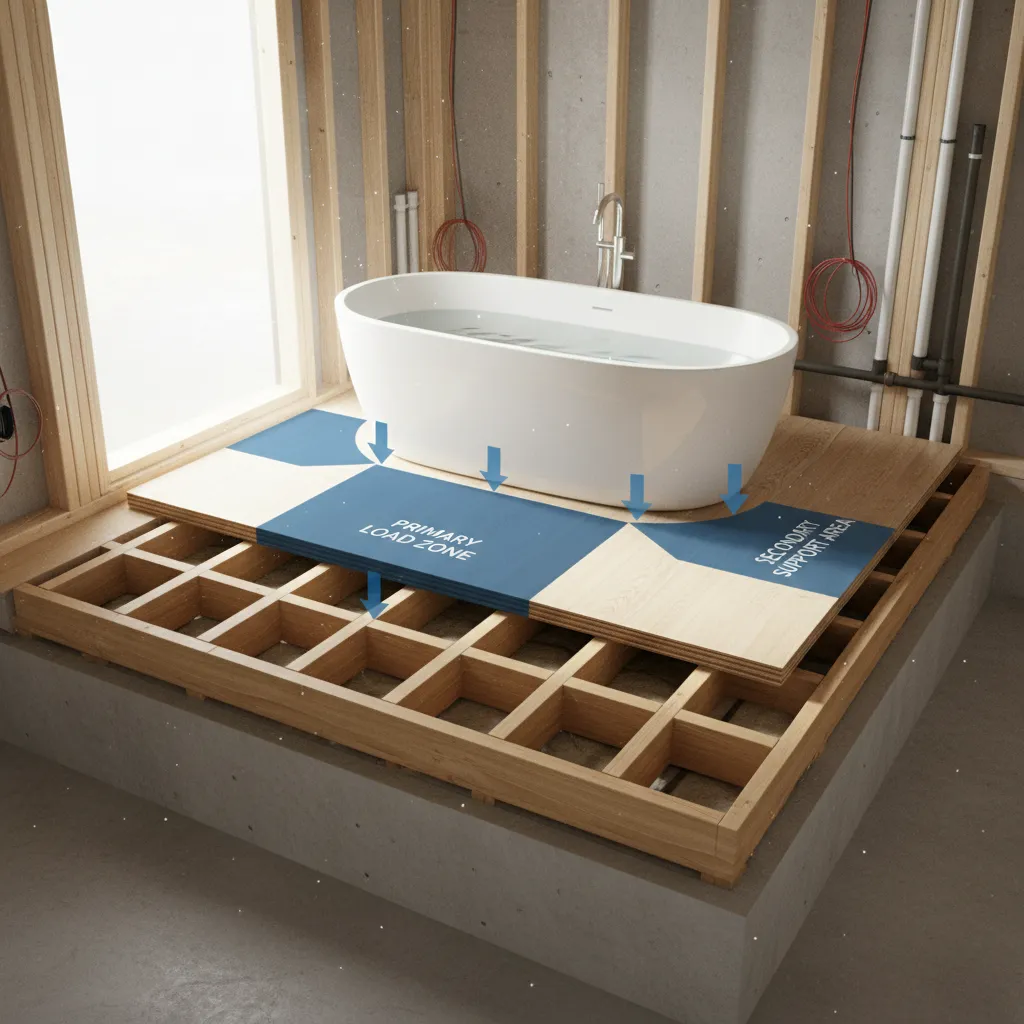

Understanding Weight of Modern Bathroom Fixtures

Key Insight: The structural problem usually isn't the bathtub itself—it's the combined load of water, people, stone finishes, and cabinetry.

Many renovation projects underestimate how quickly bathroom loads add up. A standard acrylic tub might weigh only 70–100 lbs empty, but once filled with water and occupied, the total weight can exceed 900 lbs.

Typical weight ranges designers plan for:

1. Freestanding soaking tub (filled): 800–1,200 lbs
2. Cast iron tub (filled): 1,200–1,500 lbs
3. Natural stone tile floor: 6–8 lbs per square foot
4. Double vanity with countertop: 300–600 lbs

When these loads concentrate in a relatively small area, floor deflection becomes the real risk. The Tile Council of North America recommends extremely stiff floor systems for stone tile installations because natural stone cracks easily when floors flex.

This is why structural planning matters long before tile or fixtures are installed.

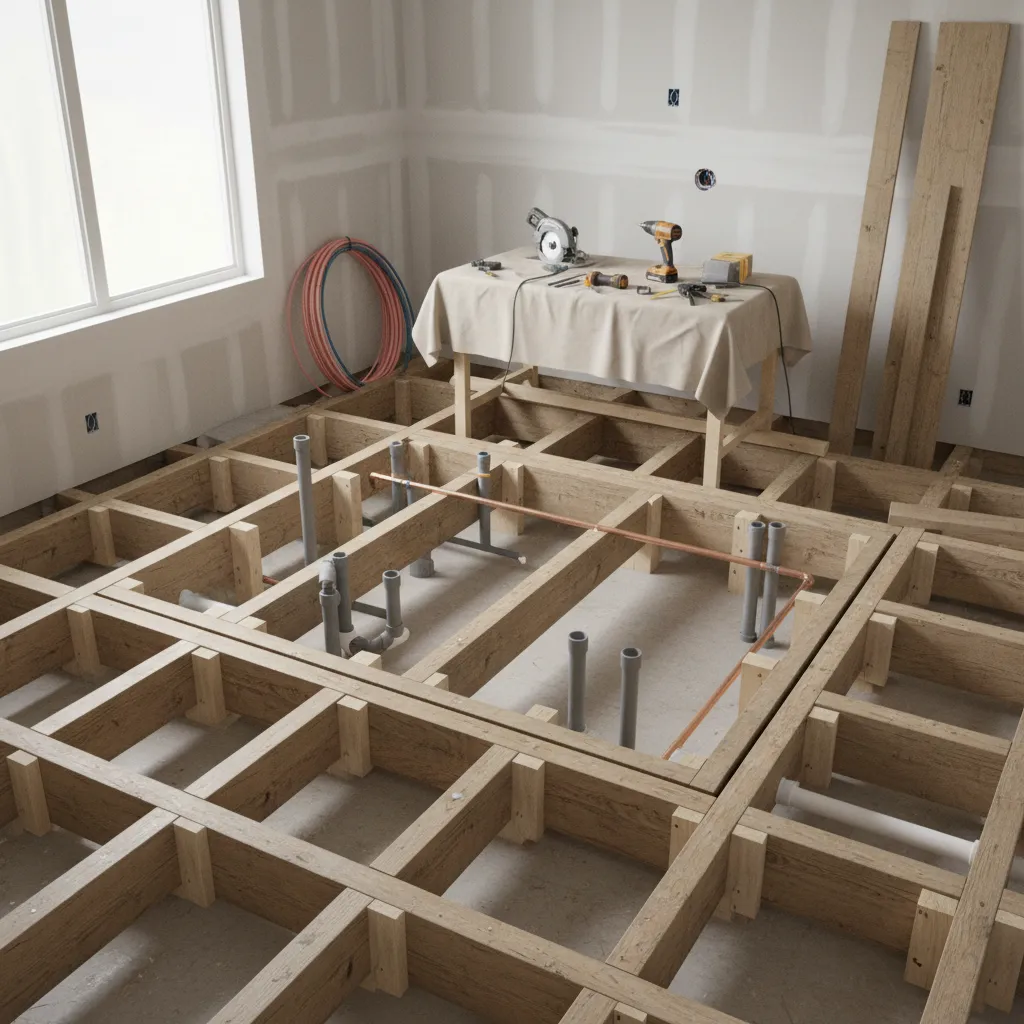

Structural Design Strategies for Heavy Bathtubs

Key Insight: The most effective reinforcement strategy is distributing bathtub loads across multiple joists rather than relying on a single support point.

In many homes, tubs are positioned between two joists, which concentrates weight on only a small portion of the structure. Experienced builders solve this by spreading the load.

Common reinforcement strategies include:

1. Installing blocking between joists under the tub
2. Adding sister joists alongside existing framing
3. Using load‑distribution platforms beneath freestanding tubs
4. Installing beam support below high‑load areas

In larger remodels, designers sometimes adjust the entire bathroom layout so heavy fixtures align with structural supports. During early planning stages, many professionals prototype layouts using a digital bathroom layout planning environment for fixture placementto identify optimal tub positions before construction.

This step alone can eliminate a surprising amount of structural risk.

save pin

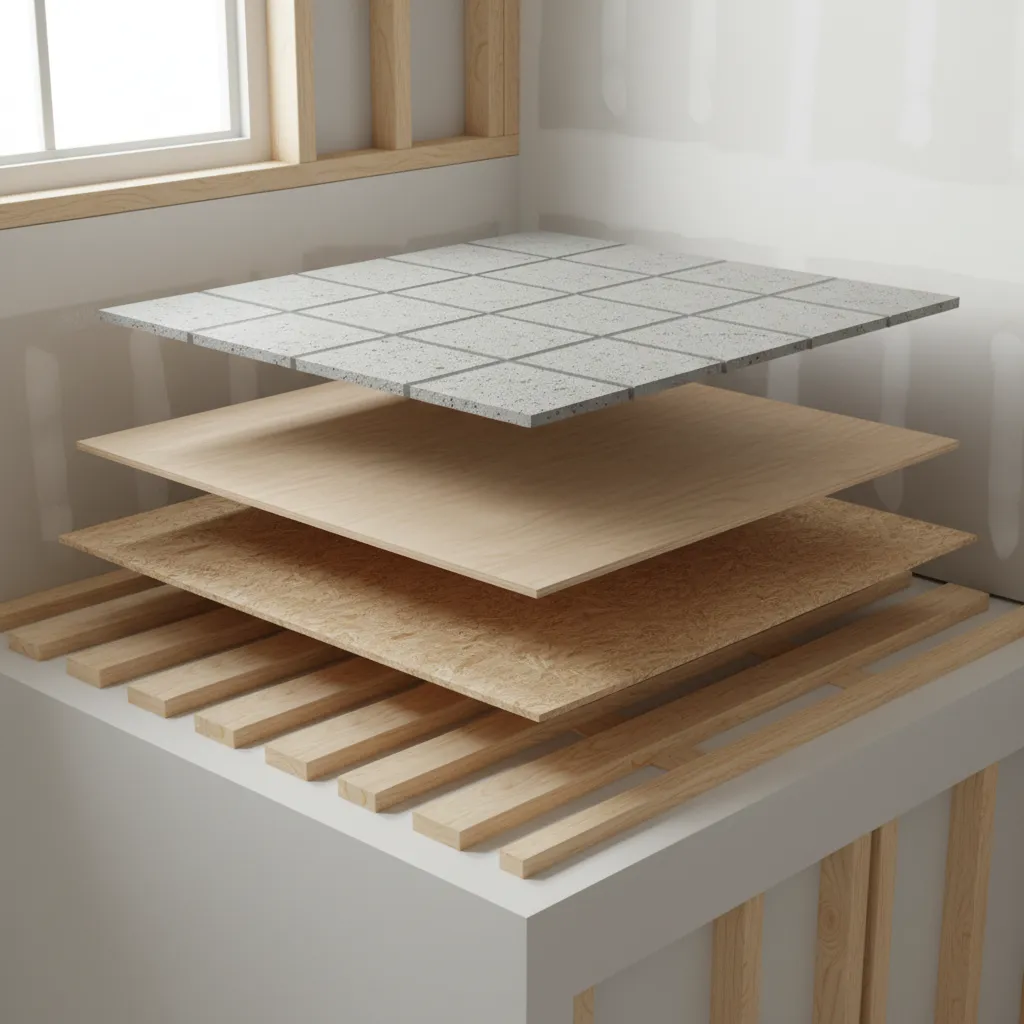

Optimizing Subfloor Thickness and Materials

Key Insight: Stone tile floors require a significantly stiffer subfloor than ceramic tile—often requiring a double‑layer system.

One of the most common mistakes I see in renovations is installing heavy stone tile over a single thin plywood layer. That system may technically pass code, but it often fails under long‑term load.

A stronger bathroom subfloor typically includes:

1. 3/4" tongue‑and‑groove plywood base layer
2. Additional 1/2" plywood underlayment
3. Cement backer board or uncoupling membrane

This layered structure improves stiffness and helps isolate tile from structural movement.

Industry guidelines from the Marble Institute of America also recommend limiting floor deflection to L/720 for natural stone installations—twice as stiff as standard ceramic tile requirements.

Ignoring this rule is one of the biggest hidden costs in bathroom renovations because cracked stone floors are extremely expensive to repair.

save pin

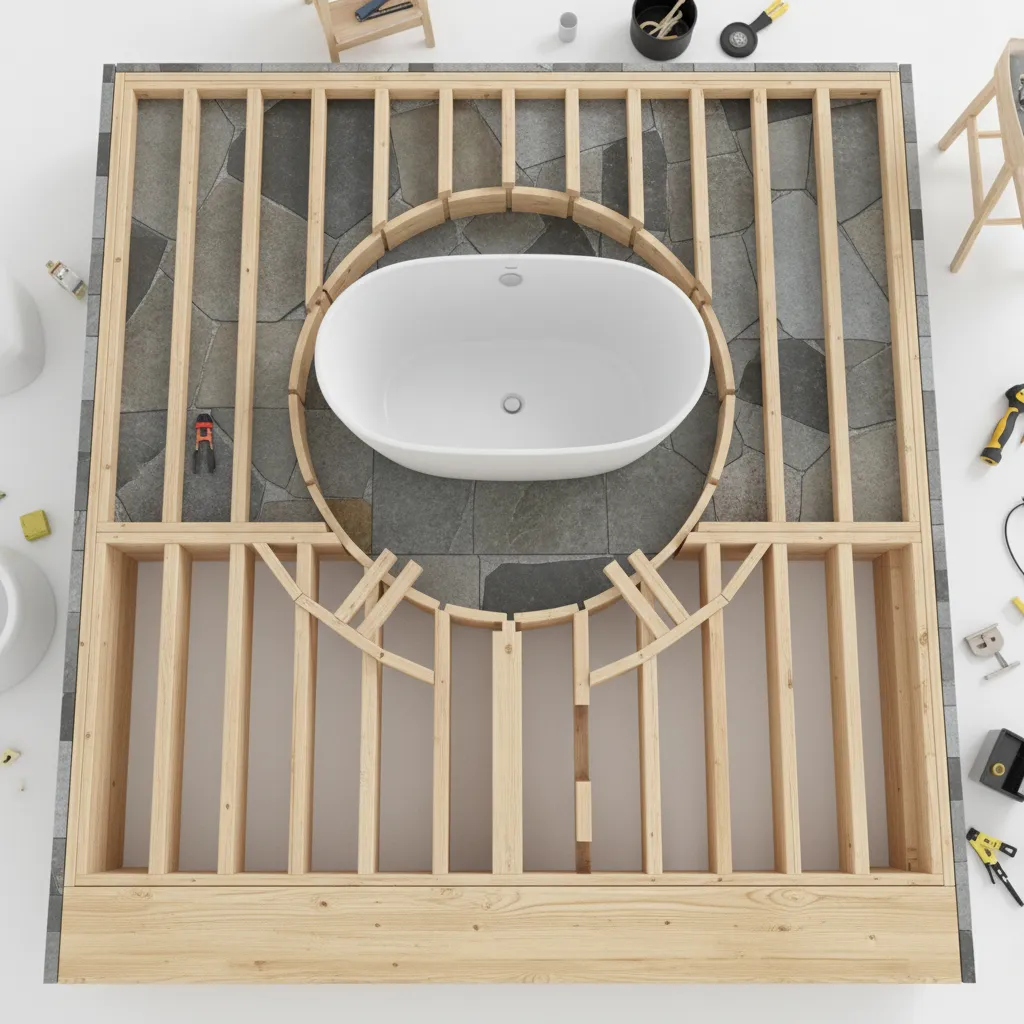

Joist Spacing Adjustments for High Load Areas

Key Insight: Reducing joist spacing is often the most powerful structural upgrade available during a remodel.

Standard residential joist spacing is typically 16 inches on center. While this works for most rooms, high‑load bathroom zones benefit from tighter spacing.

Common reinforcement options include:

1. Reducing spacing from 16" to 12" on center
2. Installing sister joists for additional stiffness
3. Adding mid‑span blocking to reduce twisting
4. Using engineered joists with higher load ratings

Even a modest framing upgrade can significantly improve structural stiffness. In some projects I've worked on, simply adding sister joists reduced floor deflection by nearly half.

Answer Box

The safest way to support heavy bathtubs and stone tile floors is combining three structural upgrades: reinforced joists, reduced spacing, and a double‑layer subfloor. This combination dramatically improves stiffness and prevents long‑term tile cracking or floor sagging.

Tile and Stone Flooring Structural Requirements

Key Insight: Natural stone tile demands stricter structural performance than almost any other residential flooring material.

Unlike ceramic tile, natural stone lacks uniform strength. Small floor movements can create cracks across large areas.

Professional installers typically check three structural factors:

1. Joist deflection limits (L/720 requirement)
2. Subfloor thickness and stiffness
3. Underlayment isolation systems

Modern planning workflows often involve modeling these layers and load zones before installation. A planning workflow such as mapping renovation layouts and structural zones digitallyhelps identify where stone floors overlap with high‑load areas like tubs and vanities.

This kind of early planning prevents expensive structural corrections later.

save pin

Best Practices for Long-Term Bathroom Floor Stability

Key Insight: Structural problems rarely appear immediately—they usually develop slowly as materials fatigue under repeated load.

Long‑term stability depends on combining good framing, moisture protection, and proper material selection.

Best practices used by experienced renovation teams:

1. Align heavy fixtures with load‑bearing walls when possible
2. Use engineered joists in large bathrooms
3. Avoid placing tubs mid‑span between joists
4. Install waterproof membranes to protect subfloor layers
5. Limit large stone tiles on flexible framing systems

One overlooked issue is moisture damage. Even a well‑designed structure can weaken if water slowly infiltrates the subfloor over several years. Proper waterproofing is just as important as structural reinforcement.

Final Summary

1. Heavy bathroom fixtures dramatically increase localized floor loads.
2. Natural stone flooring requires extremely stiff structural systems.
3. Reinforced joists and reduced spacing improve load capacity.
4. Double‑layer subfloors prevent cracking in stone tile floors.
5. Early structural planning avoids costly renovation failures.

FAQ

1. How do you strengthen a bathroom floor for a soaking tub?

Install sister joists, add blocking between joists, and reinforce the subfloor with additional plywood layers.

2. What is the best subfloor thickness for bathroom tile?

Most professionals recommend at least 1 1/4 inches of combined subfloor thickness for natural stone tile installations.

3. Can a standard bathroom floor support a cast iron tub?

Often yes, but reinforcement is frequently required depending on joist span and spacing.

4. Why does stone tile require stronger floors?

Stone is brittle and cracks easily if the floor flexes. Structural deflection must be limited to L/720.

5. What joist spacing is best for heavy bathroom fixtures?

12 inches on center provides significantly better stiffness for heavy tubs and stone tile floors.

6. How much weight does a filled bathtub add to a bathroom floor?

A filled soaking tub can exceed 900–1,200 lbs including water and occupants.

7. Is reinforced bathroom floor design necessary for luxury bathrooms?

Yes. Large tubs, stone surfaces, and double vanities significantly increase structural load.

8. Can I install natural stone tile on a regular subfloor?

Usually not. Stone floors typically require a double‑layer subfloor system for proper stiffness.

References

Tile Council of North America Installation Handbook

Natural Stone Institute Design Manual

International Residential Code (IRC) Floor Framing Guidelines
