How to Optimize Beef Steer Barn Layout for Feeding and Manure Efficiency: Practical layout strategies that reduce labor, improve feed access, and streamline manure handling in modern steer barns.

Direct Answer

To optimize a beef steer barn layout for feeding and manure efficiency, focus on three structural priorities: a straight and accessible feed alley, pen sizes matched to stocking density, and manure lanes designed for smooth equipment movement. When these elements align, daily chores become faster and cattle performance typically improves.

Small adjustments—like bunk positioning, scraper clearance, or bedding access—often deliver larger efficiency gains than major structural changes.

Quick Takeaways

1. A straight feed alley reduces feed delivery time and minimizes equipment turns.
2. Proper pen sizing improves cattle flow and reduces manure buildup.
3. Dedicated manure lanes allow faster scraping and cleaner pens.
4. Accessible bedding storage shortens chore routines during winter.
5. Minor layout adjustments can significantly reduce daily labor hours.

Introduction

After working on livestock facility layouts for years, I've noticed something interesting: most inefficiencies in a beef steer barn aren't caused by the building size—they're caused by the layout. A barn can look large on paper but still create extra work every single day.

When producers ask how to optimize beef steer barn layout, the real goal usually isn't aesthetics or even capacity. It's labor efficiency. If feeding takes 40 minutes instead of 20, or manure scraping requires awkward turns, that cost compounds every day of the year.

I’ve walked through many Midwestern operations where small design changes saved hours of weekly labor. In several cases, simply adjusting alley width or pen orientation dramatically improved manure flow and feed delivery efficiency. Before redesigning anything, many operators sketch their existing barn using a simple digital floor plan layout tool for visualizing farm buildingsto identify bottlenecks.

This guide breaks down the layout elements that make the biggest difference in real steer barns—feeding, manure management, equipment movement, and winter operation.

save pin

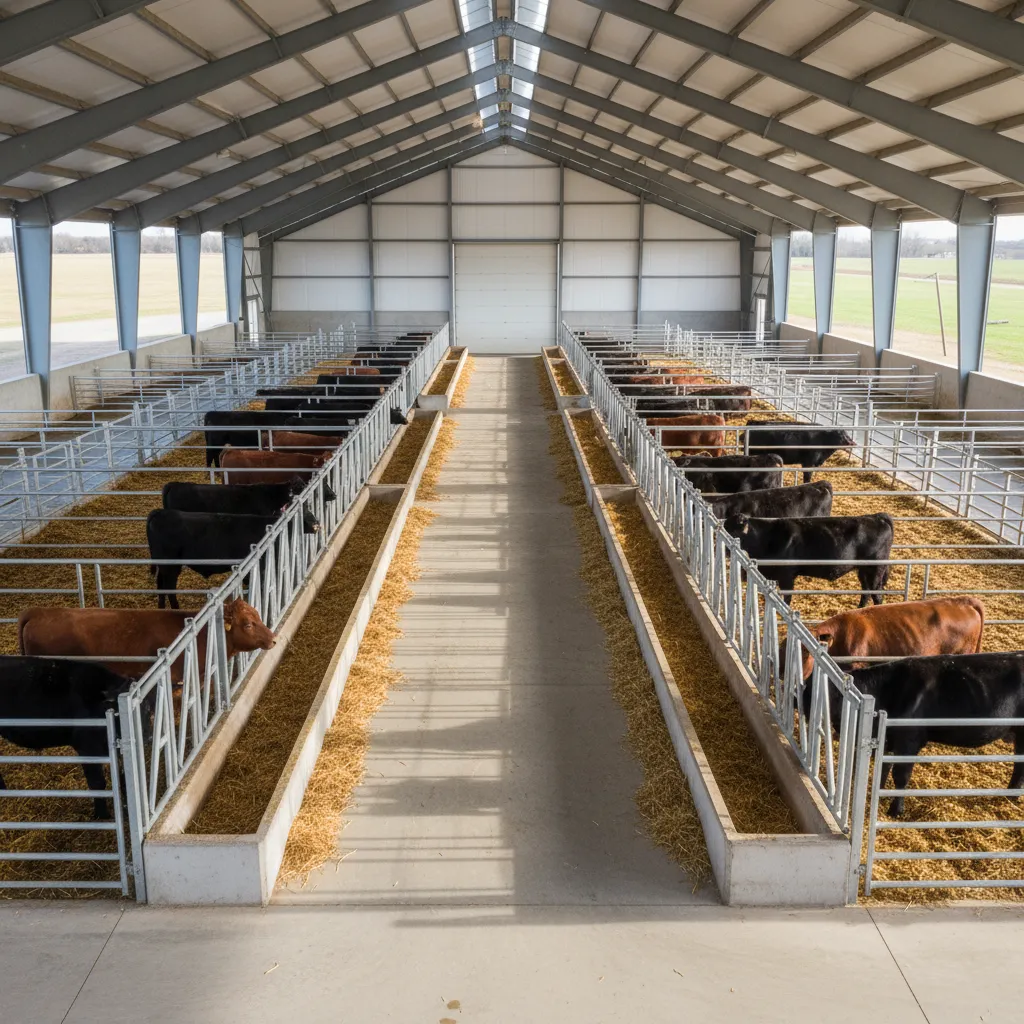

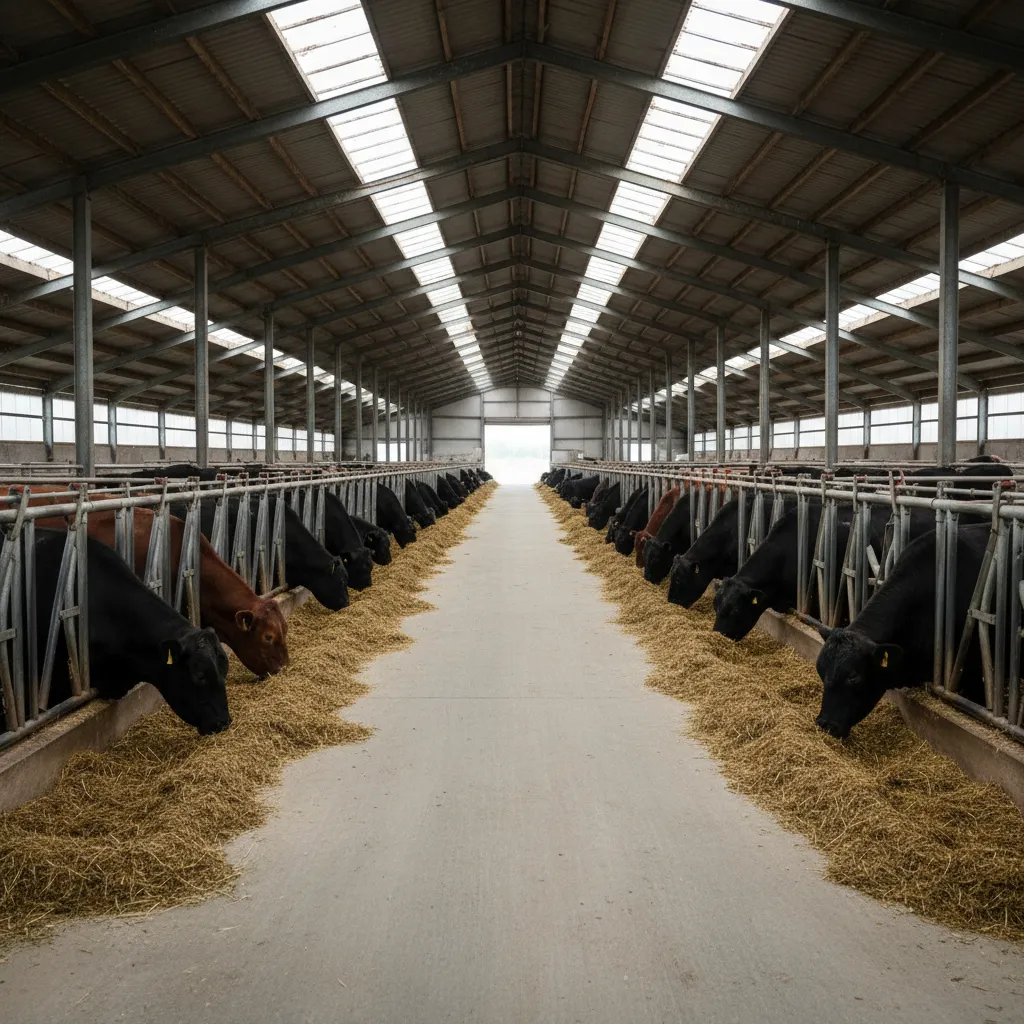

Designing Efficient Feed Alley and Bunk Placement

Key Insight: The feed alley should be the most direct and unobstructed path in the entire barn.

Feed delivery happens every single day, often multiple times. Any unnecessary turn, narrow passage, or obstruction quickly becomes a daily frustration.

In efficient steer barns, the feed alley typically runs the full length of the building with consistent width and minimal cross traffic.

Best Practices for Feed Alley Layout

1. Width: 12–16 feet depending on mixer wagon size
2. Straight travel path from entrance to exit
3. Feed bunks aligned continuously along pen fronts
4. Minimal gate interference near bunks
5. Concrete surfaces with proper drainage slope

A commonly overlooked mistake is placing gates or water lines too close to the bunk line. This forces cattle to bunch up, which slows feeding and increases manure buildup near bunks.

Extension livestock facility guidelines consistently emphasize clear feed access because bunk competition directly affects intake and weight gain.

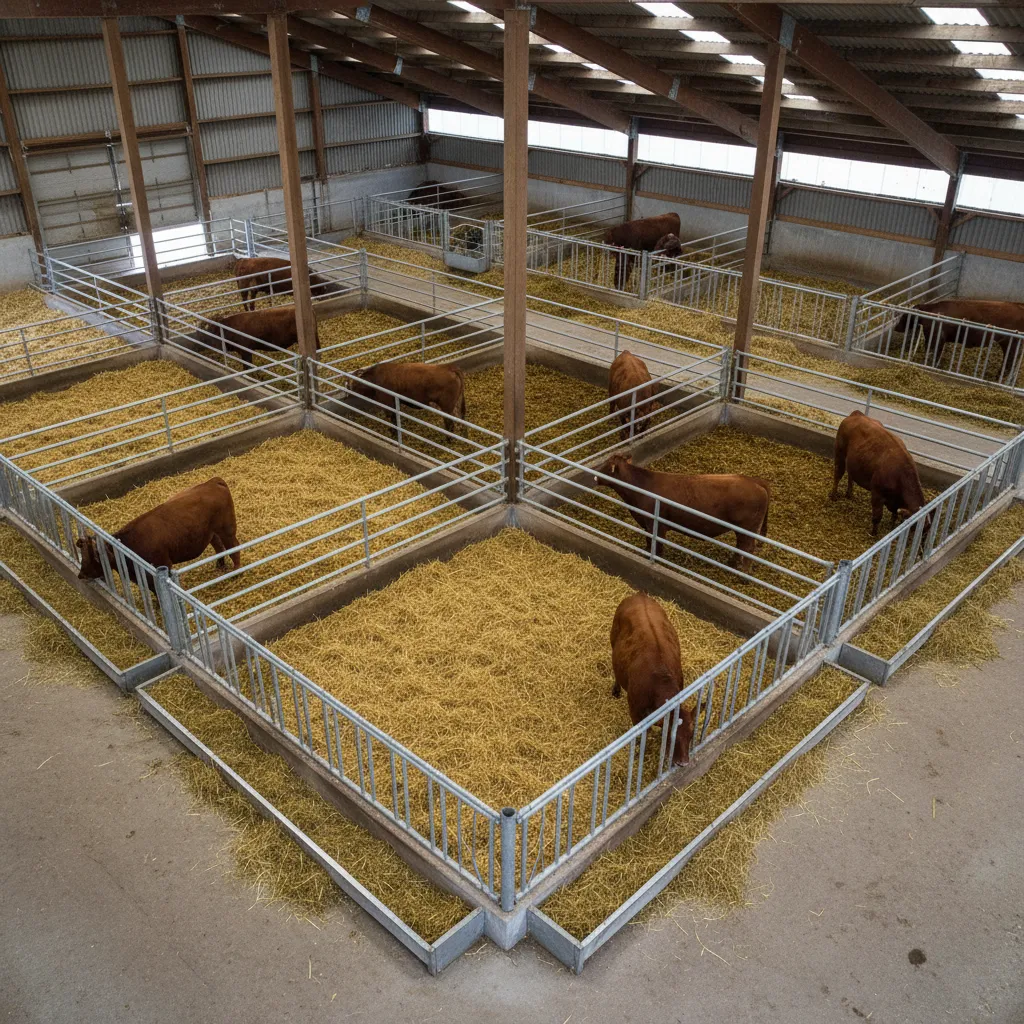

Optimizing Pen Size and Stocking Density

Key Insight: Pen size should match cattle group size and manure management strategy—not just building dimensions.

One mistake I see frequently is oversized pens. While they seem flexible, they often lead to uneven manure distribution and more difficult scraping.

Typical Pen Planning Guidelines

1. 18–22 sq ft per steer in bedded barns
2. 25–30 head per pen for easier management
3. Uniform pen widths for equipment movement
4. Shared water access between pens

Smaller, consistent pen modules also make future expansion easier because the barn layout can simply repeat the same structural pattern.

When planning or adjusting pen spacing, visualizing circulation paths using a 3D building layout planner for large agricultural spacesoften reveals tight corners or underused areas that aren't obvious on paper.

save pin

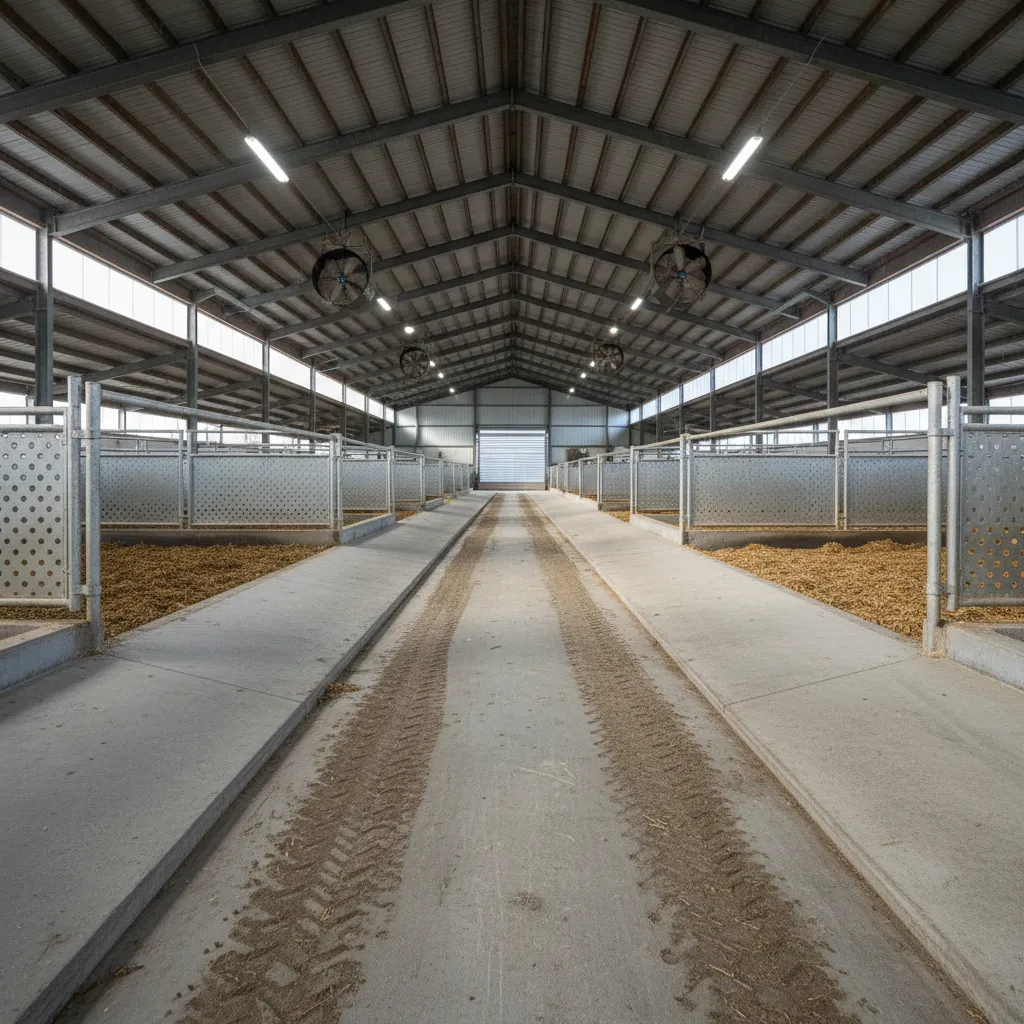

Improving Manure Scraping and Equipment Movement

Key Insight: Efficient manure removal depends more on lane geometry than equipment power.

In many older steer barns, scraping inefficiency comes from awkward turns and dead-end alleys.

The goal is simple: allow tractors or skid steers to move in continuous paths without reversing.

Layout Features That Improve Manure Flow

1. Dedicated manure alleys behind bedding areas
2. Straight push paths toward collection points
3. Corner radii wide enough for equipment
4. Separate equipment entry points

A practical benchmark: if manure removal requires frequent reversing, the layout likely needs improvement.

Bedding Flow and Storage Accessibility

Key Insight: Bedding storage location often determines how consistently pens stay clean.

This is an area many designs overlook. Bedding may technically fit inside a barn but still be inconvenient to distribute.

Efficient Bedding Layout Includes

1. Storage close to bedding areas
2. Wide access doors for loaders
3. Separate path from feed delivery lanes
4. Dry storage areas protected from runoff

When bedding storage is far from pens, operators often delay rebedding. That leads to wetter pens and higher labor later.

save pin

Reducing Labor Time Through Layout Adjustments

Key Insight: Labor savings usually come from eliminating unnecessary movement.

On several projects I've reviewed, barns lost efficiency simply because workers had to cross the building repeatedly during daily routines.

Layout Adjustments That Save Time

1. Centralized water access for multiple pens
2. Gates aligned with equipment paths
3. Direct routes between feed storage and feed alley
4. Clear lines of sight across pens

Even modest changes—such as relocating a gate or widening a service lane—can reduce daily labor by 10–20 minutes.

Winter Efficiency Improvements for Wisconsin Barns

Key Insight: Cold climates amplify small layout problems.

Wisconsin steer barns face unique winter challenges: frozen manure, snow at entrances, and slower equipment movement.

Cold Climate Layout Considerations

1. Wind-protected feed alleys
2. Wide entry points for snow removal
3. Manure lanes with proper drainage slope
4. Interior circulation paths for equipment

Many producers reviewing realistic barn layout visualizations before construction catch winter circulation problems early—especially snow clearance paths.

Small Design Changes That Improve Cattle Performance

Key Insight: Barn layout affects cattle behavior more than many producers realize.

Subtle layout factors influence how comfortably cattle move, eat, and rest.

Often Overlooked Performance Factors

1. Equal bunk access per animal
2. Comfortable bedding depth zones
3. Consistent pen lighting
4. Reduced crowding near waterers

Research from several land‑grant universities has shown that better bunk access and reduced crowding can improve feed efficiency and weight gain consistency.

Answer Box

The most efficient beef steer barn layouts prioritize straight feed alleys, consistent pen modules, and dedicated manure lanes. These three structural choices reduce labor time, improve cattle access to feed, and make daily maintenance far easier.

Final Summary

1. Straight feed alleys significantly reduce daily feeding time.
2. Consistent pen sizes improve cattle management and manure distribution.
3. Dedicated manure lanes make equipment movement smoother.
4. Accessible bedding storage encourages better pen maintenance.
5. Small layout adjustments can deliver major labor savings.

FAQ

What is the best way to optimize beef steer barn layout?

Focus on feed alley access, pen sizing, and manure removal lanes. These three areas have the biggest impact on daily efficiency.

How wide should a feed alley be in a cattle barn?

Most operations use 12–16 feet depending on feed wagon size and traffic flow.

Does barn layout affect cattle performance?

Yes. Poor bunk access or overcrowded pens can reduce feed intake and increase stress.

What pen size works best for beef steer barns?

Pens typically house 25–30 steers with 18–22 square feet per animal in bedded systems.

How can I improve manure flow in a cattle barn layout?

Use straight scraping lanes and avoid tight corners so equipment can move continuously.

Can existing barns be optimized without rebuilding?

Yes. Adjusting gates, bunk placement, or bedding access often improves efficiency significantly.

What causes labor inefficiency in steer barns?

Common causes include narrow alleys, poor gate placement, and long walking distances between tasks.

Is layout planning important for efficient steer housing design in Wisconsin?

Yes. Cold climates make manure management and equipment access more difficult, so layout planning becomes even more important.

References

1. University of Wisconsin Extension – Livestock Facility Planning
2. Midwest Plan Service – Beef Housing and Equipment Handbook
3. Penn State Extension – Beef Cattle Housing Systems
