How to Optimize Building Layout Around Roll-Up Doors: Practical layout strategies to improve traffic flow, loading efficiency, and usable space when designing around roll‑up doors.

Direct Answer

The most effective way to optimize a building layout around roll-up doors is to align door placement with vehicle movement, loading zones, and internal circulation paths. A well-planned layout prevents congestion, reduces travel distance, and keeps loading activities from disrupting interior workflows.

In most industrial and warehouse projects, the door itself is not the challenge—the surrounding space planning determines whether operations run smoothly or constantly bottleneck.

Quick Takeaways

1. Roll-up doors should align with primary vehicle paths, not simply exterior walls.
2. Clear staging zones prevent loading activities from blocking interior circulation.
3. Multiple doors improve workflow only when traffic routes are separated.
4. Poor door placement often creates hidden storage and safety problems.
5. Layout planning matters more than door size in most warehouse operations.

Introduction

In more than a decade of working on warehouses, service garages, and light industrial buildings, I've learned that roll-up doors rarely cause operational problems on their own. The real issue is almost always the surrounding layout.

Many building owners focus heavily on selecting the right door type or size, but far fewer think about how the entire floor plan works around those openings. When the layout is poorly organized, forklifts cross pedestrian paths, loading areas block circulation, and vehicles waste time repositioning.

Designing a layout that truly supports roll-up doors requires thinking about movement first: trucks, equipment, workers, and inventory all need clear paths. Before drawing walls or storage areas, I often start by sketching circulation routes. Tools that allow quick visualization—such as this interactive 3D layout planning workflow for visualizing circulation and door placement—can make these movement patterns much easier to evaluate early in the design process.

In this guide, I'll break down practical strategies I use when optimizing layouts around roll-up doors, including traffic flow planning, loading zone design, and common layout mistakes that quietly reduce efficiency.

save pin

Why Layout Optimization Matters for Roll-Up Door Access

Key Insight: Roll-up doors perform best when the surrounding layout supports uninterrupted movement between exterior access points and interior work zones.

One of the most common mistakes I see in real projects is placing roll-up doors purely based on exterior elevation symmetry or wall spacing. While that may look balanced architecturally, it often ignores how vehicles and equipment actually move.

For example, in a warehouse I consulted on in Southern California, trucks had to reverse into the building and immediately turn around shelving rows. That single design flaw added several minutes to every unloading cycle.

Good layout optimization solves three operational problems:

1. Eliminates bottlenecks during loading and unloading
2. Reduces forklift travel distance
3. Improves safety between pedestrians and machinery

According to guidance from the Material Handling Institute, inefficient facility layouts can increase internal travel distance by more than 30 percent, directly impacting labor productivity.

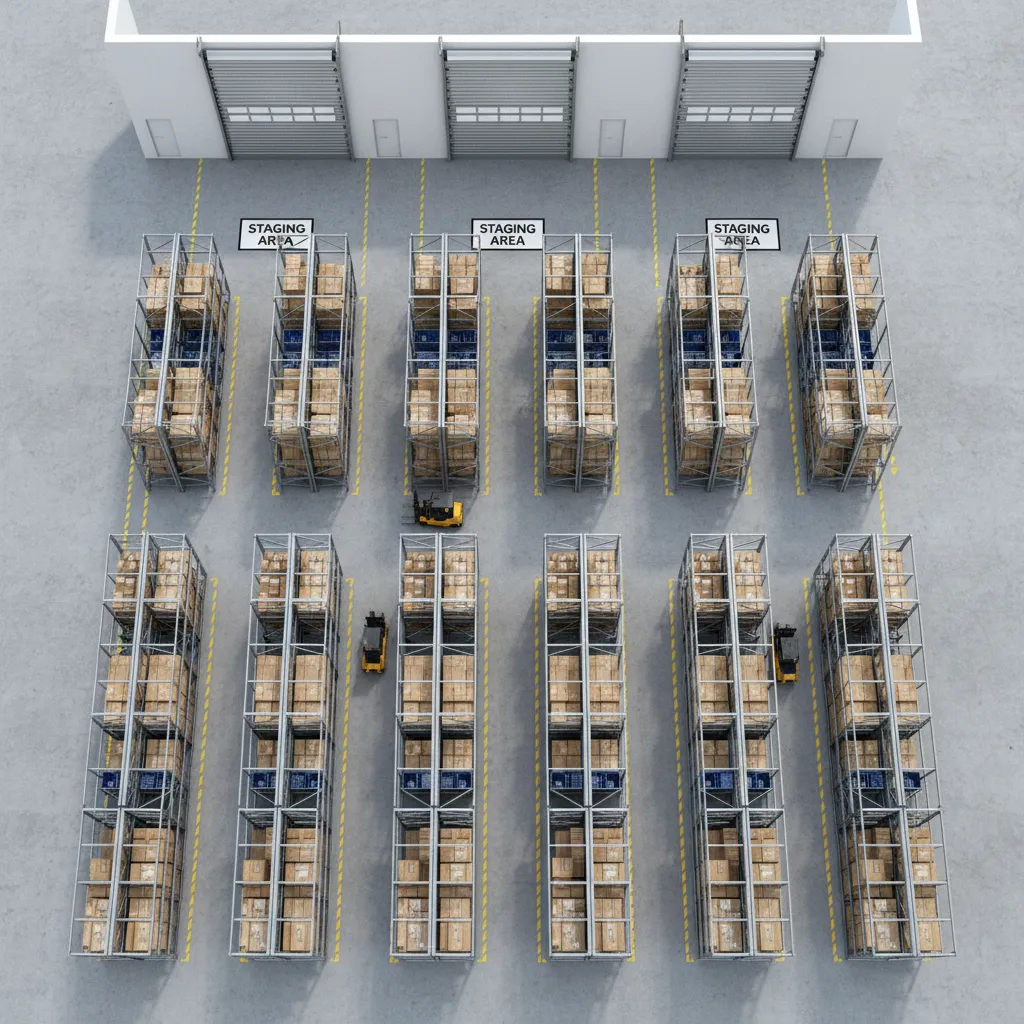

Designing Efficient Vehicle and Equipment Flow

Key Insight: The best roll-up door layouts follow the natural movement of vehicles rather than forcing vehicles to adapt to the building.

When planning industrial buildings, I usually map traffic flow before assigning storage zones or workstations. This helps avoid awkward turns and tight maneuvering spaces.

A reliable method is to design three distinct movement paths:

1. Truck entry and exit routes
2. Forklift circulation paths
3. Pedestrian walkways

Separating these flows reduces both accidents and delays.

Practical design rules I frequently apply include:

1. Maintain at least 12–14 feet clearance for forklift turning zones
2. Keep staging areas directly inside roll-up doors
3. Avoid placing shelving immediately next to door openings
4. Ensure trucks can align straight with the door opening

In large facilities, planning these paths visually using a smart layout generator that maps vehicle movement and circulation pathscan quickly reveal congestion points before construction begins.

save pin

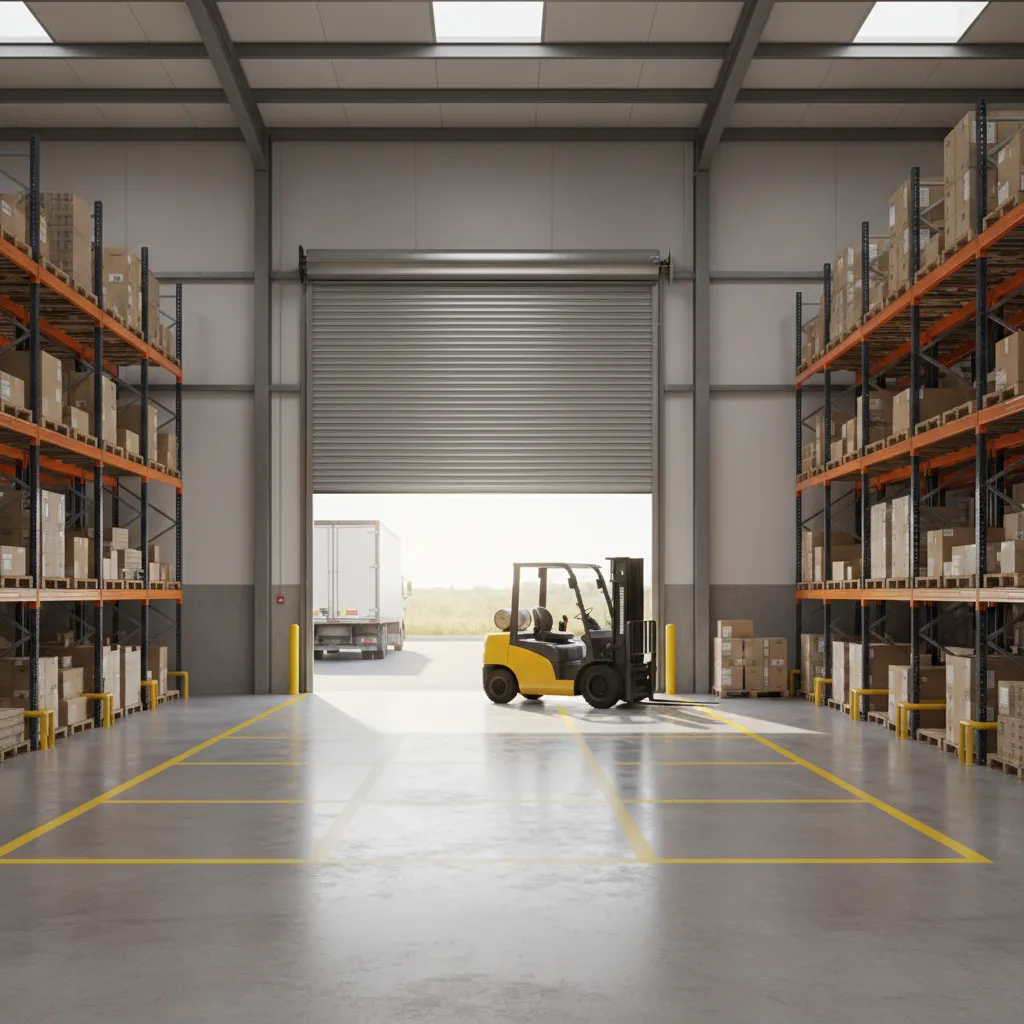

Strategic Door Placement for Loading and Unloading

Key Insight: Door placement should support loading workflow stages—arrival, staging, unloading, and storage.

Efficient loading layouts treat the space near roll-up doors as an operational zone rather than leftover space.

A typical workflow sequence looks like this:

1. Truck arrival
2. Dock alignment
3. Unloading into staging area
4. Transport to storage or production zone

If staging space is too small, materials spill into circulation paths and slow everything down.

In most warehouse projects, I recommend:

1. 20–30 feet of clear depth inside the door for staging
2. Direct forklift access from staging to storage aisles
3. Dedicated inbound and outbound loading areas

This approach dramatically reduces congestion during peak delivery hours.

Maximizing Interior Space Around Roll-Up Doors

Key Insight: The area around roll-up doors often becomes wasted space unless it is intentionally planned for staging, sorting, or short-term storage.

In many facilities, the 20–30 feet directly inside the door becomes an undefined buffer zone. Over time it turns into cluttered temporary storage, which blocks access.

A better strategy is to intentionally assign functional roles to this zone.

Examples include:

1. Pallet staging areas
2. Quality inspection stations
3. Package sorting zones
4. Temporary outbound storage

Clear floor markings and defined zones keep these areas organized and prevent the "door chaos" problem I see in many warehouses.

save pin

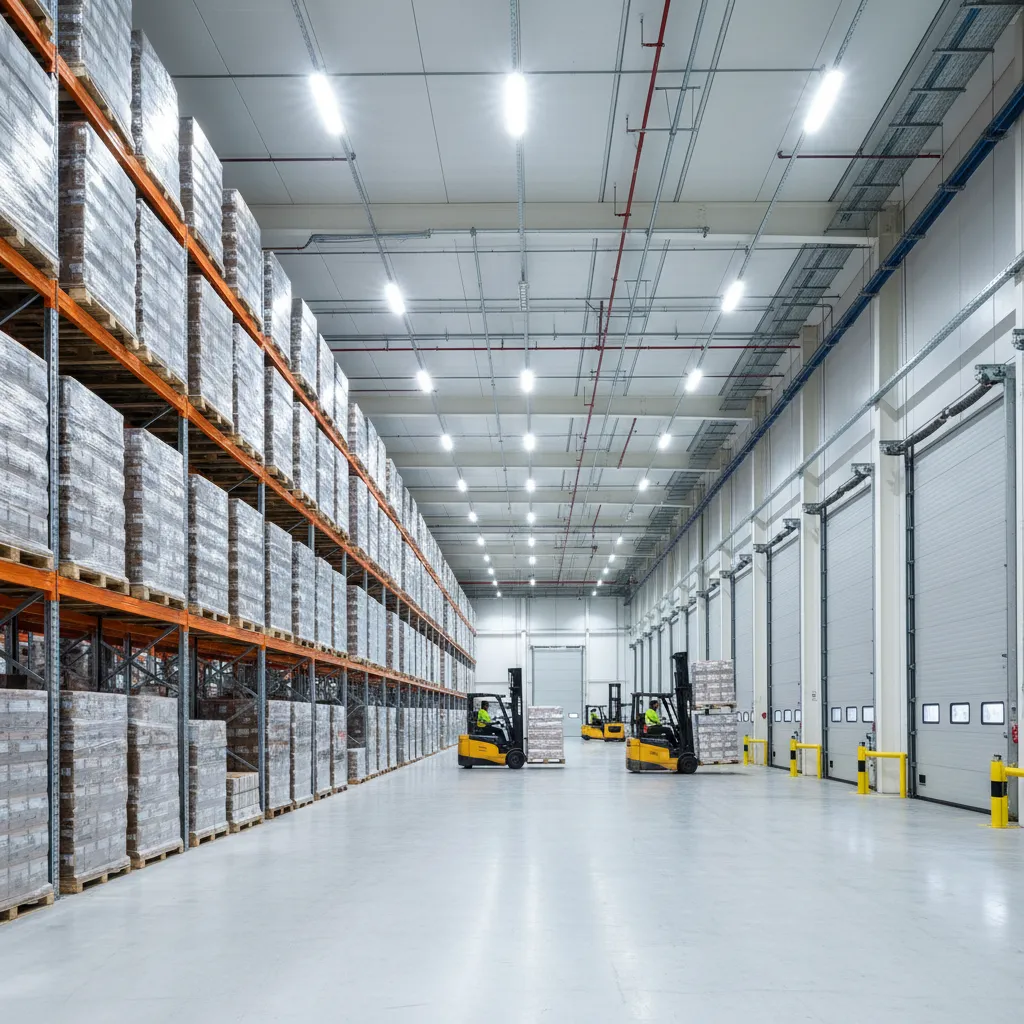

Using Multiple Doors for Workflow Efficiency

Key Insight: Multiple roll-up doors only improve efficiency when they support parallel workflows rather than duplicating the same access point.

Many facility owners assume that adding more doors automatically improves throughput. In practice, poorly planned multiple-door layouts can create traffic conflicts.

Effective multi-door strategies include:

1. Separate inbound and outbound doors
2. Dedicated service doors for maintenance equipment
3. Distinct zones for different product categories
4. Doors aligned with specific storage aisles

When doors are aligned with internal aisle systems, forklifts travel in predictable paths and congestion drops significantly.

Answer Box

The most efficient building layouts around roll-up doors align door placement with traffic flow, include staging space inside each opening, and separate vehicle, equipment, and pedestrian circulation. Layout planning—not door size—is usually the biggest factor affecting operational efficiency.

Layout Optimization Examples for Different Building Sizes

Key Insight: The optimal roll-up door layout changes significantly depending on building size and operational scale.

After working on dozens of facility layouts, I've noticed that each building size category tends to benefit from a different door strategy.

Small Buildings (under 5,000 sq ft)

1. 1–2 roll-up doors
2. Shared staging area
3. Straight forklift path from door to storage

Medium Facilities (5,000–20,000 sq ft)

1. Separate receiving and shipping doors
2. Dedicated staging zones
3. Central circulation aisle

Large Warehouses (20,000+ sq ft)

1. Multiple dock zones
2. Door alignment with storage aisles
3. Separate truck circulation routes

If you're experimenting with different configurations, exploring visual layout examples that test roll-up door positions within a floor plan can help reveal which arrangement minimizes internal travel distance.

Final Summary

1. Door placement should follow vehicle movement patterns.
2. Staging zones prevent congestion near roll-up doors.
3. Multiple doors require separated traffic workflows.
4. Interior circulation planning improves productivity.
5. Efficient layouts reduce forklift travel distance significantly.

FAQ

How much space should be left inside a roll-up door?

Most warehouses benefit from 20–30 feet of interior staging space to allow unloading without blocking circulation paths.

What is the best warehouse layout with rolling doors?

The best warehouse layout with rolling doors aligns doors with truck access routes and internal storage aisles to minimize forklift travel distance.

Can multiple roll-up doors improve workflow?

Yes, but only when each door supports a different workflow, such as inbound receiving and outbound shipping.

How do you optimize a floor plan with roll up doors?

To optimize a floor plan with roll up doors, align doors with traffic flow, add staging areas, and separate pedestrian and equipment routes.

Where should roll-up doors be placed in a warehouse?

They should align with truck maneuvering space outside and major storage aisles inside.

Do roll-up doors affect warehouse efficiency?

Yes. Poor placement increases travel distance and creates congestion during loading operations.

What is traffic flow design around roll up doors?

It refers to planning vehicle, forklift, and pedestrian movement so loading areas do not interfere with daily operations.

How many roll-up doors does a warehouse need?

The number depends on throughput, truck volume, and building size rather than square footage alone.

References

Material Handling Institute – Facility Layout Planning Principles

Warehouse & Distribution Science by John J. Bartholdi III
