How to Optimize Car FBX Models for Real Time Rendering: Practical techniques used by game artists to improve performance of detailed vehicle models in games VR and interactive apps

Direct Answer

To optimize car FBX models for real time rendering, reduce polygon density, compress textures, create LOD levels, simplify materials, and test performance inside the target engine. These steps keep visual fidelity while lowering GPU and memory load, which is critical for games, VR, and interactive applications.

Most performance issues with vehicle assets come from excessive geometry, large textures, and inefficient shaders rather than the car model itself.

Quick Takeaways

1. High poly vehicle meshes often waste triangles in hidden areas like undercarriages and interior parts.
2. Proper LOD chains can cut rendering cost by over 60 percent in large scenes.
3. Texture atlasing reduces draw calls and improves real time performance.
4. Efficient shaders matter as much as polygon count in modern engines.
5. Always test optimization directly in the game engine, not only inside modeling software.

Introduction

Optimizing car FBX models for real time rendering is something I’ve had to do on nearly every interactive project I’ve worked on over the last decade. Vehicle assets look deceptively simple, but once you bring them into Unreal, Unity, or a WebGL viewer, performance problems appear fast.

The typical issue isn’t the main body of the car. It’s everything around it: overly dense wheel geometry, unnecessarily high resolution textures, and material setups that trigger too many draw calls.

I’ve seen beautifully modeled vehicles that ran at 15 FPS in a VR demo simply because the artist exported the high resolution cinematic mesh. With the right optimization workflow, that same asset can run smoothly in real time without looking noticeably worse.

If you're building interactive scenes, understanding how optimized environments and assets are structured also helps. For example, studying how designers create high quality real time 3D visualization scenes for interiorsreveals many of the same performance principles used for vehicles.

In this guide I’ll walk through the practical steps professionals use to optimize car FBX assets for real time engines while maintaining visual quality.

save pin

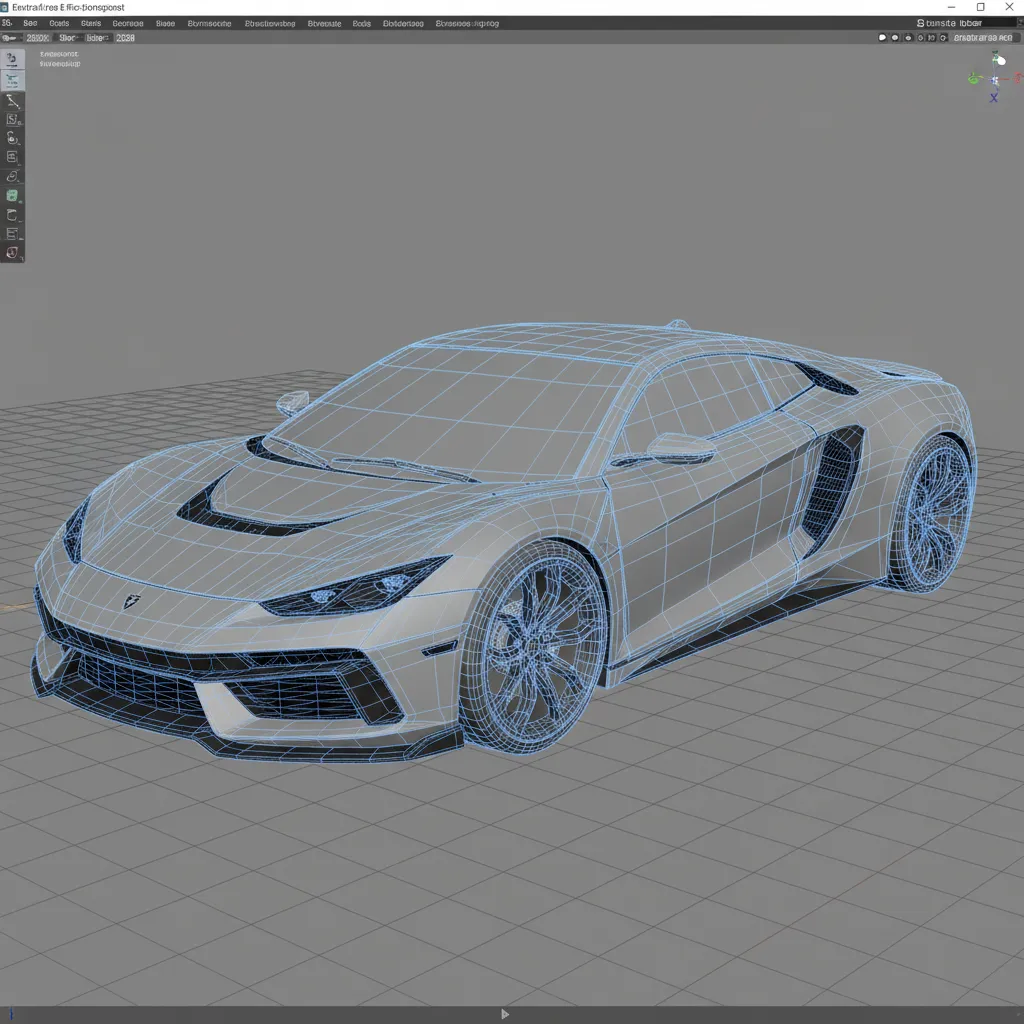

Why Optimization Matters for High Detail Car Models

Key Insight: Even a single high detail car model can dramatically reduce real time performance if its geometry and materials are not optimized.

Vehicle assets are among the most demanding props in interactive environments. They contain complex curves, reflective materials, and detailed components like wheels, brake systems, and interiors.

The hidden problem is triangle concentration. Many car models concentrate tens of thousands of polygons in small areas like rims or grilles where players rarely notice the difference.

In real production environments, performance budgets are strict:

1. Hero vehicle for racing games: 80k–150k triangles
2. Background vehicles: 10k–40k triangles
3. Mobile vehicles: often under 20k triangles

Another overlooked factor is draw calls. If a vehicle uses 15 separate materials, the engine may render the same mesh many times per frame.

Industry best practice is reducing both triangle density and material complexity simultaneously. Many modern pipelines also combine vehicle elements into atlased textures to reduce rendering overhead.

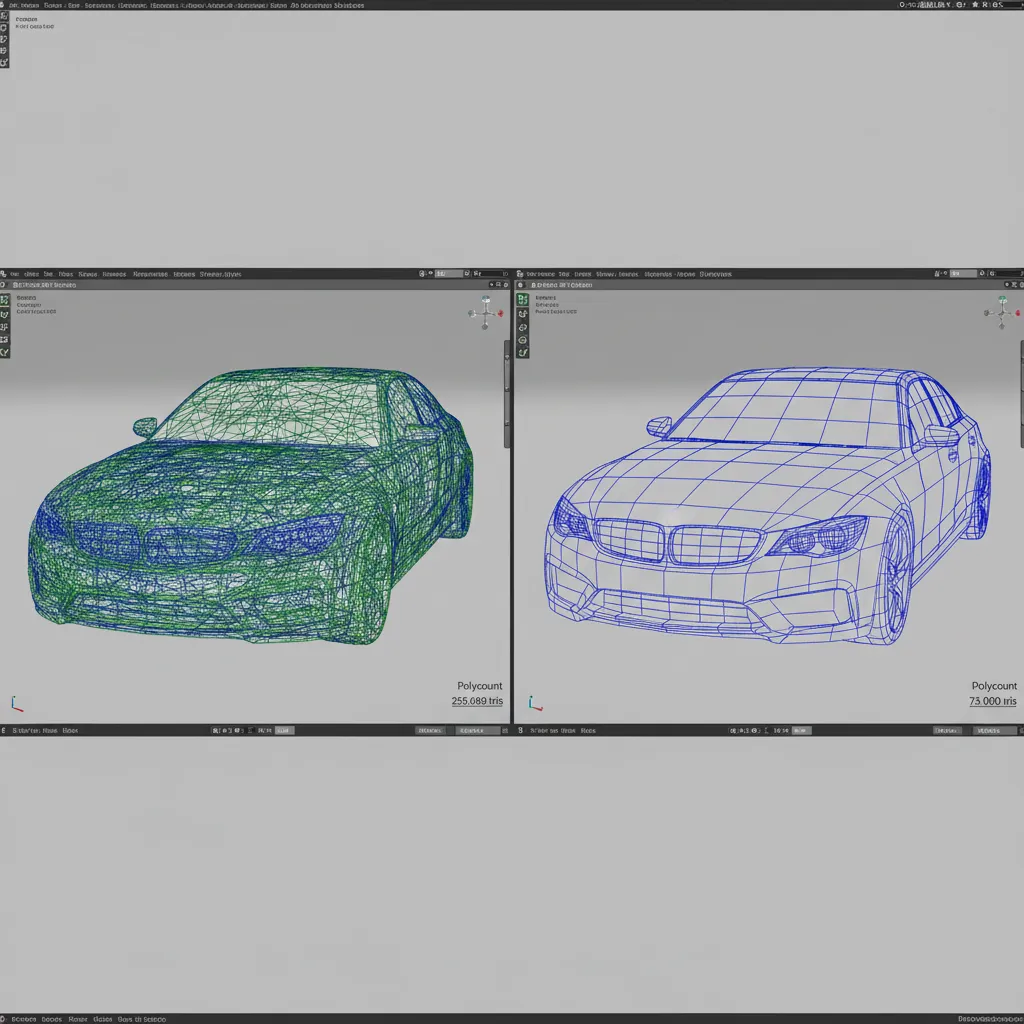

Reducing Polygon Count Without Losing Visual Quality

Key Insight: Smart polygon reduction focuses on invisible geometry first rather than uniformly decimating the entire mesh.

A common mistake is running an automatic decimation tool across the whole car model. This often damages silhouettes while leaving hidden areas untouched.

A better manual optimization process usually looks like this:

1. Remove interior parts that will never be visible.
2. Simplify the underside of the vehicle.
3. Reduce edge loops in flat surfaces like doors and roofs.
4. Replace highly detailed bolts and screws with normal maps.
5. Simplify wheel geometry while preserving the rim silhouette.

From my experience, wheels alone often consume 30–40 percent of the total triangle count in poorly optimized car models.

Another effective approach is baking high resolution details into normal maps. The high poly sculpt provides the visual depth while the in‑game mesh stays lightweight.

save pin

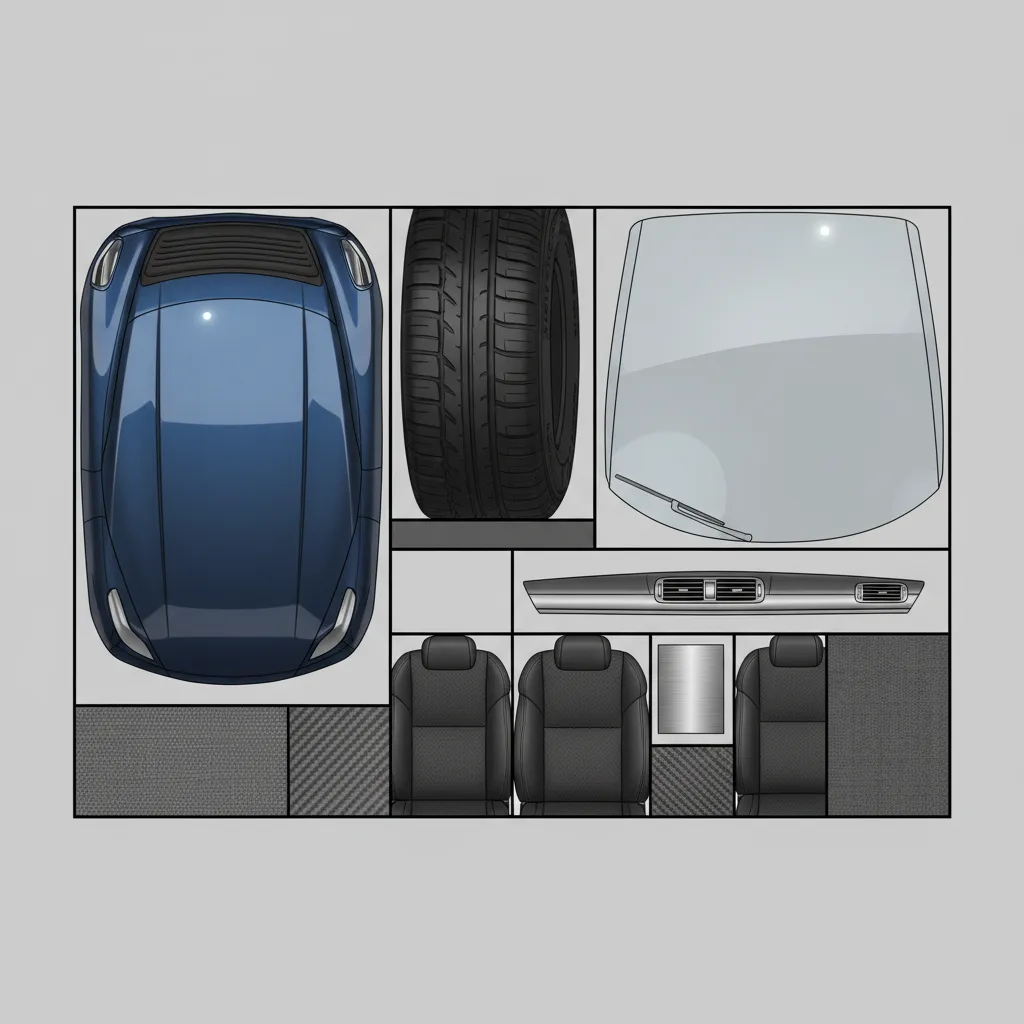

Texture Optimization for Vehicle Materials

Key Insight: Large texture maps are often a bigger performance problem than polygon count in modern rendering engines.

Vehicle models frequently use many 4K textures for paint, glass, tires, and interior materials. While this looks great in static renders, it quickly consumes GPU memory.

Practical texture optimization methods include:

1. Combine multiple materials into a single texture atlas.
2. Reduce less visible textures to 1K or 2K resolution.
3. Use channel packing for roughness, AO, and metallic maps.
4. Reuse tire and glass textures across multiple vehicles.

Many studios now standardize vehicle materials across entire asset libraries to reduce memory usage.

Similar strategies are used when optimizing architectural scenes like those in a professional room layout visualization workflow, where large environments must render smoothly while maintaining realistic materials.

save pin

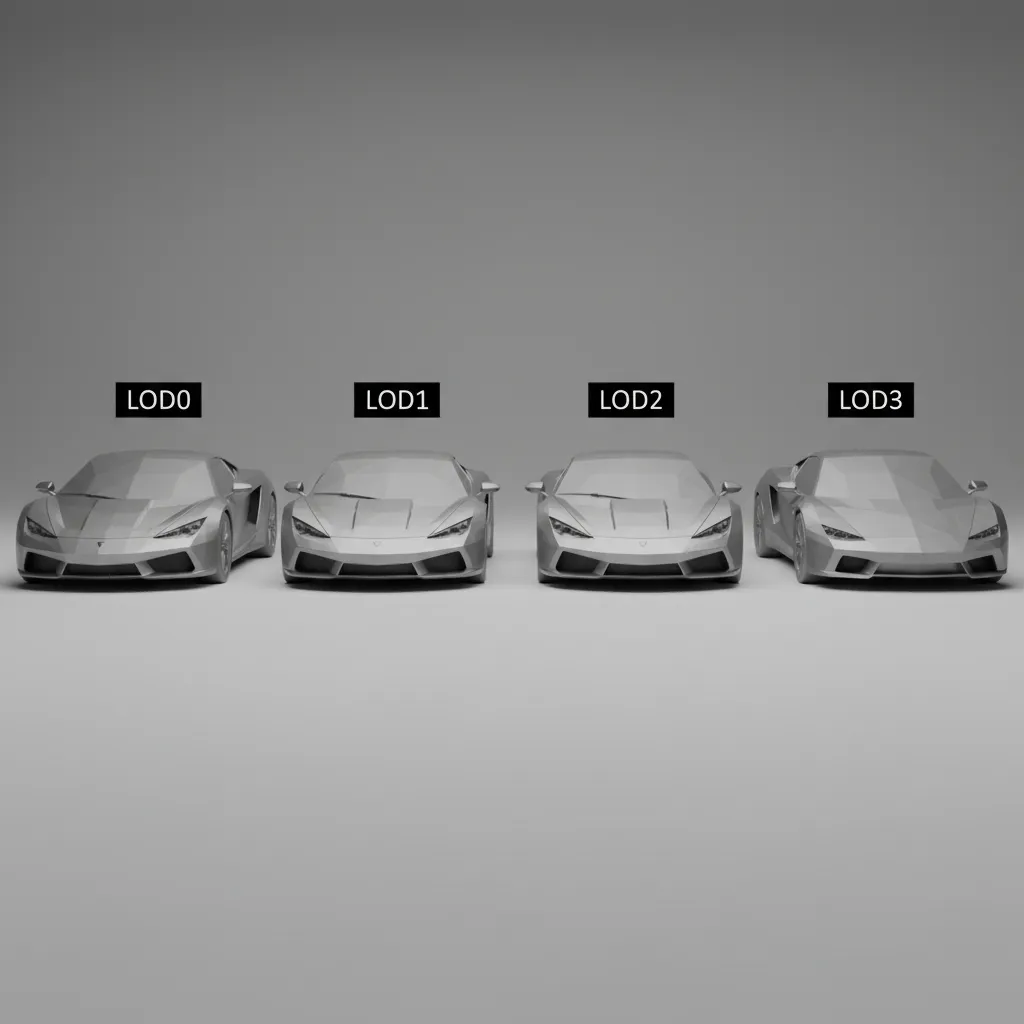

Using LOD Levels for Car Models in Games

Key Insight: Level of Detail systems dramatically reduce rendering cost when multiple vehicles appear in a scene.

LOD models automatically swap lower detail meshes when objects move further from the camera.

A typical vehicle LOD setup might include:

1. LOD0: Full detail hero asset
2. LOD1: 40–60 percent triangle reduction
3. LOD2: Simplified body and wheels
4. LOD3: Very low poly silhouette model

In large scenes like racing games or city environments, LOD systems can reduce GPU load dramatically.

Engines such as Unreal Engine and Unity automatically transition between LOD levels using distance thresholds.

Answer Box

The most effective way to optimize car FBX models for real time rendering is combining three strategies: polygon reduction, texture consolidation, and multi level LOD systems. Together they significantly reduce GPU workload while preserving visual fidelity.

Efficient Shader and Material Setup

Key Insight: A poorly configured shader can negate all geometry optimizations.

Car paint materials are visually complex. Metallic flakes, reflections, and clear coat layers can easily create expensive shader setups.

Efficient material practices include:

1. Use a shared master vehicle shader.
2. Avoid multiple transparency layers.
3. Limit real time reflections where possible.
4. Use reflection probes instead of planar reflections.

Many real time pipelines also reuse shader setups across multiple assets to maintain consistency and performance.

Testing Performance in Real Time Engines

Key Insight: Optimization decisions should always be validated inside the target engine, not only in modeling software.

Artists often rely on viewport statistics inside Blender, Maya, or 3ds Max. But real performance depends on the game engine’s rendering pipeline.

When testing a car model in engine:

1. Check triangle count and draw calls.
2. Monitor GPU frame time.
3. Test scenes with multiple vehicles.
4. Inspect texture memory usage.

Studying optimized real time scenes such as those built with a browser based 3D layout visualization pipelinealso reveals how professional tools balance detail and performance.

save pin

Final Summary

1. Car FBX optimization focuses on geometry, textures, materials, and LOD systems.
2. Hidden geometry and wheel meshes are the biggest polygon waste.
3. Texture atlases and channel packing reduce GPU memory usage.
4. LOD chains are essential when multiple vehicles appear in a scene.
5. Always validate performance inside the real time engine.

FAQ

How do I optimize a car FBX model for games?

Reduce polygon density, simplify materials, compress textures, and create multiple LOD versions before importing into the game engine.

What polygon count should a game ready car model have?

Hero cars often range from 80k to 150k triangles, while background vehicles typically stay under 40k triangles.

Do textures affect performance more than polygons?

Often yes. Large textures consume GPU memory and increase loading times, which can impact performance significantly.

What is LOD optimization for car models?

LOD optimization creates multiple simplified versions of a vehicle mesh that appear at different viewing distances.

Can I automatically reduce polygons on a vehicle model?

Yes, but manual cleanup usually produces better results because you can protect the silhouette while removing hidden geometry.

Why do wheels often have too many polygons?

Rims and brake components are highly detailed, and artists often model them for close up renders rather than real time engines.

How can I improve performance of 3D vehicle models in Unity or Unreal?

Use optimized FBX meshes, reduce materials, compress textures, and implement proper LOD chains.

What is the best texture resolution for a real time car model?

2K textures usually provide a good balance between quality and performance, with 4K reserved for hero assets.
