How to Optimize Cement Ventilator 3D Models for Faster Rendering: Practical techniques to reduce polygon load and speed up architectural visualization without losing design detail

Direct Answer

To optimize a cement ventilator 3D model for faster rendering, reduce unnecessary polygons, use instancing for repeated blocks, simplify materials, and export using efficient mesh and texture settings. These steps lower scene complexity while preserving visual detail, which significantly improves render performance in architectural visualization workflows.

Quick Takeaways

1. Most cement ventilator models contain far more polygons than needed for architectural scenes.
2. Instancing repeated blocks can reduce memory usage dramatically.
3. Simplified materials often improve render speed more than geometry reduction.
4. Clean export settings prevent hidden mesh errors that slow down rendering engines.
5. Optimized vent block models keep scenes responsive even in large building projects.

Introduction

In real-world visualization projects, a poorly optimized cement ventilator 3D model can slow down an entire scene. I learned this the hard way years ago while rendering a courtyard housing project packed with decorative vent blocks. The pattern looked beautiful—but the scene became painfully slow once dozens of walls used the same detailed model.

After working on many architectural renders, I realized that ventilator blocks are one of the most commonly overbuilt assets in 3D libraries. Designers often model every groove and edge even though most of that detail disappears in normal viewing distances.

Today, my workflow focuses on balancing visual accuracy and render efficiency. When I prepare ventilation block assets for projects—especially large facades—I apply the same optimization rules used in large-scale architectural scenes like those created in a professional workflow for planning building layouts in 3D. The result is dramatically faster rendering without sacrificing the architectural character of the blocks.

In this guide, I’ll walk through the exact methods I use to optimize vent block assets so they render faster, stay lightweight, and remain flexible for large architectural scenes.

save pin

Why Optimization Matters for Architectural 3D Assets

Key Insight: Architectural scenes fail to render efficiently not because of one heavy model, but because repeated assets multiply their polygon cost.

Vent blocks are rarely used once. They are typically arranged in grids—sometimes hundreds of instances across a wall. If a single cement ventilator contains 20,000 polygons, a wall of 150 units suddenly becomes a multi‑million polygon object.

In my experience, this is where render slowdowns usually originate.

Typical impact of heavy assets in visualization scenes:

1. Viewport lag during modeling
2. Longer render preparation times
3. Higher GPU memory consumption
4. Crashes in complex scenes

Visualization artists working on large environments—especially those producing photorealistic output such as a high quality architectural render for residential projects—must treat every repeated object as a performance multiplier.

The rule I use: if an asset will appear more than 20 times in a scene, it must be optimized before final rendering.

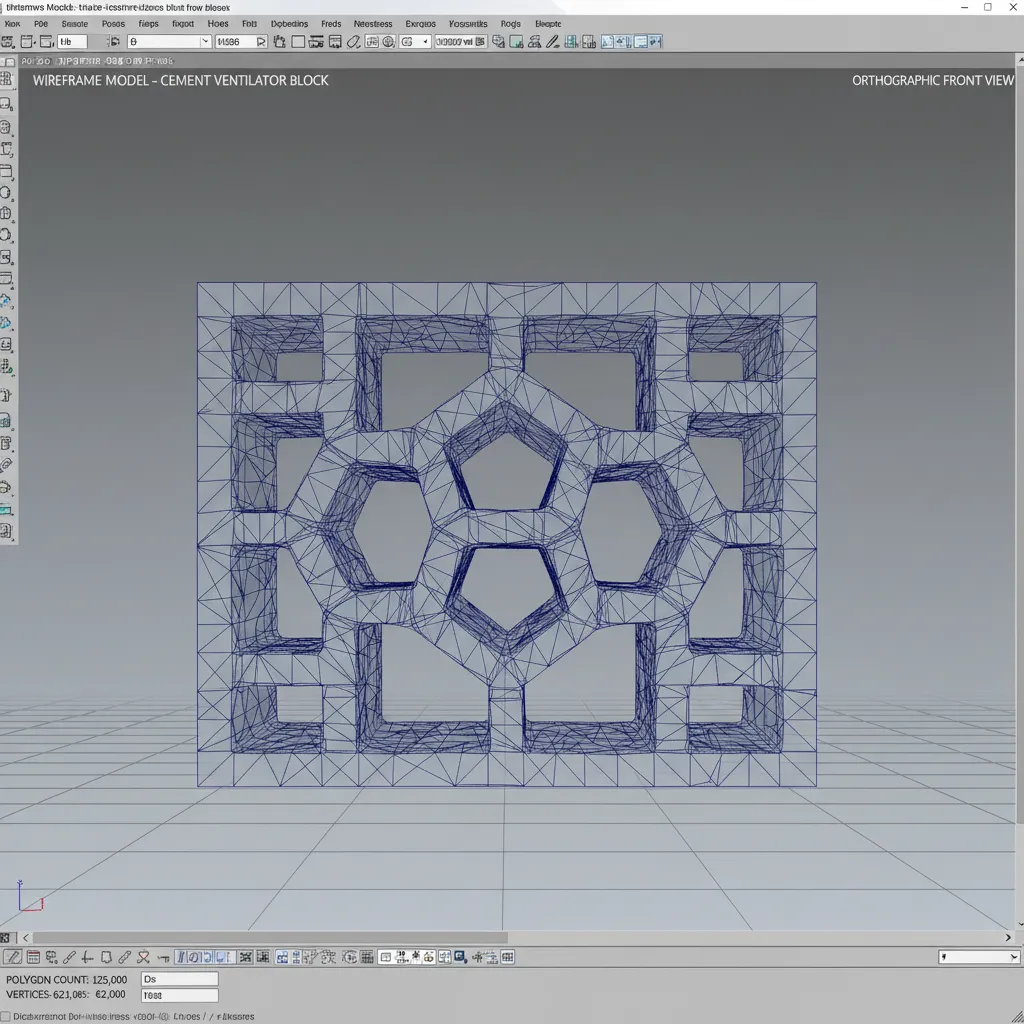

Typical Geometry Complexity of Cement Ventilator Models

Key Insight: Many vent block models are unnecessarily dense because they are modeled for manufacturing accuracy rather than visualization efficiency.

Most downloaded models include excessive bevels, internal faces, and curved segments that add little visible benefit in rendering.

Common sources of unnecessary geometry:

1. Over‑subdivided curves
2. Hidden interior faces
3. Multiple bevel modifiers stacked together
4. Dense mesh imported from CAD conversions

In several projects I audited, I found vent block models containing over 40,000 polygons even though the visual difference from a 3,000‑polygon version was almost impossible to notice in final renders.

Architectural visualization focuses on perceived detail rather than manufacturing precision. That difference alone allows massive optimization.

save pin

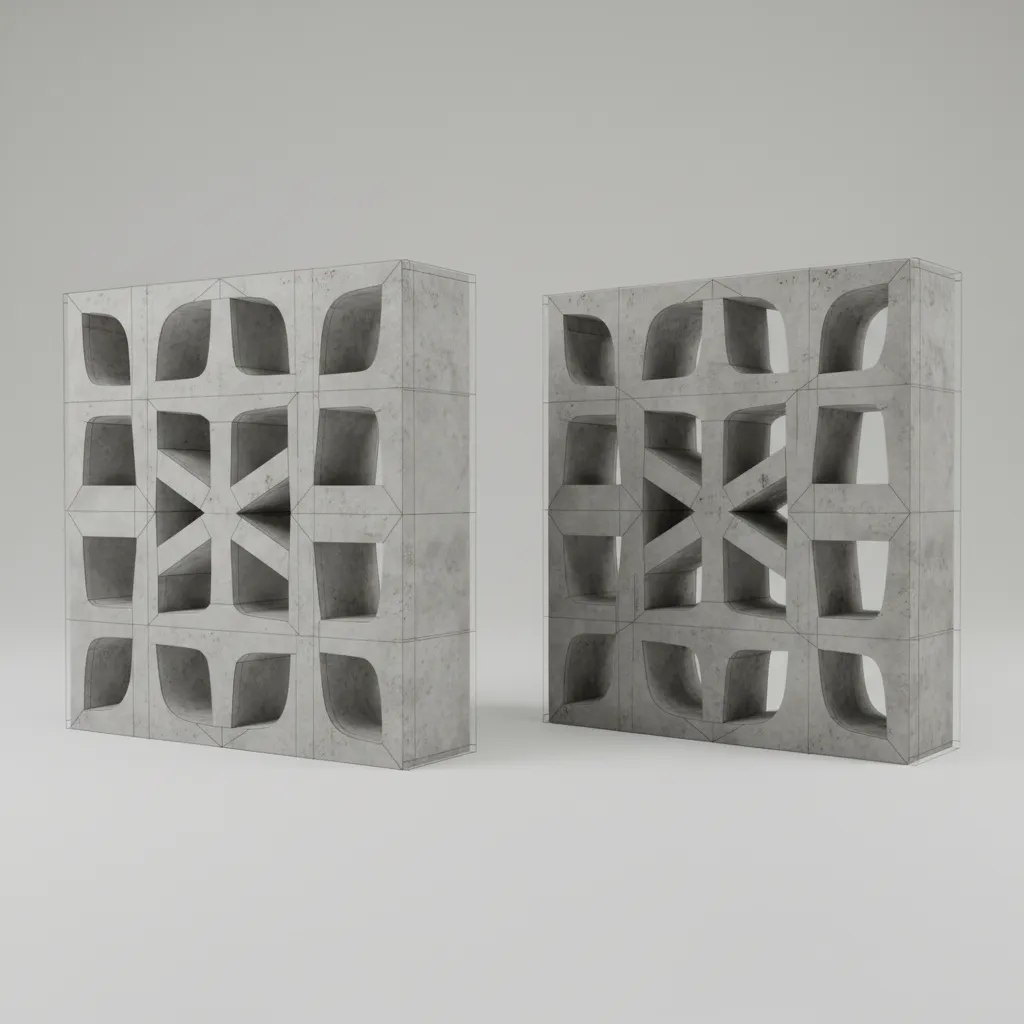

Reducing Polygon Count Without Losing Detail

Key Insight: Strategic simplification—rather than aggressive decimation—preserves the visual identity of a vent block while dramatically lowering polygon counts.

I typically reduce polygon counts using a structured workflow rather than relying purely on automatic decimation tools.

Step-by-step reduction process:

1. Delete interior or hidden faces.
2. Reduce curve segment counts on circular openings.
3. Collapse unnecessary edge loops.
4. Replace beveled edges with normal maps when possible.
5. Apply a controlled decimation modifier (10–30%).

This process often reduces polygon counts by 70–85% without affecting the visible silhouette.

One overlooked trick is baking surface detail into normal maps. Small grooves or concrete textures rarely need full geometry.

save pin

Using Instancing and Modular Placement

Key Insight: Instancing identical ventilator blocks allows hundreds of elements to behave like a single object in memory.

This is one of the most powerful optimization methods in architectural modeling.

Instead of duplicating geometry, instanced objects reference the same mesh data. Rendering engines only store the geometry once.

Benefits of instancing vent block models:

1. Lower RAM usage
2. Faster viewport interaction
3. Smaller project files
4. Faster render preparation

For example, a ventilated wall with 200 blocks can behave like a single asset if instancing is used correctly.

In large architectural environments—especially when coordinating layouts similar to those planned with a smart workflow for generating interior design layouts—instancing becomes essential for maintaining smooth performance.

save pin

Texture and Material Optimization Techniques

Key Insight: Material complexity can slow renders as much as polygon count.

Many designers focus only on geometry optimization, but complex shaders and oversized textures can easily become a performance bottleneck.

Material optimization checklist:

1. Use 1K or 2K textures instead of 4K when blocks appear far from camera
2. Combine roughness and AO maps where possible
3. Use tileable concrete textures
4. Avoid layered procedural materials unless necessary

Concrete ventilator blocks usually share similar materials across the entire structure. That consistency makes texture atlasing extremely effective.

Export Settings for Rendering Engines

Key Insight: Incorrect export settings often reintroduce complexity even after careful optimization.

Before importing optimized assets into rendering engines like V‑Ray, Unreal, or real‑time visualization tools, export settings must be configured carefully.

Recommended export settings:

1. Apply mesh modifiers before export
2. Triangulate meshes only if required
3. Remove unused materials
4. Embed textures when transferring projects
5. Use FBX or glTF for compatibility

Many performance problems I troubleshoot come from hidden mesh errors created during export. Cleaning geometry before exporting avoids these issues.

Answer Box

Optimizing a cement ventilator 3D model requires reducing unnecessary polygons, using instanced placement for repeating blocks, simplifying materials, and exporting clean geometry. These steps significantly improve rendering speed in architectural visualization scenes.

Final Summary

1. Vent block models become heavy because they are repeated many times.
2. Polygon reduction of 70–80% is often possible without visual loss.
3. Instancing dramatically reduces memory consumption.
4. Simpler materials frequently improve render performance.
5. Clean export settings prevent hidden geometry issues.

FAQ

What is the ideal polygon count for a cement ventilator 3D model?

For most architectural renders, 1,500–4,000 polygons per block is sufficient while maintaining good visual quality.

How do I optimize cement ventilator 3D model geometry?

Delete hidden faces, reduce curve segments, collapse edge loops, and use controlled decimation. This keeps the silhouette while lowering polygon counts.

Does polygon reduction affect rendering quality?

If silhouette edges remain intact, viewers rarely notice the difference in architectural scenes.

Should vent block models use high resolution textures?

Only when the camera is very close. Otherwise 1K–2K textures are usually enough.

Why do repeated models slow down rendering?

Each duplicate adds geometry and memory usage. Instancing solves this by referencing a single mesh.

Can a low poly cement ventilator 3D model still look realistic?

Yes. With proper materials, lighting, and normal maps, low‑poly assets can look identical in most architectural renders.

Which file format is best for exporting optimized models?

FBX and glTF are widely supported and maintain geometry and material consistency.

How can I improve render speed with vent block models?

Reduce polygons, instance repeated elements, optimize textures, and clean export settings before importing to the rendering engine.
