How to Optimize Chess Floor Layout Accuracy During Installation: Practical layout, measuring, and alignment techniques installers use to achieve perfectly symmetrical checkerboard floors.

Direct Answer

To optimize chess floor layout accuracy during installation, start from the room's true centerline, create a precise grid layout, and continuously verify tile rotation and spacing before adhesive sets. Professional installers rely on laser lines, dry‑layout checks, and reference grids to prevent small alignment errors from spreading across the entire checkerboard pattern.

Quick Takeaways

1. Always establish a verified centerline before placing the first tile.
2. A full grid layout prevents pattern drift across large rooms.
3. Dry‑lay at least two full rows to detect spacing errors early.
4. Laser guides and tile spacers dramatically improve checkerboard symmetry.
5. Inspect diagonals and rotation before adhesive fully cures.

Introduction

Checkerboard flooring looks simple until you install it. A chess floor layout depends on perfect symmetry, and even a two‑millimeter drift can become visually obvious after ten rows of tiles.

After working on dozens of residential and commercial interiors, I’ve noticed the same pattern: most layout mistakes don’t come from bad tile work. They come from rushed planning. Installers jump into tile placement before verifying the centerline or grid structure.

If you're trying to optimize checkerboard floor layout, the real work happens before the first tile touches adhesive. Proper measurement, layout mapping, and inspection steps prevent the classic issues—misaligned diagonals, drifting patterns, and uneven borders.

For installers who want to visualize alignment before committing to the layout, many teams now preview tile grids using a 3D layout preview for patterned flooring planning. It’s not a replacement for real measurement, but it helps confirm proportions and border spacing early.

Below are the installation practices experienced contractors use to maintain precise checkerboard alignment from the first tile to the final inspection.

save pin

Why Layout Planning Is Critical for Chess Floors

Key Insight: Chess floors magnify alignment errors because every tile edge becomes a visual reference line.

Unlike random tile patterns, checkerboard flooring creates a strong geometric grid. That grid means every tile reinforces the pattern—or exposes mistakes.

In real projects, three layout problems appear most often:

1. Pattern drifting toward one wall
2. Uneven border cuts along room edges
3. Diagonal misalignment across large spaces

The root cause is almost always poor starting alignment.

Professional installers typically follow this planning checklist:

1. Measure room width and length from multiple wall points
2. Identify the visual center rather than the structural center
3. Check wall squareness using diagonal measurements
4. Map border tile widths before installation

Industry guidelines from the Tile Council of North America consistently recommend establishing control lines before installing patterned floors, especially geometric layouts like checkerboards.

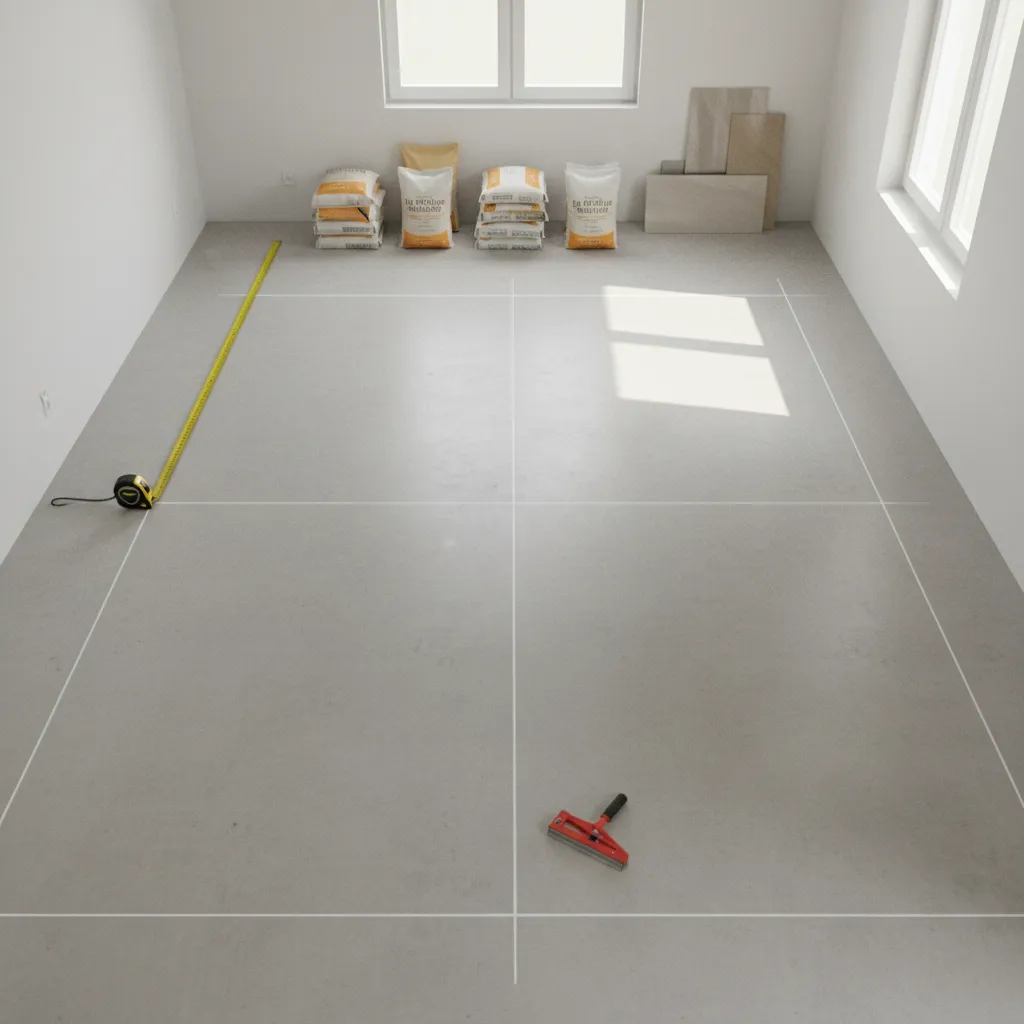

Measuring and Marking the Centerline Correctly

Key Insight: A precise centerline ensures the checkerboard pattern expands evenly toward all walls.

The biggest misconception is assuming the center of the room is obvious. In reality, walls are often slightly out of square, which can distort the pattern.

Installers usually follow this centerline process:

1. Measure the room width at three separate points.
2. Mark the midpoint of each measurement.
3. Snap a chalk line connecting the averaged midpoint.
4. Repeat for the perpendicular axis.

The intersection becomes the layout origin.

Two additional verification steps help avoid layout drift:

1. Measure diagonals to confirm the grid is square
2. Dry‑lay four tiles around the center intersection

If those four tiles don't align perfectly, the centerline needs adjustment before continuing.

save pin

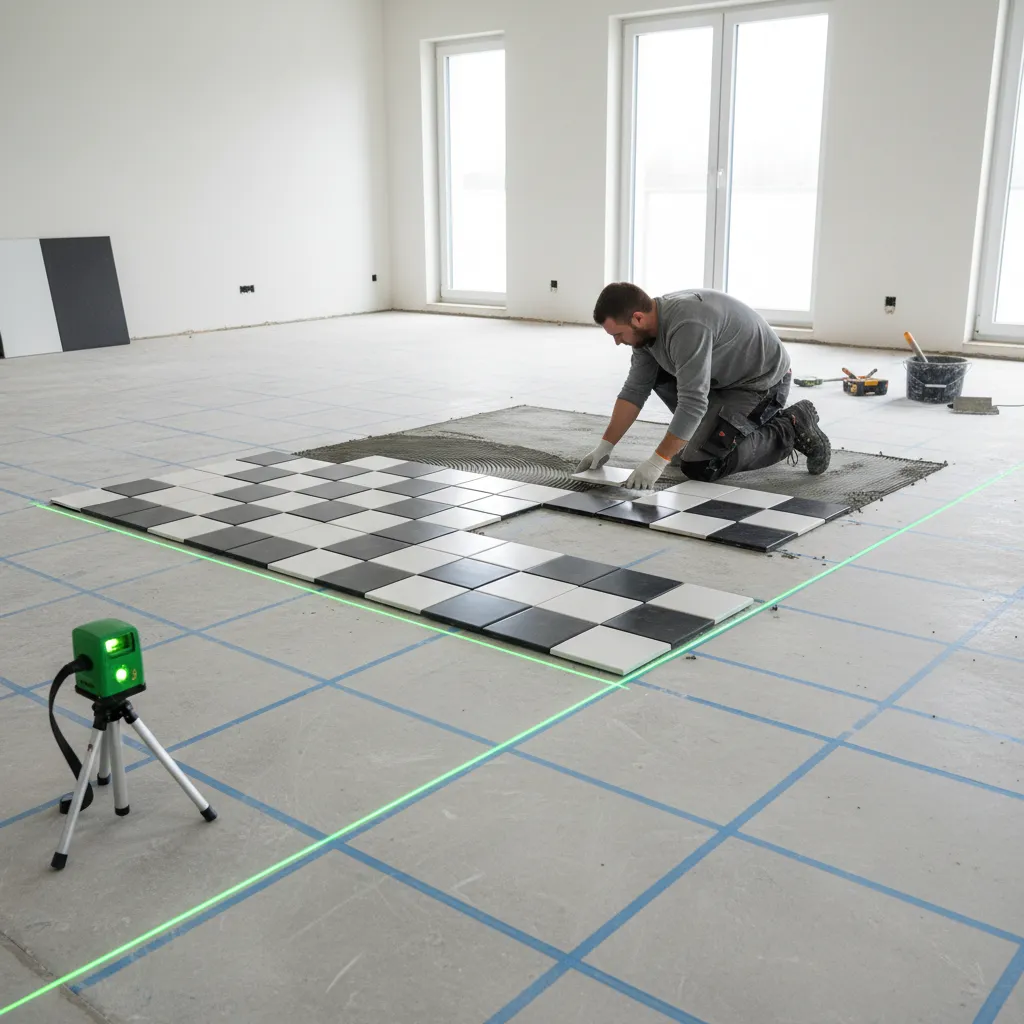

Grid Layout Techniques for Perfect Checkerboard Alignment

Key Insight: A chalk‑line grid prevents cumulative tile alignment errors across large floors.

For rooms larger than 150 square feet, experienced installers rarely rely on simple row‑by‑row placement. Instead, they divide the space into grid squares that match tile dimensions.

Example grid method:

1. Tile size: 12 in × 12 in
2. Grid spacing: 24 in (two tiles)
3. Chalk lines snapped every 24 inches

This grid creates placement checkpoints throughout the room. If a tile edge begins drifting from the grid line, the installer corrects it immediately instead of discovering the problem several rows later.

Design teams often preview these grids digitally before installation using a floor layout planner for testing tile symmetry, which helps predict border cuts and tile balance along walls.

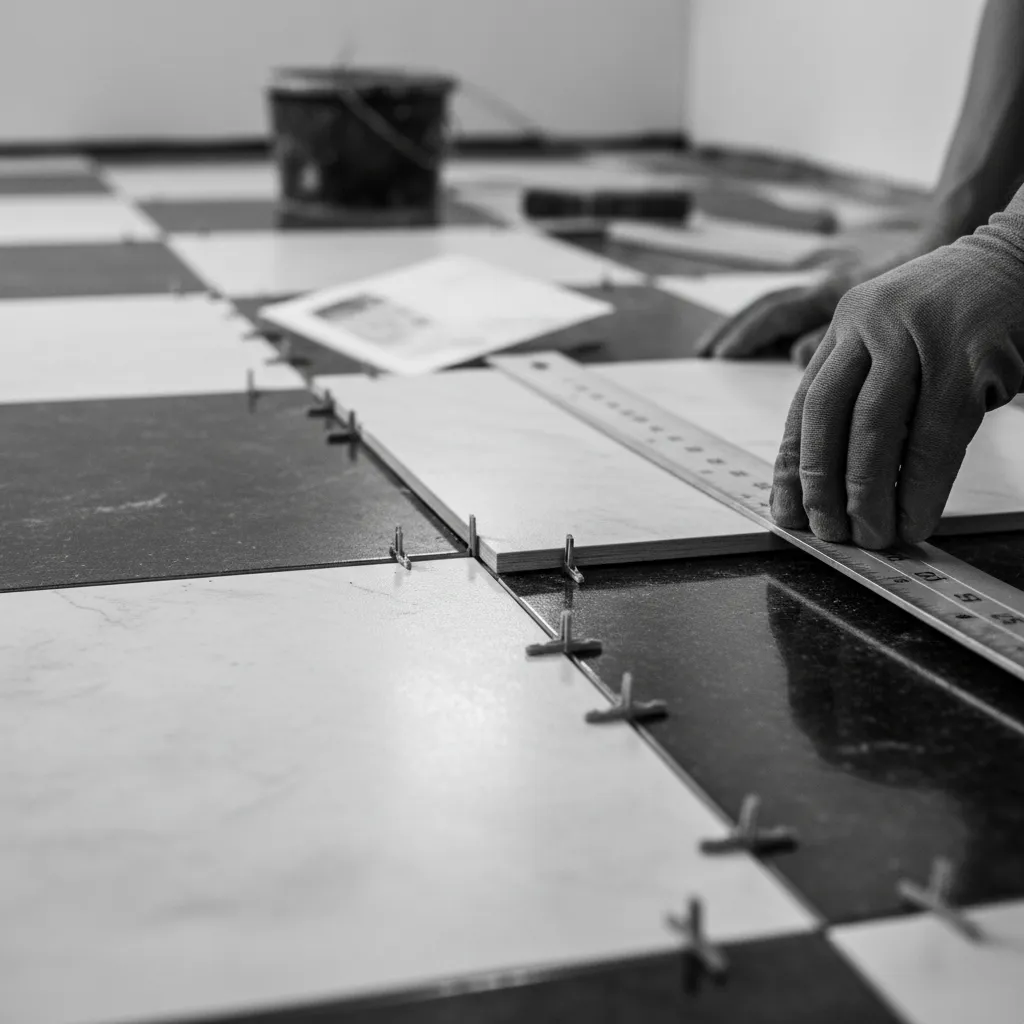

Spacing and Tile Rotation Accuracy

Key Insight: Even perfectly measured layouts fail if tile rotation or joint spacing is inconsistent.

Checkerboard floors depend on sharp alignment between alternating tiles. Slight rotation errors can create zig‑zag edges that become noticeable across the room.

Common accuracy practices include:

1. Use rigid spacers instead of flexible wedges
2. Check tile edges with a straightedge every two rows
3. Rotate tiles so edges follow chalk grid lines exactly

A subtle but important detail: installers often rotate tiles slightly during placement to compensate for manufacturing tolerances. Natural stone tiles especially can vary by 1–2 mm.

Without periodic alignment checks, these tolerances accumulate and distort the pattern.

save pin

Tools That Improve Pattern Precision

Key Insight: Precision tools dramatically reduce human error when aligning checkerboard floors.

Modern tile installation relies on several tools that improve accuracy and consistency.

Most useful tools include:

1. Laser level for long straight layout lines
2. Tile spacers for consistent joints
3. Large framing square for right‑angle verification
4. Chalk line reel for grid layout
5. Long aluminum straightedge

On larger commercial floors, installers sometimes combine laser projection with digital layout previews like a visual planning system for precise tile placement to ensure the grid translates accurately into the physical space.

Answer Box

The most reliable way to maintain accurate chess floor tile alignment is to establish verified centerlines, build a chalk‑line grid that matches tile dimensions, and continuously inspect rotation and spacing. Precision tools and dry‑layout checks prevent small installation errors from spreading across the checkerboard pattern.

Final Inspection Steps Before Adhesive Sets

Key Insight: The last inspection window before adhesive cures is the final opportunity to correct pattern drift.

Professional installers typically pause after several rows to verify the pattern before the adhesive begins setting.

Final inspection checklist:

1. Check diagonal alignment across the room
2. Confirm grid lines still match tile edges
3. Inspect alternating color alignment
4. Verify border tile width consistency

A useful trick is stepping back 10–15 feet from the floor. The human eye detects pattern drift more easily from a distance than when working close to the tiles.

Final Summary

1. Accurate centerlines determine the entire checkerboard layout.
2. Grid layouts prevent cumulative tile alignment errors.
3. Consistent spacing and tile rotation maintain visual symmetry.
4. Precision tools significantly improve checkerboard accuracy.
5. Early inspection prevents costly layout corrections later.

FAQ

1. What is the best way to start a checkerboard tile layout?

Start from the room's verified centerline and dry‑lay four tiles at the intersection to confirm alignment before installation.

2. How do professionals ensure accurate chess floor tile alignment?

They use centerlines, chalk‑line grids, tile spacers, and laser levels to maintain consistent tile positioning across the entire layout.

3. Should checkerboard floors start from the center or a wall?

Most professionals start from the center so border cuts remain balanced on both sides of the room.

4. How do you prevent misaligned chess floor tiles?

Use a grid layout system and check tile edges against reference lines every few rows.

5. What tile size works best for checkerboard floors?

12‑inch and 24‑inch tiles are common because they create clear pattern visibility while remaining easy to align.

6. Can uneven walls affect checkerboard floor layout?

Yes. Walls are often slightly out of square, which is why centerline and diagonal measurements are essential.

7. How do installers check pattern symmetry?

They measure diagonals across the grid and visually inspect tile lines from a distance.

8. Why is dry‑laying tiles important before installation?

Dry layouts reveal spacing or alignment problems before adhesive locks tiles in place.
