How to Optimize Cooling Performance in a Built-In Cabinet Refrigerator: Practical airflow, cabinet design, and maintenance strategies to keep integrated refrigerators cooling efficiently and reliably.

Direct Answer

To optimize cooling performance in a built-in cabinet refrigerator, you must prioritize proper ventilation gaps, unobstructed airflow channels, heat‑tolerant cabinet materials, and consistent maintenance. Most cooling issues in integrated refrigerators are not caused by the appliance itself but by restricted airflow and heat buildup inside the cabinetry.

Quick Takeaways

1. Built‑in refrigerators require intentional airflow paths for heat to escape.
2. Vent openings at both the bottom and top dramatically improve cooling stability.
3. Cabinet materials and insulation can trap heat if poorly selected.
4. Routine maintenance often improves cooling more than replacing the appliance.

Introduction

In more than a decade working on residential kitchens, one problem shows up repeatedly: a built-in cabinet refrigerator that simply doesn't cool as well as the homeowner expected. The appliance is usually fine. The real issue is how the cabinet enclosure interacts with airflow and heat.

Unlike freestanding units, integrated refrigerators rely heavily on the surrounding cabinetry to allow warm air to escape. If that airflow path is poorly designed—or completely forgotten during installation—the compressor works harder, energy use rises, and temperature stability suffers.

When planning cabinetry layouts, I often model airflow and appliance spacing using tools similar to this interactive floor plan design workflow for appliance placement, which helps visualize clearance and ventilation zones before the cabinets are built.

Below are the most effective strategies I've learned from real projects to optimize cooling performance for cabinet-integrated refrigerators.

save pin

How Cabinet Enclosures Affect Refrigerator Cooling

Key Insight: The cabinet enclosure controls how efficiently a built‑in refrigerator releases heat, which directly affects cooling performance.

Every refrigerator removes heat from inside the compartment and releases it through condenser coils. In freestanding units, that heat dissipates into the room. In built‑in installations, the surrounding cabinet can trap that heat unless ventilation is designed intentionally.

Common cabinet design issues I see in projects:

1. No top ventilation opening
2. Insufficient clearance behind the unit
3. Decorative panels blocking airflow
4. Fully sealed cabinet boxes

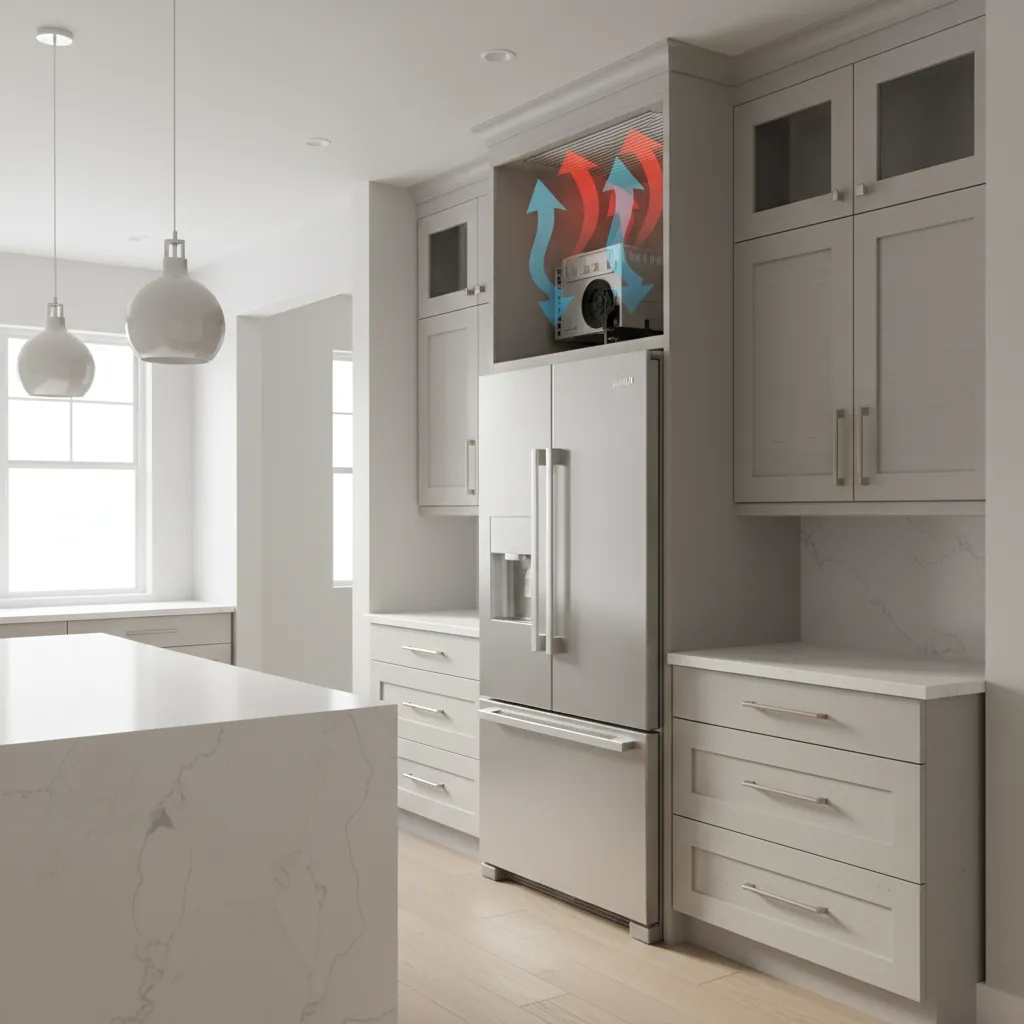

Many manufacturers recommend at least:

1. 1–2 inches behind the refrigerator
2. Vent opening at the toe‑kick
3. Upper cabinet vent or grille

Without these, warm air circulates inside the cabinet box instead of escaping, causing gradual overheating.

Proper Airflow Design for Built-In Refrigerators

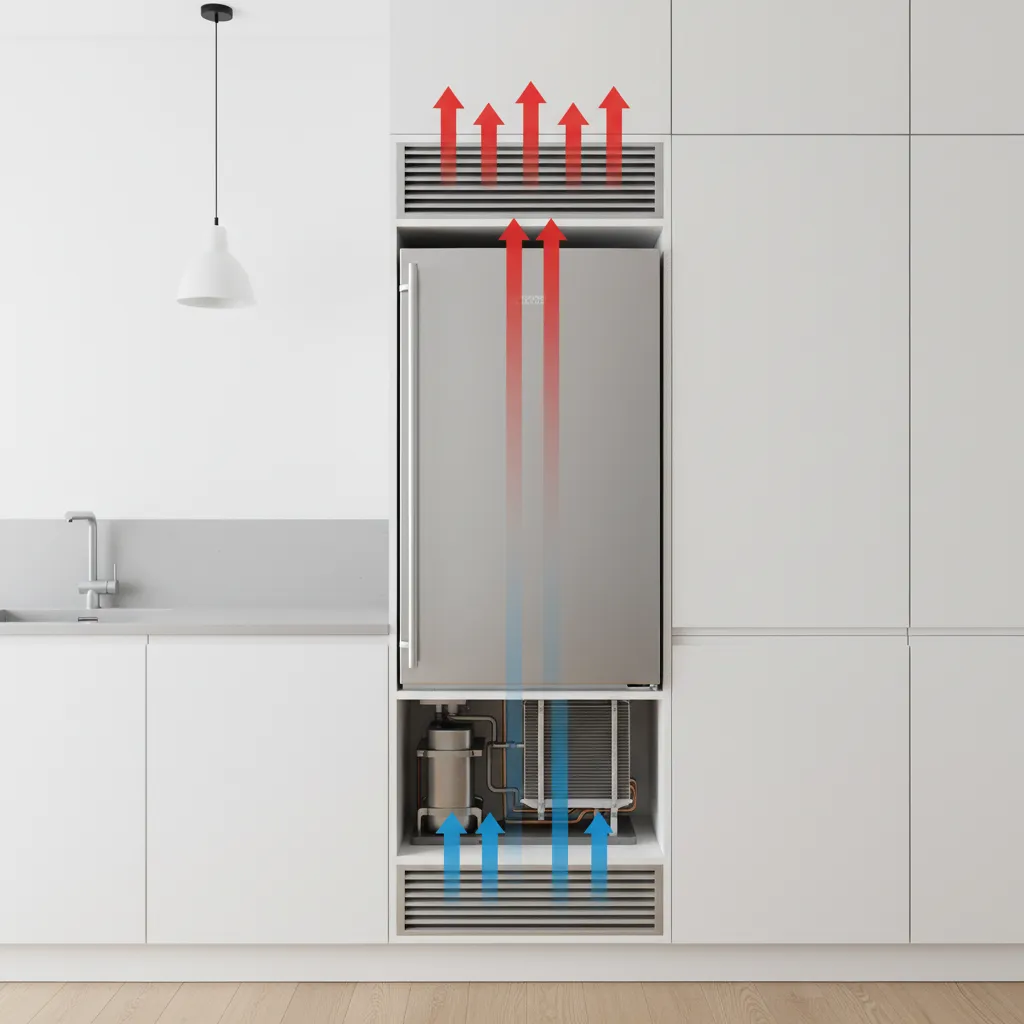

Key Insight: A vertical airflow path—from bottom intake to top exhaust—is the most reliable ventilation strategy.

When designing cabinetry around refrigeration units, I always treat airflow like a chimney. Cool air enters at the bottom, absorbs heat from the condenser area, and exits through an upper vent.

A simple airflow layout usually includes:

1. Toe‑kick ventilation grille
2. Rear air channel behind the appliance
3. Upper cabinet vent or gap above the unit

This vertical pathway dramatically reduces compressor strain.

During kitchen planning, visualizing appliance clearance inside a layout model—like in this step‑by‑step kitchen layout planning example—helps avoid the most common ventilation mistakes before cabinets are fabricated.

save pin

Temperature Stability and Internal Air Circulation

Key Insight: Even perfect ventilation won't help if interior airflow inside the refrigerator is blocked.

Many homeowners unknowingly reduce cooling efficiency by overcrowding shelves or blocking internal vents.

Typical airflow mistakes inside built‑in refrigerators:

1. Food blocking rear circulation vents
2. Overpacked freezer compartments
3. Shelves lined with solid containers that stop airflow

Simple habits improve temperature stability:

1. Leave small gaps between stored items
2. Avoid stacking food against rear vents
3. Keep airflow channels visible and clear

According to the U.S. Department of Energy, maintaining unobstructed airflow inside refrigerators helps appliances maintain target temperatures while reducing compressor cycling.

Energy Efficiency Tips for Integrated Refrigeration

Key Insight: Improving airflow often reduces energy consumption more effectively than upgrading the appliance.

In several renovation projects I've worked on, homeowners replaced refrigerators thinking the unit was inefficient. After adjusting cabinet ventilation, the original appliance performed normally.

Energy‑saving practices include:

1. Maintaining ventilation clearances
2. Cleaning condenser coils annually
3. Keeping door seals tight and clean
4. Maintaining recommended temperature settings

The ENERGY STAR program notes that poor ventilation around refrigeration appliances can increase energy consumption significantly due to extended compressor operation.

Answer Box

The most effective way to optimize cooling in a built‑in cabinet refrigerator is to ensure proper ventilation: bottom air intake, rear clearance, and top exhaust openings. Without a clear airflow path, heat becomes trapped inside cabinetry and cooling efficiency drops.

Best Cabinet Materials for Heat Dissipation

Key Insight: Cabinet material choice affects how quickly heat accumulates around built‑in appliances.

While cabinetry isn't usually discussed in appliance manuals, it absolutely influences heat behavior.

Materials that handle heat better:

1. Plywood cabinet structures
2. Ventilated MDF panels
3. Metal grille inserts

Materials that often trap heat:

1. Fully laminated MDF boxes
2. Sealed decorative panels
3. Solid back panels without ventilation

In modern kitchen designs, I sometimes integrate hidden ventilation slots along the cabinet top edge so airflow improves without affecting aesthetics.

save pin

Maintenance Habits That Improve Cooling Performance

Key Insight: Small maintenance habits often prevent cooling problems before they become noticeable.

Many built‑in refrigerators lose performance simply because airflow and components haven't been cleaned in years.

Maintenance checklist:

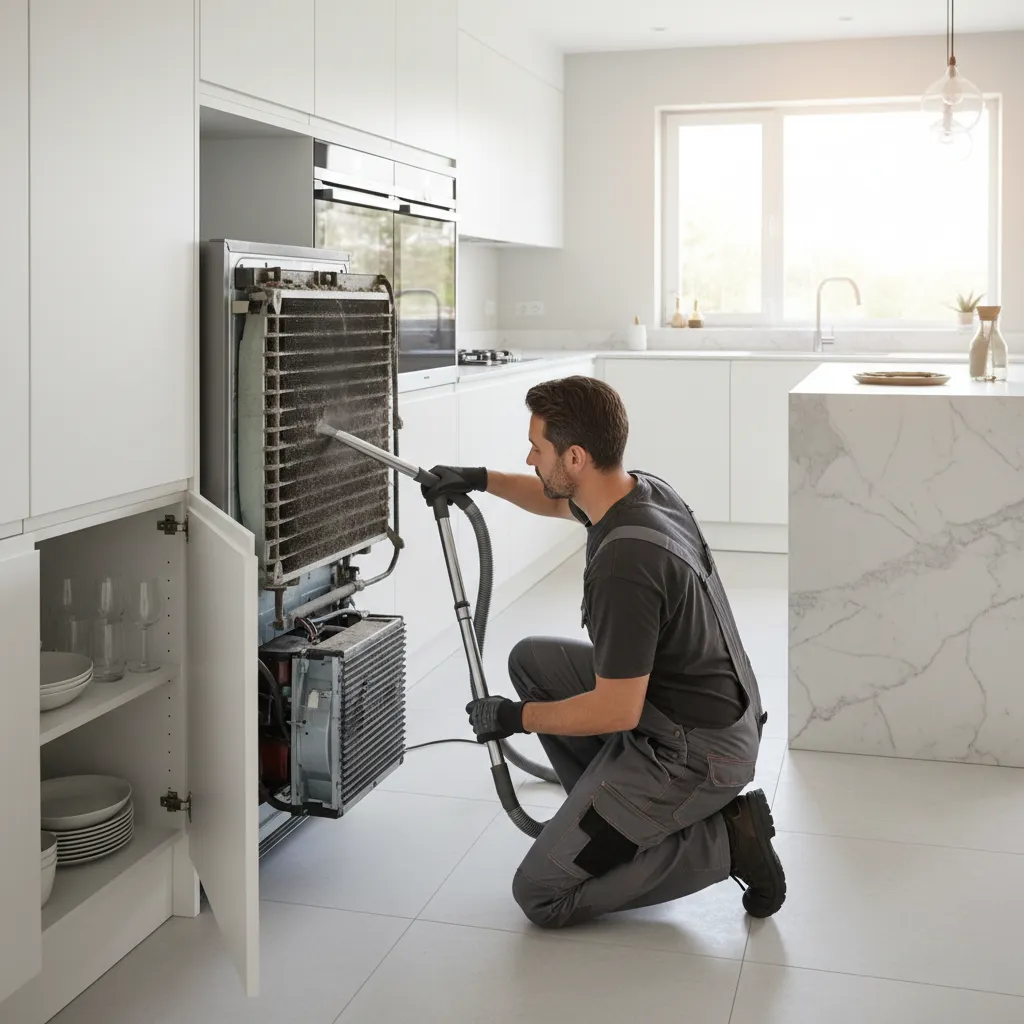

1. Vacuum condenser coils every 6–12 months
2. Check that cabinet vents remain unobstructed
3. Inspect door seals for air leakage
4. Verify temperature calibration periodically

If you're visualizing cabinetry upgrades around appliances, exploring a realistic 3D home layout rendering workflow can help evaluate airflow paths and cabinet spacing before construction begins.

Final Summary

1. Ventilation design is the biggest factor in built‑in refrigerator cooling.
2. A vertical airflow path prevents heat buildup inside cabinetry.
3. Cabinet materials and panels can influence heat retention.
4. Regular maintenance keeps airflow and cooling efficiency stable.
5. Most performance problems come from installation design, not the appliance.

FAQ

1. Why is my built-in refrigerator not cooling properly?

Poor cabinet ventilation is the most common cause. Heat becomes trapped around the appliance, forcing the compressor to work harder.

2. How much ventilation does a built-in refrigerator need?

Most manufacturers recommend rear clearance plus airflow openings at the bottom and top of the cabinet enclosure.

3. Can poor airflow damage a built-in refrigerator?

Yes. Restricted airflow can cause overheating, increased energy use, and shortened compressor lifespan.

4. How do I improve built-in refrigerator airflow?

Add toe‑kick vents, ensure rear clearance, and install an upper cabinet exhaust vent to create vertical airflow.

5. Do cabinet panels affect refrigerator cooling?

Yes. Thick decorative panels can trap heat if ventilation gaps are not included in the cabinet design.

6. What temperature should a built-in refrigerator be set to?

Most experts recommend around 37°F (3°C) for the refrigerator compartment and 0°F (-18°C) for the freezer.

7. Do built-in refrigerators use more energy?

They can if airflow is restricted. Proper ventilation helps maintain normal energy efficiency.

8. How often should I clean refrigerator condenser coils?

At least once or twice per year to maintain optimal cooling performance.
