How to Optimize Deck Layout When Adding a Ramp: Practical layout strategies that fit accessible ramps without sacrificing your backyard space or design flow

Direct Answer

Optimizing a deck layout when adding a ramp comes down to controlling ramp length, integrating landings into the deck structure, and using switchback or L-shaped configurations. These strategies reduce the footprint while maintaining safe slope requirements and smooth circulation between stairs, ramps, and outdoor living areas.

Quick Takeaways

1. Switchback ramps dramatically reduce the yard space required for long accessibility slopes.
2. Integrating ramp landings into deck platforms prevents wasted square footage.
3. Deck placement closer to grade reduces total ramp length.
4. Combining stairs and ramps improves usability for different mobility needs.
5. Good ramp design should feel like part of the deck, not an add-on.

Introduction

One of the biggest mistakes I see homeowners make when planning a deck ramp is treating it like an afterthought. They finalize the deck, then try to "attach" a ramp somewhere along the edge. The result usually eats up half the yard.

In reality, a well-planned deck ramp layout should be considered at the same time as the deck structure itself. Over the past decade working on residential outdoor projects, I've learned that the difference between a bulky ramp and a clean, efficient design almost always comes down to layout planning.

If you're wondering how to fit a ramp into deck design without sacrificing outdoor space, the key is thinking in circulation patterns rather than just slope requirements. A good layout distributes ramp segments, landings, stairs, and gathering zones so they reinforce each other.

Many homeowners start by sketching ideas using tools that allow quick experimentation with deck proportions and access paths. Visual planning helps reveal how ramps actually occupy space before construction begins. For example, you can visualize deck structures and circulation paths in a 3D floor planning environmentto test ramp directions and platform sizes.

In this guide, I'll walk through layout strategies I've used repeatedly in real deck projects that needed accessibility ramps but still had limited yard space.

save pin

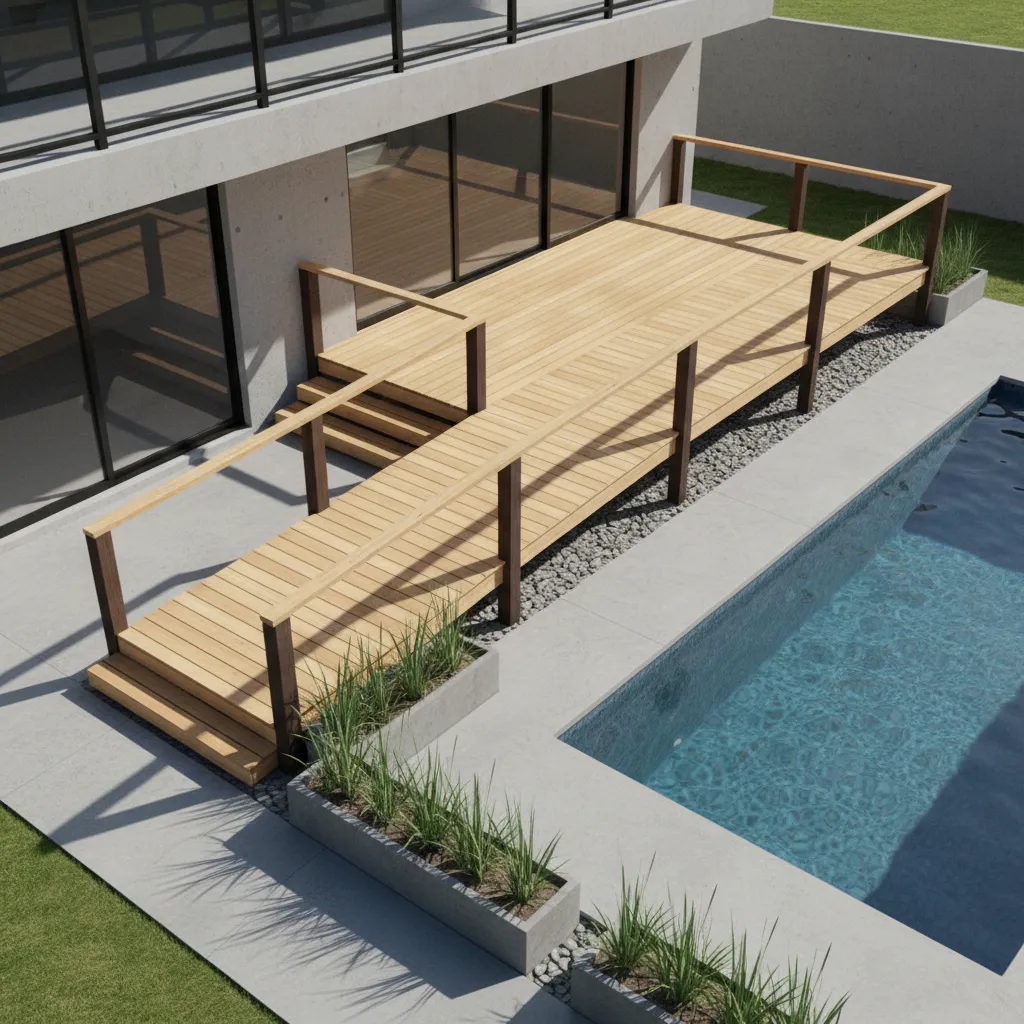

Planning Deck Layout Around Ramp Length

Key Insight: The most effective deck layouts start by calculating ramp length first, then shaping the deck around it.

Accessibility guidelines typically require a 1:12 slope. That means every inch of height requires at least 12 inches of ramp length. A deck that sits 30 inches above grade can easily require 30 feet of ramp.

Most people underestimate this dramatically.

Instead of forcing that ramp along one edge of the yard, experienced designers map the required ramp distance early and distribute it through the layout.

Basic ramp planning steps:

1. Measure the vertical height from ground to deck surface.
2. Multiply by 12 to estimate minimum ramp length.
3. Identify locations for landings every 30 feet or at direction changes.
4. Plan circulation so the ramp connects naturally to pathways.

According to accessibility guidance from the ADA design standards, ramps longer than 30 feet require intermediate landings. This requirement can actually work in your favor, because those landings can become useful deck extensions rather than wasted space.

Switchback and L Shaped Ramp Designs

Key Insight: Switchback ramp designs reduce yard consumption by folding long ramp runs into compact footprints.

In tight backyards, straight ramps rarely work. A 30-foot ramp stretching into the lawn can completely dominate the outdoor area.

This is where switchback layouts shine.

Instead of extending outward, the ramp turns back toward the house using landings as transition points.

Common compact ramp configurations:

1. L-shaped ramp with a single turning landing
2. U-shaped switchback ramp
3. Perimeter ramp wrapping along the deck edge
4. Integrated ramp running beneath a larger deck platform

One project I worked on in Pasadena had only 18 feet of backyard depth. A straight ramp would have been impossible. By wrapping the ramp along two deck edges in a switchback layout, we fit a 28-foot ramp within a 10-foot footprint.

save pin

Balancing Ramp Placement With Stair Access

Key Insight: The most functional decks provide both ramps and stairs, positioned so each serves different circulation paths.

Another common mistake is replacing stairs entirely with a ramp. While accessibility matters, stairs remain the fastest route for most users.

Good layouts separate these functions strategically.

Practical placement strategy:

1. Place stairs near the primary yard pathway.
2. Locate ramps along deck edges with longer circulation paths.
3. Ensure both connect to the same landing or main platform.
4. Maintain clear sightlines to both access options.

This dual-access approach is common in modern accessible housing and outdoor hospitality spaces because it accommodates different mobility needs without forcing one solution on everyone.

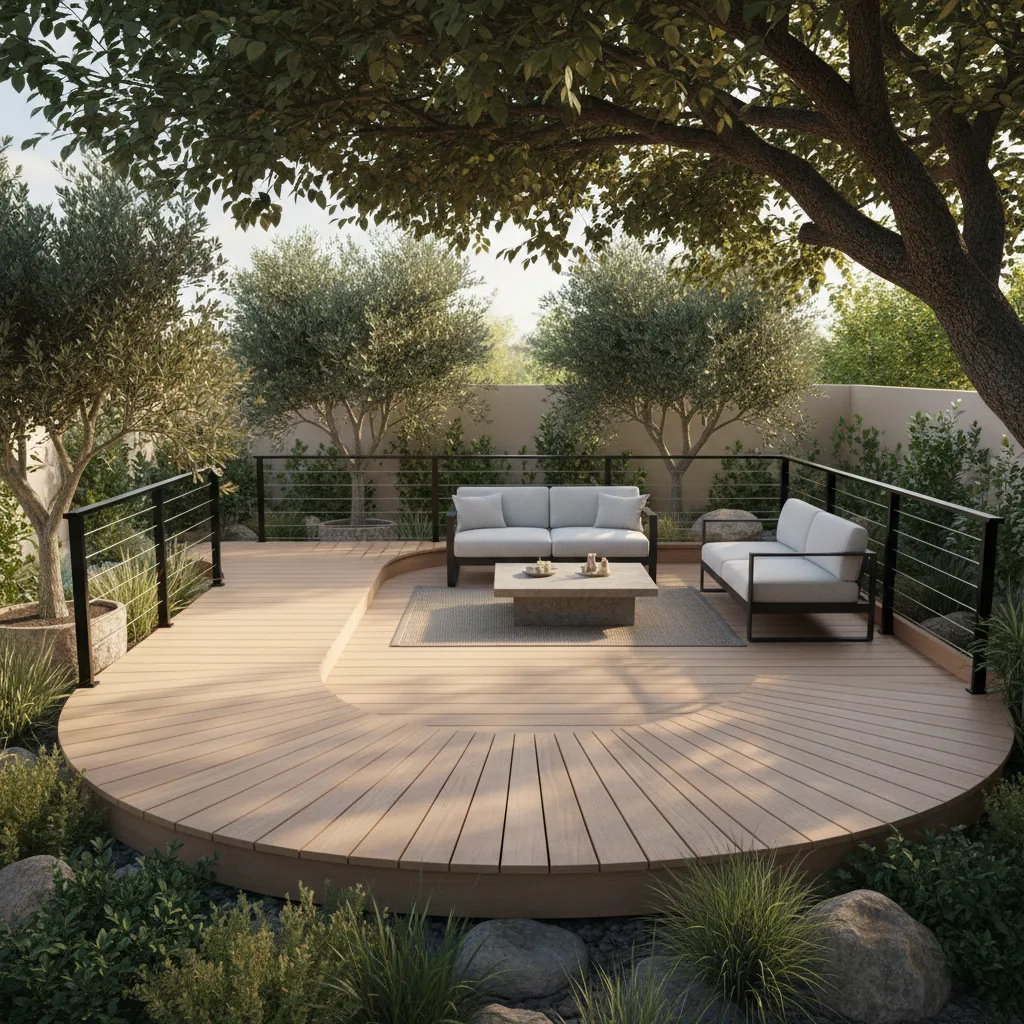

Saving Yard Space With Smart Deck Positioning

Key Insight: Lowering the deck height or repositioning the deck footprint can dramatically reduce ramp length requirements.

Sometimes the real optimization isn't the ramp at all—it's the deck.

If the deck height drops even 6–12 inches, the ramp length shrinks significantly. Moving the deck closer to natural grade areas can also shorten ramps.

Design adjustments that save space:

1. Step-down deck platforms
2. Partial ground-level deck sections
3. Deck placement closer to sloped terrain
4. Split-level outdoor living areas

Testing these variations visually can prevent expensive framing changes later. Many designers quickly compare layout options using tools that let them experiment with outdoor deck footprints and ramp circulationbefore construction drawings are finalized.

save pin

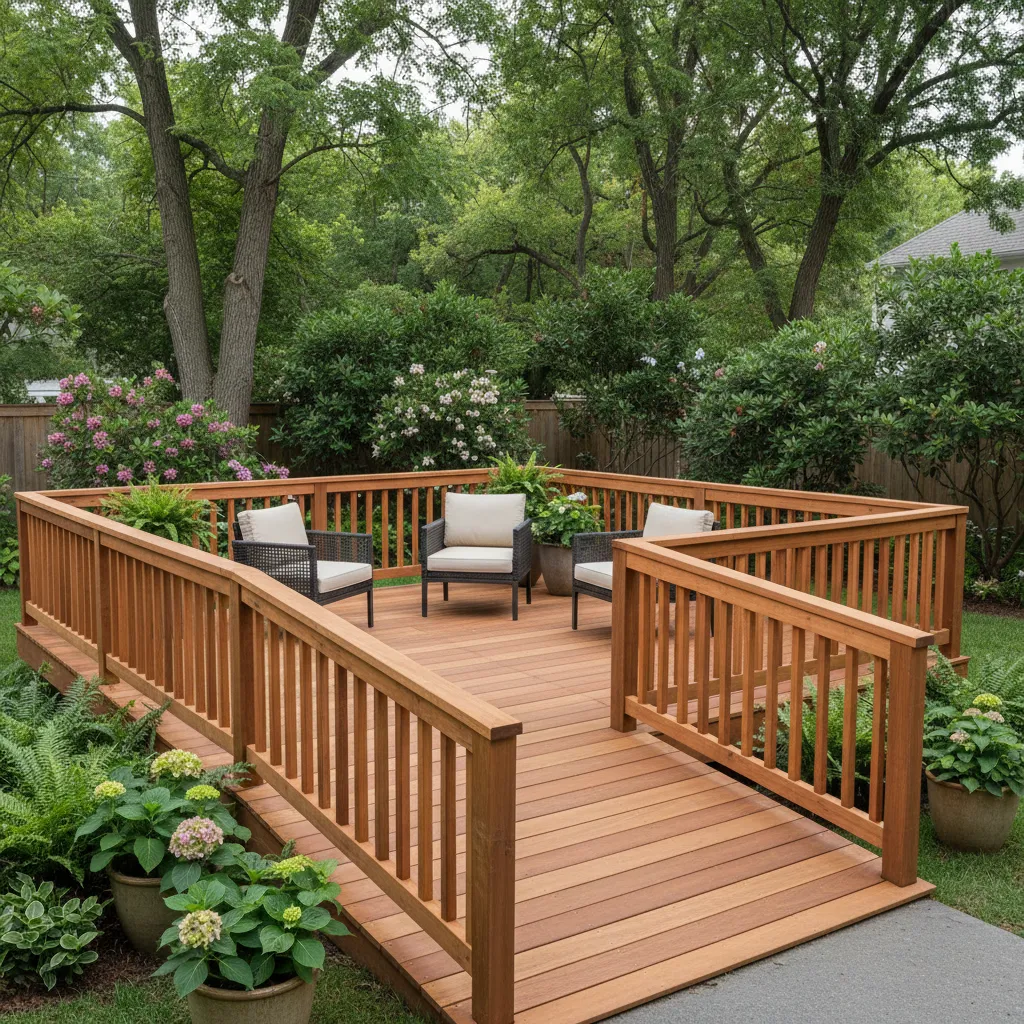

Integrating Landings Into Deck Architecture

Key Insight: Ramp landings should function as usable outdoor platforms rather than empty transition zones.

A landing is required whenever ramps change direction or exceed certain lengths, but many decks treat these as dead space.

That is a missed opportunity.

In several projects I've worked on, landings became small outdoor rooms.

Ways to use ramp landings effectively:

1. Small seating nooks
2. Grill or prep stations
3. Garden planter zones
4. Outdoor lighting features

Once landings become usable spaces, the ramp stops feeling like an accessibility feature and starts behaving like part of the architecture.

Answer Box

The most space-efficient deck ramps use switchback layouts, integrated landings, and strategic deck positioning to minimize ramp length. Designing the ramp and deck together—not separately—is the key to saving yard space while maintaining accessibility.

Designing Ramps That Blend With Outdoor Aesthetics

Key Insight: A ramp that visually blends with the deck structure avoids the institutional look many homeowners fear.

Many people associate ramps with hospitals or public buildings, but residential ramp design has evolved a lot in recent years.

The secret is consistency in materials, railings, and proportions.

Design elements that help ramps blend in:

1. Matching decking materials
2. Continuous railing systems
3. Integrated lighting along ramp edges
4. Planters or landscape borders

Visualizing these elements before construction makes a big difference. Many homeowners explore different layouts and railing placements by creating realistic outdoor deck visualizations with AI assisted design toolsso the ramp looks intentional rather than improvised.

save pin

Final Summary

1. Ramp length should shape deck layout decisions from the start.
2. Switchback ramps reduce the footprint dramatically.
3. Combining ramps and stairs improves usability.
4. Integrated landings transform ramps into functional deck spaces.
5. Matching materials helps ramps blend with outdoor design.

FAQ

How much space does a deck ramp usually require?

A ramp typically needs 12 inches of length for every inch of deck height. A 30-inch deck may require about 30 feet of ramp run.

What is the best ramp placement for a backyard deck?

The best ramp placement follows the deck perimeter or uses switchback turns to minimize yard impact while maintaining a comfortable slope.

Can a ramp and stairs share the same deck entrance?

Yes. Many designs connect both to a shared landing so users can choose the most convenient access path.

What is a switchback deck ramp design?

A switchback deck ramp reverses direction using a landing platform, allowing long ramps to fit within a compact footprint.

How wide should a deck ramp be?

Most residential ramps are at least 36 inches wide, though wider ramps improve comfort and maneuverability.

How do you fit a ramp into deck design without losing yard space?

Use L-shaped or switchback layouts, integrate landings into deck platforms, and reduce deck height where possible.

Can deck ramps look attractive?

Yes. When ramps use the same decking, railings, and lighting as the main deck, they blend seamlessly into outdoor architecture.

Are deck ramp layouts difficult to plan?

They can be complex because slope and landing rules affect the entire deck footprint, but planning tools and early layout sketches make the process easier.
