How to Optimize Ductwork Layout for Better Airflow Efficiency: Practical HVAC duct layout strategies that improve airflow balance, reduce pressure loss, and boost home energy efficiency

Direct Answer

Optimizing ductwork layout for better airflow efficiency means minimizing duct length, reducing sharp bends, properly sizing ducts, and balancing supply and return airflow. When duct routing is shorter, smoother, and correctly sized, the HVAC system delivers air with less pressure loss and far better energy performance.

In residential projects, most airflow problems come from poor layout planning rather than the HVAC equipment itself.

Quick Takeaways

1. Shorter duct routes reduce static pressure and improve airflow efficiency.
2. Every unnecessary bend can significantly increase airflow resistance.
3. Balanced supply and return vents stabilize room temperatures.
4. Correct duct sizing prevents airflow bottlenecks and noisy systems.
5. Professional layout planning tools help visualize airflow paths before installation.

Introduction

After working on residential renovations and new construction projects for more than a decade, I've noticed something surprising: many HVAC efficiency problems are actually duct layout problems.

Homeowners often assume weak airflow means they need a bigger HVAC unit. In reality, the equipment is frequently fine. The real issue is inefficient duct routing, oversized runs in some areas, undersized runs in others, and too many turns before air reaches the room.

When we redesign a system, the improvement can be dramatic. Shorter runs, smoother airflow paths, and balanced vent placement can improve comfort without changing the HVAC equipment at all.

During planning phases, professionals often visualize airflow paths using tools similar to those used for mapping accurate room layouts before planning HVAC routing. This step helps prevent the layout mistakes that cause airflow inefficiencies later.

In this guide, I'll walk through the practical strategies professionals use to optimize residential duct layouts, reduce air pressure loss, and achieve more efficient HVAC airflow.

save pin

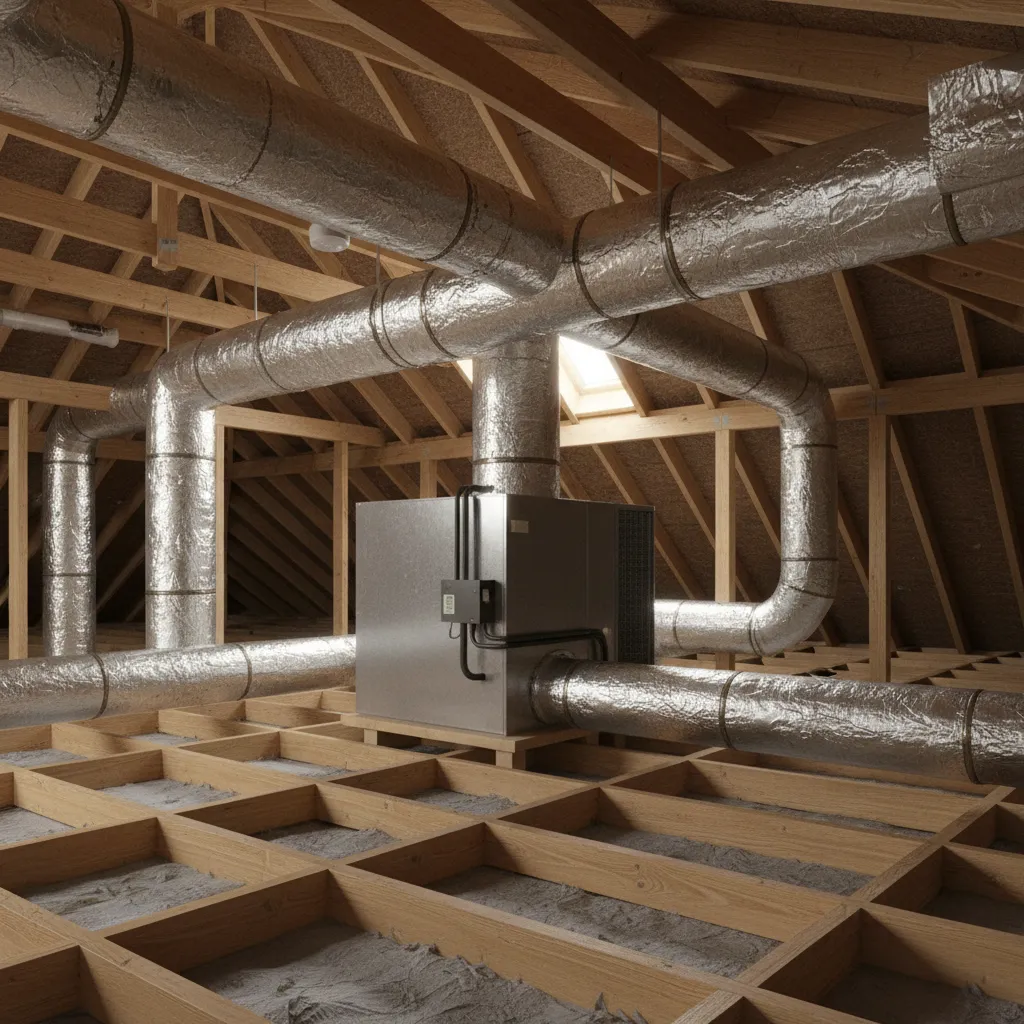

Why Duct Layout Strongly Affects HVAC Efficiency

Key Insight: Even the best HVAC equipment loses efficiency if ductwork layout creates high resistance or uneven airflow distribution.

Air behaves similarly to water in plumbing. The longer the route and the more obstacles along the way, the harder it becomes to move efficiently.

In poorly designed duct systems, air pressure drops quickly as it travels through long or twisting runs. By the time it reaches distant rooms, airflow may be significantly reduced.

Common duct layout issues I see in real homes include:

1. Excessively long duct runs across attics
2. Multiple 90-degree bends in tight framing areas
3. Undersized ducts feeding large rooms
4. Supply vents without adequate return airflow

According to guidance from the U.S. Department of Energy, duct systems can lose 20–30% of conditioned air through leaks and inefficient distribution. Layout inefficiency amplifies these losses.

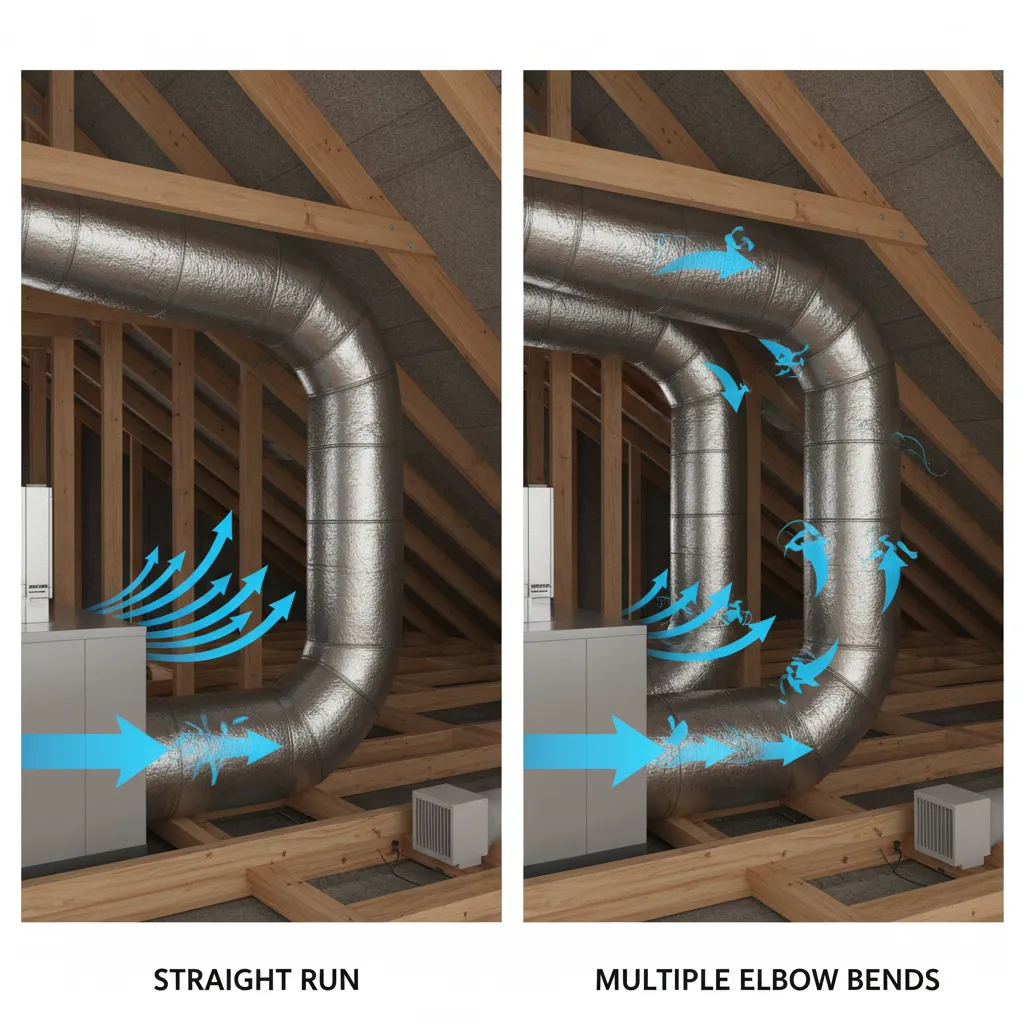

Reducing Duct Length and Bends for Better Airflow

Key Insight: The fastest way to improve airflow efficiency is to shorten duct paths and eliminate unnecessary bends.

Every turn in ductwork adds resistance to airflow. Sharp 90-degree elbows are particularly problematic because they create turbulence and pressure loss.

When redesigning duct routes, professionals typically focus on three improvements:

1. Straighter runs – Direct paths from the air handler to vents reduce friction.
2. Fewer elbows – Replace multiple 90-degree turns with gradual curves where possible.
3. Centralized trunk lines – A well-positioned main trunk minimizes branch length.

In multi-room systems, a trunk-and-branch design usually performs better than long individual runs from the furnace.

In one renovation project in Pasadena, shortening a second-floor duct path by about 12 feet increased airflow at the register by nearly 30%, without any equipment changes.

save pin

Proper Duct Sizing and Air Pressure Balance

Key Insight: Correct duct sizing ensures consistent airflow velocity and prevents pressure imbalances that strain the HVAC system.

Oversized ducts may sound beneficial, but they often slow airflow too much. Undersized ducts create excessive static pressure that reduces efficiency and increases noise.

Professionals calculate duct size based on airflow requirements measured in CFM (cubic feet per minute).

Typical sizing considerations include:

1. Room square footage
2. Ceiling height
3. Window exposure
4. Number of occupants
5. Climate zone

The ACCA Manual D standard is commonly used by HVAC engineers to determine appropriate duct sizes for residential systems.

A balanced system ensures that supply airflow leaving the HVAC unit is matched by adequate return airflow returning to the system.

Strategic Placement of Supply and Return Vents

Key Insight: Vent placement determines how evenly air circulates through a room.

Many airflow problems aren't caused by duct size at all. They're caused by poor vent placement.

Common mistakes include:

1. Supply vents placed too close to doors
2. No return vents on upper floors
3. Registers blocked by furniture
4. Large rooms with only one supply vent

Effective vent placement strategies include:

1. Supply vents near windows or exterior walls
2. Return vents near central hallways
3. Multiple smaller vents instead of one large vent

Designers frequently model room airflow while planning layouts using tools similar to those used for visualizing interior spaces before finalizing ventilation planning.

save pin

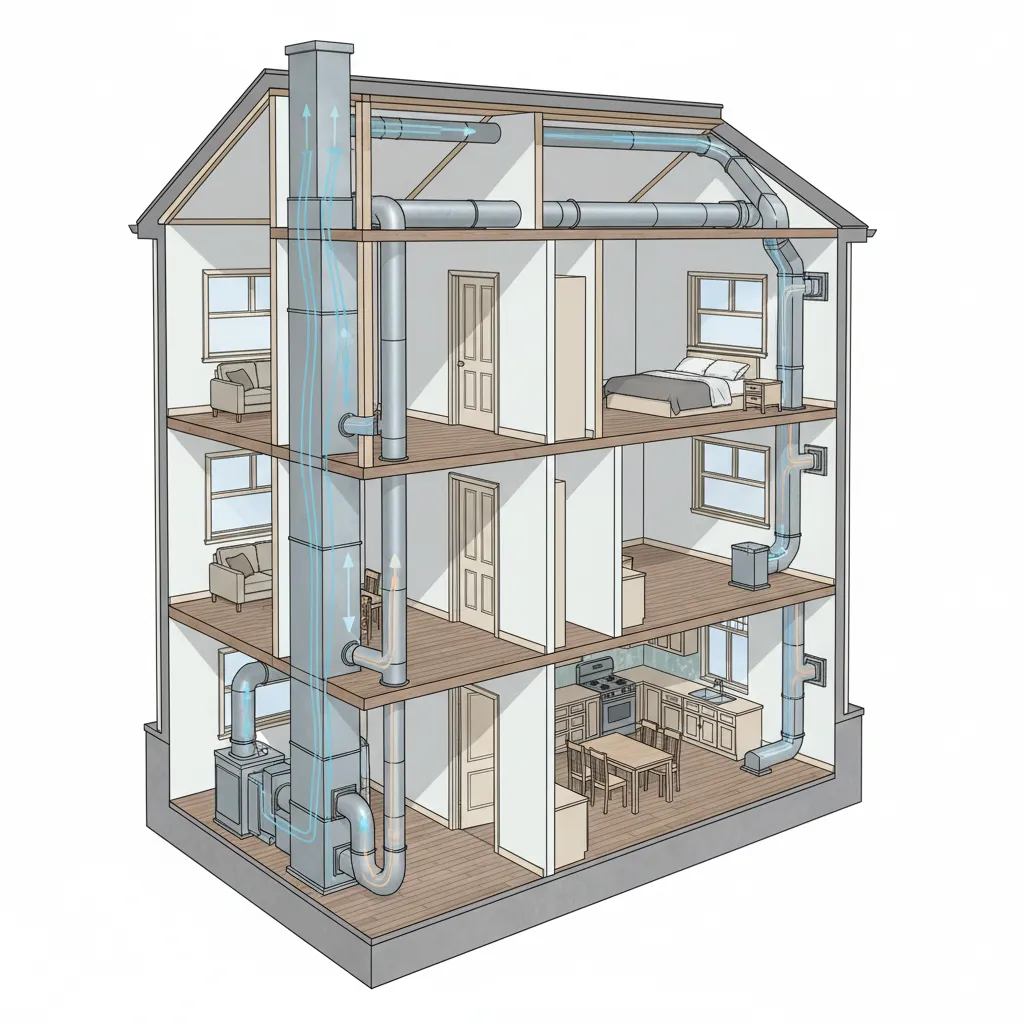

Improving Air Distribution Across Multiple Floors

Key Insight: Multi‑story homes require airflow zoning or careful duct balancing to maintain consistent temperatures.

Warm air rises naturally, which means second floors often receive more heat during winter and less cooling during summer.

Without proper duct layout strategies, homeowners experience large temperature differences between floors.

Professional solutions include:

1. Zoned HVAC systems with separate dampers
2. Larger return ducts on upper floors
3. Dedicated trunk lines for each level
4. Balancing dampers to control airflow distribution

In several townhouse projects I've worked on, simply adding a second return vent upstairs dramatically stabilized indoor temperatures.

Answer Box

The most effective duct layout improvements focus on shorter runs, smoother airflow paths, correct duct sizing, and balanced supply and return vents. In many homes, optimizing layout improves airflow efficiency more than upgrading HVAC equipment.

Tools Professionals Use to Optimize Duct Layout

Key Insight: Visual planning tools help professionals prevent layout inefficiencies before construction begins.

Modern HVAC planning often happens in digital layout environments. Instead of guessing duct paths during installation, designers model the entire floor plan first.

Common tools used in planning include:

1. 3D floor plan modeling
2. Airflow simulation tools
3. HVAC load calculation software
4. Duct routing visualization platforms

For residential design teams, generating detailed layouts similar to creating realistic home design visualizations before constructionmakes it easier to coordinate structural framing, ceiling space, and duct routing.

This early planning phase prevents many of the airflow problems that appear after installation.

save pin

Final Summary

1. Short duct routes significantly improve airflow efficiency.
2. Sharp bends create pressure loss and should be minimized.
3. Correct duct sizing prevents airflow bottlenecks.
4. Balanced supply and return vents stabilize indoor comfort.
5. Digital layout planning helps avoid costly duct design mistakes.

FAQ

How can I improve HVAC airflow efficiency at home?

Improve HVAC airflow efficiency by shortening duct runs, sealing leaks, reducing bends, and ensuring ducts are properly sized for the required airflow.

What is the best duct design for energy efficiency?

The best duct design for energy efficiency uses a central trunk line with short branch ducts, minimal bends, and properly sized ducts to maintain consistent air pressure.

How much airflow loss happens in poor duct layouts?

Poorly designed duct systems can lose 20–30% of conditioned air due to resistance, leaks, and inefficient routing.

Do more bends reduce airflow?

Yes. Each bend adds resistance, especially 90-degree elbows, which create turbulence and reduce airflow efficiency.

Can duct size affect HVAC efficiency?

Yes. Undersized ducts restrict airflow, while oversized ducts slow air movement, both reducing system efficiency.

How do professionals balance airflow in HVAC systems?

They use balancing dampers, proper duct sizing, and strategic vent placement to distribute airflow evenly across rooms.

Should each room have a return vent?

Not always, but homes need sufficient return airflow. Large homes or multi‑story layouts often benefit from multiple return vents.

What is the most common ductwork layout mistake?

The most common mistake is overly long duct runs across attics or crawlspaces, which significantly reduce airflow efficiency.
