How to Optimize Electrical Circuit Layouts in Building Floor Plans: Practical strategies designers use to balance loads, reduce wiring complexity, and build safer electrical layouts in modern floor plans

Direct Answer

To optimize electrical circuit layouts in building floor plans, distribute loads evenly across circuits, position outlets and lighting based on real usage zones, and simplify wiring paths to reduce installation complexity. Effective layouts also reserve capacity for future expansion and use load calculation tools before finalizing the design.

Quick Takeaways

1. Balanced electrical circuits reduce overheating and improve long‑term safety.
2. Outlet placement should follow activity zones, not just wall spacing.
3. Simpler wiring routes lower installation cost and reduce maintenance issues.
4. Future capacity planning prevents expensive rewiring during renovations.
5. Simulation tools reveal load problems before construction begins.

Introduction

Optimizing an electrical circuit layout in building floor plans is one of those details that quietly determines whether a building works well for decades—or becomes a maintenance headache. After working on residential and mixed‑use projects for more than ten years, I’ve seen beautiful spaces fail simply because the electrical planning was treated as an afterthought.

The most common mistake? Designers focus on aesthetics first and distribute circuits later. That approach often leads to overloaded lines, unnecessary wiring loops, and poorly placed outlets that frustrate occupants.

Modern planning tools make this process easier than it used to be. For example, when testing layouts early with a visual workflow for mapping electrical zones directly onto a digital floor plan, designers can quickly see how appliances, lighting, and outlets interact across rooms.

In this guide, I’ll walk through the practical methods professionals use to optimize electrical circuit layouts—balancing loads, simplifying wiring routes, and designing systems that remain flexible as buildings evolve.

save pin

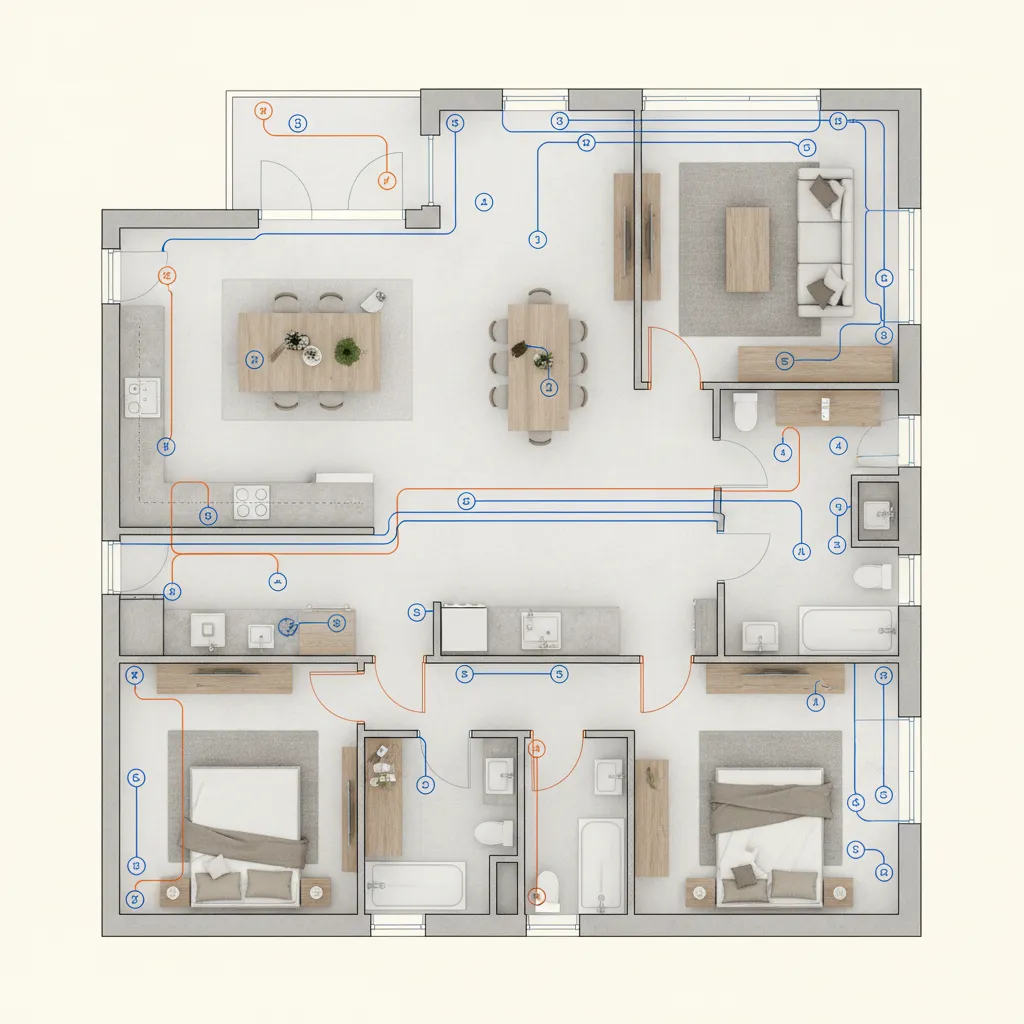

Principles of Efficient Electrical Circuit Distribution

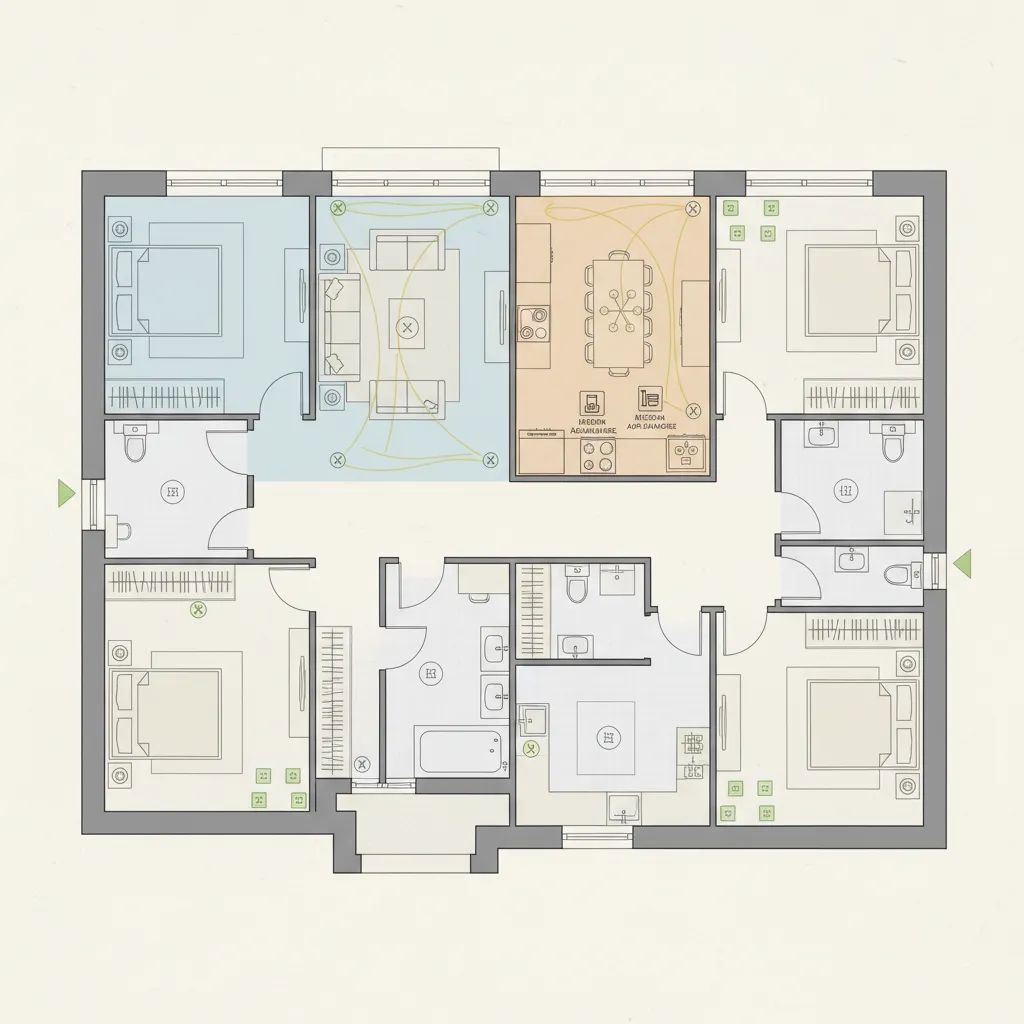

Key Insight: Efficient electrical layouts start with functional zoning rather than room-by-room circuit assignment.

Many beginner layouts simply give each room a circuit. In practice, that often wastes capacity and creates uneven loads. Experienced planners instead group electrical demand by activity zones—kitchens, lighting clusters, HVAC equipment, and appliance-heavy areas.

This method mirrors how electrical engineers approach distribution panels.

Core distribution principles:

1. Separate high‑load appliances (ovens, HVAC, dryers).
2. Group general outlets by adjacent zones.
3. Keep lighting circuits independent from heavy outlets.
4. Limit long cross‑floor wiring runs.

According to the U.S. National Electrical Code (NEC), kitchens and bathrooms often require dedicated circuits due to appliance load and safety requirements. Ignoring these guidelines early in floor plan development often forces expensive redesign later.

Balancing Electrical Loads Across Circuits

Key Insight: Load imbalance is the hidden cause of many overheating and breaker‑trip problems in buildings.

In many residential projects I review, one or two circuits carry most of the electrical demand while others remain lightly used. That imbalance shortens system lifespan and increases breaker trips.

Typical load balancing workflow:

1. List every major appliance and estimated wattage.
2. Separate continuous loads from intermittent loads.
3. Assign appliances across multiple circuits.
4. Confirm amperage limits using NEC guidelines.

Example load distribution:

1. Kitchen appliances: dedicated circuits
2. General outlets: shared circuits per zone
3. Lighting systems: independent circuits
4. HVAC: dedicated high‑capacity circuit

The Electrical Safety Foundation International repeatedly reports that overloaded circuits remain a major cause of residential electrical fires—making load balancing a safety issue, not just an efficiency decision.

save pin

Optimizing Outlet and Lighting Placement

Key Insight: The best outlet placement follows human behavior patterns rather than strict spacing rules.

Code requirements usually specify maximum spacing for outlets along walls, but that guideline alone rarely produces a convenient layout.

Instead, experienced designers map electrical points around activity clusters.

Practical placement strategy:

1. Work areas: multiple outlets above counters or desks
2. Media zones: grouped outlets behind entertainment units
3. Entry points: switches near natural walking paths
4. Bedside zones: outlets within arm reach

When layouts are tested early in a 3D floor planning workflow that visualizes furniture and appliance placement, designers can immediately see whether outlet positions actually support daily use.

This step sounds obvious, yet it’s often skipped in early design drawings.

save pin

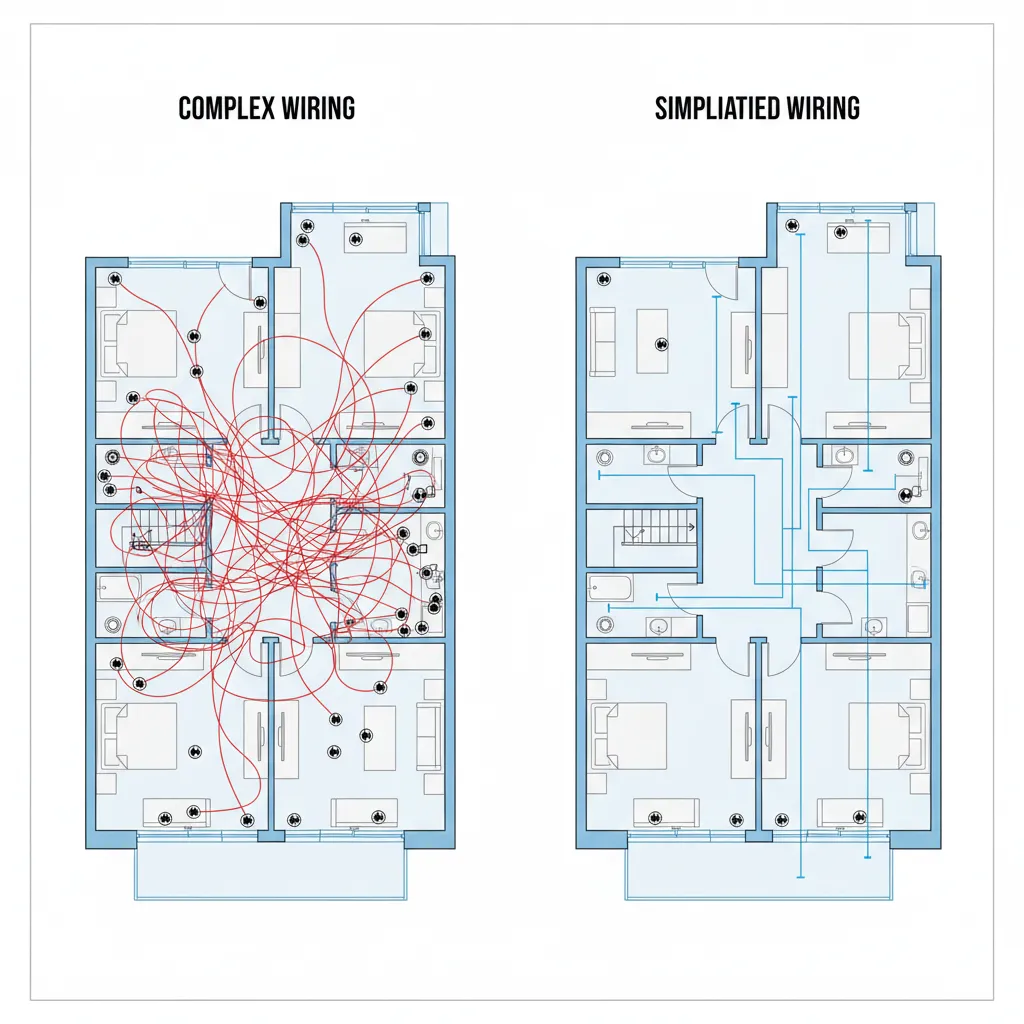

Reducing Wiring Complexity in Floor Plans

Key Insight: Wiring simplicity directly reduces installation cost and long‑term maintenance risk.

One of the most overlooked electrical design costs is wiring path complexity. A layout with unnecessary cross‑room routing can add hundreds of feet of cable.

Ways to simplify wiring:

1. Align electrical panels with central circulation zones
2. Stack utility areas vertically in multi‑floor buildings
3. Avoid crossing structural beams when routing circuits
4. Group high‑load rooms near service panels

Contractors frequently report that simplified layouts reduce installation time by 15–30 percent because electricians spend less time navigating structural obstacles.

Planning for Future Electrical Expansion

Key Insight: Good electrical layouts assume the building will evolve.

One mistake I’ve seen repeatedly in early‑career designs is planning circuits only for current appliances. Within five years, homeowners often add EV chargers, smart appliances, or additional HVAC equipment.

Future‑ready planning checklist:

1. Reserve spare panel capacity
2. Install empty conduit pathways
3. Design accessible junction points
4. Leave panel expansion slots

Testing different configurations with a flexible floor plan layout environment for experimenting with room and wiring arrangementshelps teams anticipate how future equipment might impact circuit distribution.

save pin

Using Simulation and Load Calculation Tools

Key Insight: Digital simulation exposes electrical layout problems long before construction begins.

Ten years ago, load calculations were mostly spreadsheet exercises. Today, simulation tools allow designers to evaluate energy demand across entire floor plans.

Key capabilities modern tools provide:

1. Automatic load calculations
2. Circuit capacity warnings
3. Energy consumption forecasting
4. Electrical zoning visualization

Engineering teams increasingly rely on these simulations to test multiple layout options before committing to construction drawings. It’s a small investment of time that often prevents major redesign costs later.

Answer Box

The most effective electrical circuit layouts distribute loads evenly, minimize wiring distance, and place outlets where people actually use electricity. Designers who test layouts early with digital floor plan tools avoid costly rewiring and improve long‑term building safety.

Final Summary

1. Efficient circuit layouts start with functional zoning.
2. Balanced electrical loads reduce breaker trips and fire risk.
3. Outlet placement should follow real activity patterns.
4. Simplified wiring routes lower construction costs.
5. Future‑ready layouts prevent expensive renovations.

FAQ

1. What is the goal of optimizing an electrical circuit layout?

The goal is to distribute electrical loads efficiently, reduce wiring complexity, and ensure circuits operate safely within capacity limits.

2. How do you balance electrical loads in floor plans?

List all appliances, estimate wattage, separate heavy loads, and distribute them across multiple circuits to avoid overload.

3. How many outlets should a room have?

Most electrical codes require outlets every 12 feet along walls, but activity zones often require additional outlets.

4. Why is load balancing important in electrical floor plans?

Balanced loads prevent overheating wires, reduce breaker trips, and improve long‑term electrical system reliability.

5. Can poor electrical layouts increase construction cost?

Yes. Complex wiring routes increase cable length, labor time, and installation difficulty.

6. What tools help optimize electrical circuit layouts?

Digital floor planning and electrical simulation software help test load distribution and wiring paths.

7. How do professionals optimize electrical circuit layout designs?

They analyze usage zones, calculate loads, simplify wiring paths, and simulate demand before finalizing plans.

8. Should electrical plans consider future appliances?

Yes. Leaving spare panel capacity and conduit pathways helps accommodate future electrical upgrades.
