How to Optimize Excel for Large or Complex Floor Plan Layouts: Practical techniques designers use to keep Excel floor plan layouts fast, organized, and scalable even in large projects

Direct Answer

To optimize Excel for large or complex floor plan layouts, reduce shape complexity, use consistent grid scaling, group objects strategically, and separate heavy layouts into reusable templates. These steps prevent workbook lag, improve editing speed, and keep large layouts manageable.

Excel can support surprisingly complex layout planning if performance bottlenecks—especially shapes, layers, and formatting—are handled carefully.

Quick Takeaways

1. Too many individual shapes are the biggest reason Excel floor plans slow down.
2. Consistent grid scaling keeps layouts accurate while reducing editing mistakes.
3. Grouping objects and limiting formatting dramatically improves workbook speed.
4. Reusable templates prevent rebuilding complex layouts from scratch.
5. At a certain size, specialized floor planning tools become more efficient than Excel.

Introduction

Excel floor plan layouts start simple. A few walls, a few desks, maybe a meeting room. But after working on dozens of workplace and residential layout drafts early in my career, I noticed something predictable: once the drawing grows past a certain size, Excel slows down dramatically.

The problem is rarely Excel itself. It is usually how the layout is built—too many shapes, inconsistent scaling, messy layers, and copied formatting that quietly bloats the file.

When designers learn how to optimize Excel for floor planning, the difference is huge. Large layouts load faster, editing becomes smoother, and collaboration becomes easier. In fact, many small studios still prototype layouts in spreadsheets before moving to dedicated tools.

If you are still experimenting with spreadsheet-based layouts, exploring a simple way to turn rough layout sketches into structured floor planscan also help validate your Excel workflow before committing to more complex software.

In this guide, I will walk through the real optimization techniques I use when clients insist on working inside Excel—along with the limitations most tutorials never talk about.

save pin

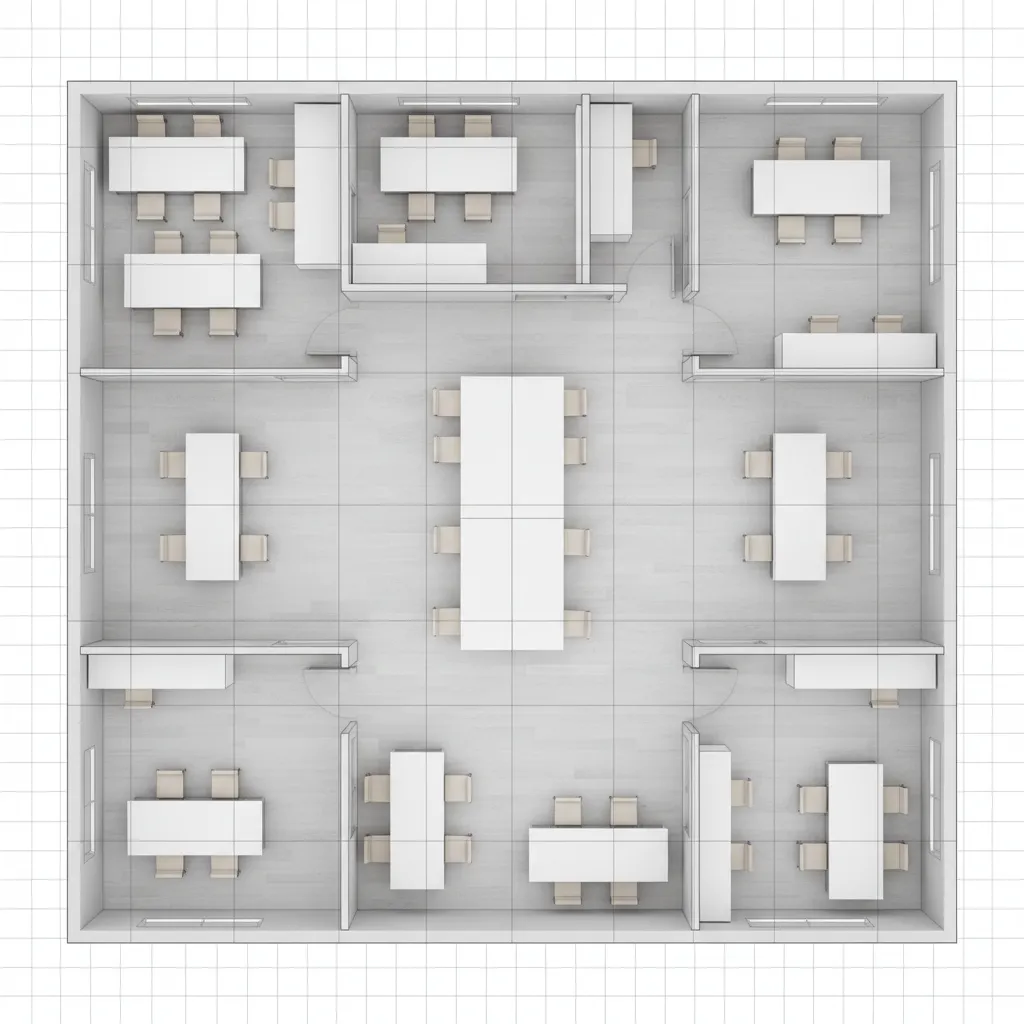

Limitations of Excel for Large Floor Plans

Key Insight: Excel becomes slow primarily because floor plans rely on hundreds of vector shapes, which the spreadsheet engine was never designed to manage.

In spreadsheet architecture, every wall segment, table, chair, or label is an independent object. When a workbook contains hundreds or thousands of shapes, Excel must constantly recalculate rendering, alignment, and object relationships.

From my experience reviewing layout-heavy files, the most common performance killers include:

1. Hundreds of individual wall segments instead of grouped structures
2. Overlapping shapes with transparency
3. Excessive conditional formatting
4. Copied shapes from multiple files creating hidden style conflicts

A real example: one office seating layout I reviewed had over 1,800 shapes for desks alone. Simply grouping desk clusters reduced workbook load time by more than half.

Microsoft documentation on Office drawing layers also confirms that shape-heavy worksheets significantly increase rendering load.

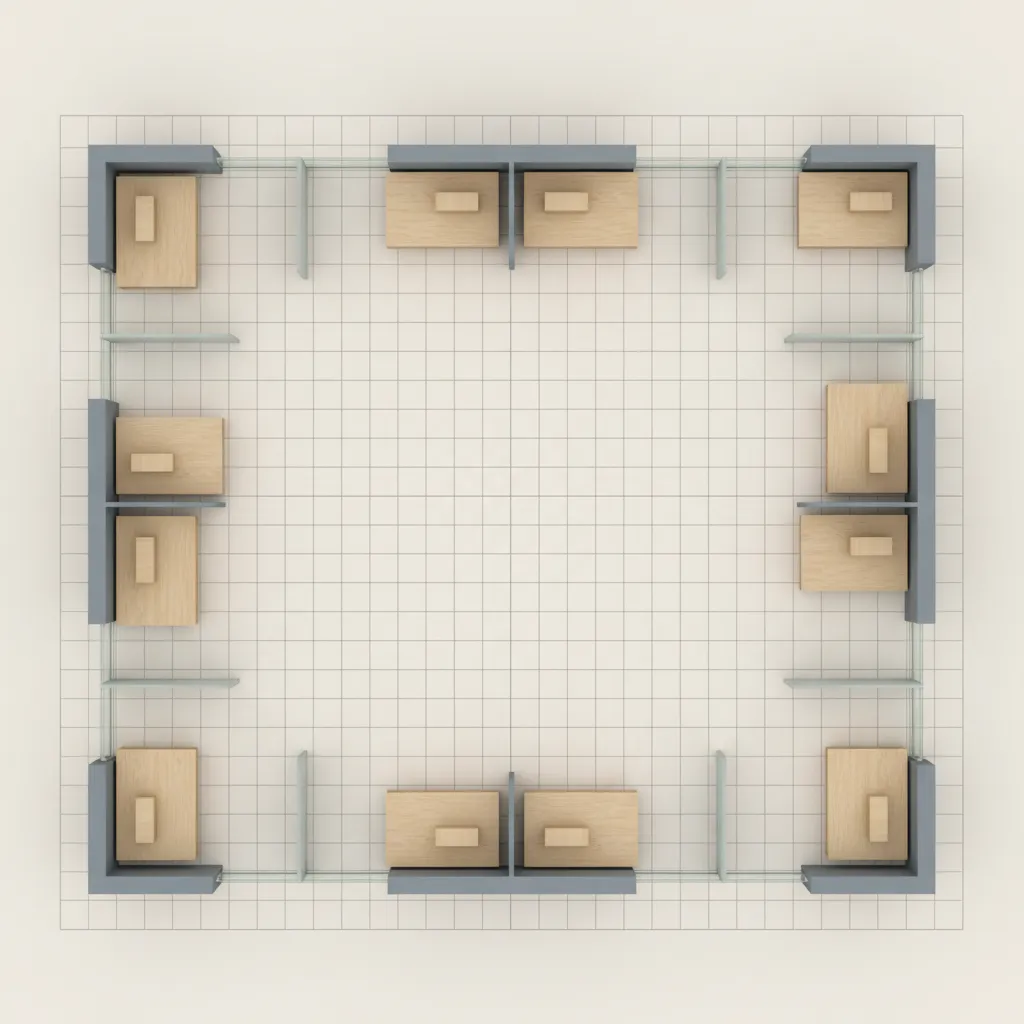

Using Grid Scaling for Accurate Layouts

Key Insight: A consistent grid scale dramatically improves accuracy and prevents constant resizing of shapes.

Most Excel floor plan problems actually begin with poor scaling decisions. When designers resize objects manually instead of using a consistent grid, layouts drift out of proportion quickly.

In my projects, I usually start with a simple rule:

1. 1 Excel cell = 1 square foot (for small layouts)
2. 1 Excel cell = 0.5 meter (for metric office planning)
3. 1 Excel cell = 10 cm (for detailed room layouts)

This allows walls, furniture, and walkways to align cleanly to the grid.

Recommended setup steps:

1. Adjust column width and row height to identical values.
2. Turn on "Snap to Grid" for shapes.
3. Build walls using grouped rectangles instead of many short lines.
4. Create a visible measurement legend in the corner of the sheet.

Architectural planning software always uses consistent scaling, and mimicking this approach inside Excel eliminates most alignment headaches.

save pin

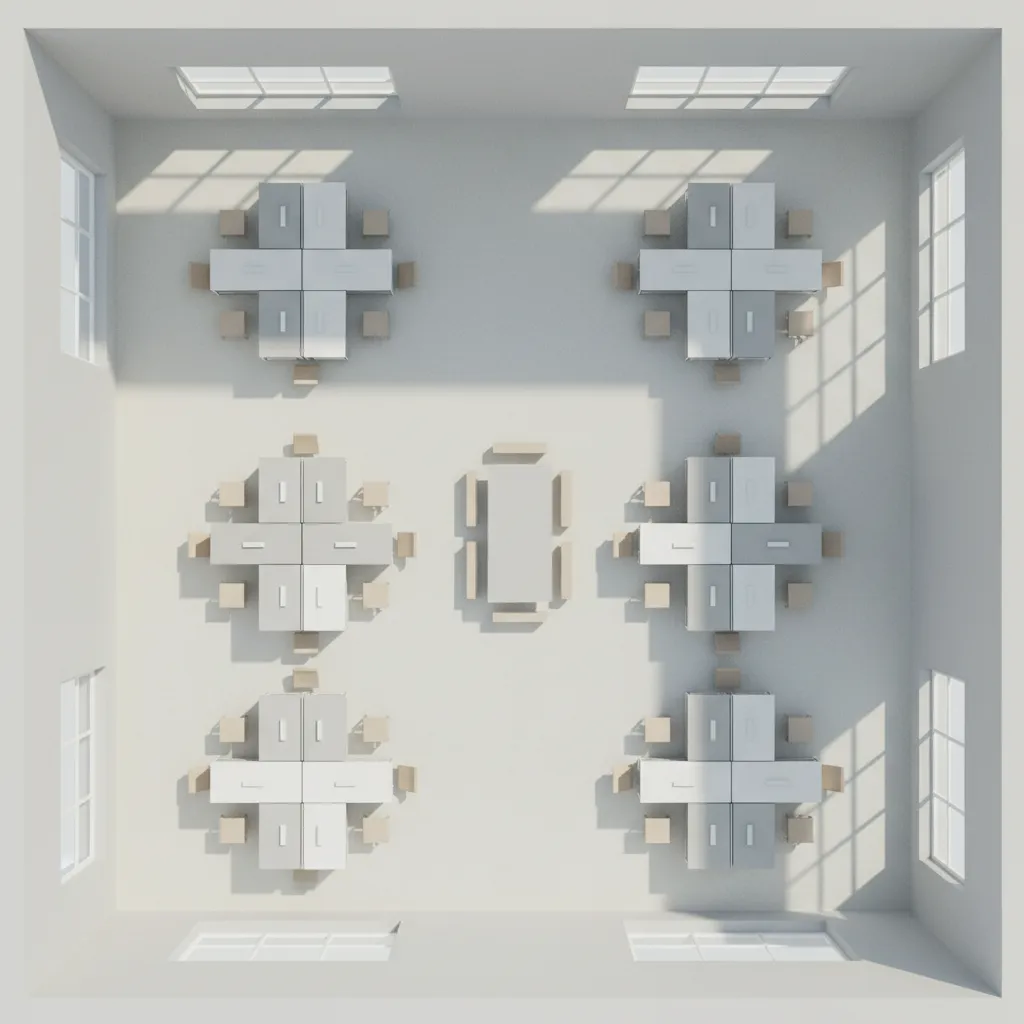

Organizing Shapes and Layers for Better Performance

Key Insight: Proper layer organization reduces redraw calculations and keeps complex floor plans editable.

Excel does not have true design layers like CAD software, but the Selection Pane works as a lightweight substitute.

For larger layouts, I recommend structuring shapes like this:

1. Layer 1: Structural walls
2. Layer 2: Fixed elements (doors, windows)
3. Layer 3: Furniture
4. Layer 4: Labels and annotations

Grouping these elements allows Excel to treat them as single objects rather than dozens of independent ones.

Key performance tips:

1. Group repeated furniture sets (desk clusters, seating rows)
2. Avoid shadows and complex gradients
3. Replace multiple small shapes with larger combined shapes
4. Lock background layers once finished

For more advanced layout experimentation, many designers test early drafts using a visual workspace that converts flat layouts into spatial plansbefore finalizing the arrangement.

save pin

Speed Optimization Techniques for Large Workbooks

Key Insight: Excel drawing performance improves dramatically when unnecessary formatting and calculations are reduced.

Beyond shapes, several workbook settings affect performance.

Practical speed optimization checklist:

1. Turn calculation mode to Manual while editing layouts
2. Avoid conditional formatting in the layout sheet
3. Compress images before inserting reference graphics
4. Limit zoom adjustments while editing heavy drawings
5. Keep the layout on a dedicated worksheet

One overlooked issue is "format creep". When shapes are copied from different files, Excel imports hidden formatting styles. Over time, these styles increase workbook size dramatically.

Cleaning unused styles can noticeably reduce file weight.

Template Strategies for Reusable Floor Plan Layouts

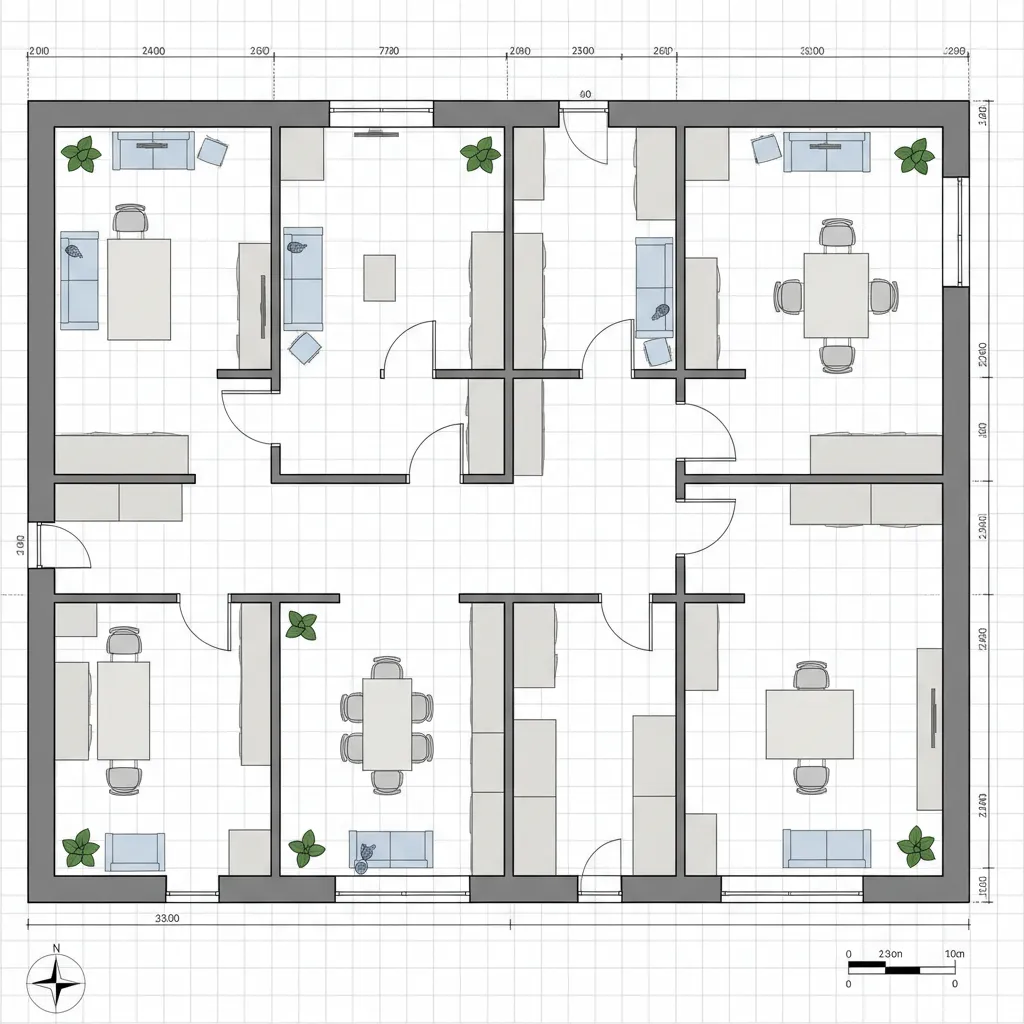

Key Insight: A well-built Excel floor plan template eliminates repetitive setup and prevents scaling mistakes.

In practice, most layout drawings repeat the same elements: walls, desks, corridors, labels. Instead of recreating them each time, a structured template saves enormous time.

My typical template structure includes:

1. Pre-scaled grid
2. Standard wall modules
3. Common furniture blocks
4. Preformatted annotation styles
5. Legend and measurement references

This approach is especially useful for office planning where layouts change frequently. For teams moving beyond spreadsheets, experimenting with

save pin

AI assisted layout generation for early design concepts can accelerate the initial planning stage before manual refinement.

Answer Box

Excel floor plan performance depends mainly on shape count, grid consistency, and workbook structure. Reducing individual objects, grouping elements, and using reusable templates can dramatically improve editing speed even in large layouts.

When Optimization Is Not Enough

Key Insight: Once a floor plan reaches architectural complexity, Excel optimization reaches a hard limit.

Even with perfect organization, Excel still lacks several capabilities professional layout tools provide:

1. True dimension constraints
2. Parametric walls and doors
3. Automatic collision detection
4. Real-time 3D visualization
5. Large-scale object management

In my experience, the tipping point usually happens when:

1. The layout exceeds 300–500 shapes
2. Multiple floors must be managed
3. Furniture libraries grow large
4. Precise architectural dimensions are required

At that stage, Excel becomes more of a bottleneck than a productivity tool.

Final Summary

1. Excel slows down mainly because of excessive individual shapes.
2. Consistent grid scaling keeps layouts accurate and easier to edit.
3. Grouping shapes and organizing layers improves workbook performance.
4. Reusable templates prevent repeated setup work.
5. Complex architectural layouts eventually require specialized design tools.

FAQ

Can Excel handle large floor plan layouts?

Yes, but performance drops when the workbook contains hundreds of shapes. Optimizing grouping, scaling, and formatting helps maintain usability.

How do you optimize Excel for floor planning?

Reduce shape count, use consistent grid scaling, group objects, and keep layouts in dedicated worksheets. These steps optimize Excel for floor planning performance.

Why does Excel slow down with layout drawings?

Each shape acts as an independent object. Hundreds of objects increase rendering and recalculation load.

What grid scale works best for Excel floor plans?

Many designers use 1 cell = 1 foot or 1 cell = 0.5 meters depending on project scale.

Can Excel replace CAD for floor planning?

For simple layouts or early planning, yes. For detailed architectural work, CAD or specialized planning tools are better.

What is the best Excel template for floor plan layout?

A template with a fixed grid scale, grouped furniture elements, and standardized wall modules works best.

How many shapes can Excel handle in a floor plan?

Performance typically drops beyond 300–500 shapes depending on computer performance.

Is Excel good for office seating layouts?

Yes. Excel is commonly used for quick office seating charts and early workspace planning.
