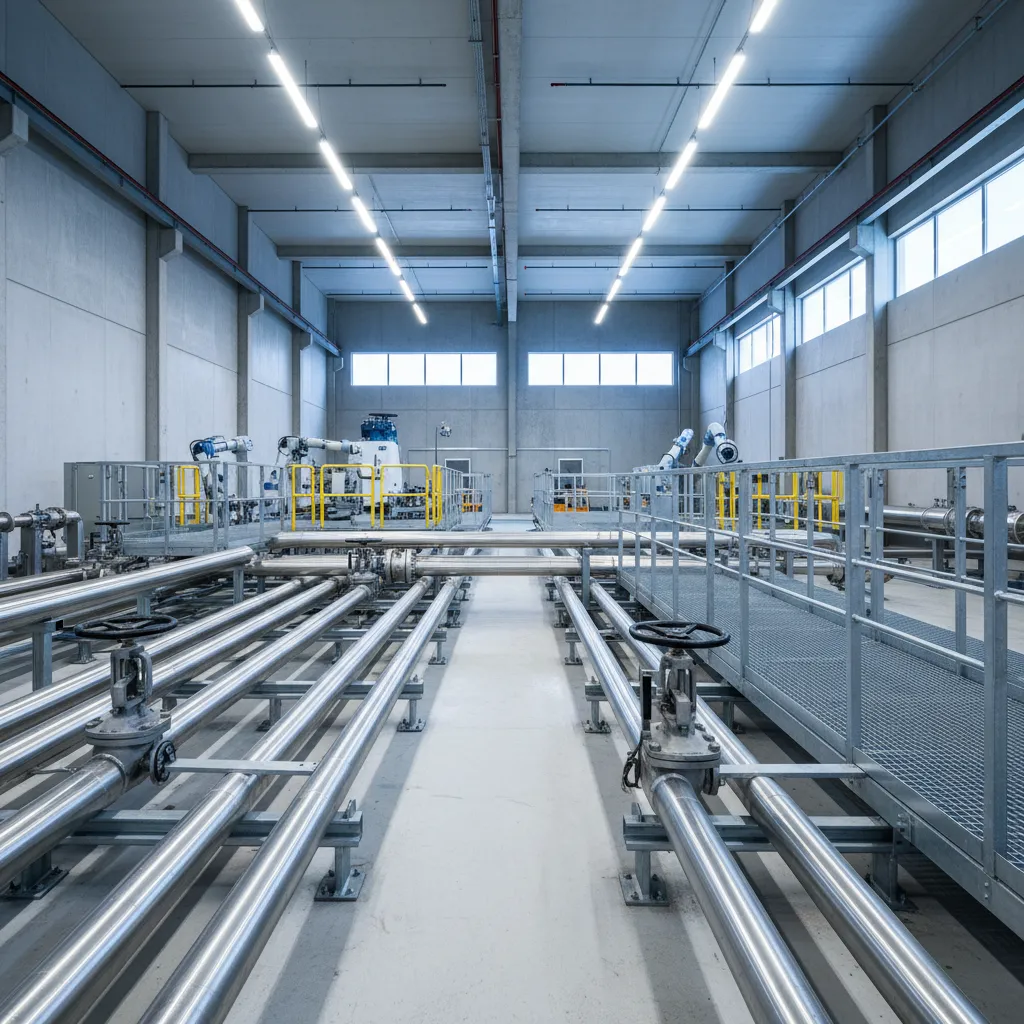

How to Optimize Floor Piping Layout for Maintenance and Flow Efficiency: Practical strategies engineers use to design floor piping systems that improve flow performance, reduce downtime, and simplify long‑term maintenance.

Direct Answer

To optimize a floor piping layout for maintenance and flow efficiency, prioritize short and direct pipe routes, maintain clear service access zones, reduce unnecessary bends, and organize pipes into modular corridors that support inspection and future expansion. Efficient layouts minimize pressure loss while ensuring technicians can access valves, pumps, and joints without disrupting operations.

Quick Takeaways

1. Shorter pipe runs with fewer elbows significantly reduce pressure loss.
2. Maintenance corridors prevent equipment downtime during repairs.
3. Grouped piping routes simplify inspection and lifecycle management.
4. Planning expansion space avoids costly plant retrofits later.
5. Digital layout modeling exposes flow and access issues early.

Introduction

In many industrial projects I’ve worked on, the floor piping layout often looks perfectly logical on paper—but becomes a maintenance nightmare once the facility starts operating. Pipes cross walkways, valves hide behind equipment, and pressure drops appear in sections that seemed fine during design.

Optimizing a floor piping layout is not just about fitting pipes into available space. It’s about balancing three forces: flow efficiency, maintenance accessibility, and long‑term flexibility. Ignore any one of these and the system slowly becomes expensive to operate.

Over the past decade designing manufacturing facilities and utility plants, I’ve noticed that the best-performing piping systems share one common trait: the layout was planned with operational reality in mind, not just installation convenience.

Before teams finalize routing, I usually recommend testing layouts visually using tools that help generate accurate facility floor plans before routing utilities. Seeing equipment, walkways, and pipe runs together often reveals problems long before construction.

This guide walks through the principles engineers use to optimize floor piping systems so they move fluids efficiently while remaining serviceable for decades.

save pin

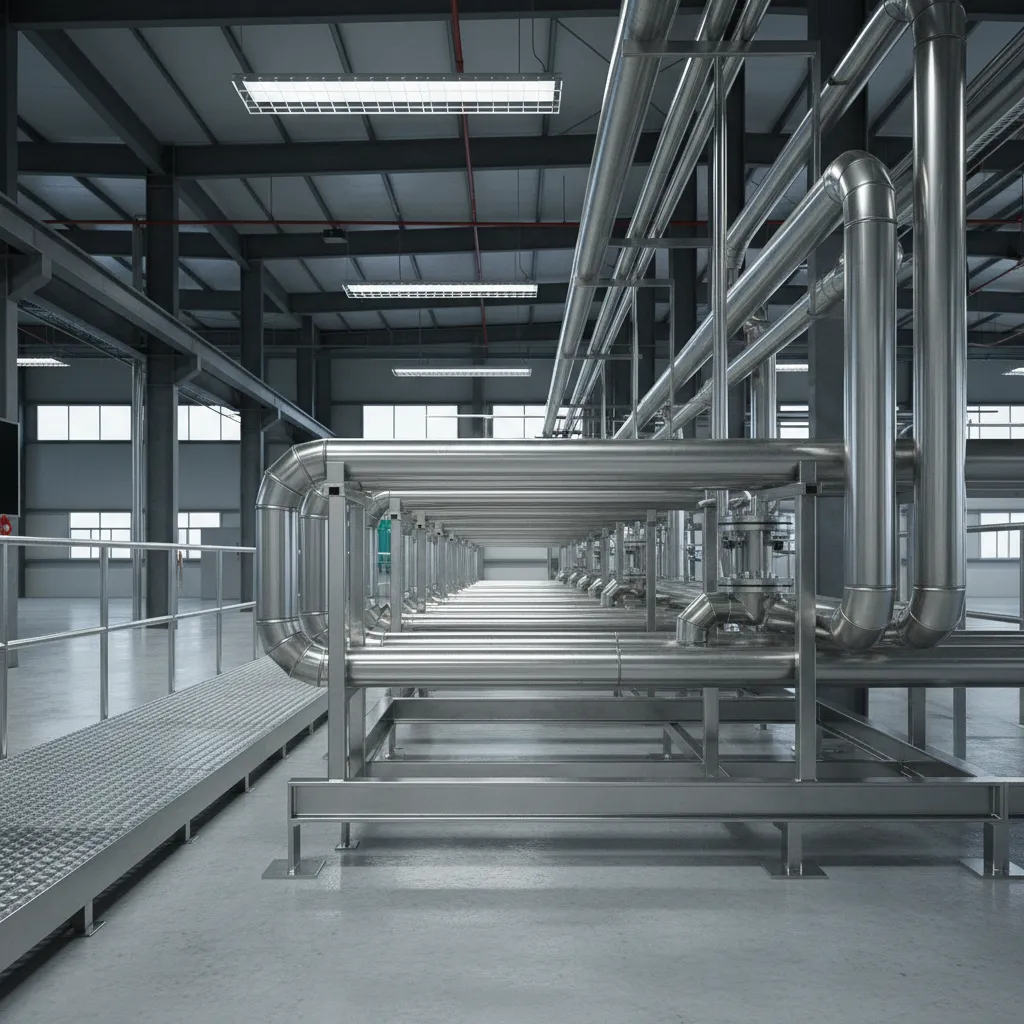

Key Performance Goals in Floor Piping Layout Design

Key Insight: A high‑performing floor piping layout balances hydraulic efficiency, accessibility, safety, and future scalability.

One mistake I see frequently is focusing only on pipe length. While minimizing distance matters, industrial piping performance actually depends on multiple design metrics working together.

Experienced facility planners typically evaluate layouts using these performance goals:

1. Hydraulic efficiency – Short runs, minimal elbows, and consistent pipe diameter.
2. Maintenance access – Valves, strainers, and pumps reachable without dismantling equipment.
3. Operational safety – Clear walking zones and unobstructed emergency access.
4. Thermal and vibration control – Adequate spacing for expansion joints and supports.
5. Future capacity – Spare routing space for additional lines.

The American Society of Mechanical Engineers (ASME) emphasizes that lifecycle accessibility often has a larger impact on operating costs than initial pipe length optimization. Facilities that ignore service access typically face higher downtime costs later.

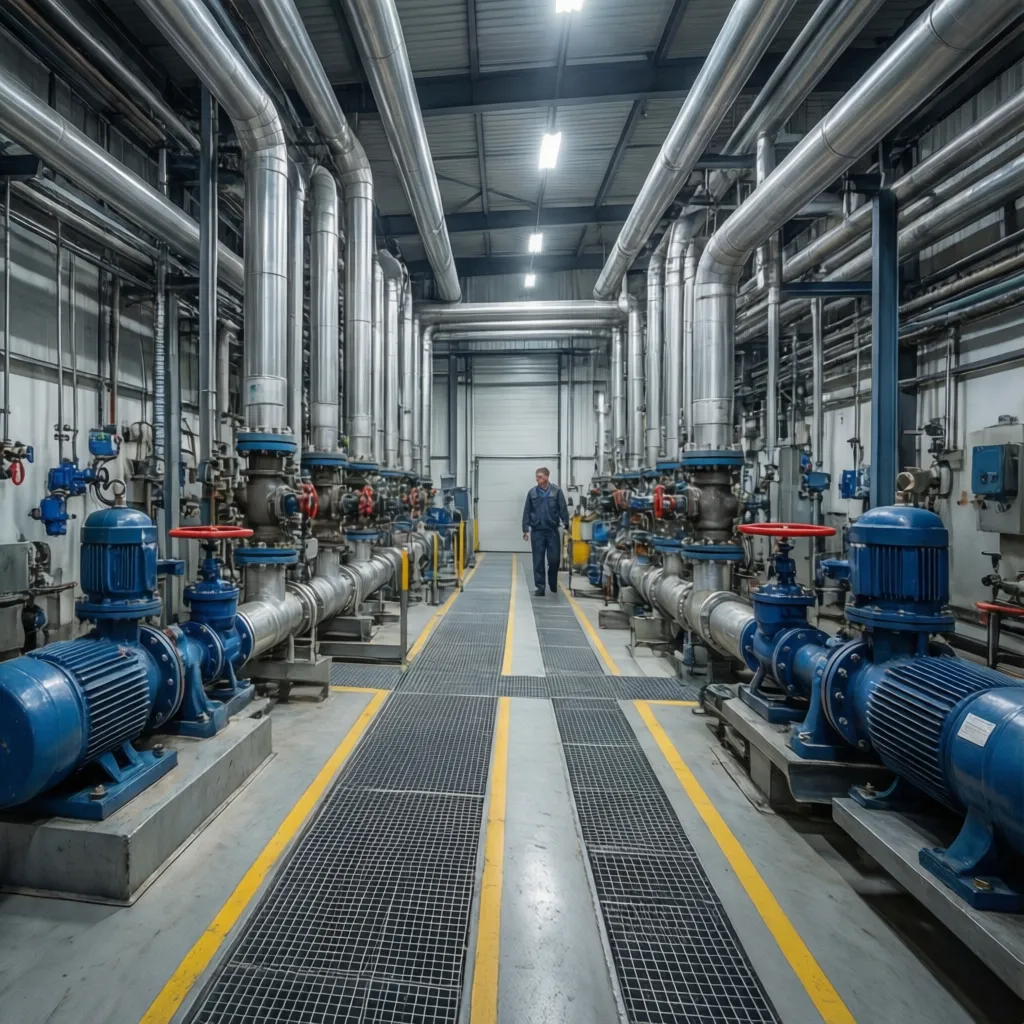

Designing for Maintenance Accessibility

Key Insight: The most reliable piping layouts are designed so technicians can inspect, isolate, and repair components without shutting down entire process lines.

In many plants I’ve audited, maintenance crews spend more time reaching equipment than actually fixing it. Pipes placed directly against walls or under machinery make even simple valve replacements difficult.

A maintenance‑friendly layout typically includes:

1. Minimum 600–900 mm service clearance around valves and pumps
2. Dedicated piping corridors along walls or service trenches
3. Accessible isolation valves every major branch
4. Clear labeling and grouped utility lines

There’s also a hidden cost many designers overlook: maintenance delays. According to industrial reliability studies published by the Uptime Institute, poor equipment accessibility can increase repair times by more than 30 percent.

That’s why I prefer routing major utility lines along predictable pathways instead of weaving them between machines.

save pin

Flow Efficiency and Pressure Loss Considerations

Key Insight: Reducing bends, transitions, and unnecessary elevation changes is the fastest way to improve flow efficiency in floor piping systems.

Fluid dynamics quickly punishes inefficient layouts. Every elbow, reducer, and valve adds friction losses that force pumps to work harder.

Key factors affecting pressure loss include:

1. Number of elbows – Each 90° bend creates significant turbulence.
2. Pipe diameter changes – Sudden transitions increase resistance.
3. Surface roughness – Material selection affects friction factors.
4. Flow velocity – Oversized or undersized pipes reduce efficiency.

When optimizing layouts, engineers often compare routing alternatives using the Darcy‑Weisbach equation or simulation tools. Even a few fewer elbows can noticeably reduce energy consumption in high‑flow systems.

In one processing plant redesign I worked on, rerouting a chilled water line reduced total elbows from 18 to 9. The pump energy requirement dropped enough to save thousands of dollars annually.

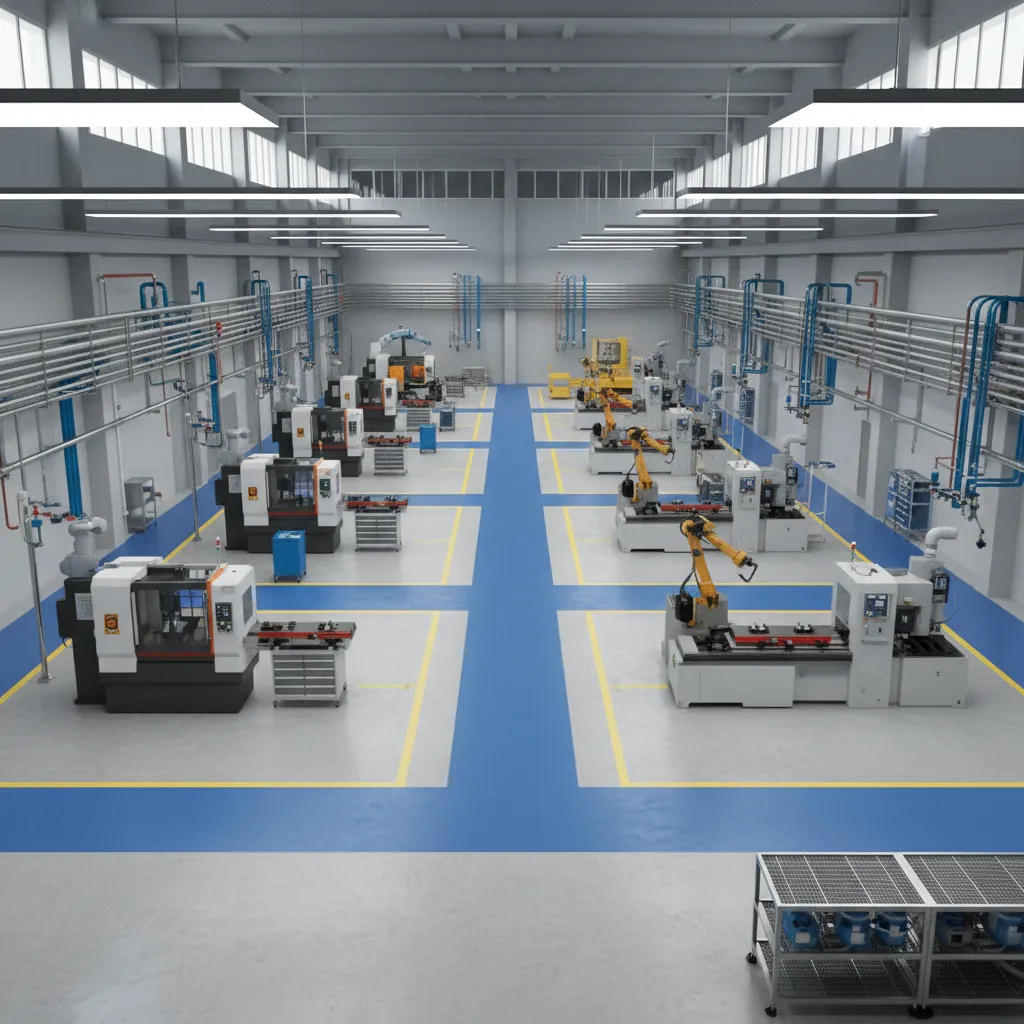

Minimizing Interference with Equipment and Walkways

Key Insight: A clean piping layout keeps utilities predictable and separated from operational traffic areas.

One of the biggest operational frustrations in factories is piping that cuts across movement paths. It increases trip hazards, complicates equipment installation, and slows maintenance teams.

Good layouts typically apply three zoning principles:

1. Utility corridors for major pipe trunks
2. Equipment zones free of cross‑routing
3. Clear walkways for safe access and transport

When teams visualize these zones during early design phases, conflicts are easier to resolve. Many planners now simulate layouts digitally using tools that help visualize piping routes alongside equipment in a 3D floor plan. Seeing the spatial relationship between pipes, machines, and aisles often reveals conflicts that 2D drawings hide.

save pin

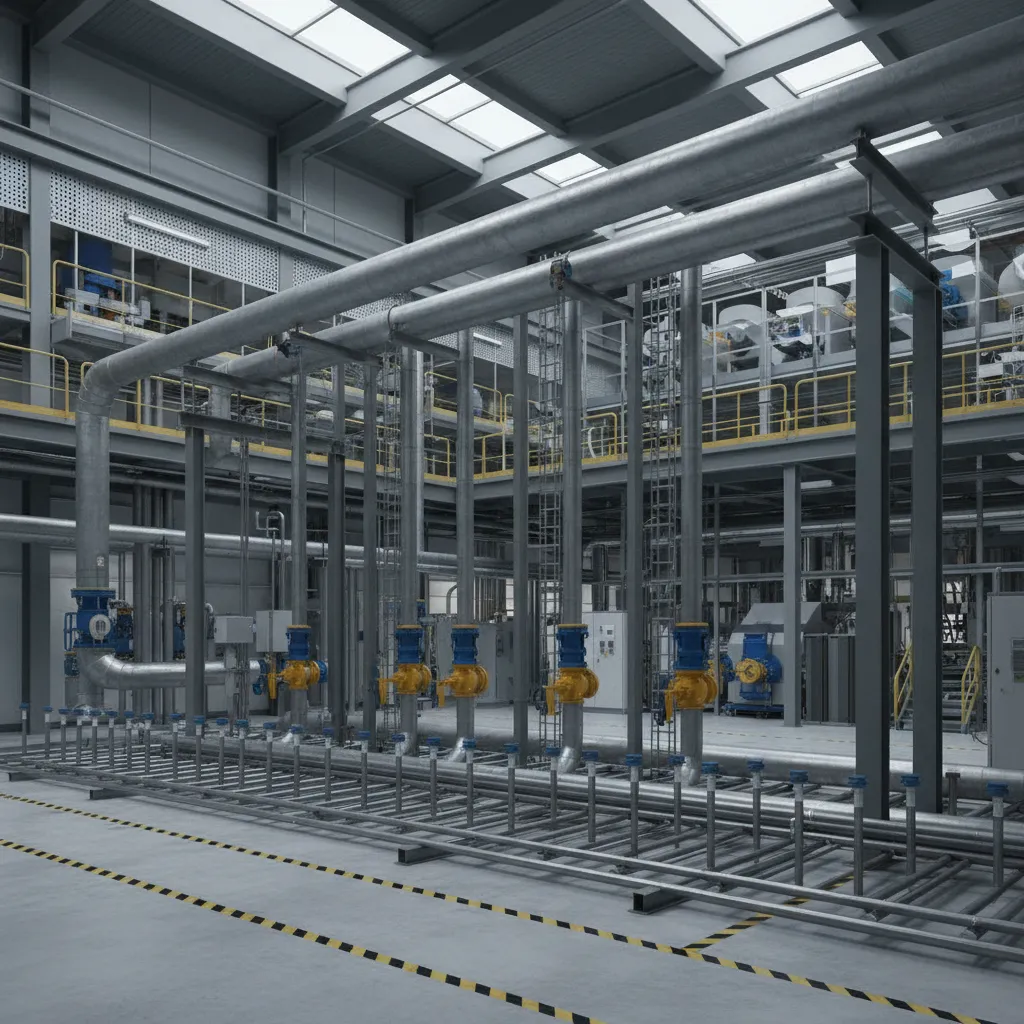

Modular Routing and Future Expansion Planning

Key Insight: The smartest piping layouts assume the facility will change within 5–10 years.

One pattern I’ve noticed across growing factories is that rigid piping networks quickly become obstacles during expansions. New production lines require additional utilities, and poorly planned layouts force expensive rerouting.

Modular piping strategies help avoid this problem.

Typical modular design methods include:

1. Centralized trunk lines with branch connections
2. Reserved pipe rack or trench capacity
3. Standardized valve and connection modules
4. Preplanned expansion corridors

This approach allows engineers to extend systems without dismantling existing infrastructure.

When planning expansions, it also helps to map piping together with spatial planning tools that allow teams to test equipment layout changes before construction begins. Coordinating mechanical routing with space planning prevents costly redesigns later.

save pin

Digital Tools and Simulation for Layout Optimization

Key Insight: Modern simulation tools reveal flow inefficiencies and maintenance conflicts long before construction begins.

Historically, piping layouts were refined mostly through experience and manual calculations. Today, digital modeling dramatically improves the process.

Common optimization tools include:

1. 3D facility modeling software
2. Computational fluid dynamics (CFD) analysis
3. Clash detection between piping and equipment
4. Maintenance access simulations

CFD modeling is especially useful for complex fluid systems where pressure loss, turbulence, or temperature changes affect performance.

According to research published by the International Journal of Fluid Machinery Systems, early-stage flow simulation can reduce energy losses in industrial piping systems by up to 15 percent when design changes are implemented before installation.

Answer Box

The most effective way to optimize a floor piping layout is to combine hydraulic efficiency with service accessibility. Short routes, fewer bends, organized utility corridors, and digital modeling dramatically improve both system performance and long‑term maintainability.

Final Summary

1. Efficient floor piping layouts prioritize short routes and fewer bends.
2. Maintenance accessibility significantly reduces downtime costs.
3. Clear utility corridors prevent interference with operations.
4. Modular routing allows future plant expansion.
5. Digital simulations expose layout problems early.

FAQ

What is the main goal when optimizing a floor piping layout?

The main goal is balancing efficient flow with maintenance accessibility while minimizing interference with equipment and operations.

How can pressure loss be reduced in a floor piping layout?

Reduce pipe length, minimize elbows, maintain consistent diameters, and avoid unnecessary elevation changes.

Why is maintenance access important in floor piping systems?

Accessible valves and equipment reduce repair time and prevent production shutdowns during maintenance.

What spacing should be maintained around service valves?

Most industrial facilities maintain 600–900 mm of clearance to allow safe inspection and repairs.

Is floor piping better than overhead piping?

It depends on the facility. Floor piping improves accessibility but may interfere with walkways if not carefully planned.

What tools help optimize floor piping layout during design?

3D modeling software, layout visualization tools, and fluid simulation platforms are commonly used.

How do modular piping systems help plant efficiency?

They allow future expansion without major system reconstruction.

What are common mistakes when designing a floor piping layout?

Hidden valves, excessive elbows, crossing walkways, and no allowance for future expansion.
