How to Optimize Floor Plans for Accurate 3D Model Conversion: Prepare and clean your floor plans properly to reduce modeling errors and produce accurate 3D layouts the first time.

Direct Answer

To optimize floor plans for accurate 3D model conversion, ensure drawings are clean, scaled correctly, and simplified before importing them into modeling software. Remove unnecessary details, standardize measurements, and organize layers so walls, openings, and structural elements are clearly defined. Well‑prepared floor plans dramatically reduce modeling errors and speed up the 3D conversion process.

Quick Takeaways

1. Clean floor plans reduce interpretation errors during 3D conversion.
2. Consistent measurement units prevent scaling issues in models.
3. Vector drawings convert more accurately than raster images.
4. Organized layers make automated wall detection far more reliable.
5. A simple validation checklist catches most modeling problems early.

Introduction

After more than a decade working with architects, contractors, and interior design teams, I can tell you that most 3D modeling problems don’t actually start in the modeling stage. They start in the floor plan.

When teams attempt to convert drawings into a digital environment, even small drafting issues—misaligned walls, inconsistent measurements, or messy layers—can cause major modeling inaccuracies. That’s why optimizing floor plans for accurate 3D model conversion is one of the most overlooked steps in the workflow.

In many projects I’ve reviewed, the difference between a clean conversion and hours of troubleshooting simply came down to how the floor plan was prepared before import. Teams that spend 15 minutes preparing the drawing often save several hours during modeling.

If you're planning to convert layouts into interactive models, tools that support visualizing layouts with a professional 3D floor planner workflowwork best when the underlying floor plan is properly structured.

In this guide, I’ll walk through the exact preparation process we use in real projects to improve accuracy when converting floor plans to 3D models.

save pin

Why Floor Plan Quality Directly Affects 3D Model Accuracy

Key Insight: The cleaner and more structured a floor plan is, the easier it is for modeling systems to interpret walls, openings, and room boundaries correctly.

3D modeling systems interpret drawings based on geometric relationships. When lines overlap, walls are broken, or dimensions conflict, the software must guess the intent of the design. Guessing almost always produces errors.

In my consulting work with residential developers, we often see three recurring issues:

1. Walls drawn with multiple overlapping lines
2. Inconsistent line thickness for structural elements
3. Missing wall closures at corners

Even experienced designers sometimes overlook these details because 2D drawings still "look correct" visually. But during conversion, those inconsistencies prevent automated wall detection.

Industry BIM guidelines from organizations like the National Institute of Building Sciences emphasize that consistent geometry and closed shapes are essential for digital modeling accuracy.

Simply put: if a floor plan is messy, the 3D model will be messy too.

Cleaning and Simplifying Floor Plan Drawings Before Conversion

Key Insight: Removing unnecessary drawing elements dramatically improves how accurately walls and spaces are interpreted during modeling.

Floor plans used for documentation often include decorative elements, annotations, furniture symbols, and notes. While useful for construction drawings, these elements interfere with automated modeling.

Before conversion, simplify the drawing using this process:

Recommended cleaning workflow

1. Delete furniture symbols and loose objects
2. Remove dimensions and text annotations
3. Keep only structural elements (walls, doors, windows)
4. Merge duplicate wall lines
5. Close gaps at wall intersections

One surprising mistake I see frequently is designers leaving cabinet outlines or decorative moldings in the structural layer. Modeling systems sometimes interpret these as walls.

save pin

Standardizing Measurements and Units

Key Insight: Consistent measurement units are critical because even small scaling mismatches can distort the entire 3D model.

When preparing architectural drawings for 3D modeling, measurement inconsistencies create some of the hardest errors to detect. The model might look correct visually, but every object could be slightly off in scale.

Common causes include:

1. Mixing metric and imperial units
2. Incorrect drawing scale settings
3. Imported PDF plans without calibration

Best practices I recommend to teams include:

1. Confirm the drawing scale before export
2. Include at least one known dimension reference
3. Set consistent units across the entire file
4. Verify wall thickness values

According to Autodesk documentation for digital drafting standards, establishing a reliable reference dimension before modeling prevents the majority of scale distortion problems.

Preparing Vector vs Raster Floor Plans for Modeling

Key Insight: Vector floor plans convert more accurately than raster images because walls and geometry are already defined as precise lines.

Not all floor plans are created equal. Some originate from CAD drawings, while others come from scanned PDFs or photos of blueprints.

Here’s how the formats compare during 3D conversion:

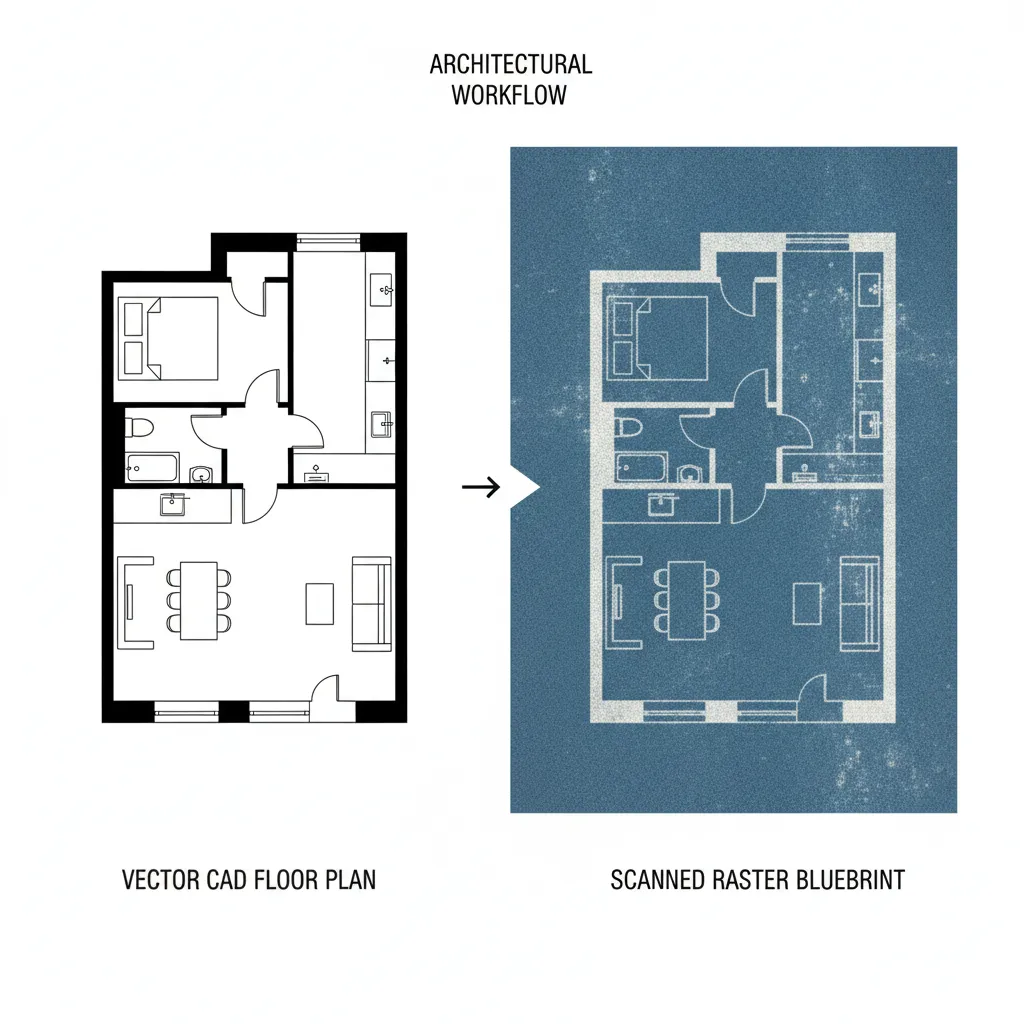

1. Vector drawings (DWG, DXF, SVG)Precise line geometry
2. Faster automated wall detection
3. Higher modeling accuracy
4. Raster images (JPG, PNG, scanned PDFs)Require manual tracing
5. Edges may be distorted
6. Higher chance of alignment errors

If you’re starting with raster plans, using a workflow that supports turning simple drawings into editable floor plansbefore modeling can significantly improve results.

save pin

Layer Organization for Faster 3D Modeling

Key Insight: Organized layers allow modeling systems to correctly identify architectural elements such as walls, windows, and doors.

Layer management might sound like a minor drafting detail, but it has a huge impact on conversion accuracy. In large commercial projects, poor layer organization can double modeling time.

A simple layer structure works best:

1. Walls
2. Doors
3. Windows
4. Structural columns
5. Reference annotations

Keep structural geometry separated from annotations. That way, modeling tools can automatically identify the elements that define space.

In one apartment renovation project I reviewed, reorganizing the CAD layers reduced the modeling time from three hours to under one.

Answer Box

Accurate 3D models depend more on floor plan preparation than modeling skill. Clean drawings, consistent measurements, vector formats, and organized layers dramatically reduce conversion errors.

Pre‑Conversion Validation Checklist

Key Insight: A quick validation checklist before importing a floor plan can prevent most conversion problems.

Before running any conversion process, I recommend reviewing this simple checklist.

Floor plan validation checklist

1. Walls form continuous closed shapes
2. No duplicate or overlapping lines
3. Consistent measurement units
4. Clear door and window openings
5. Unused layers removed
6. Drawing scale confirmed

Design teams that follow this process consistently report smoother modeling workflows. If you're planning to move directly from layouts into realistic visualization, exploring workflows that support creating full home renders from structured floor plans can further streamline the transition from drawing to presentation.

Final Summary

1. Clean geometry dramatically improves 3D conversion accuracy.
2. Vector floor plans outperform scanned drawings.
3. Consistent units prevent hidden scale errors.
4. Layer organization speeds up automated modeling.
5. A pre‑conversion checklist prevents most workflow issues.

FAQ

1. How do you prepare floor plans for 3D modeling?

Remove annotations, clean duplicate lines, confirm measurements, and organize layers so structural elements like walls and openings are clearly defined.

2. What is the best format for floor plan to 3D conversion?

Vector formats such as DWG or DXF produce the most accurate results because geometry is already defined as editable lines.

3. Can you convert scanned floor plans into 3D models?

Yes, but they usually require manual tracing first. Raster images lack the precise geometry needed for automated conversion.

4. Why does my 3D model scale look wrong?

Scale errors usually occur when measurement units or drawing scale settings are inconsistent before conversion.

5. How can I improve accuracy when converting floor plans to 3D?

Clean the drawing, confirm measurements, use vector formats, and ensure wall lines are continuous and properly aligned.

6. Do layers matter when converting floor plans to 3D models?

Yes. Organized layers help modeling systems distinguish walls, doors, and windows from annotations.

7. What causes most errors in floor plan to 3D conversion?

Messy drawings, overlapping wall lines, inconsistent scaling, and raster image sources are the most common causes.

8. How detailed should a floor plan be before 3D modeling?

Only structural elements are necessary. Decorative details and annotations should be removed before conversion.
