How to Optimize House Elevation for Sunlight Ventilation and Energy Efficiency: Practical facade design strategies that improve daylight airflow and long term energy performance without sacrificing curb appeal

Direct Answer

Optimizing a house elevation for sunlight, ventilation, and energy efficiency means designing the facade around sun orientation, cross‑ventilation paths, window placement, shading depth, and climate‑appropriate materials. When these elements are coordinated early in the design process, the exterior elevation becomes a passive environmental system rather than just a visual facade.

Quick Takeaways

1. South and east facing openings typically provide the most balanced daylight and energy performance.
2. Cross ventilation requires aligned openings on opposite or adjacent walls.
3. Facade depth and shading dramatically reduce cooling loads in hot climates.
4. Window placement influences both daylight quality and indoor temperature.
5. Material selection can reduce long term energy loss through the building envelope.

Introduction

In many residential projects I review, homeowners focus heavily on how the front facade looks but rarely think about how the house elevation design for sunlight and ventilation affects everyday living. After working on dozens of residential projects across different climates, I’ve seen the same pattern: a beautiful elevation that unfortunately overheats the house, blocks airflow, or creates dark interior spaces.

A well‑optimized elevation is not just about symmetry or decorative features. It determines how sunlight enters your rooms, how heat builds up on exterior walls, and whether natural airflow can reduce reliance on air conditioning.

If you're still shaping your layout, it helps to first visualize circulation, walls, and openings with a simple way to draft and test floor plan layouts before finalizing the facade. Elevation performance improves dramatically when the plan and facade evolve together instead of being designed separately.

In this guide, I’ll walk through the environmental decisions architects quietly make when designing climate‑responsive facades — the details that rarely show up in typical elevation inspiration galleries.

save pin

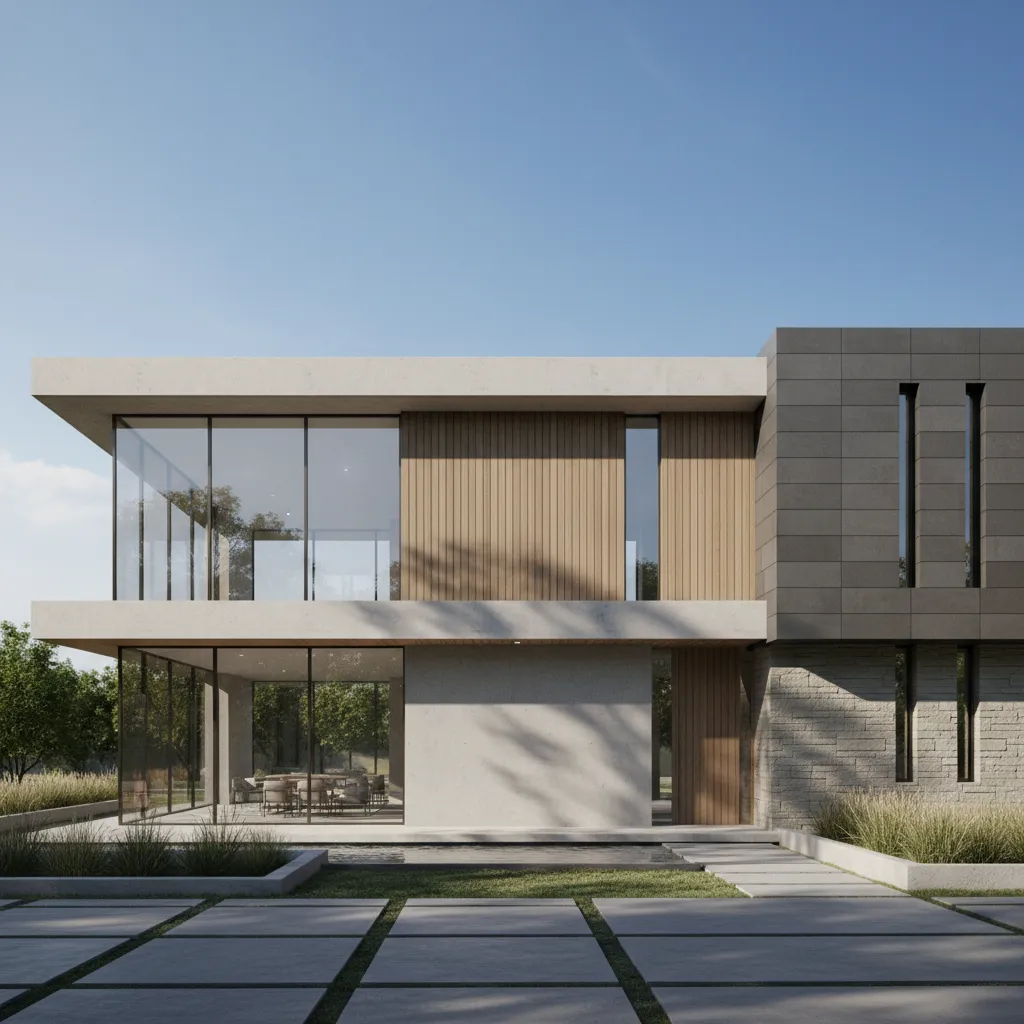

Why House Elevation Should Consider Sun Orientation

Key Insight: The direction your elevation faces determines heat gain, daylight quality, and long‑term energy costs.

One of the most overlooked mistakes I see is designing the front elevation first and thinking about the sun later. Orientation should actually be the starting point. Sun paths vary throughout the day and across seasons, meaning the same window design can behave very differently depending on direction.

In practical terms, here’s how orientation affects facade design:

1. South facing facades receive consistent sunlight and are ideal for controlled daylight with shading.
2. East facing facades capture gentle morning light but minimal afternoon heat.
3. West facing facades often cause overheating due to harsh afternoon sun.
4. North facing facades provide soft indirect light but less solar warmth.

Architects working in passive design often reduce large west‑facing windows and instead emphasize shaded southern openings. According to guidance from the U.S. Department of Energy, proper solar orientation can significantly reduce heating and cooling loads in residential buildings.

In my own projects, simply rotating the window hierarchy of a facade has cut cooling demands noticeably without adding mechanical systems.

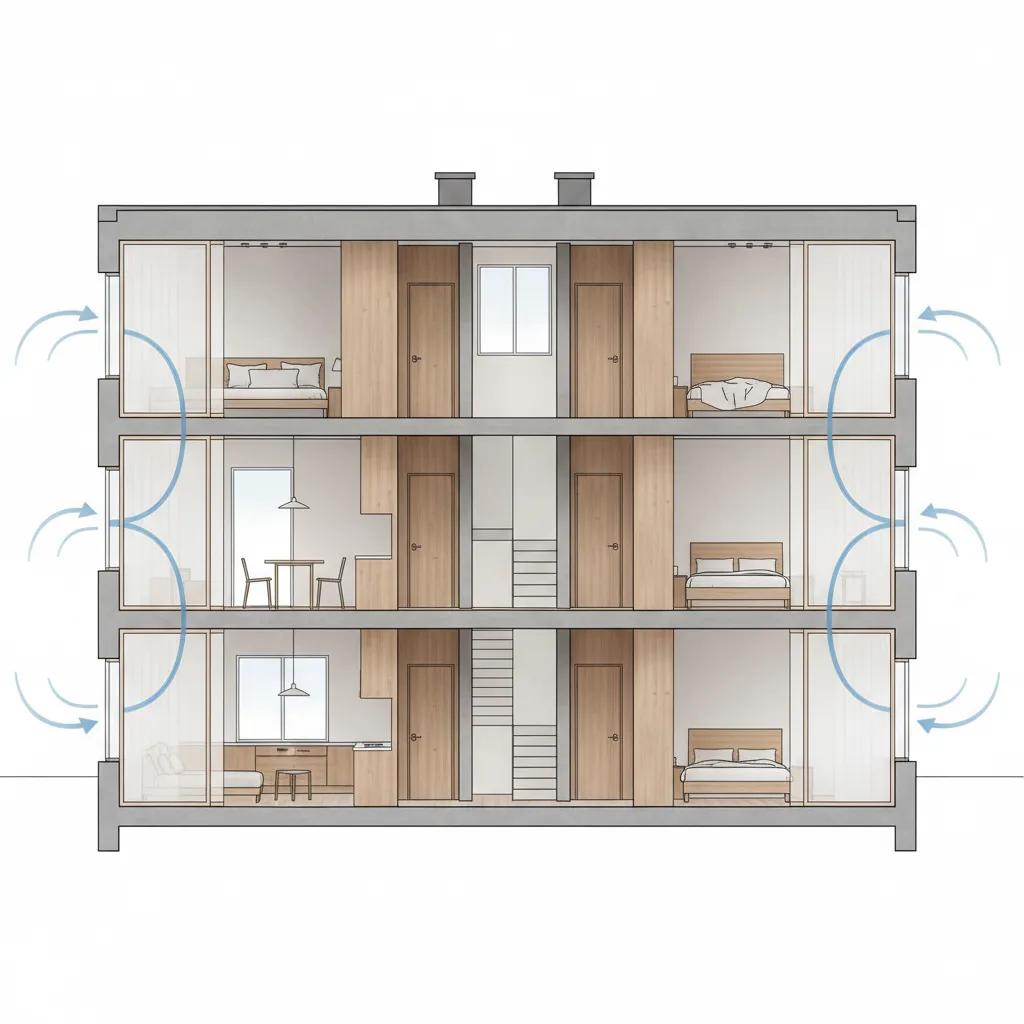

Designing Elevation for Natural Ventilation

Key Insight: Natural ventilation only works when facade openings create a pressure path for air to move through the building.

Many houses include multiple windows yet still feel stuffy. The reason is simple: ventilation requires airflow paths, not just openings.

Effective facade ventilation strategies include:

1. Opposing openings on different sides of the building
2. Vertical airflow paths using stairwells or double height spaces
3. Operable window combinations such as casement or louvered windows
4. Facade setbacks that guide prevailing winds

In tropical and warm climates, elevation design often incorporates staggered openings or perforated facade elements that allow airflow while reducing solar gain. Studies from the International Energy Agency show that natural ventilation strategies can reduce cooling energy consumption by up to 30% in suitable climates.

But here’s the hidden trade‑off many homeowners miss: maximizing airflow can conflict with privacy and noise control. Smart facade zoning — placing ventilation windows on secondary elevations — usually solves that balance.

save pin

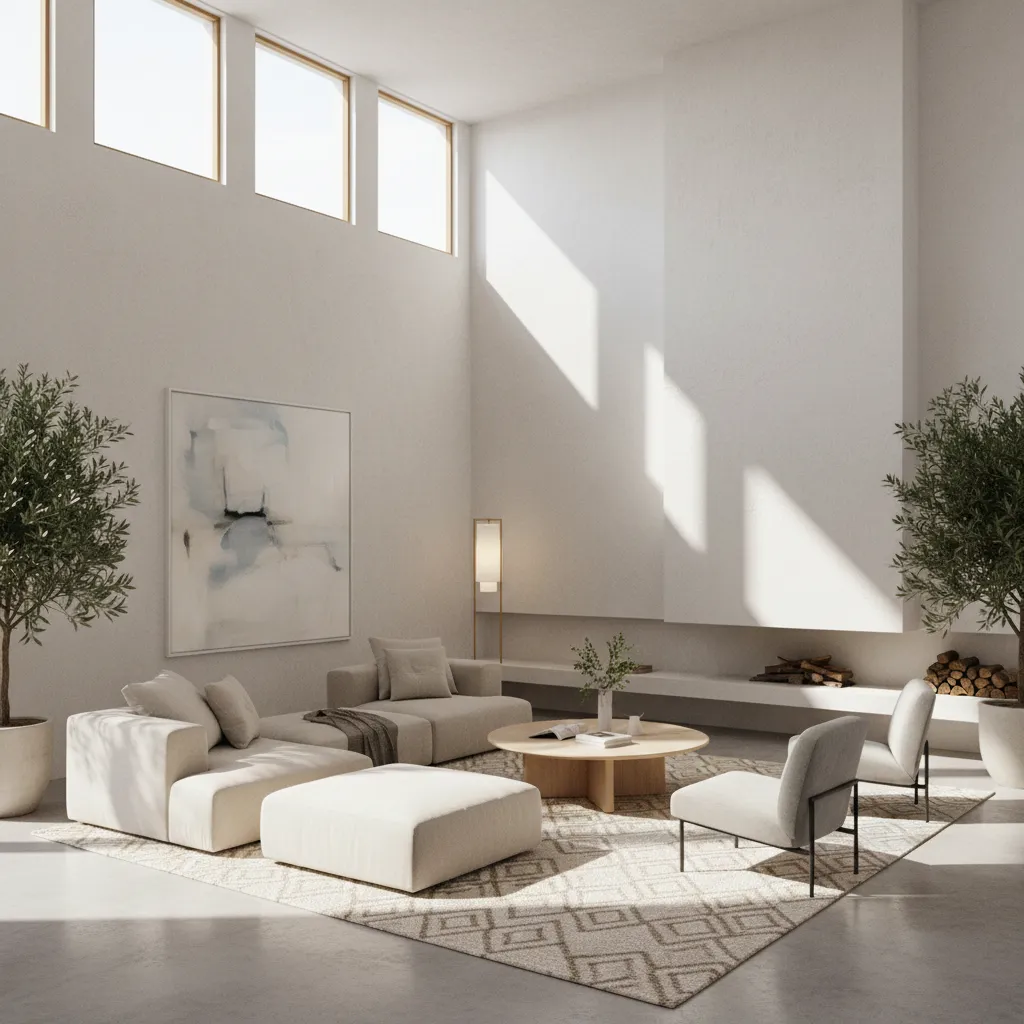

Window Placement Strategies for Better Daylight

Key Insight: Window height and distribution affect daylight depth more than window size.

People often assume larger windows automatically improve natural light. In reality, daylight penetration depends far more on window placement.

Design strategies that consistently work well include:

1. Higher window heads that allow light to reach deeper into rooms
2. Distributed smaller openings instead of one large window
3. Corner windows that spread daylight across multiple surfaces
4. Clerestory windows for indirect light without glare

The Illuminating Engineering Society notes that well‑placed daylight openings can illuminate spaces up to twice the window height into the room. That means a higher window often performs better than a wider one.

When evaluating window layouts in elevation design, I usually test daylight scenarios using quick massing models before committing to final facade proportions.

save pin

Answer Box

The most effective house elevations treat the facade as part of a passive environmental system. Proper orientation, ventilation paths, daylight‑optimized windows, and shading depth together reduce energy demand while improving indoor comfort.

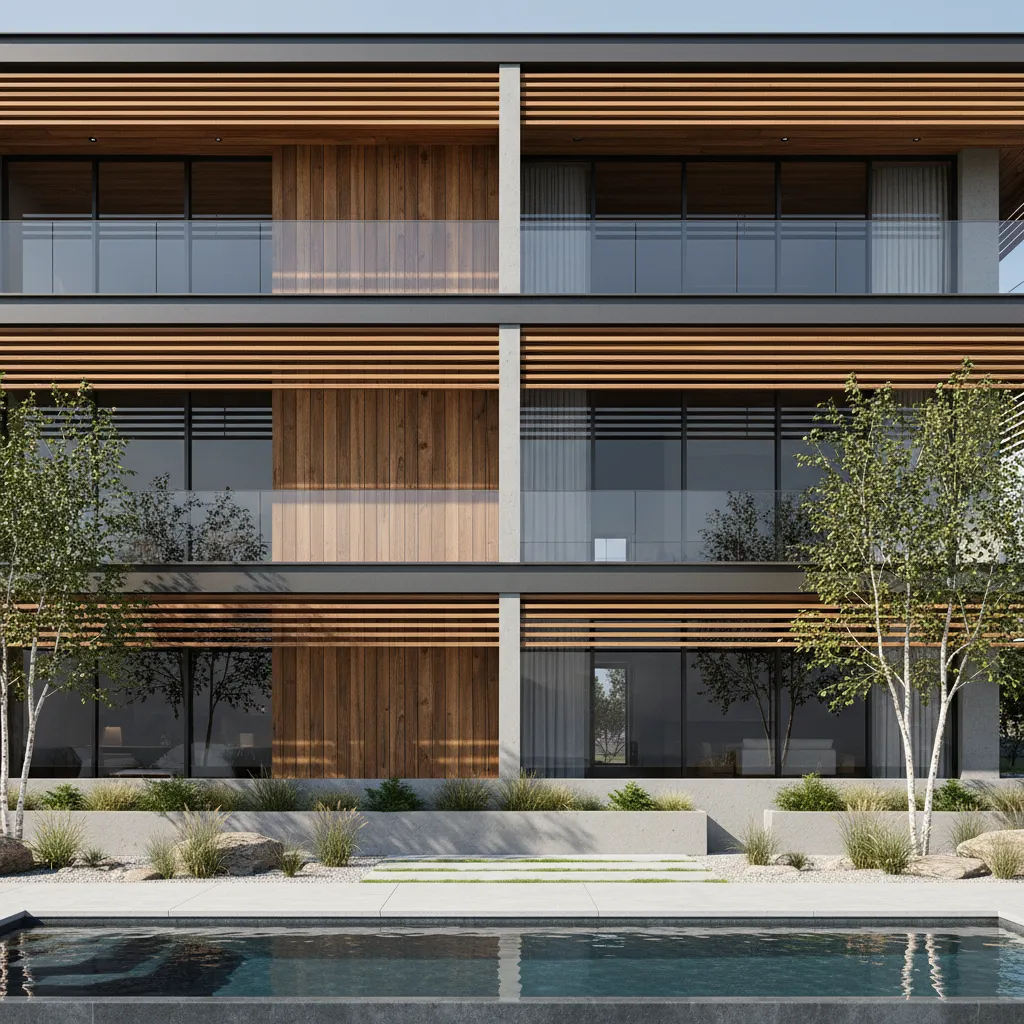

Using Shading Elements and Facade Depth

Key Insight: Shading devices often improve energy performance more than reducing window size.

One of the biggest mistakes in modern facade design is relying on large glass surfaces without proper shading. Instead of shrinking windows, architects often improve performance by adding depth to the elevation.

Common shading elements include:

1. Roof overhangs
2. Horizontal louvers
3. Vertical fins
4. Balconies and recessed windows
5. Facade screens or brise‑soleil

These elements block high summer sun while still allowing winter daylight to enter.

When homeowners want to experiment with facade depth or balcony placement, I often recommend visualizing the design with a visual layout tool that shows facade projections and spatial relationships. Seeing the depth in context helps prevent awkward shading proportions.

save pin

Energy Efficient Materials for Exterior Elevation

Key Insight: The thermal performance of facade materials directly affects heating and cooling efficiency.

Material choices in elevation design are often driven by appearance, but they also determine how much heat transfers through exterior walls.

Some of the most effective facade materials for energy efficiency include:

1. Insulated wall systems that reduce thermal bridging
2. Fiber cement panels with high durability and moderate insulation performance
3. Brick cavity walls for thermal mass
4. Reflective roofing materials that reduce heat absorption

The U.S. Environmental Protection Agency notes that cool exterior materials and reflective surfaces can significantly lower indoor temperatures during hot seasons.

In hot climates, lighter facade colors combined with ventilated wall assemblies can noticeably reduce indoor heat buildup.

Balancing Aesthetics and Climate Performance

Key Insight: The best elevations integrate environmental logic into the visual design rather than hiding it.

One misconception I see frequently is that performance‑driven facades look overly technical or unattractive. In reality, many iconic architectural styles emerged from climate responses.

For example:

1. Mediterranean houses use deep arcades for shade
2. Tropical architecture emphasizes cross ventilation
3. Scandinavian homes maximize low winter sunlight

Modern residential design increasingly blends these ideas with contemporary aesthetics.

If you're refining the final appearance, a photorealistic exterior visualization of your house elevation before construction can reveal how shading, windows, and materials interact in real lighting conditions.

Final Summary

1. Sun orientation should guide facade window placement.
2. Natural ventilation requires aligned airflow paths.
3. Higher window placement improves daylight penetration.
4. Facade depth and shading dramatically reduce heat gain.
5. Material selection influences long term energy efficiency.

FAQ

1. What is the best house elevation design for sunlight?

South or southeast oriented elevations typically provide balanced daylight with manageable heat gain when combined with shading.

2. How do I design a house elevation for natural ventilation?

Ensure windows are placed on opposite or adjacent walls so air can flow through the building rather than stopping at one facade.

3. Does window size affect daylight performance?

Yes, but window height and placement usually matter more than total size for daylight distribution.

4. What is climate responsive house elevation design?

It’s an approach where facade orientation, openings, shading, and materials respond to local climate conditions.

5. Can facade shading really reduce energy use?

Yes. Proper shading blocks high summer sun and significantly lowers cooling loads.

6. What materials improve energy efficient house facade design?

Insulated wall assemblies, thermal mass materials like brick, and reflective exterior finishes perform well.

7. How important is window placement in house elevation?

Window placement controls daylight depth, solar heat gain, and ventilation performance.

8. Should elevation design be done before the floor plan?

No. The most effective elevations evolve together with the floor plan so airflow and daylight strategies align.

References

1. U.S. Department of Energy – Passive Solar Design Guidelines
2. International Energy Agency – Natural Ventilation in Buildings
3. Illuminating Engineering Society – Daylighting Design Principles
