How to Optimize Insulation and Waterproofing in Dormer Construction: Practical strategies to prevent heat loss, leaks, and condensation when building a durable and energy efficient dormer

Direct Answer

Optimizing insulation and waterproofing in dormer construction requires a continuous thermal envelope, airtight framing transitions, and layered moisture protection. The most effective dormers combine high‑performance insulation, precise flashing, and controlled ventilation so heat stays inside while moisture safely escapes.

When these systems work together, dormers become energy efficient additions instead of common leak and condensation points.

Quick Takeaways

1. Dormers lose heat quickly because roof, wall, and ceiling assemblies intersect in tight spaces.
2. Rigid foam combined with dense cavity insulation creates the most reliable dormer thermal envelope.
3. Air sealing matters as much as insulation thickness for preventing condensation.
4. Proper step flashing and ice barrier layers stop most dormer roof leaks.
5. Ventilation paths prevent trapped moisture that causes mold and structural rot.

Introduction

Dormer construction looks straightforward on paper, but in real projects it’s one of the most failure‑prone areas of a roof. After working on dozens of attic conversions and roof remodels, I’ve noticed the same pattern again and again: dormers that look beautiful outside but quietly leak heat or moisture inside the walls.

The reason is simple. A dormer interrupts the roof’s continuous structure. Suddenly you have new valleys, new wall transitions, and tight cavities where insulation and flashing have to work perfectly.

When homeowners plan layouts or attic expansions, I often recommend starting with a clear structural layout using tools similar to a visual floor plan creator for attic remodel planning. Seeing the dormer geometry early helps avoid cramped cavities that are nearly impossible to insulate correctly.

This guide walks through the insulation and waterproofing details that actually determine whether a dormer performs well for decades—or becomes a recurring repair problem.

save pin

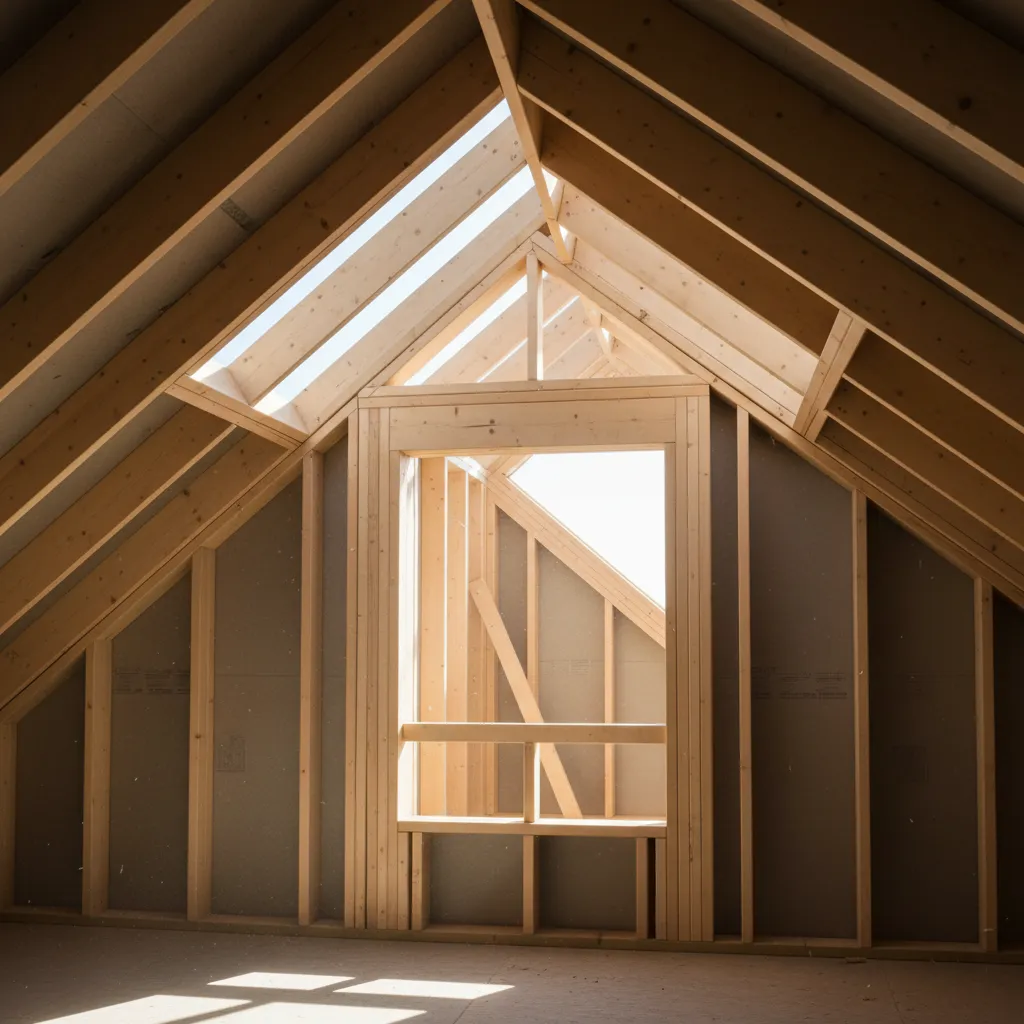

Why Dormers Are Vulnerable to Heat Loss and Moisture

Key Insight: Dormers are vulnerable because they combine multiple building assemblies—roof, wall, and ceiling—within a compact structural junction.

In a typical roof system, insulation runs continuously between rafters. When a dormer is added, that continuity breaks. Framing intersections create small voids where insulation often gets compressed or skipped entirely.

Common weak points include:

1. Roof-to-dormer wall junctions
2. Dormer cheek walls
3. Dormer ceiling slopes
4. Valley intersections where two roof planes meet

Another hidden issue is air leakage. Even small gaps allow warm interior air to enter cold roof cavities. When that air cools, condensation forms—one of the main causes of mold and rot inside dormers.

Building science research from the U.S. Department of Energy consistently shows that uncontrolled air leakage can reduce insulation performance by more than 30 percent in roof assemblies.

Best Insulation Materials for Dormer Walls and Roofs

Key Insight: The most reliable dormer insulation systems combine rigid exterior insulation with dense cavity insulation.

In my projects, relying on a single insulation type almost always leads to cold spots. Dormers benefit from layered insulation strategies.

Top insulation choices include:

1. Closed‑cell spray foam – excellent air sealing and high R‑value in tight cavities
2. Rigid foam board – ideal for continuous exterior insulation
3. Dense‑pack cellulose – good for filling irregular framing bays
4. Mineral wool – moisture resistant and dimensionally stable

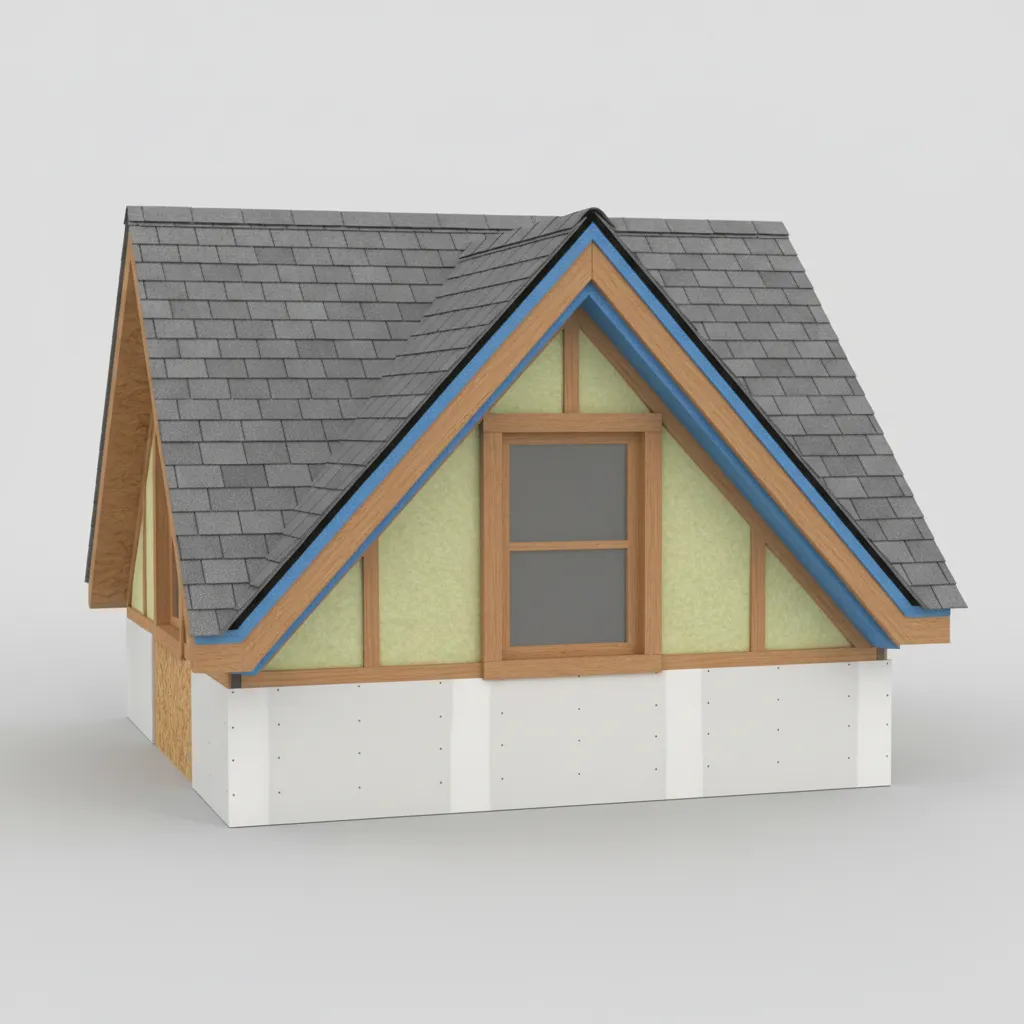

A common high‑performance assembly looks like this:

1. Roof sheathing
2. Ice and water shield membrane
3. Rigid foam insulation layer
4. Rafter cavity insulation
5. Interior vapor control layer

This layered approach prevents thermal bridging through rafters—one of the biggest hidden heat loss sources in dormer roofs.

save pin

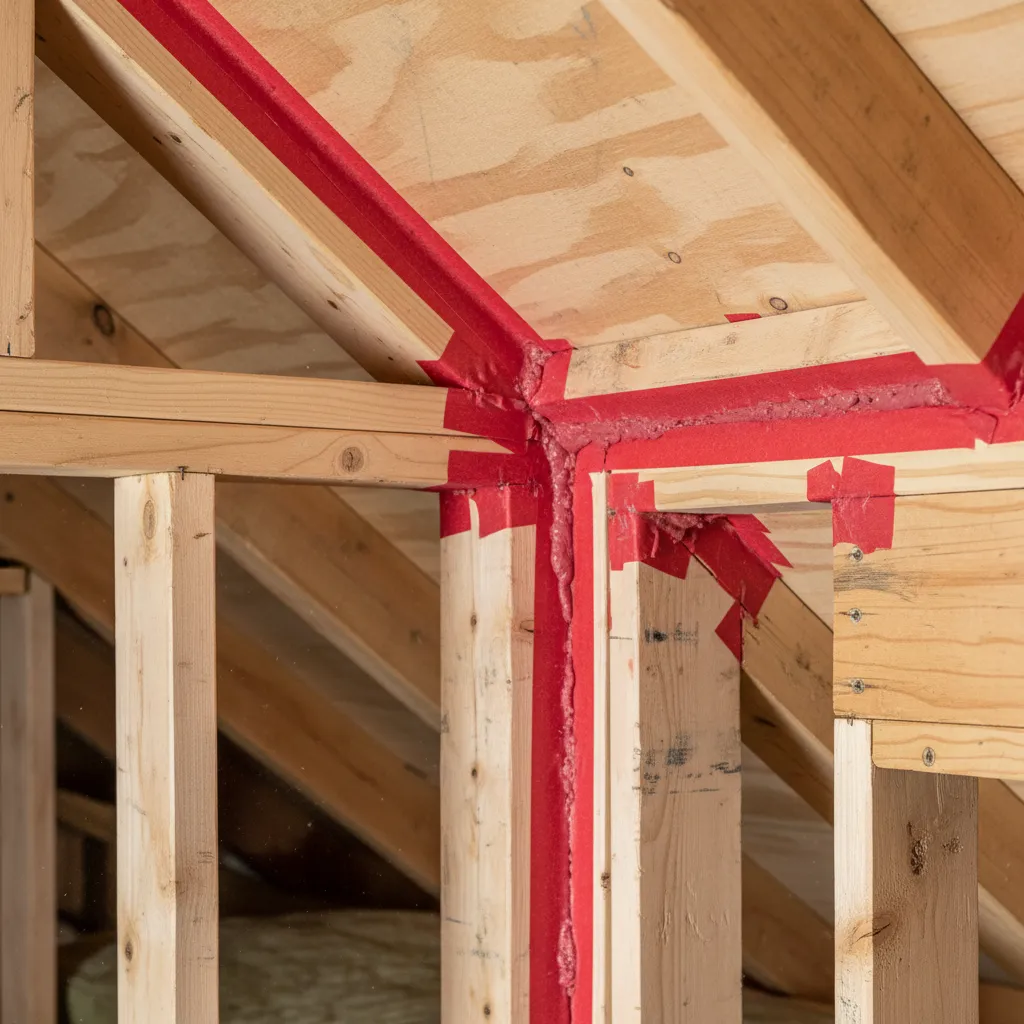

Air Sealing Techniques for Dormer Structures

Key Insight: Airtight construction prevents more condensation problems than adding thicker insulation.

Many builders focus only on R‑value, but uncontrolled airflow is often the real issue in dormer assemblies.

Critical air sealing steps include:

1. Sealing sheathing seams with construction tape
2. Foaming gaps at framing joints
3. Using airtight drywall approach (ADA) techniques
4. Sealing around dormer windows and headers

One overlooked detail is the dormer floor connection where the dormer sits on the existing roof deck. Without careful sealing, warm attic air can move directly into roof cavities.

When visualizing these connections, designers often map framing and airflow paths in a 3D layout planning workflow for roof extensions. Seeing the dormer structure spatially helps identify where sealing layers must remain continuous.

save pin

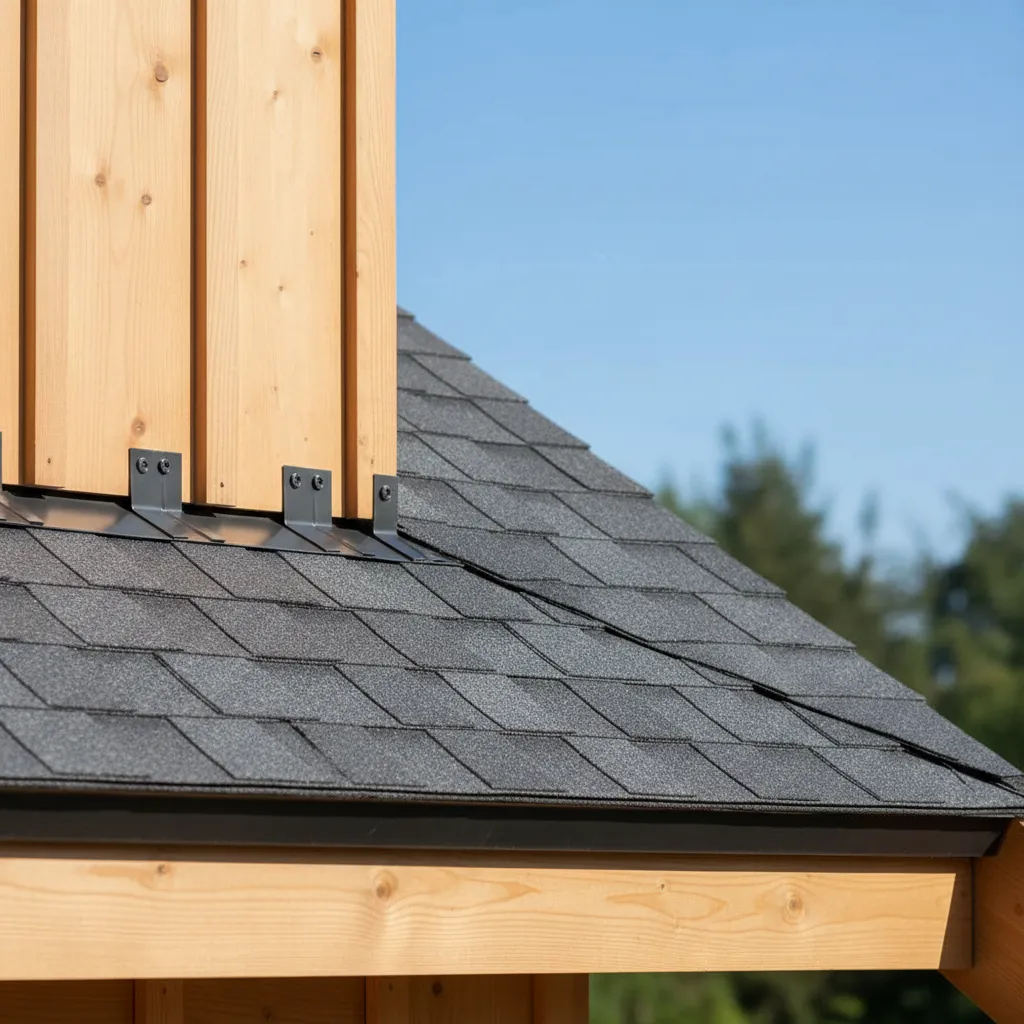

Flashing and Waterproofing Best Practices

Key Insight: Most dormer leaks occur at flashing transitions rather than the roof surface itself.

Flashing is the waterproof bridge between roofing materials and vertical surfaces. Dormers introduce multiple flashing locations that must work together.

Essential flashing components:

1. Step flashing along dormer sidewalls
2. Head flashing above dormer windows
3. Valley flashing where roof slopes meet
4. Kick‑out flashing directing water into gutters

Best practice layering order:

1. Roof sheathing
2. Ice and water barrier membrane
3. Metal step flashing pieces
4. Roof shingles overlapping flashing

Roofing contractors often underestimate how aggressively water concentrates in dormer valleys. A single heavy rainstorm can push gallons of water through those channels every minute.

Ventilation Strategies for Dormer Roof Sections

Key Insight: Controlled ventilation prevents trapped moisture inside insulated dormer roof cavities.

Dormers reduce the available space for traditional attic ventilation paths, which means airflow design becomes more important.

Common ventilation solutions include:

1. Continuous soffit vents on dormer eaves
2. Ridge vents aligned with dormer roof ridges
3. Baffle channels between insulation and roof sheathing
4. Hybrid unvented roof systems using spray foam

In colder climates, vent channels are especially important to prevent ice dams forming near dormer walls.

save pin

Answer Box

The most effective way to optimize insulation and waterproofing in dormer construction is to combine airtight framing, layered insulation, properly integrated flashing, and continuous roof ventilation. Treating these elements as one system prevents leaks, condensation, and long‑term structural damage.

Energy Efficiency Improvements During Dormer Construction

Key Insight: Dormer projects are one of the best opportunities to upgrade the entire attic’s energy performance.

Because roof sections are already being opened during construction, smart upgrades can dramatically improve overall efficiency.

Energy upgrades worth considering:

1. Continuous exterior roof insulation
2. High performance dormer windows with low‑E glazing
3. Smart vapor retarders
4. Thermal break framing techniques

Many designers also evaluate attic daylighting and interior layout using concepts similar to AI assisted interior layout visualization for attic spaces. Better planning often results in fewer dormers and better thermal performance overall.

Final Summary

1. Dormers create structural junctions that easily leak heat and moisture.
2. Layered insulation systems outperform single material approaches.
3. Air sealing is critical for preventing condensation.
4. Correct flashing installation prevents most dormer leaks.
5. Ventilation keeps roof cavities dry and durable.

FAQ

Do dormers need special insulation?

Yes. Dormers require careful insulation because roof, wall, and ceiling assemblies intersect in tight spaces that easily create thermal bridges.

What insulation works best for dormer roofs?

Closed‑cell spray foam or rigid foam combined with cavity insulation offers the most reliable dormer insulation best practices.

How do you waterproof a dormer roof?

Use layered protection including ice barrier membrane, step flashing, valley flashing, and properly overlapped shingles.

Why do dormers cause condensation problems?

Air leaks allow warm indoor air to enter cold roof cavities where moisture condenses on structural surfaces.

Should dormer roofs be ventilated?

Most dormers benefit from soffit‑to‑ridge ventilation channels unless a sealed spray foam roof system is used.

Can poor insulation cause dormer ice dams?

Yes. Heat escaping through poorly insulated dormer roofs melts snow unevenly, which can create ice dams.

What flashing technique prevents dormer leaks?

Step flashing integrated with each shingle layer is the most reliable flashing technique for dormer roofs.

How thick should dormer insulation be?

It depends on climate zone, but most modern energy efficient dormer construction targets roof insulation between R‑30 and R‑49.

References

U.S. Department of Energy Building America Program

International Residential Code Roofing Guidelines

Building Science Corporation Roof Assembly Research
