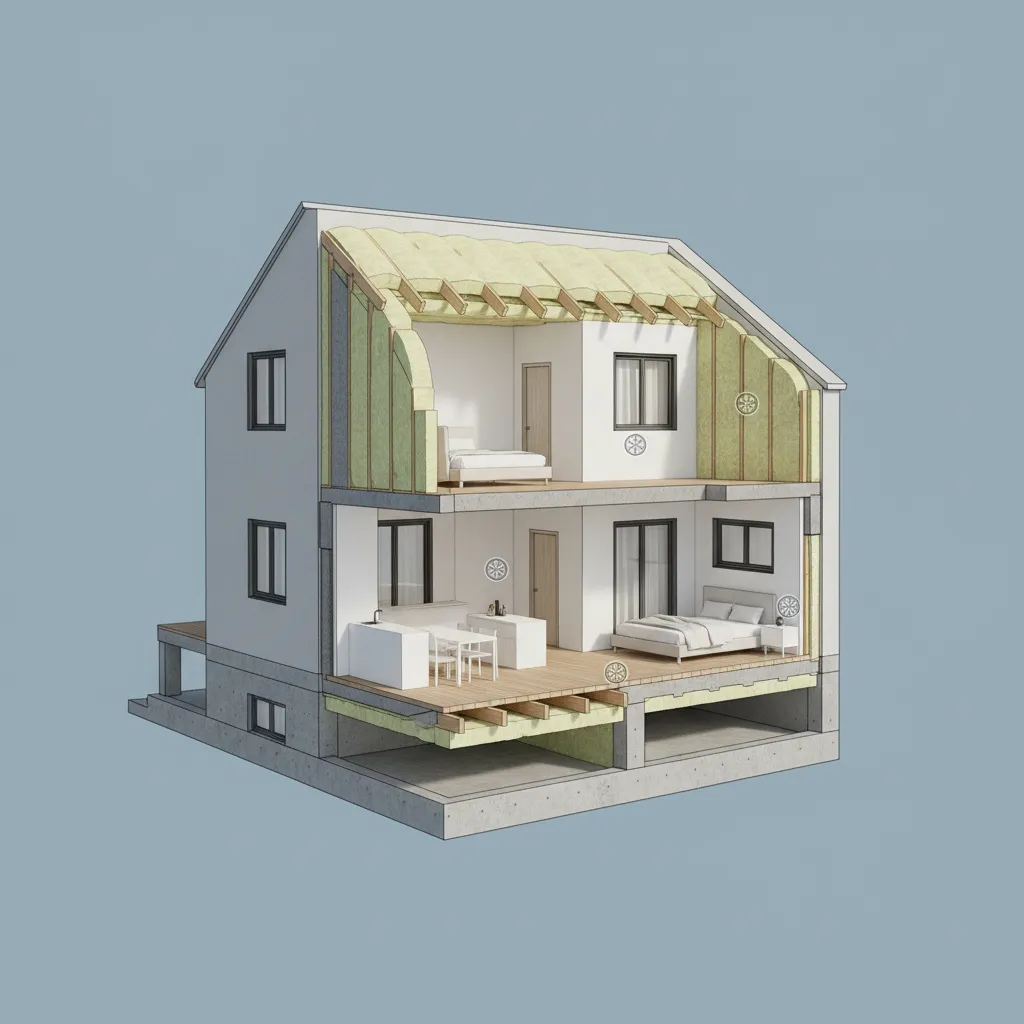

How to Optimize Insulation Placement in a 1200 Sq Ft Home: Smart insulation placement can cut energy loss dramatically even in smaller homes when the right areas are prioritized first.

Direct Answer

The best way to optimize insulation placement in a 1200 sq ft home is to prioritize the attic, exterior walls, and air leakage points first. These areas account for most heat loss in small houses. Once those are properly insulated and sealed, adding insulation to floors, basements, or crawl spaces further improves energy efficiency.

Quick Takeaways

1. Attic insulation usually delivers the highest energy savings in small homes.
2. Exterior wall insulation becomes critical in older homes with minimal cavity insulation.
3. Air sealing often improves insulation performance more than adding extra material.
4. Crawl spaces and floors matter most in colder climates.
5. Climate zone should always guide insulation placement priorities.

Introduction

When homeowners ask me how to improve insulation in a 1200 sq ft home, they usually think the answer is simply "add more insulation." After working on dozens of renovation projects and energy-efficient remodels, I can tell you that placement matters far more than quantity.

A small home can actually perform incredibly well if insulation is installed in the right locations. I’ve seen 1200 square foot homes cut heating costs by nearly a third simply by shifting insulation priorities from walls to attics and sealing air leaks.

One of the first steps I recommend during planning is mapping the home layout visually. Using a tool that helps homeowners visualize a small house floor plan before insulation upgradesmakes it easier to identify where heat escapes and which surfaces connect directly to the outdoors.

In this guide, I’ll walk through the insulation zones that matter most, how climate affects your strategy, and the placement mistakes I repeatedly see in small homes.

save pin

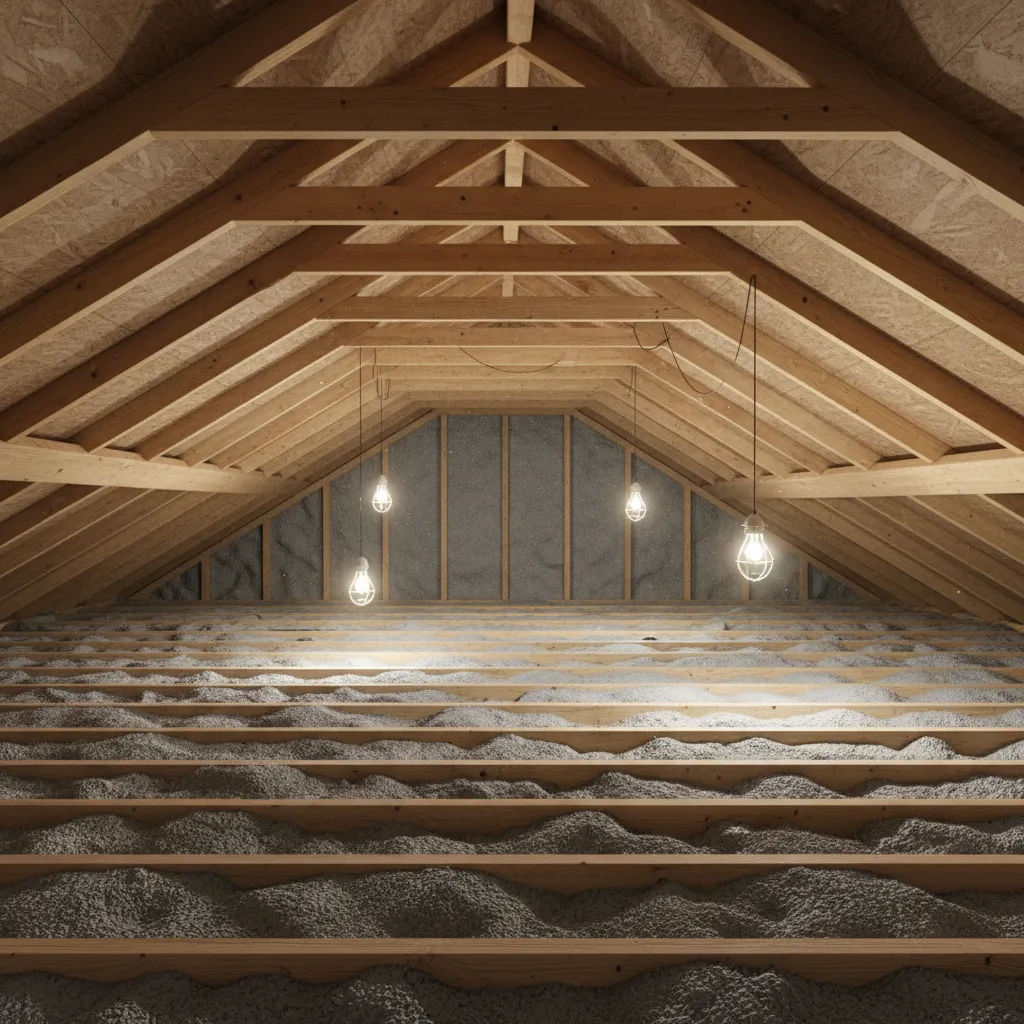

Key Areas That Require Insulation in a 1200 Sq Ft House

Key Insight: The attic, exterior walls, and floors above unconditioned spaces are the three most impactful insulation zones in a small home.

In a typical 1200 sq ft house, heat loss isn't evenly distributed. Certain surfaces lose energy much faster because they have more exposure to outdoor air or temperature differences.

Based on renovation audits and building science research from the U.S. Department of Energy, the largest heat losses typically occur through:

1. Attic or roof: up to 25–30% of heat loss
2. Exterior walls: about 20%
3. Floors above crawl spaces or garages: 10–15%
4. Air leakage around windows, doors, and penetrations

In smaller homes, attic insulation becomes even more influential because the roof surface area represents a large portion of the thermal envelope.

A mistake I often see is homeowners insulating interior walls first. Interior walls do almost nothing for thermal performance unless they separate conditioned and unconditioned spaces.

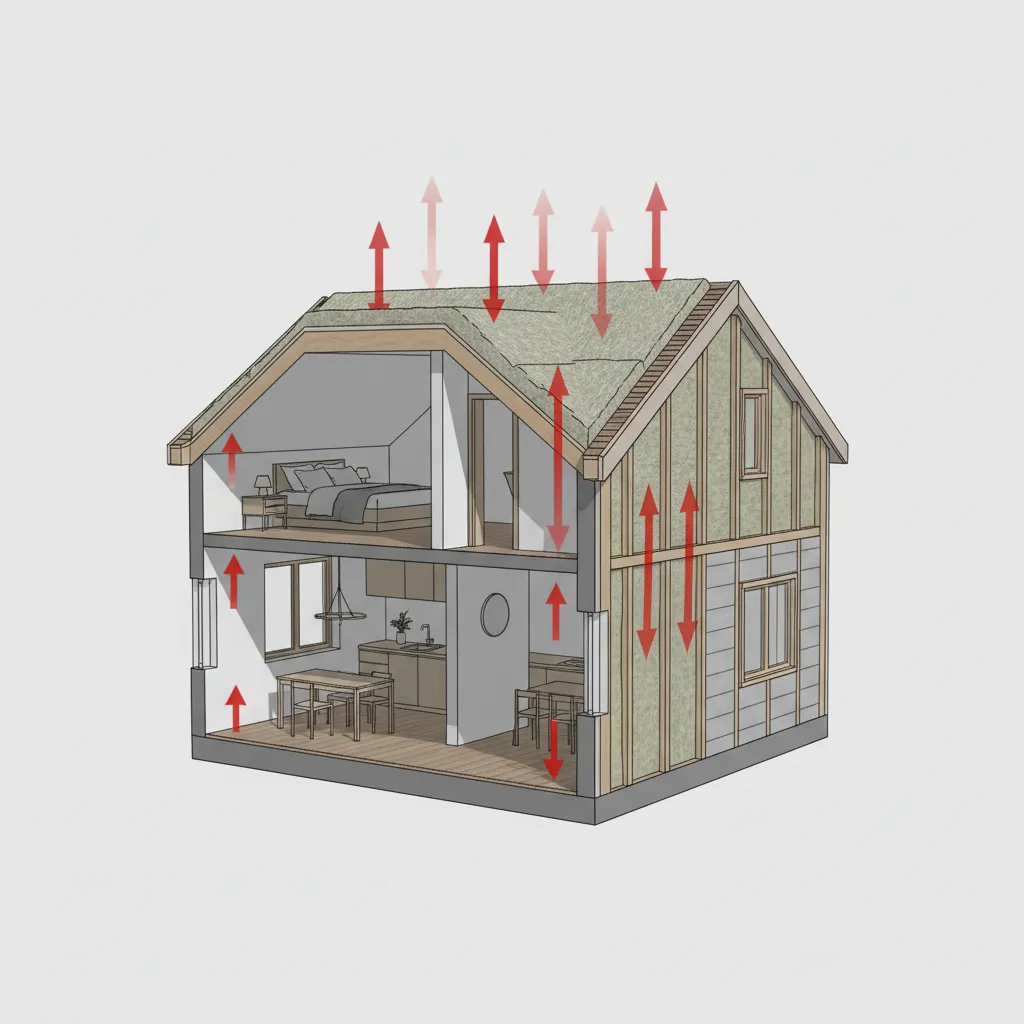

Attic vs Wall Insulation Priority for Energy Savings

Key Insight: If you must choose one upgrade first, attic insulation almost always produces better energy savings than wall insulation.

Heat naturally rises. In winter, warm indoor air moves upward and escapes through poorly insulated attic spaces. This phenomenon, known as the stack effect, is one of the biggest reasons attic insulation performs so well.

In many older 1200 sq ft homes I’ve inspected, wall insulation was partially present but attic insulation was extremely thin or uneven.

Typical upgrade priorities:

1. Step 1: Seal attic air leaks around vents, lights, and wiring
2. Step 2: Increase attic insulation to recommended R-values
3. Step 3: Improve wall insulation if cavities are empty
4. Step 4: Address floors above garages or crawl spaces

Attic upgrades are also easier and less disruptive than opening walls, which makes them the first improvement I usually recommend.

save pin

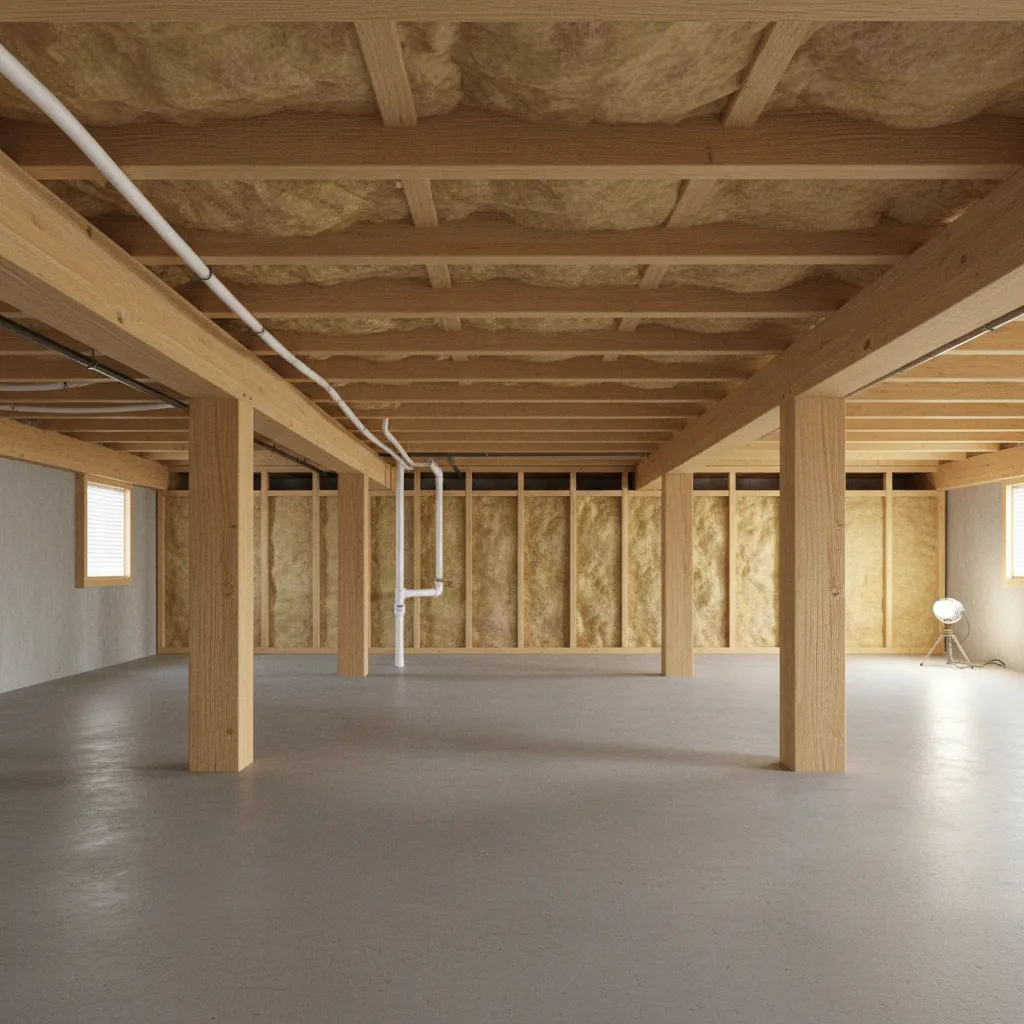

Insulating Floors, Basements, and Crawl Spaces

Key Insight: Floor insulation becomes critical when the home sits above unconditioned spaces like crawl spaces or garages.

Cold floors are one of the most common complaints in small homes. In many cases the issue isn’t wall insulation at all—it’s missing insulation beneath the floor.

Priority situations where floor insulation matters most:

1. Homes with vented crawl spaces
2. Raised foundations
3. Rooms above garages
4. Basements without ceiling insulation

Materials typically used for these areas include:

1. Fiberglass batts between floor joists
2. Rigid foam boards along foundation walls
3. Spray foam for irregular framing cavities

When planning upgrades, homeowners often benefit from visualizing the structural layout first. A digital tool that helps you map structural spaces using a 3D floor planning layoutcan make it easier to identify crawl spaces, attic cavities, and uninsulated zones.

save pin

Answer Box

The most efficient insulation strategy for a 1200 sq ft home is prioritizing attic insulation, sealing air leaks, and insulating exterior walls. Floors and crawl spaces become the next priority depending on climate and foundation type.

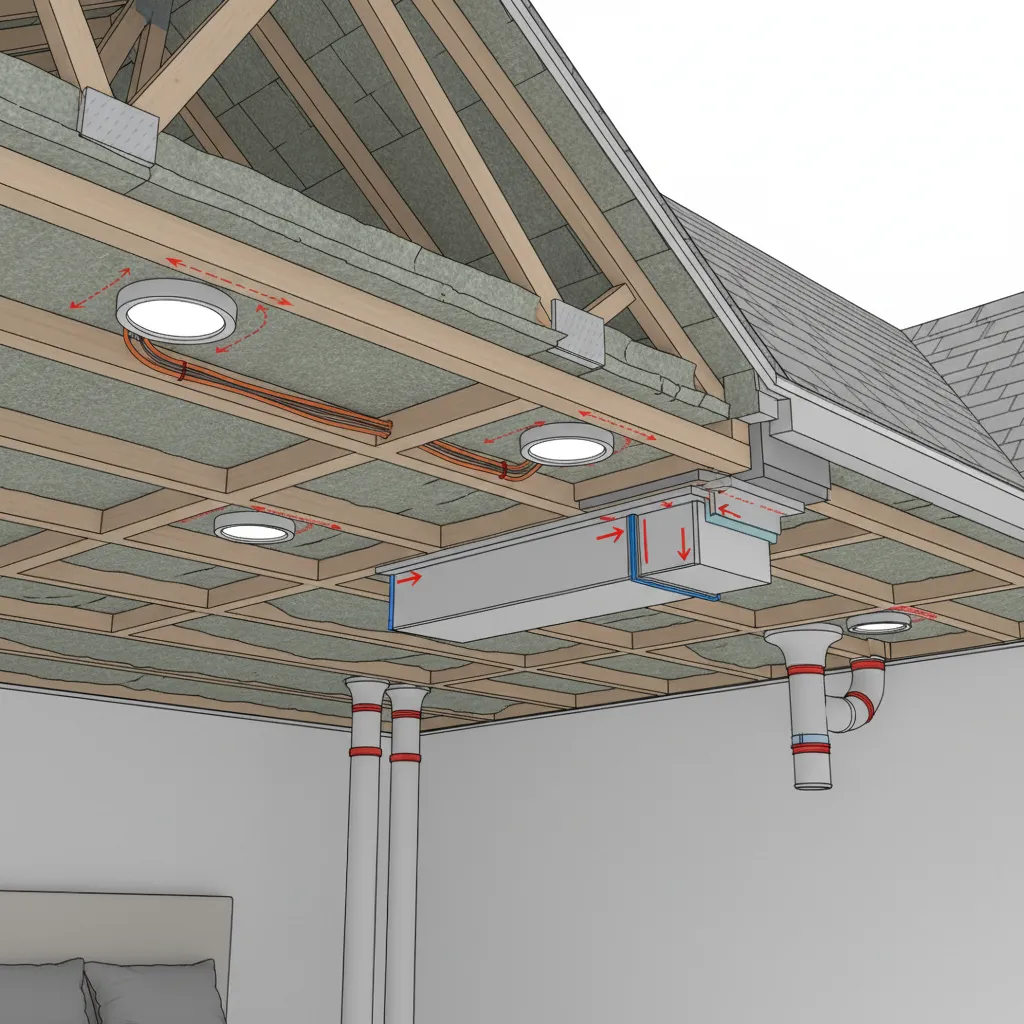

Air Sealing and Insulation Working Together

Key Insight: Without air sealing, insulation can lose a large portion of its effectiveness.

This is one of the most overlooked parts of home energy efficiency. Insulation slows heat transfer, but air leaks allow heat to bypass insulation entirely.

Common air leakage points include:

1. Attic hatch openings
2. Recessed lighting fixtures
3. Plumbing penetrations
4. Electrical outlets on exterior walls
5. Window and door framing gaps

According to Energy Star guidance, sealing these leaks before adding insulation can significantly improve performance.

In practice, I often see homes where sealing a few dozen small air leaks improved comfort more than installing thicker insulation layers.

How Climate Zone Changes Insulation Strategy

Key Insight: The ideal insulation placement changes significantly depending on whether the home is in a cold, mixed, or hot climate.

Climate determines where heat flow is strongest.

1. Cold climates: attic and wall insulation are the highest priority.
2. Mixed climates: balanced insulation across attic, walls, and floors.
3. Hot climates: attic insulation and radiant barriers reduce cooling loads.

For example, homes in northern states may need attic insulation levels of R‑49 or higher, while southern regions prioritize radiant heat control in roof assemblies.

Planning insulation upgrades alongside space planning can also help avoid layout mistakes. When homeowners redesign rooms using an AI assisted interior planning approach for energy efficient layouts, they often identify walls or ceilings that connect directly to outdoor heat exposure.

save pin

Practical Steps to Improve Insulation Efficiency

Key Insight: A systematic upgrade plan delivers better efficiency than randomly adding insulation in multiple areas.

Here is the sequence I typically recommend when improving insulation in smaller homes:

1. Conduct a home energy audit or inspection.
2. Seal all visible attic air leaks.
3. Upgrade attic insulation to recommended levels.
4. Check wall cavities for missing insulation.
5. Insulate crawl spaces or floors if necessary.
6. Seal ducts running through unconditioned spaces.

One hidden mistake I often see is uneven insulation coverage. Even high R‑value insulation performs poorly if gaps or compressed sections exist.

Consistency across the entire thermal envelope is what actually improves efficiency.

Final Summary

1. Attic insulation is usually the most impactful upgrade in a 1200 sq ft home.
2. Exterior wall insulation becomes important if cavities are empty.
3. Air sealing dramatically improves insulation effectiveness.
4. Floor insulation matters most above crawl spaces or garages.
5. Climate zone should guide every insulation placement decision.

FAQ

Where should insulation go in a small house first?

Start with the attic because rising heat escapes through the roof. Upgrading attic insulation usually provides the biggest efficiency improvement.

What is the best insulation placement for energy efficiency?

Attics, exterior walls, and floors above unconditioned spaces provide the highest energy savings when properly insulated.

Does wall insulation matter in a 1200 sq ft home?

Yes. If exterior wall cavities are empty or poorly insulated, upgrading them can significantly reduce heating and cooling costs.

Should I insulate a crawl space?

Yes if the crawl space is vented or exposed to outdoor air. Insulating crawl space walls or floors improves comfort and prevents cold floors.

How much attic insulation is recommended?

Most U.S. homes benefit from attic insulation between R‑38 and R‑49 depending on climate zone.

Can air sealing improve insulation efficiency?

Yes. Air sealing prevents heat from bypassing insulation, which can significantly improve overall performance.

Is floor insulation necessary for small homes?

Floor insulation becomes important when rooms sit above garages, crawl spaces, or unheated basements.

What is the best way to improve home insulation efficiency?

Focus on sealing air leaks, upgrading attic insulation, and ensuring insulation coverage is consistent across the entire building envelope.

References

U.S. Department of Energy — Home Insulation Guidelines

ENERGY STAR — Guide to Air Sealing and Insulation
