How to Optimize Java Floor Plan Rendering Performance: Practical techniques to speed up complex architectural layout rendering in Java applications

Direct Answer

Optimizing Java floor plan rendering performance usually comes down to three core strategies: minimizing draw calls, caching reusable graphics with BufferedImage, and organizing layout data with efficient structures. When implemented together, these techniques dramatically reduce CPU overhead and improve frame rate when rendering large or complex architectural layouts.

Quick Takeaways

1. Batch drawing operations instead of rendering each wall or object individually.
2. Cache static layout elements using BufferedImage to avoid repeated rendering.
3. Use lightweight data structures for walls, rooms, and coordinates.
4. Profile Graphics2D operations to identify real performance bottlenecks.
5. Split large buildings into renderable regions for smoother visualization.

Introduction

Optimizing Java floor plan rendering performance becomes critical once your application moves beyond simple demo layouts. In real projects—especially when visualizing office buildings, apartments, or large architectural datasets—rendering thousands of lines, walls, and rooms can slow a Java interface to a crawl.

I’ve worked on several visualization tools for interior planning and layout prototyping, and the biggest surprise for many developers is this: the performance problem usually isn’t Java itself. It’s how the rendering pipeline is structured.

Most early implementations simply loop through rooms, draw every wall, and repaint the entire canvas on every update. That works for small layouts. But once you scale to multi-floor plans or detailed interior structures, inefficient rendering logic multiplies quickly.

If you're building tools similar to modern digital layout planners, it helps to first understand how interactive floor planning systems structure rendering pipelines. Studying examples like this interactive 3D floor layout visualization workflowcan reveal how professional tools separate geometry processing from visual rendering.

In this guide I’ll walk through the performance techniques that consistently make the biggest difference when rendering architectural layouts in Java—from Graphics2D optimizations to data structure design.

More importantly, we’ll look at a few hidden bottlenecks that most tutorials completely ignore.

save pin

Why Performance Matters in Programmatic Floor Plan Rendering

Key Insight: Floor plan rendering performance directly determines whether your application feels interactive or sluggish.

Architectural layouts are deceptively complex. Even a small apartment plan can contain hundreds of individual elements:

1. walls
2. doors
3. windows
4. labels
5. room boundaries
6. grid overlays

If every element triggers its own Graphics2D operation, the render loop becomes extremely expensive.

In one project I reviewed, a developer was calling drawLine() nearly 8,000 times per frame for a commercial building layout. The UI lagged heavily during zoom and pan interactions. After batching geometry and caching static components, the render time dropped by nearly 70%.

Typical rendering pipeline cost breakdown:

1. Geometry processing
2. Graphics context state switching
3. Pixel rasterization
4. UI repaint cycles

Reducing unnecessary repetition across these stages is where the biggest gains come from.

Reducing Draw Calls and Graphics Operations

Key Insight: The fastest draw call is the one you never make.

Many Java floor plan renderers treat every wall segment as an independent draw operation. That’s convenient but inefficient.

Instead, batch geometry whenever possible.

Effective techniques include:

1. Combine connected wall segments into Path2D shapes
2. Render grid overlays as a single shape instead of multiple lines
3. Avoid resetting stroke and color states repeatedly
4. Use double buffering to reduce repaint cost

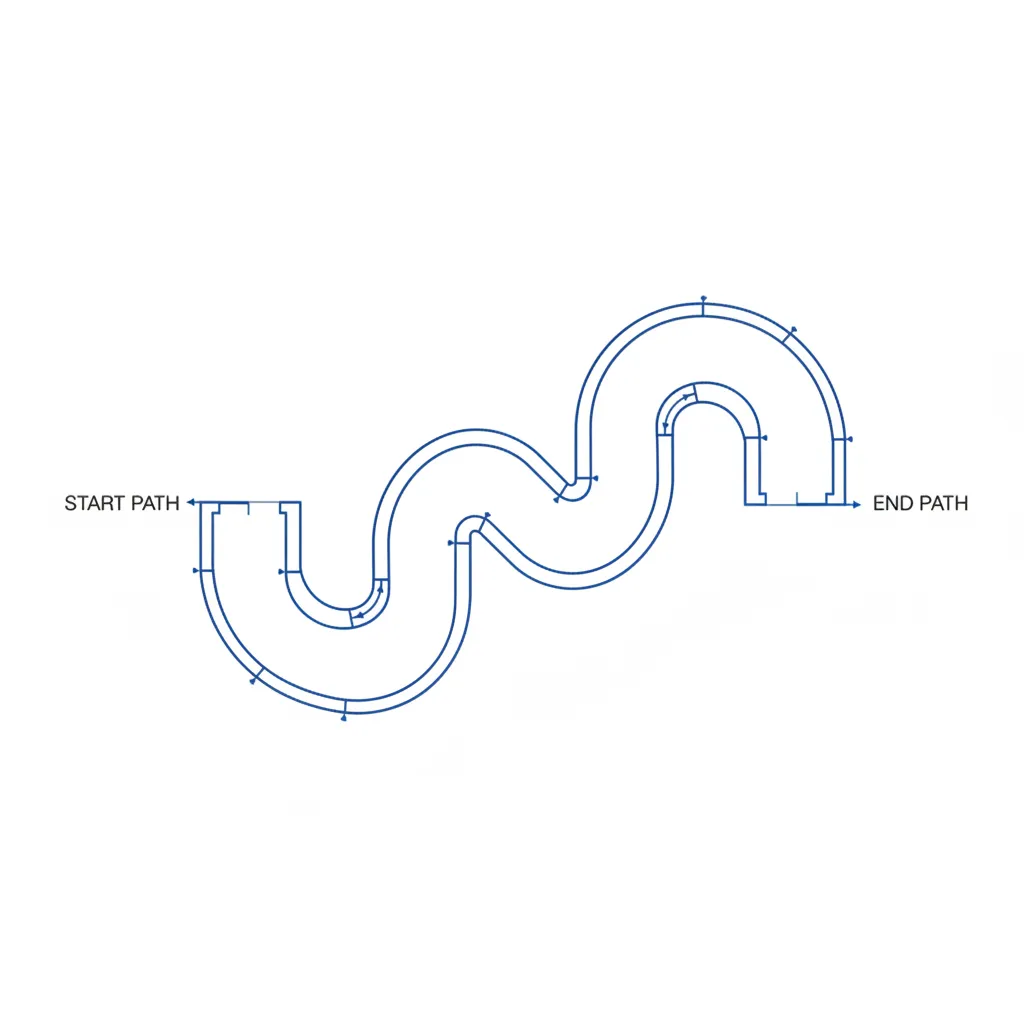

Example approach:

1. Create a Path2D object
2. Add all wall lines into the path
3. Draw the path once with Graphics2D.draw()

This single change can cut thousands of draw calls down to just a few.

save pin

Using Buffered Images and Caching Techniques

Key Insight: Static architectural elements should be rendered once and reused as cached images.

Most floor plan layouts contain large areas that rarely change—walls, room outlines, structural boundaries. Rendering these repeatedly wastes CPU cycles.

BufferedImage caching solves this problem.

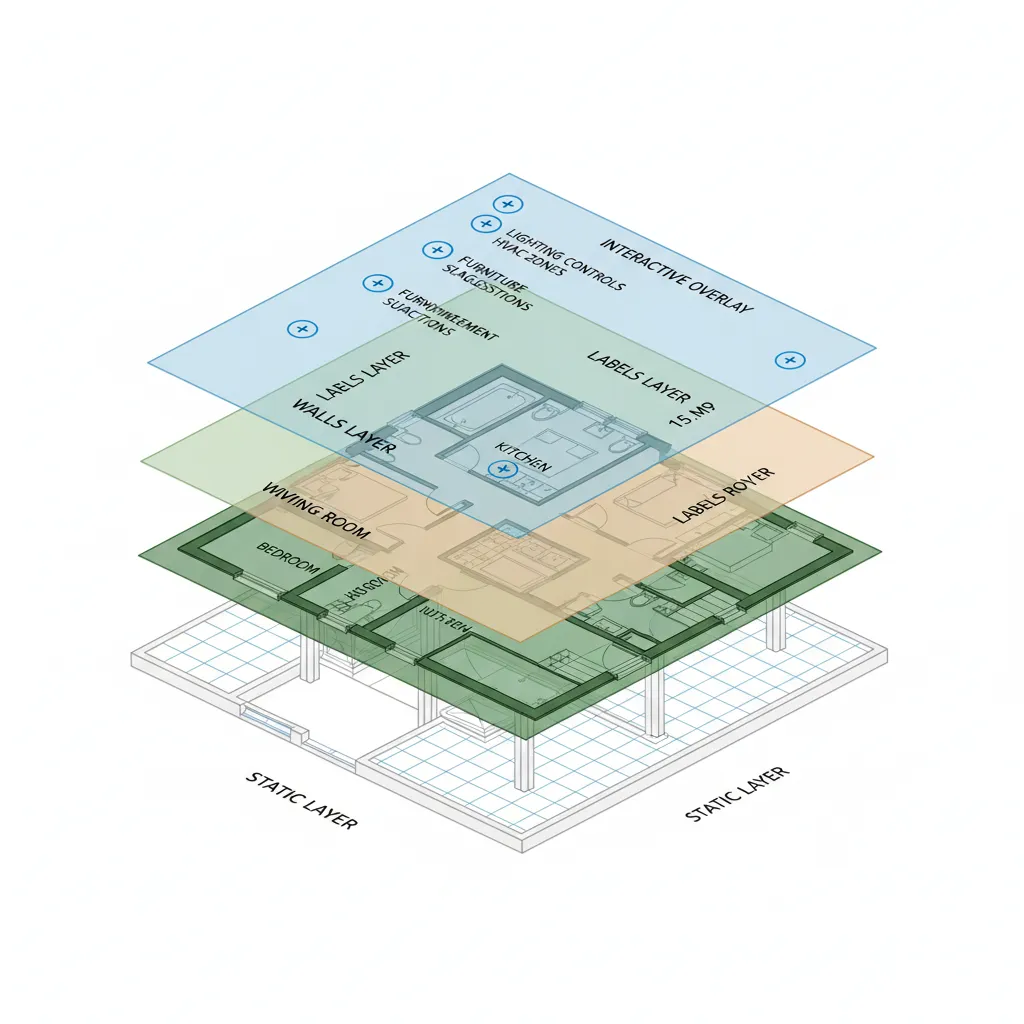

Typical caching strategy:

1. Layer 1: static structure (walls, columns)
2. Layer 2: room labels
3. Layer 3: interactive elements
4. Layer 4: temporary UI overlays

Only the top layers need frequent repainting.

This layered approach is similar to how modern layout systems manage visualization pipelines. For example, advanced design environments often separate structural floor data from rendered interiors, similar to workflows used in tools that generate AI-assisted interior layout visualizations.

That separation dramatically reduces unnecessary redraw operations.

save pin

Efficient Data Structures for Rooms and Walls

Key Insight: Rendering performance often depends more on geometry data structures than drawing APIs.

A surprisingly common mistake is storing floor plan geometry in overly complex object graphs.

I’ve seen systems where each wall references multiple objects for materials, layers, connections, and metadata. That structure might be flexible, but it's expensive to traverse during rendering.

More efficient structures:

1. Immutable wall segments stored as simple coordinate pairs
2. Spatial indexing using quadtrees
3. Room polygons stored as vertex arrays
4. Precomputed bounding boxes

Benefits:

1. faster intersection checks
2. faster viewport clipping
3. lower memory overhead

Viewport culling alone can dramatically reduce render workload by skipping geometry outside the visible area.

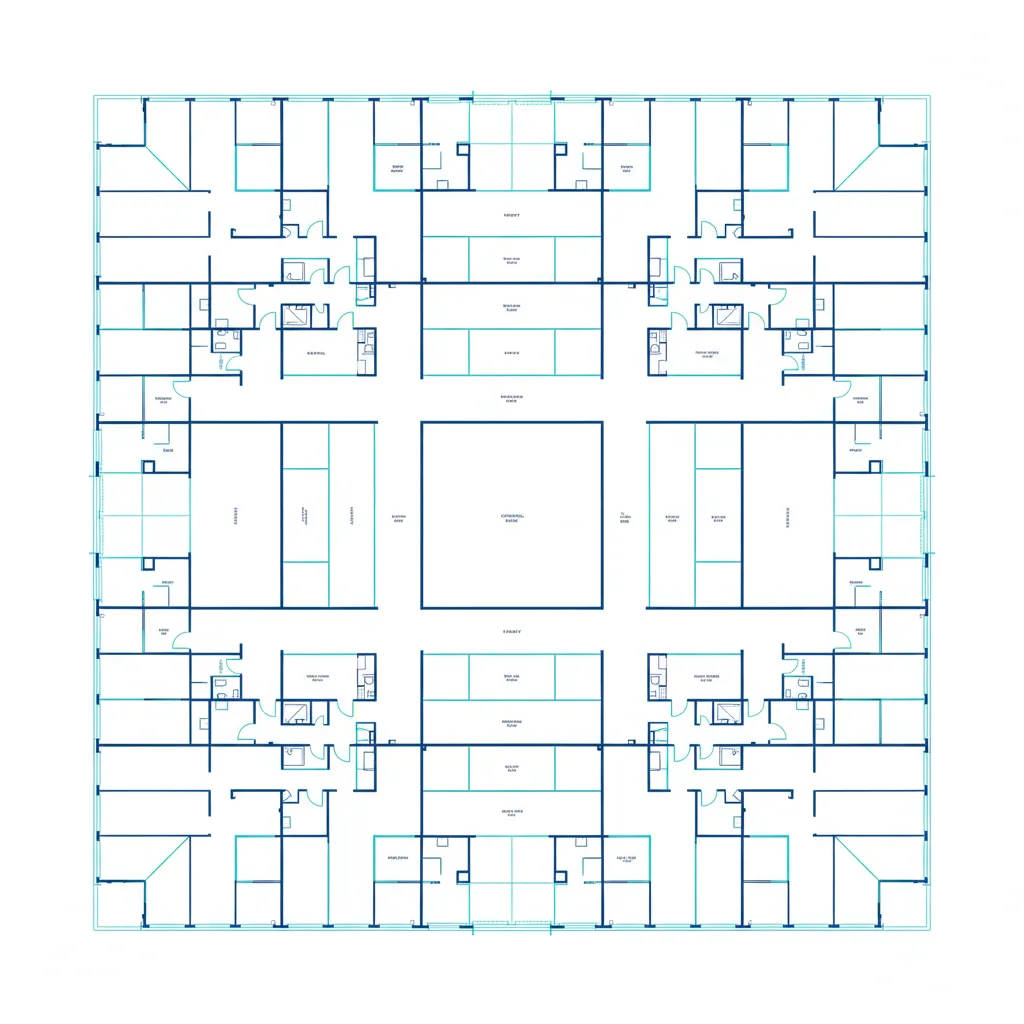

Handling Large or Complex Building Layouts

Key Insight: Large architectural layouts should never be rendered as a single monolithic scene.

Instead, divide the building into logical regions.

Common partitioning strategies:

1. grid-based spatial partitioning
2. floor-by-floor rendering
3. room clusters
4. viewport tile rendering

Example workflow:

1. Split the building model into tiles.
2. Render only tiles visible in the viewport.
3. Cache rendered tiles as images.
4. Refresh tiles only when layout changes.

This is how large-scale architectural visualizers keep navigation smooth even with extremely detailed layouts.

Interactive planning systems often use similar strategies when displaying complex spaces such as offices or commercial buildings. A good reference is this large workspace layout planning environment, where large areas are broken into manageable visual segments.

save pin

Answer Box

The most effective way to optimize Java floor plan rendering is combining three techniques: reduce draw calls, cache static layers using BufferedImage, and partition large layouts into renderable regions. Together, these changes dramatically improve rendering speed and UI responsiveness.

Profiling and Benchmarking Java Graphics Code

Key Insight: Guessing performance problems almost always leads to the wrong optimization.

Profiling reveals the true bottleneck.

Recommended profiling tools:

1. Java Flight Recorder
2. VisualVM
3. JProfiler

Important metrics to monitor:

1. paintComponent execution time
2. Graphics2D draw call counts
3. memory allocation during render loops
4. repaint frequency

In many applications the real issue turns out to be excessive repaint triggers rather than slow drawing operations.

Final Summary

1. Reduce draw calls by batching geometry into paths.
2. Cache static architectural layers using BufferedImage.
3. Use lightweight geometry structures for walls and rooms.
4. Partition large buildings into viewport‑based regions.
5. Always profile before applying rendering optimizations.

FAQ

Why is my Java floor plan rendering slow?

Most slow renderers perform thousands of individual draw operations per frame. Batching geometry and caching static elements usually improves Java floor plan rendering performance significantly.

Does Graphics2D support high‑performance rendering?

Yes. Graphics2D can render complex floor plans efficiently if draw calls are minimized and caching techniques like BufferedImage layers are used.

How can I speed up floor plan rendering in Java?

Use Path2D batching, viewport culling, BufferedImage caching, and spatial indexing structures to reduce unnecessary drawing work.

Is JavaFX faster than Swing for floor plan rendering?

JavaFX can provide better hardware acceleration in some cases, but efficient rendering logic matters far more than the framework.

What is the best data structure for floor plan walls?

Simple coordinate-based structures with precomputed bounding boxes perform best for rendering and spatial queries.

Should I redraw the entire floor plan every frame?

No. Cache static layout layers and only redraw elements that actually change.

Can BufferedImage improve Java graphics performance?

Yes. BufferedImage caching is one of the most effective techniques for Java bufferedimage rendering optimization in floor plan systems.

What tool helps analyze Java rendering performance?

Java Flight Recorder and VisualVM are commonly used to profile rendering bottlenecks in Java graphics applications.
