How to Optimize Kitchen Door Placement in Small Restaurant Layouts: Practical layout strategies to reduce congestion, improve staff flow, and make small commercial kitchens work faster and safer

Direct Answer

Optimizing kitchen door placement in small restaurant layouts means positioning doors along natural workflow paths between prep, cooking, and service zones while avoiding intersections where staff frequently cross. The most efficient layouts reduce walking distance, prevent collisions, and allow clear entry and exit routes during peak service.

In compact kitchens, even moving a door by a few feet can significantly improve traffic flow and reduce staff bottlenecks.

Quick Takeaways

1. Kitchen doors should align with the natural prep-to-cook-to-service workflow.
2. Avoid placing doors where two staff routes intersect.
3. Sliding or offset doors often outperform center-wall swing doors in tight kitchens.
4. Door placement directly affects safety, speed, and staff efficiency.
5. Many small kitchens lose usable workspace due to poorly planned door swings.

Introduction

In small restaurant kitchens, door placement is rarely treated as a design priority. Yet after working on dozens of compact restaurant projects over the past decade, I’ve seen how kitchen door placement can make or break workflow.

The challenge is simple: small kitchens already struggle with limited circulation space. If a door interrupts prep areas, blocks equipment, or sits directly in the main traffic lane, it creates friction that slows down service.

Many restaurant owners focus on equipment first—ranges, refrigeration, prep tables—without realizing that circulation planning should happen earlier. When I start a layout, I often sketch workflow first using a step-by-step kitchen workflow layout planning approachso doors reinforce movement rather than interrupt it.

This guide breaks down how to place kitchen doors strategically in compact restaurant kitchens, including the mistakes I see most often and the layout strategies that actually improve service speed.

save pin

The Role of Door Placement in Restaurant Kitchen Efficiency

Key Insight: Door placement directly affects kitchen speed because every staff movement eventually interacts with a doorway.

In busy kitchens, doors act as transition points between operational zones. Poor placement forces staff to cross paths repeatedly, which creates micro-delays that add up during service.

Through multiple restaurant projects, I've noticed a pattern: kitchens with efficient door placement often feel "bigger" than they actually are. Not because they have more square footage, but because movement is uninterrupted.

Common hidden issues caused by poor door placement include:

1. Prep stations losing counter space due to door swing clearance
2. Servers colliding with cooks exiting hot zones
3. Dishwashing traffic crossing the cooking line
4. Emergency exits blocked during rush hours

The National Restaurant Association frequently emphasizes workflow efficiency as a key factor in kitchen productivity, and doorway circulation is a major part of that equation.

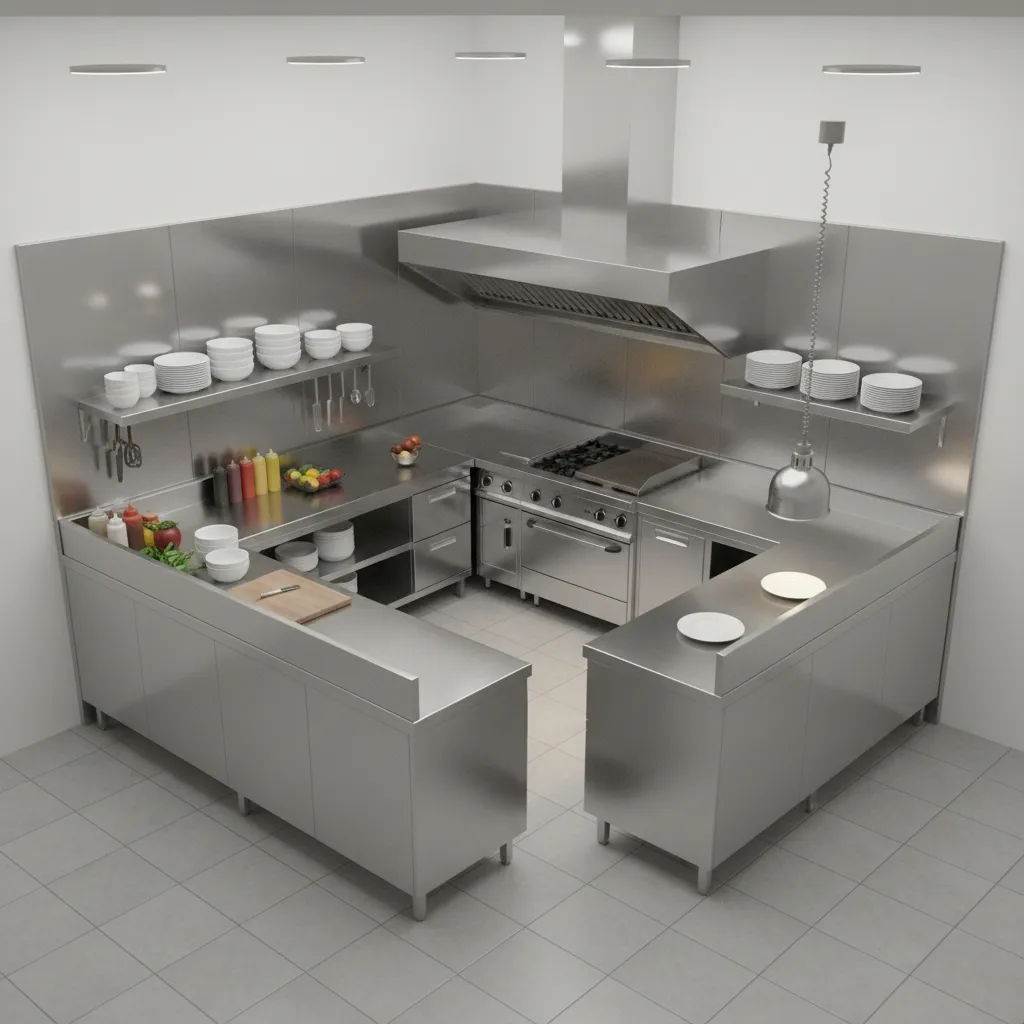

Understanding Kitchen Workflow and Traffic Paths

Key Insight: Kitchen doors should follow the direction of work, not interrupt it.

Professional kitchen layouts typically follow a linear or circular workflow: storage → prep → cooking → plating → service.

If a door interrupts that chain, staff must constantly adjust their movement patterns.

When planning door placement, I map three types of traffic:

1. Food flow: ingredients moving toward cooking and plating
2. Staff movement: cooks, prep staff, and servers
3. Utility flow: dishwashing, waste removal, deliveries

Doors should sit on the edges of these flows rather than in the middle.

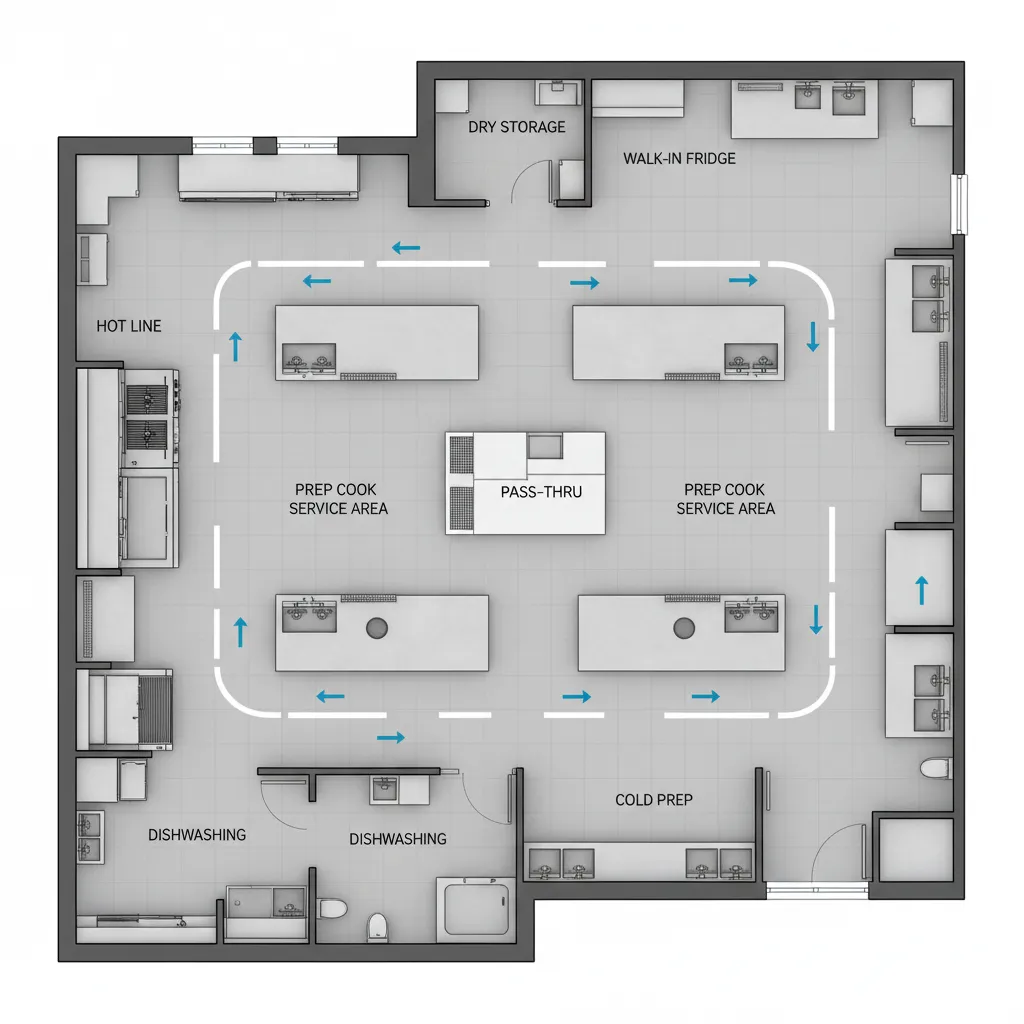

One of the easiest ways to visualize this is by sketching the layout first using a simple restaurant room planning workflow diagrambefore placing doors or equipment.

save pin

Best Door Locations for Prep, Cooking, and Service Areas

Key Insight: The most effective door locations sit near transitions between zones rather than inside working zones.

In small commercial kitchens, the door connecting the kitchen to the dining area or service corridor is the most critical. It must allow quick access without interrupting cooking stations.

Here are door placement patterns that consistently perform well:

1. Corner placement: Keeps the center wall free for equipment
2. Offset positioning: Avoids alignment with prep tables
3. Double-door service access: Allows simultaneous entry and exit
4. Side-entry for dishwashing: Separates dirty dish traffic

Placement comparison:

1. Center wall door: Often disrupts equipment layout
2. Corner door: Preserves workspace
3. Offset door: Improves circulation paths

A common mistake I see is placing the door directly behind the cooking line. During service, this becomes a collision zone between cooks and servers.

save pin

Answer Box

The most efficient small restaurant kitchens place doors near workflow transitions rather than inside work zones. Align doors with movement paths, avoid intersections, and preserve wall space for equipment and prep areas.

Reducing Staff Collisions and Bottlenecks

Key Insight: Staff collisions usually happen near doors because traffic compresses at entry points.

In tight kitchens, bottlenecks typically occur at three locations:

1. Kitchen-to-dining service door
2. Dishwashing return entry
3. Storage or walk-in cooler access

To reduce congestion:

1. Offset doors from main cooking lines
2. Avoid placing prep counters directly opposite doors
3. Maintain at least 42–48 inches of clearance in primary traffic lanes
4. Use swing direction that follows staff movement

Another overlooked factor is door swing direction. In small kitchens, a poorly oriented swing can eliminate usable floor space and slow movement.

Integrating Doors With Small Kitchen Layout Design

Key Insight: Door placement should be finalized before equipment layout is locked.

Many layouts fail because designers treat doors as fixed constraints rather than adjustable elements.

When planning small kitchens, I follow this sequence:

1. Define workflow zones
2. Map staff circulation
3. Place doors along traffic edges
4. Position major equipment
5. Refine prep surfaces and storage

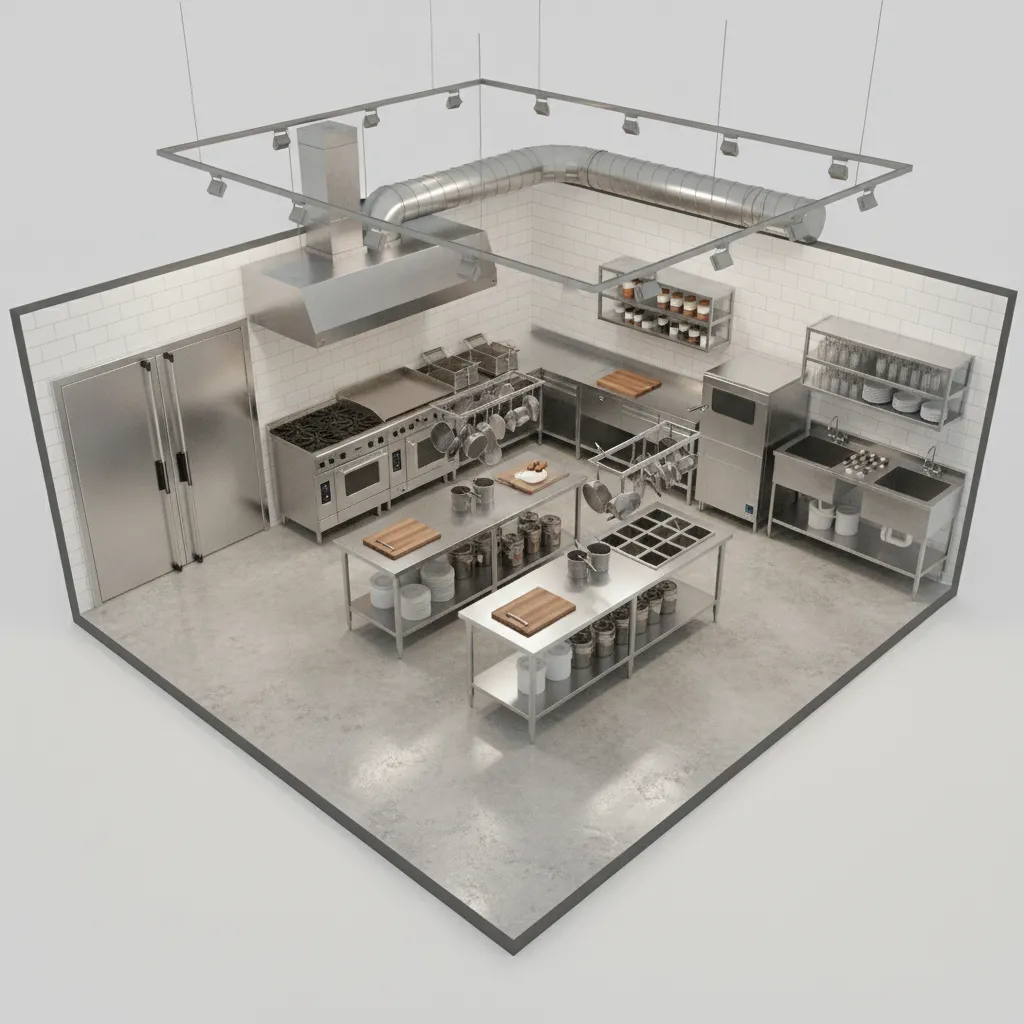

For restaurant owners planning layouts themselves, visualizing door placement inside a 3D restaurant kitchen floor planning workflow simulationcan reveal circulation conflicts early.

save pin

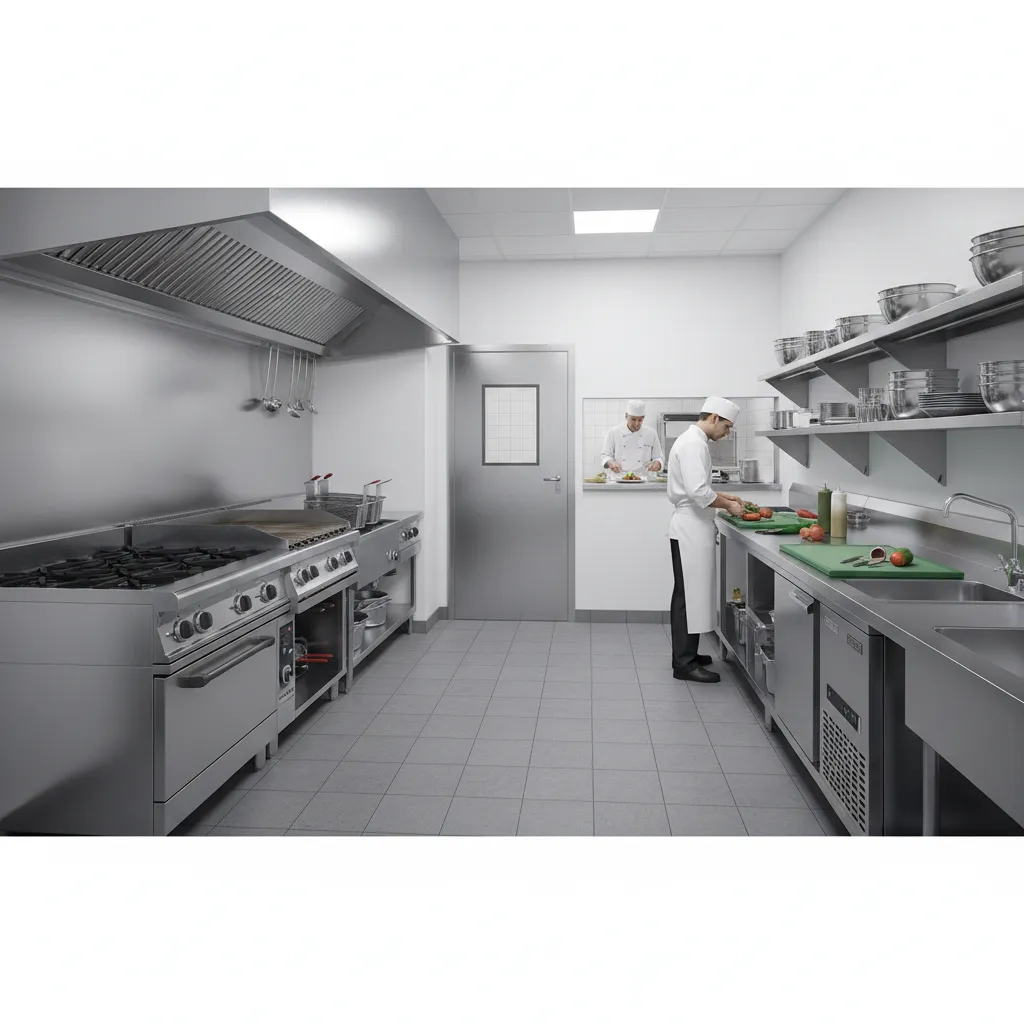

Real Examples of Optimized Small Restaurant Kitchens

Key Insight: Small kitchens perform best when doors are pushed to the perimeter and never cut through central work zones.

Across several recent restaurant projects, these door placement adjustments produced measurable improvements:

1. Moving the service door from center wall to corner increased plating space by 18%
2. Offsetting the dish return door eliminated server-cook collisions
3. Replacing a swing door with a sliding door recovered 6 square feet of workspace

One café project in Los Angeles had a 120-square-foot kitchen where the original design placed the service door directly across from the grill station. During peak hours, servers constantly crossed the cooking line.

By relocating the door just 3 feet toward the corner, we created a dedicated service corridor—and the kitchen suddenly moved twice as smoothly.

Final Summary

1. Kitchen door placement shapes workflow efficiency in small restaurants.
2. Doors should align with circulation paths, not interrupt them.
3. Corner and offset doors preserve valuable wall space.
4. Door swing direction matters in tight kitchen layouts.
5. Planning workflow first prevents expensive layout mistakes.

FAQ

Where should a kitchen door be placed in a small restaurant?

The best location is near the transition between cooking and service areas without interrupting prep or equipment zones.

How does door placement affect restaurant kitchen workflow?

Door placement controls traffic flow. Poor placement forces staff to cross paths, creating delays and safety risks during busy service hours.

What is the best door type for small restaurant kitchens?

Sliding or double-acting swing doors often work best because they reduce clearance issues and allow smoother staff movement.

How wide should a restaurant kitchen door be?

Most commercial kitchens use doors between 36 and 42 inches wide to accommodate trays, carts, and fast staff movement.

Can changing door placement improve kitchen efficiency?

Yes. Adjusting kitchen door placement can reduce walking distance and eliminate congestion points, improving workflow in small restaurant kitchens.

Should kitchen doors open in or out?

They should typically open in the direction of traffic flow or use double-acting hinges to avoid blocking movement.

What is a common mistake in small restaurant kitchen layouts?

Placing the service door directly across from cooking stations, which creates collision points between servers and cooks.

How do designers plan kitchen door layout optimization in restaurants?

Designers map workflow paths first, then position doors along circulation edges to support efficient kitchen door layout optimization.
