How to Optimize Large 3D Terrain and River Models for Performance: Practical techniques designers and engineers use to keep massive terrain and river models fast, stable, and simulation ready

Direct Answer

To optimize large 3D terrain and river models for performance, reduce unnecessary mesh density, simplify river geometry, manage DEM resolution carefully, and apply level of detail techniques. The goal is to preserve hydrological accuracy while lowering polygon count and memory load so the model remains responsive in simulations, visualization tools, and game engines.

Quick Takeaways

1. High resolution terrain data often contains far more polygons than simulations actually require.
2. River surfaces are frequently over‑modeled and can be simplified without affecting hydrology results.
3. Level of Detail systems dramatically improve performance for large landscapes.
4. Efficient DEM management prevents memory overload and rendering slowdowns.
5. Export settings often determine whether large terrain models run smoothly in downstream tools.

Introduction

Working with large 3D terrain and river models sounds exciting until your software starts freezing every time you orbit the camera. After a decade working on landscape visualization and environmental modeling projects, I have learned that performance problems rarely come from a single issue. Instead, they build up from dozens of small inefficiencies—terrain meshes that are too dense, rivers modeled with unnecessary geometry, or DEM files that were imported at full resolution when only a fraction of that data is needed.

Many teams assume the solution is simply buying a stronger workstation. In reality, the bigger improvement usually comes from optimizing the model itself. Even modest terrain projects can contain millions of polygons once riverbanks, water surfaces, and elevation data are combined.

If you are still building your base landscape model, it helps to review practical layout approaches used in professional terrain workflows. One helpful reference is this guide explaining how designers build accurate spatial layouts before turning them into detailed 3D environments. The same planning logic applies when modeling large landscapes.

In this guide I will break down the techniques I use to keep large river landscapes responsive, even when they include complex terrain, multiple tributaries, and large elevation datasets.

save pin

Why River System Models Become Heavy and Slow

Key Insight: Most performance issues in river landscape models come from unnecessary geometric detail rather than file size alone.

In many projects I review, the terrain mesh is created directly from high‑resolution DEM data. While this preserves accuracy, it often produces millions of triangles that add very little visual or analytical value.

Typical sources of performance problems include:

1. DEM imports at full resolution
2. Terrain meshes without decimation
3. Rivers modeled with thick 3D volumes instead of surfaces
4. Excessive subdivision along riverbanks
5. Duplicate water surfaces or terrain layers

Environmental modeling teams frequently encounter this issue when combining GIS data with visualization models. According to guidance from the USGS and ESRI documentation, raw elevation datasets often exceed the resolution needed for visualization or simulation workflows.

In other words, the model is slow not because it is large, but because too much of the data is unnecessary.

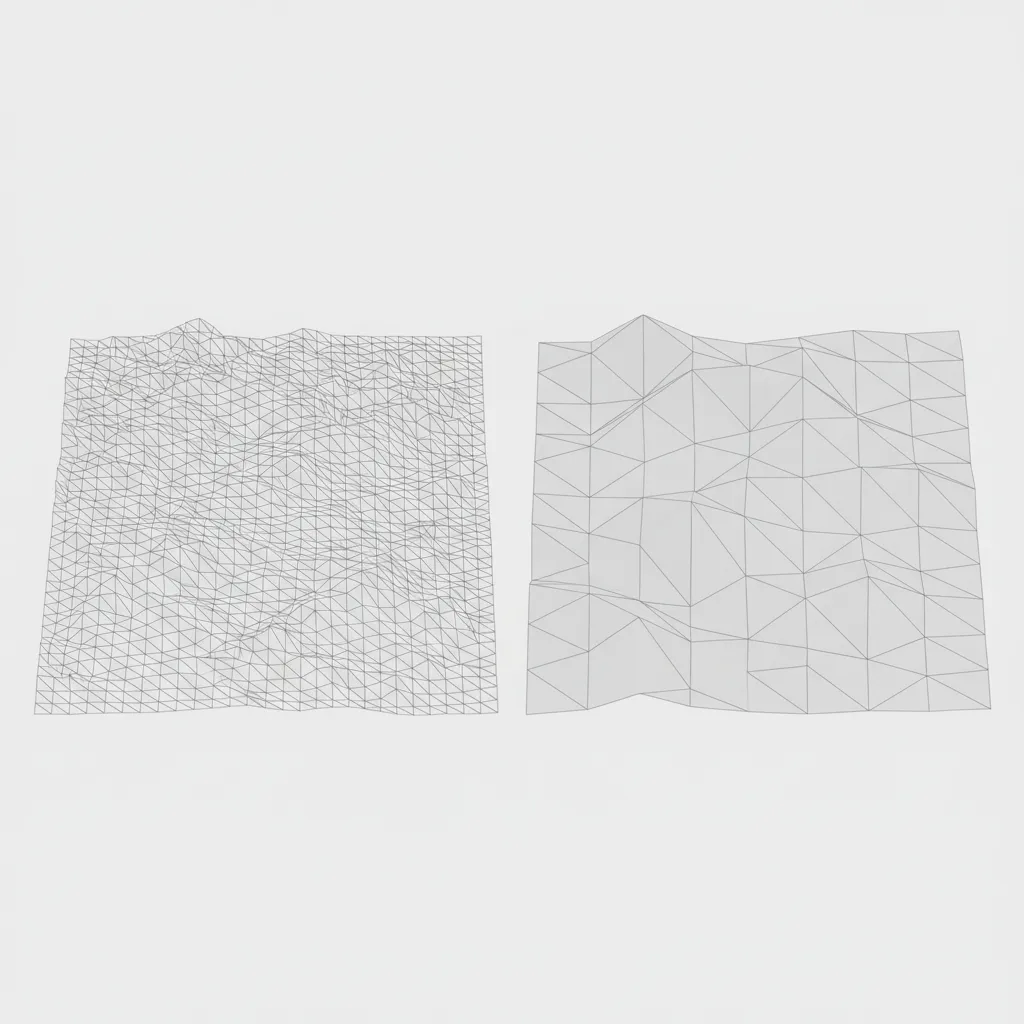

Reducing Terrain Mesh Density Without Losing Accuracy

Key Insight: Smart mesh decimation can reduce terrain polygon counts by 70–90 percent without changing the perceived shape of the landscape.

Terrain optimization works best when you simplify areas that contribute little visual or analytical value. Flat floodplains, for example, rarely need the same mesh resolution as steep valley edges.

Here is the approach I typically use:

1. Start with a moderate DEM resolution rather than the highest available dataset.
2. Convert the terrain to a mesh and analyze polygon density.
3. Apply adaptive mesh decimation.
4. Preserve edges along ridges, riverbanks, and cliffs.
5. Simplify flat areas aggressively.

Professional terrain workflows often aim for a balance between accuracy and computational efficiency. Hydrology simulations usually depend more on elevation gradients than on extremely dense surface geometry.

This is why reducing terrain density rarely affects analytical accuracy when done correctly.

save pin

Optimizing River Geometry and Water Surfaces

Key Insight: River surfaces should usually be modeled as lightweight surfaces rather than thick volumetric meshes.

A common mistake in river modeling is creating overly complex water geometry. In visualization and simulation pipelines, rivers typically only require a single surface mesh with accurate elevation and flow direction.

Optimization techniques include:

1. Using spline‑based river centerlines
2. Generating river surfaces with controlled subdivision
3. Avoiding volumetric water meshes
4. Reducing edge loops along straight sections
5. Keeping higher detail only around bends and confluences

From experience, curved river sections benefit from higher mesh density because they define the visual identity of the landscape. Long straight segments, however, can often be simplified dramatically.

Another workflow improvement is organizing terrain planning and spatial structure early. Many designers use layout planning tools similar to those used in architectural environments when mapping spatial layouts before generating detailed 3D models. This reduces unnecessary modeling revisions later.

save pin

Using Level of Detail Techniques for Large Landscapes

Key Insight: Level of Detail systems allow large terrain models to stay visually rich while rendering only the geometry needed at a given distance.

LOD techniques are widely used in game engines, simulation tools, and real‑time visualization platforms.

The idea is simple: distant terrain uses simplified geometry, while nearby terrain uses higher detail.

A typical LOD structure might include:

1. LOD 0 – full resolution terrain near the camera
2. LOD 1 – reduced mesh density for mid‑distance areas
3. LOD 2 – simplified terrain for distant hills and valleys
4. LOD 3 – extremely simplified background landscape

Modern visualization engines such as Unreal Engine and Unity rely heavily on this approach when rendering landscapes that cover kilometers of terrain.

Without LOD systems, even well‑optimized terrain models can become difficult to render in real time.

Managing DEM and GIS Data Efficiently

Key Insight: The most effective optimization often happens before modeling begins by controlling how DEM and GIS data are imported.

Large terrain models frequently originate from GIS datasets that contain far more detail than needed for most visualization tasks.

Best practices for managing elevation data include:

1. Resampling DEM data to the target project resolution
2. Splitting large terrain datasets into tiles
3. Removing unused elevation layers
4. Using terrain streaming where supported
5. Maintaining consistent coordinate systems

GIS professionals often emphasize preprocessing elevation datasets before importing them into 3D software. This prevents unnecessary geometry from entering the modeling workflow.

save pin

Export Optimization for Simulation or Game Engines

Key Insight: Export settings can dramatically affect performance once terrain models move into simulation or visualization platforms.

Even a well‑optimized model can become inefficient if exported incorrectly. Large terrain files often carry hidden overhead such as redundant vertex data, uncompressed textures, or excessive material assignments.

Before exporting large river landscapes, I usually run this checklist:

1. Merge duplicate materials
2. Collapse modifier stacks
3. Remove hidden geometry
4. Triangulate terrain meshes if required by the engine
5. Use texture atlases where possible

Many teams also generate preview renders or test scenes before sending models to engineers or simulation teams. A simple visualization pass like the workflow used to produce high quality architectural 3D environment renders can reveal geometry problems before they become pipeline issues.

Answer Box

The most effective way to optimize large 3D terrain and river models is combining mesh simplification, efficient DEM processing, and level of detail systems. Most performance problems originate from unnecessary geometry rather than true data complexity.

Final Summary

1. Most slow terrain models contain unnecessary geometric detail.
2. Mesh decimation can reduce polygon counts dramatically.
3. River surfaces should usually be lightweight meshes.
4. Level of Detail systems are essential for large landscapes.
5. Efficient DEM management prevents heavy terrain imports.

FAQ

Why are large 3D terrain and river models slow to render?

Most slowdowns come from excessive mesh density created by high‑resolution DEM data and overly detailed river geometry.

How can I reduce polygon count in river terrain models?

Use adaptive mesh decimation, simplify flat terrain areas, and reduce subdivision along straight river sections.

What is the best DEM resolution for terrain modeling?

It depends on the project scale, but many visualization models work well with 5–30 meter DEM resolution.

Do rivers need volumetric water models?

Usually no. Most simulations and visualizations only require a single water surface mesh.

How do level of detail systems improve terrain performance?

LOD systems render simplified geometry at distance, reducing the number of polygons processed in real time.

Can optimizing terrain affect hydrology simulations?

If done correctly, optimization preserves elevation gradients while reducing unnecessary geometric detail.

What software is commonly used to optimize large terrain models?

GIS tools, terrain modeling software, and 3D engines like Blender, Unreal Engine, and Unity are frequently used.

What is the best workflow for large river system model optimization?

Start with controlled DEM imports, simplify terrain meshes, optimize river geometry, and implement level of detail techniques.
