How to Optimize Mesh Quality Before Exporting STL: Practical techniques professionals use to improve STL mesh quality, reduce file size, and prevent printing errors.

Direct Answer

To optimize mesh quality before exporting an STL, adjust triangle density, remove unnecessary geometry, repair mesh errors, and export in binary STL format when possible. A clean, well‑balanced mesh improves print reliability while significantly reducing file size.

The key is finding the balance between detail and efficiency so the model keeps its shape without generating millions of unnecessary triangles.

Quick Takeaways

1. High triangle counts rarely improve print quality beyond your printer's resolution.
2. Binary STL files are typically 80–90% smaller than ASCII versions.
3. Mesh decimation can reduce polygon counts by 50–70% without visible quality loss.
4. Always repair non‑manifold edges and flipped normals before exporting STL.
5. Overly dense meshes often slow slicing software without improving results.

Introduction

After working on dozens of product prototypes and architectural models, I’ve noticed the same mistake again and again: designers export STL files directly from their modeling software without optimizing the mesh. The result is often a massive file, slow slicing performance, and sometimes even print failures.

Learning how to optimize mesh before STL export isn’t just a technical step—it’s a workflow habit that saves time across every stage of production. In professional environments, especially when preparing files for 3D printing or fabrication pipelines, mesh optimization can reduce file size dramatically while preserving critical details.

If you're still experimenting with layout and geometry before exporting your model, it's helpful to start with a structured design workflow like creating precise layouts before generating 3D models, which prevents unnecessary mesh complexity later.

In this guide, I’ll walk through the exact checks and adjustments professionals make before exporting an STL file—from triangle density decisions to mesh decimation strategies and final validation.

save pin

Why Mesh Quality Matters for STL Files

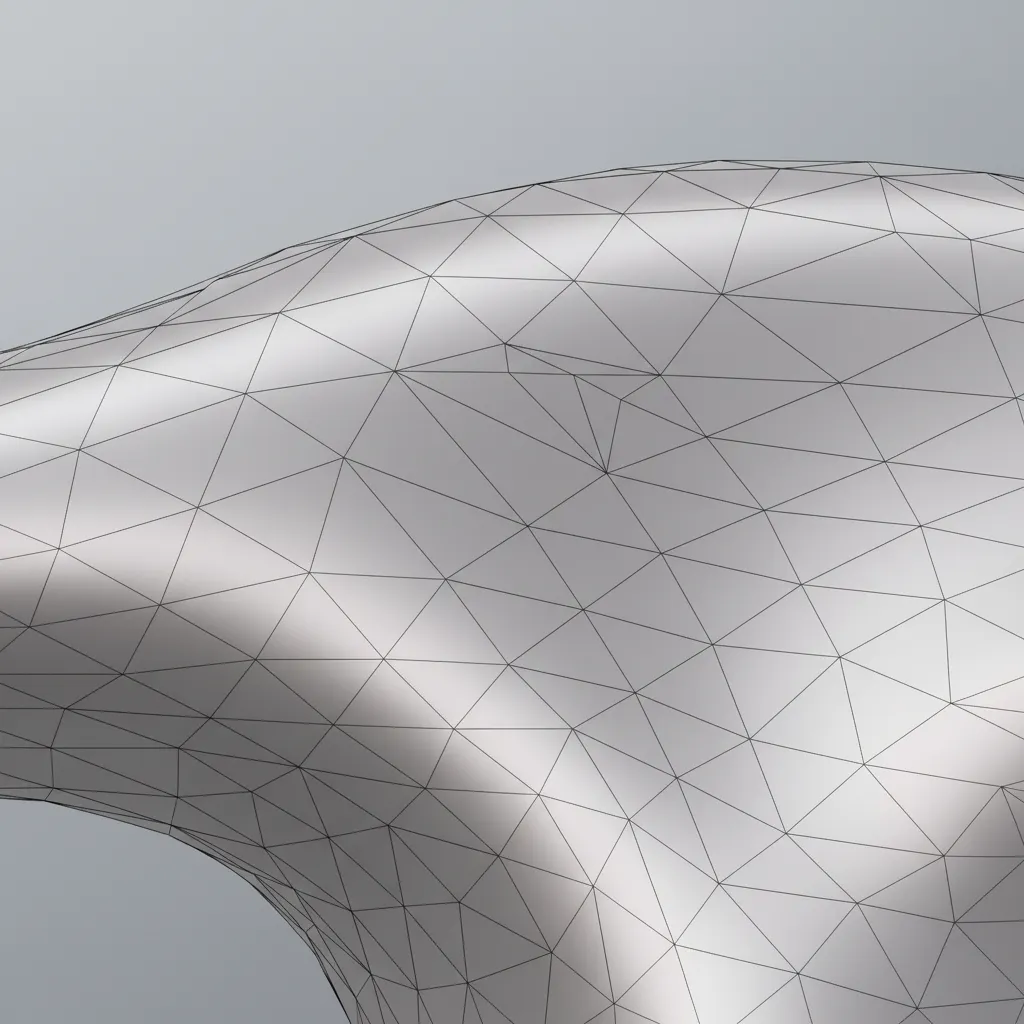

Key Insight: STL files store geometry using triangles, so mesh quality directly determines surface accuracy, file size, and slicing reliability.

Unlike parametric models or NURBS surfaces, STL files flatten geometry into thousands—or sometimes millions—of triangles. Every curve becomes a series of small flat faces.

If the mesh is poorly optimized, two problems typically appear:

1. Too many triangles create unnecessarily large files.
2. Too few triangles cause visible faceting on curved surfaces.

From experience, overly dense meshes are actually more common than low‑resolution meshes. Designers often export with maximum detail settings thinking it improves quality. In reality, printers have physical resolution limits.

For example, most consumer FDM printers cannot reproduce details smaller than 0.1–0.2 mm. Triangles smaller than that add zero visible improvement but dramatically increase file size.

Industry recommendations from major slicing software providers like Ultimaker Cura and PrusaSlicer emphasize that mesh density should match printer resolution rather than exceed it.

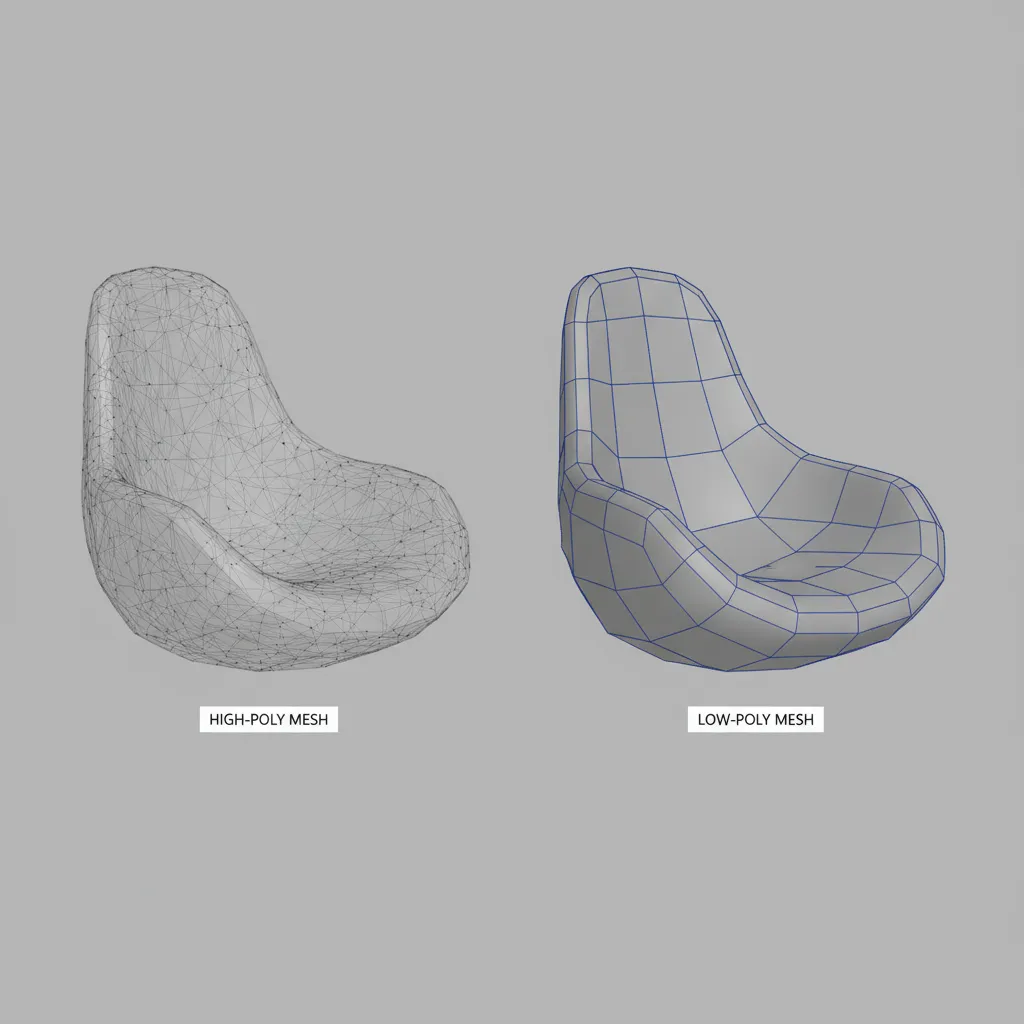

Understanding Triangle Density and Resolution

Key Insight: Optimal STL meshes maintain smooth curvature using the fewest triangles necessary.

Triangle density determines how accurately curves and organic shapes appear once exported.

In most modeling software, mesh resolution is controlled using two parameters:

1. Chord height (maximum distance between triangle surface and original geometry)
2. Angular tolerance (maximum angle between adjacent triangles)

A practical guideline I use across most projects:

1. Chord height: 0.01–0.05 mm for high detail
2. Angular tolerance: 5–15 degrees
3. Triangle count: Keep under 1 million whenever possible

For architectural or larger mechanical models, even fewer triangles are usually sufficient.

If you're preparing models that originate from layout planning workflows—like those created after building a spatial layout with a structured 3D floor planning workflow—you can often reduce mesh density aggressively without losing meaningful visual information.

save pin

Reducing File Size Without Losing Detail

Key Insight: Smart mesh simplification removes redundant triangles while preserving visible geometry.

Large STL files slow down slicing software and increase processing times, especially when models contain unnecessary surface detail.

Effective strategies include:

1. Removing hidden internal geometry
2. Merging coplanar faces
3. Applying mesh decimation algorithms
4. Eliminating duplicate vertices

A common misconception is that file size directly correlates with model quality. In practice, a 5MB STL can print identically to a 150MB STL if the triangle distribution is optimized.

Professional mesh tools such as MeshLab, Blender, and Netfabb allow decimation percentages to be previewed before applying them. I typically reduce meshes by 30–60% first, inspect curvature, and repeat until visible degradation appears.

Choosing Between Binary STL and ASCII STL

Key Insight: Binary STL should almost always be used because it dramatically reduces file size while storing the same geometry data.

STL files exist in two formats:

1. ASCII STL
2. Binary STL

The geometry stored in both formats is identical, but their structure differs.

1. ASCII STL stores triangle data as readable text.
2. Binary STL stores the same data in compact binary format.

The difference in file size can be dramatic.

1. ASCII STL: very large files
2. Binary STL: typically 5–10x smaller

Unless a specific workflow requires text‑based STL editing, binary STL is the better choice for almost every scenario.

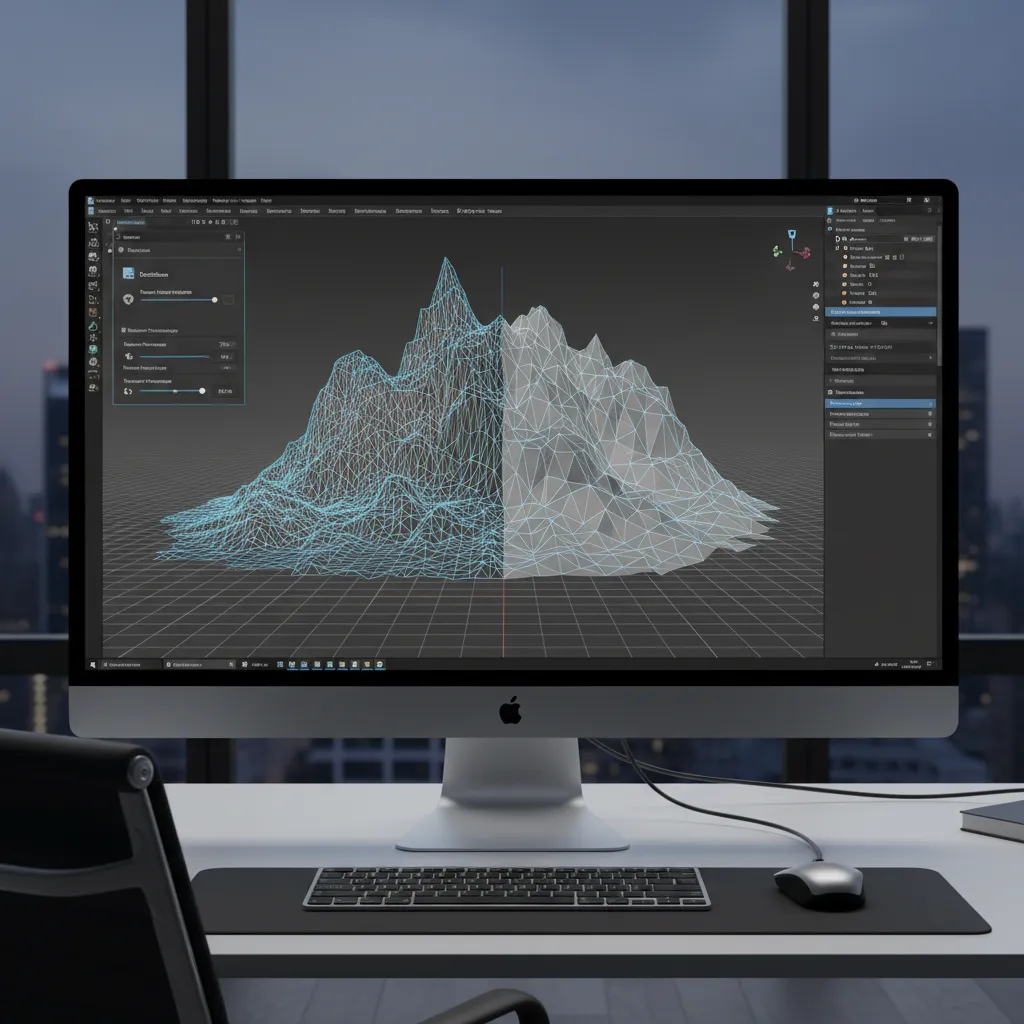

Mesh Simplification and Decimation Techniques

Key Insight: The best mesh optimization strategies prioritize curvature preservation rather than simply reducing polygon counts.

Mesh simplification works by collapsing edges and merging vertices while maintaining overall shape.

Three commonly used techniques include:

1. Edge collapse decimation
2. Quadratic error metric simplification
3. Adaptive surface reduction

Edge collapse methods work well for mechanical models, while quadratic error approaches are better for organic shapes.

One overlooked step is selectively preserving high‑curvature regions. If decimation treats the entire model equally, details like embossed logos or sharp fillets disappear quickly.

Many professional mesh optimization tools allow curvature weighting, which protects detailed regions while aggressively simplifying flat surfaces.

save pin

Answer Box

The most effective way to improve STL mesh quality is balancing triangle density with printer resolution while removing redundant geometry. A clean binary STL with optimized triangles prints faster, slices faster, and produces more reliable results.

Final Checks Before Exporting an STL File

Key Insight: A printable STL must be watertight, manifold, and free of inverted normals.

Before exporting, I always run a quick validation checklist.

1. No non‑manifold edges
2. No holes in the mesh
3. No intersecting faces
4. Consistent surface normals
5. Correct unit scale

Skipping these checks is one of the biggest causes of STL export errors and failed prints.

Many designers now integrate modeling workflows with visualization tools—such as generating a full 3D rendering preview of the final space—before exporting geometry. Seeing the full model context often reveals hidden mesh problems that technical tools miss.

Final Summary

1. Mesh optimization balances triangle density with real printing resolution.
2. Binary STL dramatically reduces file size compared to ASCII.
3. Decimation tools can reduce polygon counts without visible quality loss.
4. Always repair mesh errors before exporting an STL file.
5. Clean geometry improves slicing speed and printing reliability.

FAQ

What does it mean to optimize mesh before STL export?

It means adjusting triangle density, repairing mesh errors, and removing unnecessary geometry so the STL file prints correctly while remaining efficient in size.

How many triangles should an STL file have?

There is no fixed number, but most printable models perform well below one million triangles. Excessively dense meshes rarely improve final print quality.

How can I reduce STL file size without losing detail?

Use mesh decimation tools, remove internal geometry, and export binary STL files. These techniques reduce size while preserving visible surfaces.

Is binary STL better than ASCII STL?

Yes. Binary STL stores the same geometry but uses far less storage space and loads faster in slicing software.

Why does my STL look faceted after export?

Faceting occurs when triangle density is too low. Adjust chord height or angular tolerance in export settings.

What causes STL export errors?

Non‑manifold edges, holes in geometry, overlapping faces, and flipped normals are common causes.

Can mesh optimization improve 3D printing results?

Yes. Proper mesh optimization for 3D printing STL ensures smoother surfaces, faster slicing, and fewer print failures.

Which software can improve STL mesh quality?

Blender, MeshLab, Netfabb, and many CAD tools include mesh repair and simplification features.
