How to Optimize Moisture and Sound Control With Bellawood Underlayment: Practical installation insights to improve hardwood floor moisture protection and reduce noise for long term stability

Direct Answer

Bellawood underlayment improves hardwood floor performance by combining moisture protection with acoustic cushioning. The key to optimizing it is correct subfloor preparation, tight seam sealing, and pairing the underlayment with the right vapor management strategy.

When installed carefully, Bellawood underlayment can significantly reduce impact noise while protecting hardwood floors from moisture migration, especially on concrete slabs.

Quick Takeaways

1. Proper seam sealing dramatically improves moisture barrier performance.
2. Concrete subfloors require stricter vapor control than wood subfloors.
3. Acoustic improvement depends more on installation quality than material thickness.
4. Underlayment gaps or wrinkles quickly reduce sound insulation.
5. Combining vapor barriers incorrectly can trap moisture and damage flooring.

Introduction

Bellawood underlayment is often marketed as a simple add‑on beneath hardwood flooring, but after working on dozens of residential flooring projects, I've learned that its real performance depends heavily on how it's installed and where it's used.

Many homeowners expect it to automatically solve two common flooring issues: moisture coming up from the subfloor and the hollow echo sound that hardwood floors sometimes produce. In reality, Bellawood underlayment works well, but only when moisture control and acoustic strategy are planned together.

One mistake I see repeatedly is installers focusing only on the flooring surface while ignoring the subfloor conditions underneath. Even small layout mistakes can undermine the entire system. Planning the subfloor layout before installation can help prevent these problems, and many installers start by visualizing room measurements using tools like a digital floor planning workflow for mapping room dimensions accurately.

In this guide I'll walk through the practical decisions that actually improve Bellawood underlayment performance—from moisture protection on concrete slabs to techniques that noticeably reduce hardwood floor noise.

save pin

Understanding Moisture Barriers in Hardwood Flooring

Key Insight: Moisture protection under hardwood floors fails most often at seams and edges, not through the underlayment material itself.

Most underlayment products—including Bellawood—already provide a basic moisture resistance layer. The weak points appear during installation: seams, wall transitions, and floor penetrations.

Moisture problems typically originate from three sources:

1. Concrete slab vapor emission
2. Humidity trapped in crawl spaces
3. Seasonal humidity swings inside the home

In my projects, the most effective moisture strategy involves treating the entire floor as a sealed system rather than relying on the underlayment sheet alone.

Common moisture control checklist:

1. Test concrete moisture levels before installation
2. Overlap seams according to manufacturer guidance
3. Seal joints with moisture‑rated tape
4. Leave correct expansion gaps at walls

According to the National Wood Flooring Association, uncontrolled moisture remains the leading cause of hardwood flooring failure, particularly over concrete substrates.

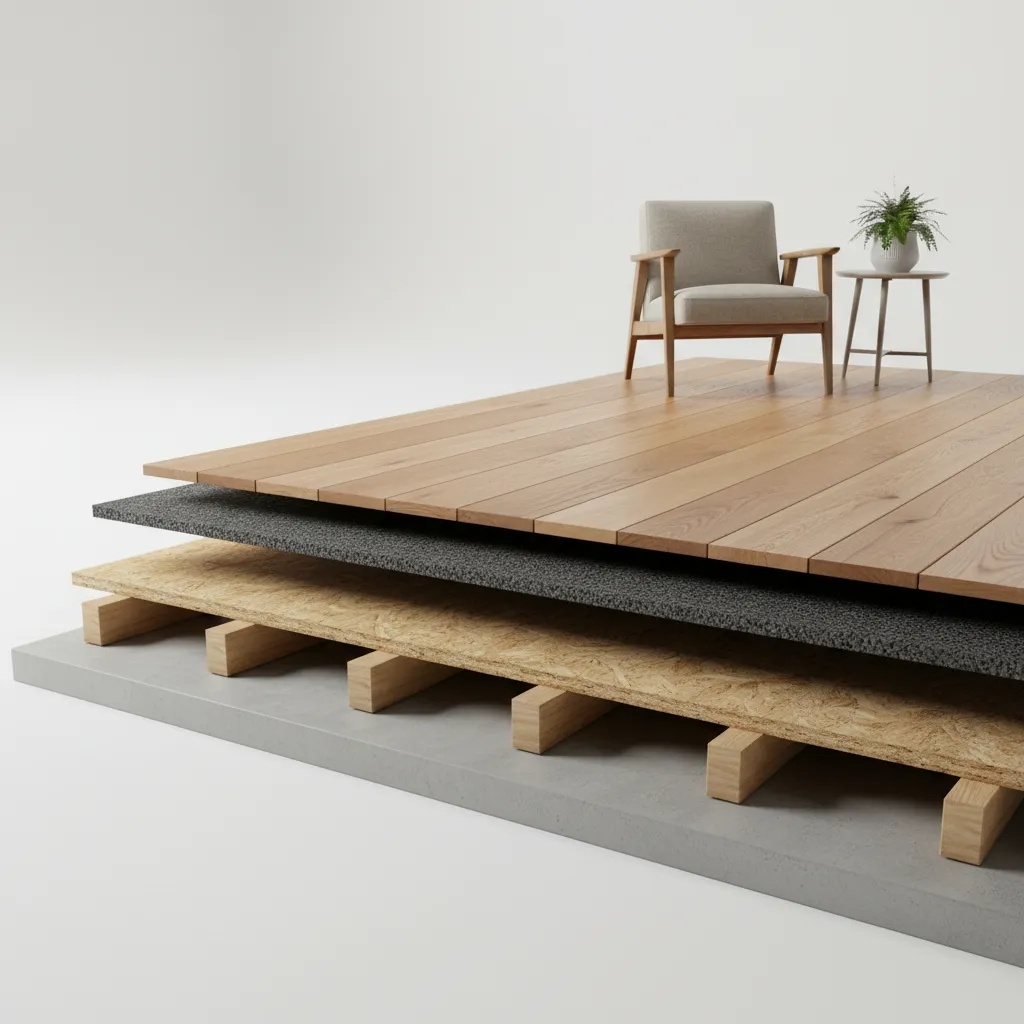

How Bellawood Underlayment Reduces Floor Noise

Key Insight: The acoustic benefit of Bellawood underlayment comes from vibration absorption rather than pure thickness.

Hardwood floors transmit two types of sound:

1. Impact noise from footsteps
2. Airborne noise reflection inside the room

Bellawood underlayment primarily reduces impact vibration. When installed flat and fully supported, the cushioning layer absorbs footstep energy before it transfers into the subfloor.

Installation factors that influence sound performance:

1. Flatness of the subfloor
2. Full contact between flooring and underlayment
3. No trapped air pockets
4. Consistent plank fastening

One overlooked issue is uneven subfloors. If the underlayment bridges dips or ridges, hollow spaces form beneath the hardwood. Those cavities amplify sound instead of reducing it.

save pin

Improving Moisture Protection on Concrete Subfloors

Key Insight: Concrete slabs require a layered moisture strategy rather than relying solely on underlayment.

Concrete continuously releases vapor as humidity changes. Even older slabs can produce moisture migration through capillary action.

For installations over concrete, I typically recommend a three‑step approach:

1. Moisture testing using calcium chloride or RH probes
2. Applying a dedicated vapor barrier if readings are high
3. Installing Bellawood underlayment above the barrier

Skipping the testing stage is one of the most expensive mistakes contractors make. If vapor pressure exceeds flooring limits, underlayment alone will not prevent cupping or warping.

Visualizing slab layout and moisture‑risk zones can also help during planning. Some installers map floor layouts in advance using a 3D layout planning approach that previews flooring placement before installation.

save pin

Best Installation Practices for Sound Reduction

Key Insight: Sound reduction depends more on installation precision than on upgrading to thicker underlayment.

Homeowners often assume thicker material equals quieter floors. In reality, sloppy installation can eliminate the acoustic advantage entirely.

Professional installation steps that improve sound insulation:

1. Level the subfloor within manufacturer tolerance.
2. Roll out underlayment in the same direction as flooring planks.
3. Avoid overlapping unless specified.
4. Seal seams to prevent movement.
5. Trim edges cleanly at walls.

Even minor wrinkles can cause plank movement over time, creating creaking sounds that homeowners often blame on the flooring itself.

Answer Box

Bellawood underlayment performs best when moisture control, seam sealing, and subfloor leveling are treated as one integrated system. Most noise and moisture failures occur because one of these steps is skipped.

save pin

Combining Underlayment With Vapor Barriers

Key Insight: Installing multiple vapor barriers incorrectly can trap moisture and cause long‑term flooring damage.

This is one of the most misunderstood aspects of hardwood floor installation. Many installers assume that adding extra vapor protection automatically improves durability.

In reality, double vapor barriers can trap moisture between layers.

Correct combinations depend on the subfloor type:

1. Wood subfloor: underlayment with built‑in vapor resistance is usually enough
2. Concrete slab: dedicated vapor barrier plus underlayment
3. Below‑grade slab: high‑performance vapor barrier recommended

Planning the full flooring layout—including transitions between rooms—helps determine where moisture protection changes are needed. Many installers preview these transitions using a floor plan visualization workflow for mapping installation areas before starting.

Performance Tips for Long Term Flooring Stability

Key Insight: Long‑term performance depends as much on climate management as on the underlayment itself.

Even perfectly installed Bellawood underlayment cannot compensate for unstable indoor humidity.

Long‑term protection strategies:

1. Maintain indoor humidity between 35–55%
2. Avoid large seasonal swings
3. Use proper expansion gaps
4. Inspect flooring annually for movement

In high‑humidity climates, HVAC humidity control often protects hardwood flooring more effectively than upgrading the underlayment layer.

Final Summary

1. Bellawood underlayment improves flooring performance when seams and edges are sealed correctly.
2. Concrete subfloors require moisture testing before installation.
3. Subfloor leveling plays a major role in reducing floor noise.
4. Incorrect vapor barrier combinations can trap moisture.
5. Stable indoor humidity protects hardwood floors long term.

FAQ

Does Bellawood underlayment reduce hardwood floor noise?

Yes. Bellawood underlayment absorbs footstep vibration, which helps reduce impact noise when installed on a flat, properly prepared subfloor.

Is Bellawood underlayment a moisture barrier?

Bellawood underlayment offers moisture resistance, but concrete slabs often require an additional vapor barrier for full protection.

Can Bellawood underlayment be installed over concrete?

Yes, but moisture testing should be performed first. Many installations also include a dedicated vapor barrier beneath the underlayment.

How do you reduce hollow sounds under hardwood floors?

Ensure the subfloor is level, avoid underlayment wrinkles, and maintain full contact between the flooring planks and the underlayment.

Do thicker underlayments reduce more noise?

Not always. Correct installation and subfloor preparation have a larger impact on sound reduction than thickness alone.

Can I install two moisture barriers under hardwood flooring?

Sometimes, but incorrect layering can trap moisture. Always follow flooring manufacturer recommendations.

How long does Bellawood underlayment last?

When installed properly and protected from moisture buildup, it typically lasts the lifetime of the flooring.

What is the best way to install Bellawood underlayment?

Roll it out flat, seal seams carefully, align it with plank direction, and ensure the subfloor is clean and level.

References

1. National Wood Flooring Association Installation Guidelines
2. Forest Products Laboratory Wood Flooring Moisture Study
3. Building Science Corporation Moisture Control Principles
