Direct Answer

To optimize outlet and lighting placement in an electrical floor plan, position outlets based on real furniture layouts and daily use zones, while layering lighting for task, ambient, and accent needs. Efficient electrical layouts reduce wiring complexity, balance circuits, and improve long‑term usability. The most effective plans start with how people move, work, and relax inside the space.

Quick Takeaways

1. Plan outlet placement around furniture layouts rather than wall spacing rules alone.
2. Layer ambient, task, and accent lighting to improve comfort and functionality.
3. Balance circuits early to prevent overload and costly redesigns later.
4. Simpler wiring paths often reduce installation cost and future maintenance.
5. Always evaluate lighting and outlets together as one integrated system.

Introduction

Optimizing outlet and lighting placement in an electrical floor plan is one of those details that separates a basic layout from a truly functional home. After working on dozens of residential projects over the past decade, I can say most electrical problems don’t come from code violations—they come from poor planning.

People end up with outlets hidden behind sofas, kitchen counters without enough power points, or living rooms with beautiful lighting that somehow still feels dim. These mistakes usually happen because electrical planning starts too late in the design process.

Before I finalize electrical layouts, I typically build a rough spatial layout using tools that allow quick experimentation with furniture and circulation patterns. A good example is exploring furniture placement through an interactive room layout planning workflow for furniture placement. Once the spatial logic is clear, outlet and lighting positions become surprisingly obvious.

In this guide, I’ll walk through the same principles I use in real projects to optimize outlet placement, improve lighting layout design in an electrical plan, and simplify wiring while keeping the system efficient.

save pin

Principles of Efficient Electrical Layout Design

Key Insight: The most efficient electrical layouts are planned around human behavior, not just building codes.

Building codes define minimum outlet spacing and safety standards, but they rarely reflect how people actually use a room. A living room might technically pass inspection yet still feel inconvenient if outlets are poorly positioned.

In practice, efficient electrical layout planning follows three principles:

1. Use zone-based planning. Divide rooms into activity zones like seating, work areas, and circulation paths.
2. Design around furniture. Place outlets where devices will actually be used.
3. Coordinate lighting early. Lighting circuits should align with how the room functions.

For example, in a typical living room layout:

1. Media wall requires 4–6 outlets.
2. Side tables need nearby power for lamps.
3. Floor outlets may be necessary for central seating islands.

The National Electrical Code (NEC) in the United States recommends outlets every 12 feet along walls, but in real design practice, functionality often requires closer spacing in work-heavy areas like kitchens and home offices.

Optimizing Outlet Placement for Daily Use

Key Insight: The best outlet placement strategy starts with identifying device clusters rather than evenly spacing outlets.

One of the most common design mistakes I see is evenly spaced outlets that ignore how people actually use electricity in a room.

Instead, focus on clusters where devices naturally accumulate.

Typical residential outlet clusters include:

1. Media zones – TVs, game consoles, streaming devices
2. Work areas – laptops, monitors, chargers
3. Kitchen prep zones – small appliances
4. Bedside zones – phones, lamps, smart devices

Recommended outlet placement strategy:

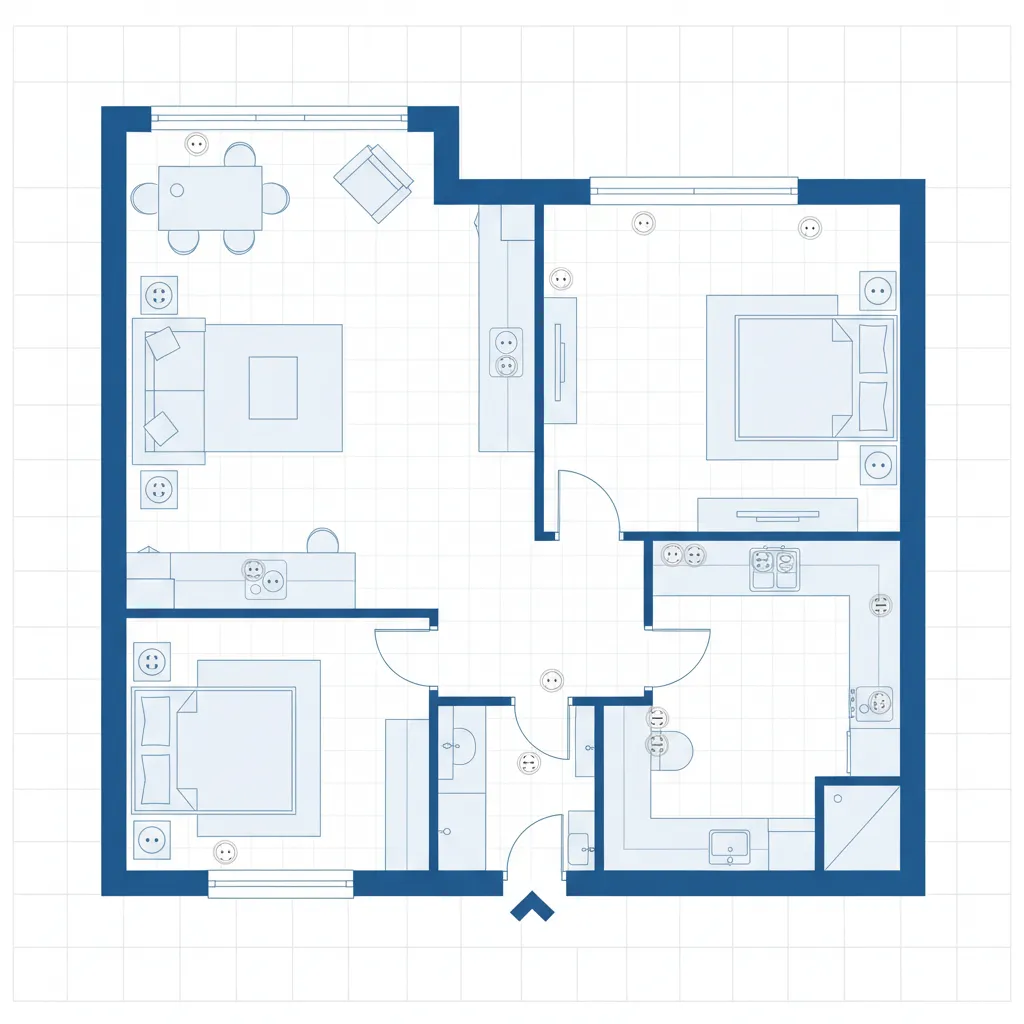

1. Place outlets within 18–24 inches of expected device locations.
2. Install floor outlets in large seating areas.
3. Add USB or smart outlets in bedside areas.
4. Avoid placing outlets directly behind fixed furniture.

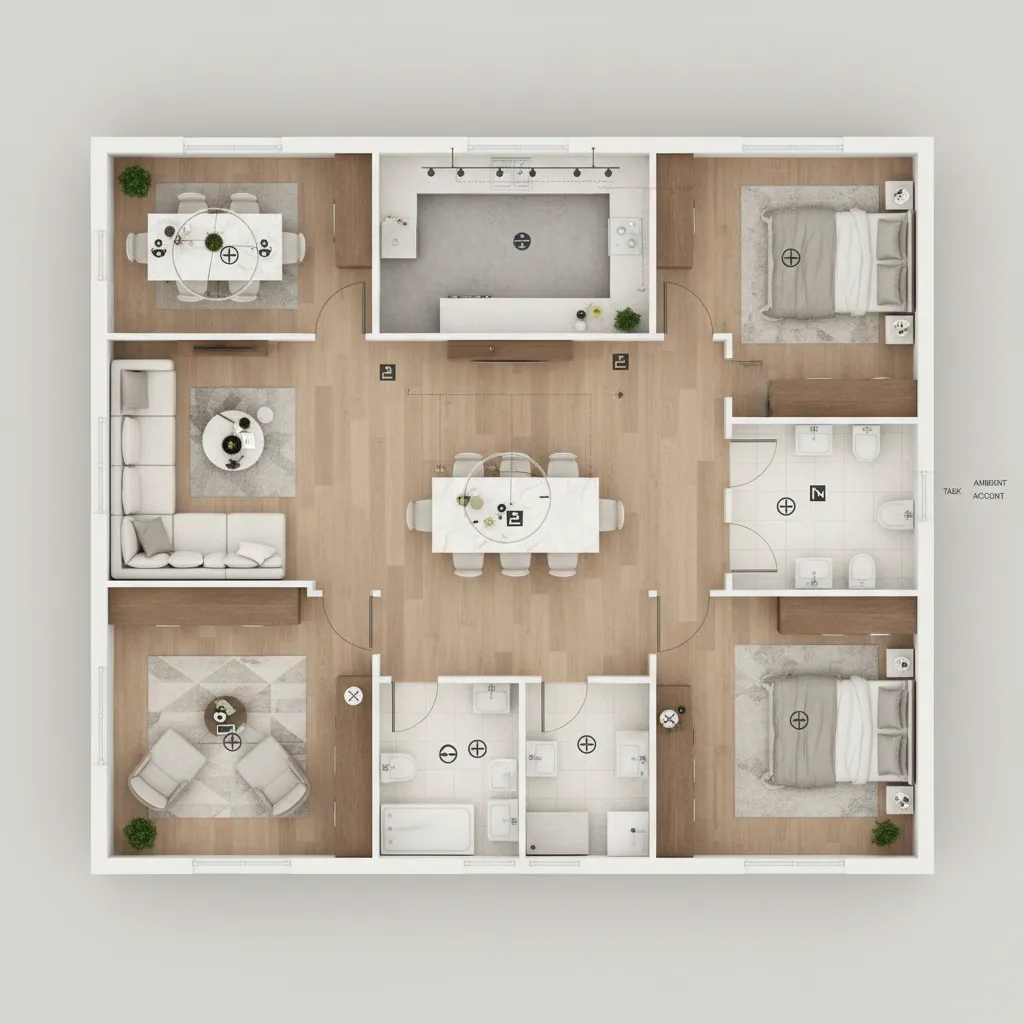

In many of my projects, visualizing outlet placement alongside the floor plan dramatically improves decisions. Designers often prototype layouts using a simple digital workflow for creating editable floor plans, which allows quick repositioning before construction documents are finalized.

save pin

Planning Lighting for Function and Ambience

Key Insight: Effective lighting layouts combine three lighting layers rather than relying on ceiling fixtures alone.

Lighting layout design in an electrical plan should always include layered lighting. Homes that rely only on ceiling lights usually feel harsh or underlit.

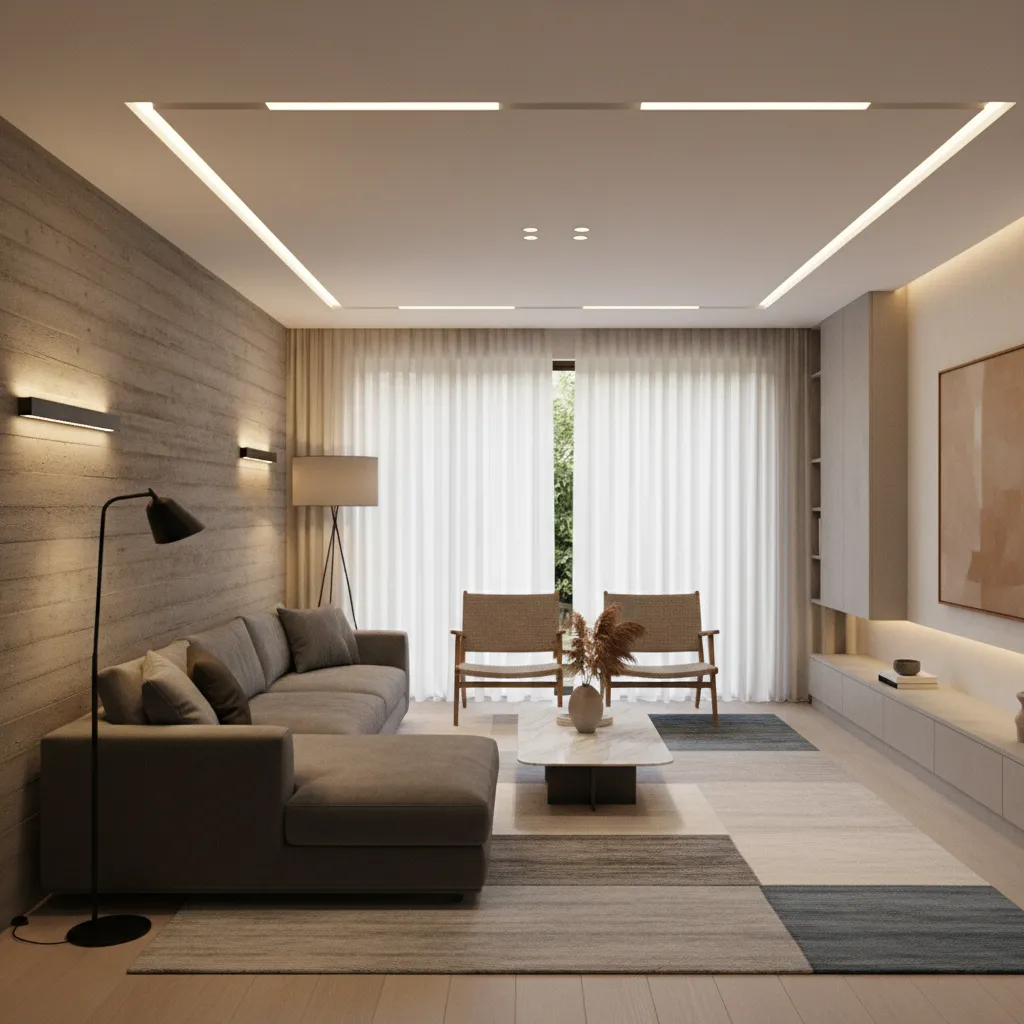

The three essential lighting layers:

1. Ambient lighting – overall illumination (recessed lights, ceiling fixtures)
2. Task lighting – focused lighting for activities (under-cabinet lights, desk lamps)
3. Accent lighting – decorative or highlight lighting (wall washers, sconces)

Typical residential lighting ratios I recommend:

1. Ambient lighting: 60%
2. Task lighting: 30%
3. Accent lighting: 10%

This layered approach not only improves usability but also creates depth and atmosphere. According to the American Lighting Association, layered lighting significantly improves perceived comfort and visual clarity in residential interiors.

save pin

Answer Box

The most effective electrical floor plans optimize outlet placement around real device usage and layer lighting for function and atmosphere. Efficient layouts also simplify wiring paths and balance electrical loads across circuits.

Balancing Circuits Across the Floor Plan

Key Insight: Balanced circuits prevent overload and improve long‑term reliability of residential electrical systems.

One hidden issue in electrical design is uneven circuit distribution. When too many high‑load devices share one circuit, breakers trip frequently.

Common high‑load zones include:

1. Kitchens
2. Laundry rooms
3. Home offices
4. Entertainment areas

Best practices for balancing circuits:

1. Separate kitchen appliance circuits.
2. Assign lighting and outlets to different circuits.
3. Use dedicated circuits for HVAC equipment.
4. Plan circuit routes alongside room groupings.

Electricians often recommend distributing loads evenly across the panel to reduce overheating risks and improve service life.

Reducing Wiring Complexity Through Smart Layouts

Key Insight: The smartest electrical layouts minimize wire runs by aligning circuits with room clusters.

Wiring complexity directly affects installation cost. Long cable runs require more materials, more labor, and more opportunities for errors.

Strategies to simplify wiring:

1. Group outlets serving the same room onto nearby circuits.
2. Align switch locations with structural walls.
3. Reduce unnecessary cross‑room wiring.
4. Place panels in central positions when possible.

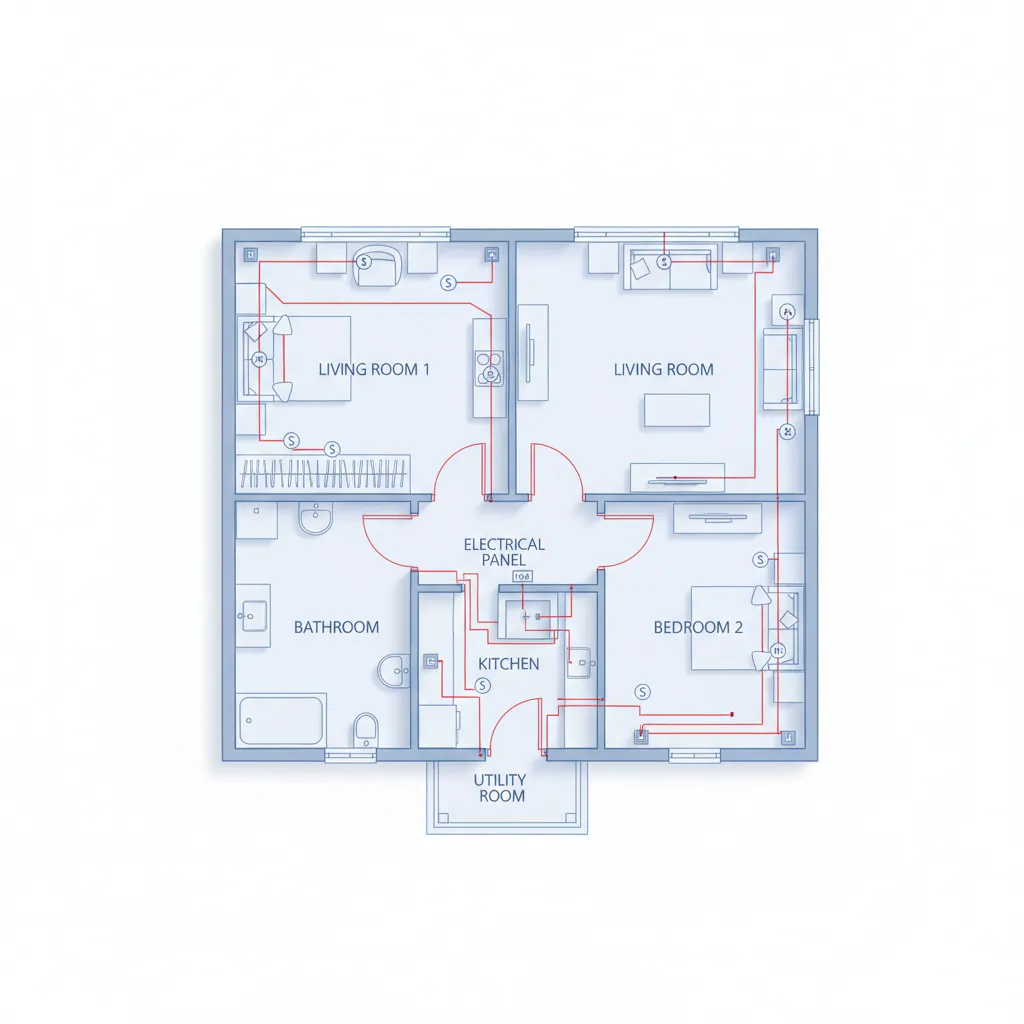

In larger homes, visualizing wiring efficiency in three dimensions helps identify overly complex runs. Many designers preview these relationships using a realistic 3D home visualization process for spatial planningto detect inefficient layouts early.

save pin

Final Optimization Checklist for Electrical Plans

Key Insight: A quick review checklist catches most electrical planning mistakes before construction begins.

Before finalizing an electrical floor plan, I run through a short checklist used across many of my residential projects.

Electrical layout optimization checklist:

1. All furniture zones have nearby outlets.
2. No outlets hidden behind built‑ins or appliances.
3. Lighting layers include ambient, task, and accent.
4. High‑load appliances have dedicated circuits.
5. Switches are placed at natural entry points.
6. Wiring routes follow logical room clusters.

These simple checks eliminate most functionality issues homeowners experience later.

Final Summary

1. Optimize outlet placement around furniture and device usage zones.
2. Layer ambient, task, and accent lighting for balanced illumination.
3. Distribute electrical loads evenly across circuits.
4. Simplify wiring routes to reduce installation complexity.
5. Review electrical plans with a practical usability checklist.

FAQ

How many outlets should a living room have?

Most living rooms require 6–10 outlets depending on size, media equipment, and furniture layout.

What is the standard outlet spacing in residential floor plans?

The NEC typically requires outlets every 12 feet along walls, but optimized designs often add more in high‑use zones.

How do you optimize outlet placement in a floor plan?

Start with furniture layout and device clusters. Place outlets within reach of real usage points rather than relying solely on spacing rules.

What lighting should be included in an electrical plan?

A complete plan includes ambient lighting, task lighting, and accent lighting to support both function and mood.

Can too many outlets overload a circuit?

Yes. The issue isn’t outlet count but total electrical load. Balance circuits and use dedicated lines for high‑power appliances.

Should lighting and outlets be on separate circuits?

In most homes, separating lighting and outlet circuits improves reliability and simplifies troubleshooting.

What is the biggest mistake in electrical floor plans?

The most common mistake is planning outlets before furniture layout, which leads to poorly positioned power points.

Why is lighting layout important in an electrical floor plan?

A thoughtful lighting layout design electrical plan improves usability, visual comfort, and overall interior atmosphere.
