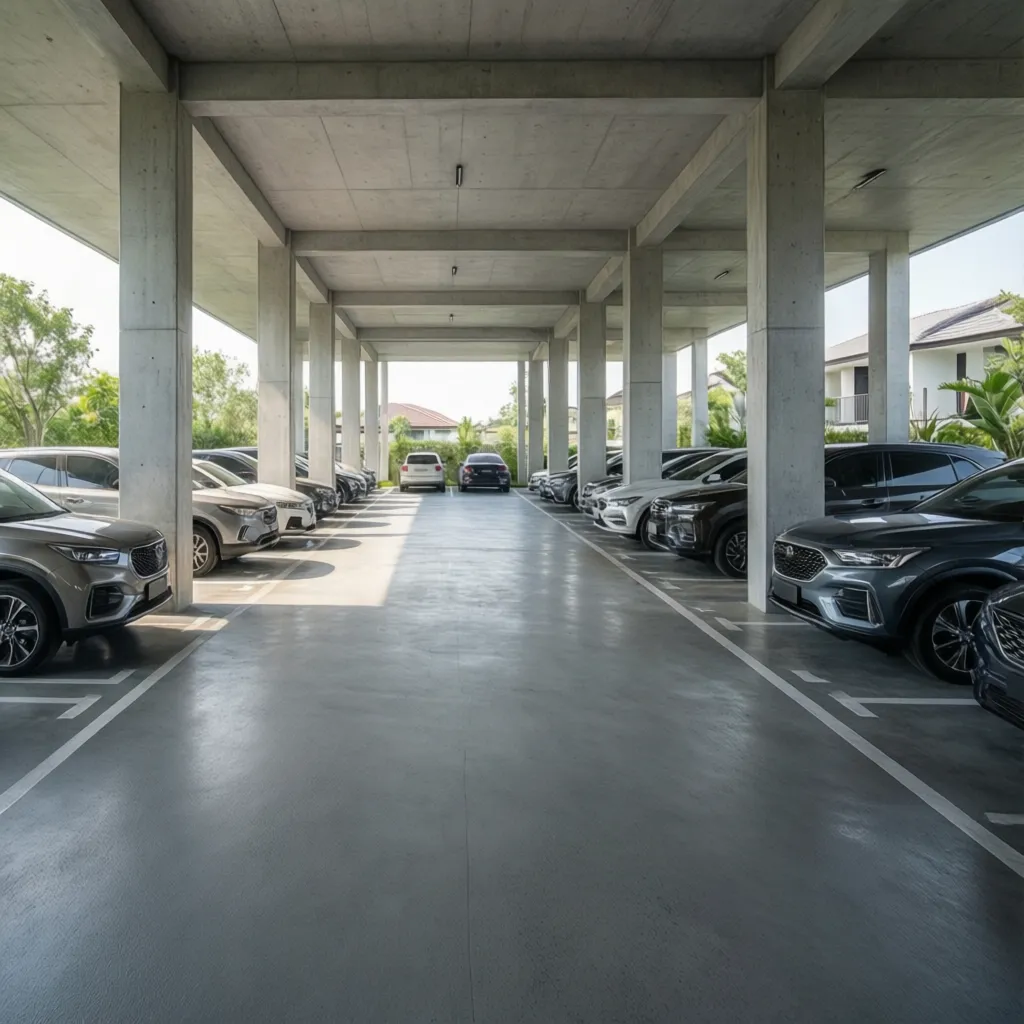

How to Optimize Parking Layout in a Stilt Floor Plan: Practical design strategies to increase parking capacity and improve vehicle circulation in stilt floor buildings

Direct Answer

Optimizing a parking layout in a stilt floor plan requires balancing structural column placement, vehicle turning radius, and traffic flow. The most efficient layouts align parking bays with the structural grid, maintain clear circulation aisles, and minimize dead zones created by poorly placed columns.

When done correctly, a well‑planned stilt floor parking design can increase usable parking capacity by 15–30% without changing the building footprint.

Quick Takeaways

1. Align parking bays with structural columns to avoid unusable corner spaces.
2. Maintain at least 6–7 meters for two‑way drive aisles in residential buildings.
3. Avoid placing columns at parking bay centers where doors need clearance.
4. Use angled parking when site width limits maneuvering space.
5. Lighting and ventilation dramatically affect usability and safety.

Introduction

In many residential projects I’ve worked on across California and Southeast Asia, the stilt floor parking layout is where design mistakes quietly accumulate. On paper it looks simple: a grid of columns with cars parked between them. But once residents start using the space, problems appear fast—tight turning angles, blocked parking bays, awkward dead corners, or circulation conflicts during peak hours.

After designing dozens of apartment and mixed‑use projects, I’ve learned that the difference between a frustrating parking floor and a highly efficient one often comes down to early layout decisions. Small adjustments in column spacing, aisle width, and turning geometry can dramatically increase usable parking space.

If you're experimenting with layouts, using a visual planning tool while testing different structural grids helps avoid costly mistakes. I often recommend starting with a visual floor planning workflow for testing parking layoutsbefore the structural drawings are finalized.

In this guide, I’ll walk through the practical decisions architects and developers use to optimize parking planning for stilt floor buildings—from column placement to traffic flow.

save pin

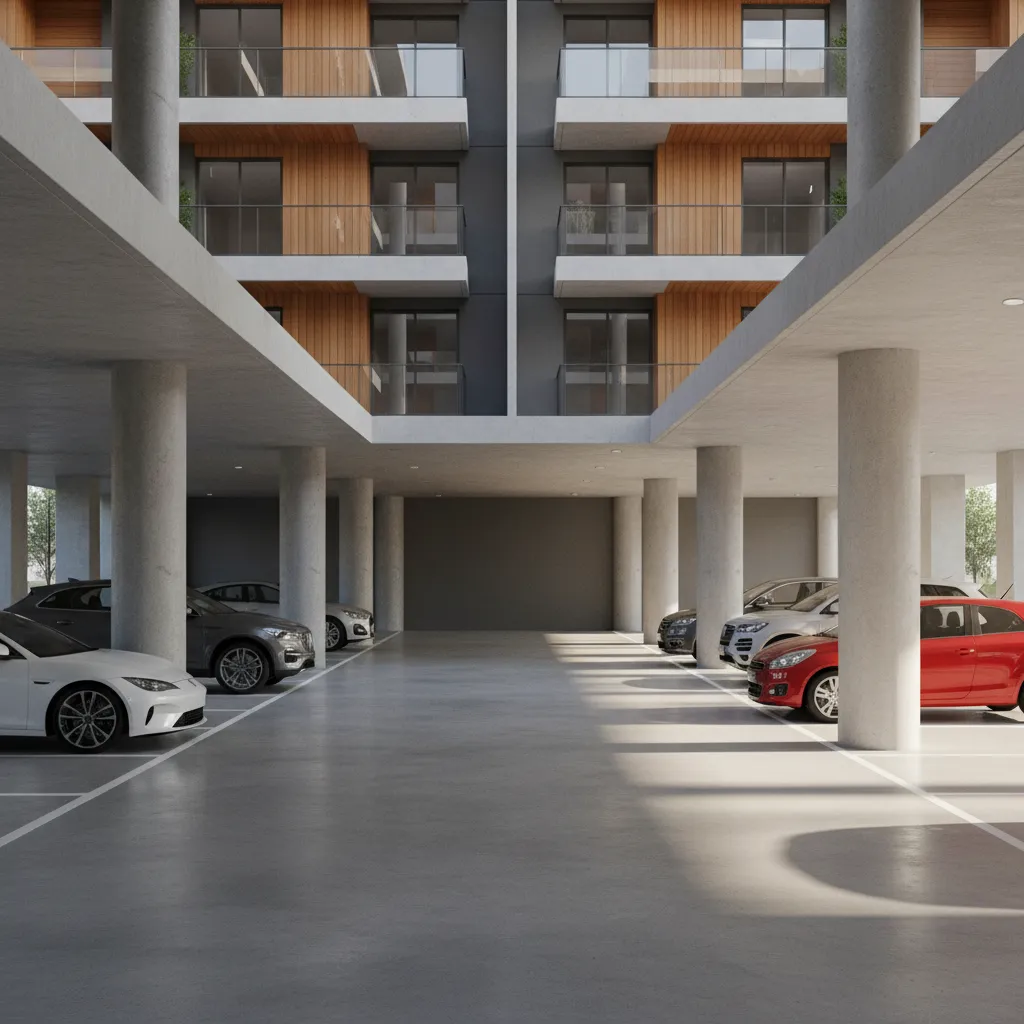

Parking Design Basics for Stilt Floor Buildings

Key Insight: Efficient stilt floor parking starts with aligning the structural grid to standard parking dimensions.

Most inefficient layouts come from treating parking as an afterthought after structural design. In reality, parking modules should influence column spacing from the beginning.

Standard parking dimensions commonly used in residential buildings:

1. Parking bay width: 2.4–2.7 m
2. Parking bay length: 4.8–5.5 m
3. Two‑way drive aisle: 6–7 m
4. Single‑lane aisle: 3.5–4 m

A typical efficient module looks like this:

1. Parking bay
2. Drive aisle
3. Parking bay opposite

Many municipal building codes—including guidance from the International Parking & Mobility Institute—recommend keeping circulation aisles wide enough to accommodate SUVs and emergency access.

Ignoring this early usually leads to awkward turning areas and unusable bays near ramps.

Column Placement and Space Efficiency

Key Insight: Poorly positioned columns can eliminate up to 25% of usable parking space even if the floor area remains unchanged.

Columns are the biggest constraint in stilt parking design. The goal is simple: place them where they interfere the least with vehicle doors and maneuvering.

Best practices I consistently apply:

1. Align columns with the boundary between parking bays
2. Avoid placing columns in the center of a parking space
3. Use wider column spacing where possible (7.5–8.5 m grids work well)
4. Protect columns with wheel guards to prevent impact damage

One overlooked issue is door clearance. Even when a parking space technically fits between columns, drivers may not be able to fully open doors.

This is why experienced architects slightly offset columns behind wheel lines rather than along door openings.

save pin

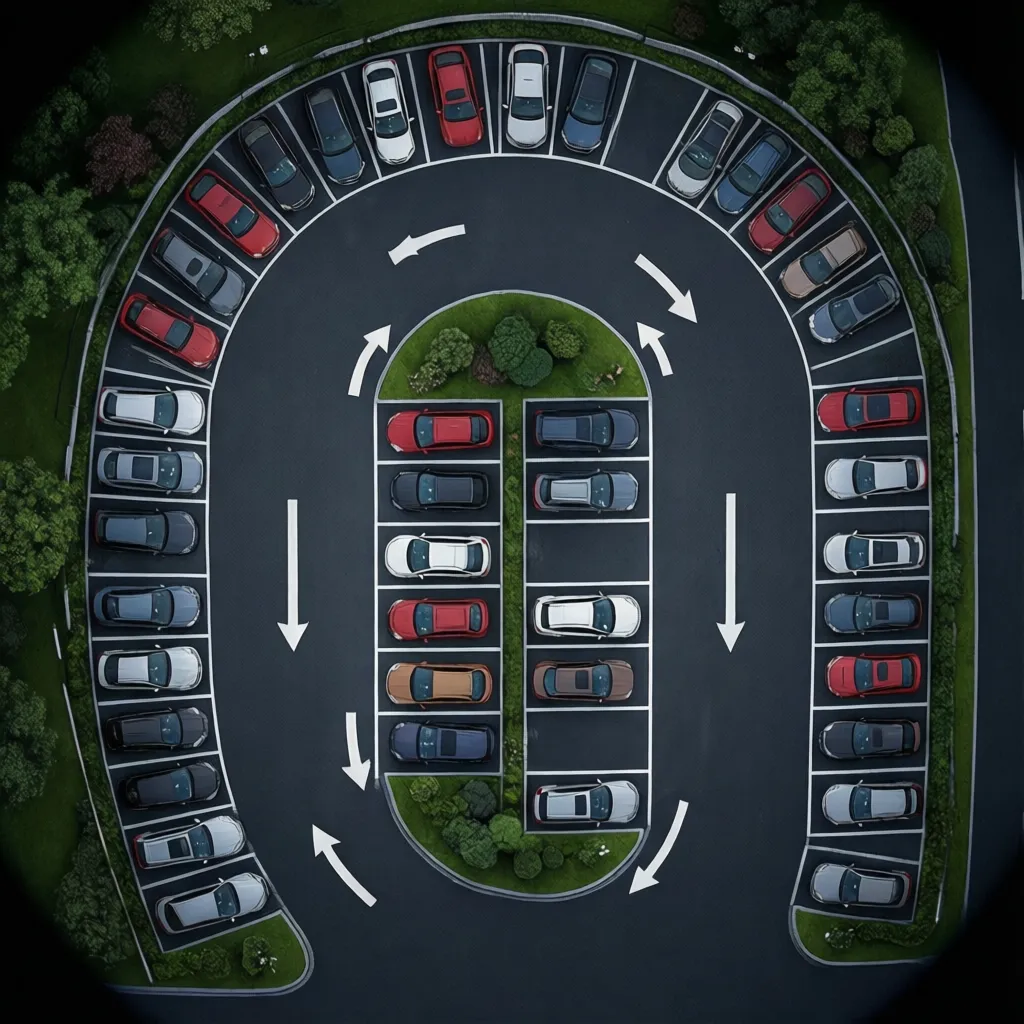

Vehicle Turning Radius and Traffic Flow Planning

Key Insight: Traffic flow design often determines usability more than the number of parking spaces.

A parking area that technically fits 20 vehicles but causes daily congestion is a design failure.

Vehicle turning radius guidelines commonly used in residential planning:

1. Minimum inner turning radius: 5 m
2. Comfortable turning radius: 6–7 m
3. Ramp transition space: at least 6 m clear

Three traffic layouts usually work best in stilt parking:

1. Linear two‑way aisle
2. One‑way loop circulation
3. Central aisle with perpendicular parking

For early planning stages, I often sketch several circulation options using a 3D layout simulator for testing vehicle movement. Visualizing turning paths helps detect problem areas long before construction.

The biggest mistake I see developers make is ignoring delivery vehicles, garbage trucks, or large SUVs when designing circulation.

save pin

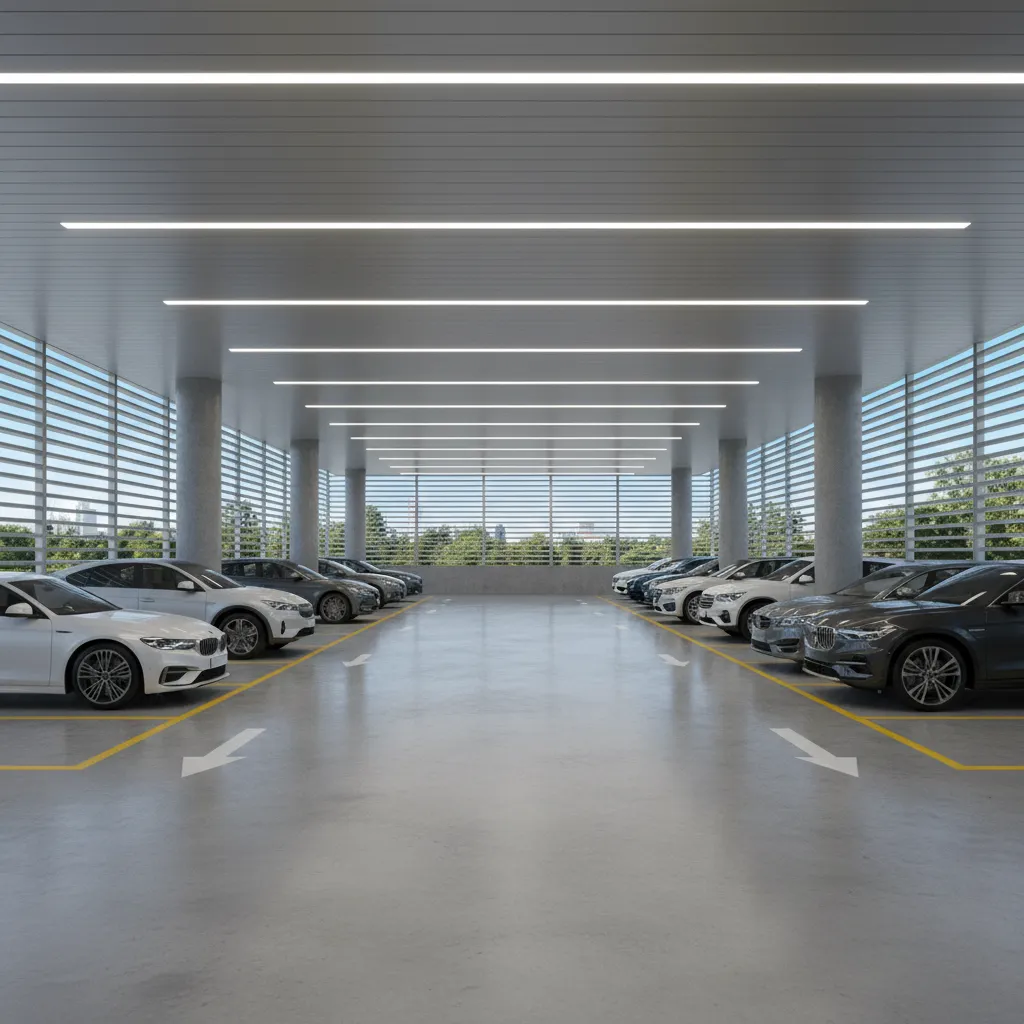

Lighting and Ventilation for Stilt Parking Areas

Key Insight: Well‑designed lighting and airflow significantly improve safety, comfort, and perceived building quality.

Because stilt floors are partially open structures, they often rely on natural ventilation rather than mechanical systems.

Effective strategies include:

1. Open perimeter walls instead of solid enclosures
2. Light‑colored ceilings to reflect light
3. LED strip lighting along drive aisles
4. Motion‑sensor lighting in low‑traffic areas

The Illuminating Engineering Society recommends maintaining around 75–100 lux for parking circulation zones to maintain visibility and safety.

Poor lighting makes parking feel unsafe—even when the layout itself works well.

Maximizing Parking Capacity Without Structural Risk

Key Insight: The safest way to increase parking capacity is through layout optimization, not reducing column sizes or structural supports.

Developers sometimes try to increase parking capacity by altering structural elements. That approach is risky and expensive.

Instead, capacity can often be increased through:

1. Angled parking layouts (45° or 60°)
2. Shared maneuvering aisles
3. Compact vehicle spaces
4. Motorcycle parking zones
5. Optimized ramp placement

In one apartment project I worked on in Irvine, adjusting the parking orientation from perpendicular to 60‑degree angled bays increased usable spaces from 34 to 41 without changing the structure.

Answer Box

The most efficient stilt floor parking layouts align parking modules with structural columns, maintain proper turning radii, and ensure clear traffic circulation. Small adjustments in column placement and aisle width often increase parking capacity without structural changes.

Design Tips for Residential and Apartment Buildings

Key Insight: Residential parking works best when it prioritizes everyday convenience rather than theoretical capacity.

Apartment buildings have different parking behavior patterns compared with commercial garages.

Practical design tips from real projects:

1. Place visitor parking near entrances
2. Keep ramp access separate from main circulation when possible
3. Avoid blind corners around structural cores
4. Provide dedicated bicycle or scooter parking
5. Clearly mark directional arrows and parking numbers

If you're planning larger residential projects, mapping out circulation together with building entrances using an interactive layout tool for testing circulation and parking flowcan reveal conflicts between pedestrian paths and vehicle movement early in the process.

save pin

Final Summary

1. Efficient stilt parking begins with structural grid alignment.
2. Column placement directly impacts usable parking capacity.
3. Traffic flow design matters more than raw space count.
4. Lighting and ventilation influence safety and usability.
5. Smart layout adjustments can increase parking by 20% or more.

FAQ

What is the ideal column spacing for stilt floor parking?

Typically 7.5–8.5 meters works well because it fits two parking bays and a drive aisle without obstructing doors.

How wide should a drive aisle be in stilt parking?

Two‑way aisles usually require 6–7 meters. One‑way circulation can work with around 3.5–4 meters.

How can I optimize stilt floor parking space in a small building?

Use angled parking, minimize dead corners, and align columns with parking bay edges to maximize usable spaces.

Is angled parking better for stilt floor parking layout design?

Yes in narrow sites. Angled layouts reduce turning difficulty and improve circulation, though they may require one‑way traffic flow.

Can columns be placed inside parking spaces?

It’s possible but not ideal. Columns inside parking bays limit door opening and make spaces difficult to use.

How many parking spaces fit in a typical stilt floor?

It depends on column grid and site width, but optimized layouts typically improve capacity by 15–30%.

Do stilt parking areas require ventilation systems?

Most rely on natural ventilation through open sides, but enclosed structures may require mechanical ventilation.

What is the biggest mistake in stilt parking design?

Designing structural columns first and trying to fit parking later. Parking modules should influence structural planning early.
